new design high definition COLPOSCOPY colposcope with great price KN 2200 gynecology Cervical Colposcopy Camera
- Category: >>>
- Supplier: Kernel Medical Equipment Co. Ltd.Kernel Ltd.
Share on (1600902150004):
Product Overview
Description

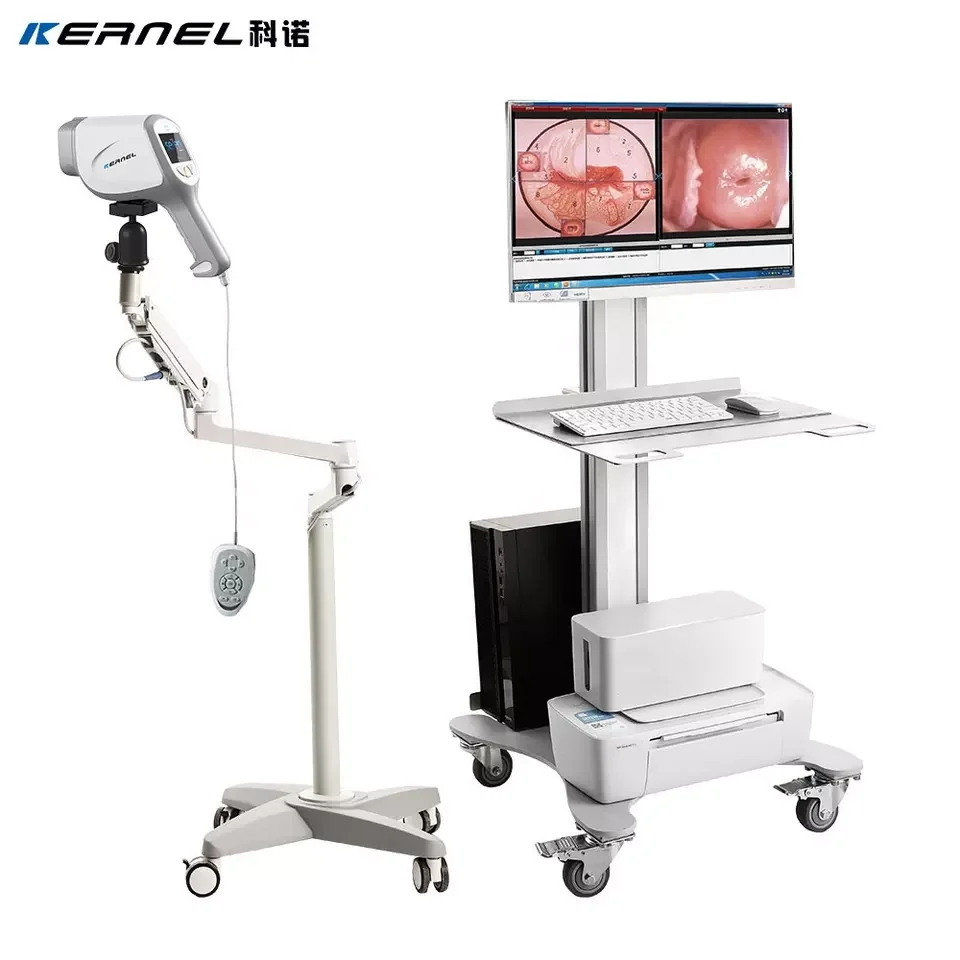

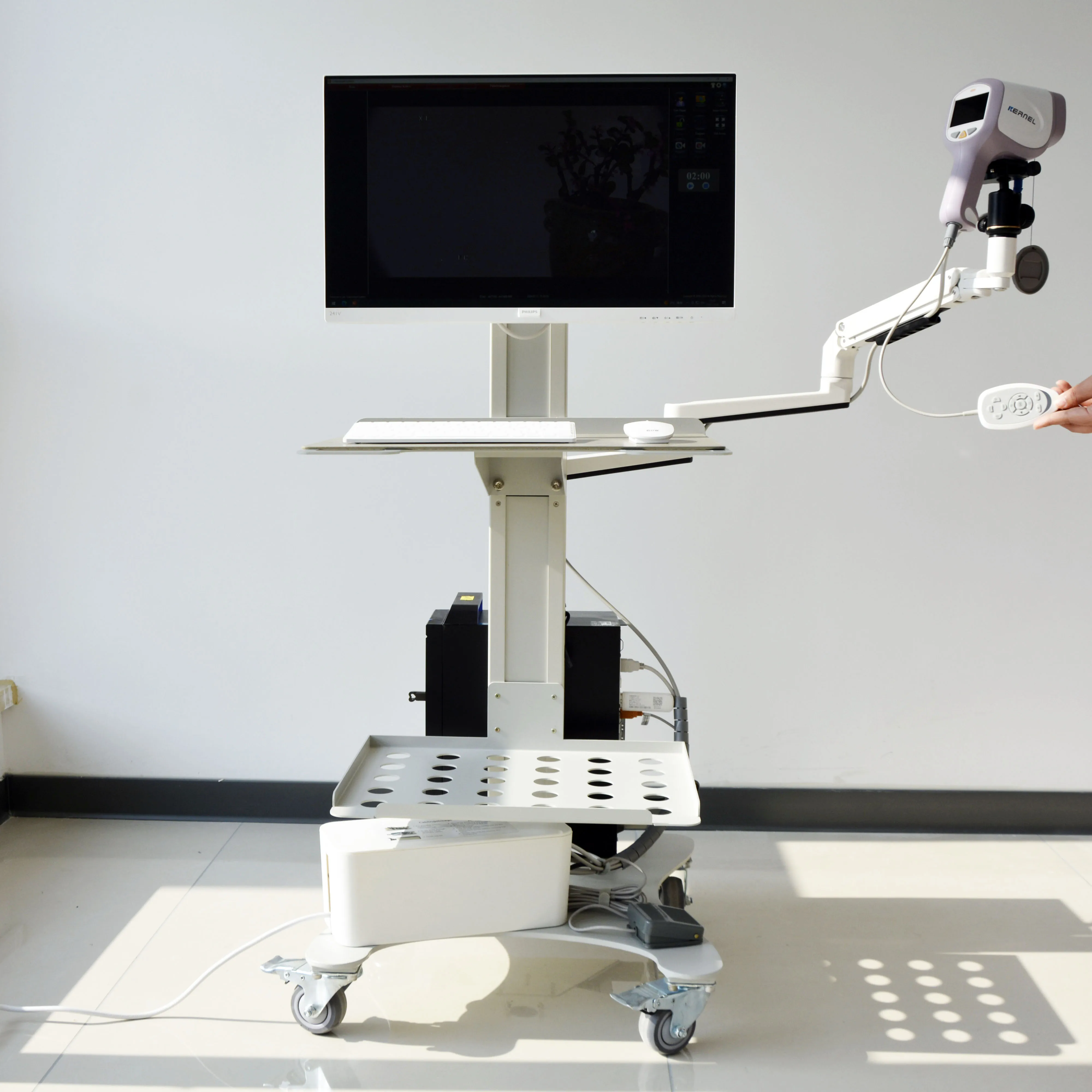

KN-2200 Video Colposcope Digital Colposcopy With LED Cold Lighting System Camera
Products Description
Using Sony's latest HD technology, 0.8 million effective pixels, 18 times optical zoom, with high-quality amplification effect can be clearly observed a variety of small pathological cells.
It can be accurately positioning the biopsy of the lesion site, help improve the dianosis of various cervial diseases, pre-canerous screening accuracy, reduce missed diagnosis.
Advanced spot subtraction imaging technology and optical image stabilization technology, reduce the light spot caused by the phenomenon of reflection and blurred images by len's shaking and offsetting.
Adopt Palm-type handle design, humanized operation panel, silicone button oval layout, can realize zoom, focus, imaging mode,
acetic acid timing, image marking, brightness adjustment and other functions with single hand.

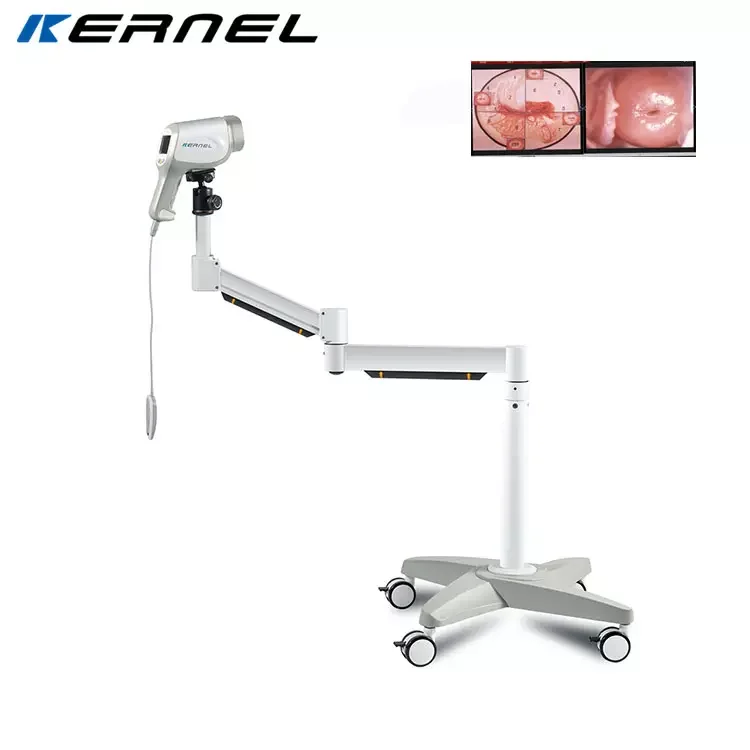

Full- damping bracket, 360°adjustment, can automatically hover at any Angle.
Camera | 1/4 inch Sony CCD |
Effective pixel | 800000 |
Zoom | System: 216x, optical: 18x, digital: 12x |
Horizontal resolution | 1080p/25, 1080p/30 |
Focus mode | Auto focus, manual focus |
Depth of field | 5.3mm～96.3mm |
Distance | 200～400mm |
Field of view | Ф23～420mm |
Color saturation | 95% |
Imaging Mode
High lighting important lesion tissuesand vessels for rapid retrievalof pathological tissue.
Low color temperature imaging technology, softer light for better
observation of epithelial tissue.
observation of epithelial tissue.
High color rendering index combined with unique imaging technology, more
realistic restore organization primaries
and detail of levels.
realistic restore organization primaries
and detail of levels.
Four-stage green light mode for enhanced micro-vascular recognition, hight lighting vascular details.
In the observation of body fluid moretissue, can reduce the light spot caused by the reflective phenomenon.
LED White Light Spectrum Graphs
Use high color rendering, high brightness LED light source,significantly improves the contrast and level of detail of the surface of the cervical tissue.
Color rendering index≥95, highlight refers to the LED withunique imaging technology. More realistic reduction of tissue color and level of details.
Software characteristics
Imaging Acquisition
Foot switch and software two kinds of acquisition, video recording mode. The image can be dynamic, static,
full-screen capture. Each check can collect 100 color images
Image Procession
With the dynamic, static comparison of function, could be compared with the standard graph, the captured image can be
enlarged, reduced, negative image, marketing, text labeling, local amplification, area circumference. More convenient for
doctors to indentify pathological changes.
Clinical Analysis
Professional patient case graphs(up to 175 types), and could add patient case picture to the standard graph repository for
easy clinical comparision. Professional clinical diagnostic knowledge base provides a large number of editable clinical
terms in conjunction with Rci's automated evaluation system to make the inspection more objective and accurate.
full-screen capture. Each check can collect 100 color images
Image Procession
With the dynamic, static comparison of function, could be compared with the standard graph, the captured image can be
enlarged, reduced, negative image, marketing, text labeling, local amplification, area circumference. More convenient for
doctors to indentify pathological changes.
Clinical Analysis
Professional patient case graphs(up to 175 types), and could add patient case picture to the standard graph repository for
easy clinical comparision. Professional clinical diagnostic knowledge base provides a large number of editable clinical
terms in conjunction with Rci's automated evaluation system to make the inspection more objective and accurate.
Report Editing
Comes with 19 standard patient case report
templates for easy editing and printing of case
reports. Could display 1~6 pictures on the same screen. Report template can be designed and modified and out put PFD file,
to provide the basis for prevention of medical
disputes.
Query Statistics
Cases can be queried in five ways, such as case number, name, barcode, date of birth and
date of examination. The retrieved cases could
be image display, data modification, preservation. Follow-up and video replay to
faciltate hospital information management and improve management efficiency.
templates for easy editing and printing of case
reports. Could display 1~6 pictures on the same screen. Report template can be designed and modified and out put PFD file,
to provide the basis for prevention of medical
disputes.
Query Statistics
Cases can be queried in five ways, such as case number, name, barcode, date of birth and
date of examination. The retrieved cases could
be image display, data modification, preservation. Follow-up and video replay to
faciltate hospital information management and improve management efficiency.
Company Profiles
Kernel Medical Equipment Co.,Ltd was set up in 1997, has focused on medical industry for 25 years. Kernel's main products include UV Phototherapy, LED photodynamic therapy and hair loss therapy. With our constant efforts, Kernel developed and produced many new product in 2018, including excimer laser 308nm targeted phototherapy,hair loss therapy, wood's lamp.
Except that, we also concentrated on colposcope and patient monitor for many years. With international advanced research and development test and quality control system, Kernel medical is also a designated supplier of the United Nations. We also have branch company in United States, marketing agencies in the United Kingdom, Spain, Singapore and other country.
Except that, we also concentrated on colposcope and patient monitor for many years. With international advanced research and development test and quality control system, Kernel medical is also a designated supplier of the United Nations. We also have branch company in United States, marketing agencies in the United Kingdom, Spain, Singapore and other country.
Also, we have more than thirty offices and three sales divisions and service centers in China.
Kernel products are widely recognized by clients from domestic and overseas. As a large-scaled stock enterprise, Kernel Medical dedicates itself to R&D, manufacturing, marking and service of hi-tech oriented medical equipment.
Kernel emphasizes the importance of market construction and expansion both at home and abroad. Now there are over hundreds of distributors in the domestic market and abroad. The excellent after sale service and flexible market operation mechanism enlarges and perfect its international networks of marketing and service.
Kernel emphasizes the importance of market construction and expansion both at home and abroad. Now there are over hundreds of distributors in the domestic market and abroad. The excellent after sale service and flexible market operation mechanism enlarges and perfect its international networks of marketing and service.
R&D
● Kernel has four R&D centers in Xuzhou, Nanjing and Shenzhen, China.
● More than 60 engineers in Kernel's R&D centers.
● Annual investment in R&D, more than 10% of sales.
● Deep cooperation with Philips to ensure the quality of light sources.
● Innovative application of electronic prescription concepts and continuous development of DC technology.
● Research and development of several new products every year, myopia treatment device and rhinitis treatment device will be launched soon!!!
5 national science projects
14 provincial science projects
84 Patents
QC
The QC Center has automated and intelligent laboratories with more than 300 sets of testing equipment for safety, electronic compatibility, reliability, etc., worth more than 10 million RMB.
● “Quality Cloud” management system
● Product lifecycle testing
● 24 hours quality telephone line
● Reverse traceability of quality issues
After Sales Service
Local after-sales service in USA, Russia, Japan, Germany, Australia, Singapore, Vietnam, Indonesia, etc.
● 7*24 hours online service
● Customized treatment plans by professional dermatologists
● Products warranty of 18 months
CE USA Certificate ISO13485
