Integrated Ultrasonic parking guidance sensor for commercial use with free designing
- Category: >>>
- Supplier: Shenzhen Jana Electronic Technology Co. Ltd.
Share on (1600902158932):
Product Overview
Description

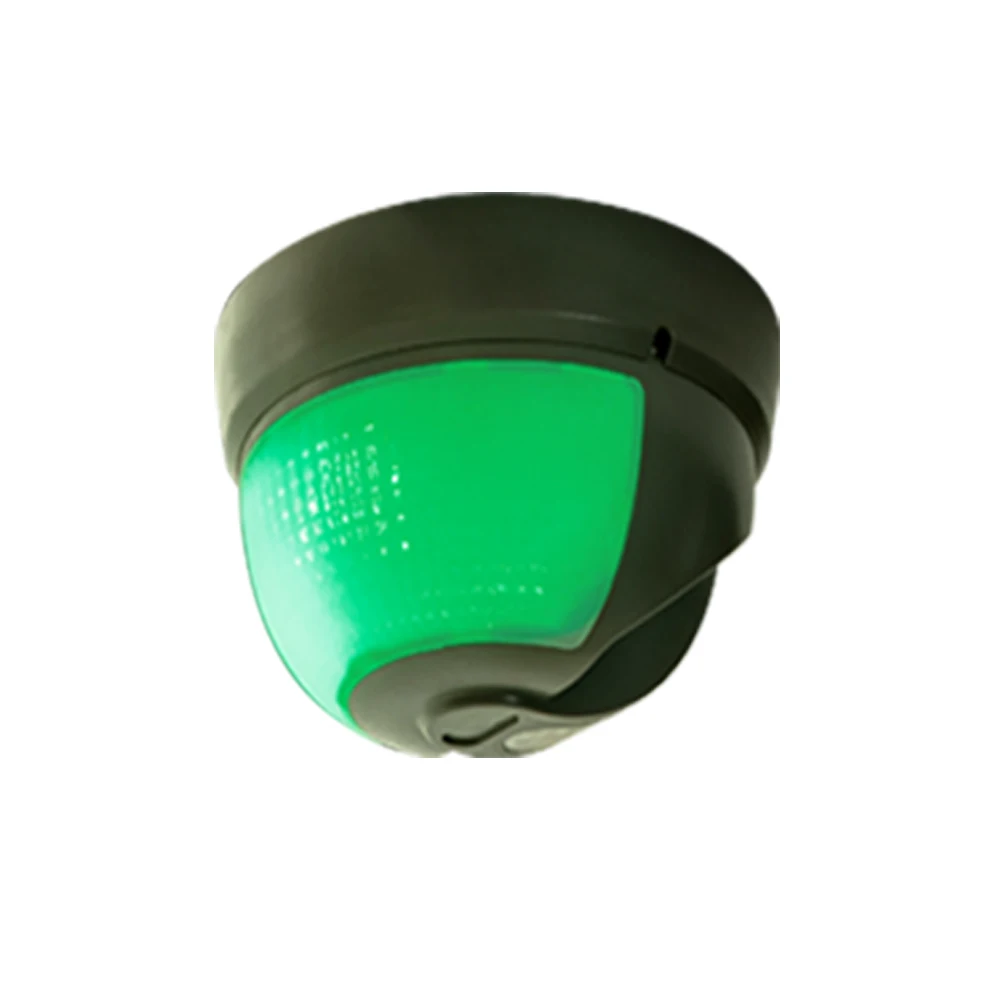

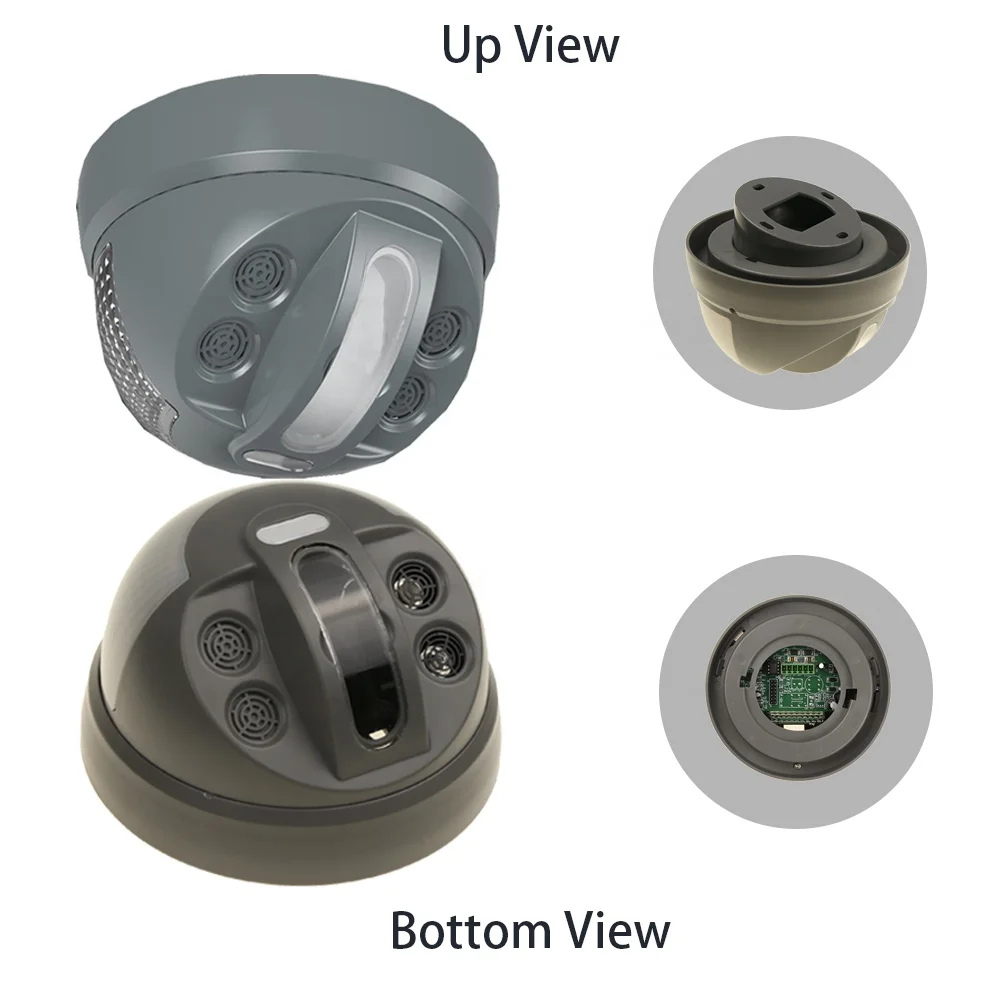

All-in-one Front Ultrasonic Sensor Parking Space Management Guidance System for Indoor Outdoor Car Park
Products Description
Name | Integrated Ultrasonic Sensor |
Detection Method | Ultrasonic Detecting |
Operating Voltage | DC18V~30V, Recommend：24V |
Typical Current | Red light 65mA Green light 56mA |
Communication Mode | RS485 Cable |
Detection Distance | 50-280 cm |
Size | 130*90 mm |
Working Temperature | -25℃ to 65℃ |
Application | Indoor Covered Parking Lots |
Model | Entrance Guidance Display DOS-320 |
Input Voltage | AC220V±10% /1A |
Output Voltage | DC12V/3A、DC5V/8A |
Interface | RS485 |
Baud Rate | 9600 bps |
Brightness | 256 level adjustable |
Temperature | - 20℃－65℃ |

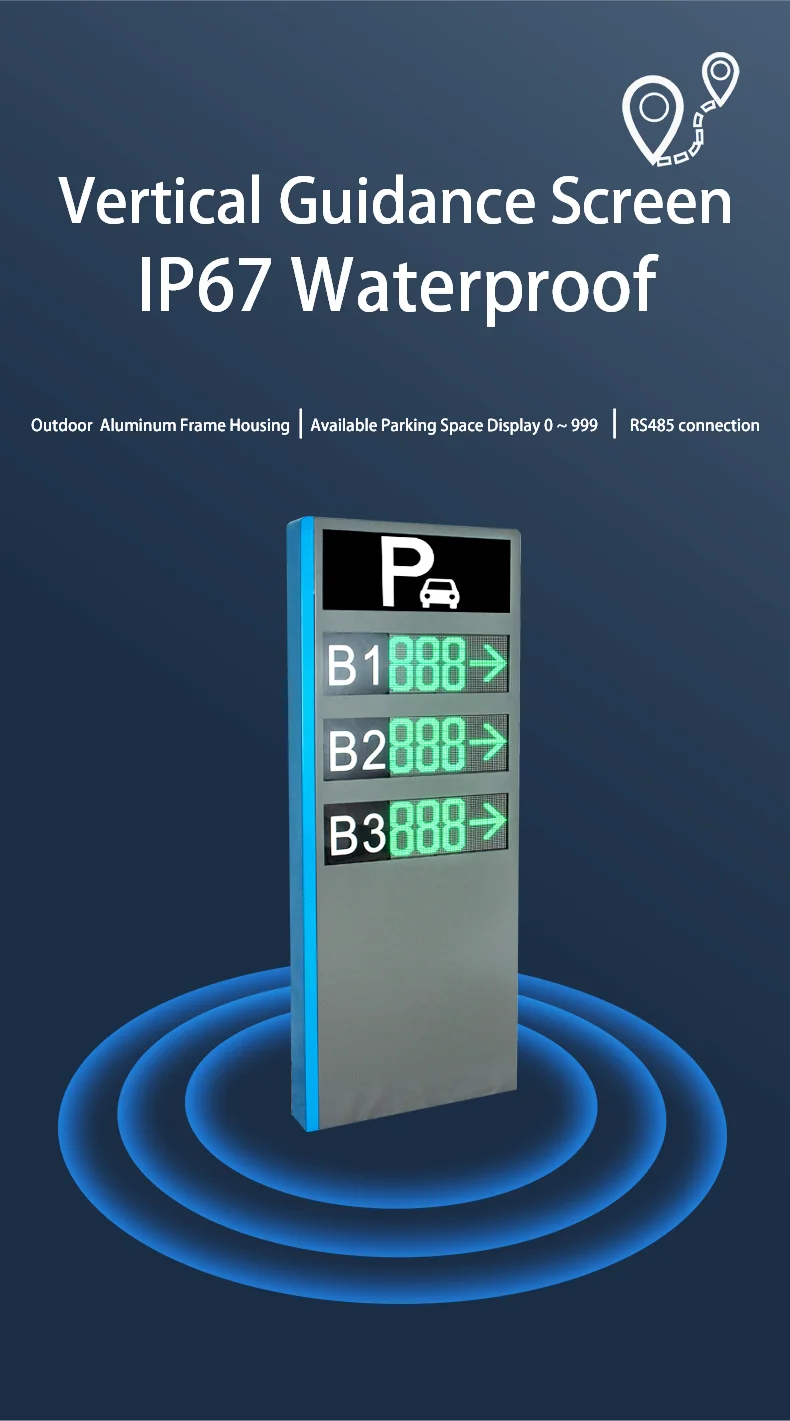

Size | 1600*550*150 mm |
Water Proof | IP67 |

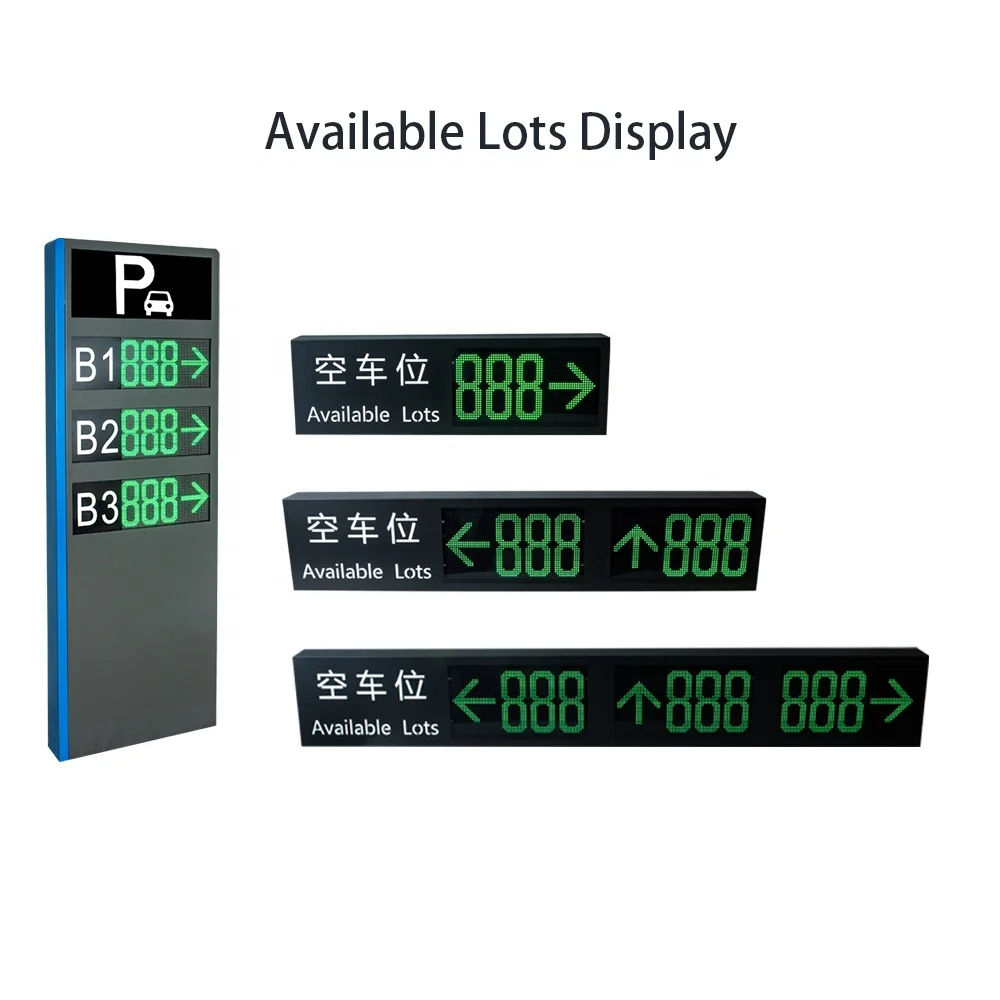

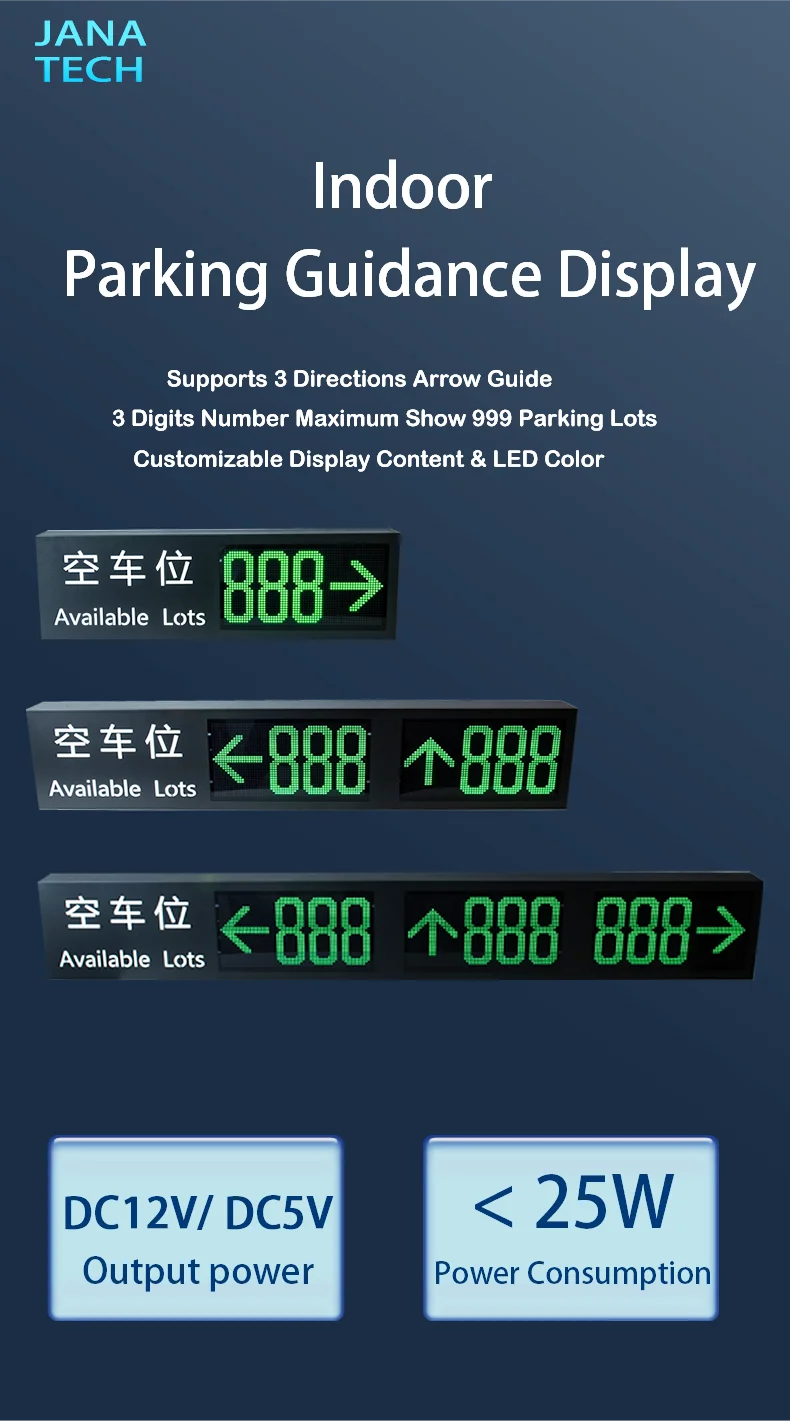

Model | Indoor Guidance Display DIS-215 |
Input Voltage | AC220V±10% /1A |
Interface | RS485 |
Brightness | 256 level adjustable |
Temperature | - 20℃－65℃ |
1 Direction Size | 700×210×80 mm |
2 Direction Size | 1080×210×80 mm |
3 Direction Size | 1460×210×80 mm |
LED Module | P4.75、64*32 dot array when number 0，show red color； Number as 1～9，show yellow color； Number above 10，show green color. |
Model Name | Parking guidance controller |
Input Voltage | AC220V±10% |
Communication | RS485 |

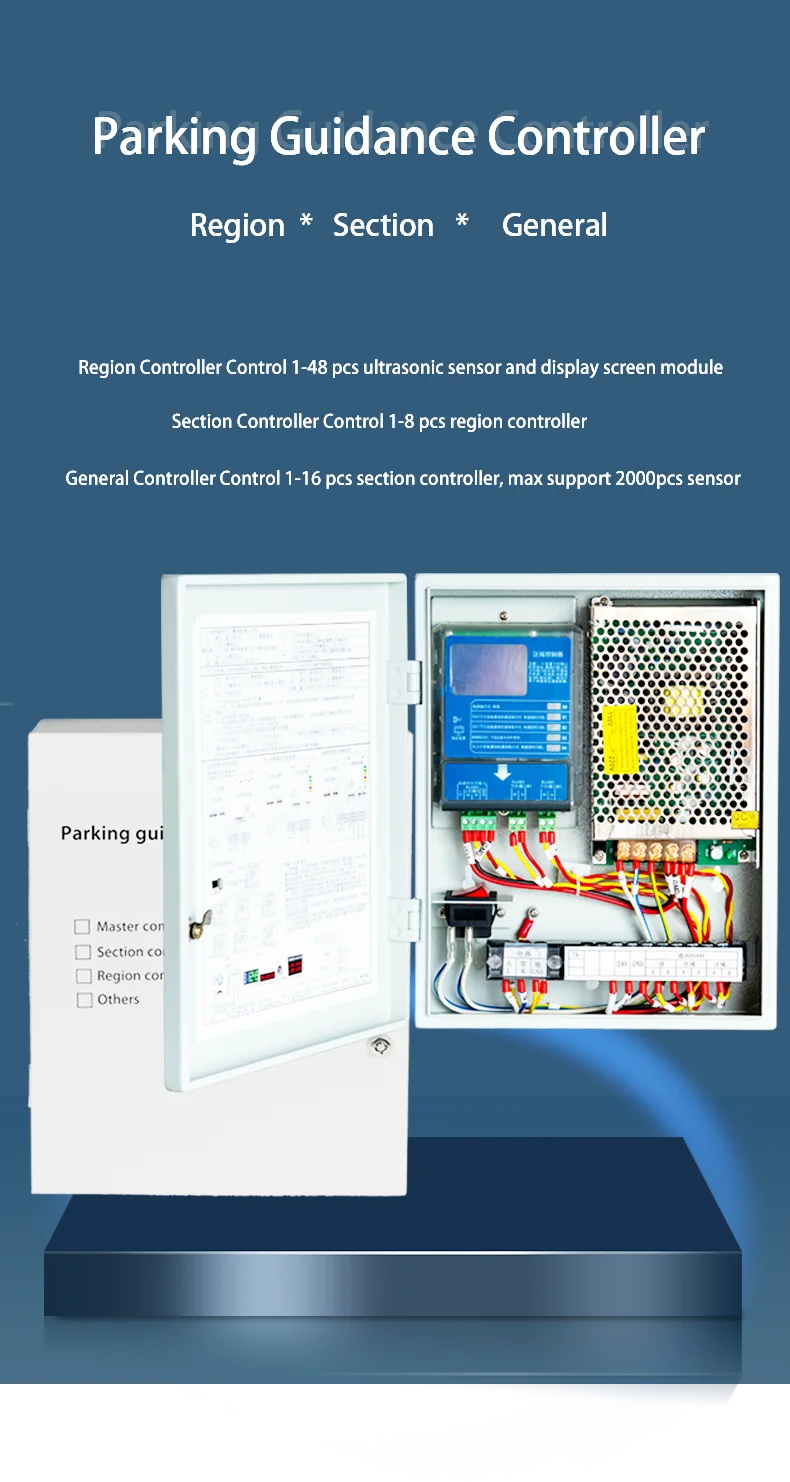

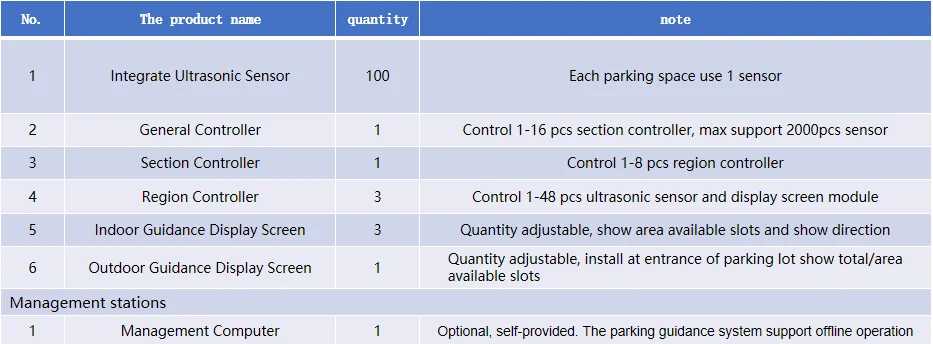

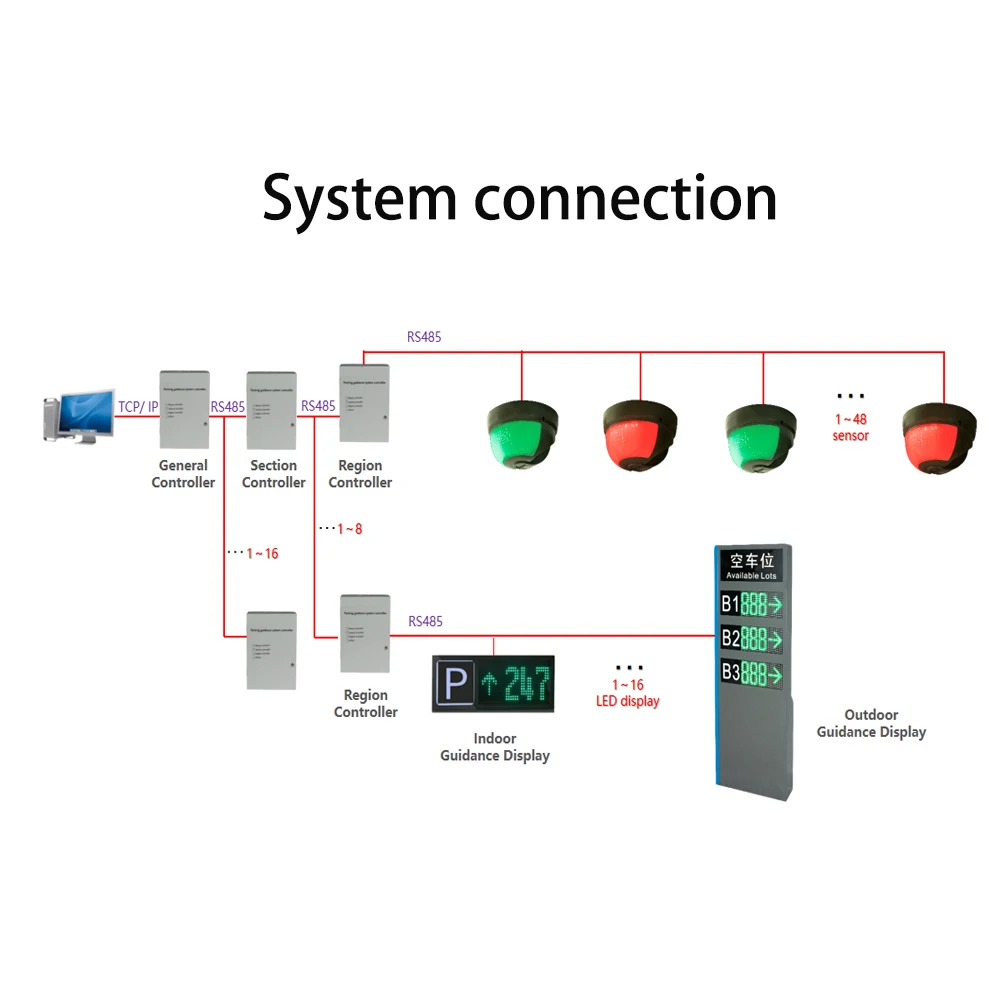

Capacity | 1 GCM connect 1-16pcs SCM 1 SCM connect 1-8pcs RCM 1 RCM connect 1-48 sensor/ LED |
Size | 260*200*58 mm |
System Description

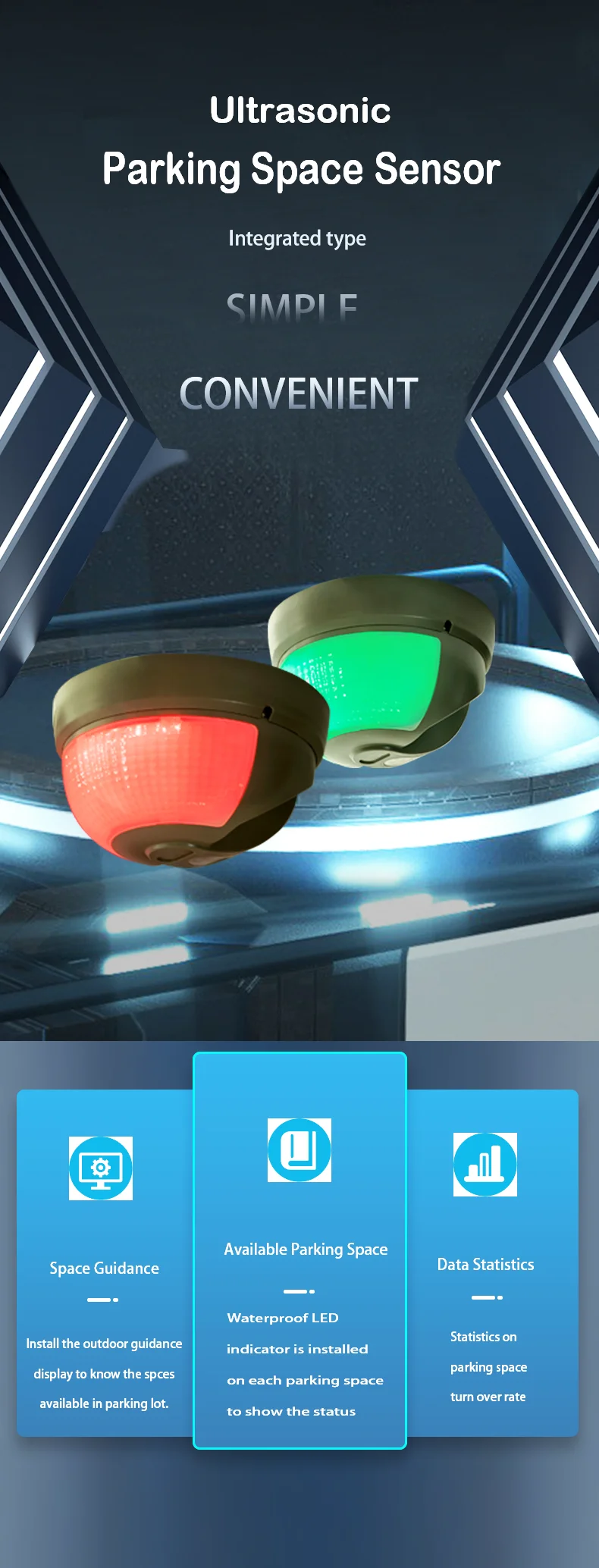

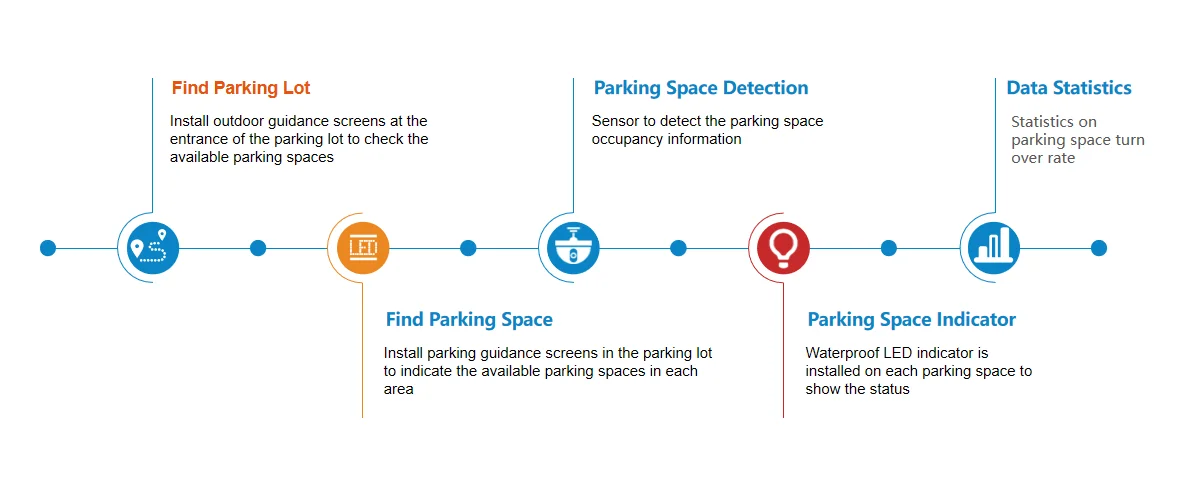

Parking Lot Detector use ultrasonic wave to detect parking lot occupancy information, and using LED
indicator to distinguish its status (RED is occupied, GREEN is available), which can guide the motorist to find space quickly and improve parking management level. At the same time send the status to the upper controller.
indicator to distinguish its status (RED is occupied, GREEN is available), which can guide the motorist to find space quickly and improve parking management level. At the same time send the status to the upper controller.
Product Paramenters

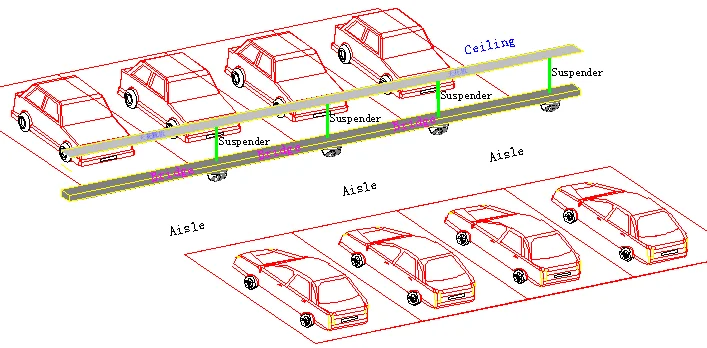

Installation Instructions

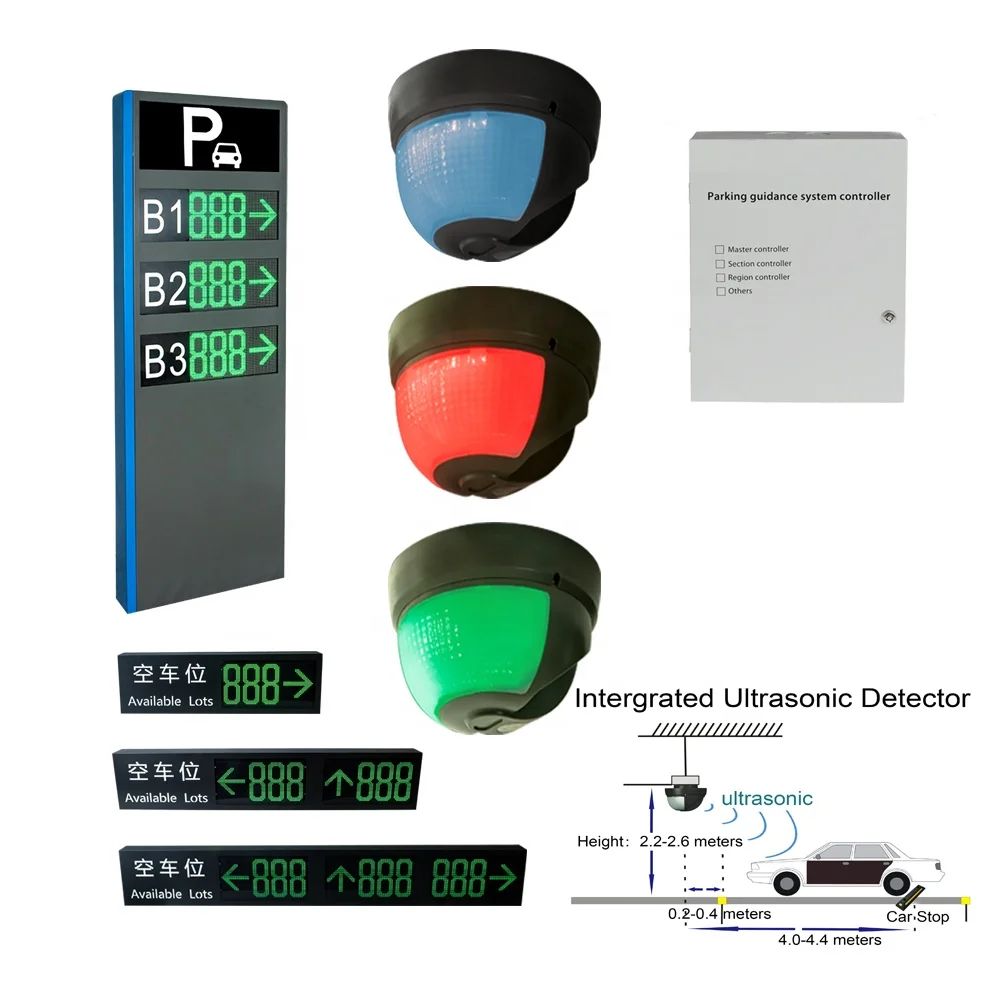

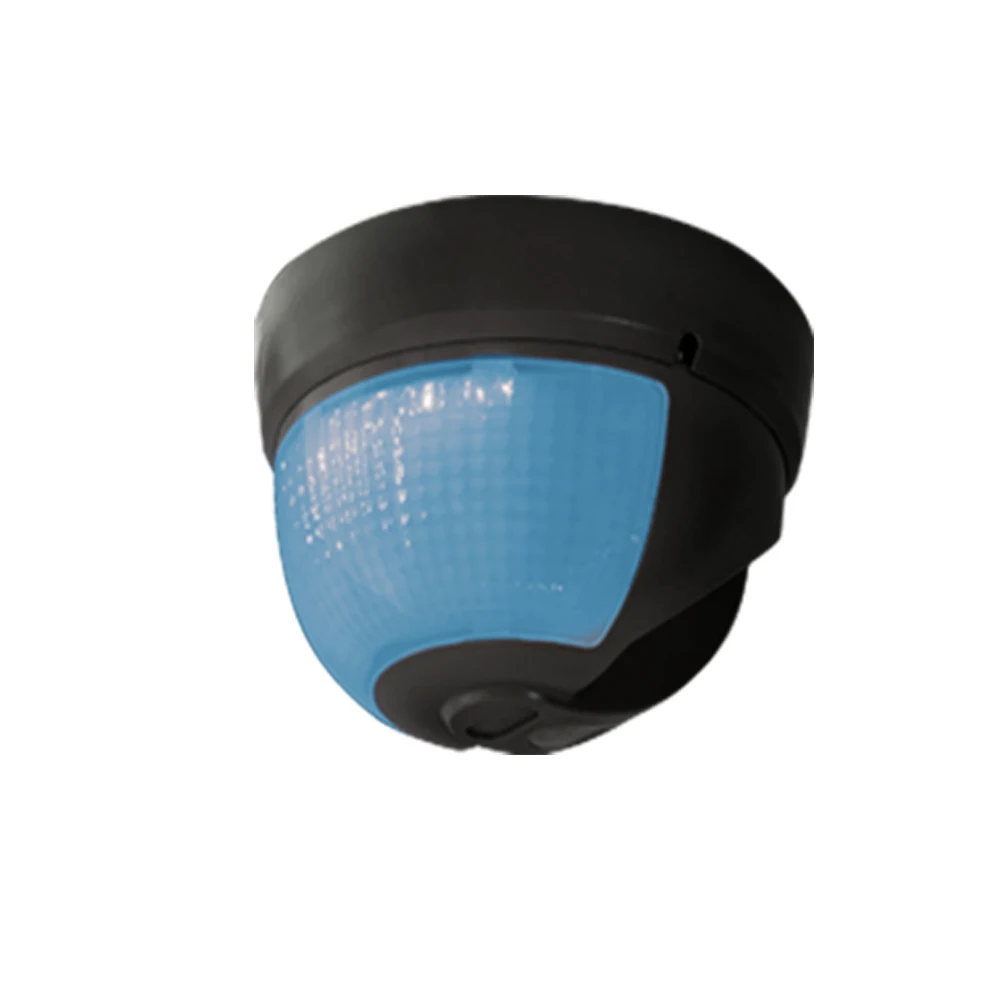

Intergrated Type Ultrasonic Sensor

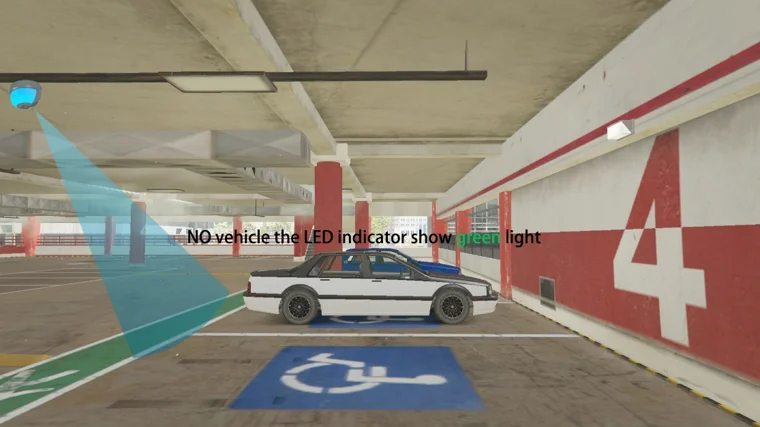

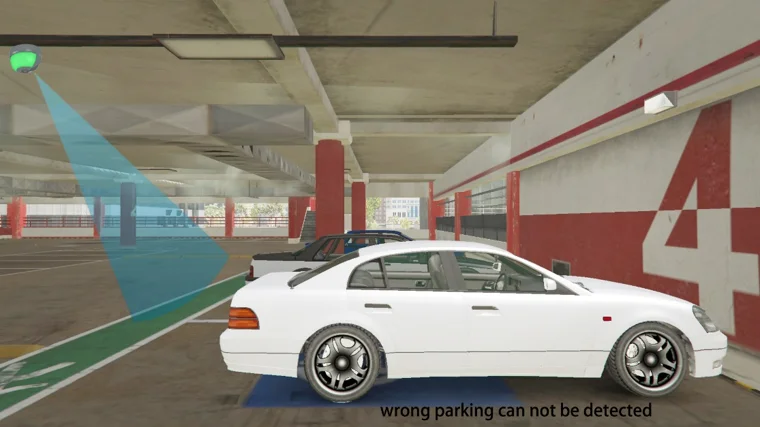

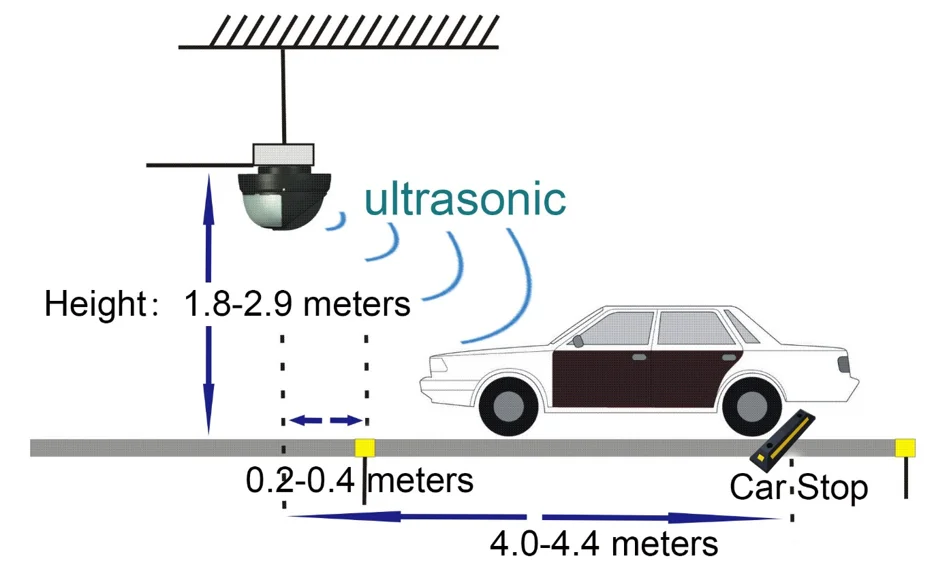

The integrate ultrasonic is install in the front of parking line, the sensor pointing to the car at an angle, if the car is park in a wrong way the sensor can't detect the vehicle, so the detection accurate rate is lower.
But the integrate sensor with built-in LED, only need to install one device, it can help to save the construction cost.

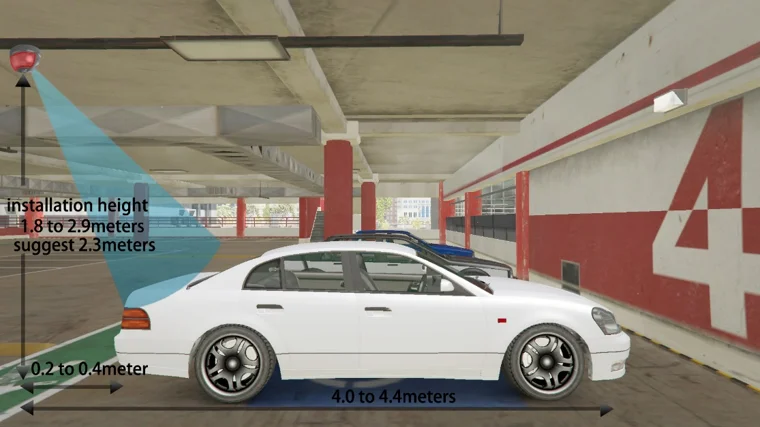

If installation height is above 2.9 meters, suggest use the split type ultrasonic sensor.
But the integrate sensor with built-in LED, only need to install one device, it can help to save the construction cost.
If installation height is above 2.9 meters, suggest use the split type ultrasonic sensor.
