Product Overview
Description

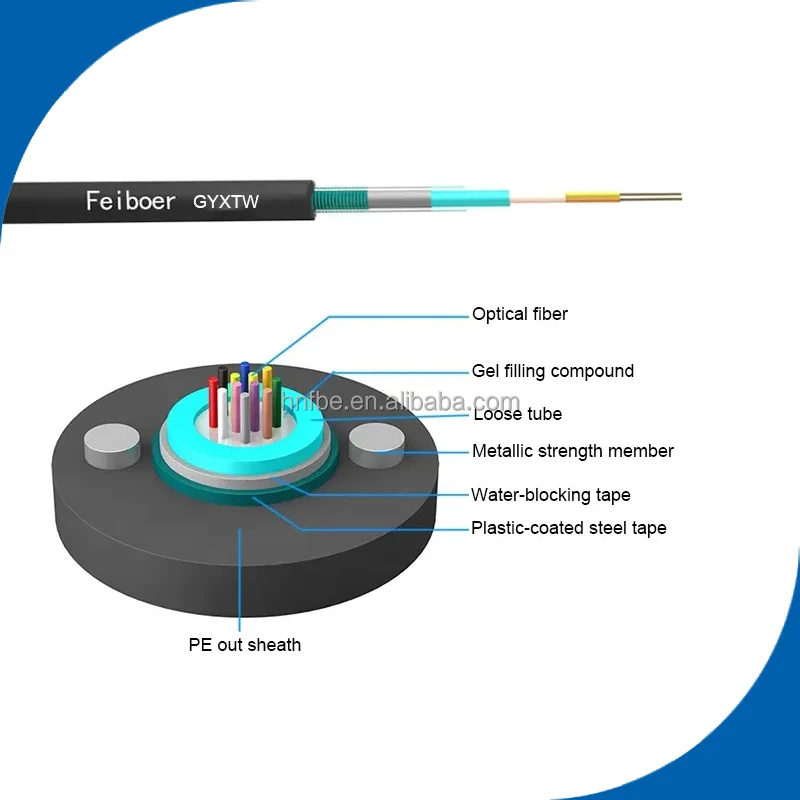

Characteristics:

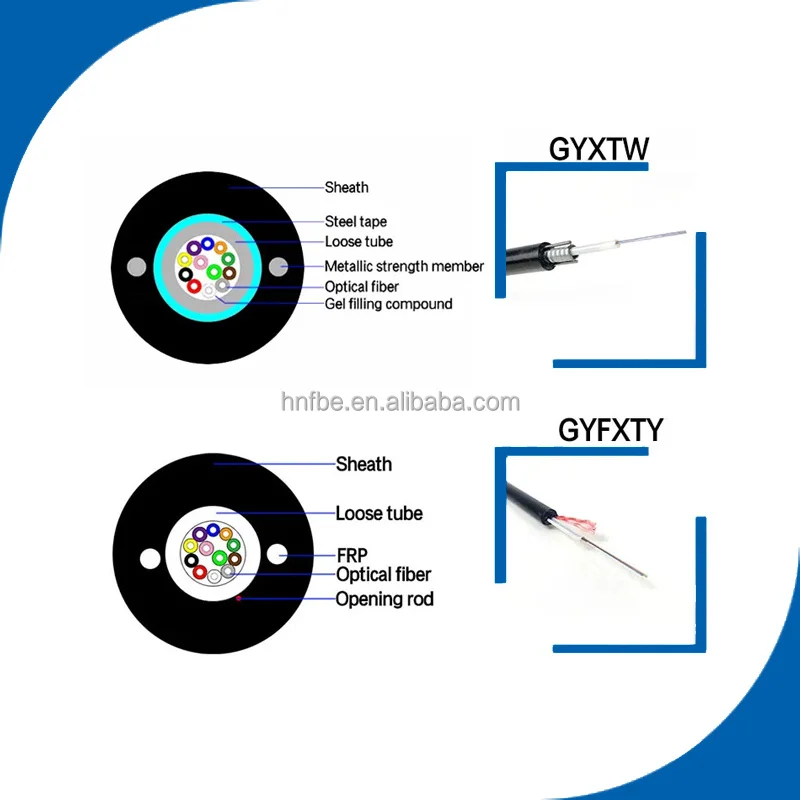

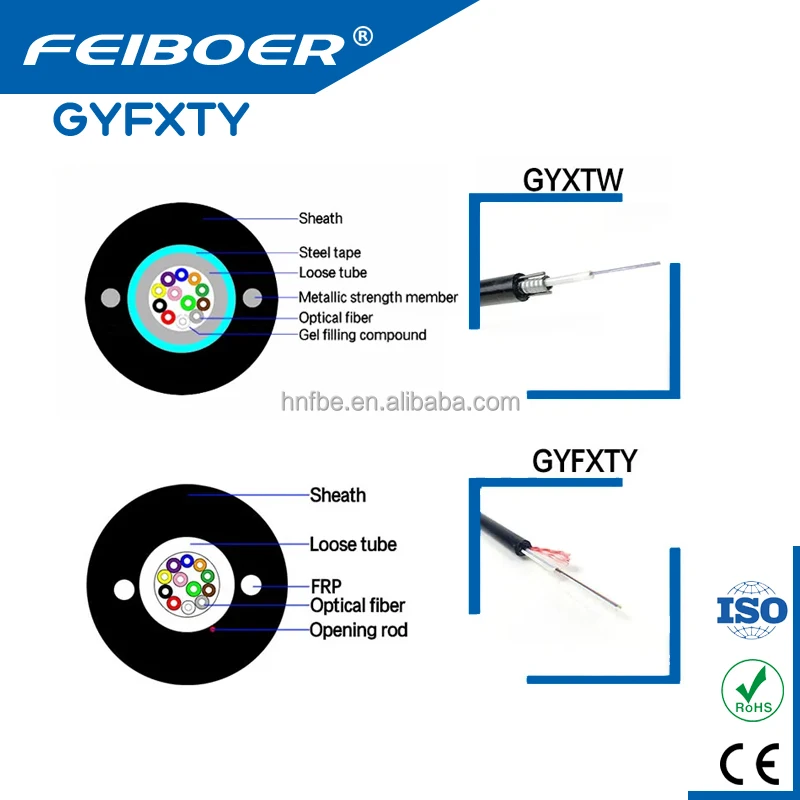

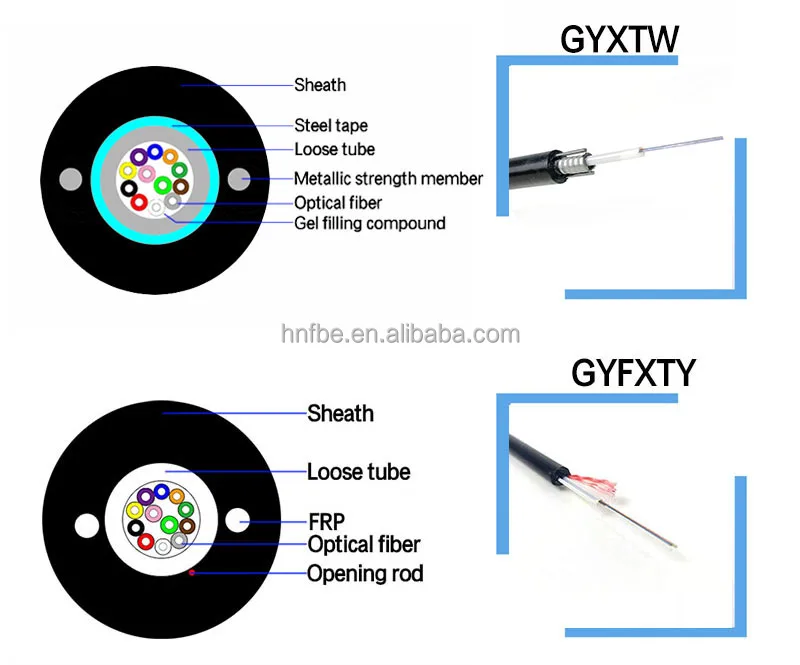

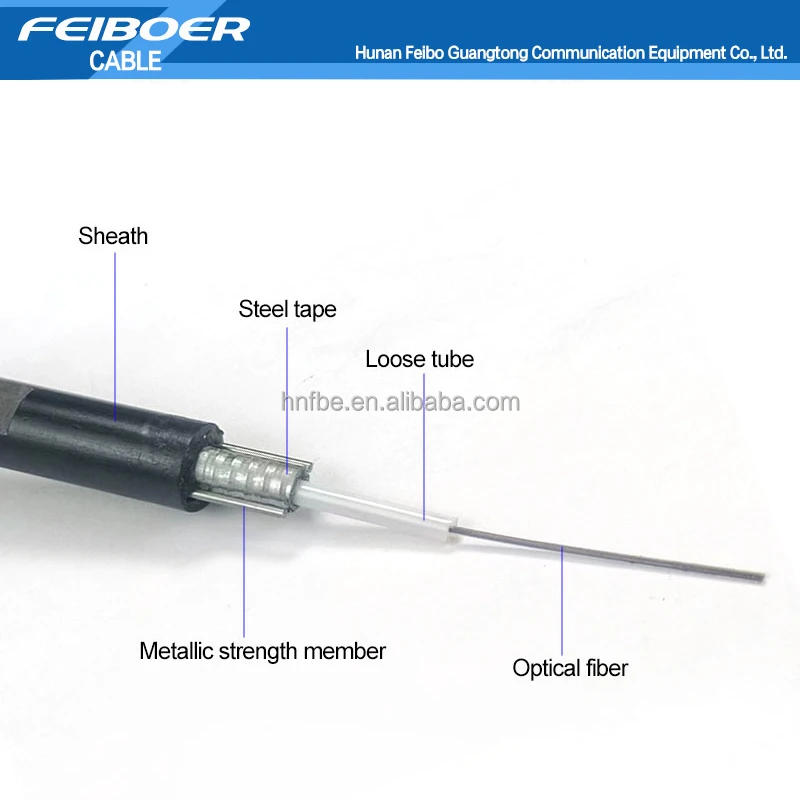

♦ The two parallel steel wire or FRP strength member provides enough tensile strength
♦ Uni-tube, special gel in the tube offers protection for the fibers Small diameter and light weight,easy for laying
♦ Anti-UV PE jacket
♦ Resistant to high and low temperature cycle temperature changes, resulting in anti-aging and longer life- span
Applications:
♦ Aerial/Duct
♦ Connecting communication equipments
♦ Indoor shaft,building wiring
Standard:
YD/T 769-2010
Specifications:
| Type | Attenuation(+20℃) | Bandwidth | Numerical aperture | ||||
| @850nm | @1300nm | @1310nm | @1550nm | @850nm | @1300nm | ||
| G.652 | --- | --- | ≤0.36dB/km | ≤0.22dB/km | --- | --- | --- |
| G.655 | --- | --- | ≤0.40dB/km | ≤0.23dB/km | --- | --- | --- |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | --- | --- | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | --- | --- | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA |
| Model | Fiber count | Cable diameter (mm) | Cable weight (kg/km) | Tension (N) | Crush (N/100mm) | Bendingradius (mm) | |||
| Long term | Short term | Long term | Short term | Static | Dynamic | ||||

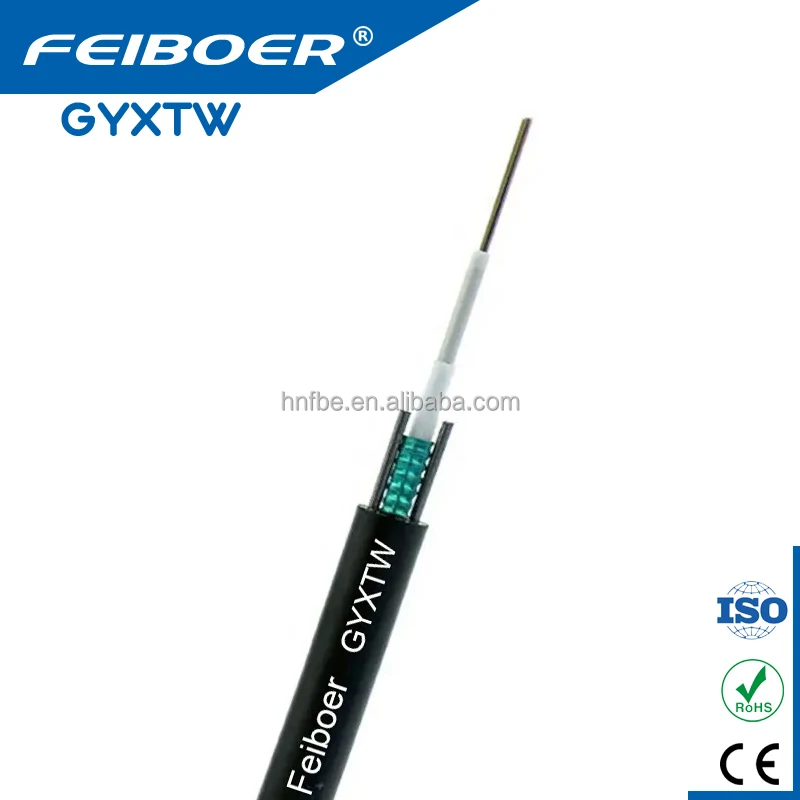

| GYXTW | 2-12 | 8.9 | 90 | 600 | 1500 | 300 | 1000 | 10D | 20D |
| GYXTW | 14-24 | 10.2 | 110 | 600 | 1500 | 300 | 1000 | 10D | 20D |

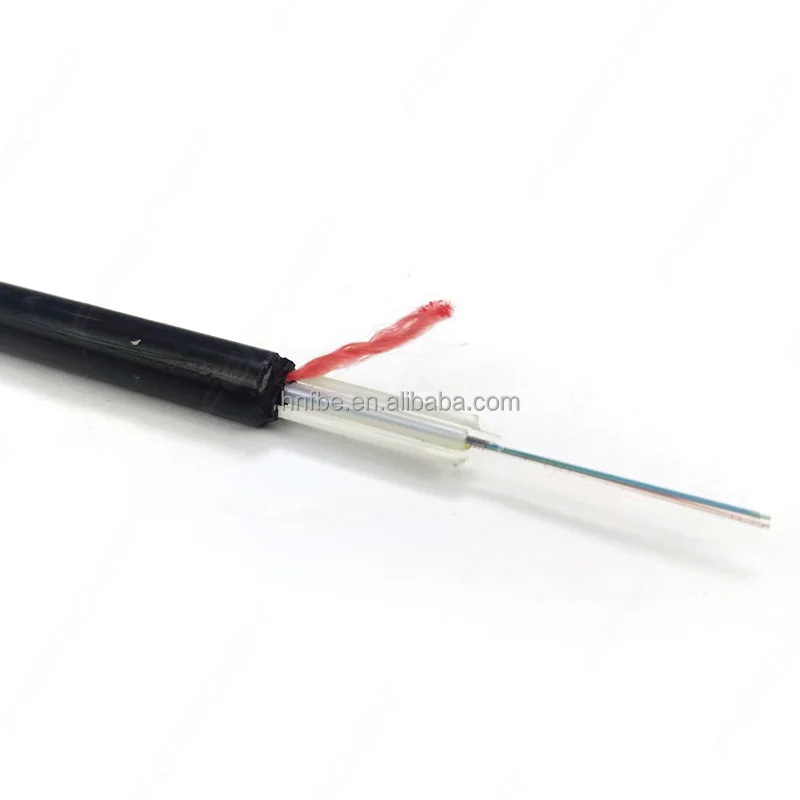

| GYFXTW | 2-12 | 8.2 | 65 | 600 | 1500 | 300 | 1000 | 10D | 20D |
Production Flow
Related Products
FAQ
1.Are you the real manufacturer?
Us. We are the real manufacturer with 18 year’s history.
2.What’s the MOQ?
Us. The MOQ of Fiber Optic cable is 1km.
3.What’s delivery time?
Us. The general delivery time is 7-10 days after order deposit.
If order quantity is more than 100000km, please check with us.
4.Can you supply customized products and logo?
Us.Yes. We provide OEM service.
6.What’s your payment terms?
Us. We accept T/T,L/C,Western Union, etc. 30% in advance and 70% before shipment.
7.Can you offer free samples?
Us. Yes,we provide free samples.
