Veterinary Orthopedic Implants Vet LCP Small Animal Locking Screws Plates
Veterinary Orthopedic Implants Vet LCP Small Animal Locking Screws Plates
Veterinary Orthopedic Implants Vet LCP Small Animal Locking Screws Plates
Veterinary Orthopedic Implants Vet LCP Small Animal Locking Screws Plates
Veterinary Orthopedic Implants Vet LCP Small Animal Locking Screws Plates
Veterinary Orthopedic Implants Vet LCP Small Animal Locking Screws Plates

Veterinary Orthopedic Implants Vet LCP Small Animal Locking Screws Plates

Share on (1600902176716):


Price:$35.00 - $38.00

Quantity:


Product Overview

Description



Veterinary Orthopedic Implants Vet LCP Small Animal Locking Screws Plates


Products Description


Veterinary Orthopedic Implant

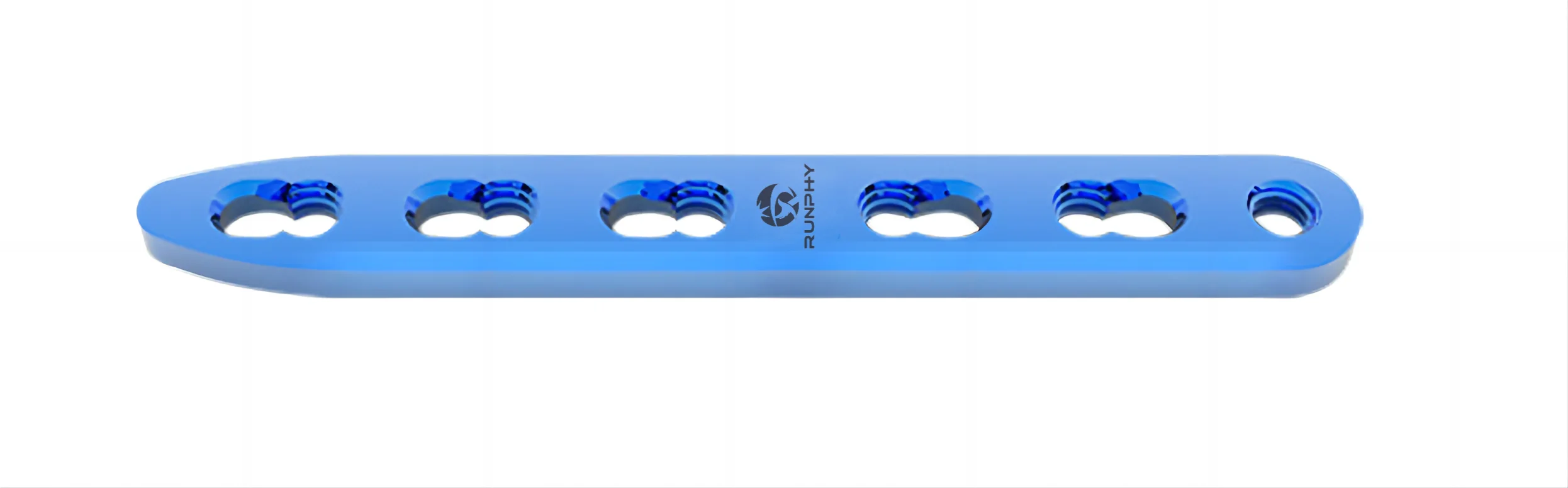

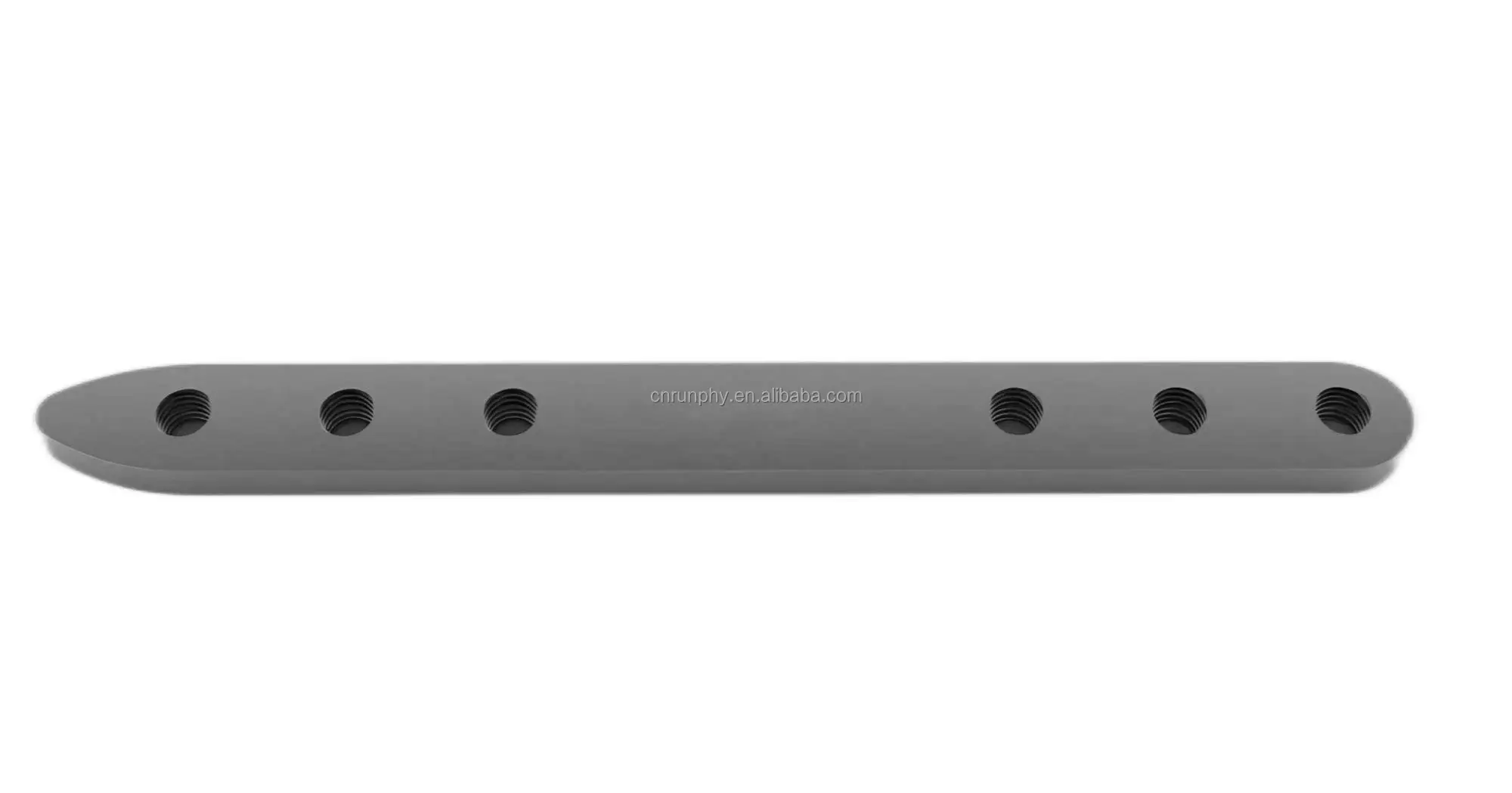

Straight Locking Plate 1.5/2.0/2.4/2.7/3.5mm




Code
Thickness/Width/Legth(mm)
Specification
Material
GA0062001A
1.5/5.5/29.9
2+2 holes
TA3
GA0062002A
1.5/5.5/36.9
2+3 holes
TA3
GA0062003A
1.5/5.5/43.9
3+3 holes
TA3
GA0062004A
1.5/5.5/50.9
3+4 holes
TA3
GA0062005A
1.5/5.5/57.9
4+4 holes
TA3
GA0062006A
1.5/5.5/64.9
4+5 holes
TA3
GA0062007A
1.5/5.5/71.9
5+5 holes
TA3
GA0062008A
1.5/5.5/78.9
5+6 holes
TA3
GA0062009A
1.5/5.5/85.9
6+6 holes
TA3


Code
Thickness/Width/Legth(mm)
Specification
Material
GA0072401A
2.0/6.8/39.1
2+2 holes
TA3
GA0072402A
2.0/6.8/48.1
2+3 holes
TA3
GA0072403A
2.0/6.8/57.1
3+3 holes
TA3
GA0072404A
2.0/6.8/66.1
3+4 holes
TA3
GA0072405A
2.0/6.8/75.1
4+4 holes
TA3
GA0072406A
2.0/6.8/84.1
4+5 holes
TA3
GA0072407A
2.0/6.8/93.1
5+5 holes
TA3
GA0072408A
2.0/6.8/102.1
5+6 holes
TA3
GA0072409A
2.0/6.8/111.1
6+6 holes
TA3




GA0072701A
2.6/7.5/39.9
2+2 holes
TA3
GA0072702A
2.6/7.5/48.9
2+3 holes
TA3
GA0072703A
2.6/7.5/57.9
3+3 holes
TA3
GA0072704A
2.6/7.5/66.9
3+4 holes
TA3
GA0072705A
2.6/7.5/75.9
4+4 holes
TA3
GA0072706A
2.6/7.5/84.9
4+5 holes
TA3
GA0072707A
2.6/7.5/93.9
5+5 holes
TA3
GA0072708A
2.6/7.5/102.9
5+6 holes
TA3
GA0072709A
2.6/7.5/111.9
6+6 holes
TA3


GA0083501A
3.3/11/57.6
2+2 holes
TA3
GA0083502A
3.3/11/70.6
2+3 holes
TA3
GA0083503A
3.3/11/83.6
3+3 holes
TA3
GA0083504A
3.3/11/96.6
3+4 holes
TA3
GA0083505A
3.3/11/109.6
4+4 holes
TA3
GA0083506A
3.3/11/122.6
4+5 holes
TA3
GA0083507A
3.3/11/135.6
5+5 holes
TA3
GA0083508A
3.3/11/148.6
5+6 holes
TA3
GA0083509A
3.3/11/161.6
6+6 holes
TA3


Veterinary Orthopedic Implant

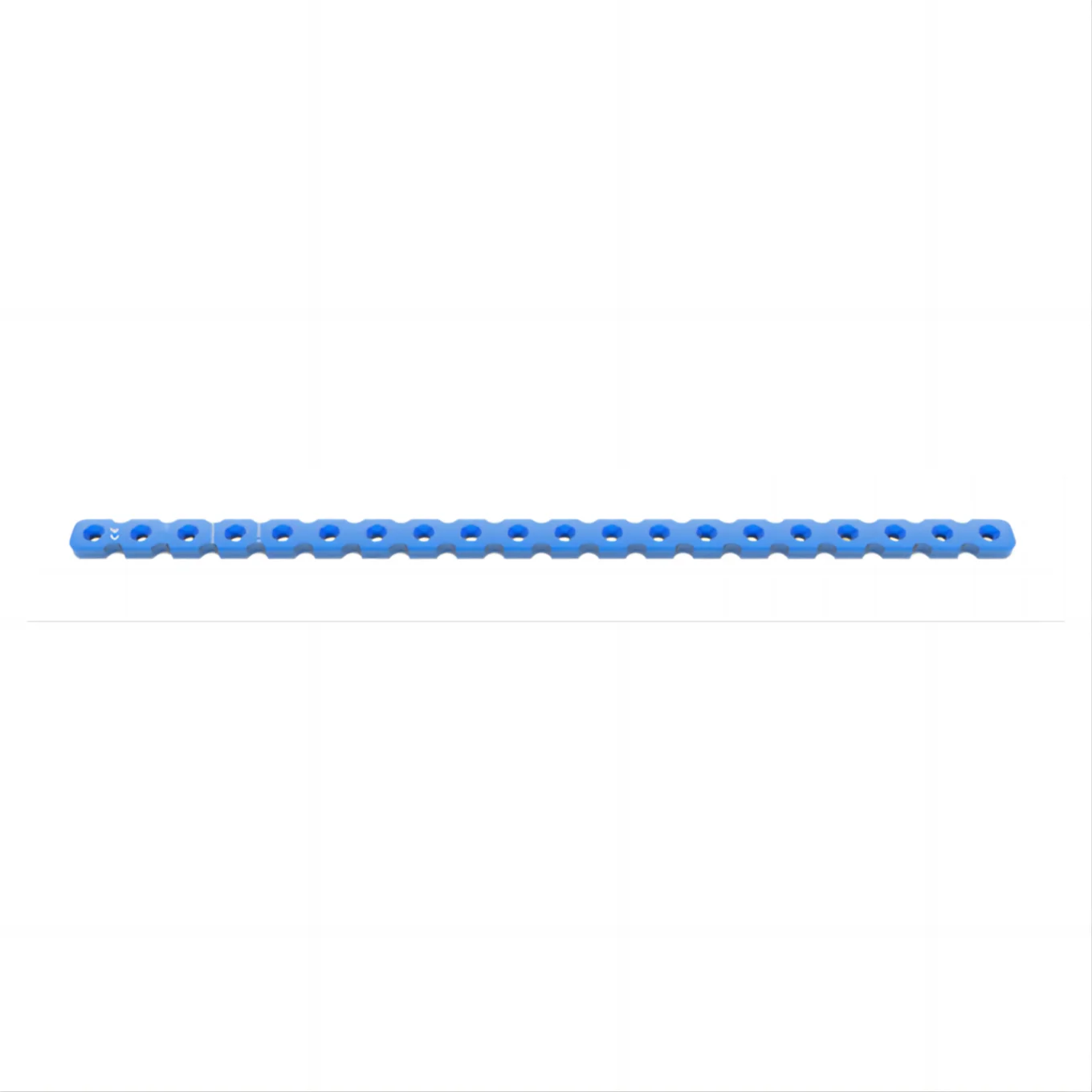

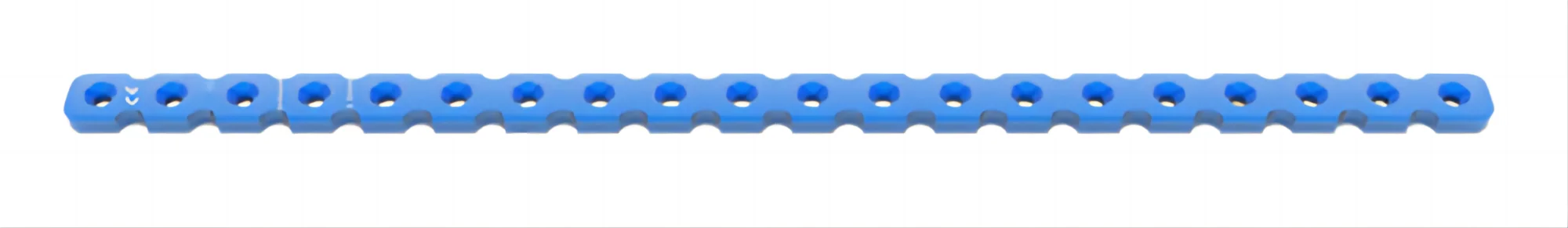

Reconstruction Locking Plate 1.5/2.0/2.4/2.7/3.5mm




Code
Thickness/Width/Legth(mm)
sizes
Material
Remark
GA02120
1.5/5.0/100.0
20 Holes
Pure Titanium
Select Locking Screw and Cortical Screw 2.0mm
GA02124
2.0/6.5/162.5
 25 Holes
Pure Titanium
 Select Locking Screw and Cortical Screw 2.4mm
GA02127
2.5/7.9/160.0
 22 Holes

Pure Titanium
 Select Locking Screw and Cortical Screw 2.7mm
GA02135
3.0/11/240.0
 23 Holes

Pure Titanium
 Select Locking Screw and Cortical Screw 3.5mm


Veterinary Orthopedic Implant

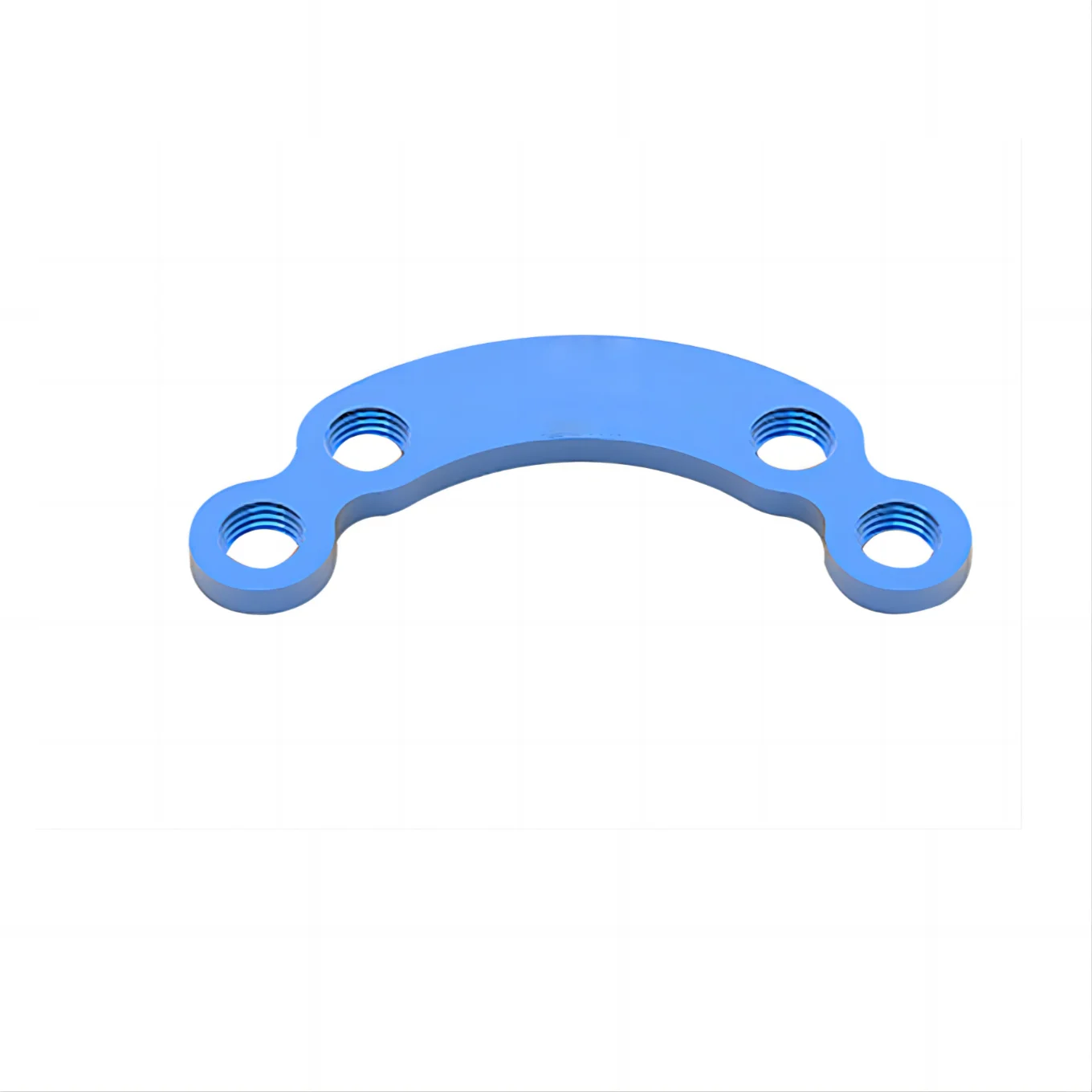

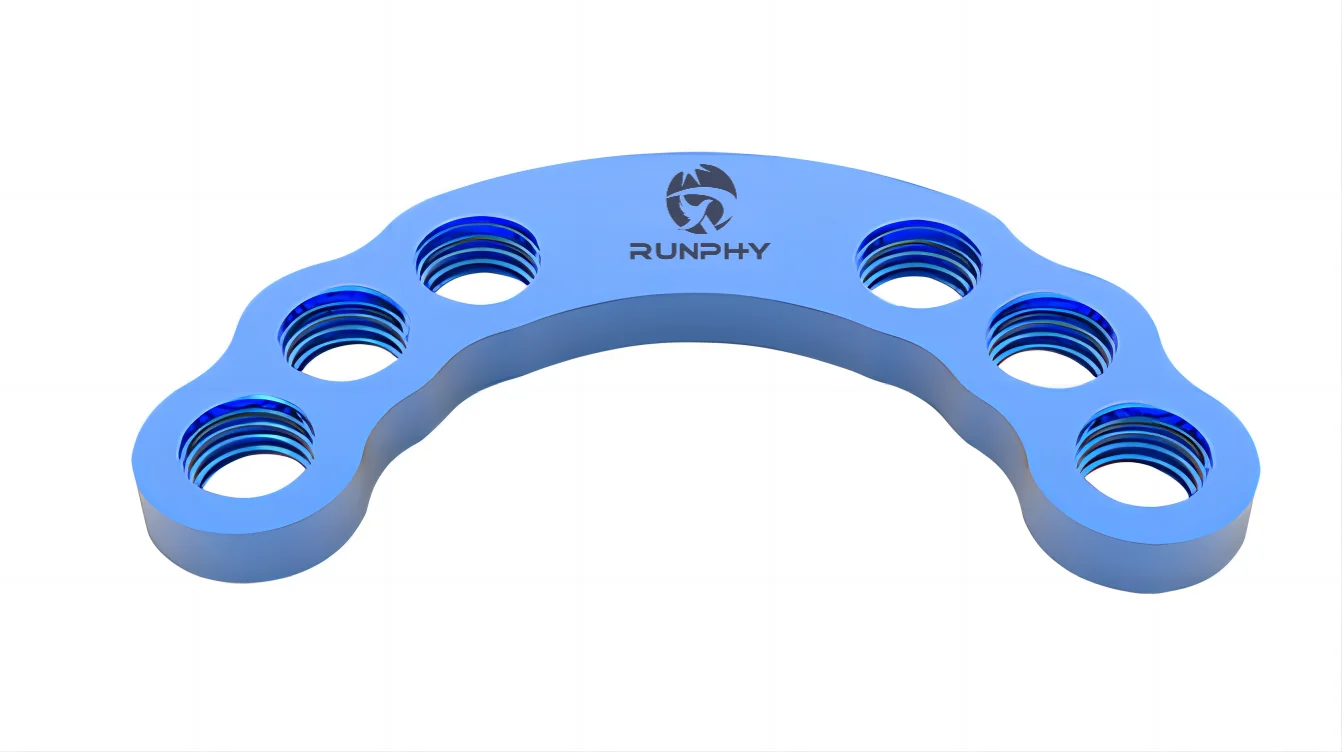

Acetabular Locking Plate 1.5/2.0/2.4/2.7/3.5mm




Code
Thickness/Width/Legth(mm)
Specification
Material
GA01920
1.2/5.0/26.75
2+2Holes
TA3
Remark : Select Locking screw and cortical screw 2.0mm
Code
Thickness/Width/Legth(mm)
Specification
Material
GA01924
1.5/6.5/33.4
3+3Holes
TA3
Remark : Select Locking screw and cortical screw 2.4mm
Code
Thickness/Width/Legth(mm)
Specification
Material
GA01927
2.0/7.0/40.4
3+3Holes
TA3
Remark : Select Locking screw and cortical screw 2.7mm
Code
Thickness/Width/Legth(mm)
Specification
Material
GA01935
2.5/8.0/48.0
3+3Holes
TA3
Remark : Select Locking screw and cortical screw 3.5mm




Veterinary Orthopedic Implant

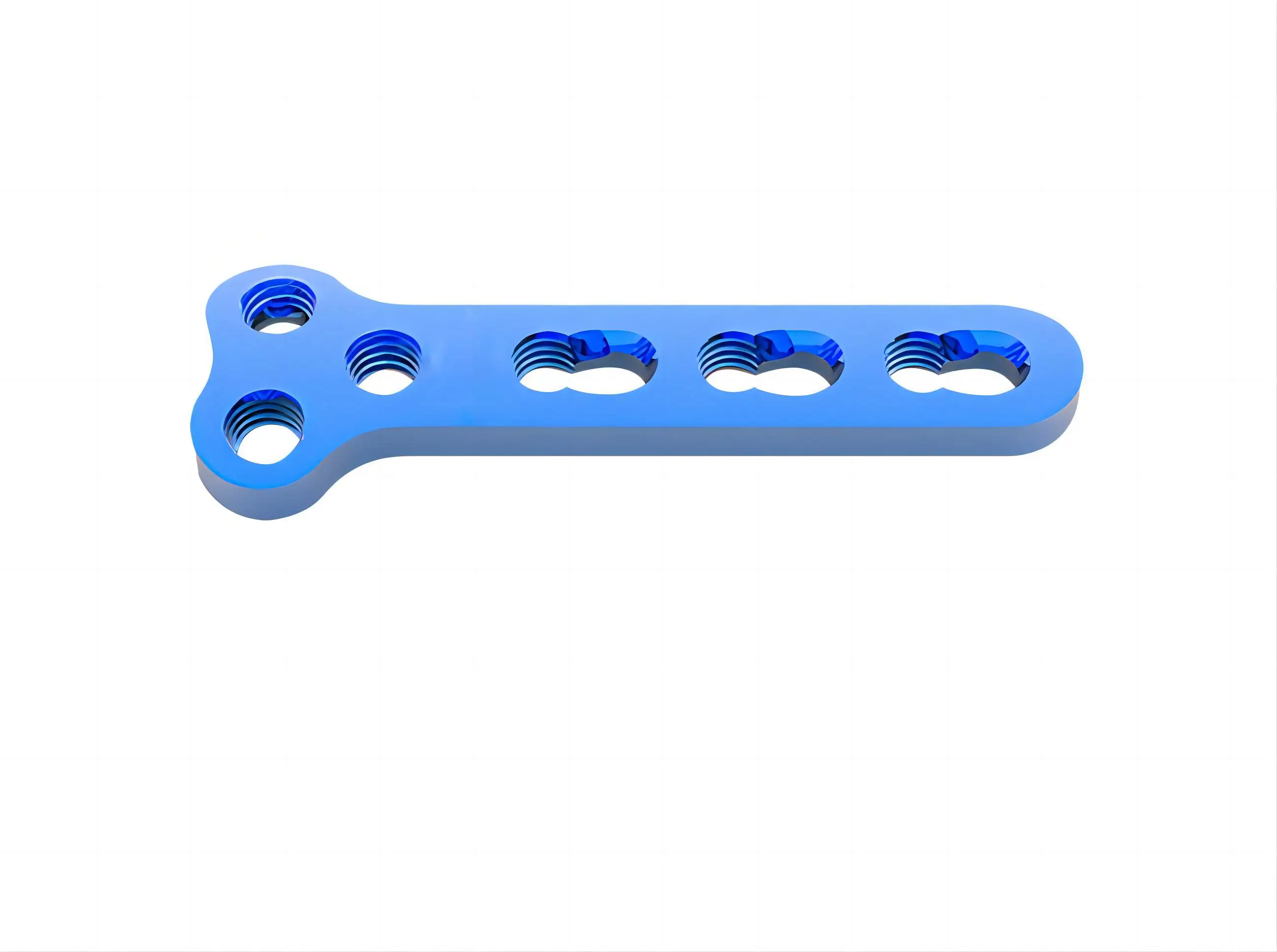

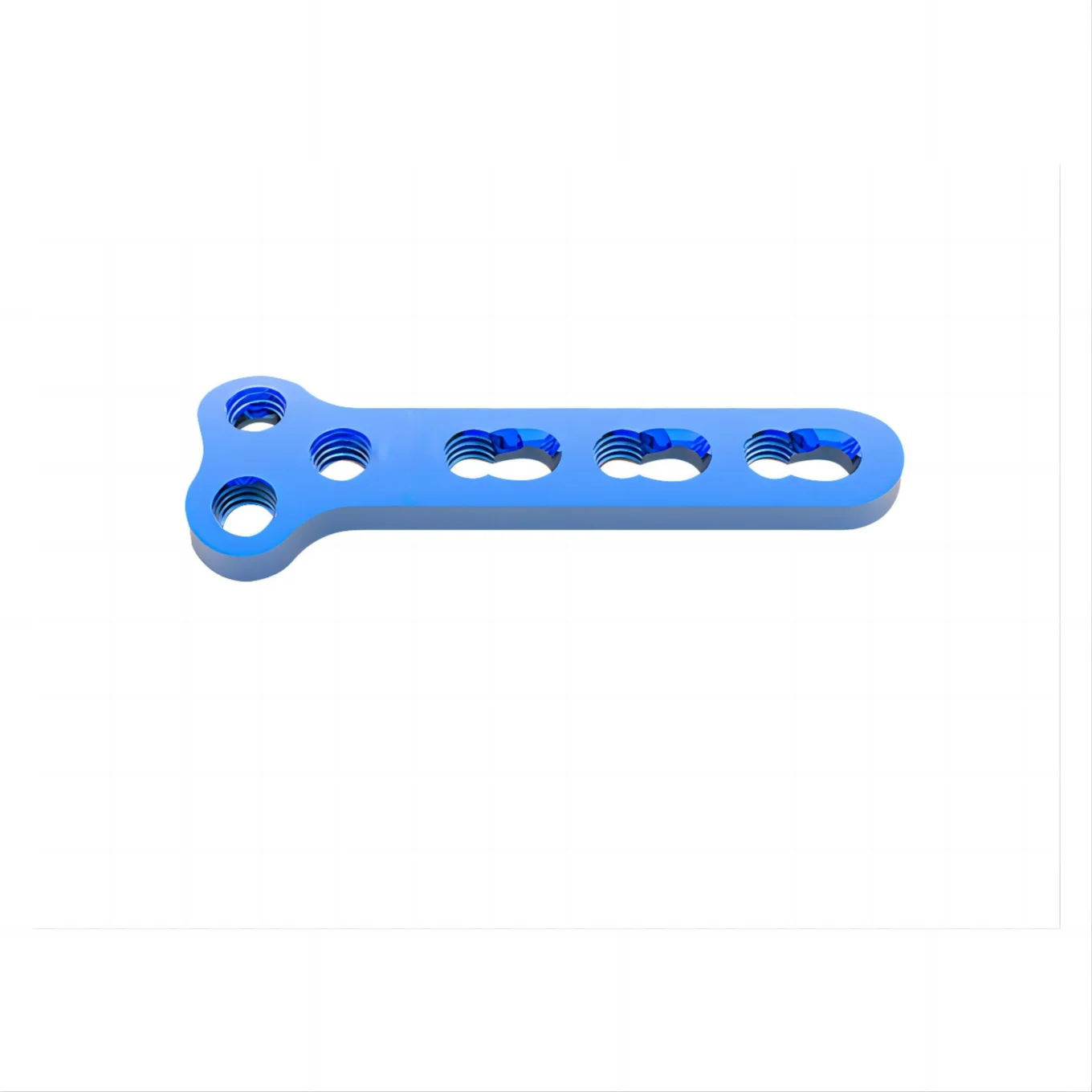

T Type Locking Plate 1.5/2.0/2.4/2.7/3.5mm.


Code
Thickness/Width/Legth(mm)
Specification
Material
Material
GA0202001
9.6/5.0/30.5
3+3holes
Pure Titanium
 Select Locking Screw and Cortical Screw 2.0mm
GA0202002
9.6/5.0/44.5
3+5holes
Pure Titanium
GA0202401
12.6/4.5/38.0
3+3holes
Pure Titanium
Select Locking Screw and Cortical Screw 2.4mm
GA0202402
12.6/4.5/55.0
3+5holes
Pure Titanium
GA0202701
16.0/8.0/43.5
3+3holes
Pure Titanium
Select Locking Screw and Cortical Screw 2.7mm
GA0202702
16.0/8.0/62.5
3+5holes
Pure Titanium
GA0203501
16.0/8.0/43.5
3+3holes
Pure Titanium
Select Locking Screw and Cortical Screw 3.5mm
GA0203502
16.0/8.0/62.5
3+5holes
Pure Titanium


Customer Feedback




Recommend Products




Company Profile




Marketing Campaign










Product packaging




FAQ


Q1:Are you trading company or a manufacturer?
A1: We have one factory and one trading company ,factory focuses on manufactring while trading company focuses on business .

Q2: How long is your delivery time?
A2: For the most usual specifications and products,we will keep them enough quantity in warehouse,so the order can be shipped
within 1 week .
It takes about 15 days for products if the goods are not in stock .

Q3:Is there any samples for checking before ordering ?Is it free ?
A3:Yes ,the samples can be offered but the freight will be extra .

Q4. What kind of the transportation of the delivery ?
A4:Usually ,we ship order door to door by courier ,such as DHL ,UPS ,FeDex..
If you have certain requirements on the delivery ,we can also fillow your request .

Q5. What about the payment method ?
A5:Paylpal, Western Union, Credit Card /T/T, Money Gram .
100% payment in advance if order less than usd 10000
30% deposit in advance if order more than usd10000 ,balance before shipment .
