  • RAS Fish Farm Aerator System Oxygen Cone for Indoor Ras System
RAS Fish Farm Aerator System Oxygen Cone for Indoor Ras System
RAS Fish Farm Aerator System Oxygen Cone for Indoor Ras System
RAS Fish Farm Aerator System Oxygen Cone for Indoor Ras System
RAS Fish Farm Aerator System Oxygen Cone for Indoor Ras System
RAS Fish Farm Aerator System Oxygen Cone for Indoor Ras System
RAS Fish Farm Aerator System Oxygen Cone for Indoor Ras System
RAS Fish Farm Aerator System Oxygen Cone for Indoor Ras System

RAS Fish Farm Aerator System Oxygen Cone for Indoor Ras System

Share on (1600902194469):


Price:$523.00 - $580.00

Quantity:


Product Overview

Description

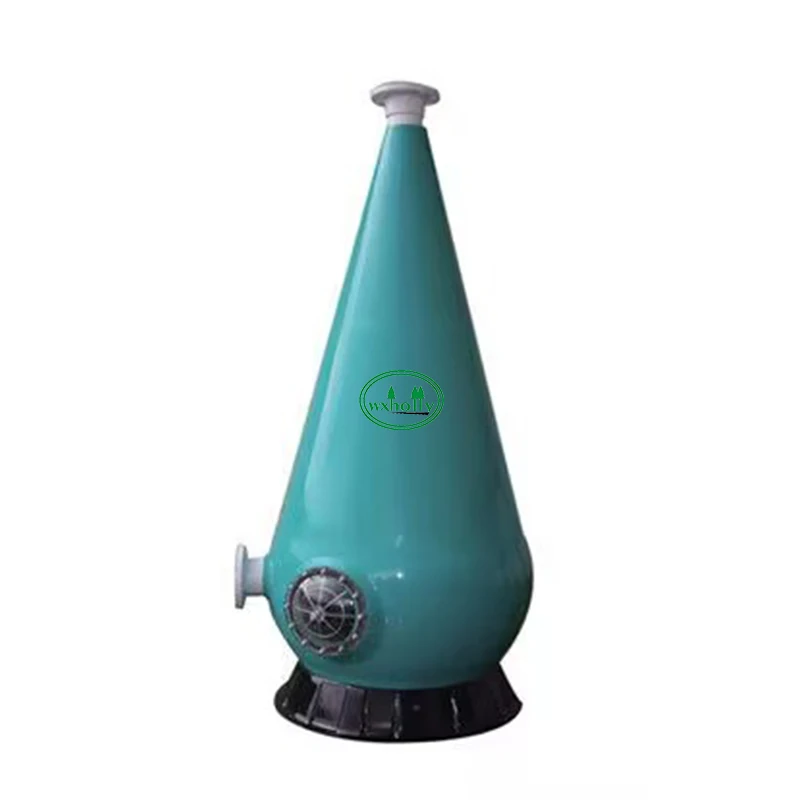

Oxygen Cone
The main principle of the oxygen cone is that the high-pressure water flow and oxygen are fully mixed with gas and liquid in the tank, and the oxygen is dissolved into the water to the maximum extent through the pressure, so that the dissolved oxygen value increases. Therefore, oxygen cone should be used with high pressure pump, jet device, oxygen supply automatic switching device and other equipment.Oxygen is supplied by oxygen concentrator or liquid oxygen vaporization.
Water and oxygen enter through the top of the oxygen cone, and the rate decreases as the capacity at the bottom of the tank increases;The resulting bubbles are left to dissolve inside the tank; When the tank is adjusted to high water pressure, it will be highly oxygenated and then merged into the main stream; When the water pressure is low, only a small amount of oxygen permeates the entire water flow.






P/N
Model
Size (mm)
Height (mm)
Inlet/Outlet （mm）
 Flow (T/H)
 Air Pressure （PSI)
Dissolved Oxygen Rate (KG/H)
Dissolved Oxygen Concentration
603101
FZ4010
Φ400
1050
2"/63mm flange
8
20
1
65
603102
FZ4013
Φ400
1300
2"/63mm flange
10
20
1
65
603103
FZ5012
Φ500
1200
2"/63mm flange
12
20
1.2
65
603104
FZ6015
Φ600
1520
2"/63mm flange
15
20
1.2
65
603105
FZ7017
Φ700
1700
3"/90mm flange
25
20
1.5
65
603106
FZ8019
Φ800
1900
3"/90mm flange
30
20
1.8
65
603107
FZ8523
Φ850
2250
3"/90mm flange
35
20
2
65
603108
FZ9021
Φ900
2100
4"/110mm flange
50
20
2.4
65
603109
FZ1025
Φ1000
2500
4"/110mm flange
60
20
3.5
65
603110
FZ1027
Φ1000
2720
4"/110mm flange
110
20
3.9
65
603111
FZ1127
Φ1100
2700
5"/140mm flange
120
20
4.5
65
603112
FZ1230
Φ1200
3000
5"/140mm flange
140
20
5
65






Q1. What’s the payment terms?
Re: T/T, Credit Card, L/C at sight, Cash, etc.
Q2. How to ship the goods?
Re: We usually ship by sea, can also ship by air, rail or express if required.
Q3. Do you provide installation service?
Re: Yes, we can provide with video.
Q4. What’s the warranty?
Re: We provide 1 year warranty for equipment and pay-needed maintenance life-time.
Q5. How to operate the equipment?
Re: We will provide operation&installation manual for each.
Q6. Does the RAS system have requirement on water source?
Re: Not have, both seawater and freshwater are available.
Q7: Can we use concrete pond for system?
Re: Yes, it’s also ok.
Q8: The breeding water need to change everyday？
Re: No need, only fill 5% to 10% water is ok.
Q9. Is it suitable for beginners?
Re: Yes, many of customers are beginners, we specially designed a small system for beginners.
