Product Overview
Description
MT7688 WiFi Module Overview
HCR88AN integrates 802.11n MAC and baseband, 1 2.4GHz wireless broadcasting device and front-end module, 1 580MHz MIPS CPU, and 1 high-speed Ethernet PHY. This module only requires an external 3.3V power supply to operate, making it suitable for low-power, low-cost, and highly integrated AP electronic devices.
Under the 802.11n Wi Fi standard, HCR88AN can achieve a data transmission speed of 144Mbps at 20MHz and 150Mbps at 40MHz. This module supports bridging, AP/Client, and gateway modes. Its high performance can handle various advanced applications, such as routers, security, and VoIP.
HCR88AN has multiple interfaces and supports various applications, such as USB ports for accessing external storage and 3G/TLE modems; Especially in the field of IOT, it has a wide range of applications.
Under the 802.11n Wi Fi standard, HCR88AN can achieve a data transmission speed of 144Mbps at 20MHz and 150Mbps at 40MHz. This module supports bridging, AP/Client, and gateway modes. Its high performance can handle various advanced applications, such as routers, security, and VoIP.
HCR88AN has multiple interfaces and supports various applications, such as USB ports for accessing external storage and 3G/TLE modems; Especially in the field of IOT, it has a wide range of applications.
MT7688 WiFi Module Features
■ The module is based on MTK’s MT7688AN main chip solution. The main frequency is up to 580MHz, with 64MB DDR2 RAM and 8MB SPI FLASH;
■ Conforms to IEEE802.11b/g/n wireless network protocol, supports three working modes of bridging, routing, and access point.
■ Adopt 1x1 MIMO (Multiple input multiple output) architecture, wireless signal multiplex transmission and reception, transmission rate up to 150Mbps
■ Achieve a variety of communication transmission, input and output control, intelligent control of IOT applications, convenient for debugging and product development
■ Multiple GPIOs, 1 UART interface, 1WAN, 3LAN/4LAN wired network port “stamp hole” and “pin” dual design external connection method two IPEX sockets, freely configurable antenna type
■ Application areas: smart home, wireless storage, WIFI speakers, network cameras, baby monitoring, routers, repeaters, wireless APs
■ Conforms to IEEE802.11b/g/n wireless network protocol, supports three working modes of bridging, routing, and access point.
■ Adopt 1x1 MIMO (Multiple input multiple output) architecture, wireless signal multiplex transmission and reception, transmission rate up to 150Mbps
■ Achieve a variety of communication transmission, input and output control, intelligent control of IOT applications, convenient for debugging and product development
■ Multiple GPIOs, 1 UART interface, 1WAN, 3LAN/4LAN wired network port “stamp hole” and “pin” dual design external connection method two IPEX sockets, freely configurable antenna type
■ Application areas: smart home, wireless storage, WIFI speakers, network cameras, baby monitoring, routers, repeaters, wireless APs

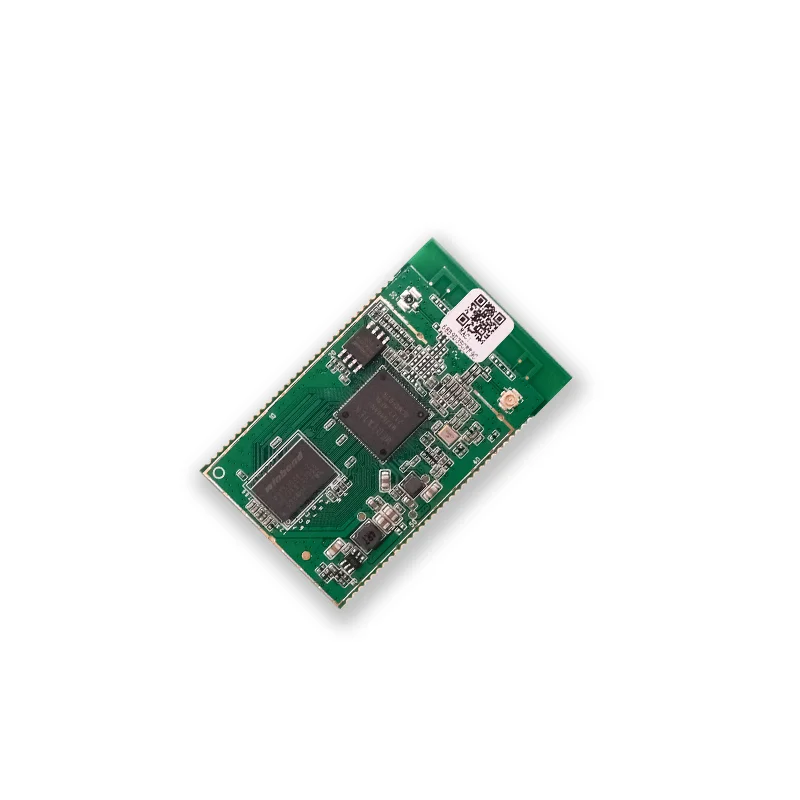

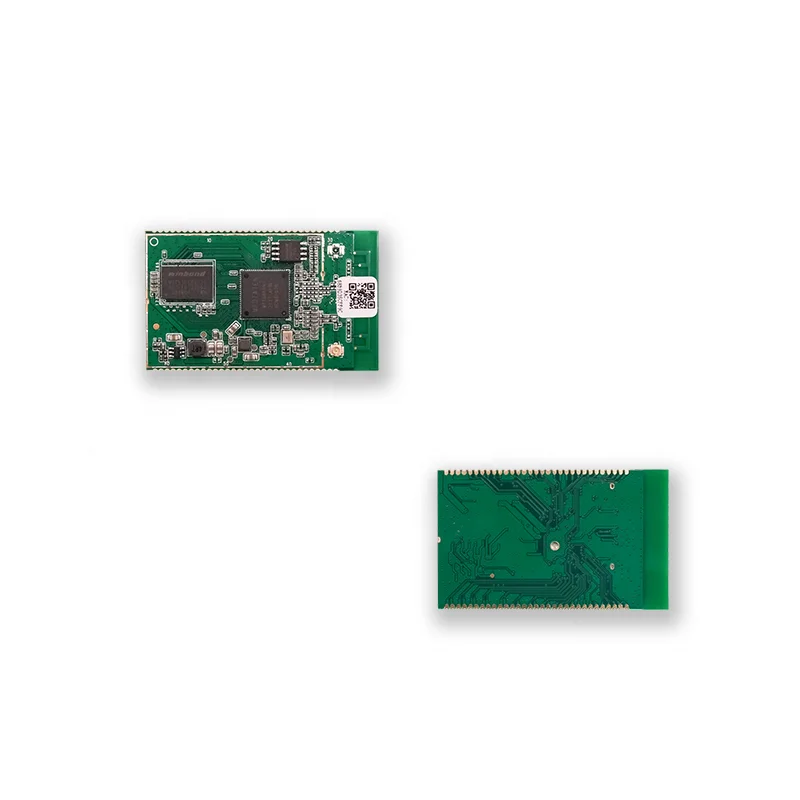

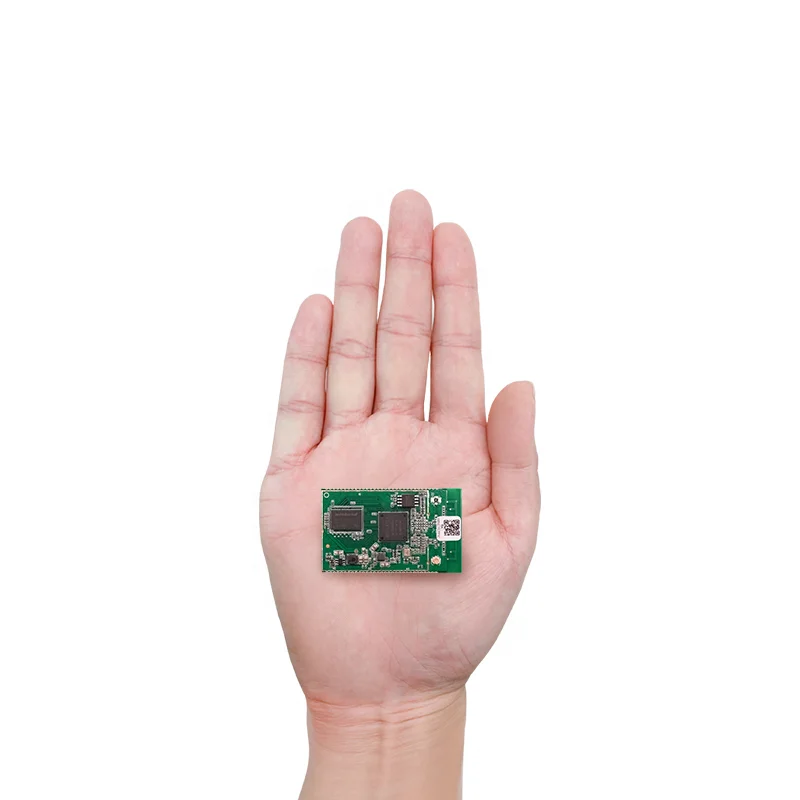

SMD Packaging Module WiFi MT7688
Main control chip: MT7688AN
Specifications: 1T1R
Speed: 150M
Interface: USB, WAN, LAN, I2S, I2C/PCM, UART, GPIO
Size: 35*58 (L*W)
Working voltage: 5V, support customized 3.3V
Wireless standard: 802.11b/g/n
Band width: 2.4G
Working temperature: -20°C to +85°C
Specifications: 1T1R
Speed: 150M
Interface: USB, WAN, LAN, I2S, I2C/PCM, UART, GPIO
Size: 35*58 (L*W)
Working voltage: 5V, support customized 3.3V
Wireless standard: 802.11b/g/n
Band width: 2.4G
Working temperature: -20°C to +85°C

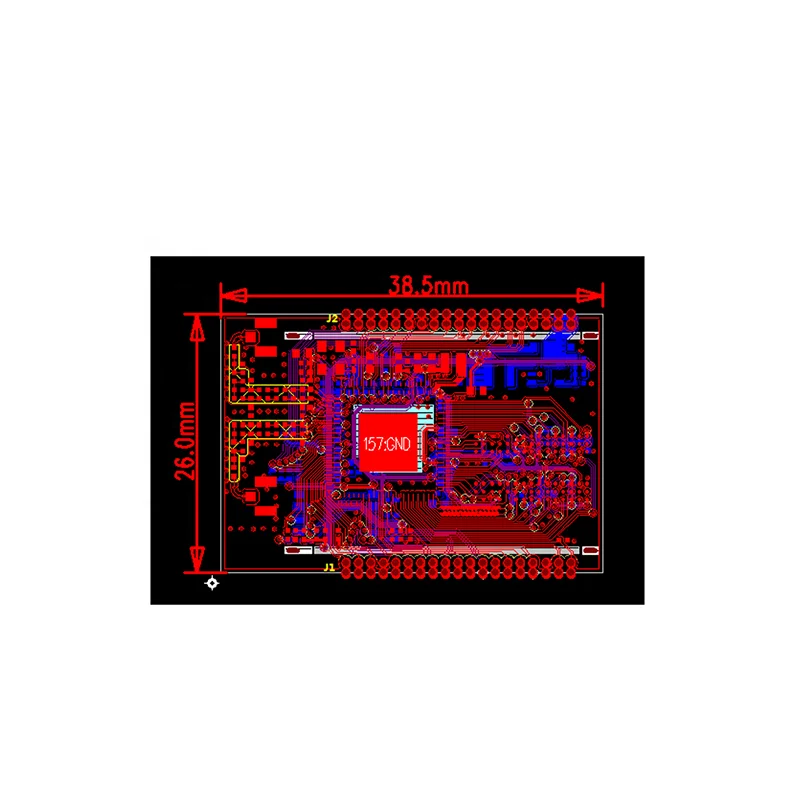

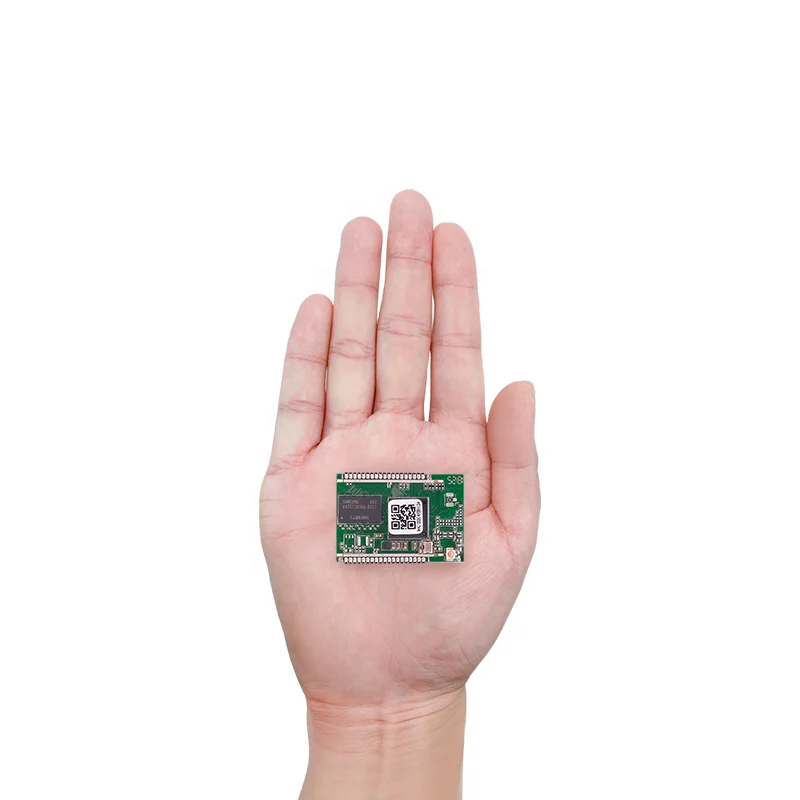

Pin Header Packaging Module WiFi MT7688
Main control chip: MT7688AN
Specifications: 1T1R
Speed: 150M
Interface: USB, WAN, LAN, I2S, I2C/PCM, UART, GPIO
Size: 38.5*26 (L*W)
Working voltage: 5V, support customized 3.3V
Wireless standard: 802.11b/g/n
Band width: 2.4G
Working temperature: -20°C to +85°C
Specifications: 1T1R
Speed: 150M
Interface: USB, WAN, LAN, I2S, I2C/PCM, UART, GPIO
Size: 38.5*26 (L*W)
Working voltage: 5V, support customized 3.3V
Wireless standard: 802.11b/g/n
Band width: 2.4G
Working temperature: -20°C to +85°C
HCR88AN_SMD Packaging_Pin Definition
Sequence | Name | Remark 1 | Remark 2 | Remark 3 | GPI0 mode |
1 | ETXN4 | SD-D2 | EMMC-D2 | GPI027 | |
2 | ETXN4 | SD-D3 | EMMC-D3 | GPI029 | |
3 | ETXN4 | SD-CMD | EMMC-CMD | GPI028 | |
4 | ETXN4 | SD-CLK | EMMC-CLK | GPI026 | |
5 | ETXN3 | SD-D0 | EMMC-D0 | GPI025 | |
6 | ETXN3 | SD-D1 | EMMC-D1 | GPI024 | |
7 | ETXN3 | SD-CD | EMMC-CD | GPI023 | |
8 | ETXN3 | SD-WP | EMMC-WP | GPI022 | |
9 | GND | ||||
10 | ERXP0 | ||||
11 | ERXN0 | ||||
12 | ERXP0 | ||||
13 | ERXN0 | ||||
14 | GND | ||||
15 | ETXN2 | UART-RXD2 | EMMC-D4 | PWM-CH3 | GPI021 |
16 | ETXP2 | UART-TXD2 | EMMC-D5 | PWM-CH2 | GPI020 |
17 | ETXN2 | EMMC-D6 | PWM-CH1 | GPI019 | |
18 | ETXP2 | EMMC-D7 | PWM-CH0 | GPI018 | |
19 | ETXN1 | SPIS-MOSI | UART-RXD2 | GPI017 | |
20 | ETXP1 | SPIS-MISO | UART-TXD2 | GPI016 | |
21 | ETXN1 | SPIS-CLK | PWM-CH1 | GPI015 | |
22 | ETXP1 | SPIS-CS | PWM-CH0 | GPI014 | |
23 | SPI-MOSI | GPI08 | |||
24 | SPI-MIS0 | GPI09 | |||
25 | SPI-CS1 | GPI06 | |||
26 | SPI-CLK | GPI07 | |||
27 | UART-RXD0 | GPI013 | |||
28 | UART-TXD0 | GPI012 | |||
29 | GP100 | ||||
30 | I2C-SD | GPI05 | |||
31 | I2C-SCLK | GPI04 | |||
32 | I2S-SDI | PCMDRX | GPI00 | ||
33 | I2S-SD0 | PCMDTX | GPI01 | ||
34 | I2S-WS | PCMCLK | GPI02 | ||
35 | I2S-WS | PCMFS | GPI03 | ||
36 | GND | ||||
37 | UART-RXD1 | PWM-CH1 | GPI046 | ||
38 | UART-TXD1 | PWM-CH0 | GPI045 | ||
39 | WLED-N | GPI044 | |||
40 | LED0 | JTAG-TD0 | GPI043 | ||
41 | LED2 | JTAG-S | GPI041 | ||
42 | LED3 | JTAG-CLK | GPI040 | ||
43 | LED1 | JTAG-TDI | GPI042 | ||
44 | LED4 | JTAG-RST-N | GPI039 | ||
45 | GND | ||||
46 | WTD-RST-N | Reset button | GPI038 | ||
47 | REF-CLK | REF-CLK0 | GPI037 | ||
48 | PERST-N | PCIE interface reset | GPI036 | ||
49 | GND | ||||
50 | USB-DP | ||||
51 | USB-DM | ||||
52 | GND | ||||
53 | PCIE-CKP0 | ||||
54 | PCIE-CKN0 | ||||
55 | PCIE-RXN0 | ||||
56 | PCIE-RXP0 | ||||
57 | PCIE-TXP0 | ||||
58 | PCIE-TXN0 | ||||
59 | GND | ||||
60 | GND | ||||
61 | VIN | ||||
62 | VIN |
HCR88AN_Pin Header Type_Pin Definition
1 | USB_D- | GPIO |
2 | USB_D+ | |
3 | GND | |
4 | SD_D2 | MDI_TN_P4 |
5 | SD_D3 | MDI_TP_P4 |
6 | SD_CMD | MDI_RN_P4 |
7 | SD_CLK | MDI_RP_P4 |
8 | SD_CD | MDI_TN_P3 |
9 | SD_WP | MDI_TF_P3 |
10 | SD_D0 | MDI_RN_P3 |
11 | SD_D1 | MDI_RP_P3 |
12 | TXON0 | MD1_TN_P0 |
13 | TXOP0 | MDI_TP_P0 |
14 | RXIN0 | MDI_RN_P0 |
15 | RXIP0 | MD_RP_P0 |
16 | GND | |
17 | UART_RXD0 | GPIO#13 |
18 | UART_TXD0 | GPIO#12 |
19 | GPIO_0 | GPIO#12 |
1 | I2C_SD | GPO#5 |
2 | 12C_SCLK | GPO#4 |
3 | I2C_CLK | GPIO#3 |
4 | I2S_WS | GPIO#2 |
5 | I2S_DO | GPIO#1 |
6 | I2S_DI | GPO#0 |
7 | GND | |
8 | UART_RXD1 | GPIO#46 |
9 | UART_TXD1 | GPO#45 |
10 | WLED_N | GPIO#44 |
11 | LINK0 | |
12 | LINK3 | |
13 | LINK4 | |
14 | WPS_RES_PBC | |
15 | REF_CLKO | GPO#38 |
16 | GND | |
17 | GND | |
18 | VIN | |
19 | VIN |
HCR88ANS
HCR88ANP
HCR88ANS
HCR88ANP
>> How to get samples?
1. You can find the product you want and place an order which is ready to ship.
2. Contact us about qty,model and shipping method
3. We are ok to receive sample payment via paypal or Alibaba platform.
4. Sample order generally spend 1-2 workdays to ship because flashing firmware and 100% inspection before delivery.
5. Sample packgaing use very small bag with electrostatic protection and small paper hard box.
6. Generally,using DHL.FEDX,UPS,TNT/EMS or post air mail for international express delivery.
2. Contact us about qty,model and shipping method
3. We are ok to receive sample payment via paypal or Alibaba platform.
4. Sample order generally spend 1-2 workdays to ship because flashing firmware and 100% inspection before delivery.
5. Sample packgaing use very small bag with electrostatic protection and small paper hard box.
6. Generally,using DHL.FEDX,UPS,TNT/EMS or post air mail for international express delivery.
>> How do I gain technical support?
1. Contact us via Email, Skype,Whatsapp and Alibaba TM, even Wechat to get a help.
2. Once customer buying samples from us, we will keep supporting them till the project finished.
3. We have good resource and technical support from chipset original factory.
2. Once customer buying samples from us, we will keep supporting them till the project finished.
3. We have good resource and technical support from chipset original factory.
>> Customize HW,FW and OEM board are available?
1. If our standard module do not meet your demands, we will evaluate and help to customize. MOQ 1Kpcs and 5pcs free samples.
2. If you do not have power engineering team, we will be your partner with chariging a bit fee.
3. If our module has been adopted on your board, we also can help on manufacturing your board and our modules together.
2. If you do not have power engineering team, we will be your partner with chariging a bit fee.
3. If our module has been adopted on your board, we also can help on manufacturing your board and our modules together.
>> Why HoneyComm?
1. 7*24 Hours Quick Response
2. Professional,Continuous and Patience Technical Support
3. Driver,SDK and Development kits Available
4. 20+yrs RF-design experience in HW and FW
5. 6 Production Lines in SMT/EMS
6. 3 out of 1000 defective rate, help customers save costs
7. Efficient production capacity helps customers seize market opportunities in a timely manner
8. Second source supply-chain to avoid delivery delay
9. 100% Inspection before delivery
10. Flashing firmware without any extra fee
11. Rich OEM/ODM experience with strong engineering team
12. Low MOQ and samples are available
13. Digital Enterprise Manages Customer Projects and Orders
14. Incoming raw materials must be sampled
15. Regular maintenance and update of fixed assets
16. Strict electrostatic protection requirements for dust-free warehouses and production lines
2. Professional,Continuous and Patience Technical Support
3. Driver,SDK and Development kits Available
4. 20+yrs RF-design experience in HW and FW
5. 6 Production Lines in SMT/EMS
6. 3 out of 1000 defective rate, help customers save costs
7. Efficient production capacity helps customers seize market opportunities in a timely manner
8. Second source supply-chain to avoid delivery delay
9. 100% Inspection before delivery
10. Flashing firmware without any extra fee
11. Rich OEM/ODM experience with strong engineering team
12. Low MOQ and samples are available
13. Digital Enterprise Manages Customer Projects and Orders
14. Incoming raw materials must be sampled
15. Regular maintenance and update of fixed assets
16. Strict electrostatic protection requirements for dust-free warehouses and production lines
