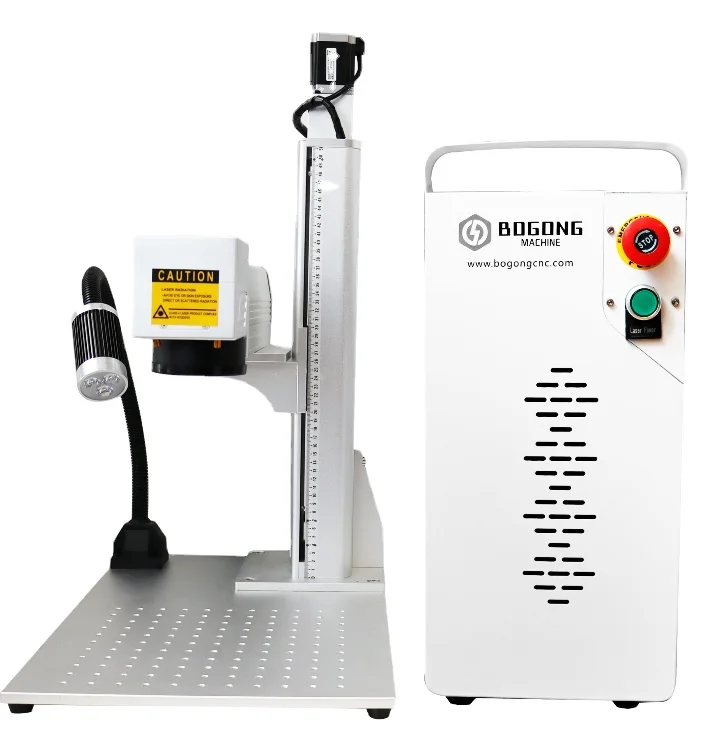

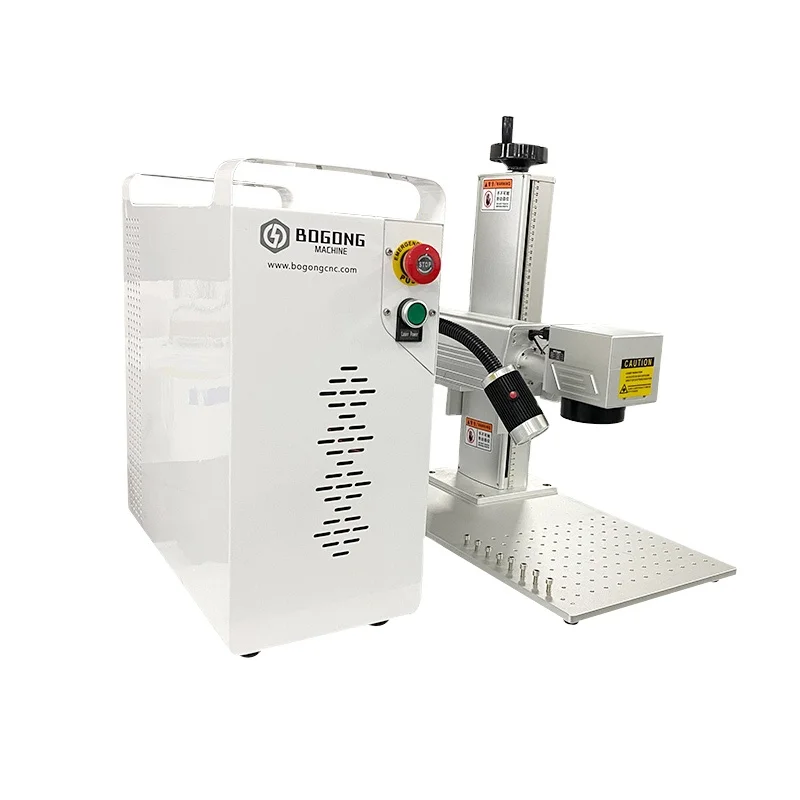

High precision BOGONG 20W MOPA fiber laser marking cutting engraving machine for Tesa labels metal keyboard
- Category: >>>
- Supplier: Jinan Bogong Machinery Co. Ltd.
Share on (1600902331007):
Product Overview
Description
Product Description: |
BG laser Fiber laser marking machine is mainly composed of three parts, vibration lens, marking card, the production of laser marking machine, fiber laser beam quality is good, the output center is 1064 nm, the whole life in 100000 hours, compared with other types of laser marking machine live longer, electro-optic conversion efficiency of 28% above, relative to other types of laser marking machine conversion efficiency of 2% 10% of the huge advantage, outstanding performance in energy conservation and environmental protection, etc
Main Features: |
1. Imported high speed galvo scanner. (China brand optional)
2. High precision with repetition as tiny as 0.2mm.
3.Fiber laser marking machine can make deep marking up to 1.0mm on stainless steel.
4.Fast marking speed.
5.Simple and convenient operation. Easy to learn and handle..
6.Stable structure, little vibration during work.
7.For different marking requirement, we have four type for you.
8.No consumables: Fiber laser machine can be used for 8-10 years without any consumables.
9.Low power consumption: low cost, only 0.5kw per hour.
10.Perfect performance, 24 hours continuous working ability.
11. Long working life. , around 100000hours .
Specification &Configurations |
Wavelength | 1064nm |
Fiber Laser Source | IPG; Raycus; JPT; Max (optional) |
Laser Power | 10W; 20W; 30W; 50W; 60W (optional) |
Marking Area | 110mmx110mm; 200mmx200mm; 300mmx300mm (optional) |
Min. Line Width | 0.03mm |
Min. Character Size | 0.5mm |
Marking Speed | ≤16000mm/s |
Pulse Width | ≤60us |
Repetition Positioning Accuracy | 10 urad |
Laser Type | Pulse Laser |
Laser Mode | Single Mode |
Positioning Mode | Red Beam |
Cooling Way | Air Cooling |
Power Supply | Single Phase AC 220V, 50/60Hz |
Laser Source | (IPG/Raycus/JPT/Max 10W/20W/30W/50W/60W) |
Scan Head | (High speed scan head adopting SCANLAB Technology) |
Field Lens | (F160, F254, F290, F330, F420) |
Operation System | (WIN XP/7/8/10 English Version) |
Marking Software | (EZCAD, Engish Version) |
Machine detais

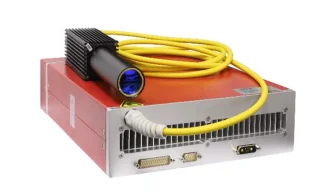

l Laser source Laser source is core component of laser machine, laser will come out from it, we use JPT brand laser source, which is best brand laser source in China, past marketing test, stable quality and top sales in the world, over more than 90% customers selected. |
l Laser Galvo head There have X and Y mirror inside of laser head, the function of laser head is change the direction of laser beam to get different design, we use stable quality Sino galvo brand. |
l F-theta lens F-theta lens control the working area, our standard lens use 110*110mm, if u need large area marking, u can choose lens with 170*175mm, 200*200mm, different lens with different price. |
This is laser control board, we use Original Ezcad software, there have lot of copy in the market, Ezcad software use friendly and easy to learn. |
l Extra Red point Indicator The machine inside and outer side have red indicator, it can help customers easy to find the focusing. |
l Power supply Power supply for laser source, laser head and control board. |
l Protective glasses Protect user’s eye when laser working. | l Foot Switch The remote switch, which control by foot, instead of marking button in laser software. |
l LED light Light nearby laser head, which can bright up your workpiece. |
l Allen wrench For laser machine |
l Rotary Device l Rotary device for ring (max.65mm Diameter) If u want marking inside and outside of ring and bracelet, U need this jewelry rotary device. |

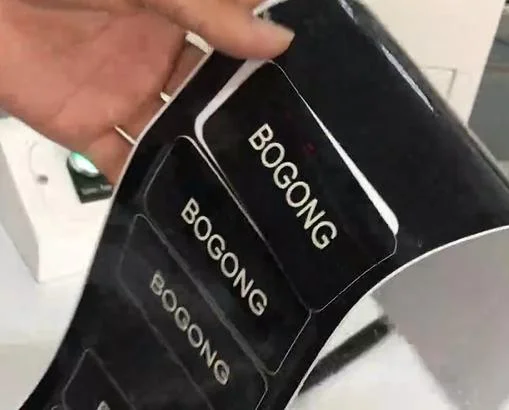

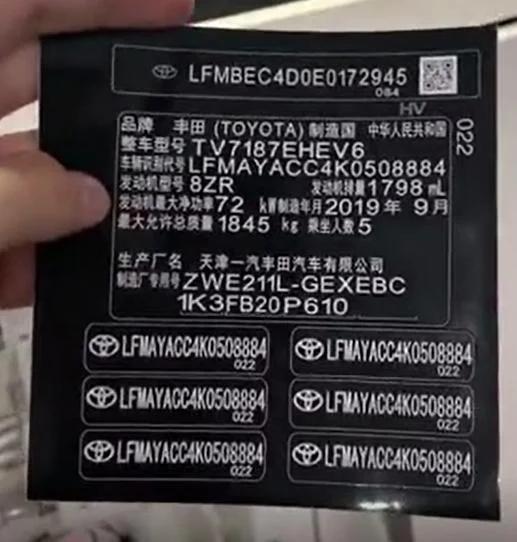

The samples
|

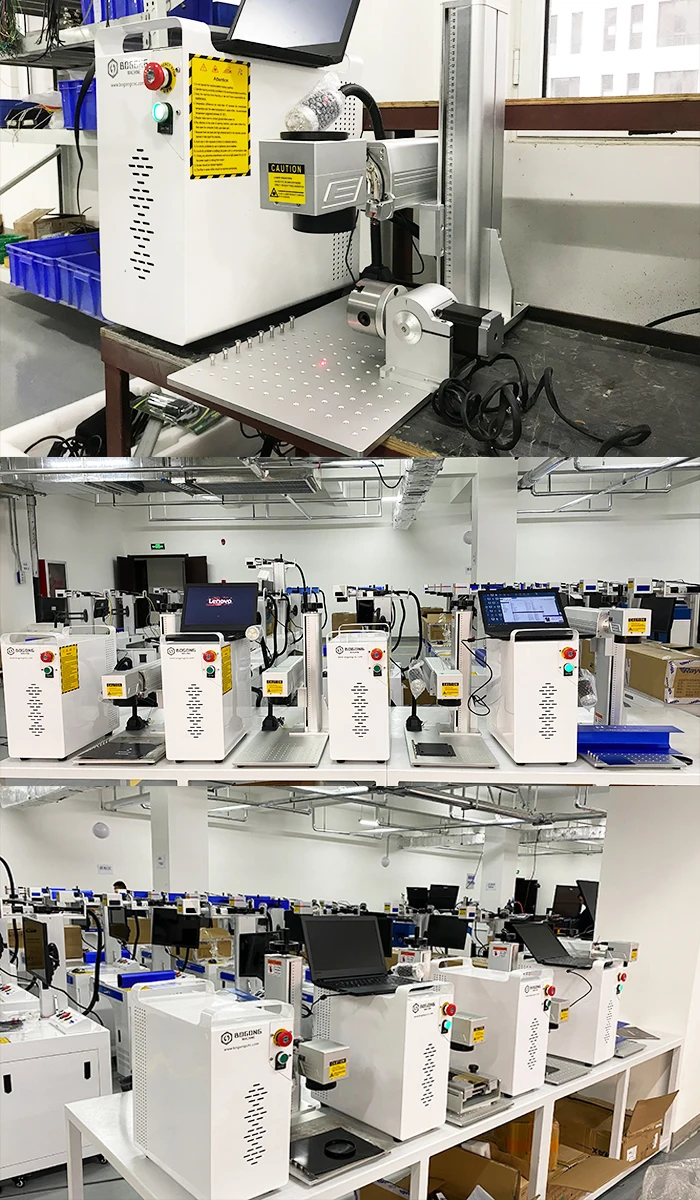

Customer visiting |
Customer feedback |
More laser marking machine maybe you are interested in as below |
Q1: How can I get the best machine for me?
You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience.
Q2: This is the first time I use this kind of machine, is it easy to operate?
We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online help software.Or we can talk by phone, email or other contact ways.
Q3: If the machine has problem in my place, how could I do?
We could send free parts to you in warranty period if machines have any problem under "normal use".
Q4:What's the guarantee, in case the machine breaks down?
The machine has 2year s guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client s feedback. Parts except for consumable parts will be replaced for free
Shipping
The mini fiber laser marking machine shipping way by air or express (DHL/TNT/FedEx),We always help to our customers with express which can fast get the machine and also can protect the machine during delivery.But for Stand type shipping way have to by sea.Because the stand type fiber laser marking machine dimension exceed the air.
