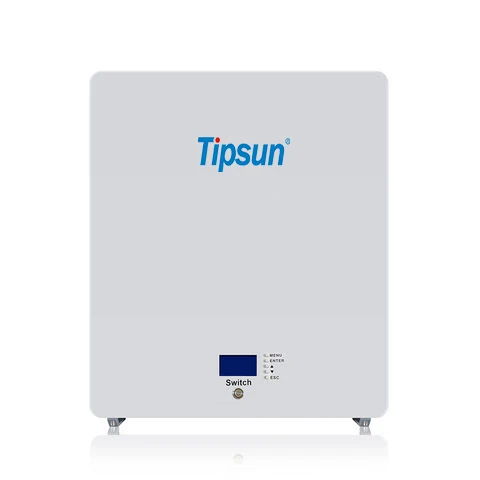

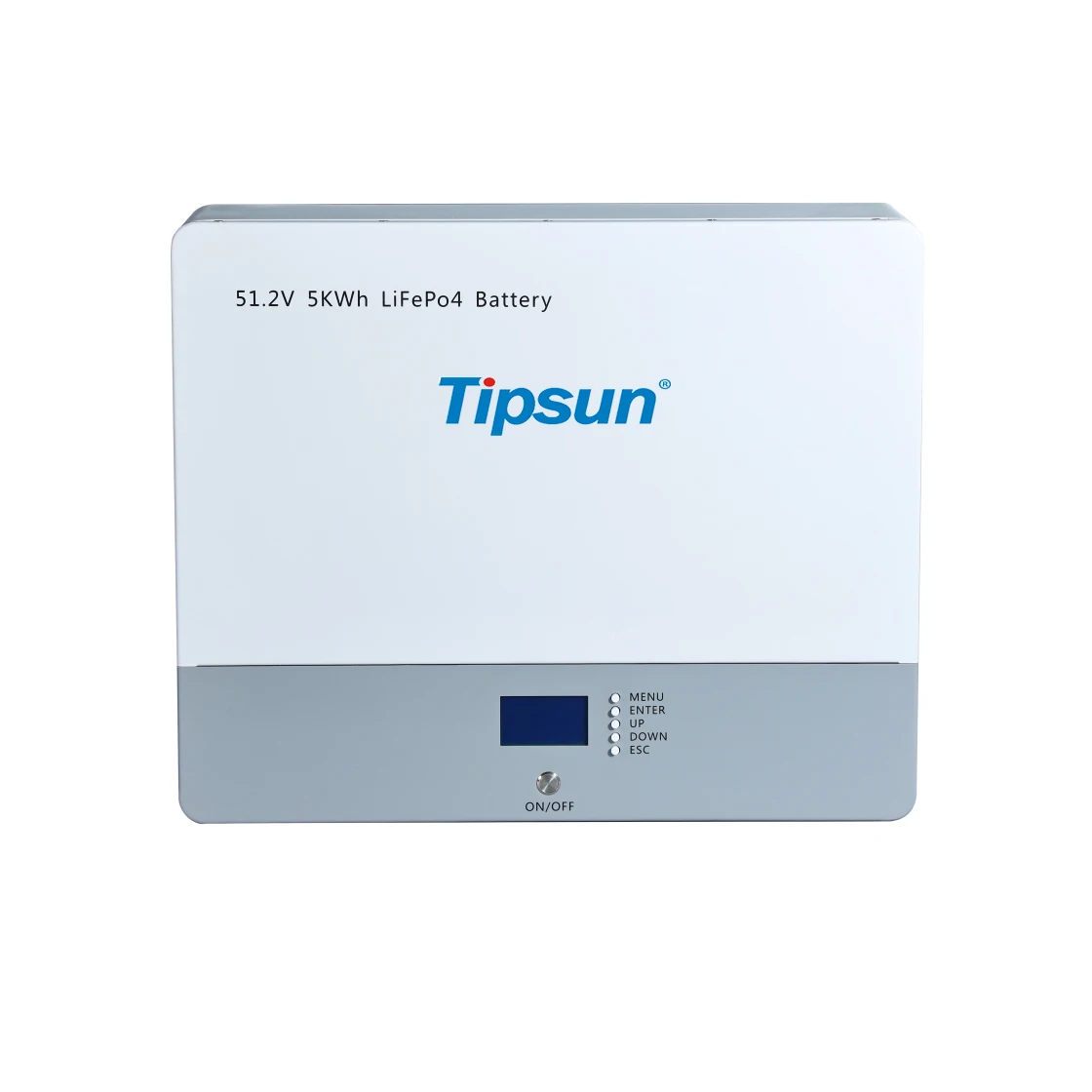

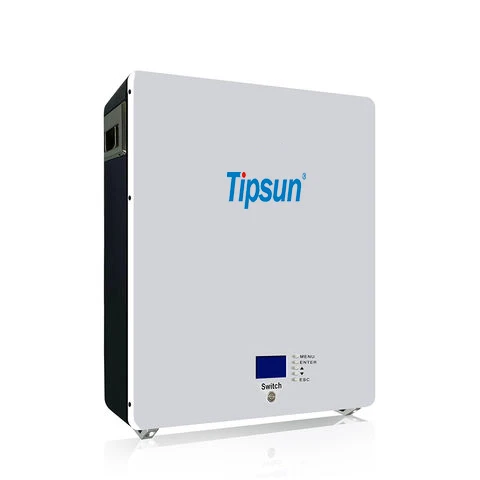

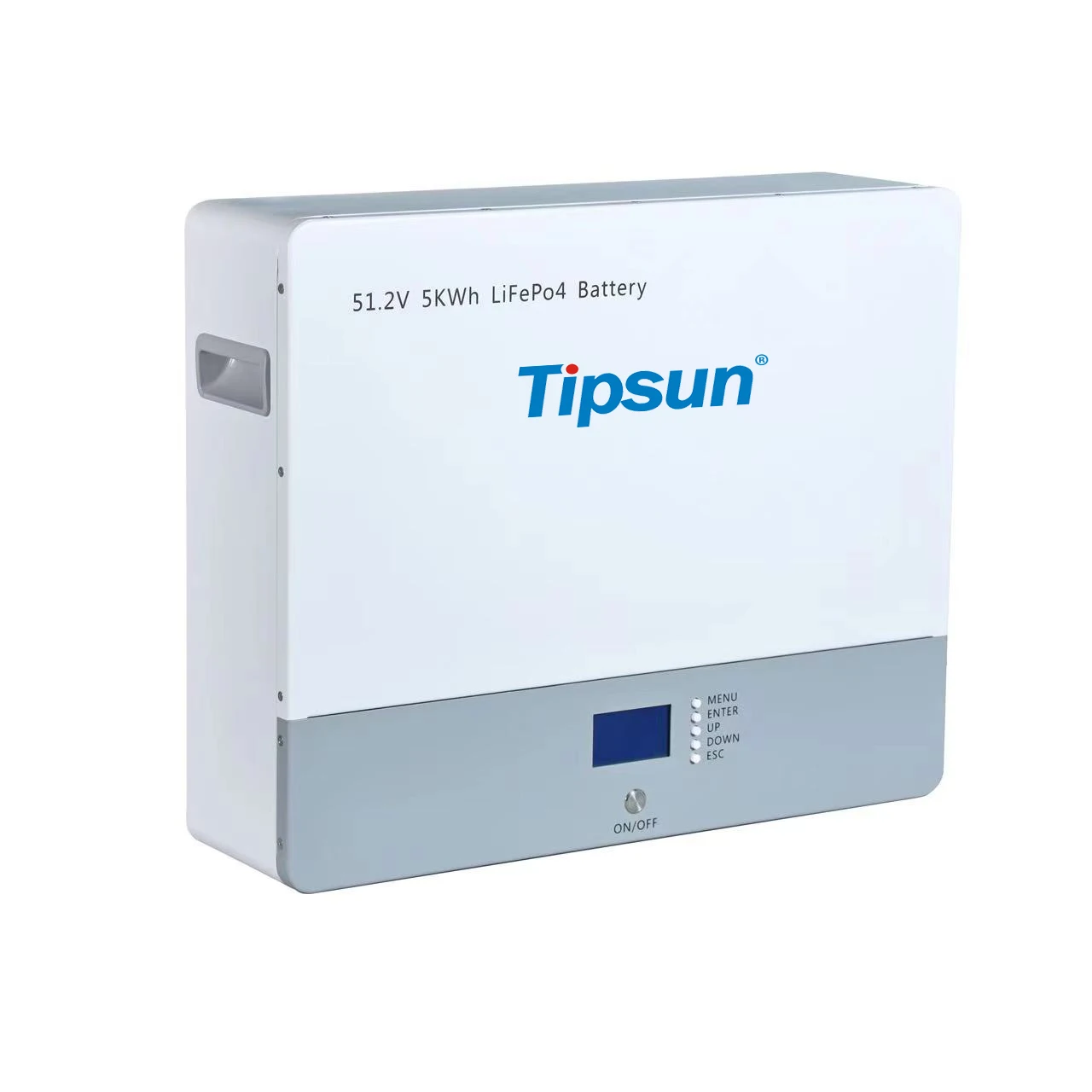

Model Number | TIPSUN-51.2V 100AH-2 |
Inverter Type | Pure Sine Wave |
Battery Type | LiFePO4 |
Controller Type | MPPT |
Brand Name | Tipsun |
Nominal Voltage | 51.2Volts |
Rated Capacity | 100Ah |
Charging Voltage | 57.6V |
Charging Mode | C.C/C.V. |
Voltage at end of Discharge | 40V |
Rated Charge Current | ≤20A |
Maximum Continuous Charge Current | ≤100A |
Internal Impedance | <100mΩ |
Rated Discharge Current | ≤50A |
Over Current | Discharge overcurrent value: More than 150A |
Operating Consumption Current | ≤40mA (Max) |
Equalizing opening differential pressure | 30mV |
Bleed Start Point | 3.45V |
Operation Temperature Range | Charge: 0~55℃ / Discharge: -20~55℃ |
Storage Temperature Range | Less than 1 year: -20~25℃ / less than 3 months: -20~40℃ / Less than 7 day : -20~65℃ |
Cells | 48173125-100A |
Connection Type | 16S1P |
Shipping voltage | 52.8V-57.6V |
PCB | 16S100A-WN12320-20A-ZJ-1PCS |
Communication Board | SST19-247B-REV1.2 |
Casing | Sheet Metal |
