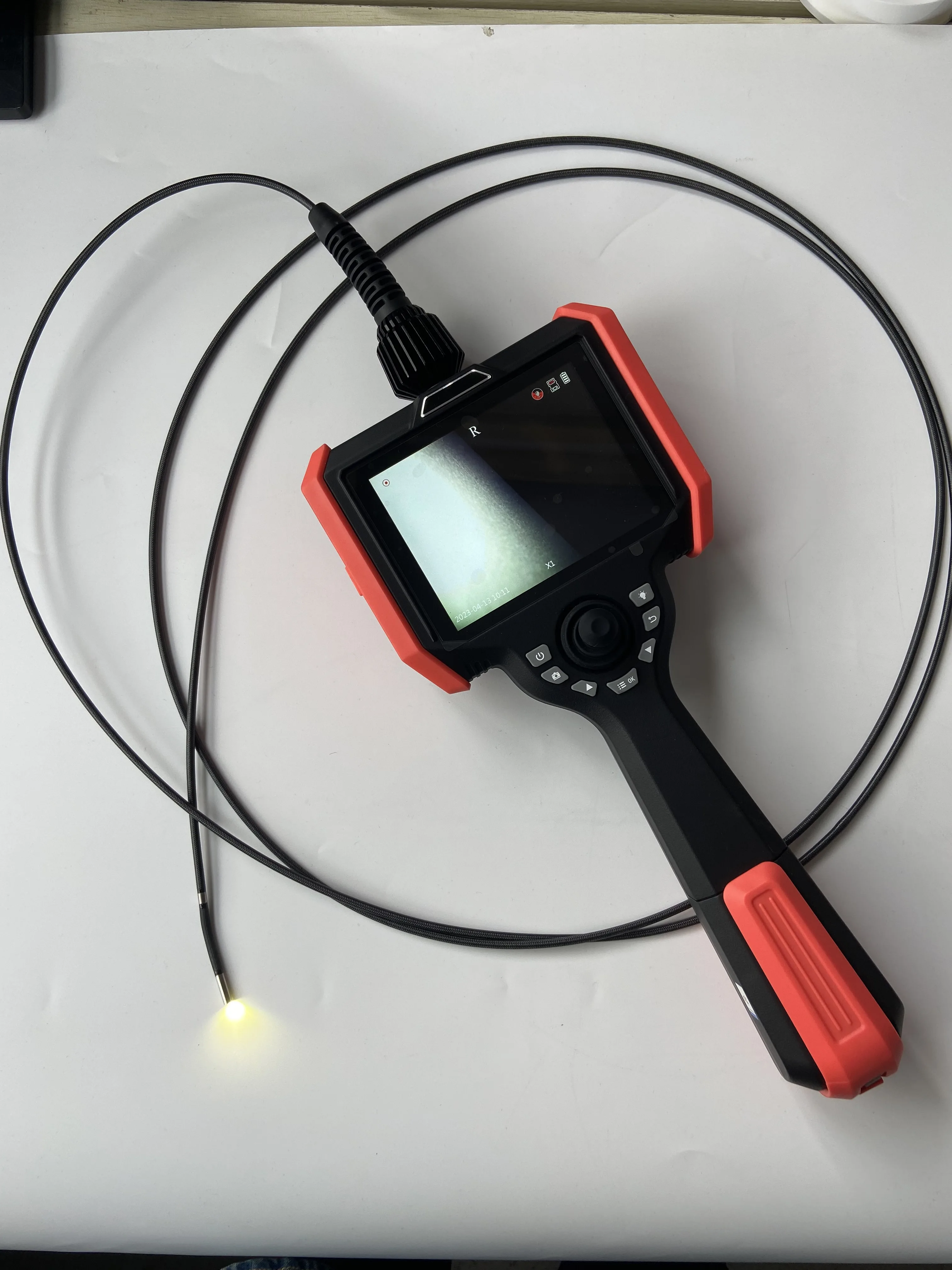

Flexible Industrial Borescope with 6mm Probe Lens, 2Mts Working Cable, 360 Degree Joystick Articulation, 5 Inch Display

Product Overview

Description

Flexible Industrial Borescope with 6mm Probe Lens, 2Mts Working Cable, 360 Degree Joystick Articulation, 5 Inch Display



Model :  SZW602J





I. Application:

   Industrial video endoscopes (aka: Sight scopes) are a branch of non-destructive testing and a dedicated detection technology. Suitable for inspection and observation of high temperature, toxic, nuclear radiation and places that are invisible to the human eye (eg automotive assembly, automotive casting, engines, pipes, mechanical parts, pressure vessels, power systems, wind power, chemical, mechanical equipment) , railway locomotives, etc., can achieve non-destructive testing without disassembly or destruction of assembly and equipment stop operation, can greatly improve the detection efficiency and equipment safety performance.

II. Main features:

 Portable 5.0 inches IPS LCD, 1 million pixels.

 High brightness Rear LED illumination, can adapt to different detection needs

 Large depth of field  5-120,3-20,50-infinity

 High precision Mechanical guidance, 360 degree arbitrarily rotating, precise control 0 delay

 Super wear-resistant four-layer tungsten braided tube, waterproof, wear-resistant, anti-corrosion

 Super battery life Replaceable battery, continuous operation >= 4 hours

 High-brightness display Wide-angle high-brightness LCD

III. Technical specifications:

Bending angle	no more than 180°
System / Software
Pictures/video format	JPG/MP4
Pictures control	Pictures control  Taking photos,recording,Zoom, freeze, flip, replay, simulate ruler, etc.
System language	Chinese, English, etc 7 languages

Operation environment:
Body temperature	-10℃~50℃
Probe lens camera	-20℃~70℃
Storage temperature	-20℃~60℃
Relative humidity	Max 90%
Waterproof standard	IP67
Body specifications:
Size	251*100*75mm
Battery	more than 4 hours
Monitor	5.0 inches IPS LCD
SD card	8G
Video output	HDMI
Forward
Pixels	1000, 000
Camera lens diameter	6mm / 3.9mm
Cable length	1.5M -- 4.0M
FOV	90,120degrees optional
Forward illumination	no more than 50000lux
DOF	5-120,3-20,50-infinity
Direction	360degrees rotation
