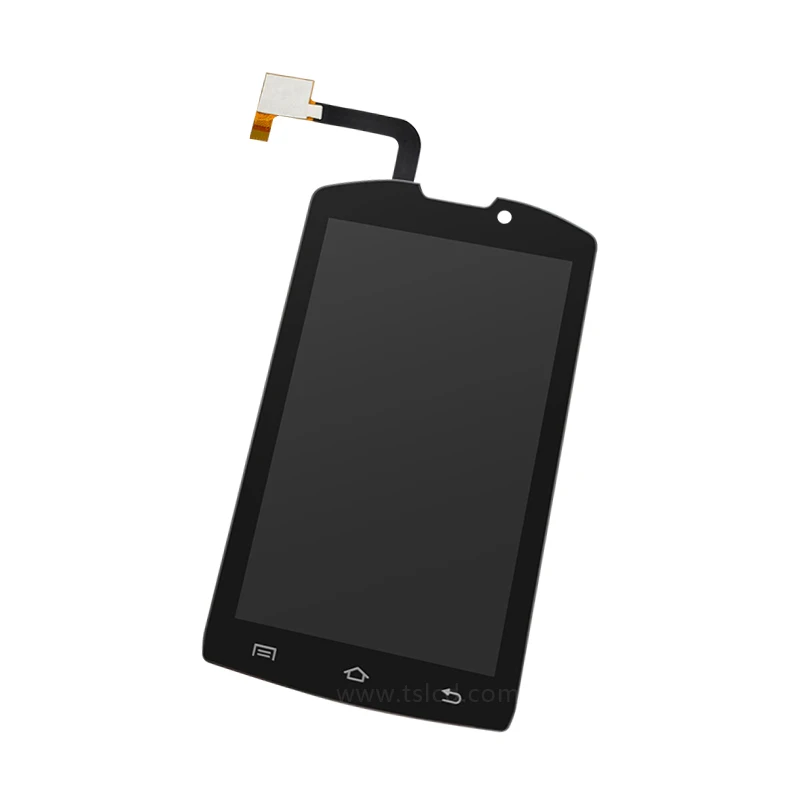

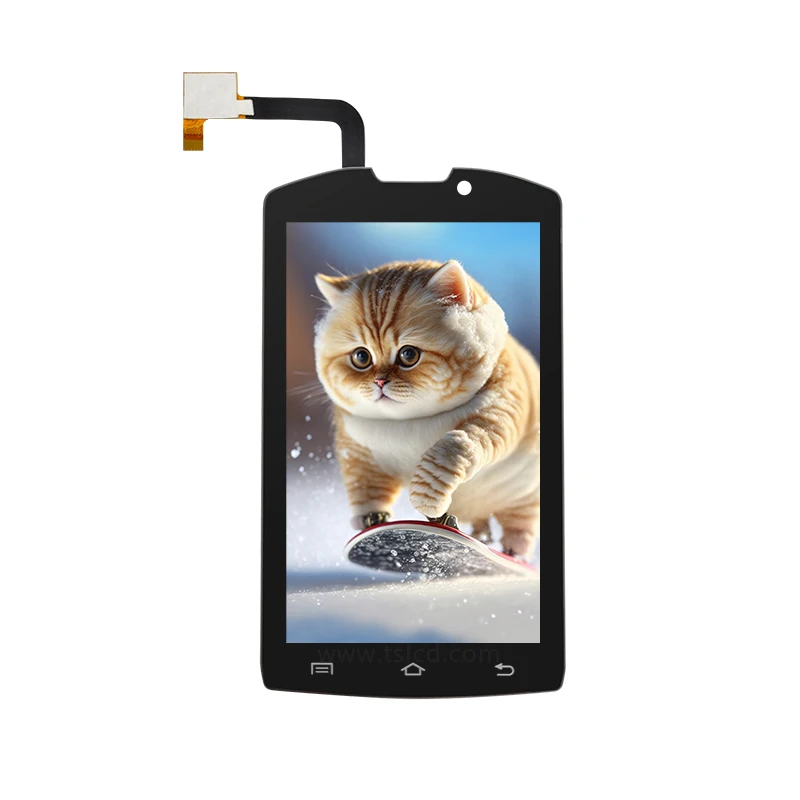

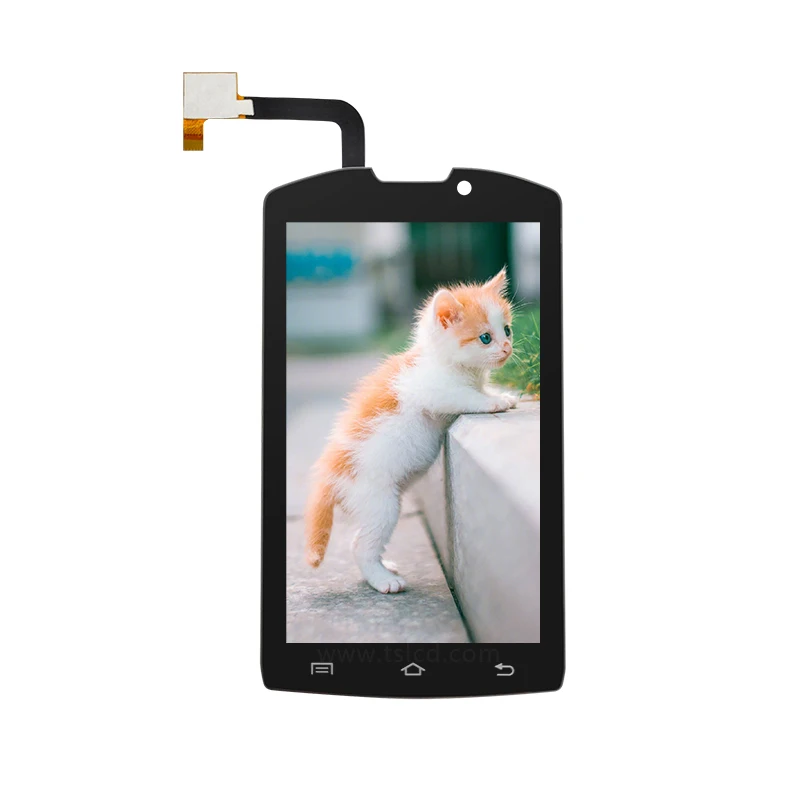

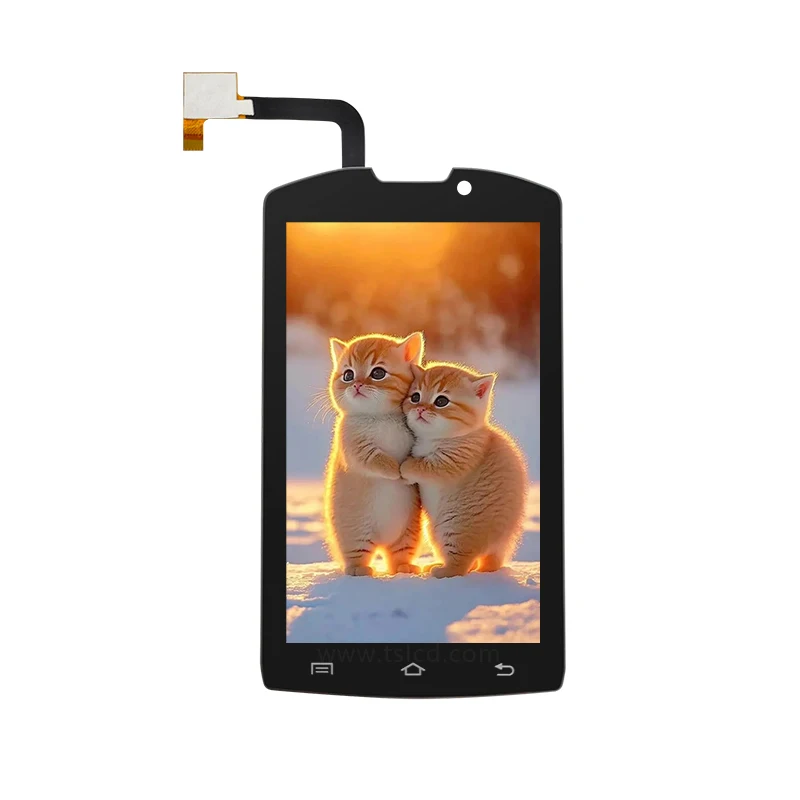

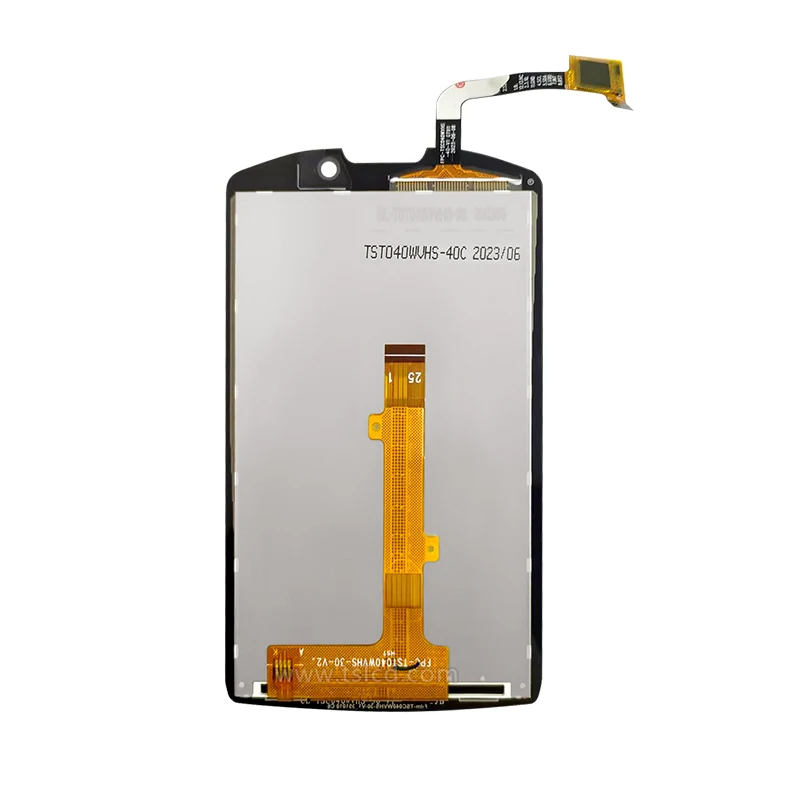

TSD 4 Inch 480x800 Resolution MIPI Interface 380nits IPS LCD Panel
- Category: >>>
- Supplier: Shenzhen Team Source Display Technology Co. Ltd.
Share on (1600902604669):
Product Overview
Description
Product Description
LCD Type | TFT, Transmissive,Normally black, IPS |
LCD Size | 4 Inch |
Part NO. | TST040WVHS-18C |
Resolution | 480x (RGB) ×800 |
Outline Size | 62.78x107.98x3.62mm |
Active Area (W × H) | 51.84x86.4mm |
Viewing Direction | All o’clock |
Color Depth | 16.7M |
Pixel Arrangement | RGB-stripe |
Backlight Type | 8 LEDs，40mA |
Surface Luminance | Typ 380(cd/m2) |
Driver IC | ST7701S |
Interface Type | MIPI |
TP/Lens | With CTP(IC:FT5446DQS) |
Operating temperature | -20 ℃~70 ℃ |
Storage Temperature | -30 ℃~80 ℃ |
Input Voltage | 2.8V |
For more customized products, please click the link below
Inch | Part number | Resolution | Viewing angle | Contract | interface | luminance |
0.96 | 80xRGBx160 | ALL | 600 | IPS | 150 | |
1.08 | 240xRGBx210 | ALL | 600 | IPS | 400 | |
1.3 | 240xRGBx240 | ALL | 600 | IPS | 220 | |
1.54 | 320xRGBx320 | ALL | 900 | MIPI | 200 | |
1.77 | 128xRGBx160 | 6H | 300 | IPS | 180 | |
1.9 | 170xRGBx320 | ALL | 600 | MCU | 330 | |
2.0 | 176xRGBx220 | 12H | 500 | MCU | 180 | |
2.2 | 176xRGBx220 | 12H | 400 | IPS | 380 | |
2.4 | 240xRGBx320 | 12H | 250 | MCU | 320 | |
2.5 | 480xRGBx480 | ALL | 1000 | MIPI | 400 | |
2.8 | 240xRGBx320 | 6H | 800 | MCU | 320 | |
3.0 | 480xRGBx640 | ALL | 800 | RGB | 500 | |
3.2 | 240xRGBx320 | 12H | 500 | MCU | 320 | |
3.5 | 320xRGBx240 | 12H | 300 | RGB | 350 | |
3.97 | 480xRGBx800 | ALL | 700 | MIPI | 350 | |
4.0 | 720*RGB*720 | ALL | 700 | MIPI | 350 | |
4.3 | 480xRGBx272 | ALL | 800 | 24BIT RGB | 720 | |
5.0 | 720xRGBx1280 | ALL | 800 | MIPI | 300 | |
5.5 | 720xRGBx1280 | ALL | 800 | MIPI | 440 | |
5.7 | 320xRGBx240 | 12H | 500 | RGB | 400 | |
7.0 | 1024xRGBx600 | ALL | 800 | LVDS | 1000 | |
7.0 | 800xRGBx1280 | ALL | 900 | MIPI | 400 | |
8.0 | 1200xRGBx1920 | ALL | 900 | MIPI | 390 | |
8.88 | 1280xRGBx720 | ALL | 1000 | LVDS | 500 | |
9.7 | 1024xRGBx768 | ALL | 500 | LVDS | 280 | |
10.1 | 1280xRGBx800 | ALL | 900 | LVDS | 1000 | |
10.4 | 1024xRGBx768 | 6H | 500 | LVDS | 400 | |
12.3 | 1920xRGBx720 | ALL | 1000 | LVDS | 1000 | |
12.8 | 1920xRGBx1080 | ALL | 1400 | LVDS | 700 | |
13.3 | 1920xRGBx1080 | ALL | 1000 | TTL(EDP) | 200 |
Company Profile
TEAM SOURCE DISPLAY (Brand:TSD ) was established in 2004. Factory in Dongguan ,have 12000+ sqms workshop . TSD's business scope covers LCD / LCM Module development, single-chip production and materials processing. In a span of more than 15 years, we have developed thousands of LCD and LCM products for Industrial,home appliance, consumer electronics, medical equipment and other applications.TSD also worked on the full range of the LCD products and LCD solutions development, offering customers unique,innovative, and cost effective yet market leading modules , catering for a range of applications and industries.We follow a people-oriented, quality and customer-first approach in all of our dealings. That is why we maintain a clean environment which is conducive for working and take the environment into account during the manufacturing process. Find out more about the benefits of working with us. Contact us today for any of your LCD / LCM / LCD solution projects and requirements.MORE...
Customized Service
Applications
Production Process
Exhibition & Certificate
Product Packaging
FAQ
Q: How can i find the right product?
A: Please send us your requirements, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment
& customization.
Q: How to customize the product?
A: Customized procedures goes like this: Project scope clarification → Fill TSD Requirement Form → Engineering analysis → Cost→
Evaluation → Customer confirmation → Providing drawing → Customer confirmation → Sampling → Customer approval → Mass production
Q: Do you accept sample order or small quantity order?
A: Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)
Q: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.
Q: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and
product)
A: Please send us your requirements, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment
& customization.
Q: How to customize the product?
A: Customized procedures goes like this: Project scope clarification → Fill TSD Requirement Form → Engineering analysis → Cost→
Evaluation → Customer confirmation → Providing drawing → Customer confirmation → Sampling → Customer approval → Mass production
Q: Do you accept sample order or small quantity order?
A: Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)
Q: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.
Q: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and
product)
