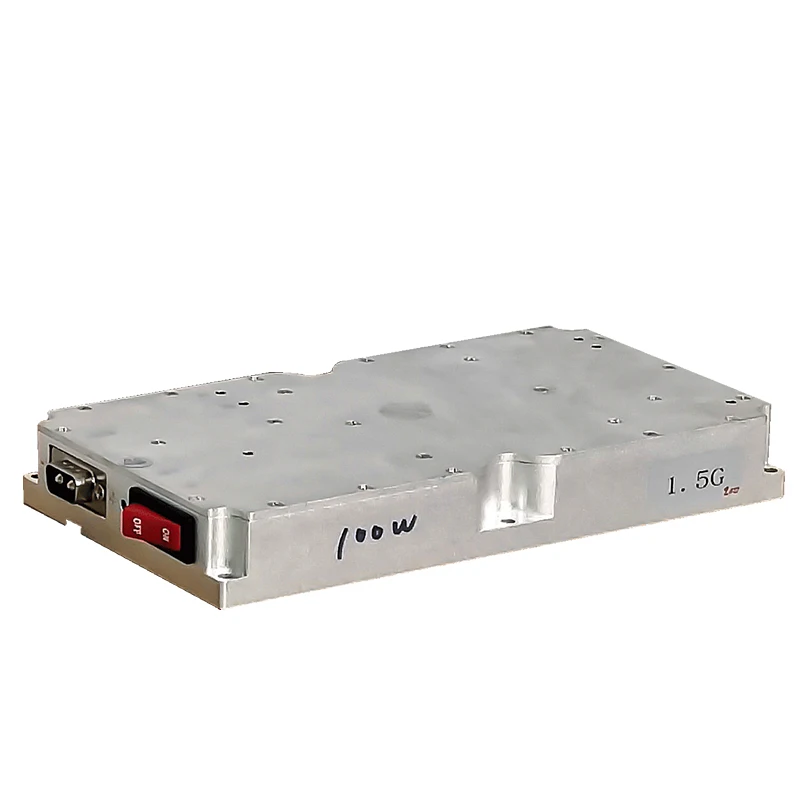

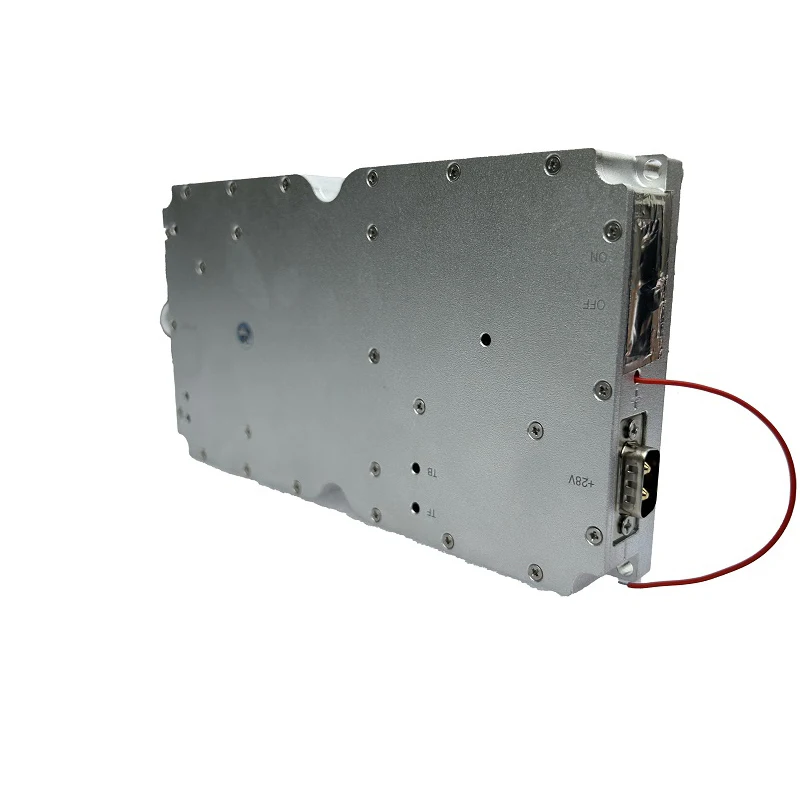

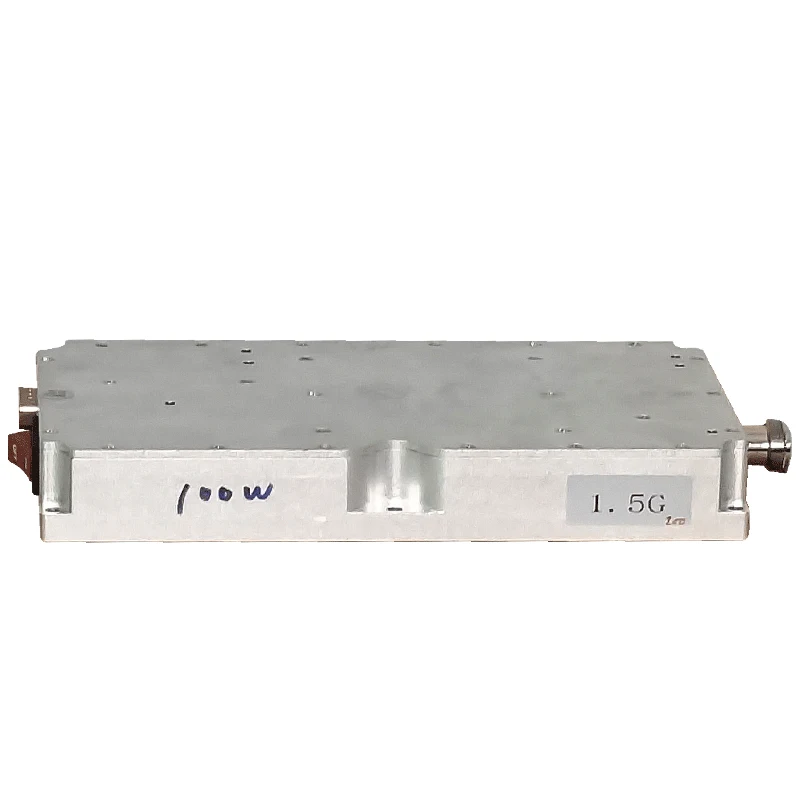

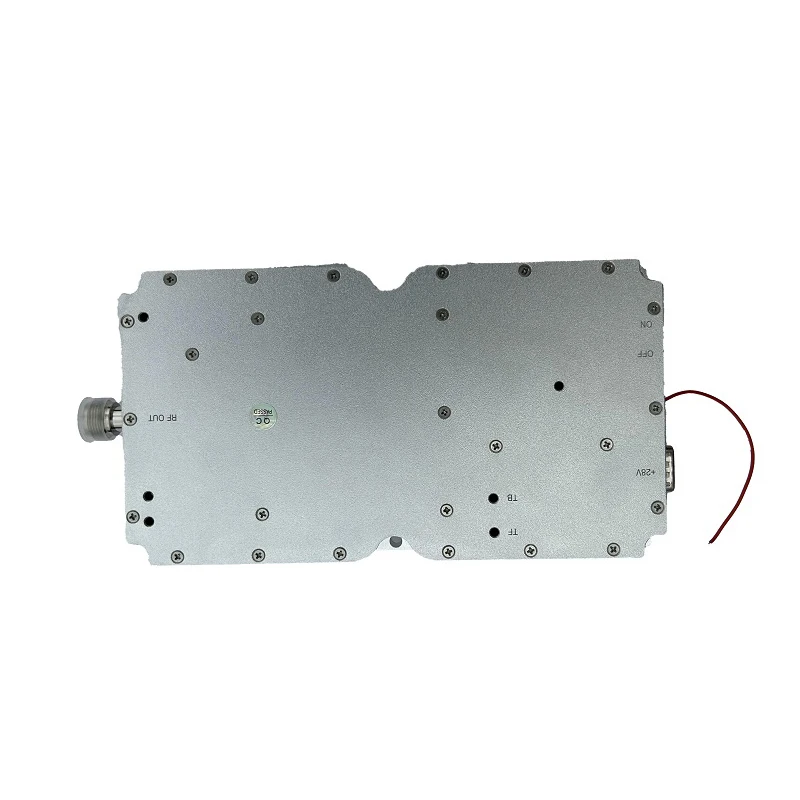

Customized portable 1.2G 100W RF power amplifier module with RS485 communication for anti drone/UAV
- Category: >>>
- Supplier: ShenZhen HaiYi Science and Technology Electronics Co. LTD
Share on (1600902604732):
Product Overview
Description
Customized portable 1.2G 100W RF power amplifier module with RS485 communication for anti drone/UAV

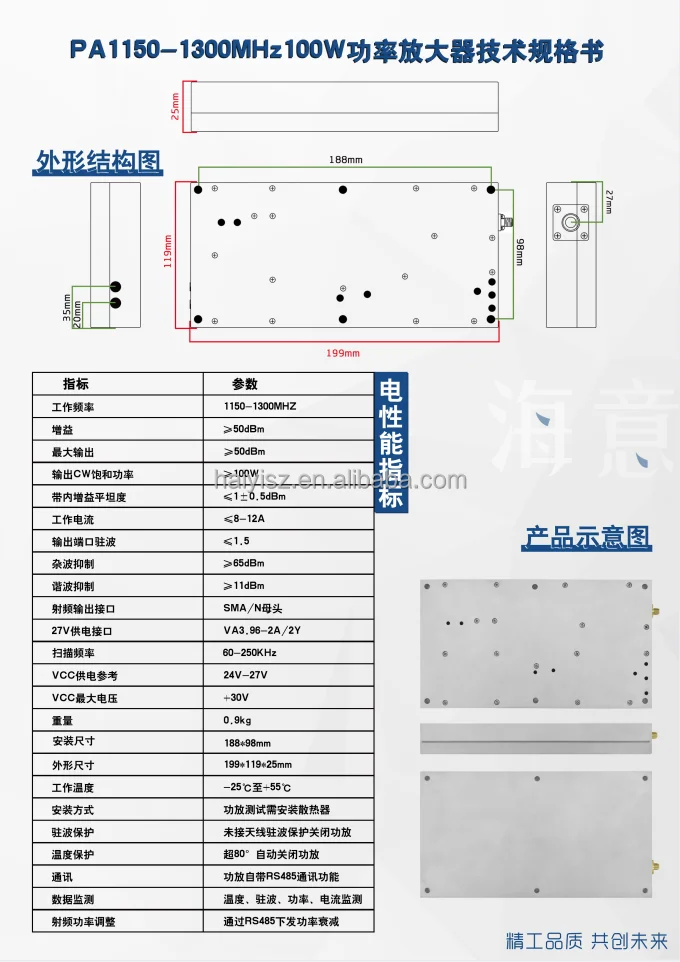

Product Description
| Indicators | Parameter |
| Working frequency | 1150-1300MHz |
| Gain | ≥50dBm |
| Max output | ≥50dBm |
| Output CW saturation power | ≥100W |
| Including inside gain flatness | ≤1±0.5dBm |
| Working current | ≤8-12A |
| Output port standing wave | ≤1.5 |
| Clutter suppression | ≥65dBm |
| Harmonic suppression | ≥11dBm |
| Rf output interface | SMA / Female N |
| 27V power supply port | VA3.96-2A/2Y |
| Sweep frequency | 60-250KHz |
| VCC Power supply reference | 24V-27V |
| Max Voltage | +30V |
| Weight | 0.9kg |
| Installation dimensions | 188*98mm |
| Overall dimensions | 199*119*25mm |
| Operating temperature | -25℃ ~ +5℃ |
| Installation | Installing radiator for testing of power amplifier |
| Standing wave protection | Turn off the power amplifier to protect standing wave when don't connected antenna |
| Temperature protection | Over 80℃ automatically turn off power amplifier |
| Communication | The power amplifier has RS485 communication function |
| Data monitoring | Temperature,Standing wave,Power,Current |
| Rf power adjustment | Power attenuates by RS485 |
Packaging & Shipping
Lead Time:
| Quantity(pieces) | ≤50 | ≤100 | >100 |
| Est. Time(days) | 6days | 8days | To be negotiated |
