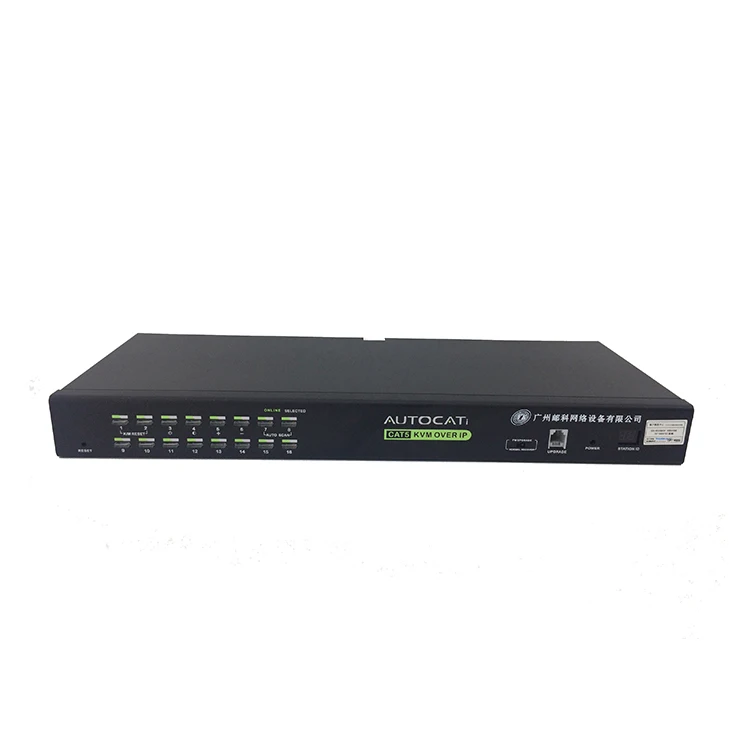

RJ45 RJ11 1280x1024@60Hz 16 port CAT5 IPKVM switch
- Category: >>>
- Supplier: Yucoo Network Equipment Co. Limited
Share on (1600902682227):
Product Overview
Description
Product Introduction
Product characteristic:
1. 1U height, adaptable to 19" standard cabinet installation, metal construction.

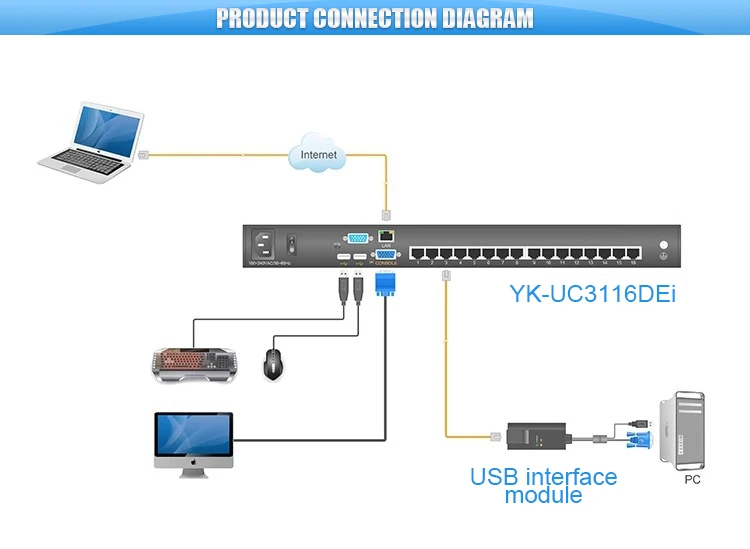

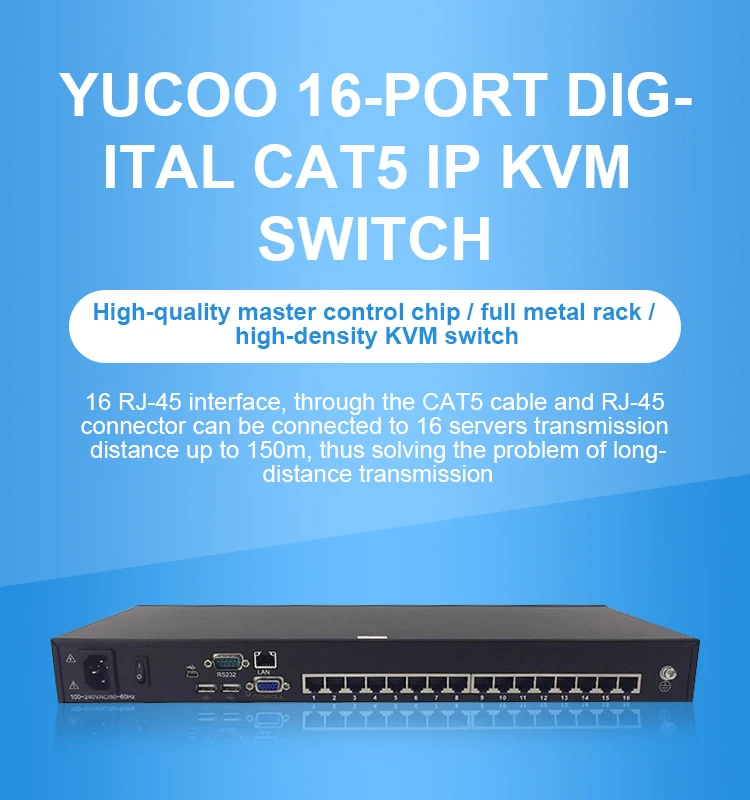

2. 16 RJ-45 interface KVM ports to connect to the server via CAT5 module (local support up to 150 meters).
3. Allow 1 remote administrator to access the KVM via web browser with TCP/IP communication protocol
2. 16 RJ-45 interface KVM ports to connect to the server via CAT5 module (local support up to 150 meters).
3. Allow 1 remote administrator to access the KVM via web browser with TCP/IP communication protocol
4. Local user video resolution and remote user video resolution up to 1280 x 1024@60HZ. automatically adjusts the video size when switching between servers with different resolutions, eliminating the need for manual adjustments.
Wide range of compatibility
Wide range of compatibility
5. Supports mainstream operating systems such as Windows, Linux, and Sun, and is compatible with mainstream servers such as Lenovo, Dawning, Wave, Huawei, Baldor, HP, IBM, Dell, and Cisco

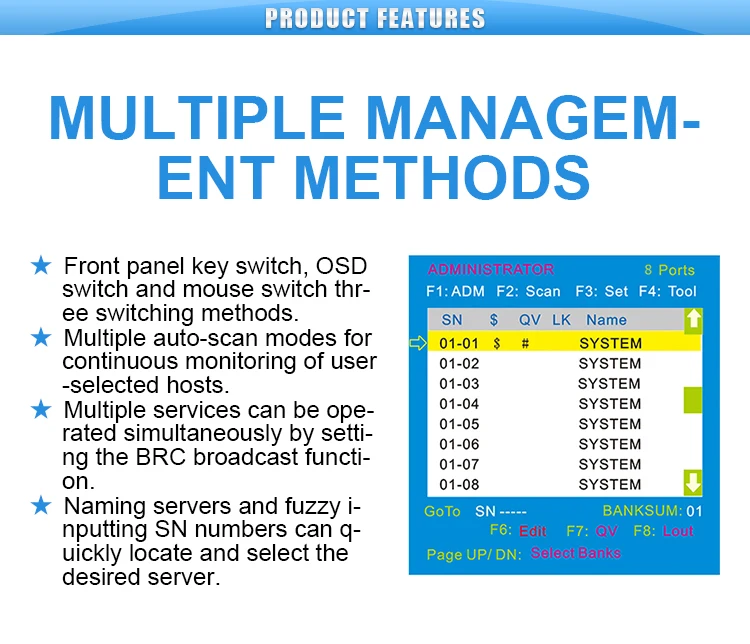

6. Selected hosts can be switched through the front panel key switching, OSD switching, support hot key switching management mode.
7. Remote access to KVM (keyboard, video, mouse) via IP or modem, supports Java's web browser remote control, can control the system both at the BIOS level and during boot-up.
8. Provides multiple auto-scan modes (ALL/POWER ON /QV auto-scan) to continuously monitor the host selected by the user.

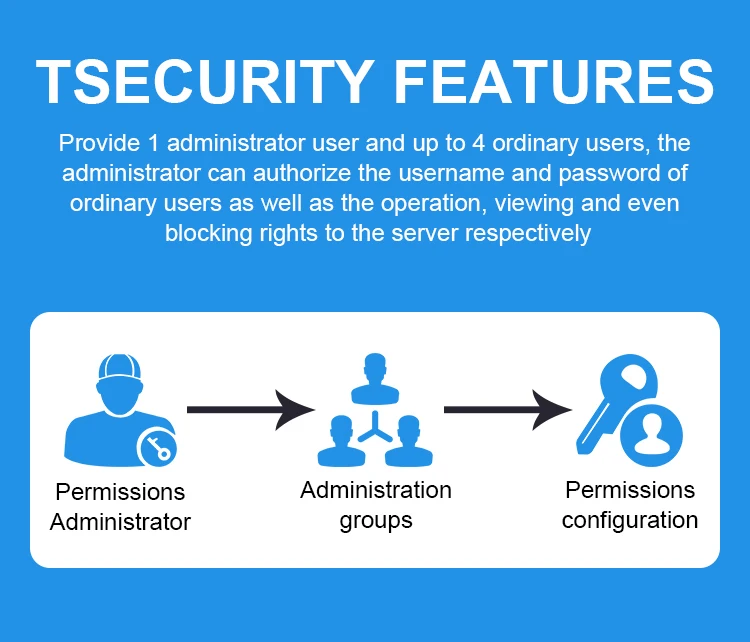

9. Multi-user single console setup, providing 1 administrator user and up to 4 ordinary users, the administrator can separately authorize the ordinary user's user name and password, as well as the authority to operate, view and even block the server
11. All transmission data is encrypted with SSL 256-bit security encryption, SSL certificate management

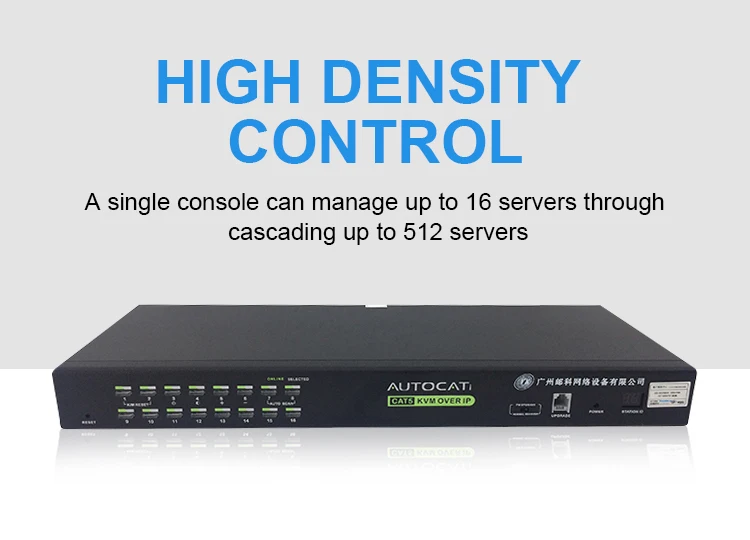

12. YK-UC3116DEi can manage up to 16 servers on a single device, and up to 512 servers through 32-level connectivity
Product Specifications
Function | YK-UC3116DEi | |||||
Number of host connections | Number of direct connections | 16 | ||||
Working Voltage | Maximum number of connections | 512 | ||||
Port Selection | mA | OSD menu. Hotkeys | ||||

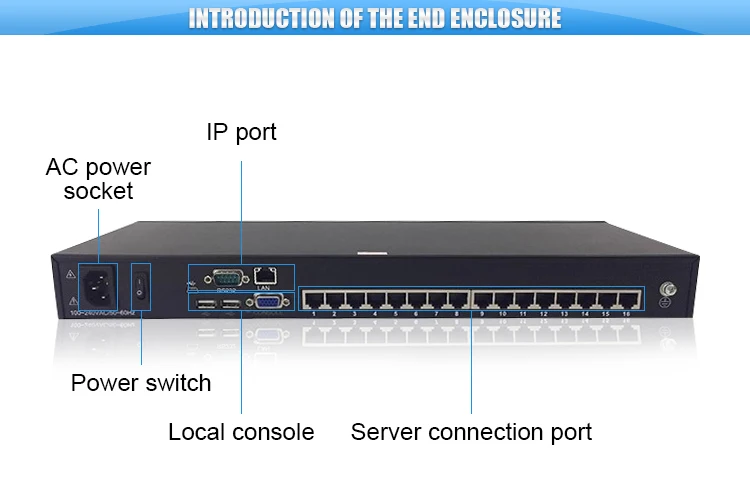

Connection Port | Console | Keyboard | 1 x USB TYPE A | |||
Frequency range | KHz | Mouse | 1 x USB TYPE A | |||
Sensitivity | dB | Monitor | 1×HDB-15 Female(Blue) | |||
Frequency Response | Server Connection | 16×RJ-45 | ||||
Output signal amplitude | Upgrade Selector Switch | 1×RJ11 Female | ||||
Output Level | Power Supply | 1×3-Prong AC Socket | ||||
Switch | Port Selection | 16×Keypad | ||||
Size | Reset | 1×Touch Button | ||||
Weight | Upgrade Selector Switch | 1× Toggle Switch | ||||
Power | 1×Boat switch | |||||
Indicator light | Online | 16 (green) | ||||
Selected | 16 (Orange) | |||||
Power | 1 (Blue) | |||||
Cascade/Port Display | 2×7- Segment (Orange) | |||||

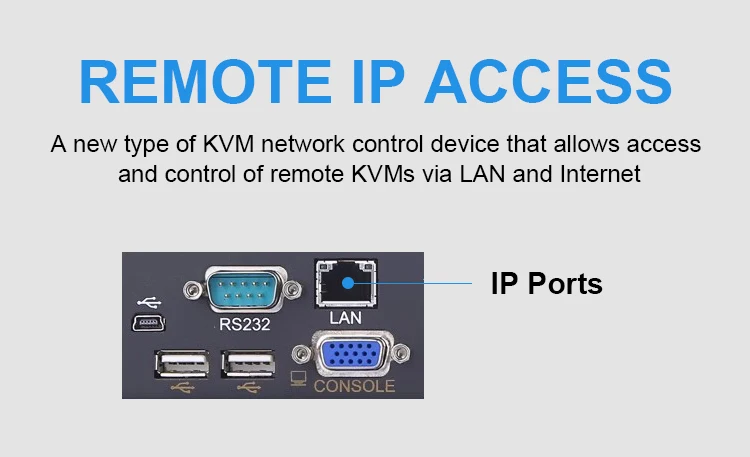

IP Module | Remote Access Connection | 1 x RJ-45 | ||||
Firmware Upgrade Port | 1 x Serial DB9 Pin | |||||
IP Settings | DHCP, Bootp, Fixed IP (DDNS supported) | |||||
event log | NFS, SMTP, SNMP trap | |||||
Management Interface | Web, Utility, Telnet, Serial port | |||||
Video Signal | 1280x1024@60Hz | |||||
I/R Value | 100V-240V AC , 50/60Hz , 1A | |||||
Power Consumption | 9W | |||||
Environmental Requirements | Operating Temperature | 0-40℃ | ||||
Storage Temperature | -20-60℃ | |||||
Humidity | 0-80%RH,Non-condensing | |||||
Physical Characteristics | Material | Metallic | ||||
Weight | 2.8kg | |||||

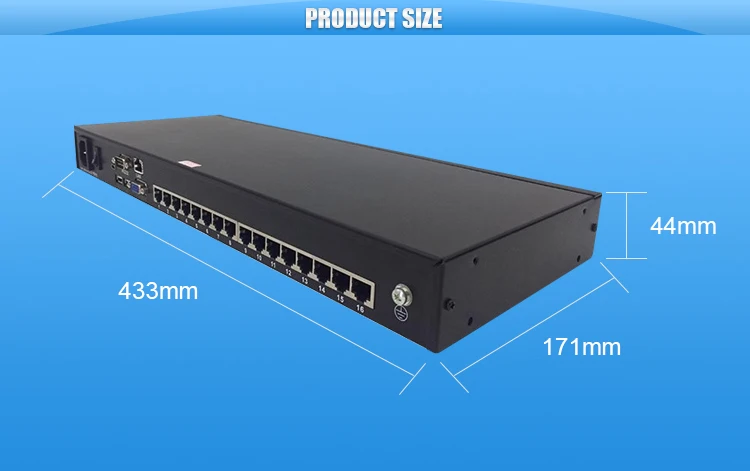

Dimension | 433mm×171mm×44mm | |||||
