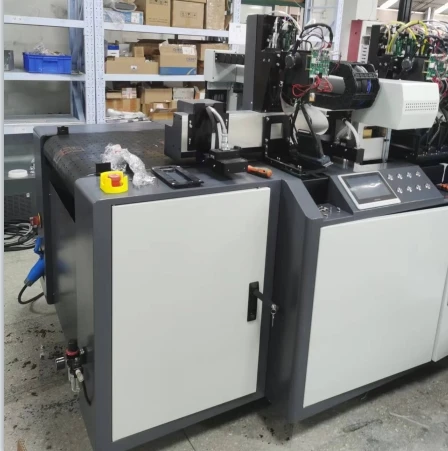

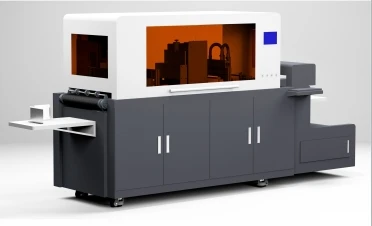

One step printing machine single pass digital printing machine

Material:PVC Decorative plate

Material thickness: 18mm

Material size: 300mm*6000mm

Print content: fixed color pattern

Print width: 300mm

Capacity: 25m/min

Printing accuracy: 600*600DPI

Ink;UV ink

Color:W+C+M+Y+K+Varnish(UV roller coating production line)

Anterior and posterior processing: UV lamp curing, Varnish treatment(UV roller coating production line)

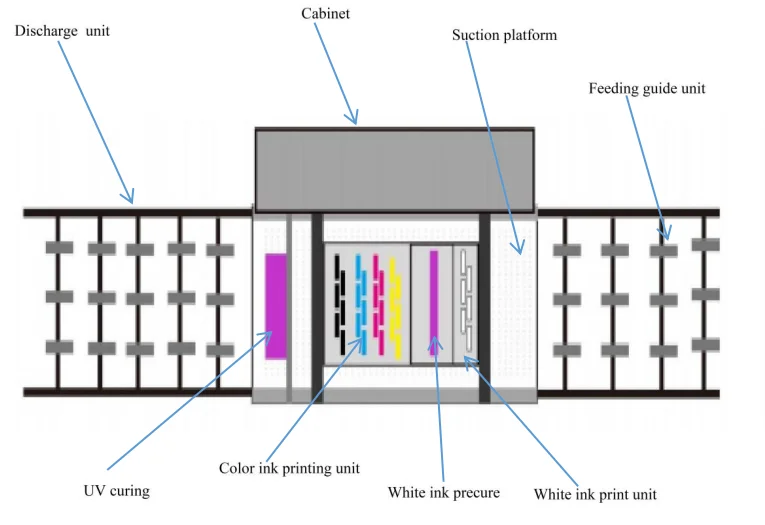

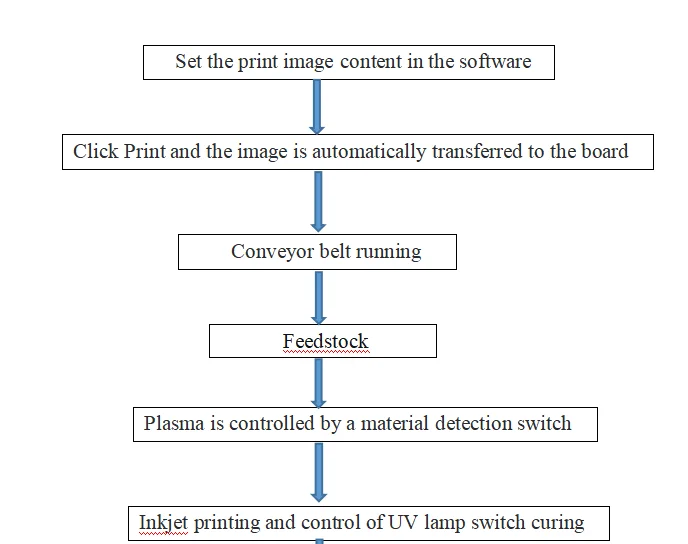

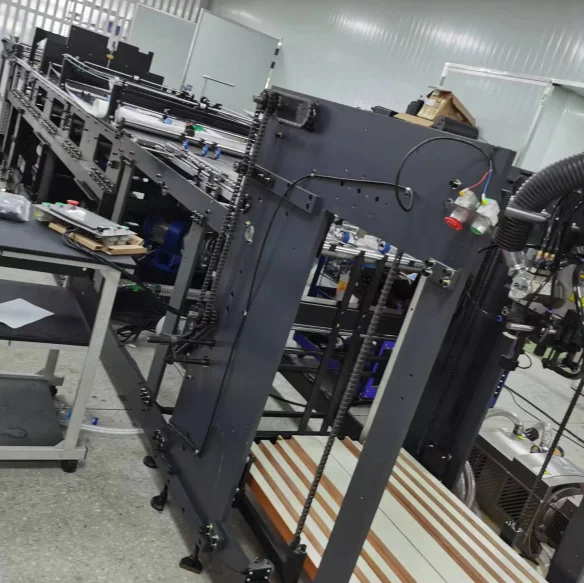

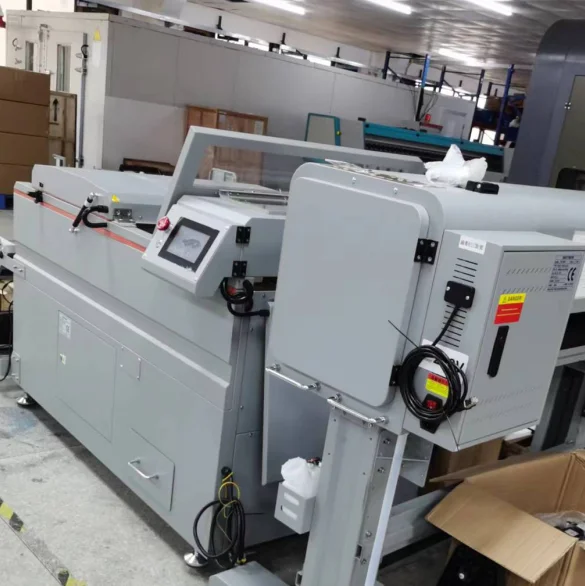

Item

Name

Usage

Remark

1

Discharge unit

Discharge material

Keep consistent with the feeding speed

2

Cabinet

Electrical, ink supply installation

3

Suction platform

When printing, hold the material and feed at uniform speed

4

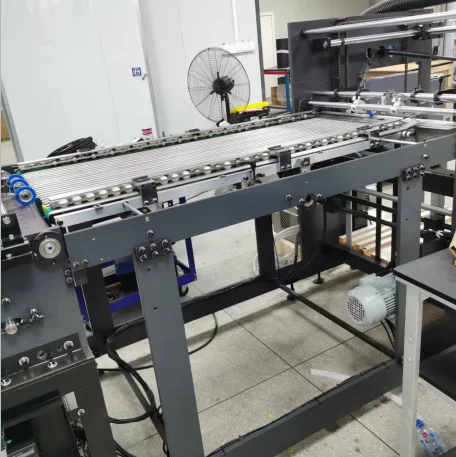

Feeding guide unit

Material alignment and uniform feed

Keep consistent with the feeding speed

5

UV curing

Dry the ink completely

6

Color ink printing unit

Color pattern printing

7

White ink precure

White ink curing

8

White ink print unit

Color ink pattern print

9

Varnish treatment

UV roller coating production line

Printhead Model

Toshiba CF3R Inkjet print head

Droplet size

3.5-12PL

Ignition frequency

19KHZ

Gray level

4 level

Printhead array

1 head, 1 color, 4 colors, 5 rows (a total of 30 Print heads)

Ink type

UV curable ink

Color combination

W+C,M,Y,K

Drying method

UV lamp curing

Ink characteristic

Light dries immediately

Mode

Customized equipment

Equipment size

Print parts (L 2500mm* W 1200mm* H 1600mm)

The feeding unit and handling unit are expected to be 6000mm

Print width

310MM

Print medium height

1-300mm

Ink supply system

Bottom inner circulation ink supply system

Print head maintenance mode

Manual inking + manual cleaning

XYZ motion control

Z and X axis linkage control

Drying method

UV lamp curing

Feeding unit

High precision transfer platform

Material pretreatment and post-treatment

Pretreatment:the material is polished to enhance the uniformity of ink adhesion.  Post-treatment:Varnish treatment(UV roller coating production line)

Collecting and discharging unit

By customer himself
