Product Overview
Description

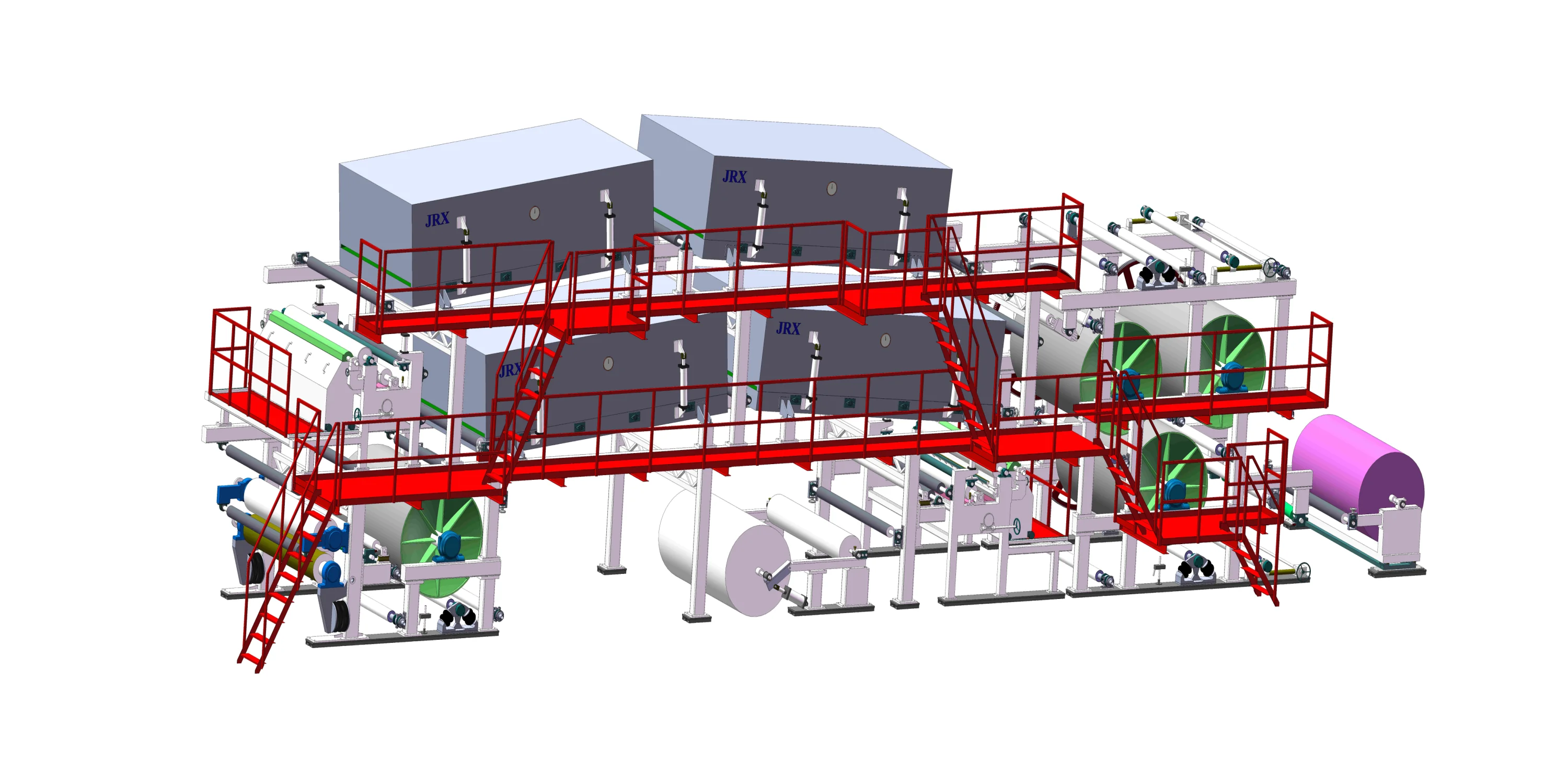

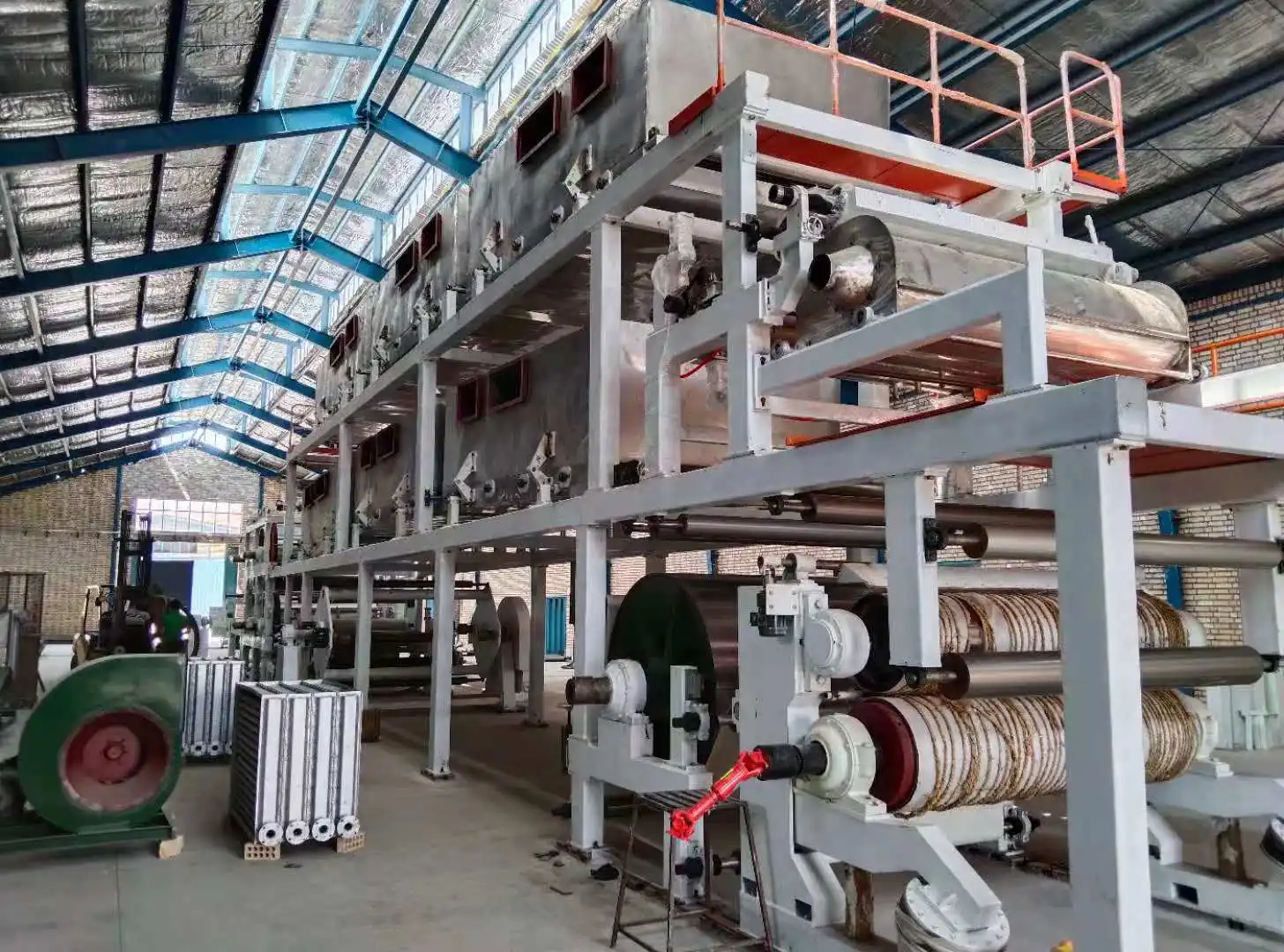

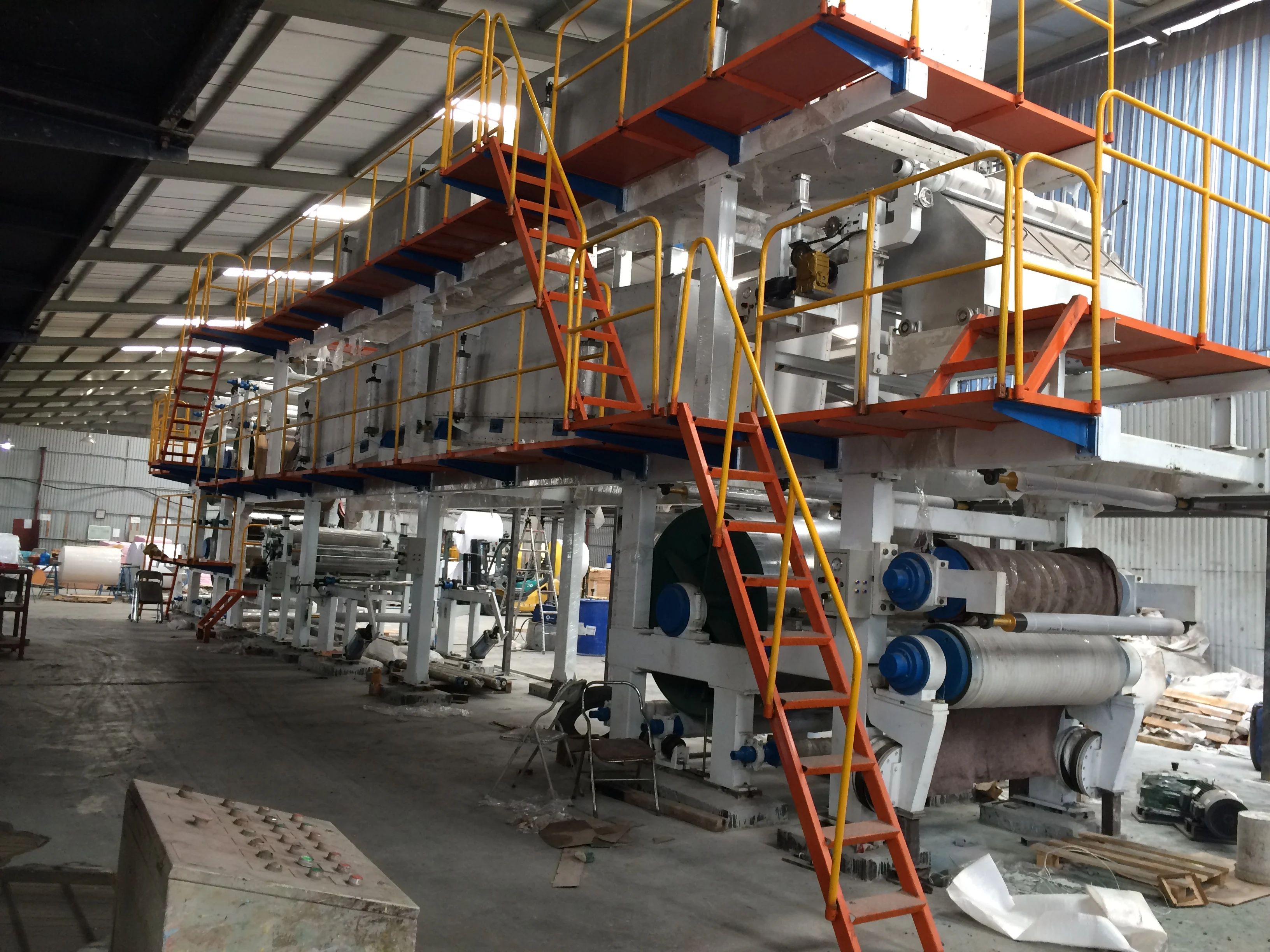

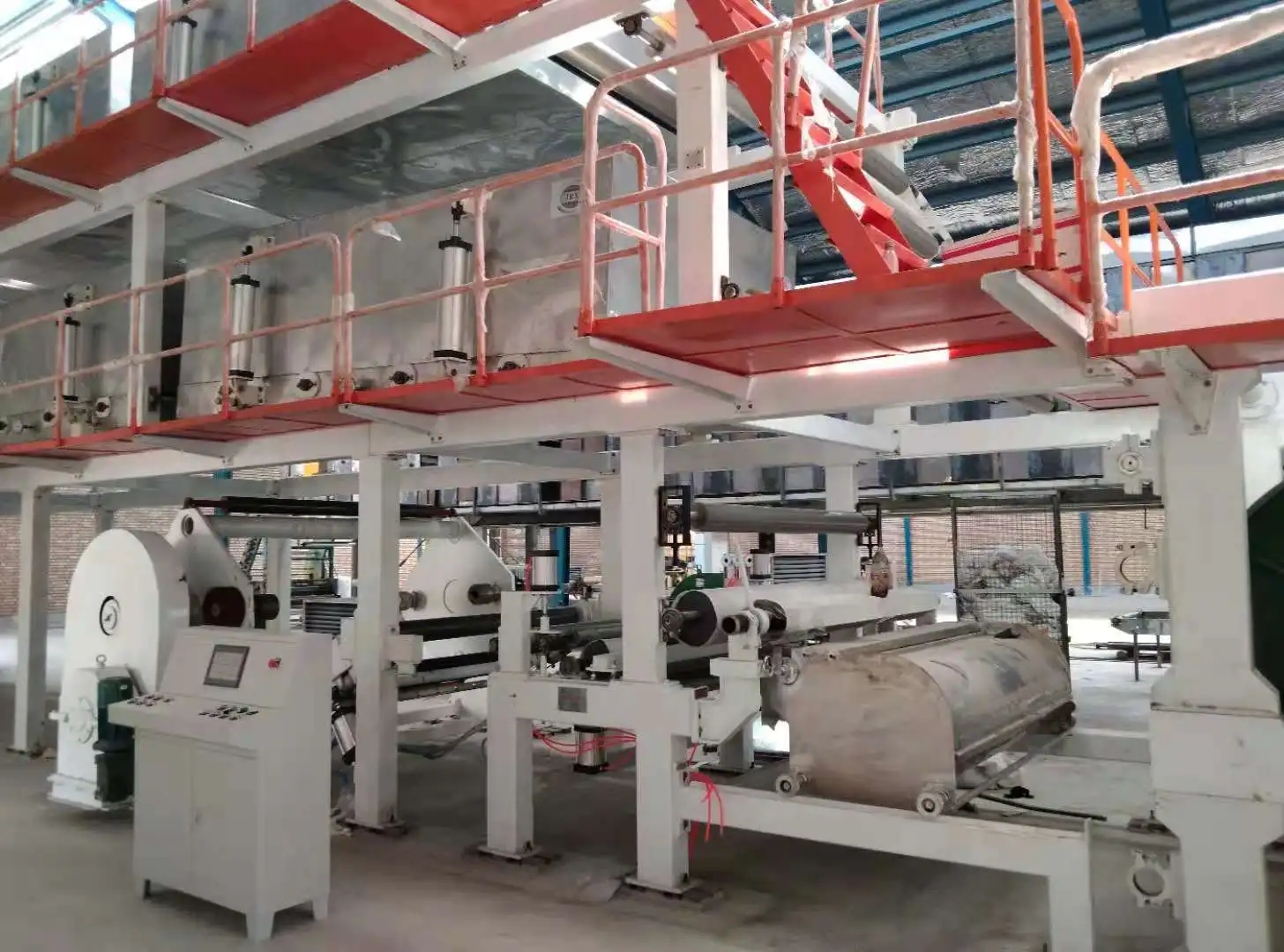

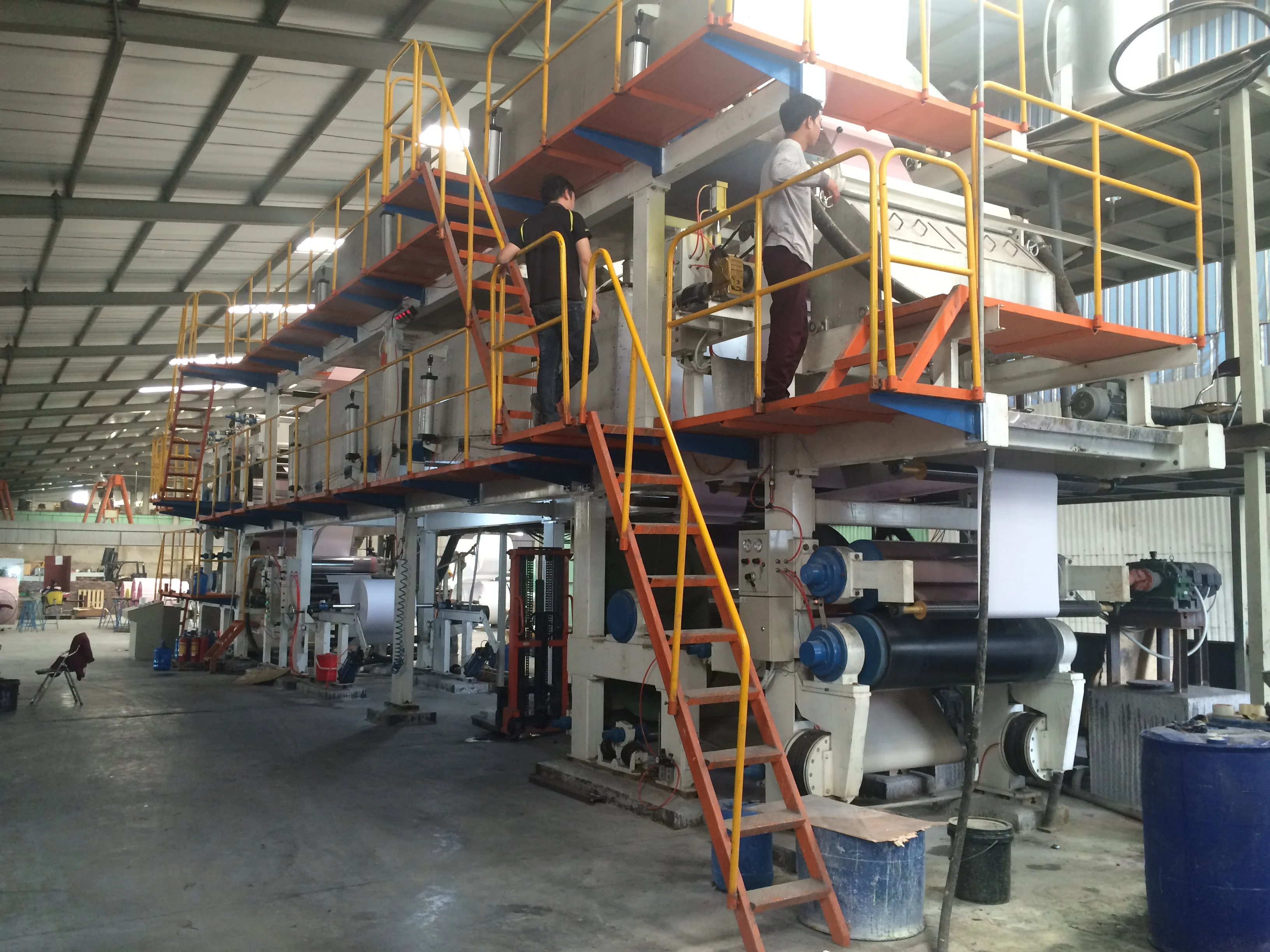

NCR(Carbon-Less) paper coating machine
Coating machine is the core equipment of the project, the main role is to quickly and evenly coated with a variety of coatings on the base paper. Carbonless paper coating is capsule coating, namely pressure-sensitive coating，we can choose air knife, measuring rods, roller coating, curtain or other coating methods; air knife is adopted widely, easy to operate and mainten.
PRODUCT SPECIFICATIONS
SIMPLE STRUCTURE
SIMPLE CONTROL
EASY OPERATION
EASY MAINTENANCE
LOW BROKE RATE

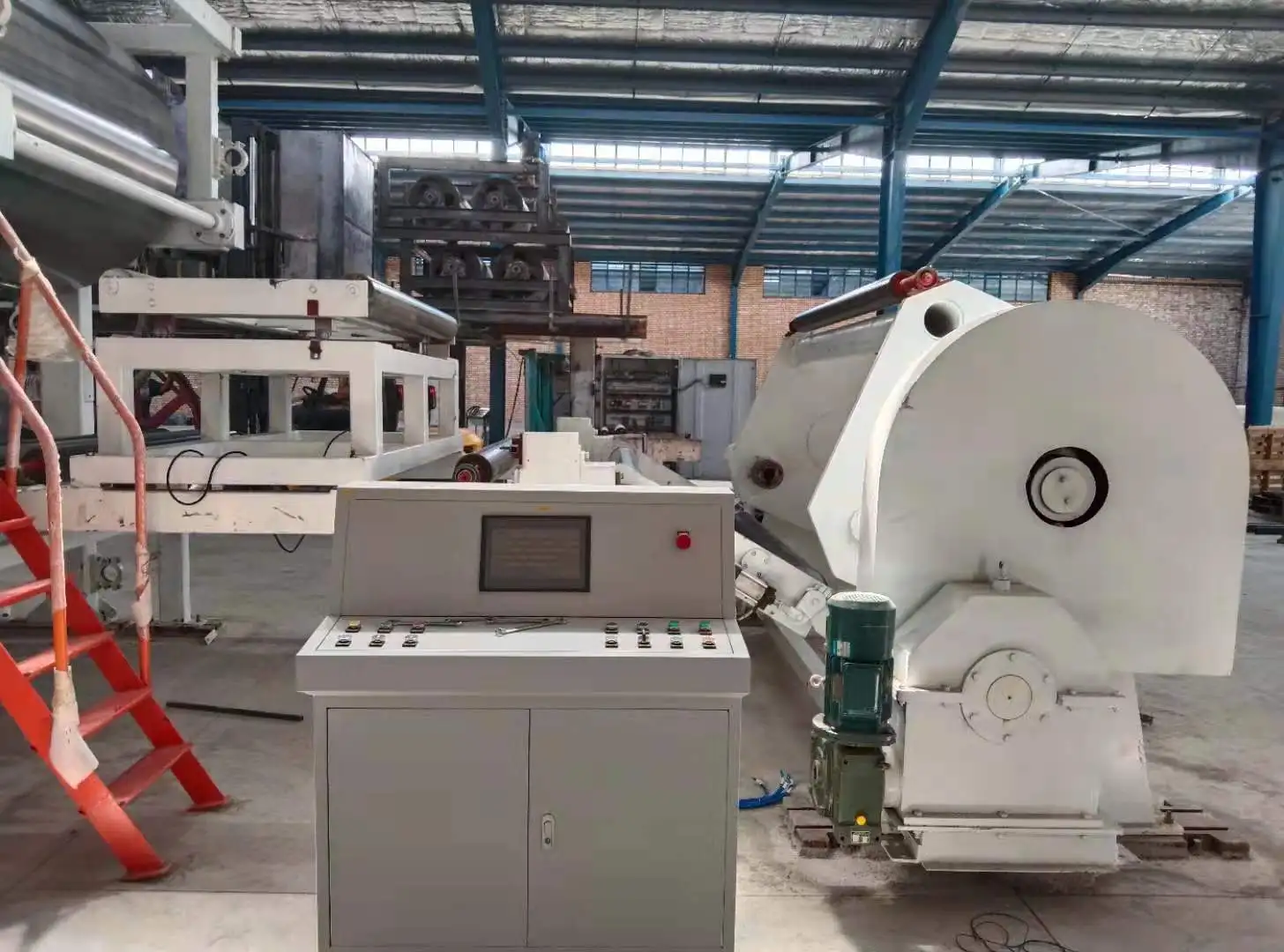

1 overall machine adopt 6frequency motor control, overall machine tension (unwinding, coating, traction, rewinding) adopt JAPANESE MITSHUBISHI PLC to control tension automatic , through man machine interface touch screen to control and display to improve machine tension reliability.
2 independent unwinding frame, adopt magnetic powder auto-control tension.
3 gravure coating method, coating doctor blade shaft adopt heavy double shaft machine independent moving, blade adjust by manual with pneumatic, angle adjust freely, coating quantity depend the mesh of gravure roller, different coating quantity can change different mesh gravure roller.
4 two layer oven is uper 10m for 5section independently control, down layer oven 8m for 4section independently control, heating adopt electric, hot air intake drying system, heater outset,heating pipe adopt stainless steel with cooling fin type,adjustable inner cycle air intake and out device, air intake and out with strong air , dry thoroughly.
5 oven inner guide wheel is active synchronous with the mainframe, drive adopt synchronous belt drive guide wheel to assure synchronous to reduce material stretch and deformation, cylinder pneumatic open oven and film pass operation panel so that worker can work very easily.
6 the tension between coaitng roller and traction steel roller adopt float swing arm by PLC auto-control.
7 auto-length and speed meter device.
8 webguide adopt EPC air sensitive register to assure the trimness when rewinding.
9 rewinding and unwinding adopt key type airshaft for easily operate when loading and unloading the material, air shaft take in/off adopt safety lock type.
10 high presicion up press traction device, steel roller cooling adopt water cycle to make the film surface more smooth and neat.to reach good cooling effect.
11 rewinding frame is electric rotation double station, rewinding adopt frequency motor, vector inverter by PLC control.
No | Item | Data |
1 | Paper type | Carbon-less paper |
2 | Machine width | 1m-4m |
3 | Machine speed | 50m/min-400m/min |
4 | Coating type | Blade knife/Air knife |
5 | Machine type | 96kN |
6 | Coating weight | 60kN |
7 | Solid content | 6750ml |

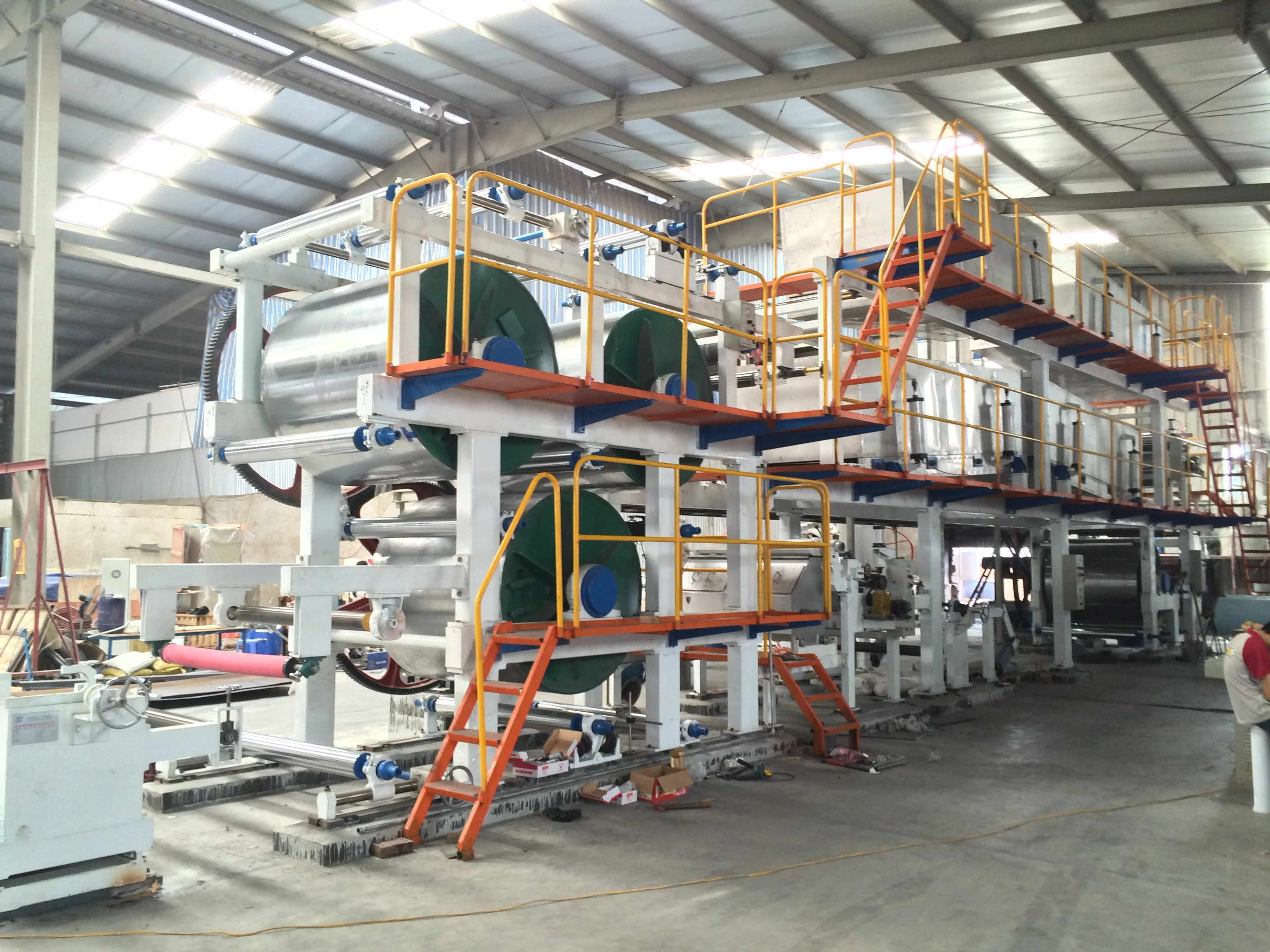

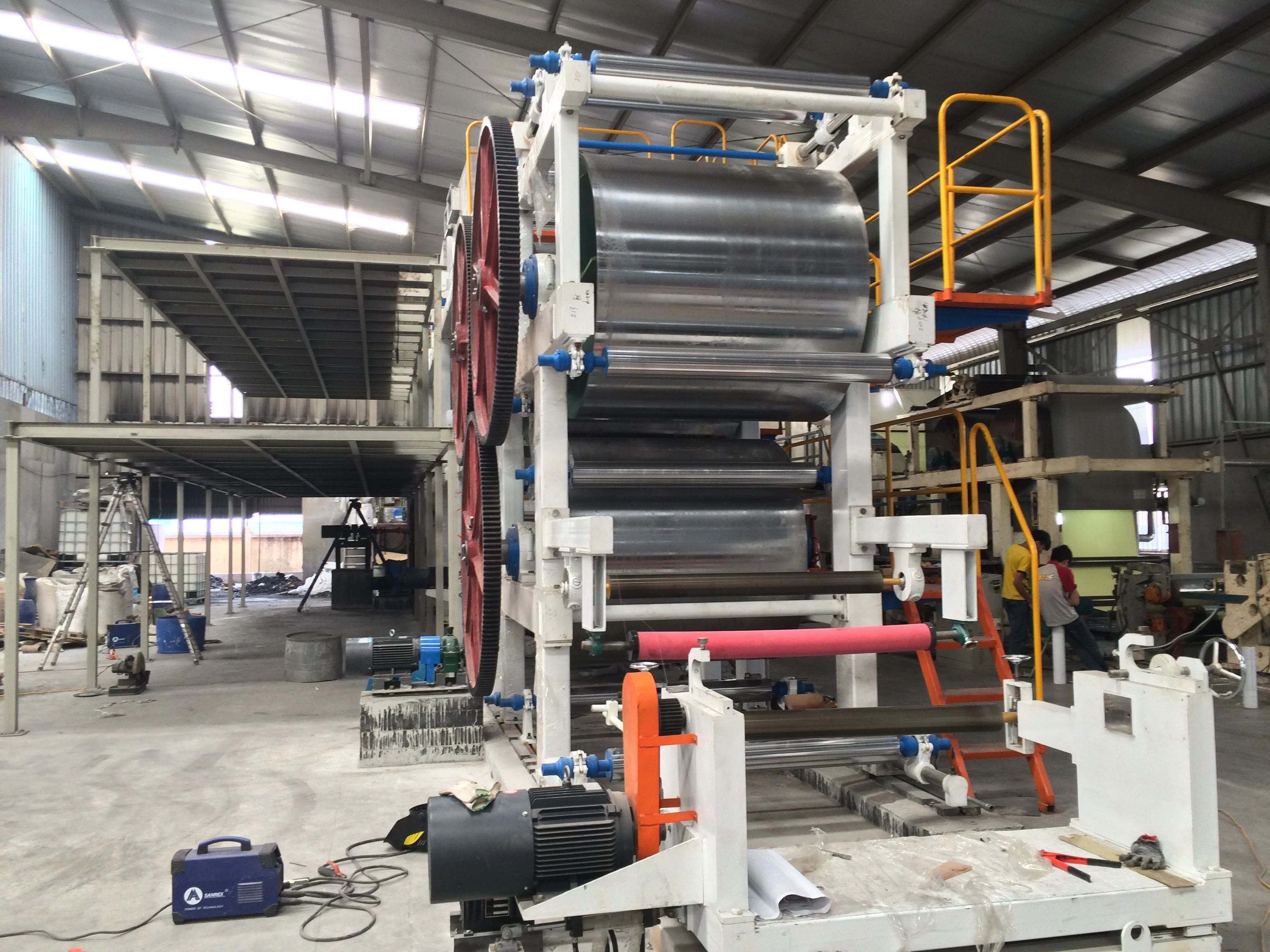

Device Configuration
The substrate such as: paper, cloth, leather, aluminum foil, plastic film, etc, coated with specific functions glue, paint or ink, etc, and drying and rewinding. Coating method is by screen emulsion, or the adhesive is applied in a quantitative surface, paint and other liquids or melt polymer material.
This type coating machine: unreeling, blade coating, air knife coating, drying, adjustment and soft pressing, rolling and other processes. Suitable for the production of printing supplies paper, release paper, release film, white board paper, thermal paper, carbonless copy paper.
Process:

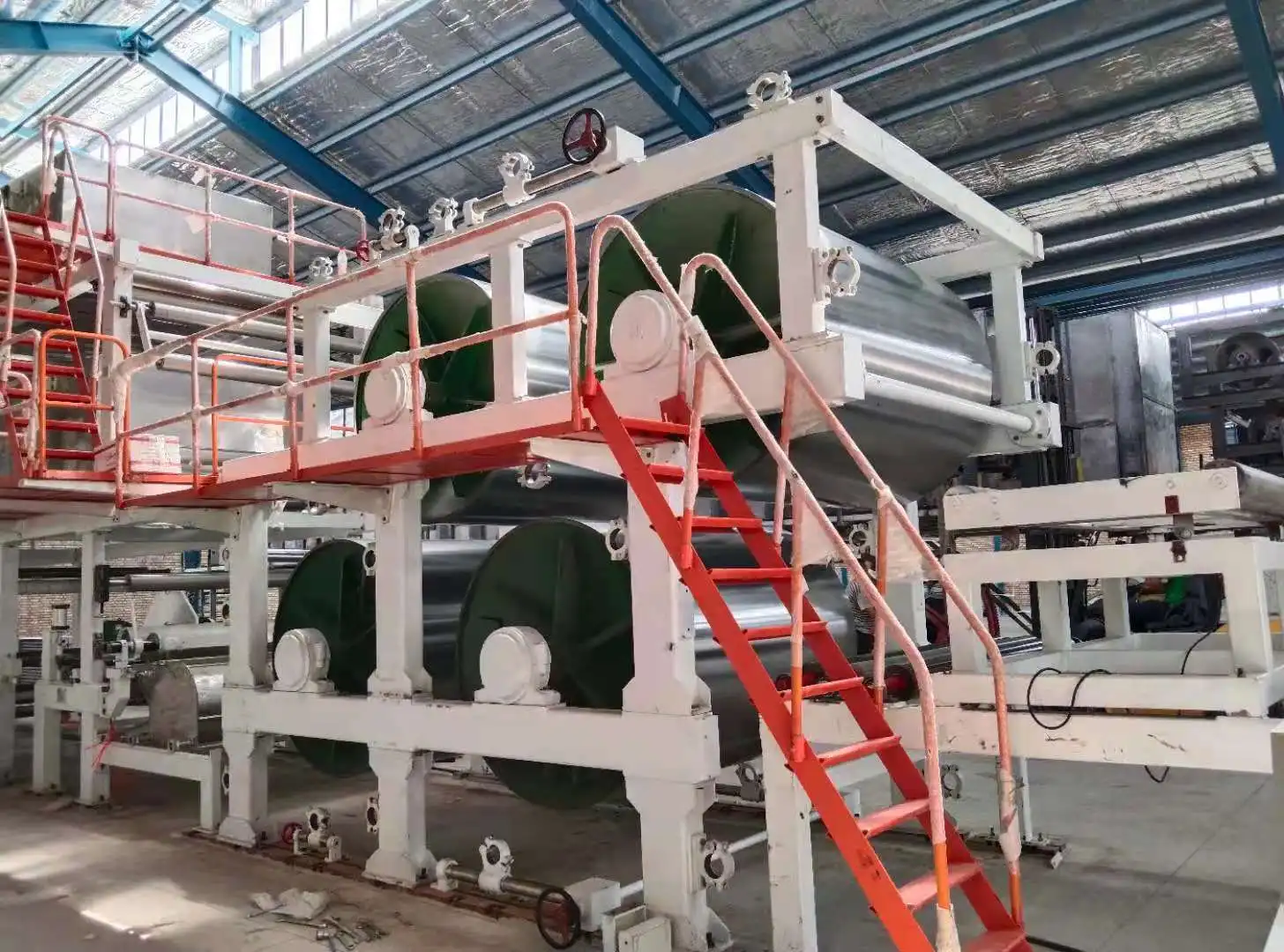

unwinding roll → scrape-knife coating device → three drying ovens (four meters each drying oven) →scrape-knife coating device → four drying ovens (four meters each drying oven) → back wet device → 3-φ1350 debugging mode Cylinder dryer→two roll calender machines →level rewinding roll device, please see process flow diagram
Installed Introduction and Scope of supply:

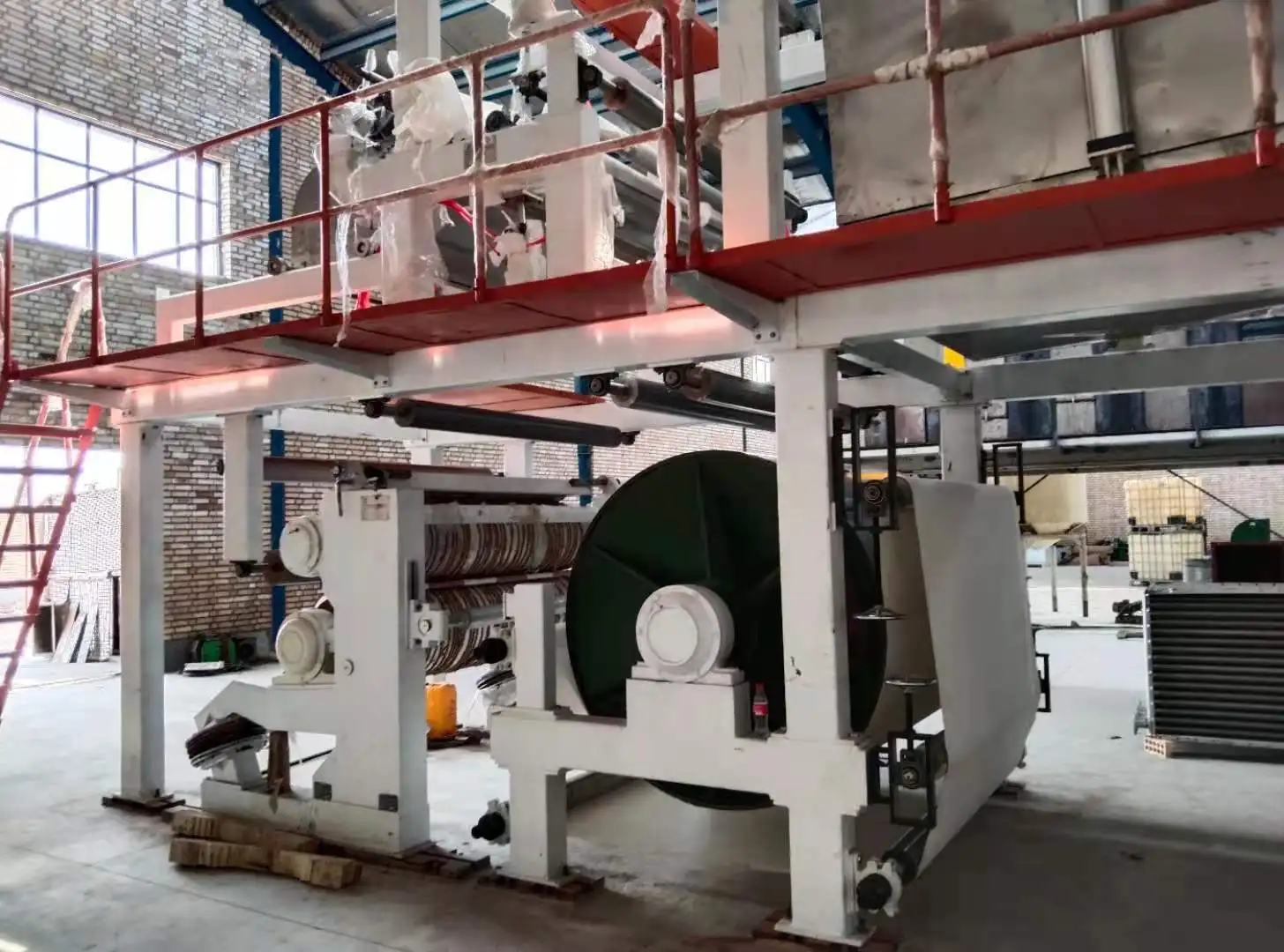

Automatic unwinding & feed paper device is composed by double rotary paper frame and continous paper feed device. Double rotary paper frame is composed by frame, swing arm, worm gear box, rotary driven shaft, air swelling shaft, paper roll brakes device and guide roller. The continous paper feed device is composed by the paper receiving arm, compression roller, cutting paper knives and paper guide roller. The system is controlled by compressed air system and electrical system.
SALES AND SERVICE NETWORK
Related Chemicals
The following chemicals are all available for the whiteboard coater. If you have any other requirements, please feel free to contact us. We accept customized products on the basis of meeting the requirements of technical specifications. We are very pleased and look forward to your inquiry.

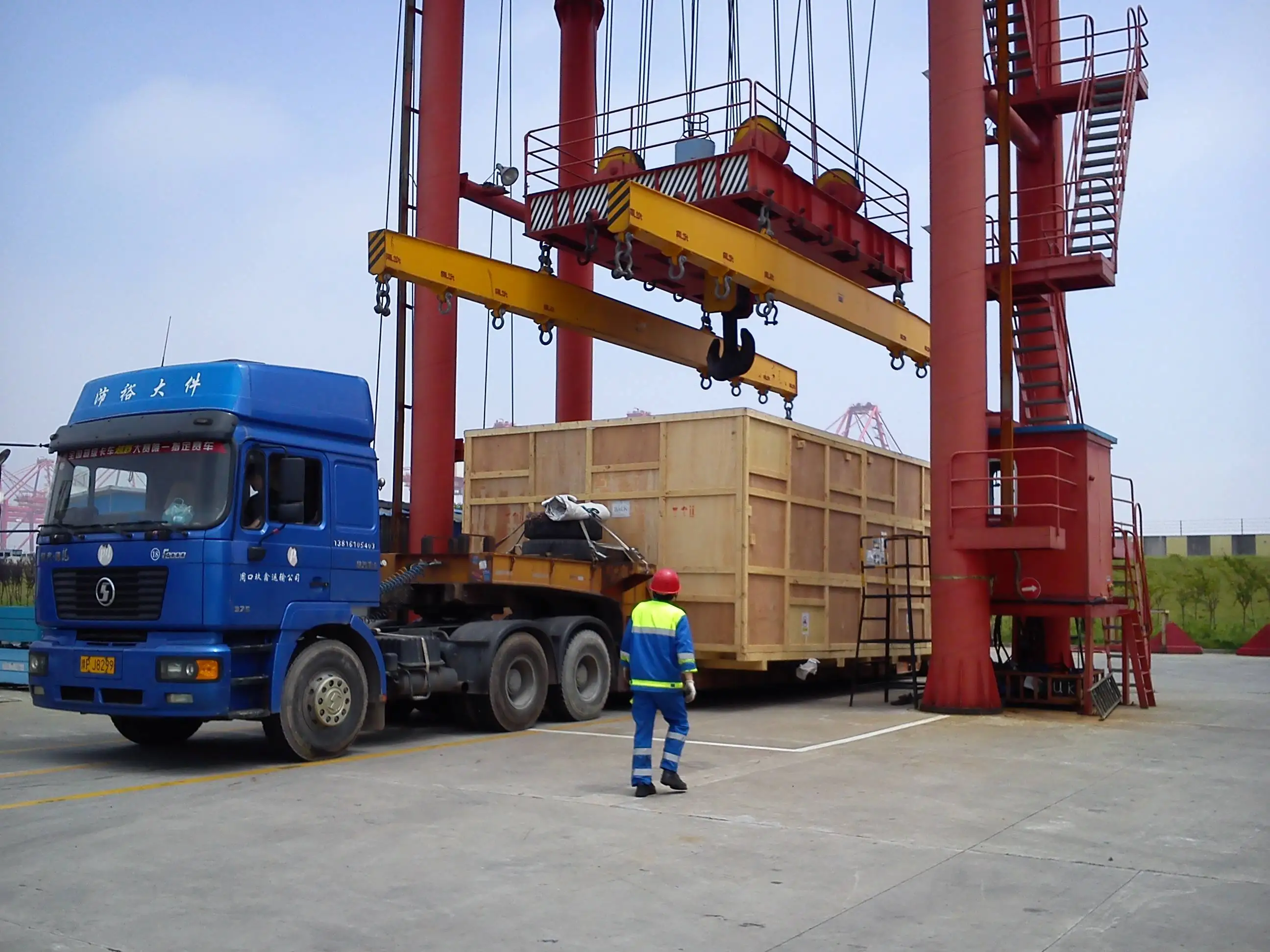

Packaging and Transportation
Company Profile
Qingdao JRX M&T Co., Ltd.
We are Qingdao JRX M&T Co., Ltd.
Which company is mainly engaged in paper coating machine, paper machine and related technology. After more than ten years of efforts, in addition to the machine itself, we have our own chemists, more willing to provide customers with chemistry,formulation, technology and other advice. Then our formulations will match our machines and get the best quality paper for them.
At present, the company has become one of the famous paper coater manufacturers in China, coater and technology has been exportedto Egypt, Mexico, Australia, India and other countries.
We are Qingdao JRX M&T Co., Ltd.
Which company is mainly engaged in paper coating machine, paper machine and related technology. After more than ten years of efforts, in addition to the machine itself, we have our own chemists, more willing to provide customers with chemistry,formulation, technology and other advice. Then our formulations will match our machines and get the best quality paper for them.
At present, the company has become one of the famous paper coater manufacturers in China, coater and technology has been exportedto Egypt, Mexico, Australia, India and other countries.
JRX company focus on R&D, quality control and after sale service, so we have the ability to provide high quality, reasonable priced products. Since so many years our products have been well accepted by customers from more than 65 countries.
JRX Company also boasts its 12 more years of experience, we deliver goods worldwide, our teams are all university graduated and constantly with professional training with energetic and positive attitude. Our team has accumulated huge experience for this industries, we also have established a specialized after-sales service team and R&D team, so that we can create more value for our buyers.
Looking forward to work with you to create a more successful business together!
FAQ
1.Is there person reply to me?
Our person is 24-hours online. If no reply, please leave your message via e-mail and chat tools, we will reply you as soon as possible.
2.Why we choose your company, what could you do for me?
We have established for more than 10 years, we have the stable production experiences.
We use the best steel to guarantee the products' quality.
We will always give you the heart to heart service.
We always speak with facts and quality.
3.Could your engineers teach and train our worker and stay in our factory for long time?
Yes, we have very large installation team, they can train and teach your worker to operate the paper machine, but you should pay them salary.
4.How can i know your machine work well?
Before delivery, we will test the machine work condition for you.
Our person is 24-hours online. If no reply, please leave your message via e-mail and chat tools, we will reply you as soon as possible.
2.Why we choose your company, what could you do for me?
We have established for more than 10 years, we have the stable production experiences.
We use the best steel to guarantee the products' quality.
We will always give you the heart to heart service.
We always speak with facts and quality.
3.Could your engineers teach and train our worker and stay in our factory for long time?
Yes, we have very large installation team, they can train and teach your worker to operate the paper machine, but you should pay them salary.
4.How can i know your machine work well?
Before delivery, we will test the machine work condition for you.
