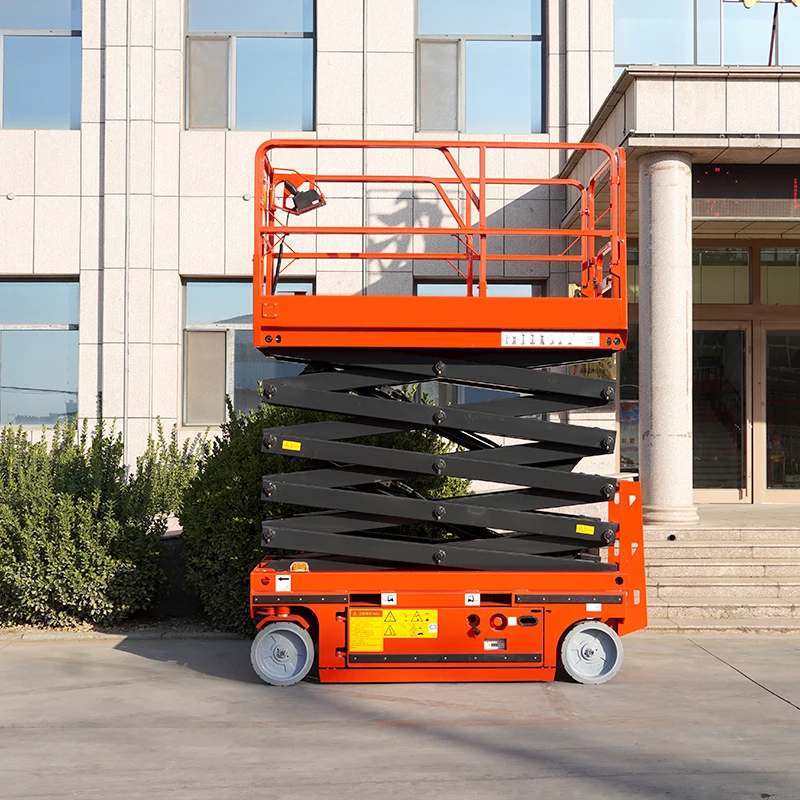

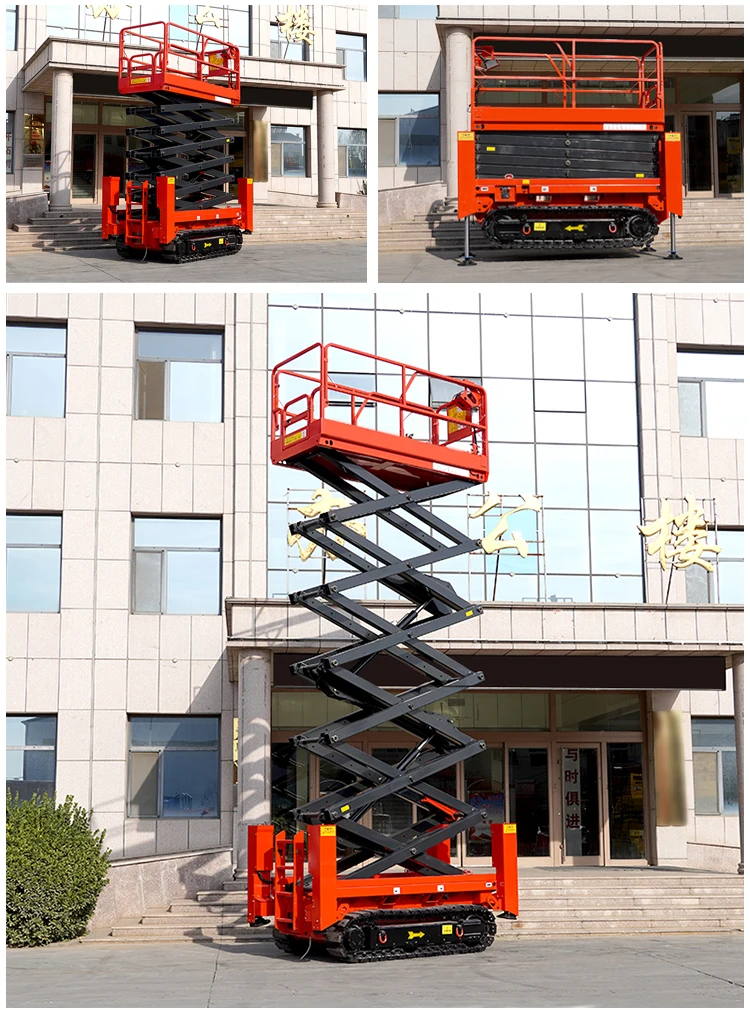

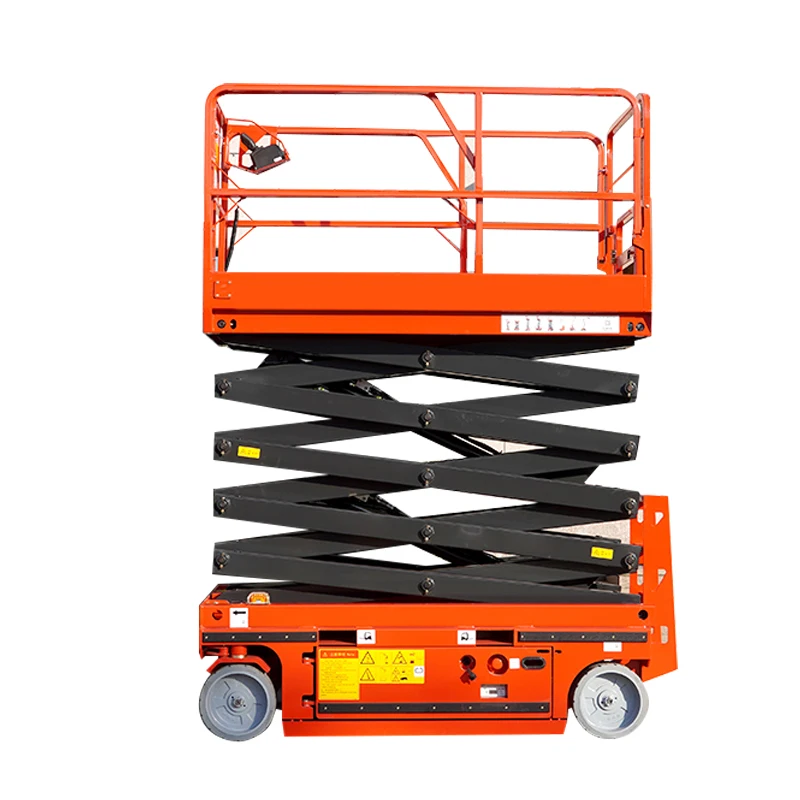

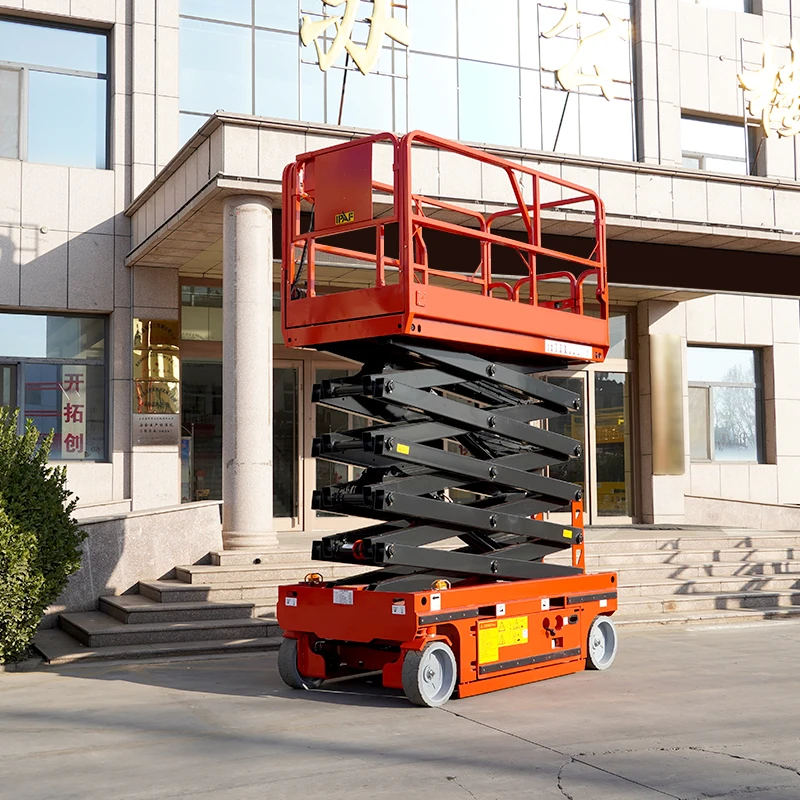

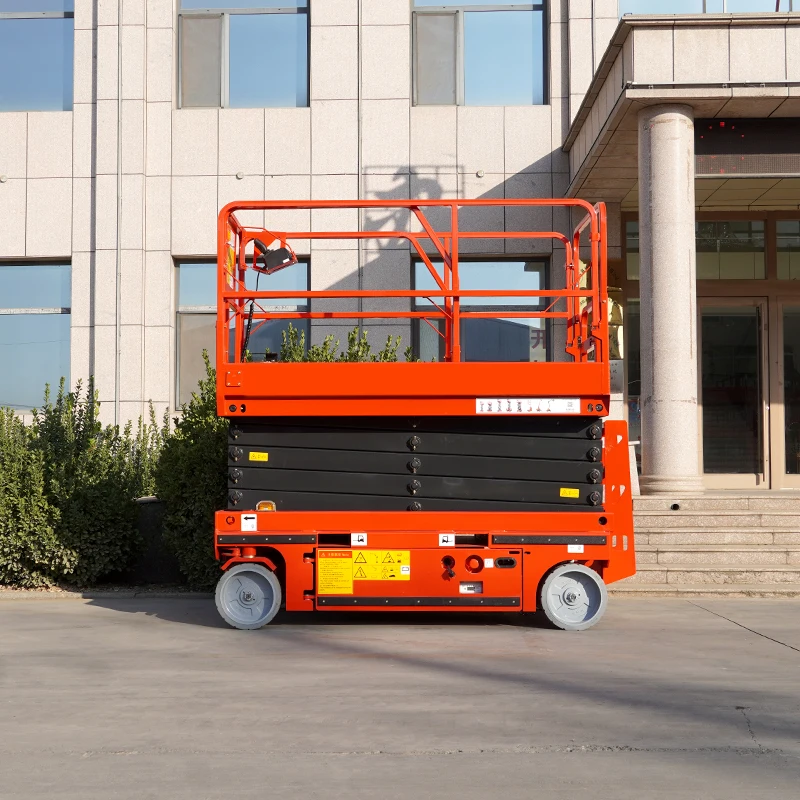

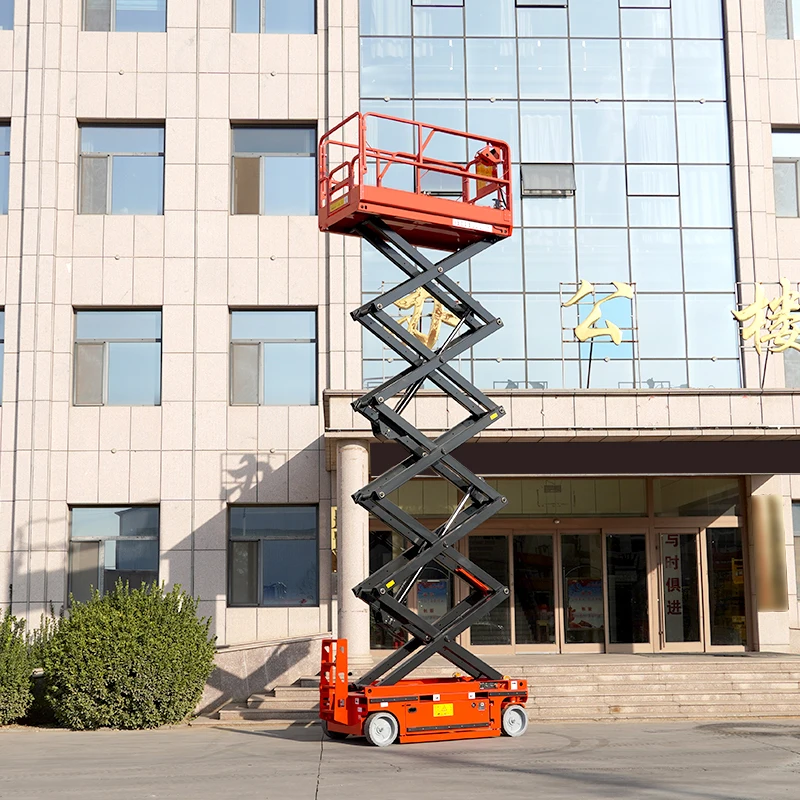

High Altitude Work Platform Construction Elevator Self Propelled Electric Elevator Hydraulic Small Mobile Scissors Lift
- Category: >>>
- Supplier: Henan Yugong Machinery Co. Ltd.
Share on (1600902809002):
Product Overview
Description

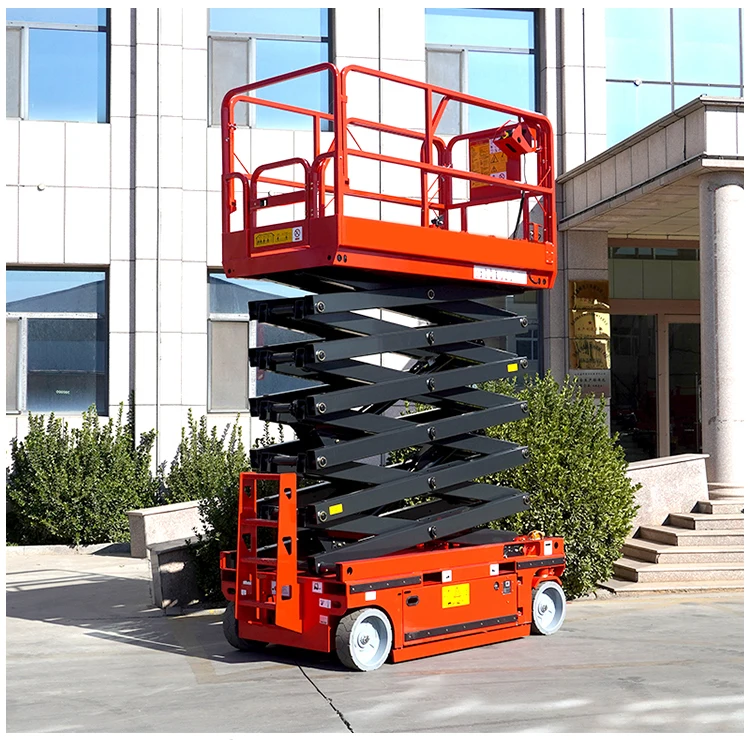

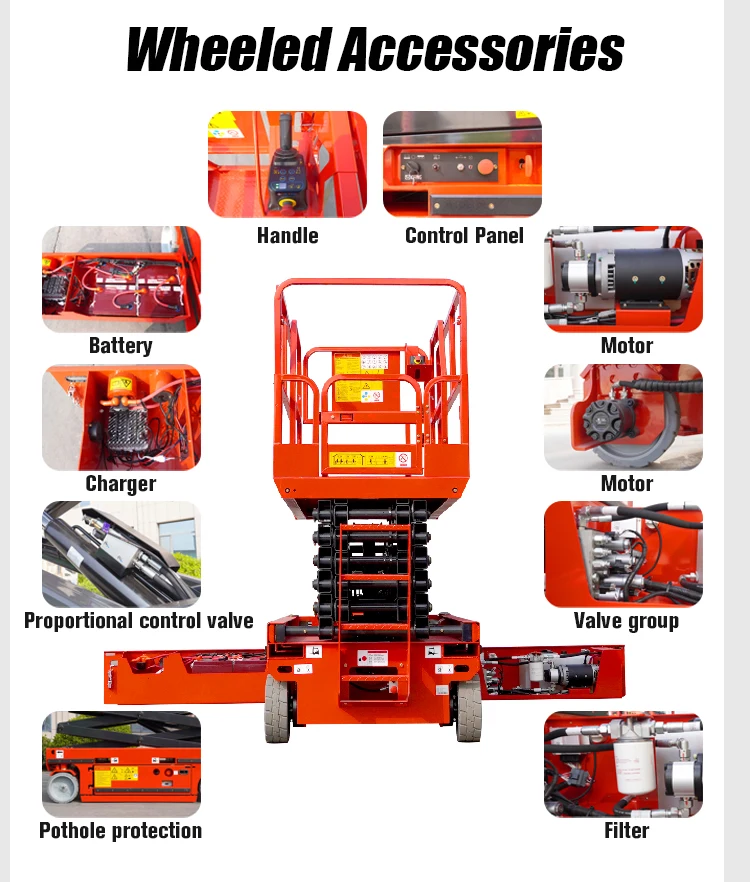

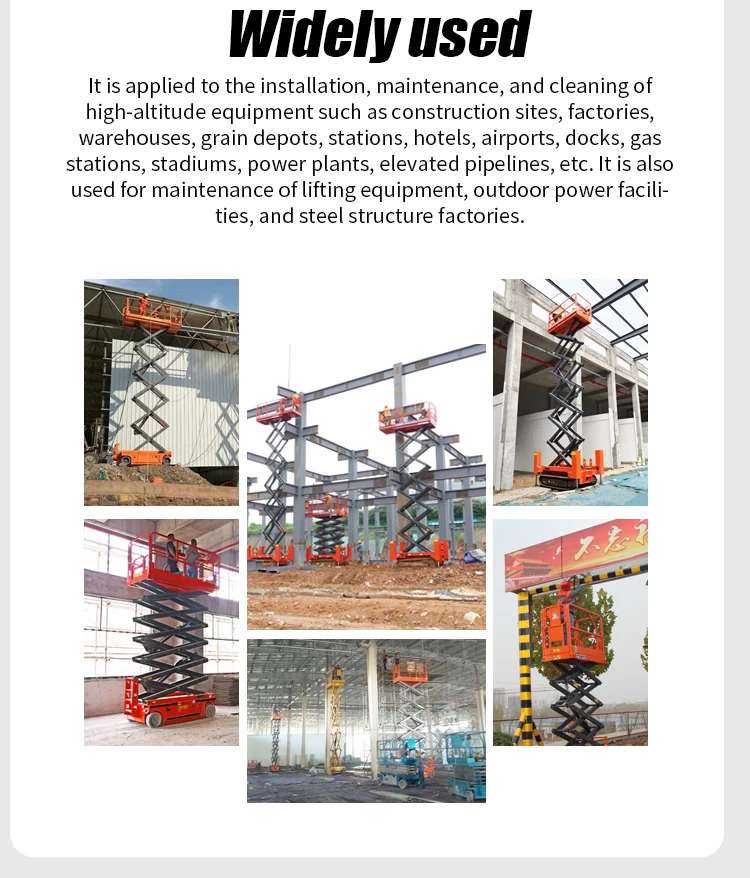

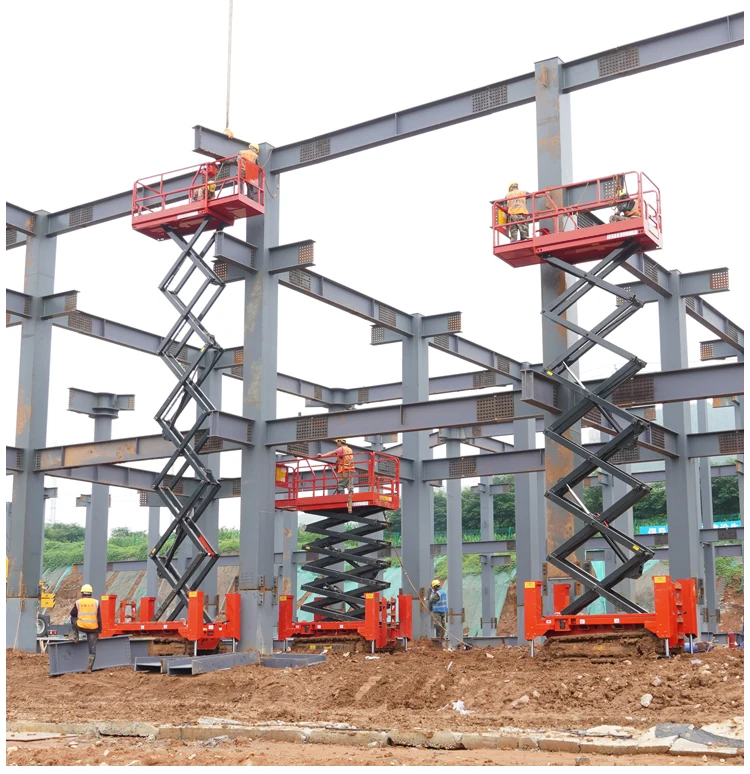

Electric driven self propelled scissor lift is one practical lift machine used in all kinds of aerial works. Electric scissor lift can be operated by automatic walking, turning and lifting. Electric driven self propelled scissor lift is famous for its high efficient performance, very low failure rate and sensitive speed adjustment ability. Motor drive supplies all power for moving and lifting. There are two electric motors. One is driving motor and the other is lifting motor. It is moved by electric motor and lifted by hydraulic system.
Items | Unit | CFPT1214 |
|
Kg | 320Kg | ||
| Kg | 113Kg | |
| / | 2 | |
Max.Working height(A) | m | 13.8m | |
Max.platform height(B) | mm | 11.8m | |
Length(C) | mm | 2480mm | |
Width(D) | mm | 1190mm | |
Height | mm | 2570mm | |
Height(E) | mm | 2030mm | |
Working platform size(F) | mm | 2270X1120mm | |
(G) | mm | 900mm | |
Min.ground clearance | mm | 100mm | |
Min.ground clearance(lifting) | mm | 19mm | |
Wheel base | mm | 1895mm | |
Min.turning radius(inside) | mm | 0m | |
Min.turning radius(outside) | m | 2.2m | |
Lifting motor | V/KW | 24V/4.5Kw | |
Working speed | Km/h | 3.5Km/h | |
Working speed | Km/h | 0.8Km/h | |
Up/down speed | / | 84/38sec | |
Battery | V/Ah | 4X6V/200Ah | |
Charging | V/A | 24V/25A | |
Max.climbing ability | / | 25% | |
Working angle | . | 2°/3° | |
Tires | mm | Φ381X127mm | |
Weight | Kg | 2980Kg |
