RFID intelligent sensing invisible mini office drawer lock, storage cabinet electronic lock
- Category: >>>
- Supplier: Shenzhen Huiyuxin Technology Co. Ltd
Share on (1600902883148):
Product Overview
Description
Product Description

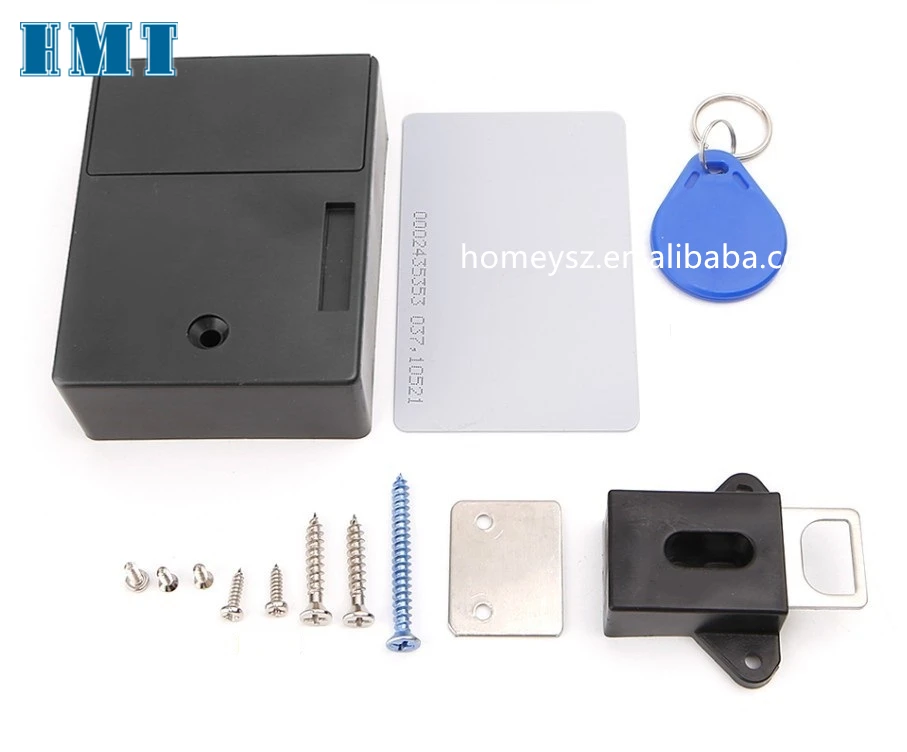

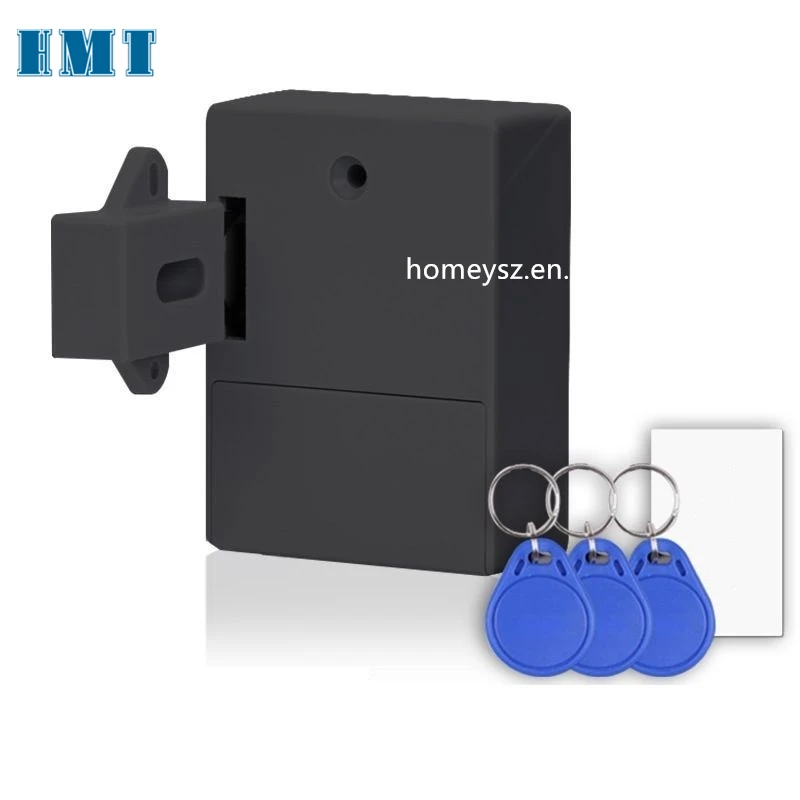

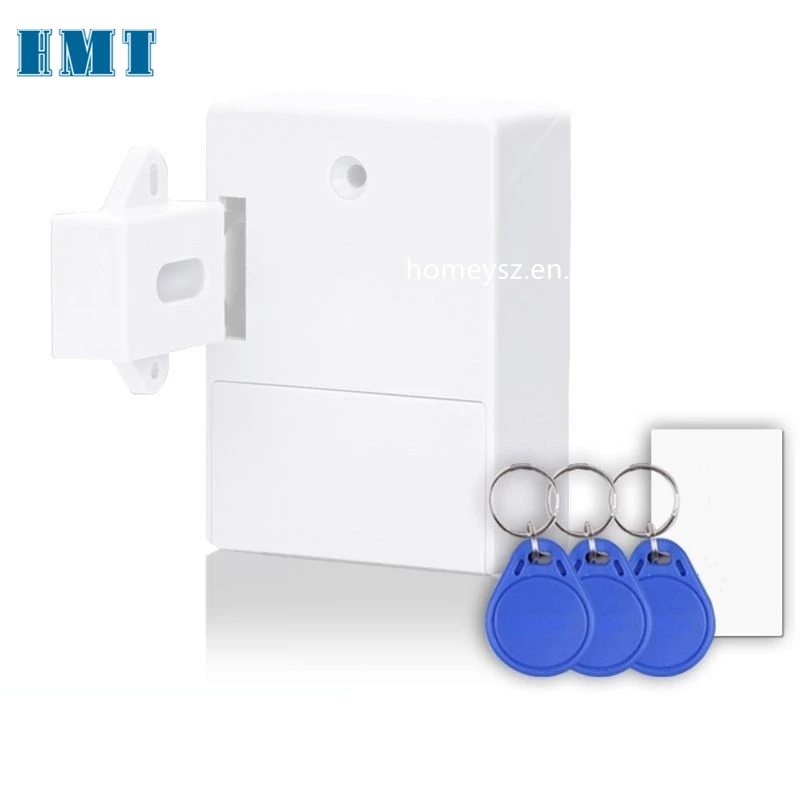

RFID intelligent sensing invisible mini office drawer lock storage cabinet electronic lock
Features:
1,Invisible RFID Cabinet lock3,Fail-Safe Mode
3, Application: Wood Cabinet / Lockers
4, Installation: ≤50 mm Thickness Cabinet
5,Working Voltage: DC6V (2pcs AA batteries)
1,Invisible RFID Cabinet lock3,Fail-Safe Mode
3, Application: Wood Cabinet / Lockers
4, Installation: ≤50 mm Thickness Cabinet
5,Working Voltage: DC6V (2pcs AA batteries)
Specification
Model | HMT-CL36 |
Feature | Fail Safe |

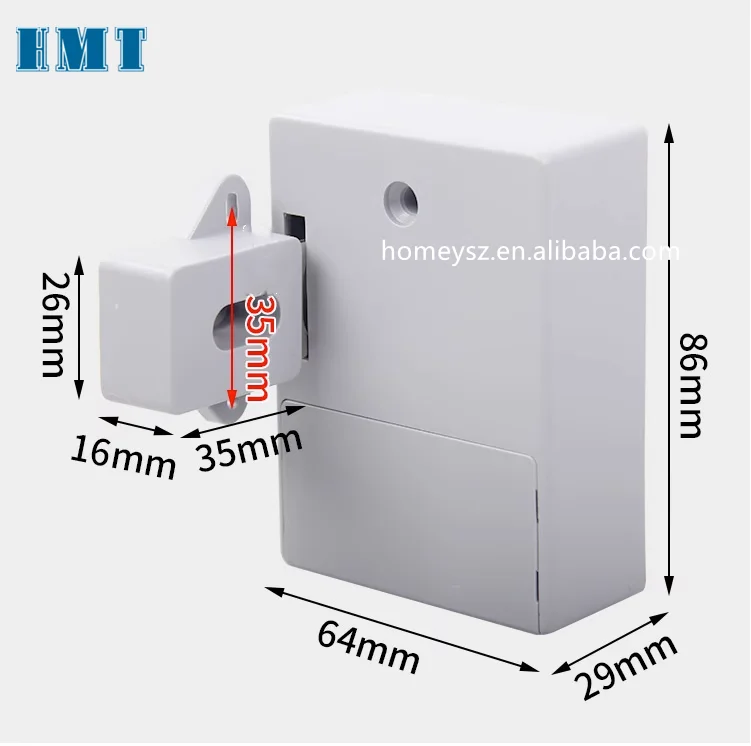

Size | 86*64*29 mm |
Lock body material | ABS |
Power supply voltage | DC6V (4pcs AA batteries)(Not included) |
Battery life | more than 15 months |
Unlock Way | 13.56mhz IC card |
Card sensing distance | 5cm |
Installation | Wooden, Metal Door |
Color | Black White gray |
Product Details
Product Description
Before the battery runs out, an alarm will be given in advance. If there is a long beep after the magnetic card, unlocking it indicates that the battery voltage is insufficient. At this time, the door lock can still be used for about 50 times. Please replace the battery in a timely manner! When the unmanned door lock has no power, the door lock will automatically pop up and unlock.
Before the battery runs out, an alarm will be given in advance. If there is a long beep after the magnetic card, unlocking it indicates that the battery voltage is insufficient. At this time, the door lock can still be used for about 50 times. Please replace the battery in a timely manner! When the unmanned door lock has no power, the door lock will automatically pop up and unlock.
The new household invisible cabinet lock, cabinet, wardrobe, induction door lock, electronic lock, file cabinet, induction lock, drawer lock, invisible (no need for punching, only 2 batteries), can be opened with a card when the battery is on!
The automatic Pin tumbler lock lock cylinder is used to identify the EMTK4100 4200 card, which is automatically authorized without software management. There are three permissions: sub management card, master card and guest card. The card swiping full-automatic lock cylinder is automatically released, and the elastic retracting rod is added to assist in opening the door, which is easy to operate. When closing the door, just gently close the door and automatically lock it
The automatic Pin tumbler lock lock cylinder is used to identify the EMTK4100 4200 card, which is automatically authorized without software management. There are three permissions: sub management card, master card and guest card. The card swiping full-automatic lock cylinder is automatically released, and the elastic retracting rod is added to assist in opening the door, which is easy to operate. When closing the door, just gently close the door and automatically lock it
it is sealed and injection molded with ABS adhesive, waterproof, anti prying, safe and reliable. Its motor has a service life of more than 100000 times, and its split lock structure is simple to install. Its inductance is less than 8 microamps (static) and dynamic is less than 150 milliamps, suitable for various wooden cabinets
Instructions for using the EM cabinet lock (2 batteries)
Note: It has been set before leaving the factory, and you can use the card to open it by charging the battery!
Note: It has been set before leaving the factory, and you can use the card to open it by charging the battery!
1. Card category:
1) Cards are divided into three categories: management cards and regular keys
2) The management card is used to add and remove ordinary keys, and can be unlocked by touching the management card in any mode.
2. Setting function:

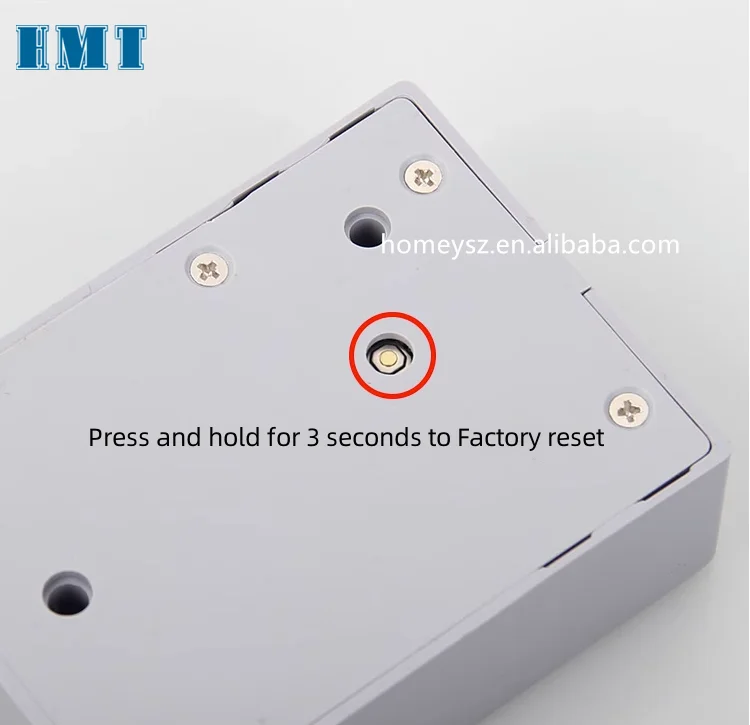

1) Initialization: Press and hold the switch button on the PCB board for about 3 seconds, and the buzzer will beep a long time. At this time, it defaults to single open mode.
2) When the door lock is empty, the management card can be directly set, and only 3 cards can be set.
3) Change the operating mode. Press the button once to switch between operating modes, with one short beep from the buzzer indicating single card mode and two beeps indicating dual card mode.
4) After reading the management card, the door lock is opened and the buzzer continues to sound briefly. During this period, a regular key can be added. The first card added is a server card, while the others are regular keys. If the addition is successful, ring once; If the added key already exists, it will sound twice, and when the storage area is full, it will sound four times.
5) During non setting period, touch any invalid card and make three short calls.
3. Clear function:
1) After reading the management card three times continuously and waiting for 5 seconds, all ordinary keys can be deleted
2) All management cards can be deleted by continuously reading them 5 times.
3) Press and hold the switch button on the PCB board for more than 3 seconds, the buzzer will sound a long time, the door lock will be initialized, and all card information set will be cleared.
4. Low voltage indication:
If there is a long beep after hitting the card and then unlocking it, it indicates that the battery voltage is insufficient. At this time, the door lock can still be used about 50 times. Please replace the battery in a timely manner
2) The management card is used to add and remove ordinary keys, and can be unlocked by touching the management card in any mode.
2. Setting function:
1) Initialization: Press and hold the switch button on the PCB board for about 3 seconds, and the buzzer will beep a long time. At this time, it defaults to single open mode.
2) When the door lock is empty, the management card can be directly set, and only 3 cards can be set.
3) Change the operating mode. Press the button once to switch between operating modes, with one short beep from the buzzer indicating single card mode and two beeps indicating dual card mode.
4) After reading the management card, the door lock is opened and the buzzer continues to sound briefly. During this period, a regular key can be added. The first card added is a server card, while the others are regular keys. If the addition is successful, ring once; If the added key already exists, it will sound twice, and when the storage area is full, it will sound four times.
5) During non setting period, touch any invalid card and make three short calls.
3. Clear function:
1) After reading the management card three times continuously and waiting for 5 seconds, all ordinary keys can be deleted
2) All management cards can be deleted by continuously reading them 5 times.
3) Press and hold the switch button on the PCB board for more than 3 seconds, the buzzer will sound a long time, the door lock will be initialized, and all card information set will be cleared.
4. Low voltage indication:
If there is a long beep after hitting the card and then unlocking it, it indicates that the battery voltage is insufficient. At this time, the door lock can still be used about 50 times. Please replace the battery in a timely manner
5cm sensing distance
Product Application

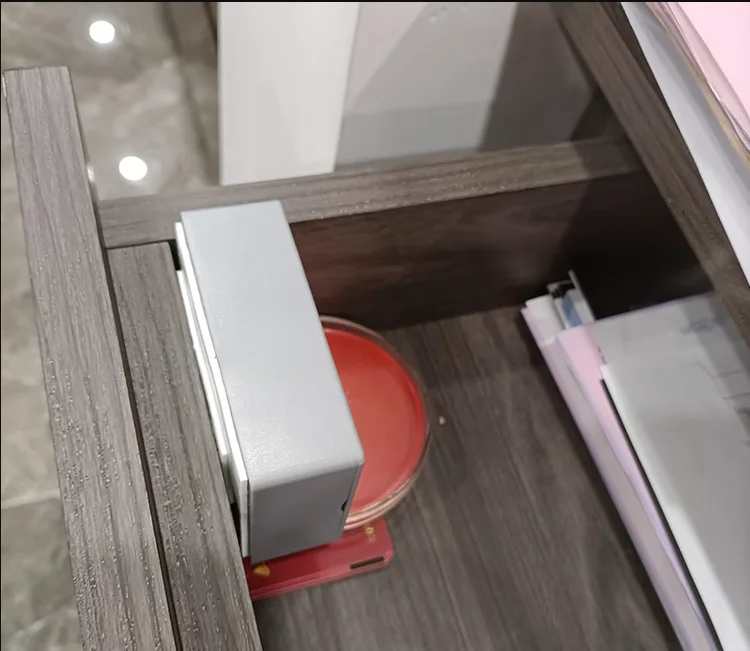

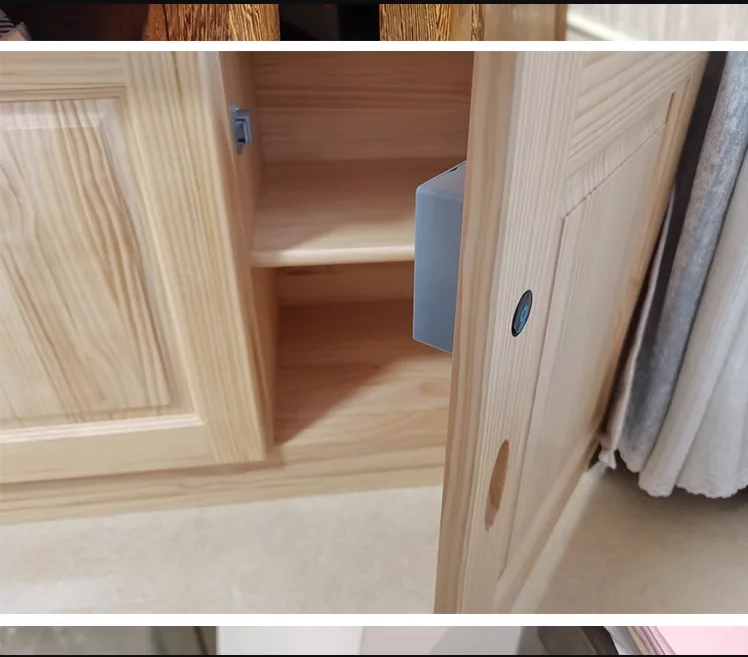

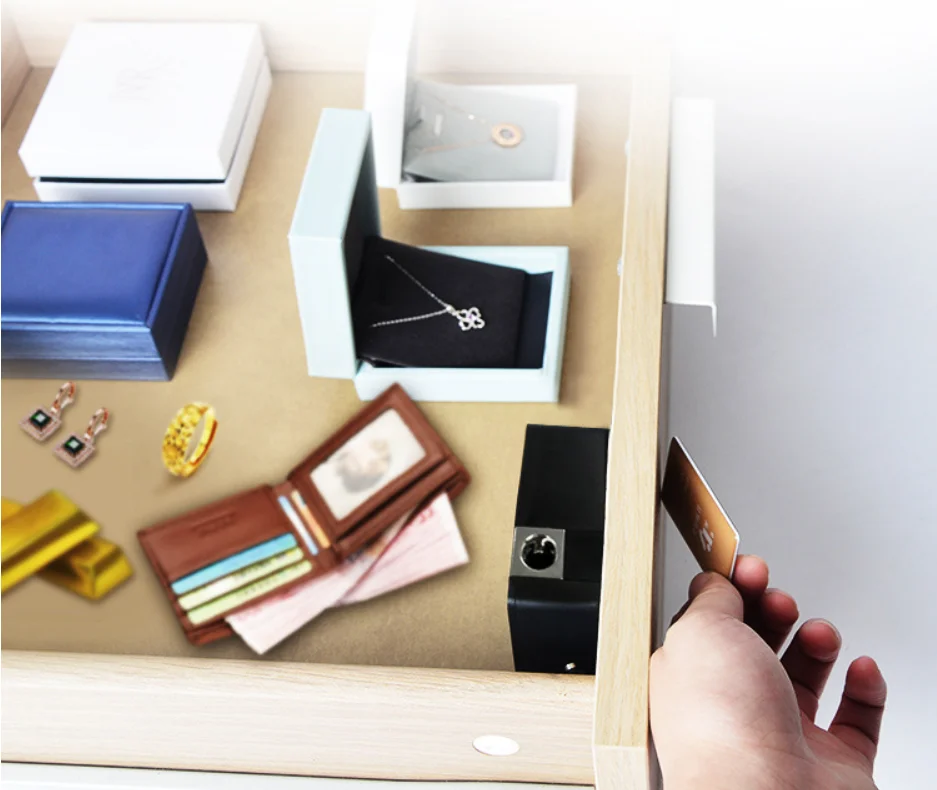

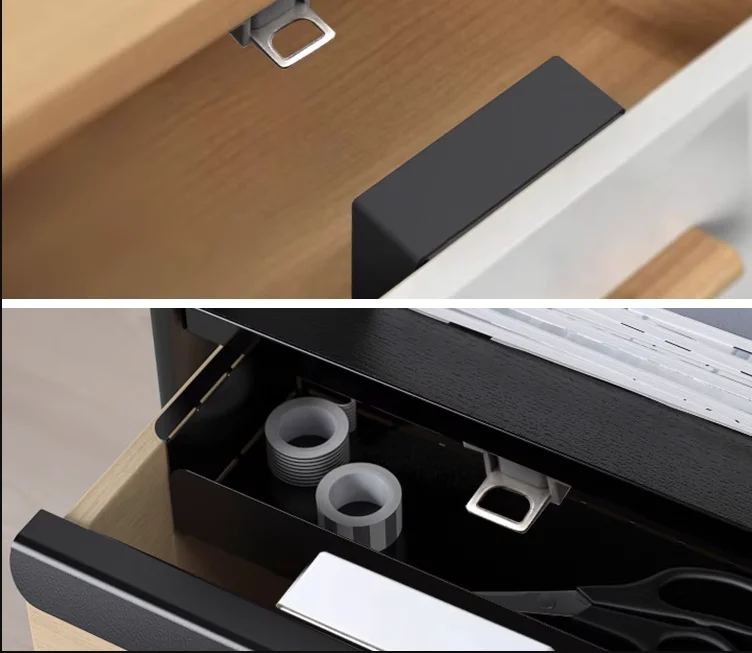

Applicable scenarios: furniture drawers, office drawers, gymnasiums, lockers, sauna cabinets, etc.
Recommend Products

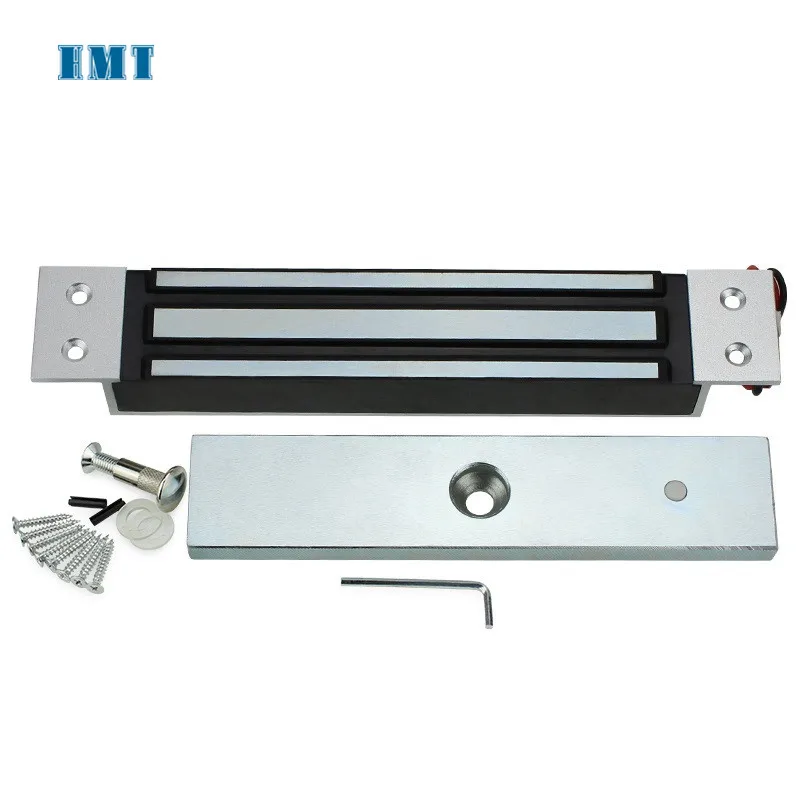

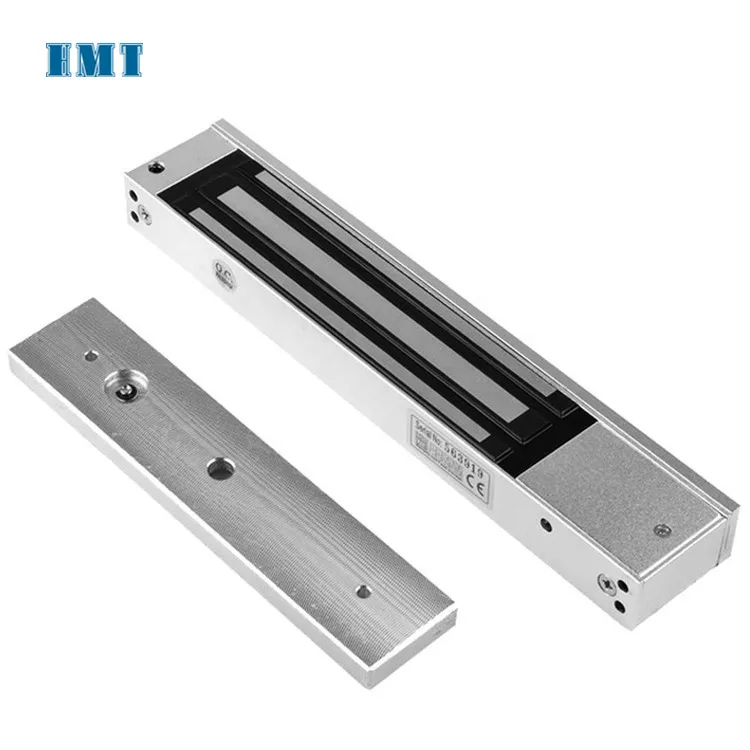

surface mounted 280kgs/600lbs magnetic lock, HMT-M280
Concealed 180kgs/350lbs magnetic lock, HMT-M280C

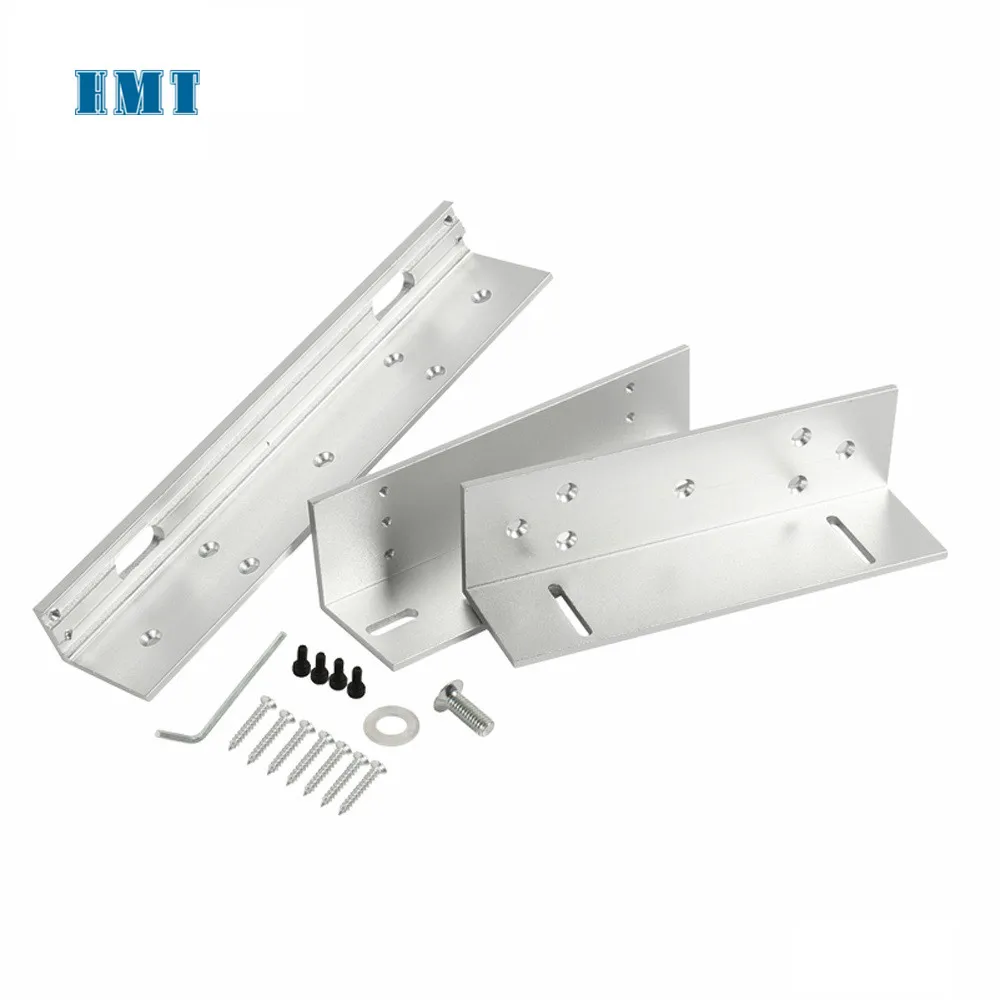

280kgs magnetic lock ZL bracket, HMT-M280ZL

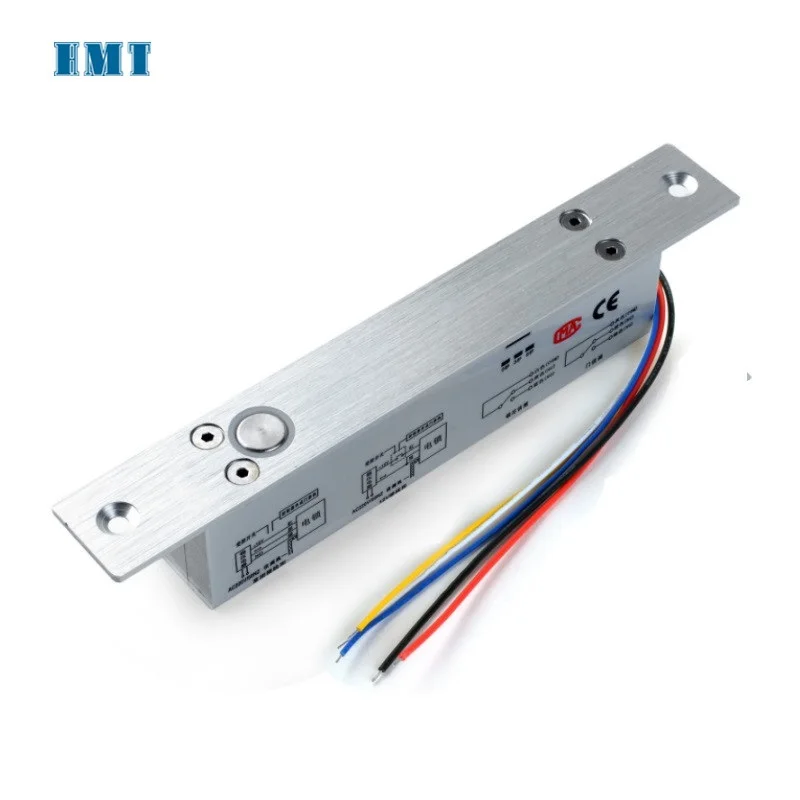

Drop bolt lock, HMT-M200
Drop bolt lock, HMT-M205
Cabinet lock, HMT-CL35
Customer Feedback
Company Profile

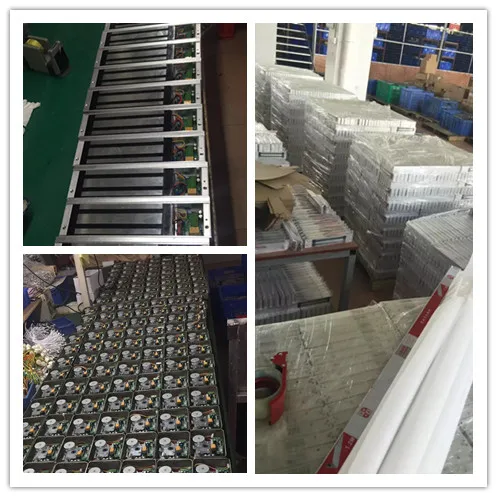

Product Workshop
