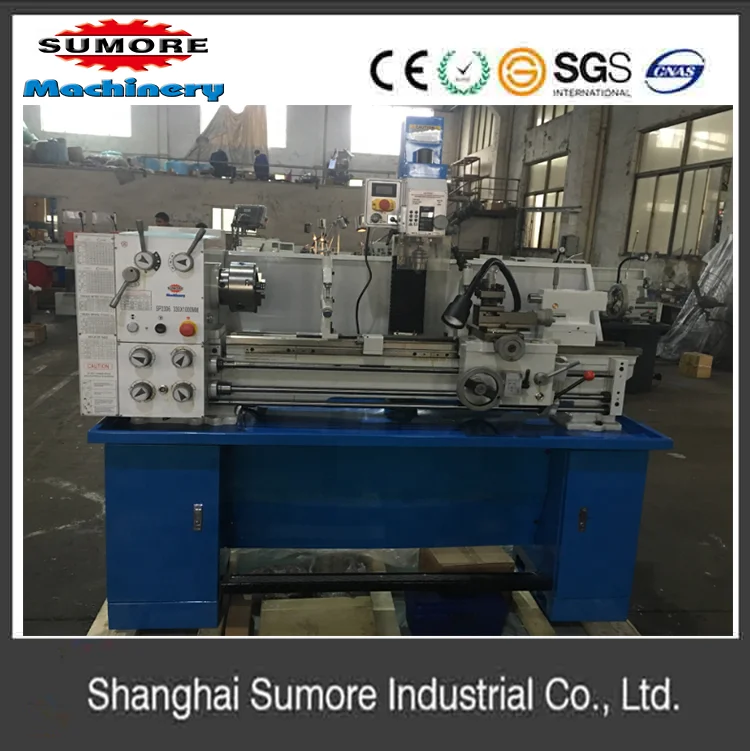

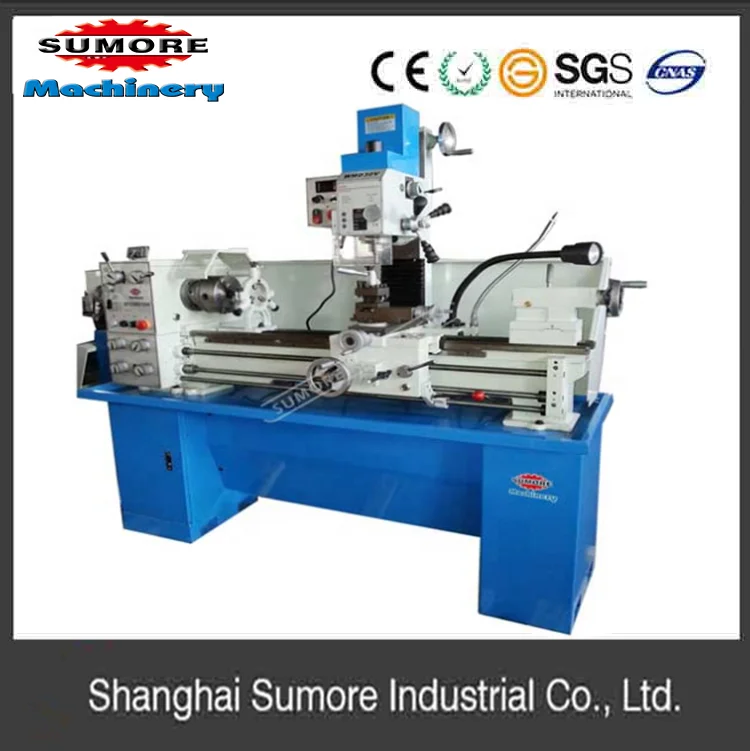

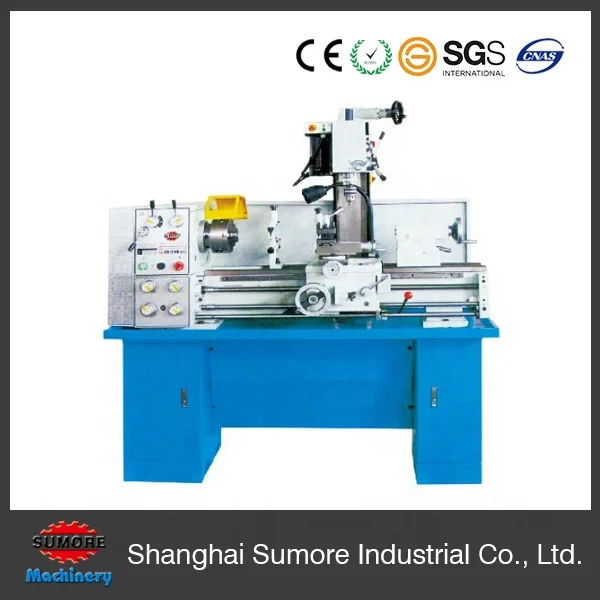

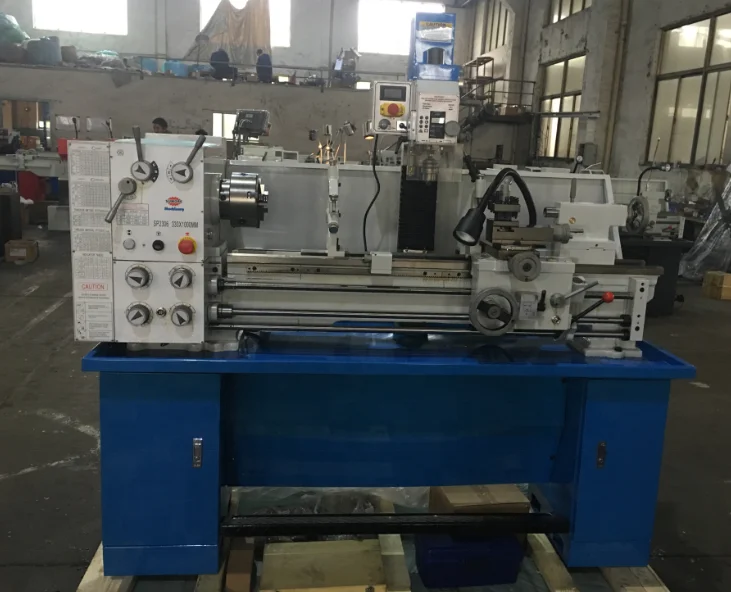

combo lathe machine CQ6230BZ SP2306 multipurpose lathe
- Category: >>>
- Supplier: Shanghai Sumore Industrial Co. Ltd.
Share on (1600903045649):
Product Overview
Description
home
Product Description

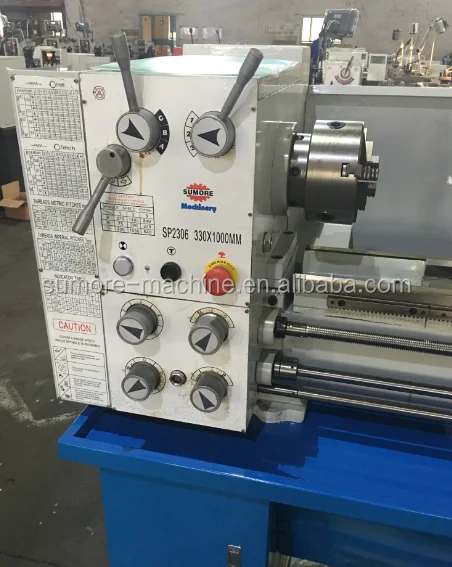

SP2306/CQ6230BZ manual combo drill lathe turning milling machine
1.Function: cutting ,drilling, milling etc
2.Mass production of a variety of small parts and high-speed machining of complex parts, diversity processing;
3.Complex process can be done in one time
4.Near silent running, integral splash guard
5.Metric and imperial thread cutting
6.Full range of accessories available
7.Converts to a multi-purpose machine with the milling attachment
8.High Precision for Model Engineering
9.Easy Operation & Convenient Reparations

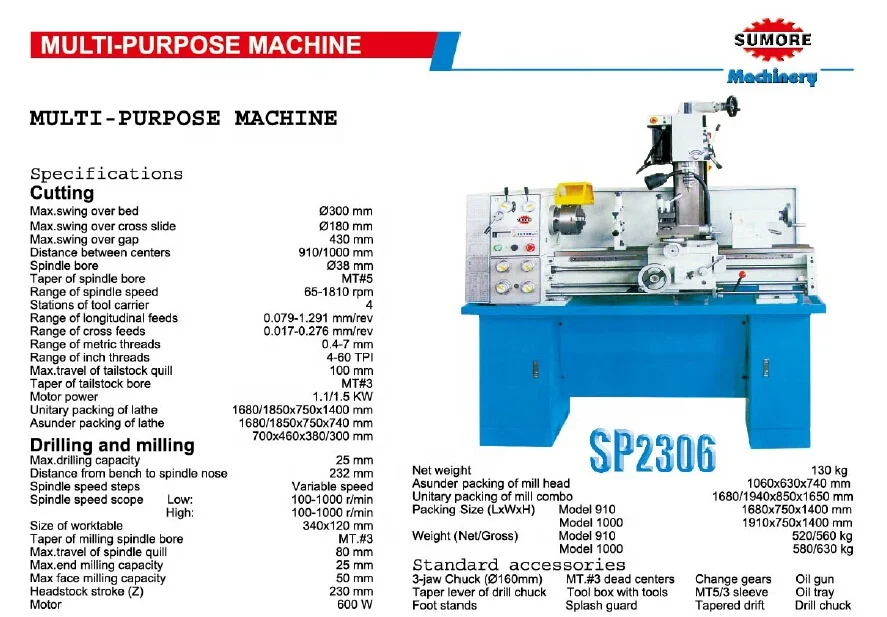

| Product Specifications | |
| Cutting(Lathe) | |
| Distance between centers | 910/1000mm |
| Swing over bed | 300mm |
| Swing over cross slide | 180mm |
| Swing over gap | 430mm |
| Stations of tool carrier | 4 |
| Spindle taper | MT5 |
| Tailstock quill taper | MT3 |
| Max. travel of tailstock quill | 100mm |
| Spindle bore | 38mm |
| Range of spindle speed | 65-1400rpm(or 65-1810rpm) |
| Range of longitudinal feeds | 0.079-1.291 mm/rev |
| Range of cross feeds | 0.017-0.276 mm/rev |
| Range of metric thread | 0.4~7mm |
| Range of imperial thread | 4~60 T.P.I. |
| Motor power | 1.1/1.5KW |

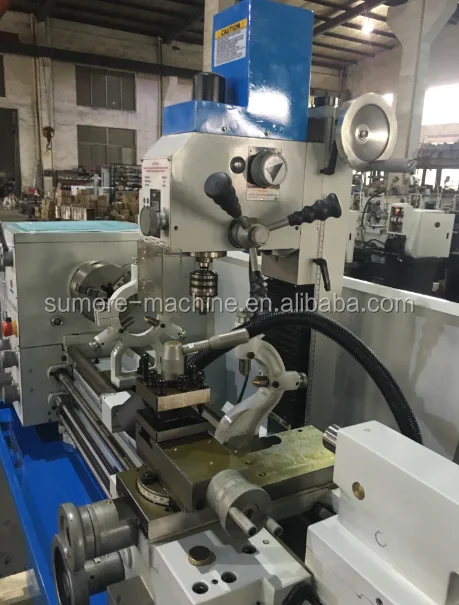

| Milling and Drilling | |
| Drilling capacity | 25mm |
| Face milling capacity | 50mm |
| End milling capacity | 25mm |
| Spindle taper | MT3 |
| Spindle speed steps | Variable speed |
| Spindle speed scope | 100-1000r/min |
| Distance from bench to spindle nose | 232mm |
| Motor | 600W |
