Product Overview
Description
Products Description
WTP-8000 Portable MUliti-parameter Veterinary Patient Monitor
Functions
Standard parameters: ECG, RESP, SpO2, PR, NIBP, dual-channel TEMP
1. ECG: Heart rate (HR), ECG waveform, Arrhythmia and ST-segment analysis
2. RESP: Respiration rate(RR), Respiration waveform
3. SpO2: Oxygen saturation(SpO2), Plethysmogram(PLETH) waveform, Pulse rate(PR), Bar graph
4. NIBP: Systolic pressure(SYS), Diastolic pressure(DIA), Mean pressure(MEAN)
5. TEMP: T1, T2, TD
It has abundant functions, such as audible and visual alarm, trend data storage and output, NIBP measurement, alarm event marking and drug concentration calculation, etc
Standard parameters: ECG, RESP, SpO2, PR, NIBP, dual-channel TEMP
1. ECG: Heart rate (HR), ECG waveform, Arrhythmia and ST-segment analysis
2. RESP: Respiration rate(RR), Respiration waveform
3. SpO2: Oxygen saturation(SpO2), Plethysmogram(PLETH) waveform, Pulse rate(PR), Bar graph
4. NIBP: Systolic pressure(SYS), Diastolic pressure(DIA), Mean pressure(MEAN)
5. TEMP: T1, T2, TD
It has abundant functions, such as audible and visual alarm, trend data storage and output, NIBP measurement, alarm event marking and drug concentration calculation, etc
Technical Parameters | ||||
ECG | Lead Mode | 3-lead or 5-lead | ||
Lead selection | I, II, III, aVR, aVL, aVF, V | |||
Waveform | 5-lead, 2-channel 3-lead, 1-channel | |||
Gain | 2.5mm/mV, 5.0mm/mV, 10mm/mV, 20mm/mV, 40mm/mV | |||
Scan speed | 12.5mm/s, 25 mm/s, 50 mm/s | |||
HR | Measurement and alarm range: 15~350bpm Accuracy: ±1% or ±1bpm, whichever is greater Alarm accuracy: ± 2 bpm Resolution: 1 bpm | |||
ST-segment monitoring | Measurement and alarm range: -2.0mV~+2.0mVAccuracy: -0.8mv~+0.8mv ±0.04mv or ±10%, whichever is greater Other range: unspecified | |||
Arrhythmia analysis | ASYSTOLE, VFIB/VTAC, COUPLET, BIGEMINY, TRIGEMINY, R ON T, VT>2, PVC, TACHY, BRADY, MISSED BEATS, PNP, PNC | |||
Pacemaker | YES | |||
Respiration | Method | R-F(RA-LL) Impedance | ||
Respiration rate | Measurement and alarm range: 0~150rpmResolution: 1 rpm Measurement accuracy: ±2 rpm Alarm accuracy: ±3 rpm Apnea alarm: 10~40s | |||
Scan speed | 6.25 mm/s, 12.5 mm/s, 25 mm/s | |||
NIBP | Method | Oscillometric | ||
Mode | Manual, Auto, STAT | |||
Measurement interval in AUTO mode | 1/2/3/4/5/10/15/30/60/90/120/240/480/960 minutes | |||
Measurement period in STAT mode | 5 minutes | |||
Measurement and alarm range | 10 ~ 270 mmHg | |||
Resolution | 1 mmHg | |||
Cuff pressure accuracy | ±3 mmHg | |||
Measurement accuracy | Maximal mean error: ±5 mmHg Maximal standard deviation: 8mmHg | |||
Over-pressure protection | Other mode: 297±3 mmHg Dog mode: 240±3 mmHg Cat mode: 147±3 mmHg | |||
SpO2 | Measurement and alarm range | 0 ~ 100% | ||
Resolution | 1% | |||
Measurement accuracy | 70%~100%: ±2%; 0%~69%: unspecified | |||
Measurement and alarm range | 30 ~ 250 bpm | |||
Measurement accuracy | ±2 bpm or ±2%, whichever is greater | |||
Temperature | Resolution | 0.1℃ | ||
Channel | Dual-channel | |||
Measurement and alarm range | 0-50℃ | |||

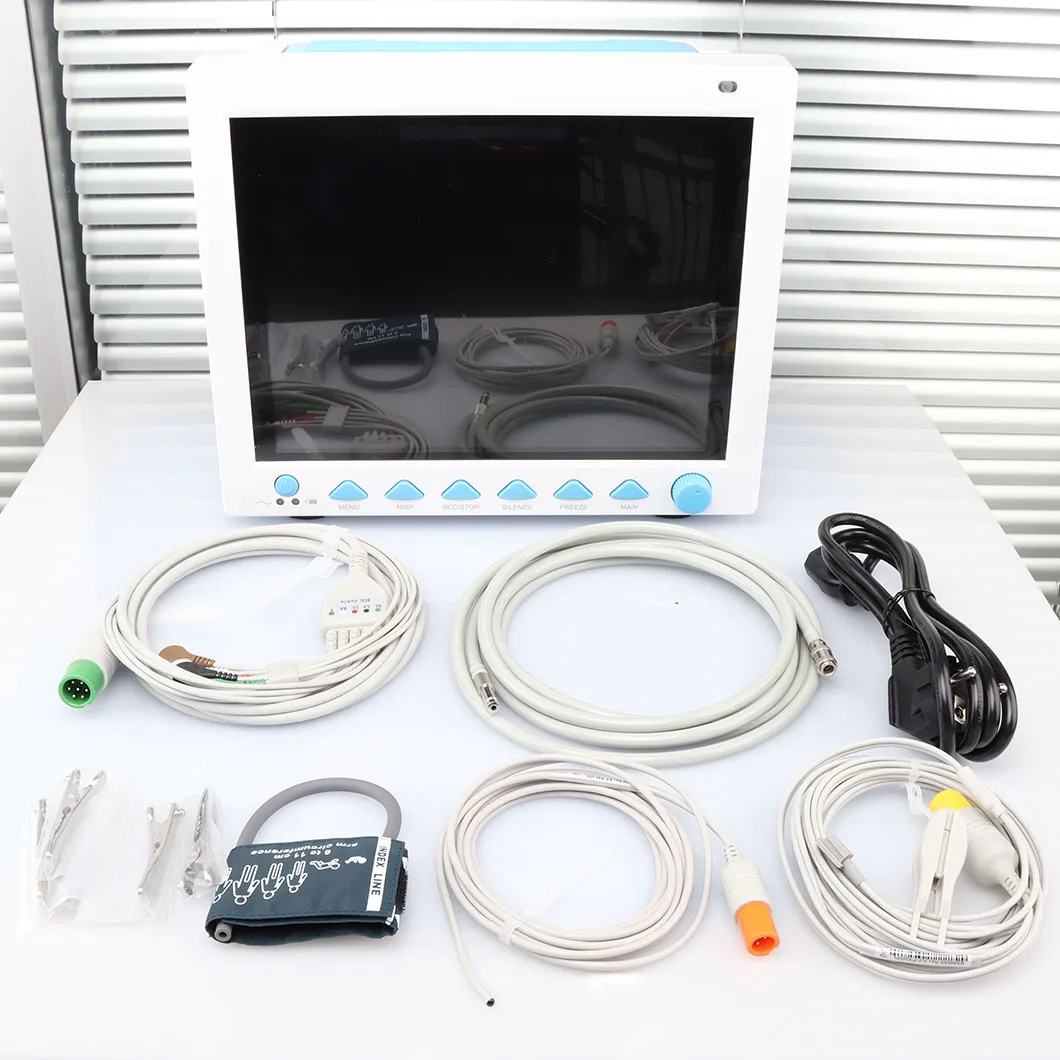

Accessories
1) Digital BD7 veterinary tongue-clip SpO2 sensor (1M)
2) General digital SpO2 sensor extension cable (2M)
3) Neonatal capsule single tube repeatable cuff (6-11cm)
4) NIBP extension tube
5) 5-lead ECG lead cable (American-Standard)
6) ECG veterinary clip (*5)
7) Transvaginal TEMP probe
8) Power cord
9) User Manual
1) Digital BD7 veterinary tongue-clip SpO2 sensor (1M)
2) General digital SpO2 sensor extension cable (2M)
3) Neonatal capsule single tube repeatable cuff (6-11cm)
4) NIBP extension tube
5) 5-lead ECG lead cable (American-Standard)
6) ECG veterinary clip (*5)
7) Transvaginal TEMP probe
8) Power cord
9) User Manual
FAQ
1.What is time of delivery?
Since our products are produced according to each specific order, the delivery period will be 15days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
2.What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge. But if the machine is damaged due to rough handling during the transportation, we are free of any responsibility, but we will still provide help to the buyer issue claims against the shipping company or insurance company, thus all the spare parts or expenses should be borne by buyer.
3.What about the price level?
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.
4.Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper .
5.What is payment terms?
T/T in advance, L/C, Western Union, PayPal, MoneyGram.
6.Which shipping company usually using?
MAERSK-LINE, PIL, cosco, SAFMARINE, MARUBA, APL, CMA, CSAV, K-LINE, MSC, NYK, AND DHL, EMS, TNT, UPS FOR COURIER, buyer's option will be our priority, we will give suggestion according to the schedule and services.
Since our products are produced according to each specific order, the delivery period will be 15days after confirmation of order. If it is small or sample order, please do check with us about whether we have ready goods in stock to make delivery as soon as possible.
2.What about quality assurance?
We offer one year warranty period beginning from the time of shipment for medical equipment, Per minor problems, we can provide free spare parts for replacements, Per serious problems, we can make replacement of free charge. But if the machine is damaged due to rough handling during the transportation, we are free of any responsibility, but we will still provide help to the buyer issue claims against the shipping company or insurance company, thus all the spare parts or expenses should be borne by buyer.
3.What about the price level?
We are confident that our prices are competitive compared with those at the same quality level, since we have stayed in this filed more than 20 years. And we always adhere to the principle of provide top quality products with competitive prices. We have already established our good fame in many countries, especially in Africa, Middle East, European, Asia and South American through year after year efforts.
4.Why we find some prices are very high compared with some other supplier, and from the picture or it's model number, all looks the same?
As China is still a developing country, there are only a few products with patent rights, and copy products I spread very fast in the market. Of course, the prices of those copy products with cheap material and less quality control are relatively cheaper .
5.What is payment terms?
T/T in advance, L/C, Western Union, PayPal, MoneyGram.
6.Which shipping company usually using?
MAERSK-LINE, PIL, cosco, SAFMARINE, MARUBA, APL, CMA, CSAV, K-LINE, MSC, NYK, AND DHL, EMS, TNT, UPS FOR COURIER, buyer's option will be our priority, we will give suggestion according to the schedule and services.
