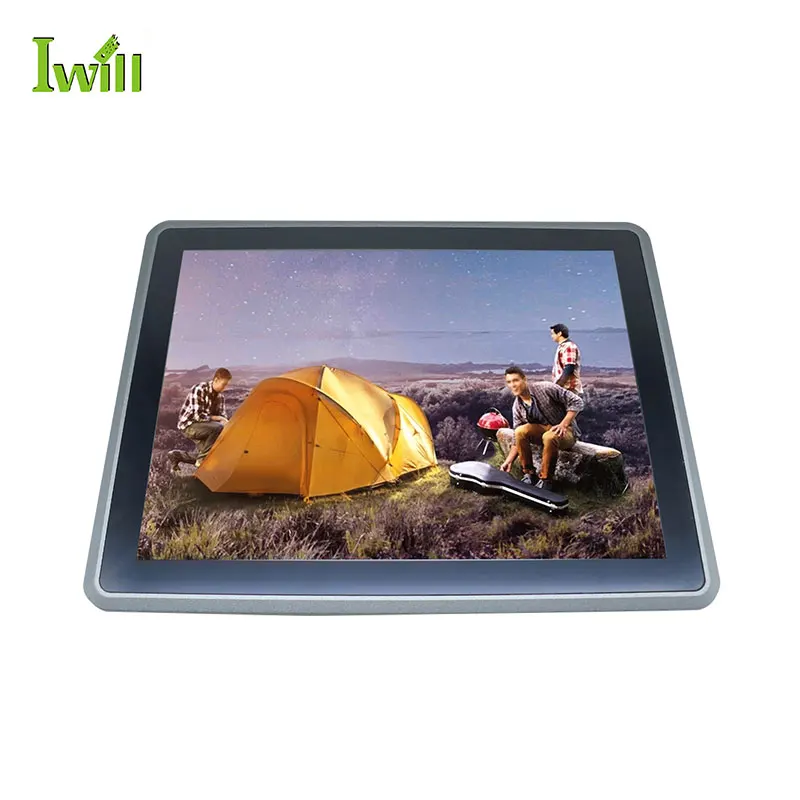

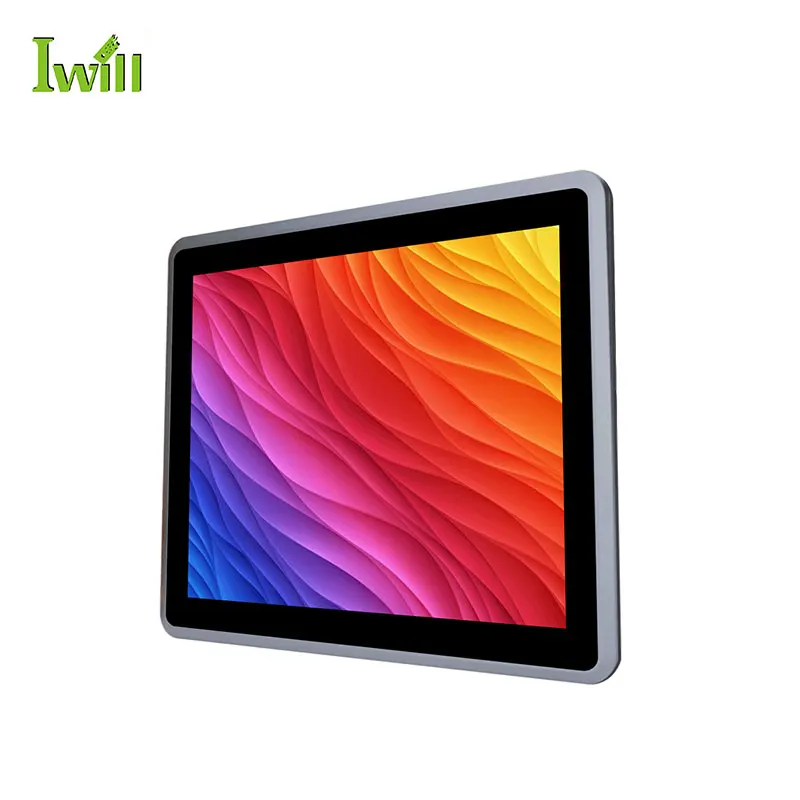

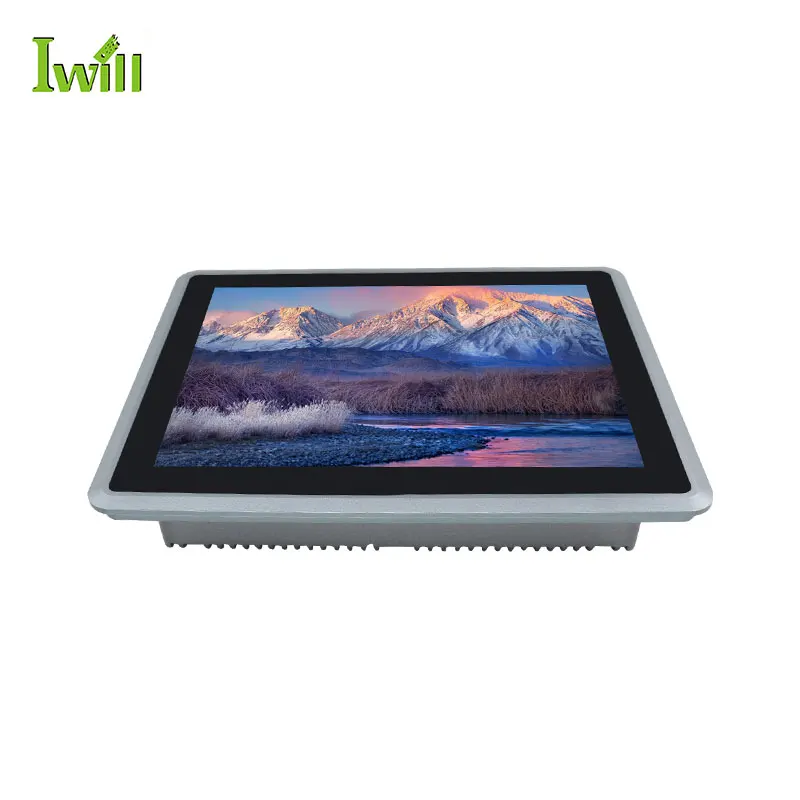

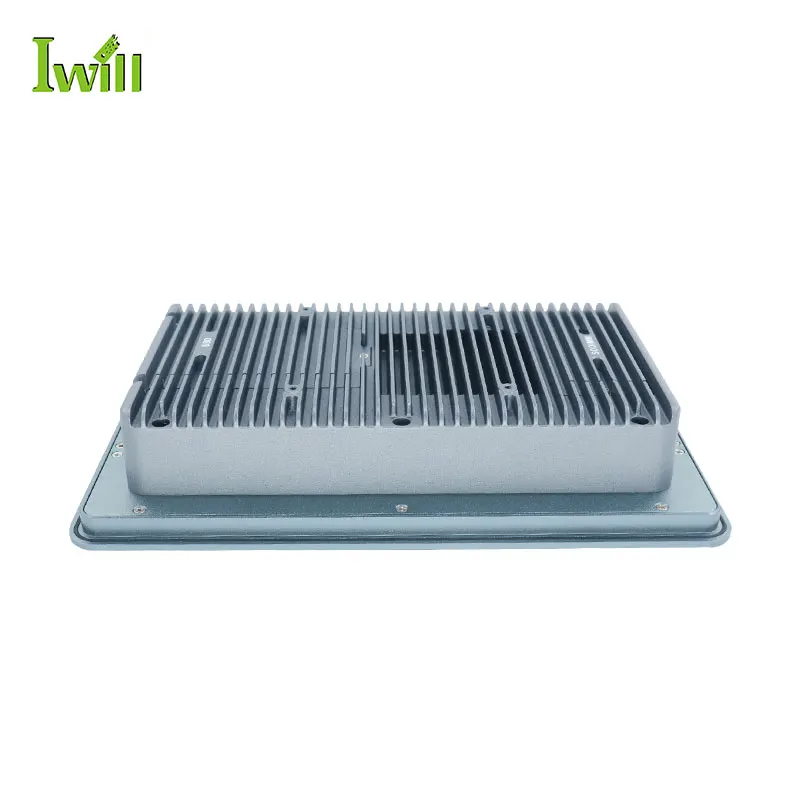

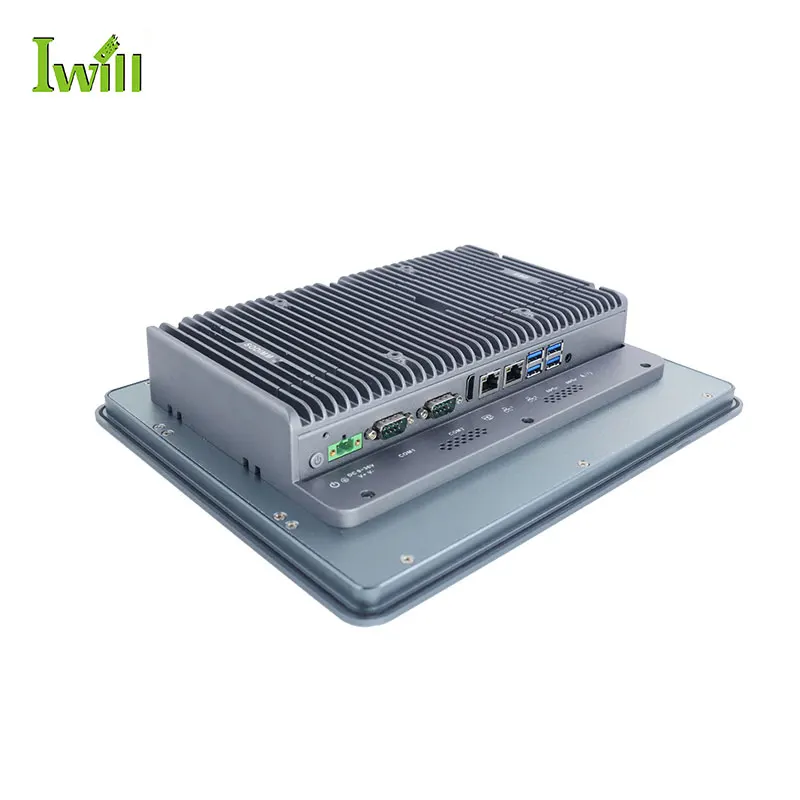

Cheap 12.1 inch Fanless Resistance Touch Panel PC In tel Core i7 8565U industrial pc with linux system
- Category: >>>
- Supplier: Shenzhen Iwill Technology Co. Ltd.
Share on (1600903406865):
Product Overview
Description
Skype: iwillella
Email: ella @iwilltech.cn
Phone/WeChat/WhatsApp:+86-13341394786
Email: ella @iwilltech.cn
Phone/WeChat/WhatsApp:+86-13341394786
VR

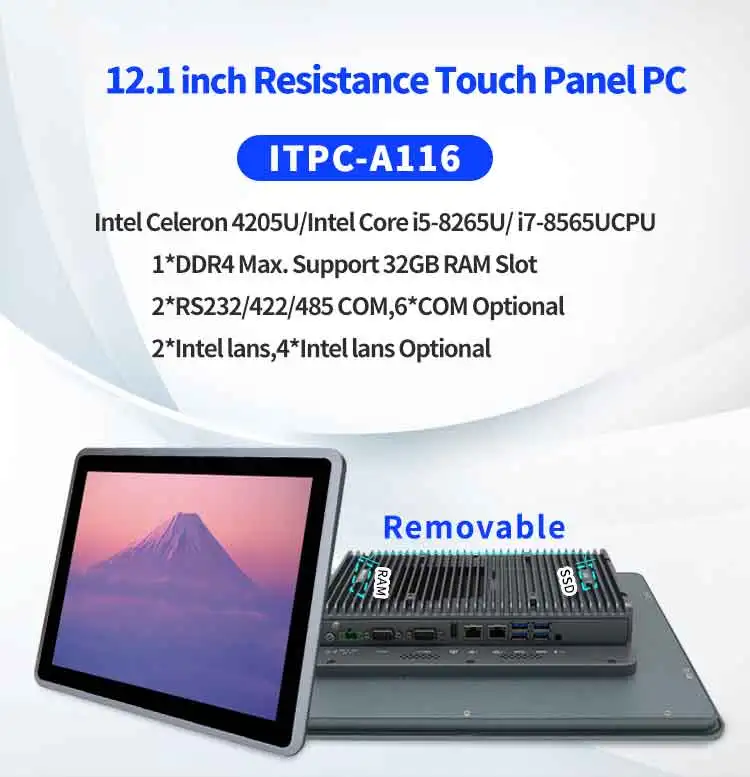

Model | ITPC-A116 Panel PC 12 inch |
Case Color | Titanium gray (Color can be customized) |
Material | Aluminum alloy chassis |
CPU | Intel Cele-ron 4205U（Dual core dual threads，1.8Ghz，2MB Cache) ; |
Intel Core i5-8265U（Quad core eight threads，1.6Ghz，Max turbo 3.9Ghz，6MB Cache）； | |
Intel Core i7-8565U（Quad core eight threads，1.8Ghz，Max turbo 4.6Ghz，8MB Cache）； | |
BIOS | AMI EFI BIOS |
RAM | Support 1*DDR4 2133/2400 SODIMM Memory slot，Max. Support 32GB |
Storage | 1*M.2 2280 slot（SATA Protocol），1*2.5” HDD，Support RAID 0/1 |
Display Chip | UHD Graphics |
Display Interface | 1*HD，1*LVDS（Support synchronous and asynchronous dual display） |

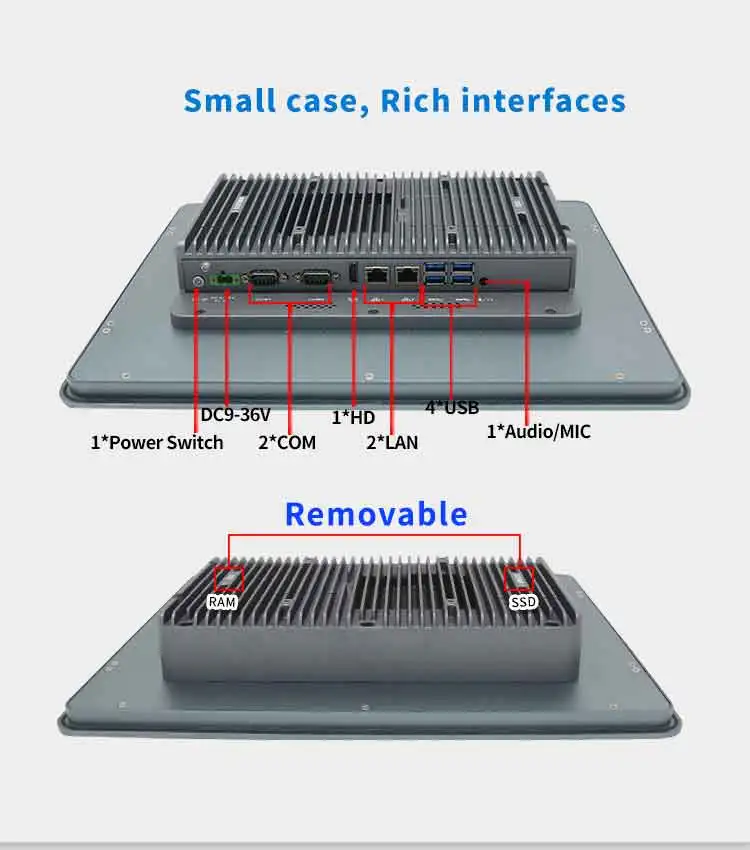

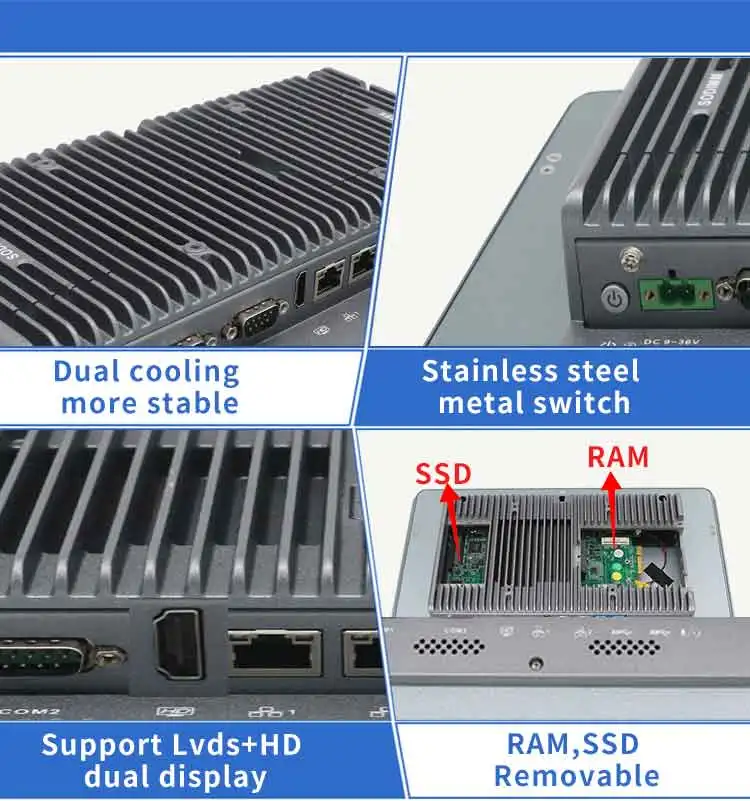

I/O | 1*HD，2*COM（COM1、COM2 RS232/RS422/RS485 Optional，6*COM Optional），1*Power Switch |
I/O | 1*2Pin power supply phoenix connector, 1*Audio (Support Mic and Speaker at the same time), 4*USB3.0, 2*Intel 1000M LAN（4*LAN Optional） |
Expansion | GPIO（8 Input 8 Output）、2*LAN、4*COM、2*USB2.0 （Standard version doesn't include these ports） |
Other Function | TPM2.0 security encryption、Auto power on when there is electricity、Timing boot、Wake on LAN、PXE boot、Watchdog（0～255 level）(Standard version doesn’t set these function) |
LCD | Size: 12.1 inch TFT-LCD; |
Brightness：350 cd/m2； | |
Viewing Angle：Full Angle | |
Ratio：4：3； | |
Resolution：1024 * 768； | |
OS | Win10, Win11, Linux |
Touch Screen | Industrial grade multi-touch resistance touch screen，Life Time: more than 50000 Thousand Times; |
Speaker | Two 8-ohm 2-watt speaker |
Power Supply | DC 9V ～ 36V wide voltage Input，support positive pole and negative electrode connect reversely protection； |
Work Temp | 0℃ ～ +50℃（Commercial），-20℃ ～ +60℃（Industrial SSD），Surface air flow |
Work Humidity | 5% ～ 95% non-condensing |
Cetificates | CE, CCC, FCC Class A, ROHS |

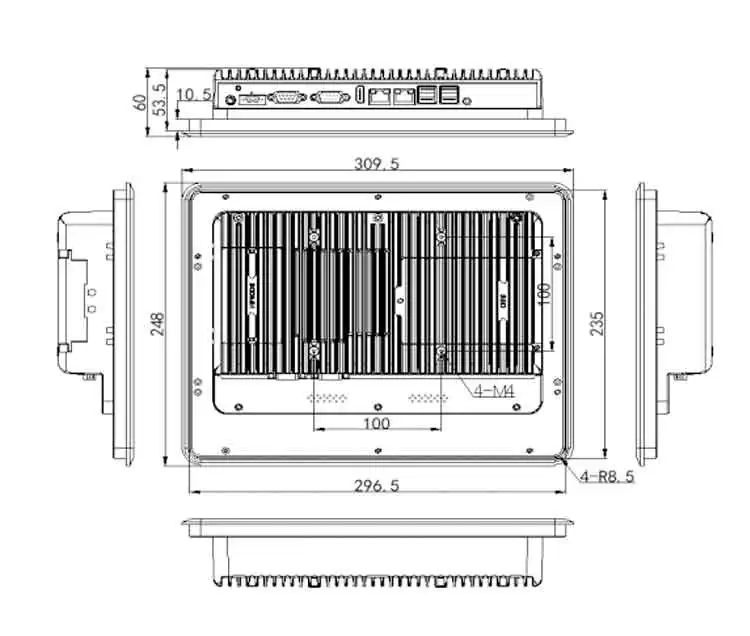

Dimension | 309.5 * 248 * 60 mm |
Embedded Installation | 309.5 * 248 * 60 mm |
Net Weight | 2.9kg |
Application | Industrial Automation，Medical，Logistics Transportation, Warehousing, Machine Vision, etc. |
Details Images

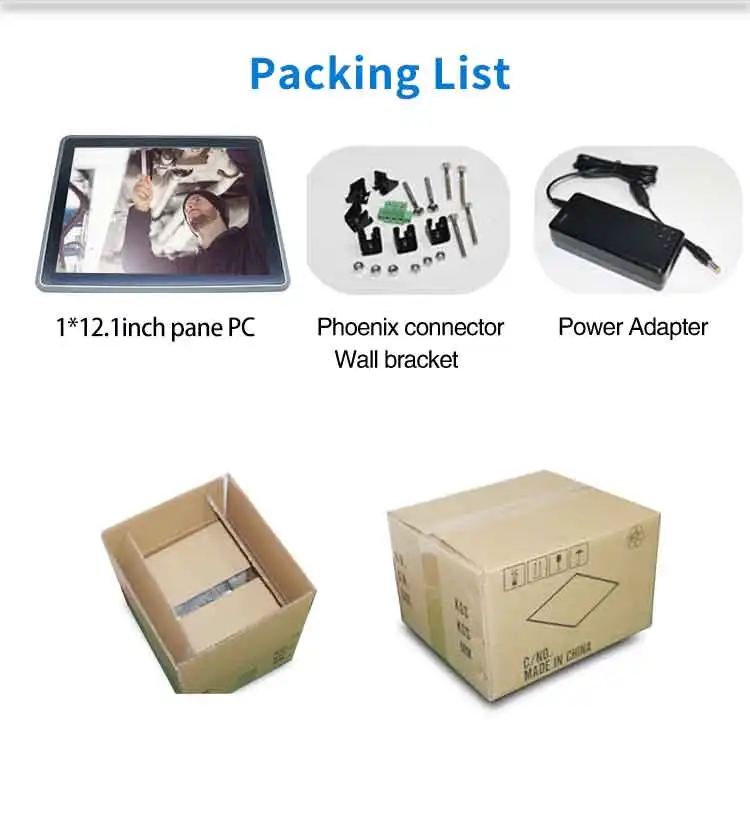

Packing & Shipping
1.Delivery Time: 1 ~ 3 Days for one sample, 15 Working days for a large quantity.
2.Packaging Ways: Each pc for one neutral box;
3.Shipping Ways: For small amount, we advise our customer to take DHL, Fedex, UPS.
For a large quantity, we can support to ship by air or by sea.
2.Packaging Ways: Each pc for one neutral box;
3.Shipping Ways: For small amount, we advise our customer to take DHL, Fedex, UPS.
For a large quantity, we can support to ship by air or by sea.
Company Profile
IWILL TECHNOLOGY(HONGKONG) LIMITED. established in 2000, is an officially registered and approved large-scale resource-based enterprise, forcus on research and design,producing, processing, marketing and distribution. Main products cover mini PC, HTPC,embedded PC, vehicle computers, industrial computers, fanless systems, aluminum cases, ITX motherboards, DC power boards, hardware and computer-related accessories.
IWILL TECHNOLOGY(HONGKONG) LIMITED. controls all the processes, from design, producing, processing, assembly, quality inspection to packing and delivering; and holds the advantage of leading technique and more competitive price.
IWILL TECHNOLOGY(HONGKONG) LIMITED. has established cooperation with lots of enterprises, rely on its strength, reasonable price,excellent service, over 10 years rich experience in R&D and producing. Products are popular at home and abroad. Its OEM/ODM services have already covered many countries in South East Asia, Middle East, Europe, America, South Africa etc.
Our Services & Strength
1.We can provide OEM/ODM services .
2.We can sell one sample for your test .
3.High-quality product and competitive price.
4.1 years Warranty, the second year and the third year, we can repair it free. but we will charge for the parts that need to change.
2.We can sell one sample for your test .
3.High-quality product and competitive price.
4.1 years Warranty, the second year and the third year, we can repair it free. but we will charge for the parts that need to change.
