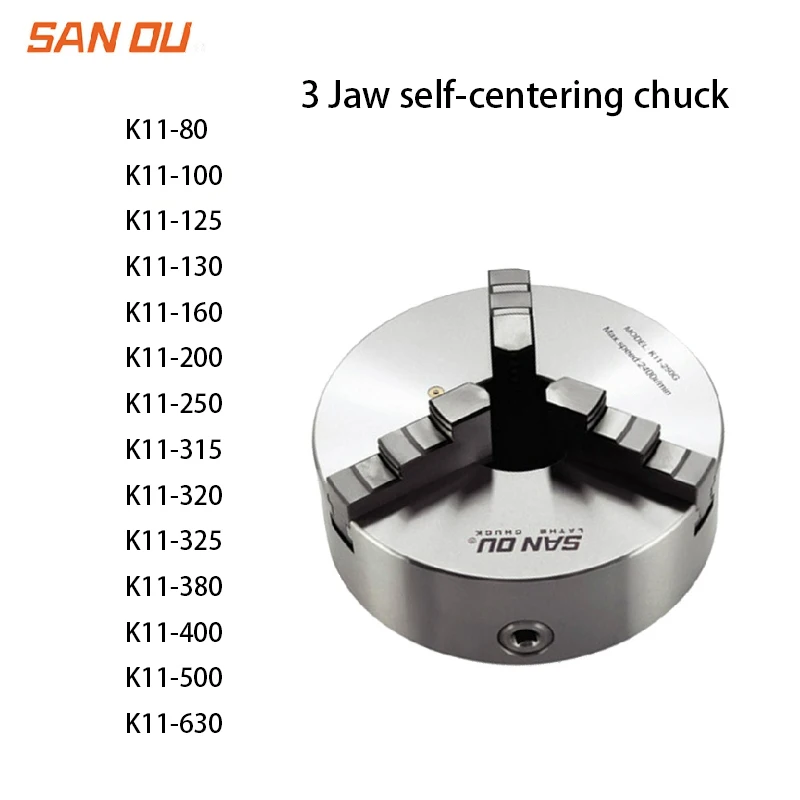

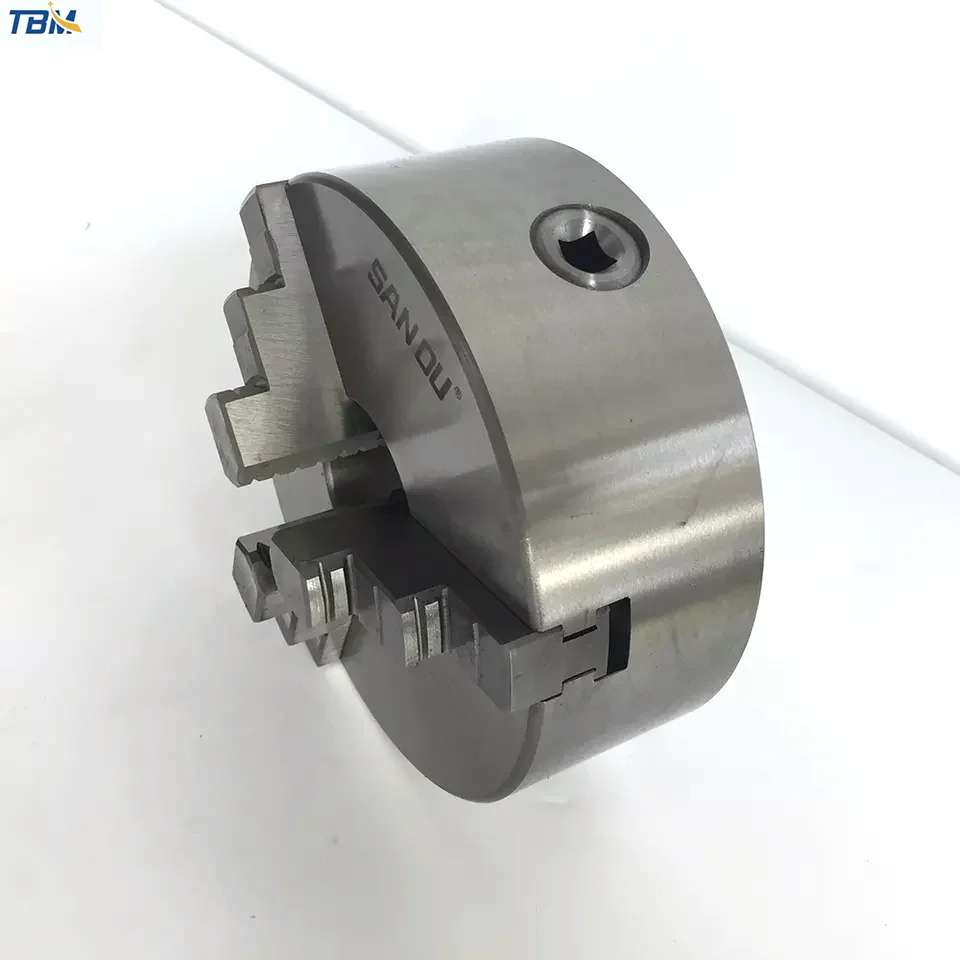

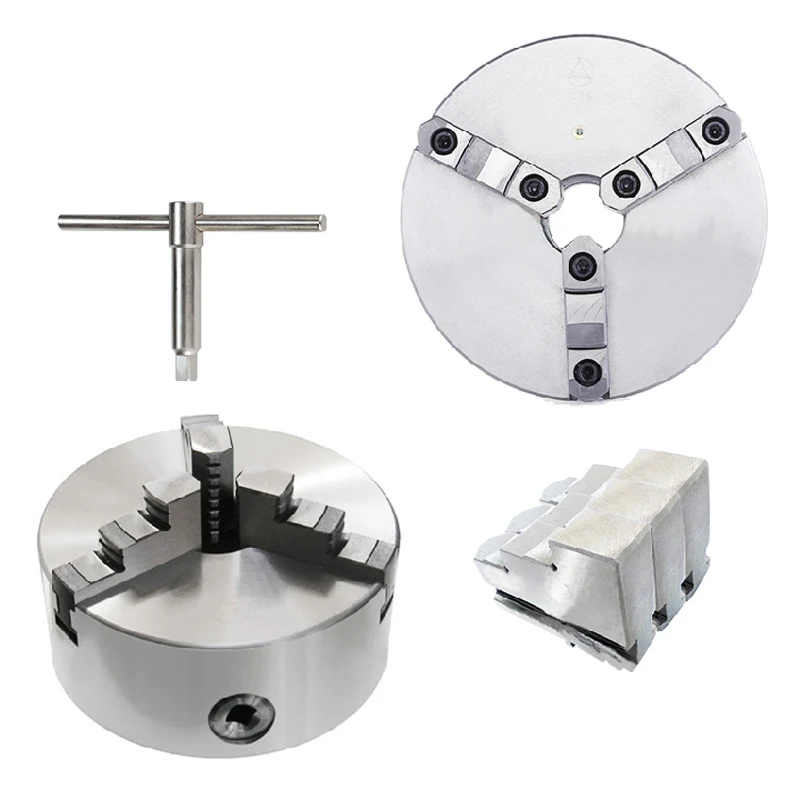

Self Centering Chuck 3 Jaw Lathe Chuck K11 Series 3' 4' 5' 6' 8' 10'
- Category: >>>
- Supplier: Shanghai Think Big Machine Tool Co. Ltd.
Share on (1600903624469):
Product Overview
Description

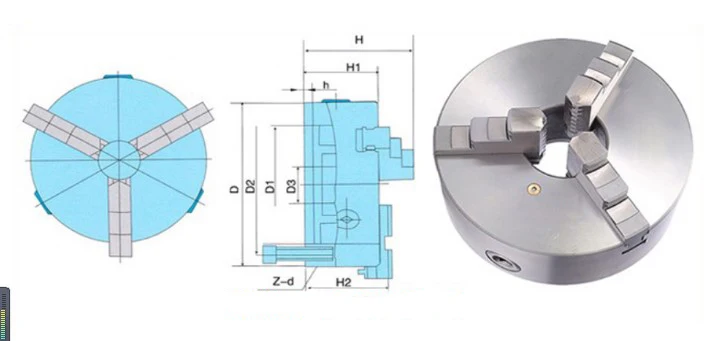

| Name | Chuck specification D (diameter mm) | D1 (mm) | D2 (mm) | D3 (mm) | H (mm) | H1 (mm) | h (mm) | z-d |

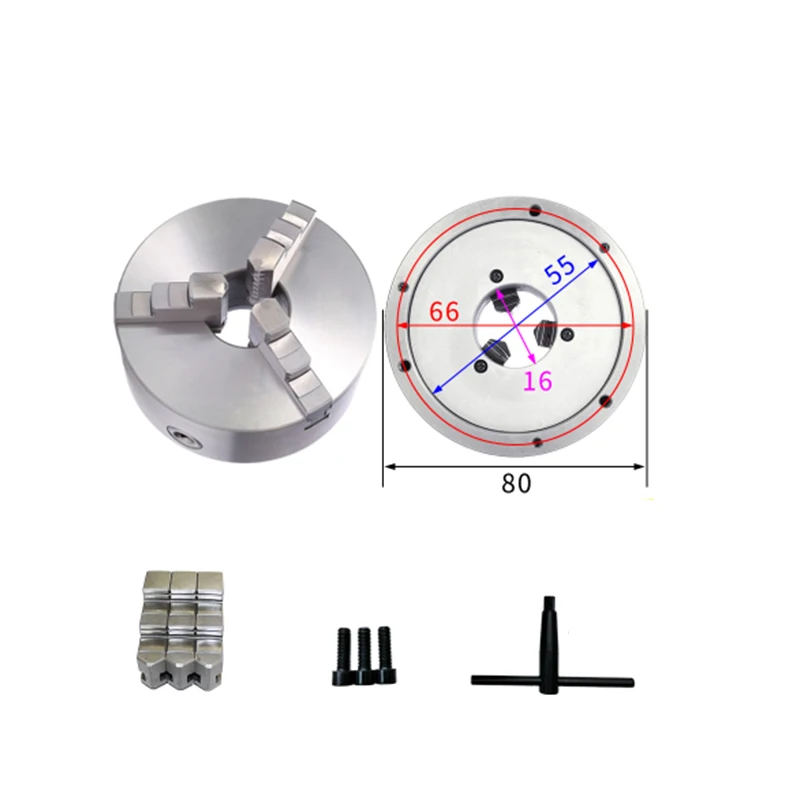

| 3-jaw Self-centering chuck | 80 | 55 | 66 | 16 | 66 | 50 | 3.5 | 3-M6 |
| 100 | 72 | 84 | 22 | 75 | 55 | 3.5 | 3-M8 | |
| 125 | 95 | 108 | 30 | 84 | 58 | 4 | 3-M8 | |
130 | 100 | 115 | 30 | 86 | 60 | 3.5 | 3-M8 | |
| 160 | 130 | 142 | 45 | 95 | 65 | 5 | 3-M8 | |
| 165 | 130 | 145 | 40 | 97 | 68 | 4.5 | 3-M8 | |
| 200 | 165 | 180 | 65 | 109 | 75 | 5 | 3-M10 | |
| 200c | 165 | 180 | 65 | 122 | 75 | 5 | 3-M10 | |
| 250 | 206 | 226 | 80 | 120 | 80 | 5 | 3-M12 | |
| 250c | 260 | 226 | 80 | 130 | 80 | 5 | 3-M12 | |
| 315 | 260 | 285 | 100 | 141.5 | 90 | 6 | 3-M16 | |
| 315a | 260 | 285 | 100 | 153 | 90 | 6 | 3-M16 | |
320 | 270 | 290 | 100 | 145 | 95 | 11 | 3-M16 | |
| 320c | 270 | 290 | 100 | 155 | 95 | 11 | 3-M16 | |
| 325 | 272 | 296 | 100 | 148.9 | 97 | 12 | 3-M16 | |
| 325c | 272 | 296 | 100 | 154.5 | 97 | 12 | 3-M16 | |
| 380 | 325 | 350 | 145 | 155.7 | 102.5 | 6 | 3-M16 | |
| 380c | 325 | 350 | 145 | 156.5 | 102.5 | 6 | 3-M16 | |
| 400 | 340 | 368 | 145 | 155 | 102 | 6 | 3-M16 | |
| 400c | 340 | 368 | 145 | 165 | 102 | 6 | 3-M16 | |
| 500 | 440 | 465 | 210 | 174 | 115 | 6 | 6-M16 | |
| 500c | 440 | 465 | 210 | 195 | 115 | 6 | 6-M16 | |
| 630a | 560 | 595 | 280 | 218 | 135 | 7 | 6-M16 | |
| 800a | 701 | 760 | 350 | 250 | 161 | 8.5 | 6-M20 |
