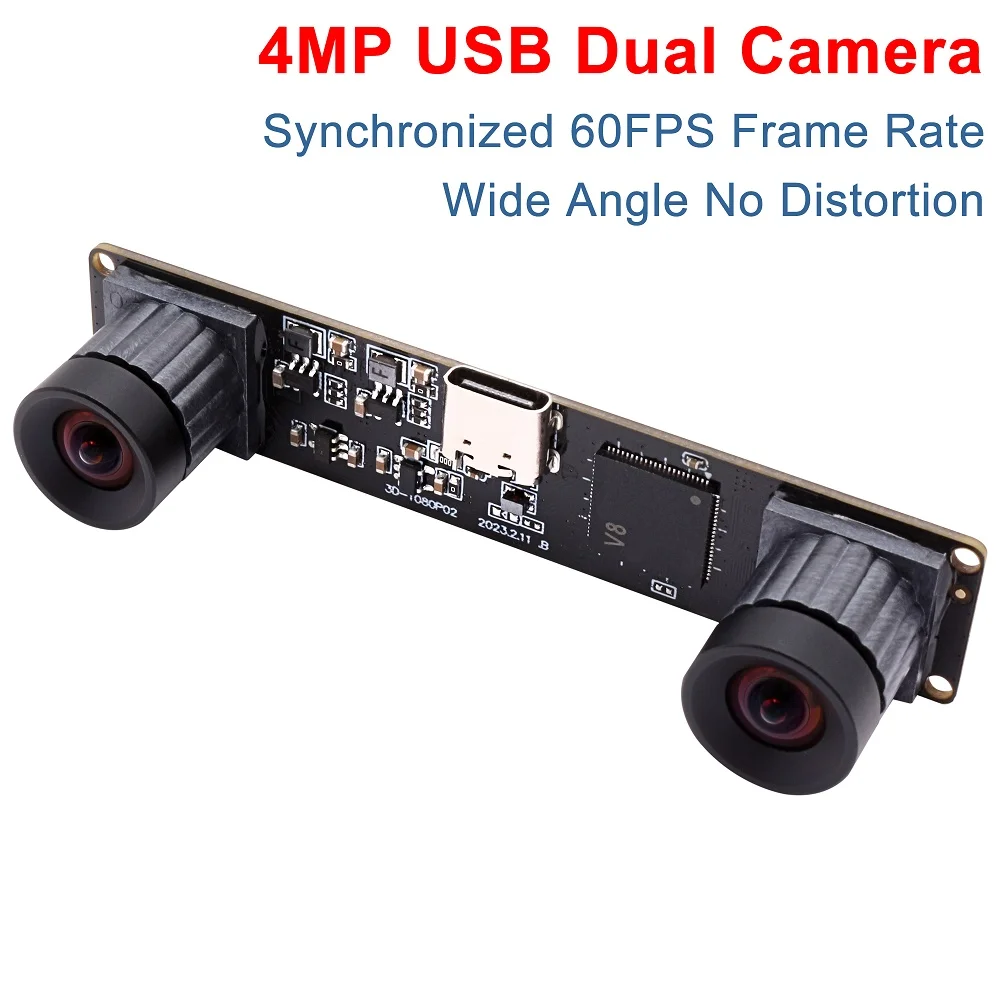

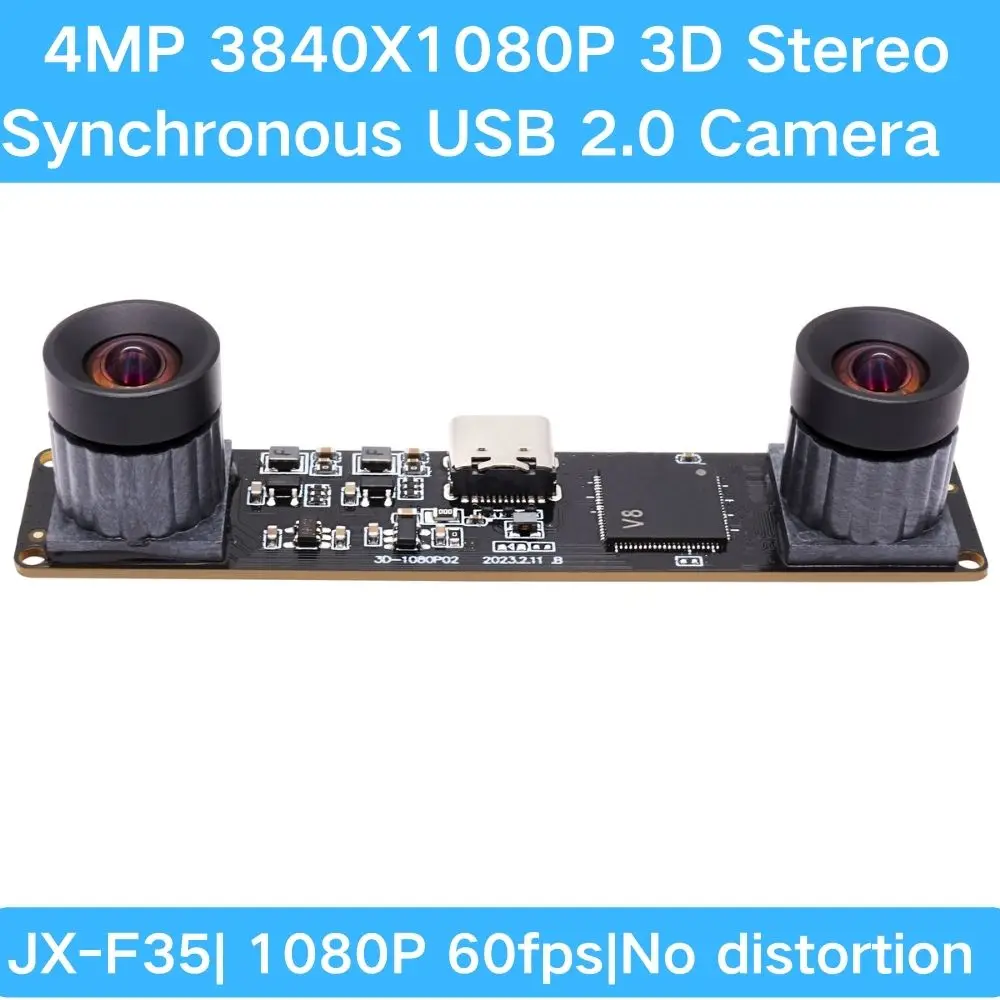

ELP 4MP Dual Lens 3840X1080 60fps Synchronization 3D Stereo USB Camera Module for VR camera ,3D Printing scanner
- Category: >>>
- Supplier: Shenzhen Ailipu Technology Co. Ltd.
Share on (1600903677038):
Product Overview
Description
Product Description

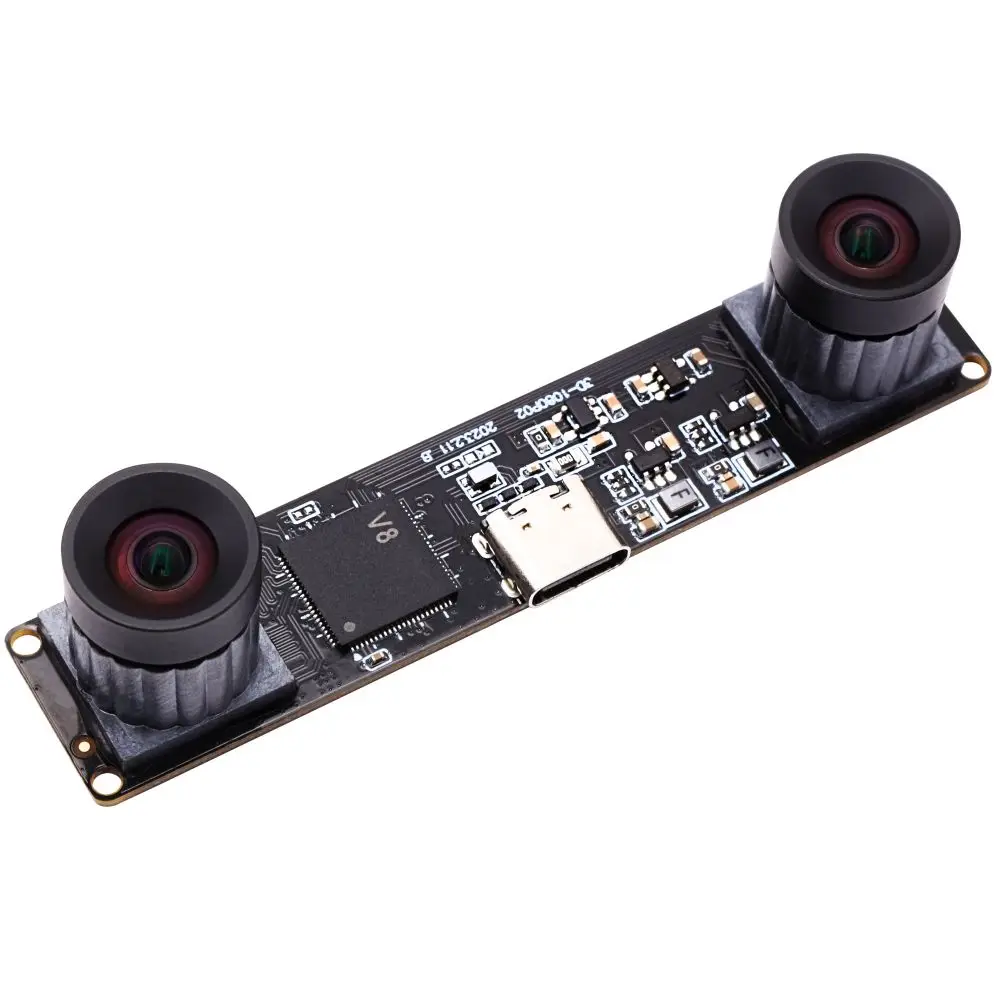

USB Camera Module, Model: ELP-USB3D1080P02-V85

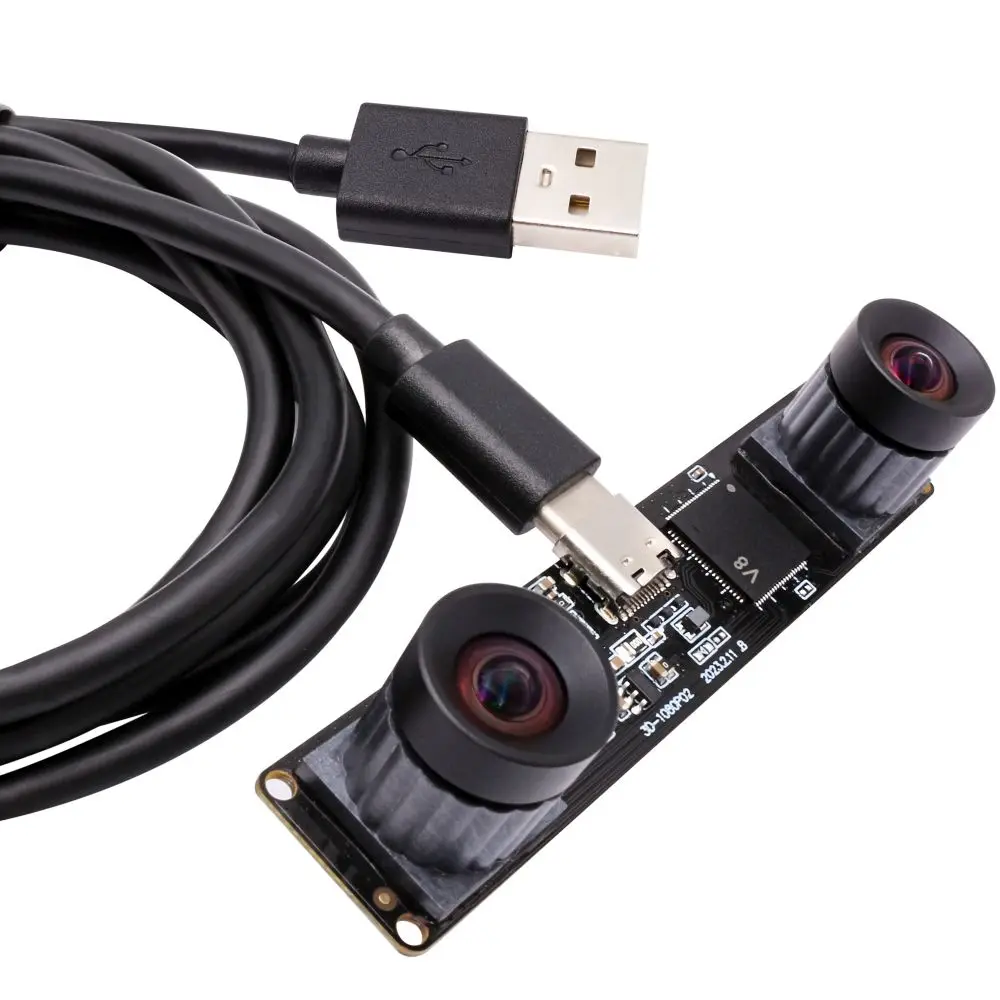

4MP Dual Lens USB Camera Module Synchronization 3840x1080P 60fps Camera USB With No Distortion 85degree lens ,1.2m USB Cable ,super mini size 80*16.5mm
4MP 3840*1080 60fps Dual Lens Synchronization USB Camera Moudule
3D Stereo Camera Module 4.0 Megapixel HD 3840X 1080P Webcam,image sensor JX-F35,super nini size 80*16.5mm
Key Features
* 3D Stereo Camera Module 4.0 Megapixel HD 3840X 1080P Webcam
* No distortion camera M12 Mount dual lens Synchronous. HFOV 85greee, interchangeable
* High speed USB 2.0 interface to Type C in camera
* High Quality image sensor JX-F35
* High frame rate 3840X1080 MJPEG@60 fps
* No distortion camera M12 Mount dual lens Synchronous. HFOV 85greee, interchangeable
* High speed USB 2.0 interface to Type C in camera
* High Quality image sensor JX-F35
* High frame rate 3840X1080 MJPEG@60 fps
* Camera with USB, Plug and play, no need any driver to run.
* Support UVC compliance for use in OS Windows, Linux, Android, Mac
* Support OTG function, can connect Android mobile.pad directly.
* Small outline, mini size 80*16.5mm for embedded application
* Application: Robot vision, Virtual reality, Augmented Reality, biometric Retina analyze, 3D measurement, Intelligent transportation system, People Counting & Tracking,Astrophotography etc.
* Support UVC compliance for use in OS Windows, Linux, Android, Mac
* Support OTG function, can connect Android mobile.pad directly.
* Small outline, mini size 80*16.5mm for embedded application
* Application: Robot vision, Virtual reality, Augmented Reality, biometric Retina analyze, 3D measurement, Intelligent transportation system, People Counting & Tracking,Astrophotography etc.
Specification
Model | ELP-USB3D1080P02-V85 (V8003 no distortion elsn ,HFOV about 85dergee ) ELP-USB3D1080P02-H100 (H100 no distortion lens, HFOV about 95 degree) ELP-USB3D1080P02-H110 (H110 no distortion lens, HFOV about 115 degree) ELP-USB3D1080P02-H120 (H120 no distortion lens, HFOV about 120 degree) |
Sensor | JX-F35 |
Lens Size | 1/2.7 inch |
Pixel Size | 3.0µm x 3.0 µm |
Max. Resolution | 3840(H)X1080(V) |
Compression format | MJPEG/YUY2 (YUYV) |
Resolution& framerate | MJPEG：3840X1080@ 60fps/2560X720@60fps/ 1600X600@60fps/1280X480@60fps /640X240@60fps |
Sensitivity | 4.5V/lux-sec@550nm |
Min illumination | 0. 3lux |
Shutter Type | Electronic rolling shutter/ Frame exposure |
Connecting Port type | USB2.0 High Speed |
Free Drive Protocol | USB Video Class (UVC) |
Support OTG Protocol | USB2.0 OTG |
AEC | Support |
AEB | Support |
Adjustable parameters | Brightness,Contrast, Saturation, Hue, Sharpness, Gamma,Gain, White balance,Backlight Contrast, Exposure |
Lens Parameter | Wide angle no distortion lens |
Power supply | USB BUS POWER Type-C |
Operating Voltage | DC5V |
Working Current | 210mA~240mA |
Working Temperature | -10~70C |
Storage Temperature | -20~85C |
Board size/Weight | 80X16.5mm |
Cable | Standard 1.2M |
Operating system request | WinXP/Vista/Win7/Win8/Win9/Win10/Win11 etc. Linux with UVC (abovelinux-2.6.2) MAC-OS X10.4.8 or later Android4.0 or above with UVC |

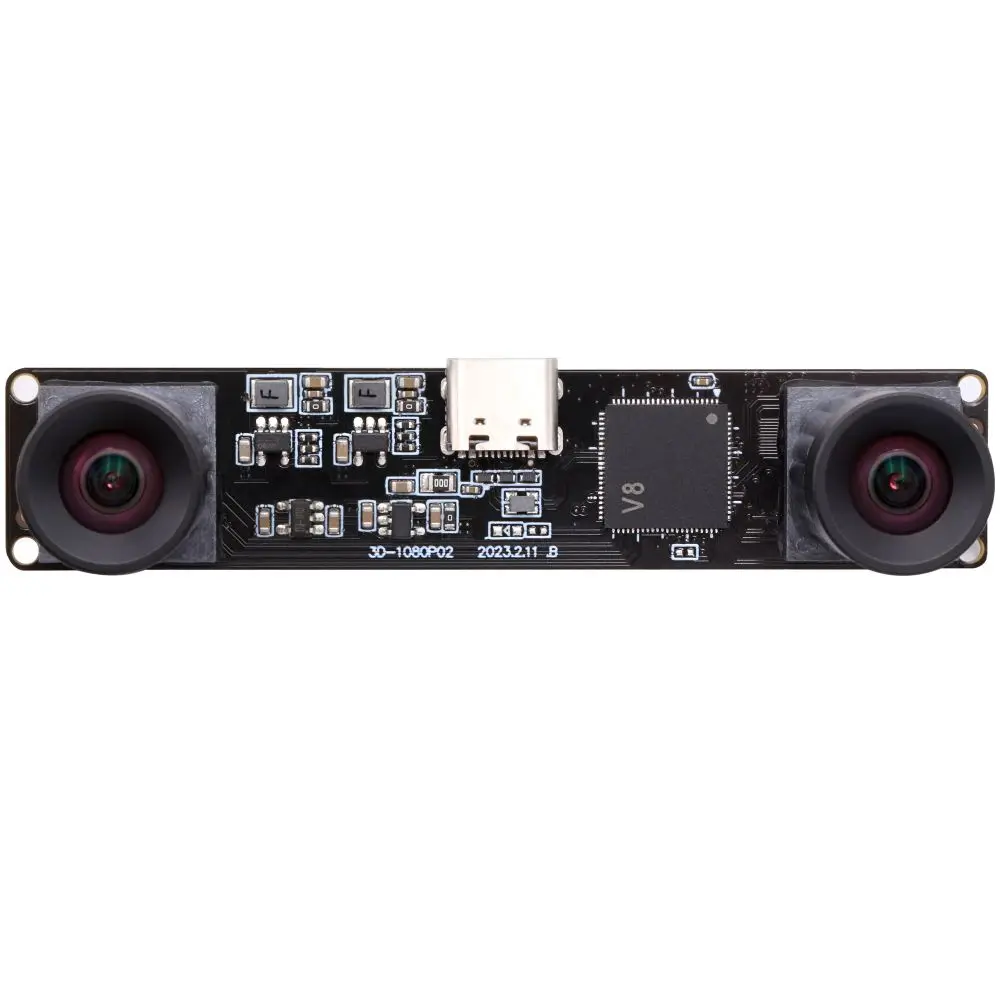

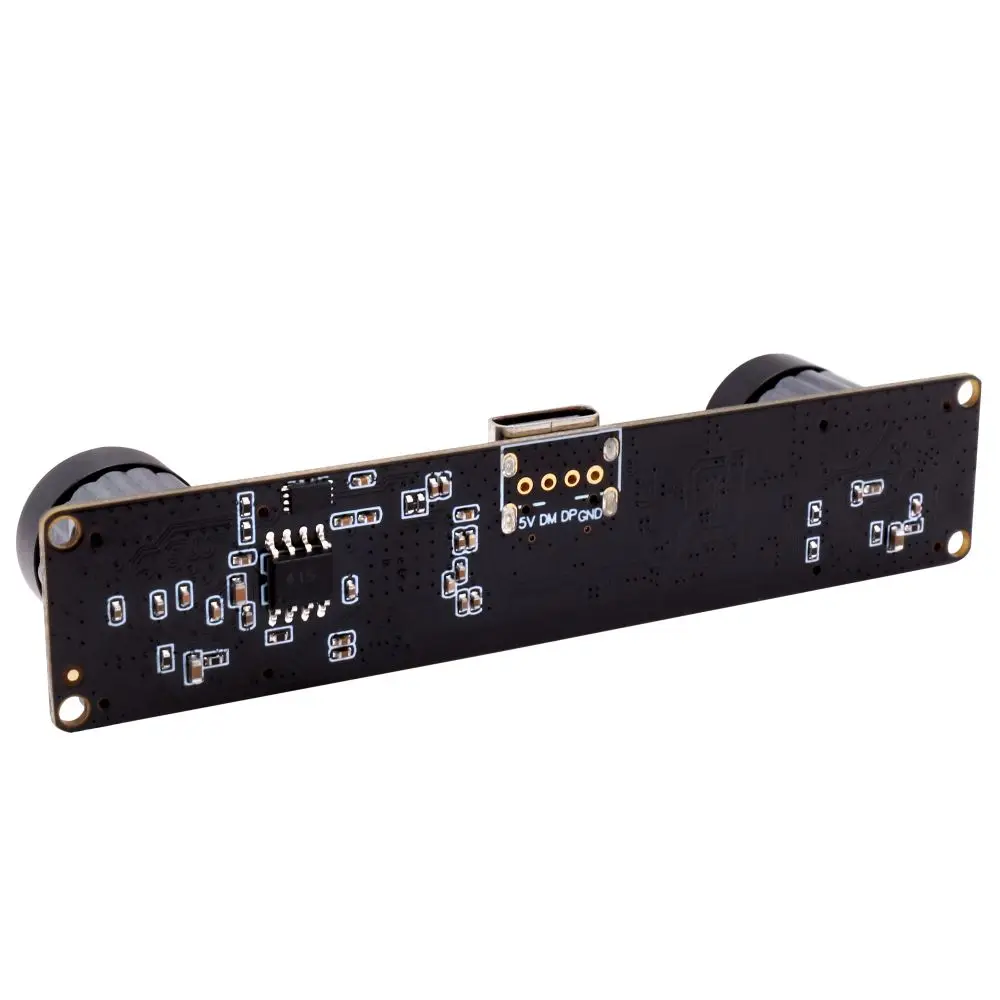

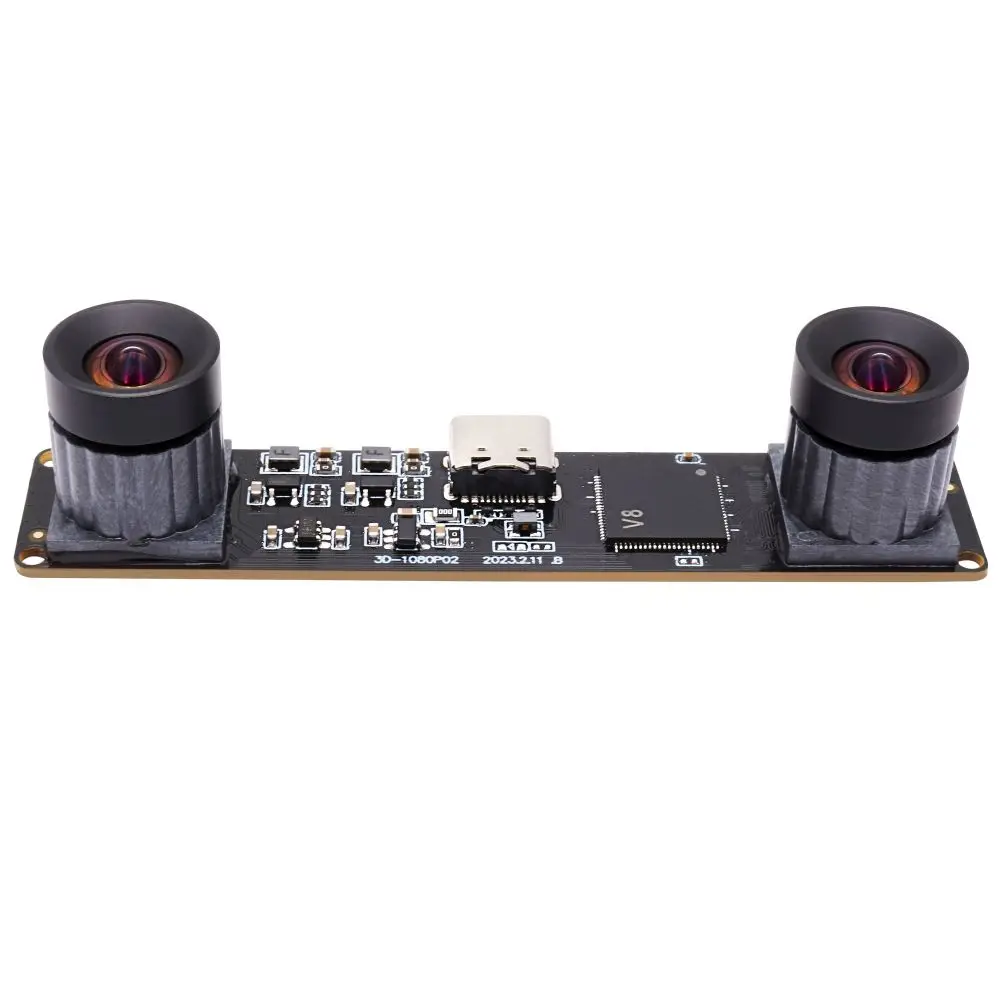

Picture show
HOW TO USE THE DUAL LENS USB CAMERA
Recommend Products
Applications
WIDE APPLICATION
VR camera, 3D Printing scanner, ATM, Kiosk, POS, Smart TV box, advertising cameras, Electronic microscope, Automatic vending machine, Automated image acquisition system, Medical diagnostic image acquisition, fingerprints, palm prints image acquisition, video door phone, HD surveillance, Home Security Camera
Company Profile
FAQ
1. Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
2. Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
3. What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.
4. Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module
5. What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
6. What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System, Mac
7. What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
8. Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
9. Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
10. Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux,
Camerafi,VLC Player
Yes, we can offer OEM camera modules according to customer's different requirement.
2. Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
3. What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.
4. Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module
5. What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
6. What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System, Mac
7. What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
8. Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
9. Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
10. Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux,
Camerafi,VLC Player
