High Performance Tunnel Size 650mm x 500 X ray Baggage Scanner | Security Equipment | Portable X ray Machine for Jail

Model

XLD-6550

Tunnel size(mm)

650mm(L)*500mm(W)

Conveyor Speed(m/s)

0.20 (±10%)

Conveyor height(mm)

700

Conveyor Max Load(KG)

150

Unit Weight(KG)

450

Unit size

2808(L)*902(W)*1362.5(H) mm

Generator

140-160KV, oil cooling, from bottom to top

Penetration

Typical 32mm steel, guarantee 30mm steel

Wire Resolution

Typical AWG40, guarantee AWG38

X-Ray dosage /inspection

Typical 1.0 μGy/h, guarantee 1.5 μGy/h

Boundary Leakage

Typical 1.0 μGy/h, guarantee 1.5 μGy/h

Power consumption

Max.0.8KVA

Noise

<60dB

Film Safety

Guarantee ASA/ISO1600 Film

Computer

CPU: Cortex A9

Display monitor

Dell or Acer, 17" LED screen, resolution 1280*1024

Operation table

Single screen console

Operation System

LINUX

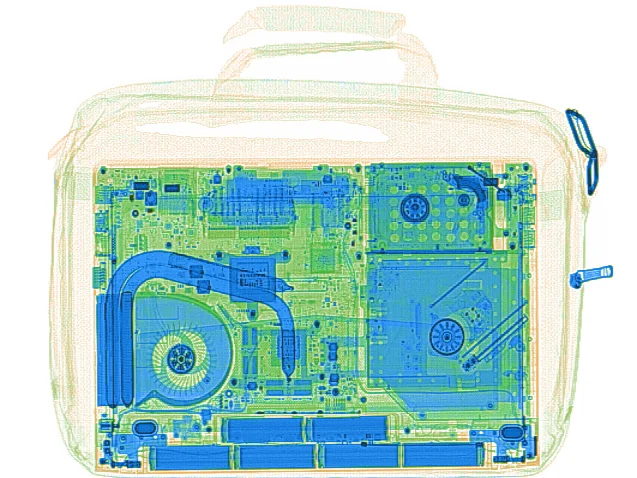

Image Enhancement

1-32times enlargement continuity, Color/BW, negative,high/low penetration, organic /inorganic, Stripping, general enhancement, and pseudo color,etc.

Image Archive

At least 50,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP, XF, PNG, TIFF, GIF six formats.

Image Recall

All preceding images re-callable,retrieval.

Other Functions

Fault diagnosis, system time setting, detection blind dots delete, x-ray source setting(analog or digital), alarm setting, images setting, software register, user management, TIP report, data setting(machine working time, x-ray source working time, baggage counter, etc.)

Network Applications

Multiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc ( Optional).

Operation temperature/Humidity

0C~45C / 5%-95%(non-condensing)

Storage temperature/Humidity

-40C~70C / 5%-95%(non-condensing)

Operation Power

220VAC(±10%) 50±3Hz

100VAC,110VAC,120VAC,200VAC (optional)
