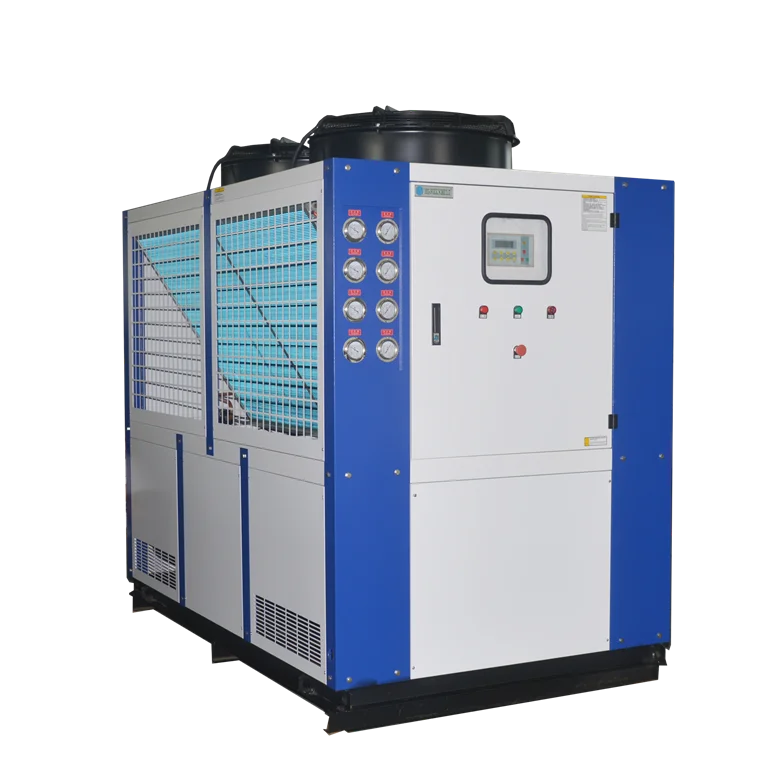

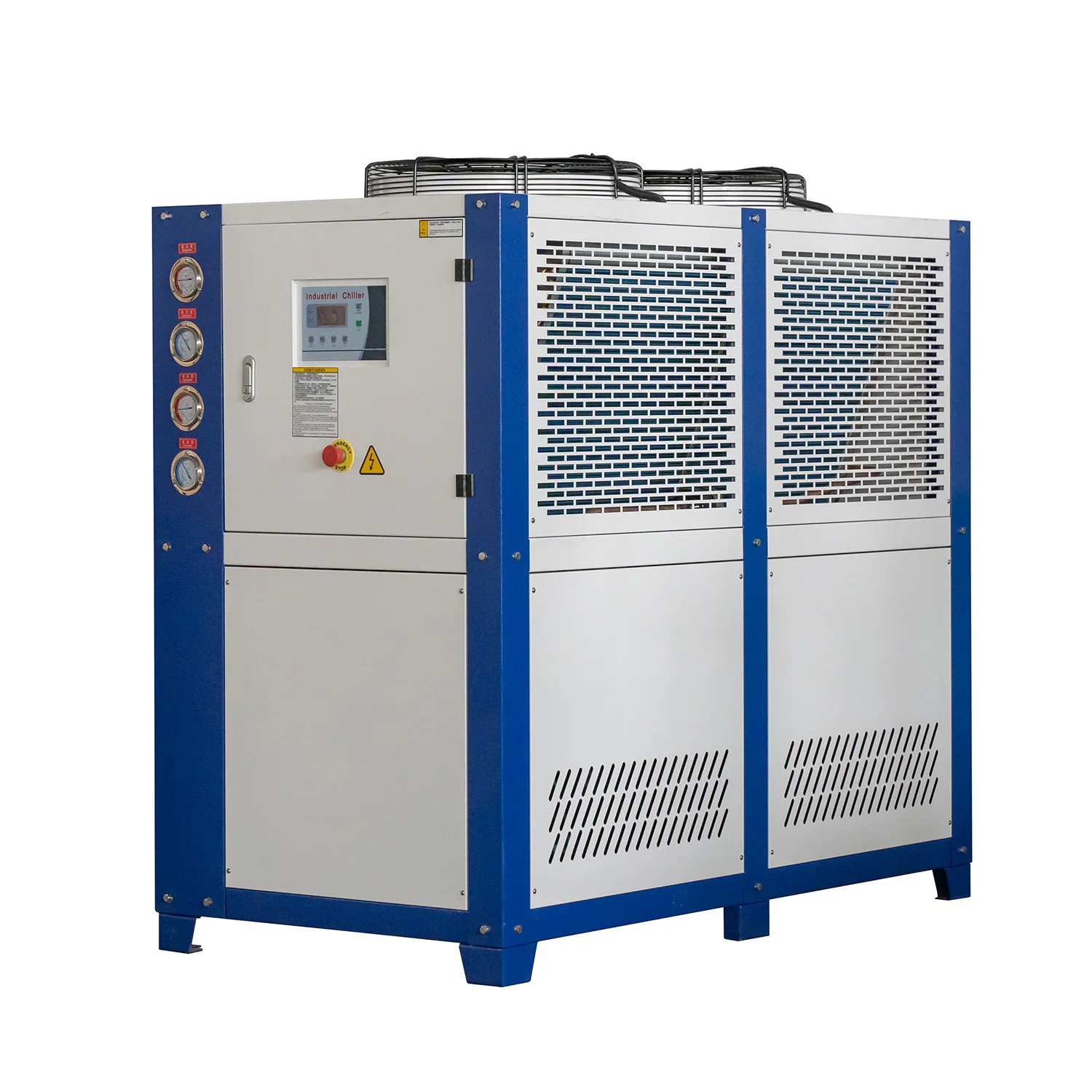

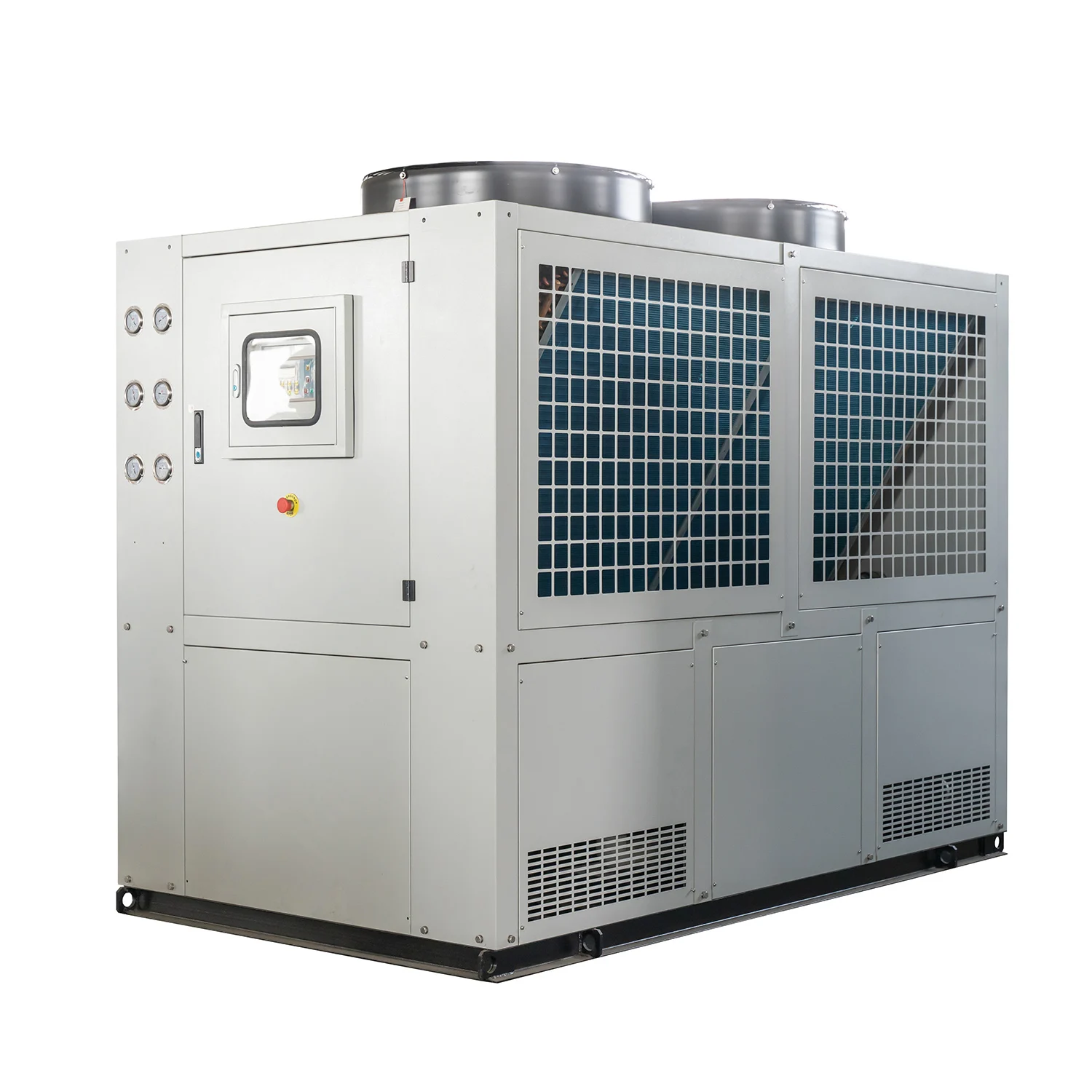

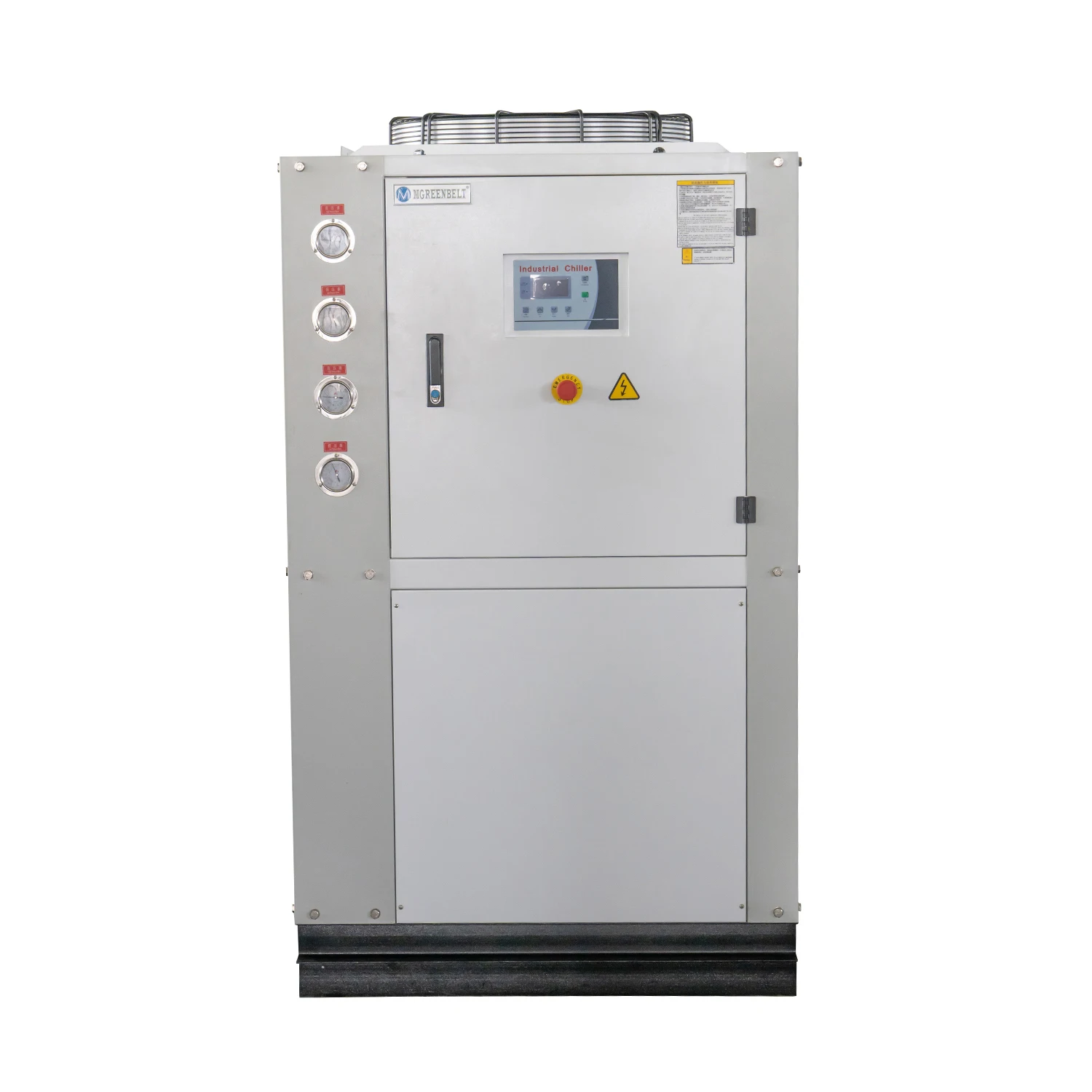

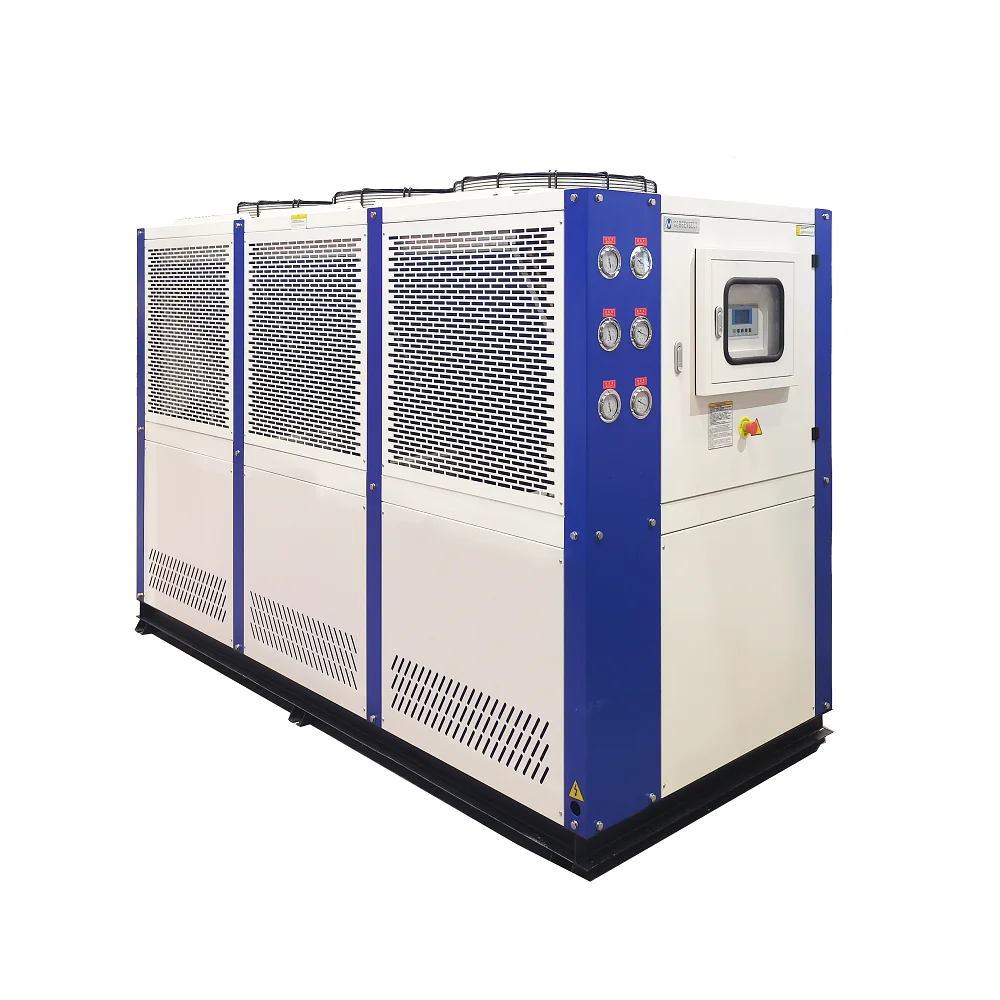

25hp 2OTON air cooled water chiller for extrusion & injection machine cooling system
- Category: >>>
- Supplier: Jinan Mgreenbelt Machinery Co. Ltd.
Share on (1600903972335):
Product Overview
Description
Products Description
Product Description for 5C to 35C Water Shell & Tube Finned Coil+low Noise Axil Fan Industrial 15hp Air Cooled Chiller
1. Product Name: Industrial air water chiller
2. Cooling capacity: 41.8kw/12ton
3. Output temp. :-15C/-10C/-5C/0C/7C-+35C
4. Power supply: 3PH/220V, 380-415V, 440V-460V/50Hz or 60Hz;
5. Color: blue or grey or customized
6. Refrigerant: R22/R407C/R134a/R410a/R404a
7. Compressor:Hermetic scroll type,world famous brand compressors from Copland, Panasonic etc
8. Evaporator: High efficiency copper tube shell and tube type
9. Condenser: High efficiency hydrophilic aluminum foll finned type
10. Protection System: Compressor overheat protection, high/low pressure protection, phase missing/sequence protection, flow rate protection, anti-frozen protection.
2. Cooling capacity: 41.8kw/12ton
3. Output temp. :-15C/-10C/-5C/0C/7C-+35C
4. Power supply: 3PH/220V, 380-415V, 440V-460V/50Hz or 60Hz;
5. Color: blue or grey or customized
6. Refrigerant: R22/R407C/R134a/R410a/R404a
7. Compressor:Hermetic scroll type,world famous brand compressors from Copland, Panasonic etc
8. Evaporator: High efficiency copper tube shell and tube type
9. Condenser: High efficiency hydrophilic aluminum foll finned type
10. Protection System: Compressor overheat protection, high/low pressure protection, phase missing/sequence protection, flow rate protection, anti-frozen protection.
Product Paramenters
Model | MG-5C | MG-10C(D) | MG-15C(D) | MG-20C(D) | MG-25C(D) | MG-30C(D) | MG-40C(D) | ||||||||||
5HP | 10HP | 15HP | 20HP | 25HP | 30HP | 40HP | |||||||||||
Cooling capacity | +7℃ | Kcal/h | 11266 | 24510 | 35948 | 47558 | 54352 | 71896 | 100104 | ||||||||
KW | 13.1 | 28.5 | 41.8 | 55.3 | 63.2 | 83.6 | 116.4 | ||||||||||
TR | 3.72 | 8.1 | 11.89 | 15.72 | 17.97 | 23.77 | 33.1 | ||||||||||
+12℃ | Kcal/h | 13972 | 27945 | 41960 | 55890 | 62769 | 83835 | 111780 | |||||||||
KW | 16.25 | 32.5 | 48.8 | 65 | 73 | 97.5 | 130 | ||||||||||
TR | 4.62 | 9.24 | 13.88 | 18.48 | 20.76 | 27.72 | 36.96 | ||||||||||
Input power | kW | 5.61 | 10.83 | 16.31 | 21.27 | 24.35 | 32.33 | 41.66 | |||||||||
Outlet water temperature | 5°C -35°C | ||||||||||||||||
Power supply | 3PHASE-220/380V/415v/460v-50HZ | ||||||||||||||||
Refrigerant | Type | R22/R407C/R410A | |||||||||||||||
Control type | Thermostatic expansion valve | ||||||||||||||||
Compressor | Type | Hermetic Scroll Type | |||||||||||||||
Power(kw) | 4.2 | 4.7*2 | 6*2 | 9.05*2 | 10.6*2 | 9.05*3 | 9.05*4 | ||||||||||
Evaporator | Type | Stainless Steel Tank with Coil | |||||||||||||||
Water flow(m³/h) | 2.25 | 4.89 | 7.17 | 9.48 | 10.83 | 14.33 | 19.95 | ||||||||||
Capacity(Lts) | 70 | 200 | 270 | 350 | 350 | 450 | 580 | ||||||||||
Fitting pipe(mm) | DN25 | DN32 | DN40 | DN40 | DN40 | DN65 | DN65 | ||||||||||
Condenser | Type | Finned Copper tube +low noise air fans | |||||||||||||||
Air volume(m³/h) | 5000 | 10000 | 15000 | 20000 | 25000 | 30000 | 40000 | ||||||||||
Water pump | Power(kw) | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 | 2.2 | 3 | |||||||||
Lift(m ) | 20 | 20 | 20 | 20 | 20 | 20 | 20 | ||||||||||
Dimension | L(mm) | 1220 | 1610 | 1870 | 2120 | 2100 | 2700 | 2470 | |||||||||
W(mm) | 600 | 820 | 900 | 1000 | 1000 | 1120 | 1400 | ||||||||||
H(mm) | 1200 | 1500 | 1600 | 1720 | 1720 | 1800 | 2090 | ||||||||||
Weight | KG | 200 | 450 | 750 | 850 | 900 | 1150 | 1350 | |||||||||

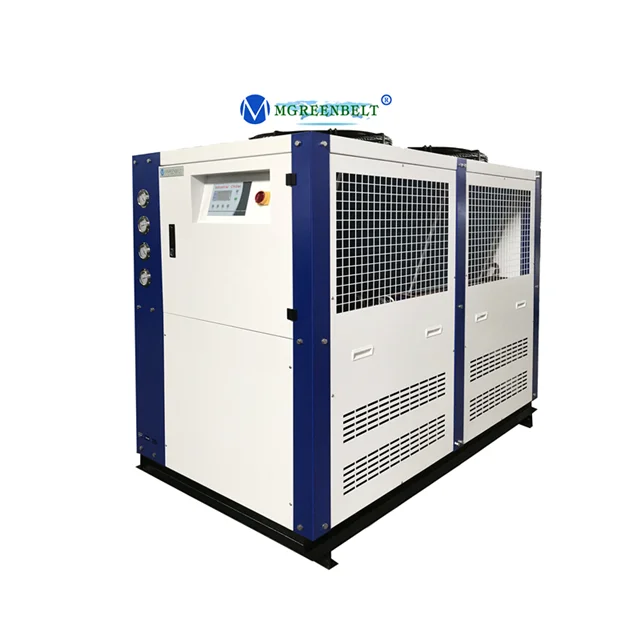

Product Details
Controller
Adopt micro-computer controller,
easy operation.
easy operation.
Electric Parts
French Schneider brand electric accessories.
Compressors
Compressor brand: Sanyo, Copeland,
low noise and super cooling.
low noise and super cooling.
Condenser&Air Fan
V type aluminum finned copper tube
condenser,separate circuit, to have better heat exchange effect.
condenser,separate circuit, to have better heat exchange effect.
Evaporator
Shell and tube evaporators with large heat exchange capacity and stable heat exchange effect.
Water Pump
CNP brand Centrifugal circulation cold water pump, made of SUS304 stainless steel.
Components | Brand |
Compressor | PANASONIC/COPELAND/DANFOSS |
Evaporator | MGREENBELT |
Condenser | MGREENBELT |
Thermal expansion valve | EMERSON/DANFOSS |
Temperature Controller | PUNP/SEIMENS |
Drier Filter | DANFOSS/EMERSON |
Electric Components | SCHNEIDER/LS |
Product Packaging

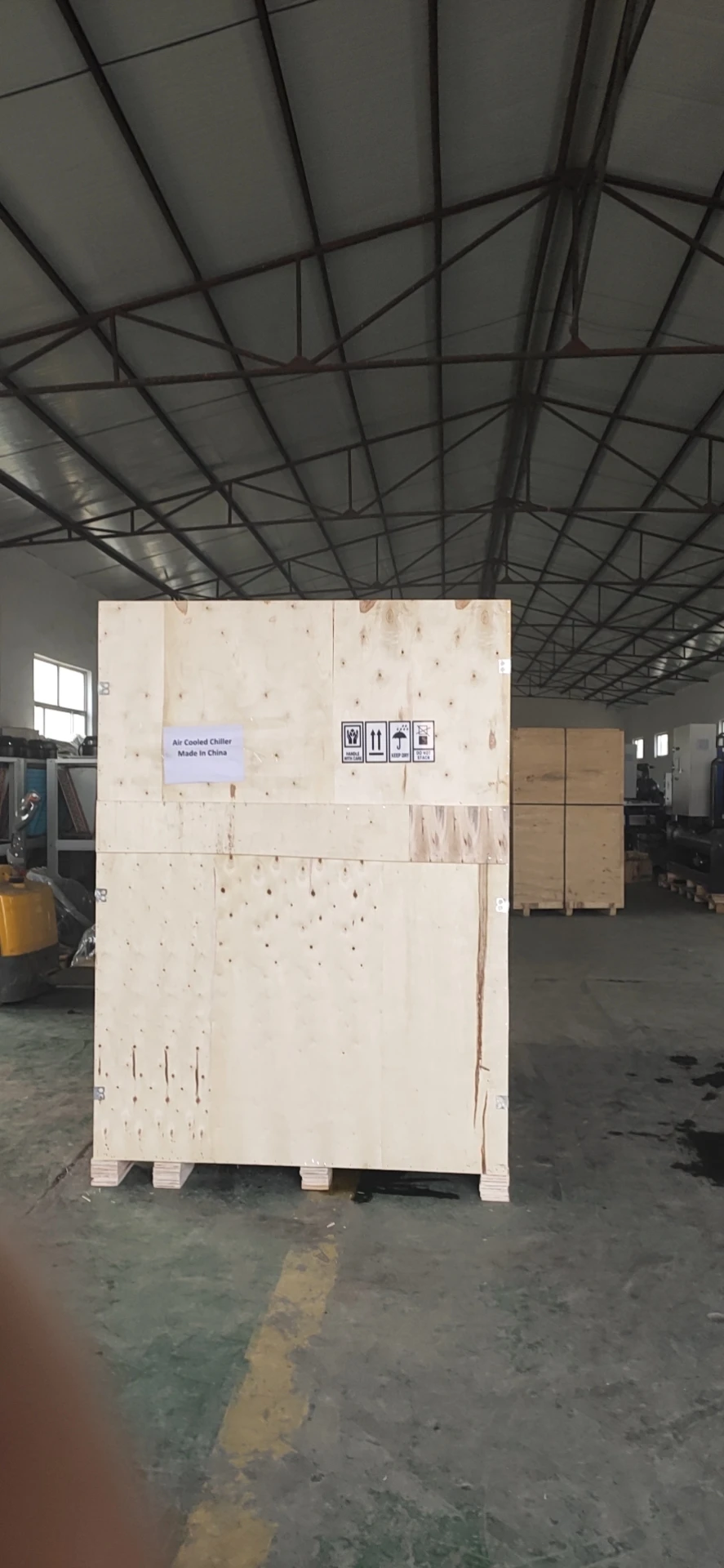

PACKAGE:
LCL SHIPMENT: Use plastic foam protect ,then ply wooden case package.
FCL: If the equipment enough packagewith 20"or 40" container ,will use plastic foam package and wooden pallet.
SHIPPING TERMS:
1. We can arrange the shipping by sea, by air ,by truck and train based on your requirements, but kindly remind the refrigerant gas can't allowed by air ,so you must filling them whenmachine arrive if you choose the air ship.
2. FOB,CNF,CIF,DDU can be accepted.
3. Any port of CHINA we can sent ,if you have other goods will packaged in one container ,we would like to arrange that for you.
LCL SHIPMENT: Use plastic foam protect ,then ply wooden case package.
FCL: If the equipment enough packagewith 20"or 40" container ,will use plastic foam package and wooden pallet.
SHIPPING TERMS:
1. We can arrange the shipping by sea, by air ,by truck and train based on your requirements, but kindly remind the refrigerant gas can't allowed by air ,so you must filling them whenmachine arrive if you choose the air ship.
2. FOB,CNF,CIF,DDU can be accepted.
3. Any port of CHINA we can sent ,if you have other goods will packaged in one container ,we would like to arrange that for you.

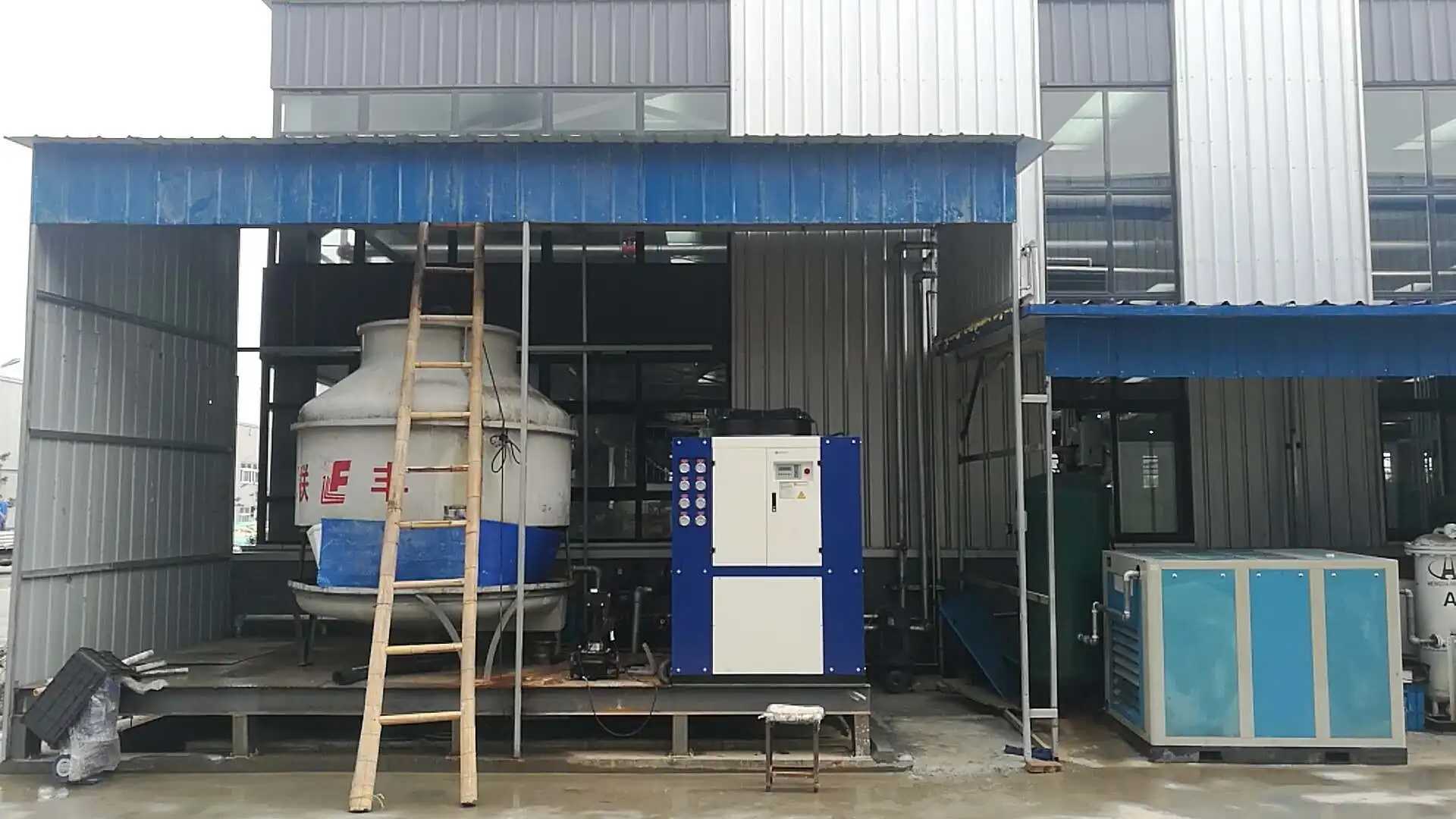

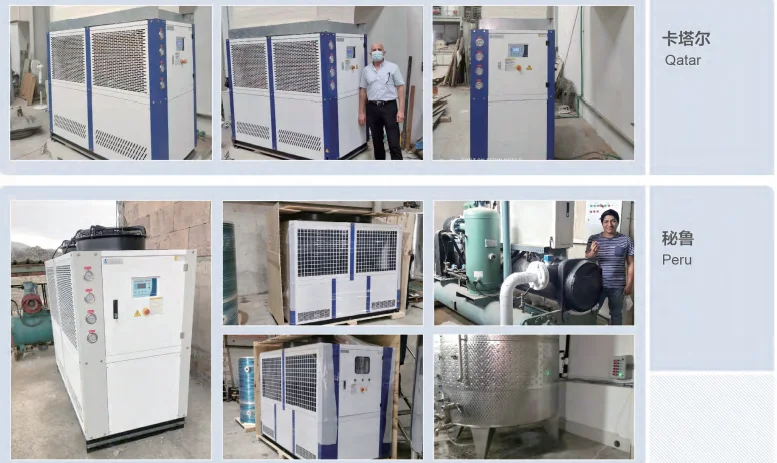

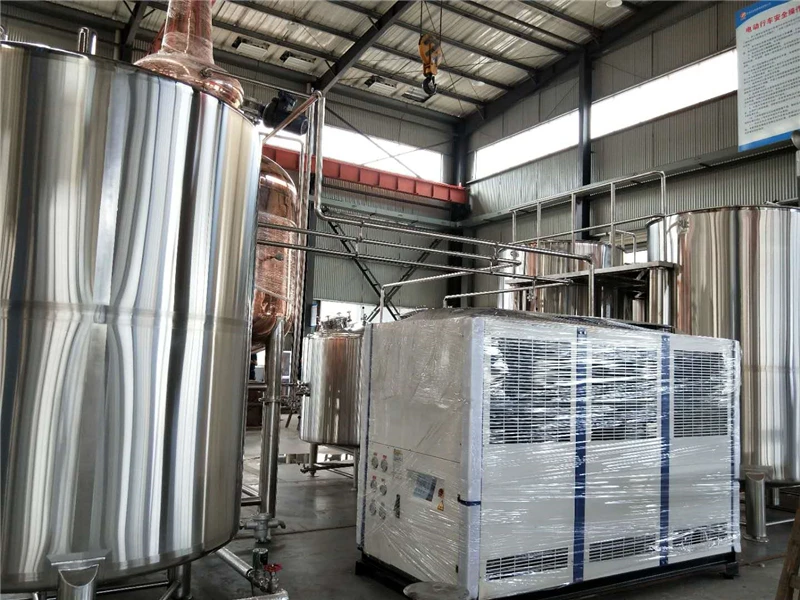

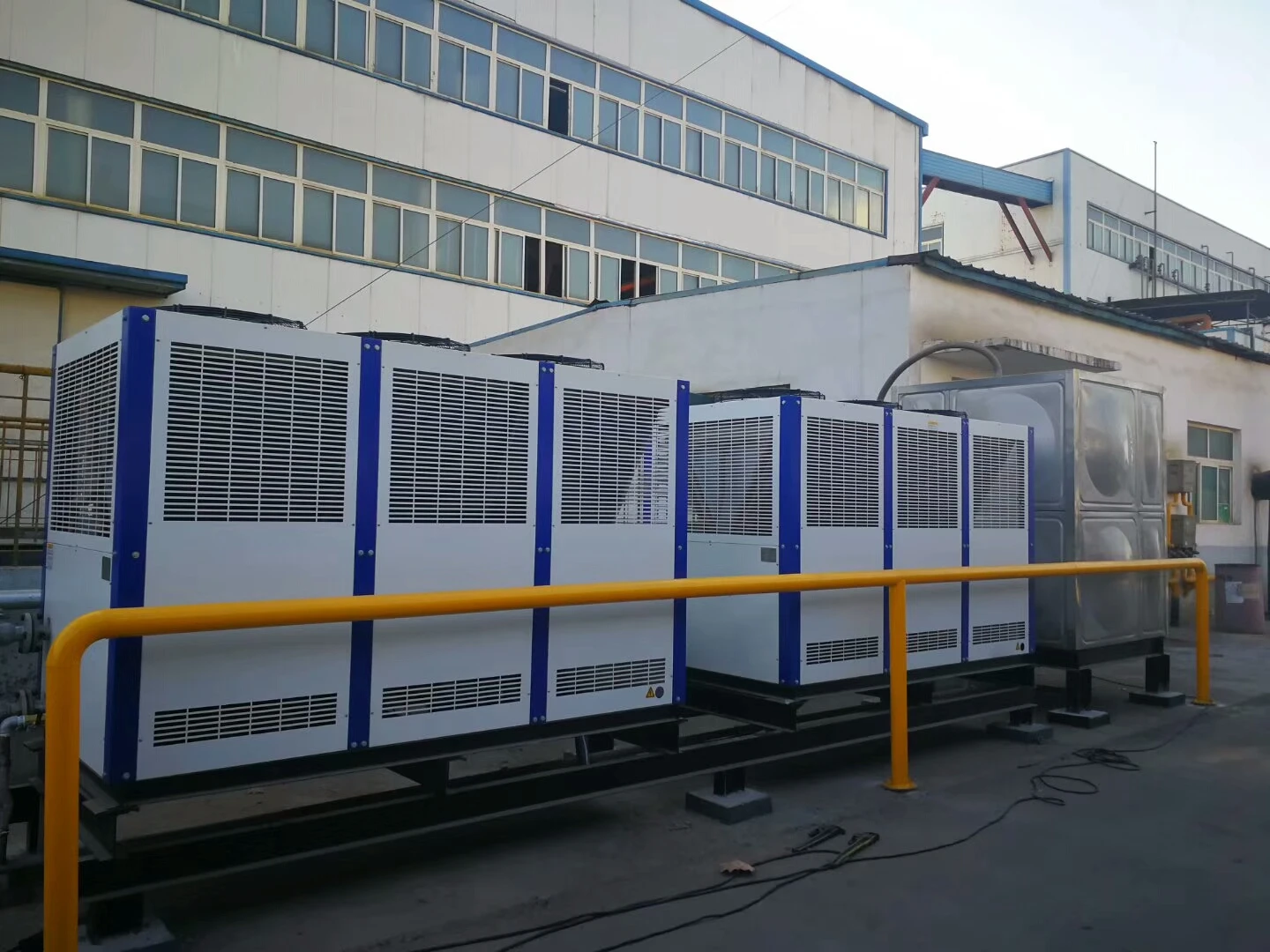

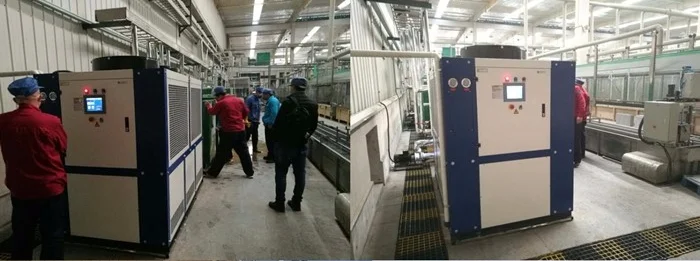

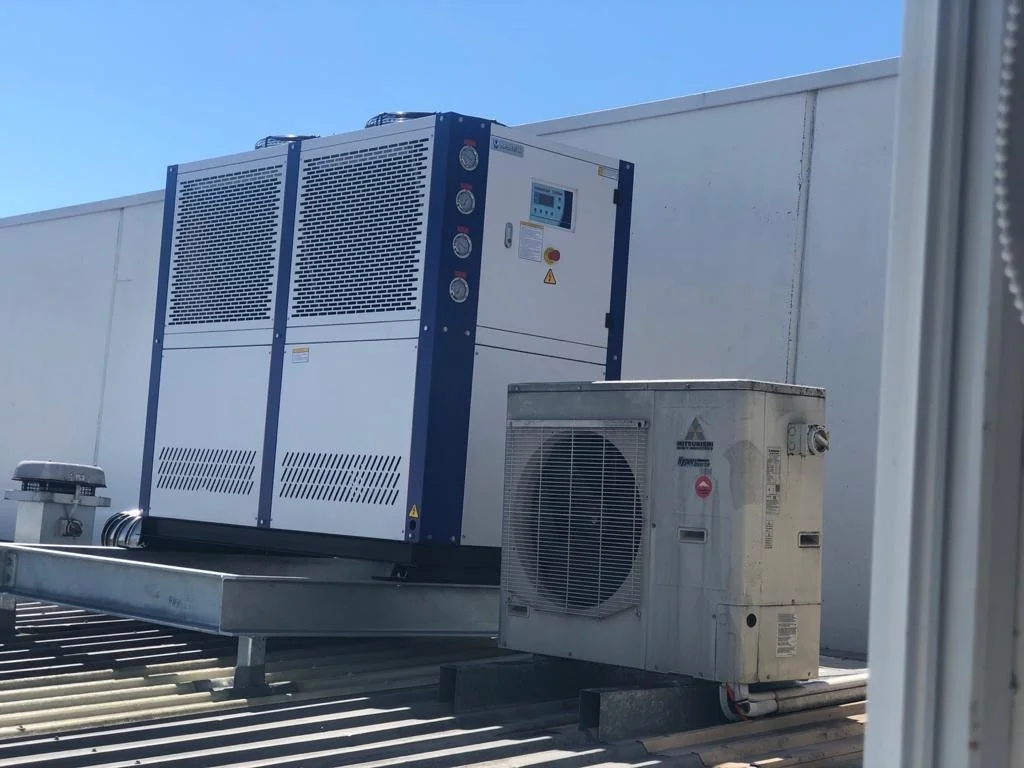

Customer site

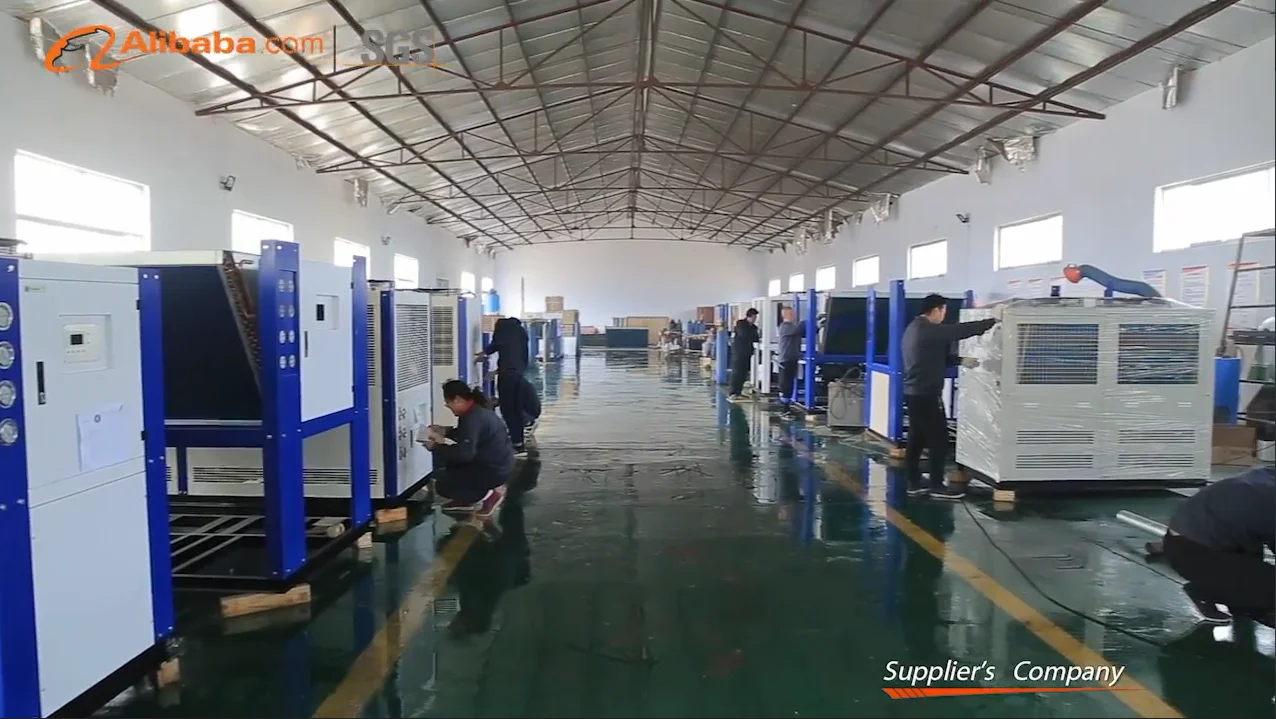

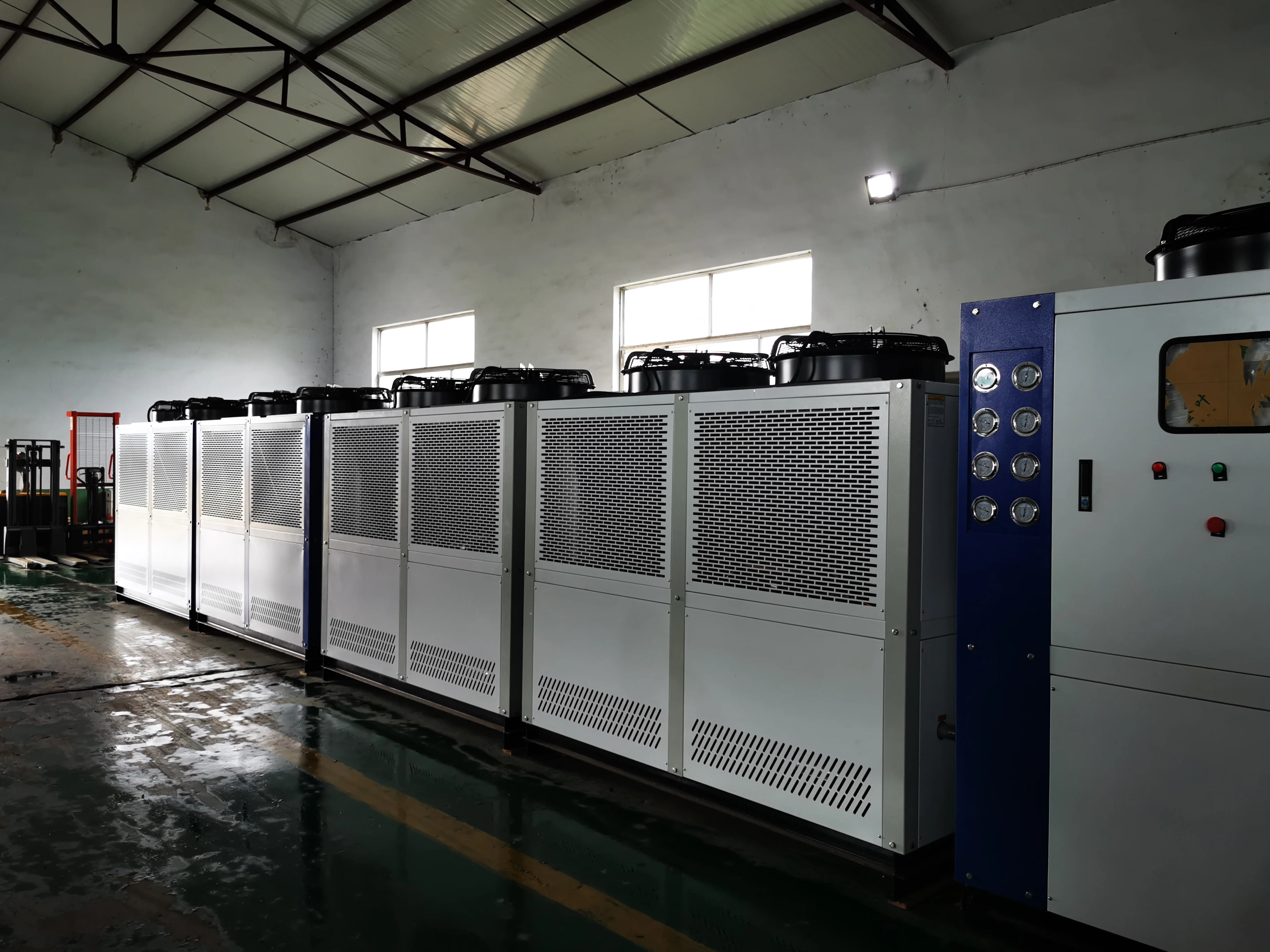

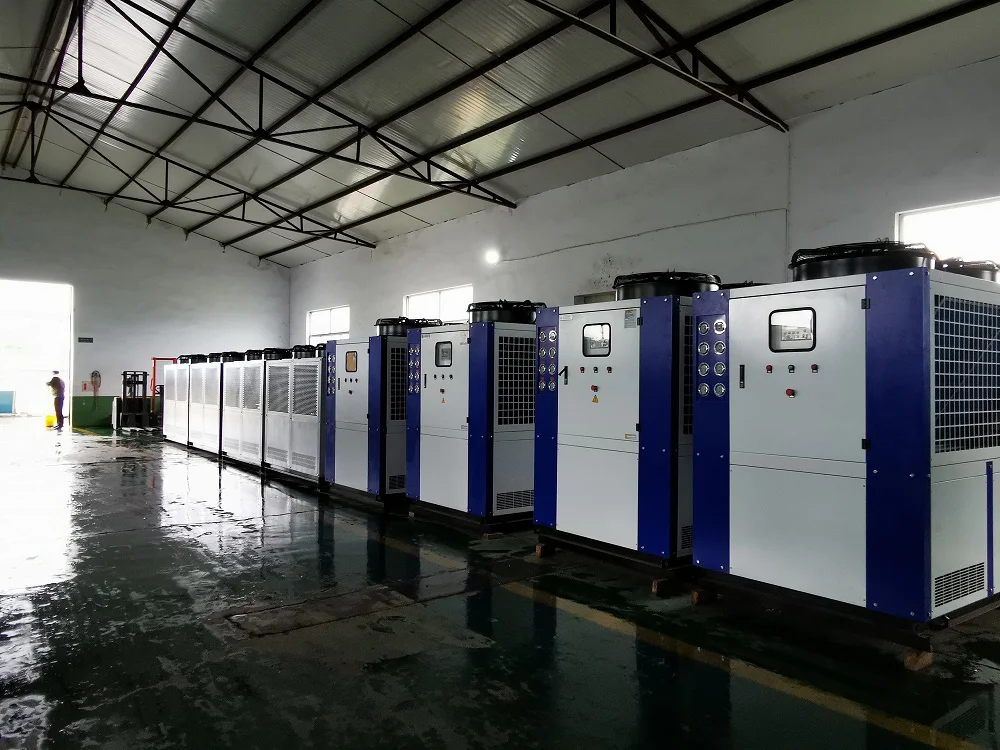

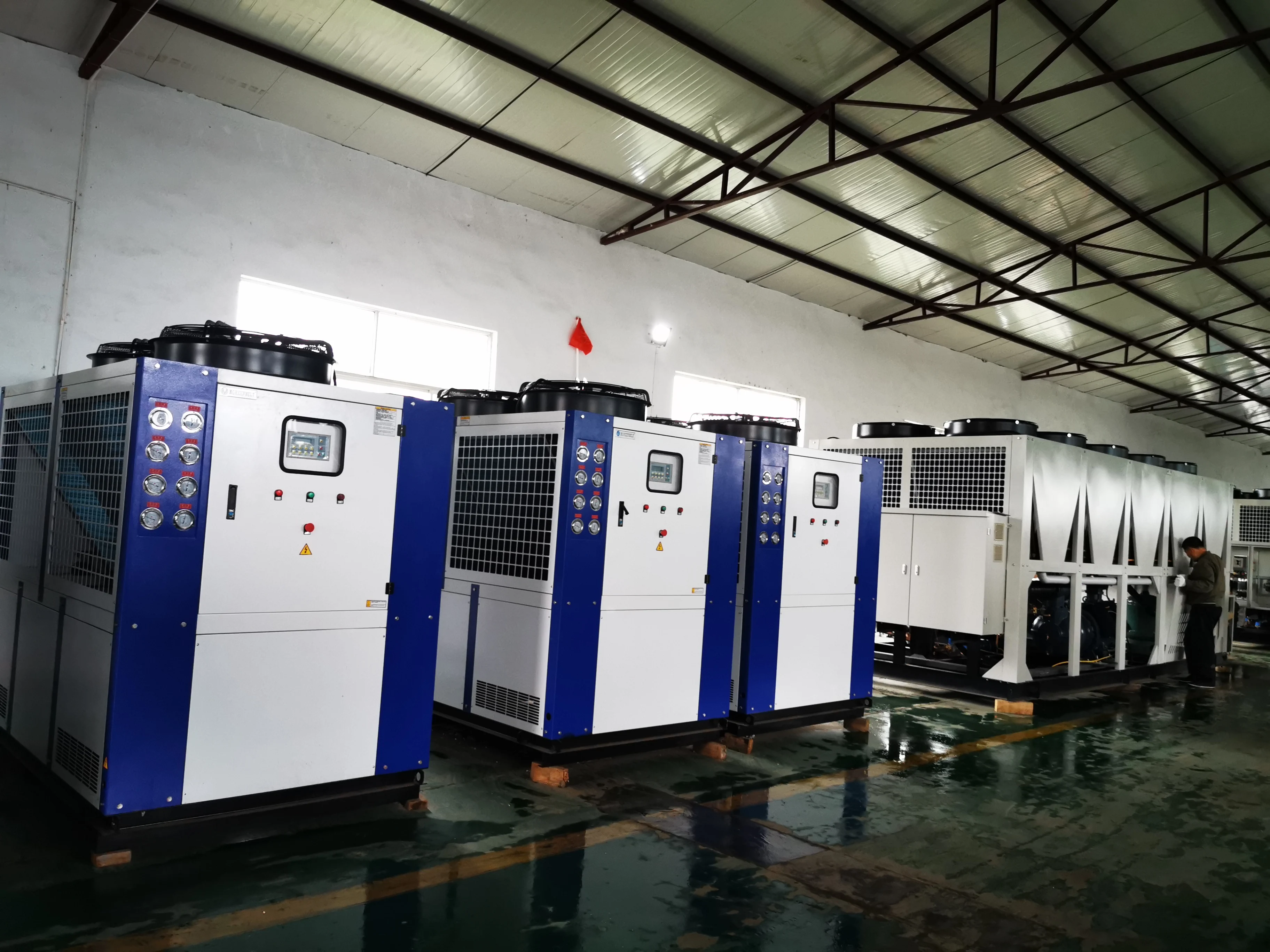

Factory production
Company Information
MGREENBELT
1. MGREENBLET have been a professional refrigeration solution provider and chiller manufacturer for 17 years. It is one of the most experienced chillers manufacturer in China . After years of operation, our products have been distributed in various industries all over the world. We can provide the most reliable and cost-effective solution according to the needs of customers, and provide high-quality chillers.
2.Our partners are all world famous brands. COPELAND, DANFOSS, EMERSON, SCHNEIDER all provide their best accessories for our chillers, because we always pursue product quality and user experience.
FULL-SERVICES:
A. 14 Months warranty and life time technical maintenance offered.
B. All extra parts for the machine can be purchased with agent price from Mgreenbelt
C. 24 Hours working phone call/Email/Wechat/Whatsapp/Trade manager online to support.
D. Professional technical team and sales person give you regarding troubleshooting procedures via Internet and Phone any time when needed.
E. Free and Professional Training at our Factory under the relaxed condition.
B. All extra parts for the machine can be purchased with agent price from Mgreenbelt
C. 24 Hours working phone call/Email/Wechat/Whatsapp/Trade manager online to support.
D. Professional technical team and sales person give you regarding troubleshooting procedures via Internet and Phone any time when needed.
E. Free and Professional Training at our Factory under the relaxed condition.
FAQ
Q: Are you trading company or manufacturer ?
A: Our company is an integrated set of industry and trade company
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 50% T/T in advance ,balance before shippment.
A variety of models no matter how you choose,Pls kindly offer the following information:
1. Cooling capacity : _Kw/Ton?
2. Inlet /outlet water temperature: _deg C~ _deg C
3. Power supply/Voltage/Frquency : _Phase/ V/ Hz?
4. Refrigerant: R407C/R410A/R134A /R404A/R22/R507 and etc.
5. Chiller water flow rate:_ m³/h
A: Our company is an integrated set of industry and trade company
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 50% T/T in advance ,balance before shippment.
A variety of models no matter how you choose,Pls kindly offer the following information:
1. Cooling capacity : _Kw/Ton?
2. Inlet /outlet water temperature: _deg C~ _deg C
3. Power supply/Voltage/Frquency : _Phase/ V/ Hz?
4. Refrigerant: R407C/R410A/R134A /R404A/R22/R507 and etc.
5. Chiller water flow rate:_ m³/h
Contact me if you need !
Amanda
Amanda
Email:amanda@mgreenbelt.com
Wechat/Whatsapp/Cell:0086-18615589083
Jinan Mgreenbelt Machinery Co.,ltd.
Wechat/Whatsapp/Cell:0086-18615589083
Jinan Mgreenbelt Machinery Co.,ltd.
