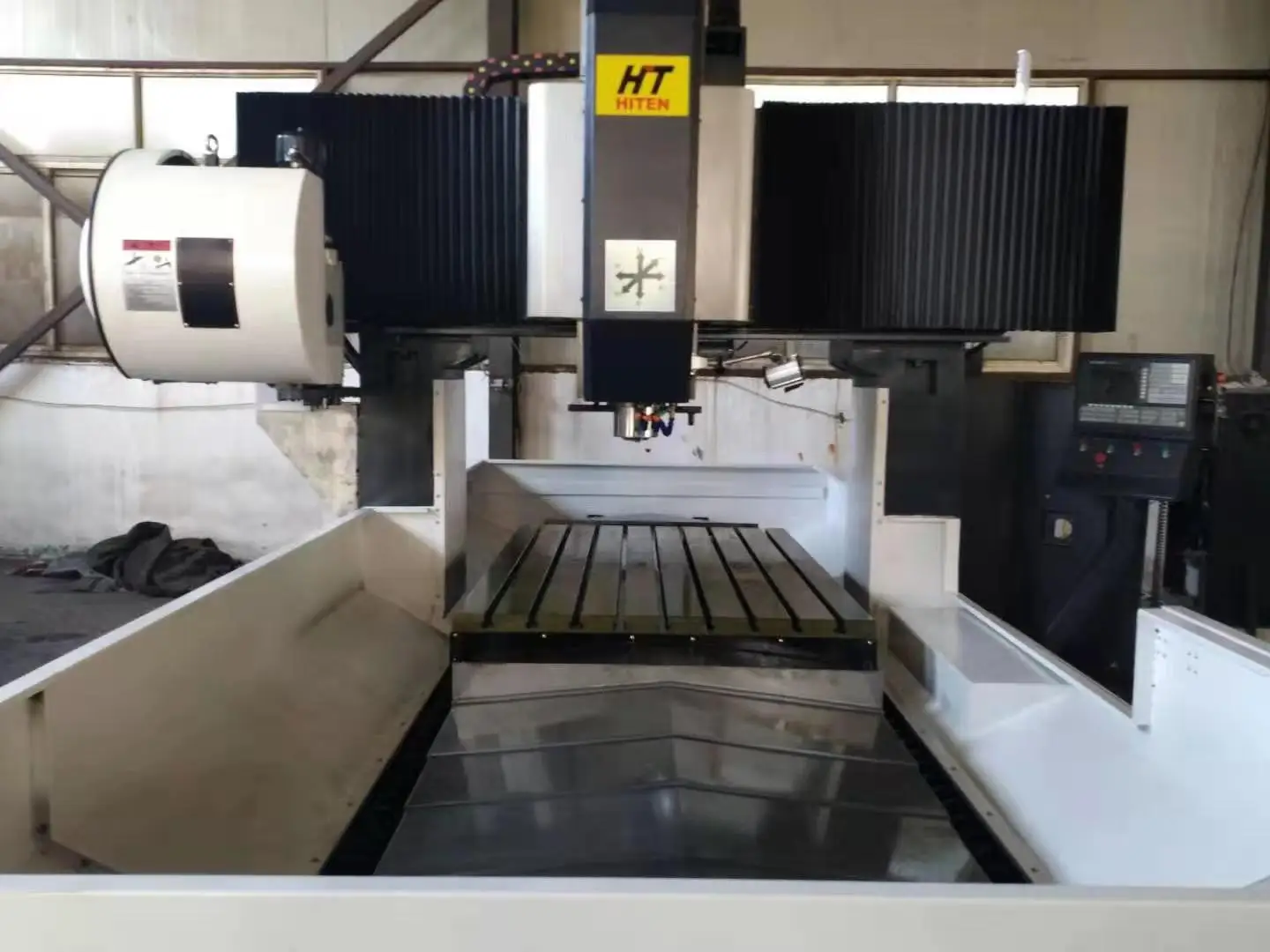

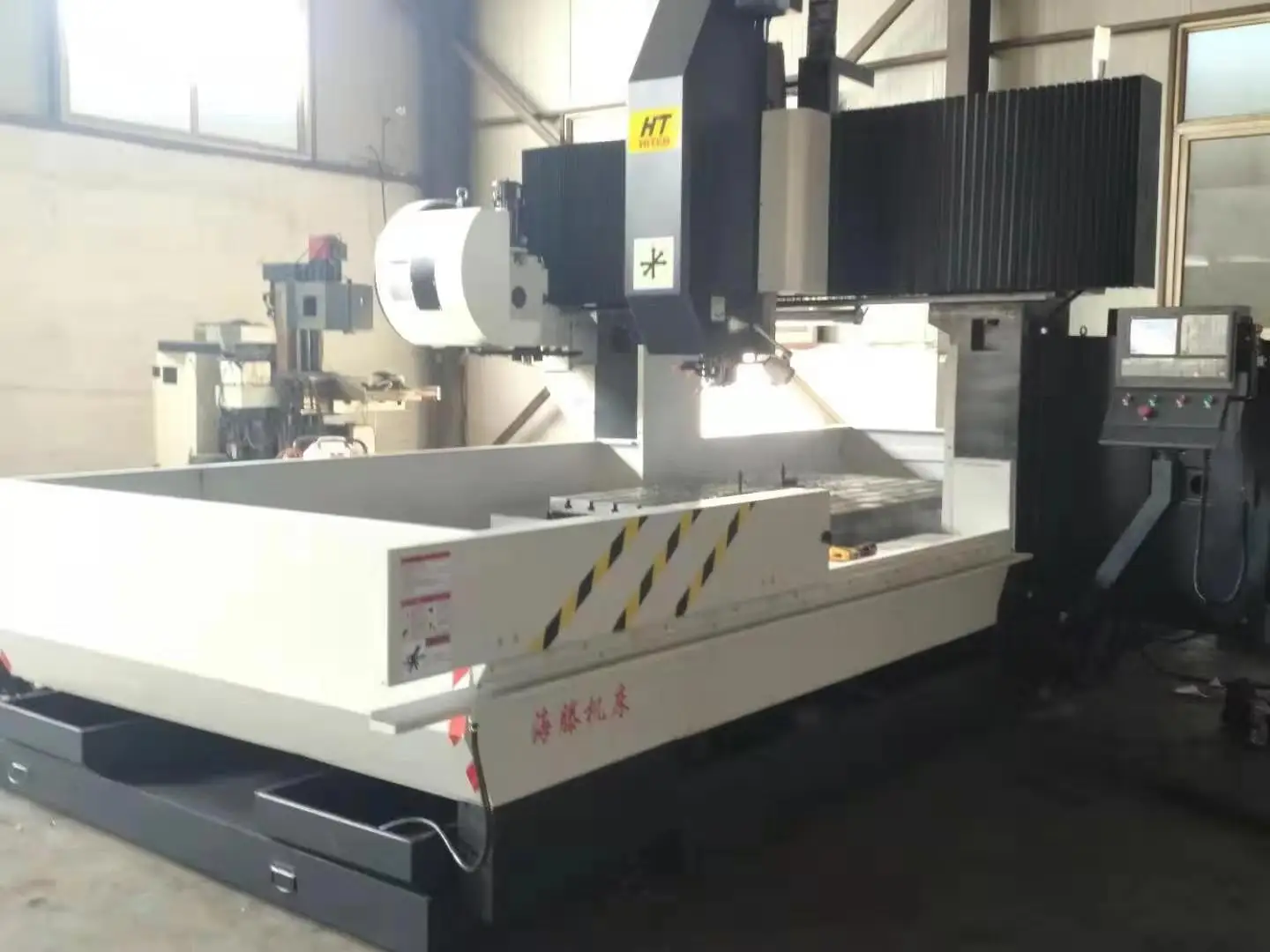

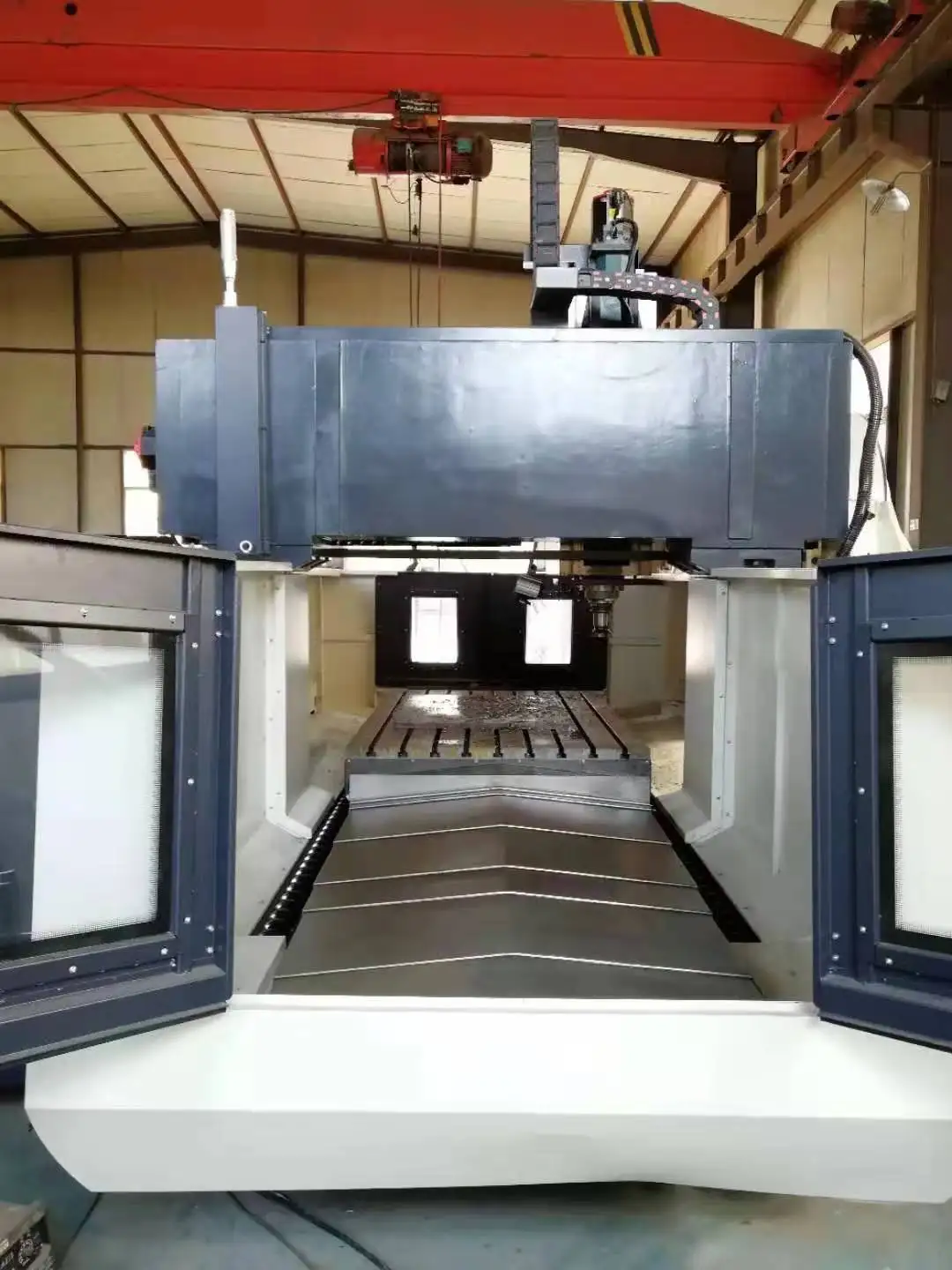

TBX 2216 gantry machining center Gantry CNC milling manufacturer
- Category: >>>
- Supplier: Tengzhou Believe Machinery Co. Ltd.
Share on (1600903999977):
Product Overview
Description
Product Description
The casting adopts high-quality gray iron HT300, resin Sand casting process, strong and tough ribs, wide column, and honeycomb base structure. After two annealing treatments and one vibration aging treatment, artificial aging treatment is used to remove stress and ensure that the casting does not deform.
Specification
Model | TBX-2216 |
Table size | 2000X1400 mm |
Distance between two column | 1600 mm |
Max. load of table | 2200 kgs |
T-slot (qty* slot width *spacing) | 11-22-125 mm |
X axis travel | 2200 mm |
Y axis travel | 1600 mm |
Z axis travel | 600 mm |
spindle nose to table surface | 150-750 mm |
Spindle taper | BT50 |
Outer dia. of spindle | φ190 mm |
Spindle speed | 6000 rpm |
Spindle motor | 11 kw |
Cutting feed speed | 1-4000 mm/min |
X axis rapid feed speed | 12 m/min |
Y axis rapid feed speed | 12 m/min |
Z axis rapid feed speed | 10 m/min |
Position accuracy | 0.005/300 mm |
Repeatability accuracy | 0.003/1000 mm |
Dimension (L*W*H) | 6000×3400×4000 mm |
N.W. | 14.5 t |
MACHINE FEATURES
High strength bonded/ coated sand casting |
Taiwan spindle，synchronous wheel and belt |
Taiwan ball screw and locking nut |
Taiwan pressure cylinder |
Japanese NSK bearing |
Germany R+W coupling |
Automatic integrated lubrication system including lubricating pump |
Coolant system including coolant pump, water cabinet |
24T auto tools change |

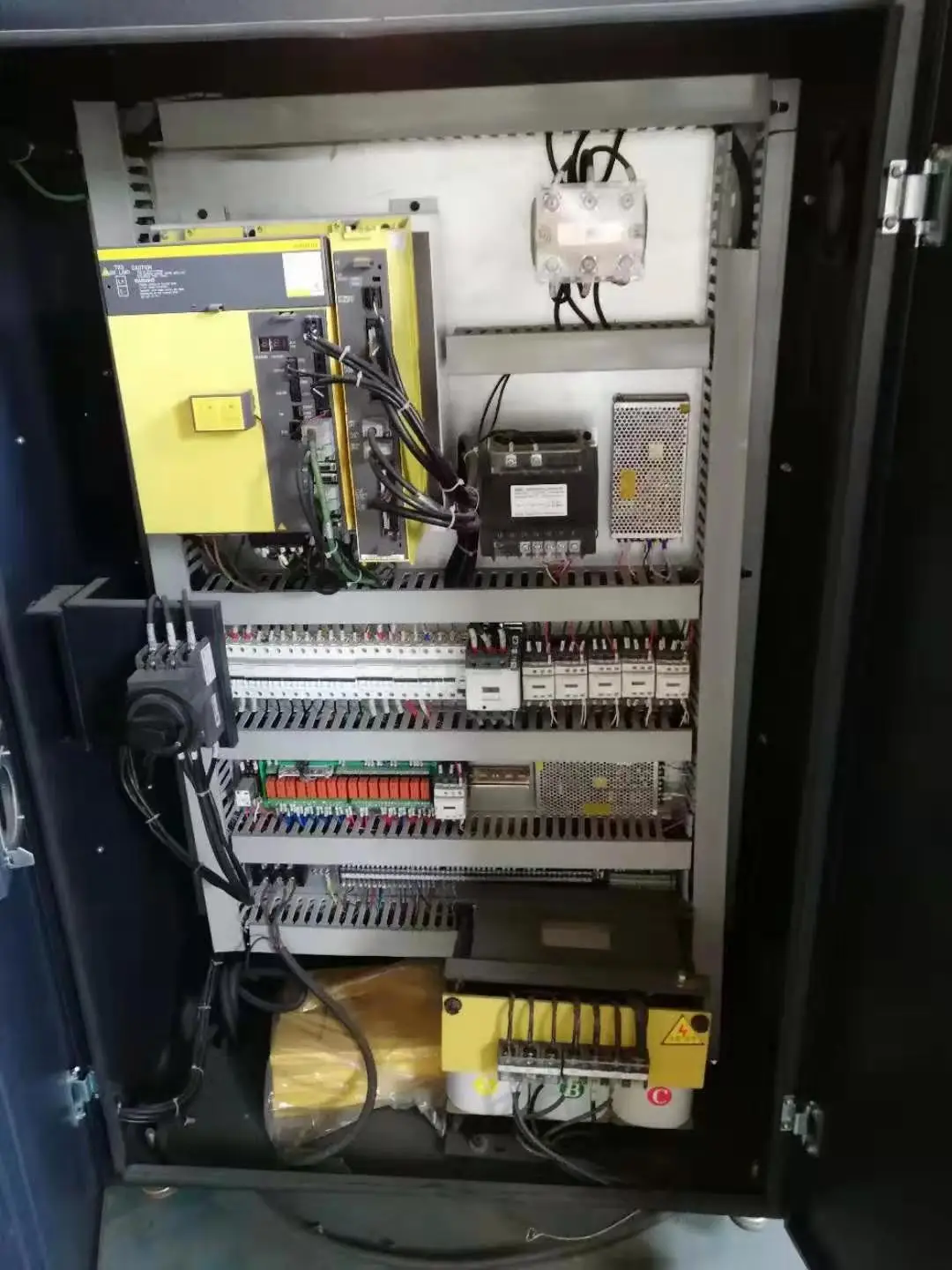

FANUC OI MF system |
Taiwan linear guide ways for X and Y axes |
Water through the BT50 spindle for tools |
Chip conveyor |
Scientific inspection equipment
rounds of Renishao laser inspections,
as
well as ball and rod circular testing and
dynamic balance vibration testing,
to ensure the quality of the machine tool.
Taiwan tool magazine
The machine tool is equipped with a Taiwanese brand disc type robotic arm tool library, with fast tool changing speed and high processing efficiency.
Japanese bearings
Using Japanese NKS, p4 precision bearings,German R+W coupling,Adopting a Taiwan spindle, it is suitable for high rigidity, fast speed, and high precision machining needs
Company Profile
Tengzhou Believe Machinery co., LTD., to provide you with one-stop shopping service, there are many different machines, machine tools, machinery accessories.We have long experience in export machine, we will provide you with stable quality products and excellent service.
We have a good relationship with a few of factories, which have rich experience in this industry, so we can assure you of our products.In addition, we have a good after-sales service.
We have our own engineers, more than years of the worked experience and some are trained.Our training engineer can not only help customers on behalf of the company to check the goods before shipping and tracking of the production process each link.
We guarantee that all products can be used free of defects in a year's purchase. The date During our warranty, all customers can enjoy free maintenance services change any defective parts, this guarantee does not apply to these defects, directly or indirectly due to improper use and maintenance or maintenance.
We have a good relationship with a few of factories, which have rich experience in this industry, so we can assure you of our products.In addition, we have a good after-sales service.
We have our own engineers, more than years of the worked experience and some are trained.Our training engineer can not only help customers on behalf of the company to check the goods before shipping and tracking of the production process each link.
We guarantee that all products can be used free of defects in a year's purchase. The date During our warranty, all customers can enjoy free maintenance services change any defective parts, this guarantee does not apply to these defects, directly or indirectly due to improper use and maintenance or maintenance.
