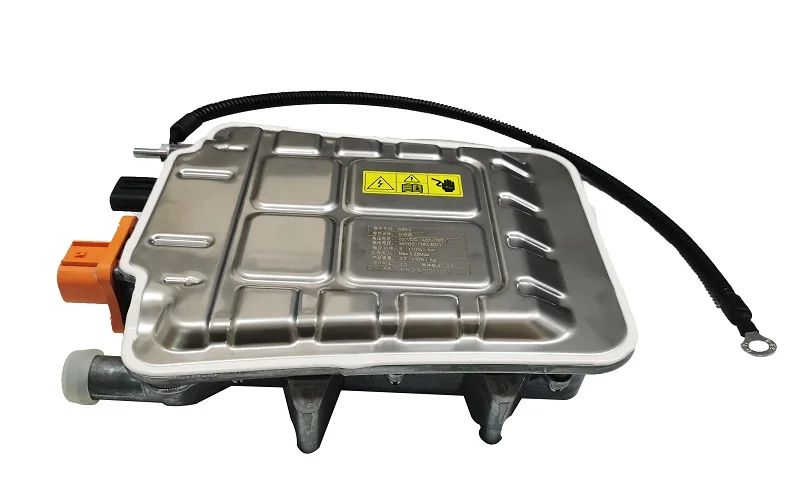

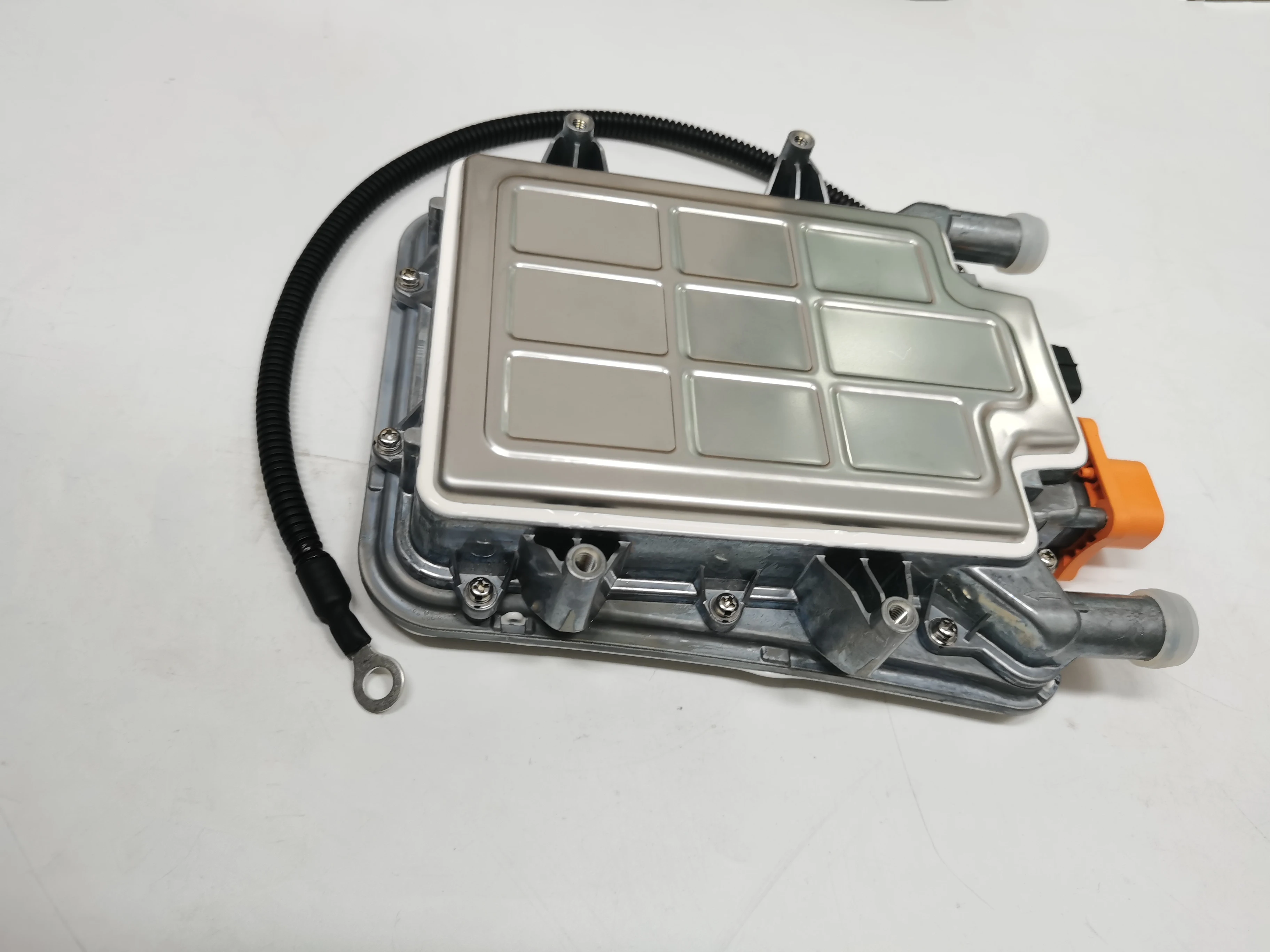

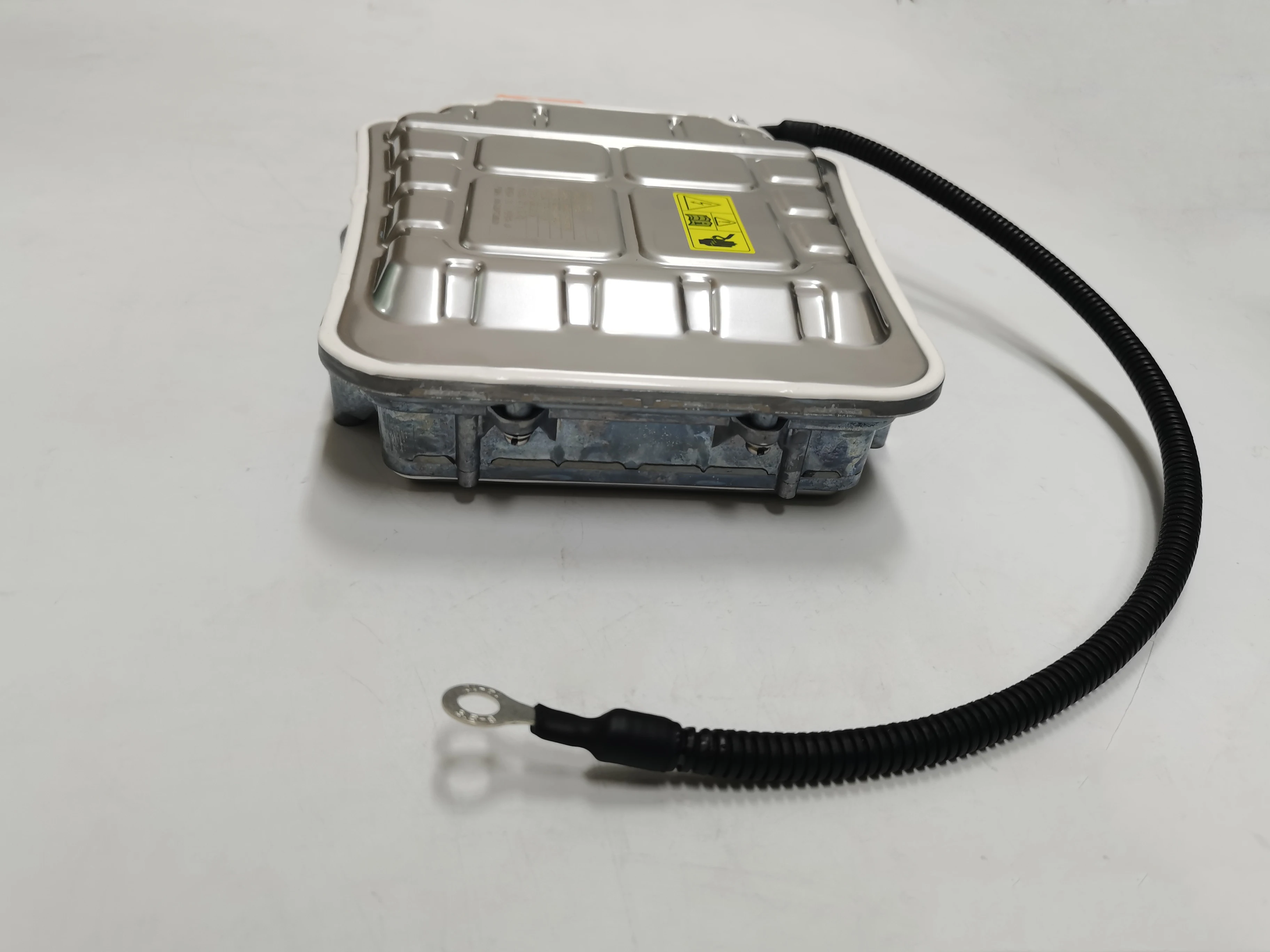

7kw 350v/600v Automotive High Voltage Coolant heater For Electric Cars similar to Borg Warner High Voltage Coolant Heater
- Category: >>>
- Supplier: Beijing Golden Nanfeng International Trading Co. Ltd.
Share on (1600904174481):
Product Overview
Description
Product Description

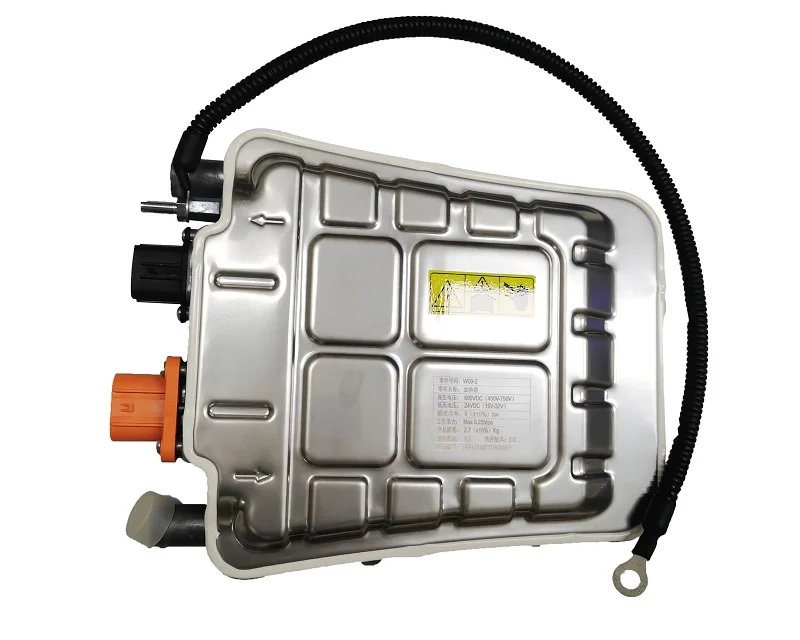

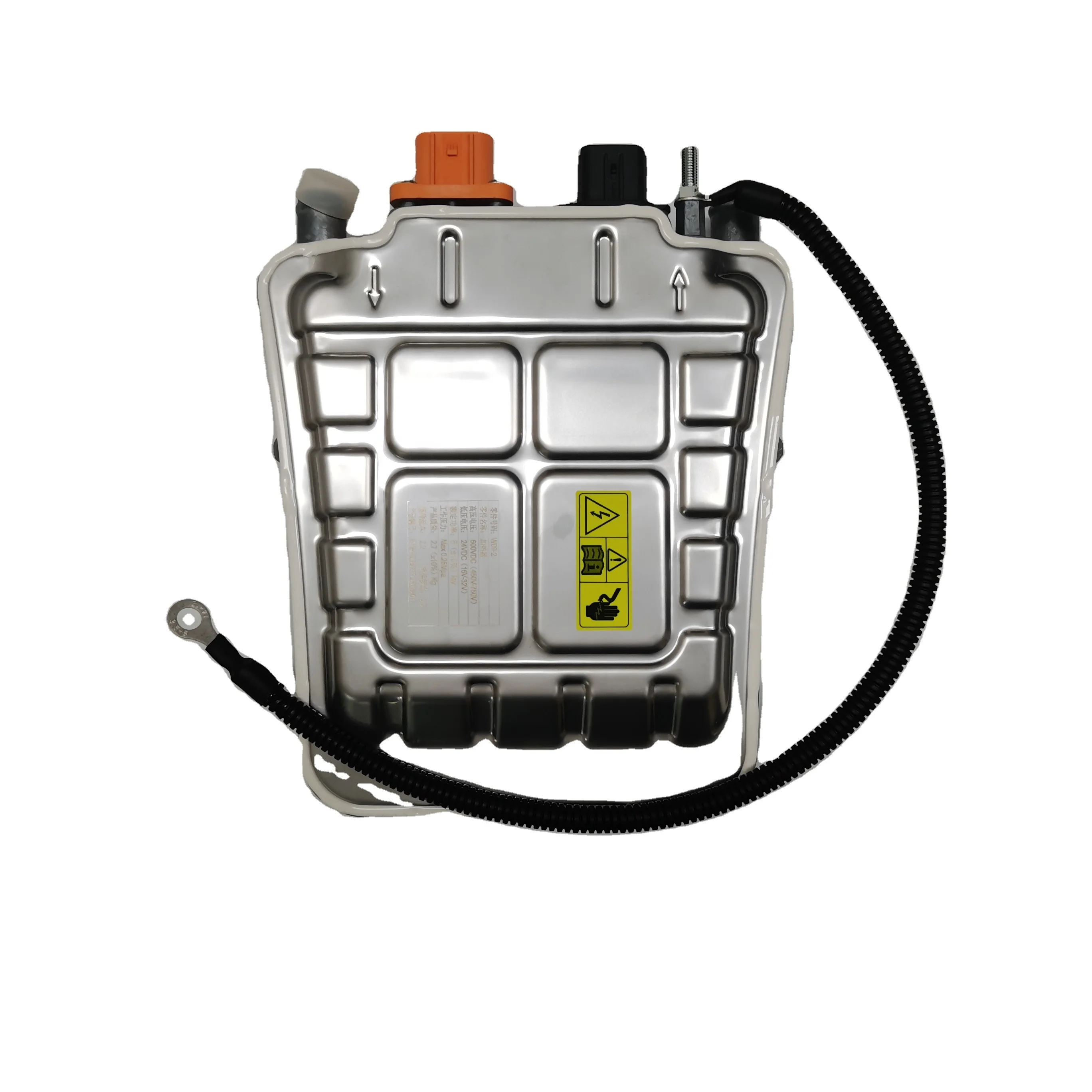

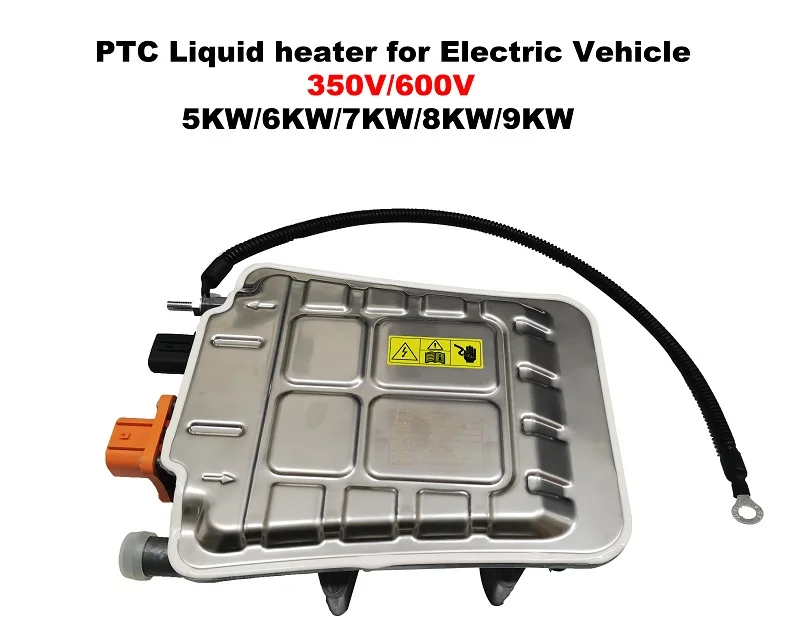

7kw 350v/600v High Voltage Coolant heater For Electric Cars similar to Borg Warner High Voltage Coolant Heater
--W09
7kw/8kw high voltage coolant heater similar to Borg Warner High Voltage Coolant Heater
The future of mobility is electric. Renewable energy sources allow for carbon-reduced mobility. Anew generation of vehicles is emerging--E-cars and hybrid.
Increased electric vehicle rang results in less engine heat and thus to higher heating requirements.
This high voltage coolant electric heater is suitable for electric / hybrid / fuel cell vehicles and is mainly used as the main heat source for temperature regulation in the vehicle. The PTC electric heater is applicable to both vehicle driving mode and parking mode. In the heating process, electric energy is effectively converted into heat energy by PTC components. Therefore, this product has faster heating effect than internal combustion engine. At the same time, it can also be used for battery temperature regulation (heating to working temperature) and fuel cell starting load.
It is OEM customized product, the rated voltage can be 600V or 350v or others according to your requirements, and the power can be 5KW~8KW, which can be adapted to various pure electric or hybrid bus models. The heating power is strong, providing sufficient and sufficient heat, providing a comfortable driving environment for drivers and passengers, and can also be used as a heat source for battery heating.
Specification
item | value |
Medium temperature | -40℃~90℃ |
Medium type | Water: ethylene glycol /50：50 |

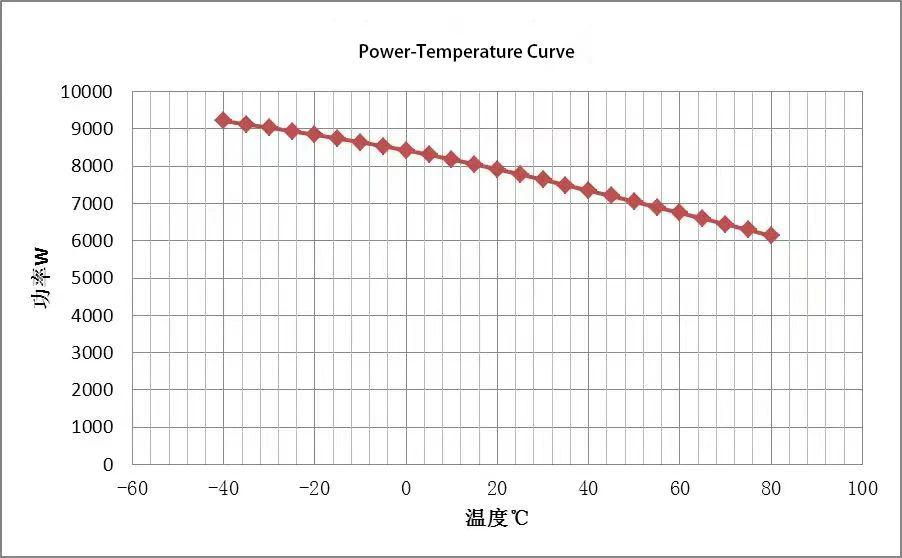

Power/kw | 6kw/7kw/8kw/9kw @10L/min，T_in=60℃ |
Rated Voltage(VDC) | 350v or 600v |
Working Voltage | 250~450v or 450~750v |
Brust pressure | 5bar |
Insulation resistance MΩ | ≥50 @ DC1000V |
Communication protocol | CAN |

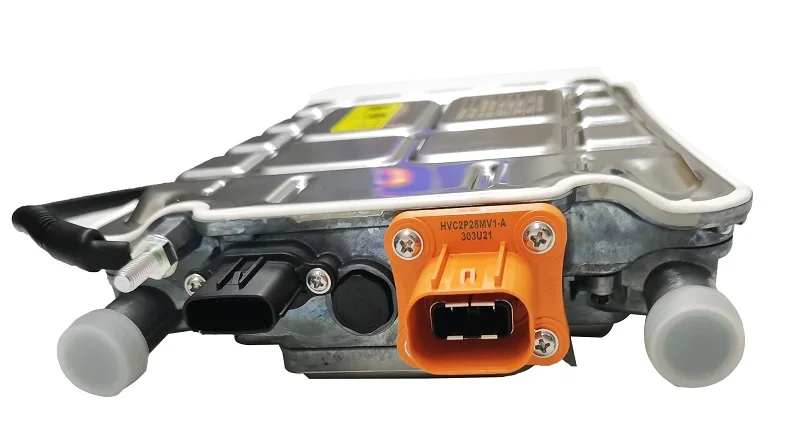

Connector IP ratng（nigh and low votage） | IP67 |
Low voltage operating voltage/V（DC） | 9~16v or 16~32v |
Low voltage quiescent current | < 0.1mA |

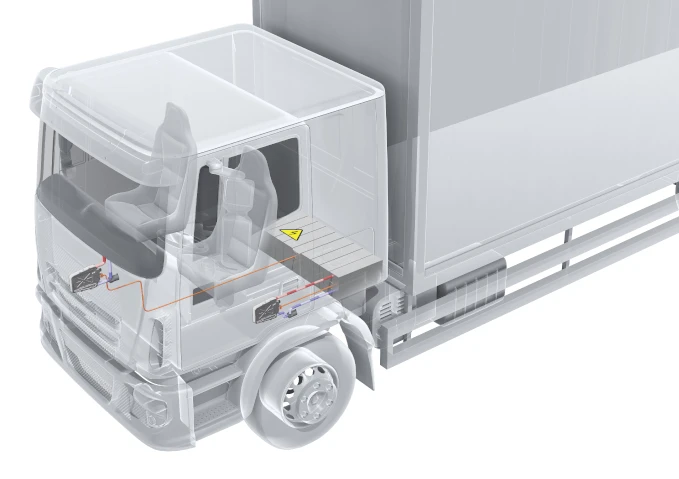

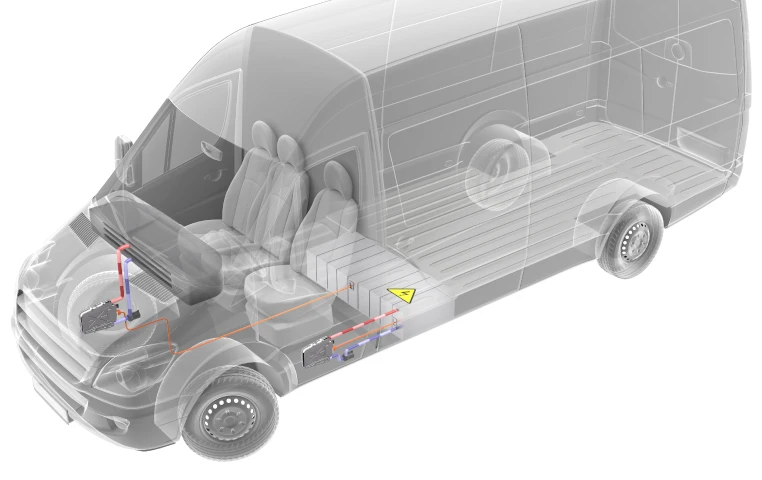

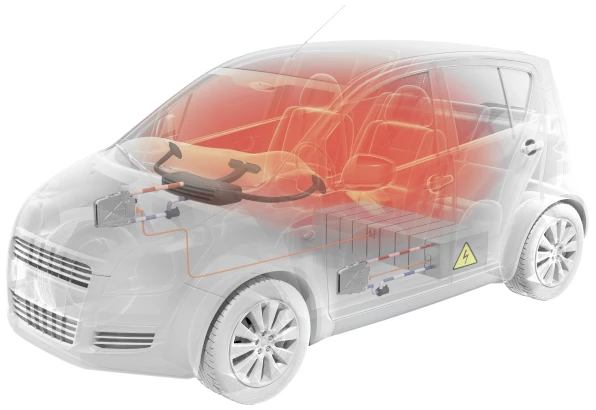

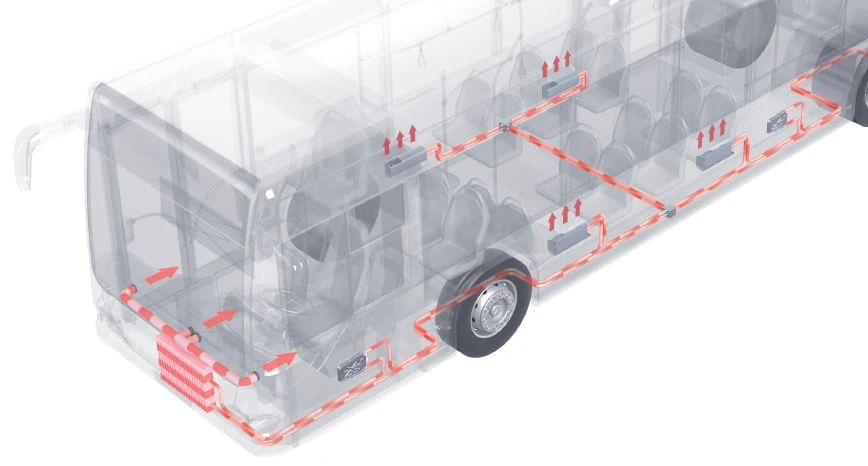

Application
Advantages
Users of electric vehicles don't want to go without the comfort of heating that they are used to in combustion engine vehicles. That's why a suitable heating system is just as important as the battery conditioning, which helps to extend service life, reduce charging time and increase range.
This is where the third generation of NF high voltage PTC heater comes in, providing the benefits of battery conditioning and heating comfort for special series from body manufacturers and OEMs.
Packing & Delivery

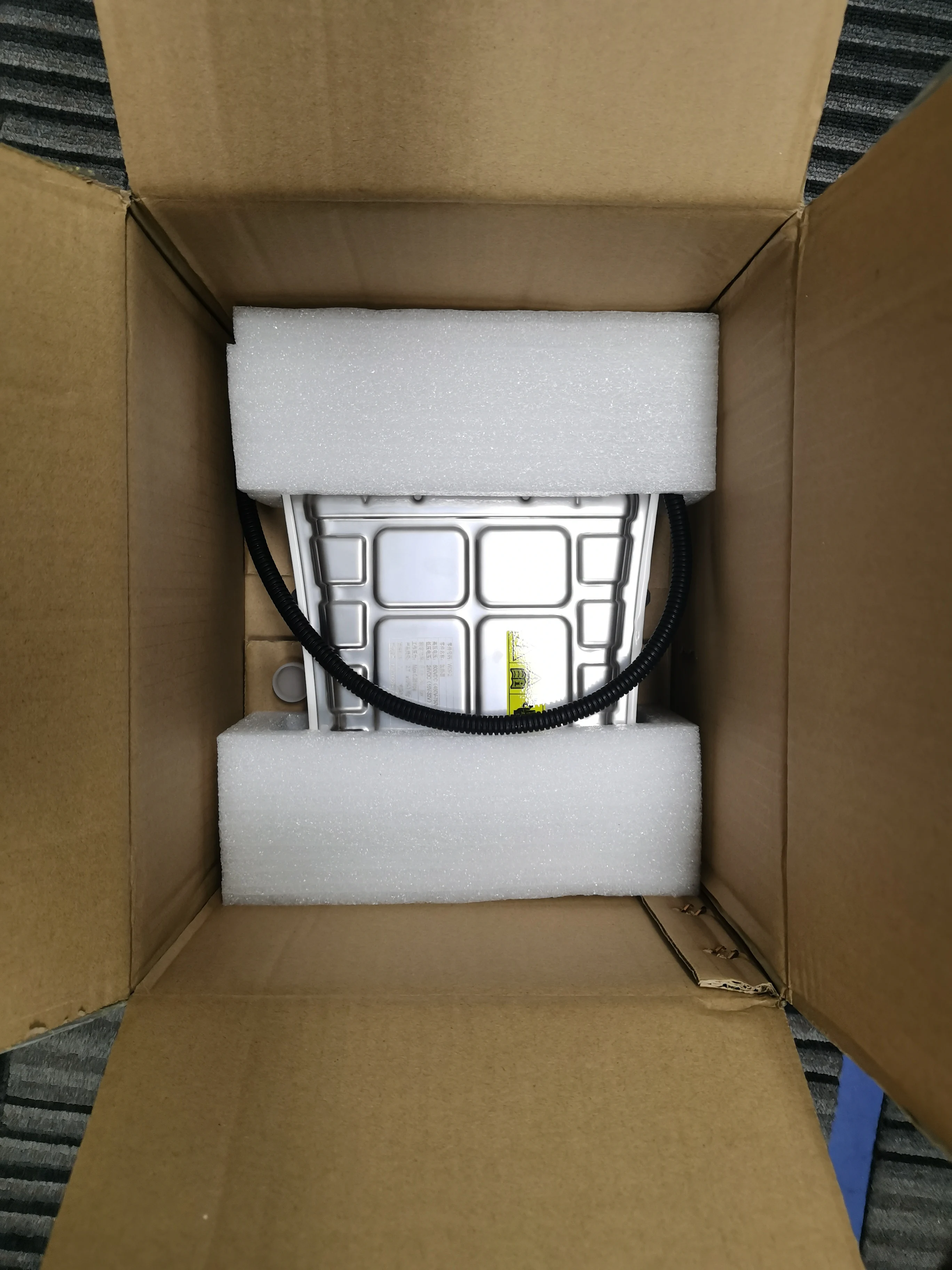

The PTlC electrical heater is packed by vacuum, then the whole is packed by carton.
Company Profile
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Exhibition
