Product Overview
Description
Emean company owned by Fujian Epos Electric Machinery Co., Ltd and Fuzhou Emean Electric Machinery Co.,Ltd, that is a high-tech enterprise integrating R&D, production and sales, and has always promoted high-quality power products to the international market.
The products are widely sold more than 102countries and regions such as Southeast Asia South America Middle east Africa and Europe.
Product Paramenters
We have power from 5-140kw, any interesting please contact with us to quote the best price for you | ||||||||
Model No | EM-B-5300-L1 | EM-B-5300-L2 | EM-B-5300-L3 | EM-B-5300-L4 | ||||
Voltage | 48V | 48V | 48V | 48V | ||||
Capacity | 100ah | 200ah | 300ah | 400ah | ||||
Energy | 5.12kwh | 10.24kwh | 15.36kwh | 20.48kwh | ||||
Operation voltage | 44.8V-57.6V | 44.8V-57.6V | 44.8V-57.6V | 44.8V-57.6V | ||||
Max.charging voltage | 58.4 Vdc | 58.4 Vdc | 58.4 Vdc | 58.4 Vdc | ||||
Max.charging and discharging current | 100ah | 200ah | 300ah | 400ah | ||||
Max Power | 5120W | 10240W | 15360W | 20480W | ||||
Dimensions (L×W×H)mm | 500*440*230 | 500*482*356 | 500*482*534 | 500*482*712 | ||||
Weight | 40kg | 80kg | 120kg | 160kg | ||||
Cycle life [times] | ≥6000 (@25°C, 90%DOD)/≥10 years | |||||||
Storage time / temperature | -10°C - 45°C | |||||||
Charging temperature range | 0°C - 50°C | |||||||
Discharge temperature range | -10°C - 50°C | |||||||
Standards and Certifications | CE/IEC62619/UL1973/UN38.3 | |||||||
Enclosure protection rating | IP65 (outdoor/indoor) | |||||||
Product Description

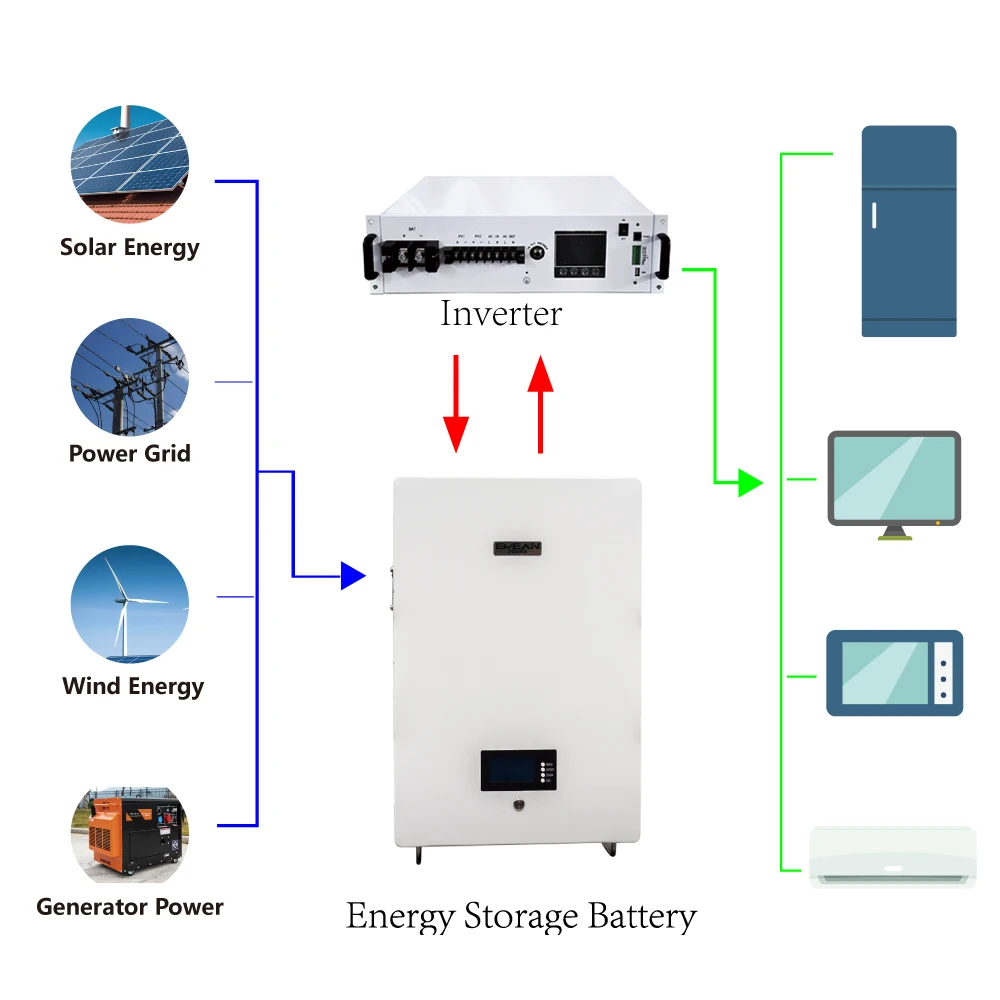

① Operating principle
1.DC couple and AC couple to
retrofit existing solar system 2.charging/discharging current of 240A 3.48V low voltage battery,
transformer isolation design
4.time periods for battery
transformer isolation design
4.time periods for battery
charging/discharging
5.Support storing energy from generator
5.Support storing energy from generator

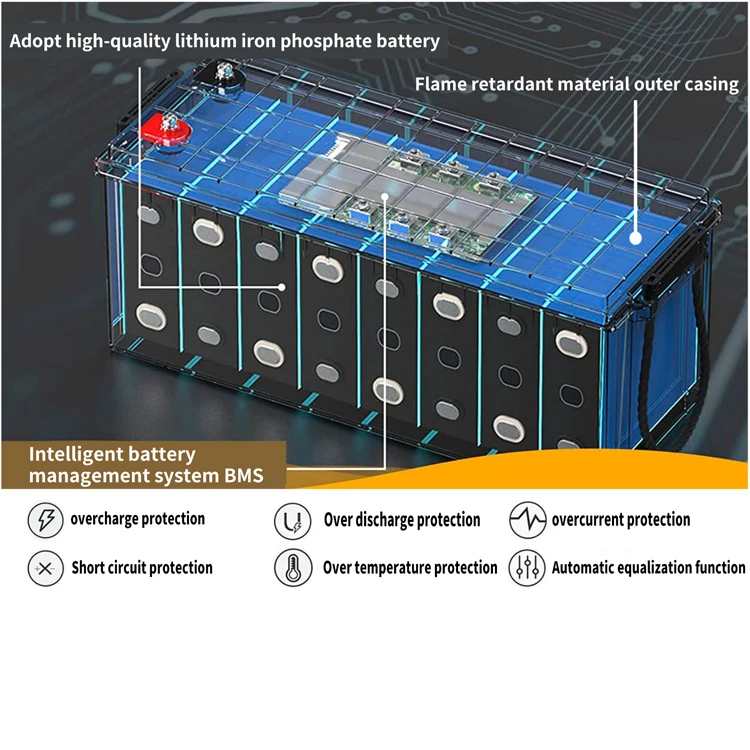

1. Safety and Reliable
1) High safety level of lifepo4 battery
1) High safety level of lifepo4 battery
2) Cycle life （times）
≥6000(@25°C, 90%DOD)/≥10 years
3) Advanced BMS
protection functionality;
2. Flexibility and Compatible

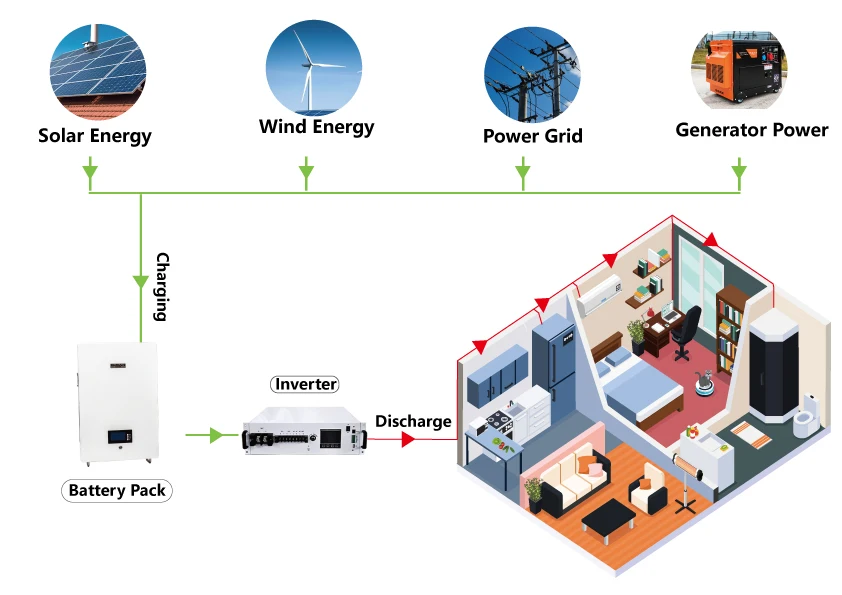

1) Store energy from thr grid or solar;

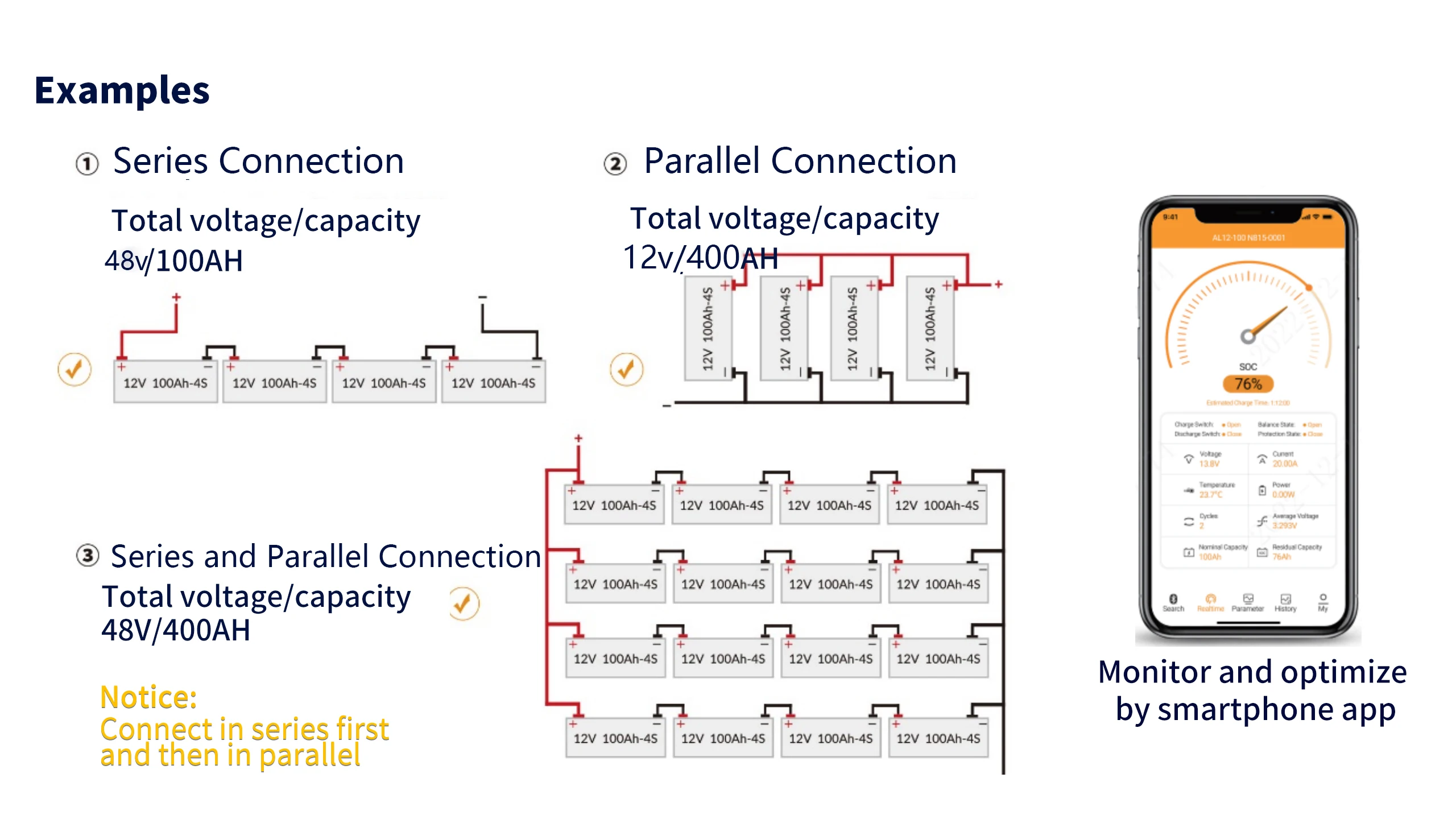

2) Total energy extends to 140kwh
by parallel battery packs :

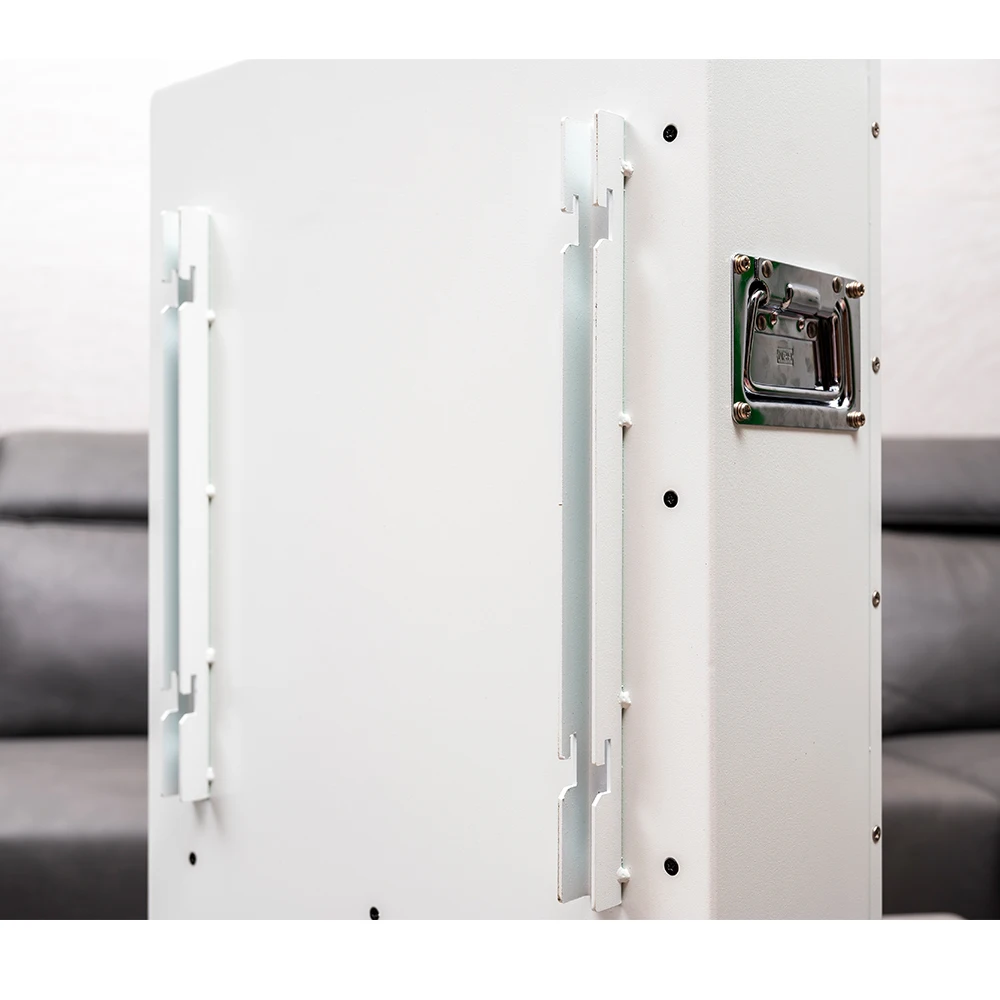

3) Installation: Floor/Wall mounted;
4) Monitor and optimize
by smartphone app
≥6000(@25°C, 90%DOD)/≥10 years
3) Advanced BMS
protection functionality;
2. Flexibility and Compatible
1) Store energy from thr grid or solar;
2) Total energy extends to 140kwh
by parallel battery packs :
3) Installation: Floor/Wall mounted;
4) Monitor and optimize
by smartphone app
1）We can customization the power, voltage and current according to your needs.
2) Supports remote operation, mobile client battery performance monitoring and management.
Our Service
1. The warranty period is 10 years
2. During the warranty period. Any quality faulty, we supply free accessories to replace .
Use Scenario

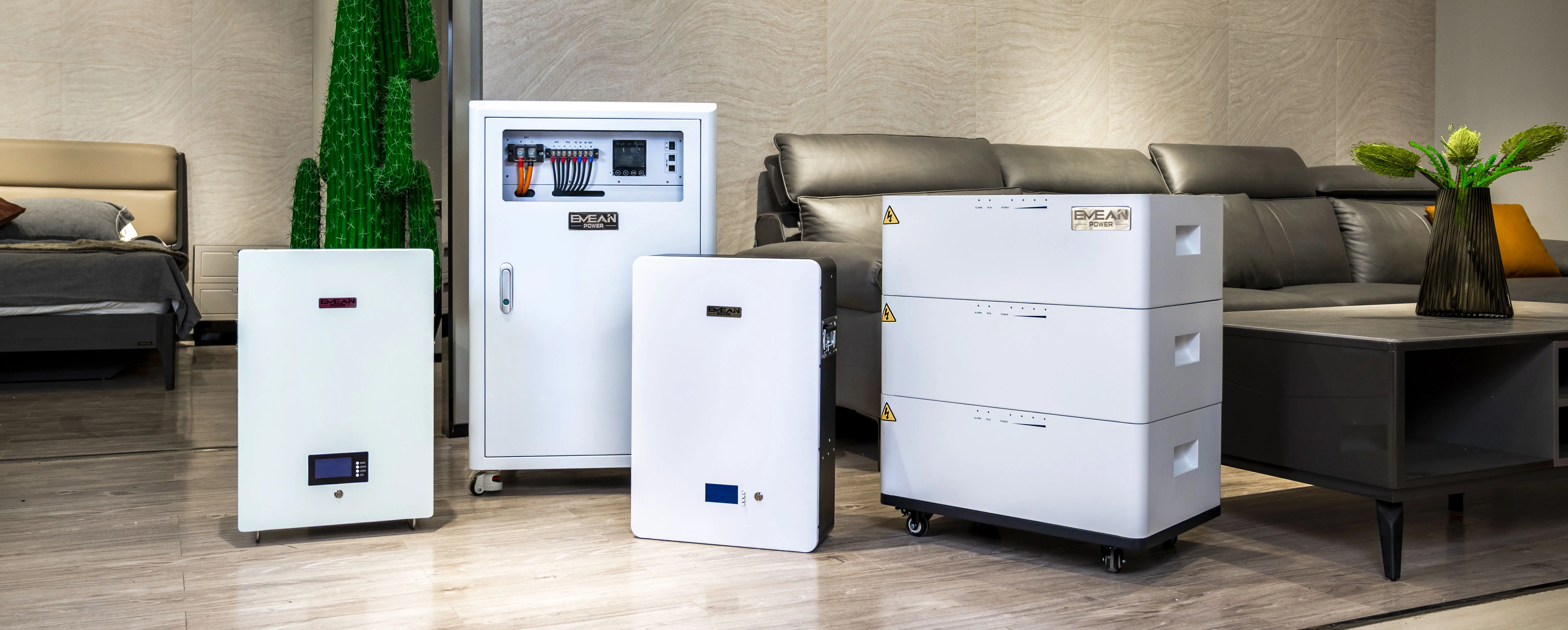

Product Style
LifePO4 Battery
lifepo4 battery lithium batteries pack
（no including inverter)
Wall Lithium Battery Pack
（no including inverter)

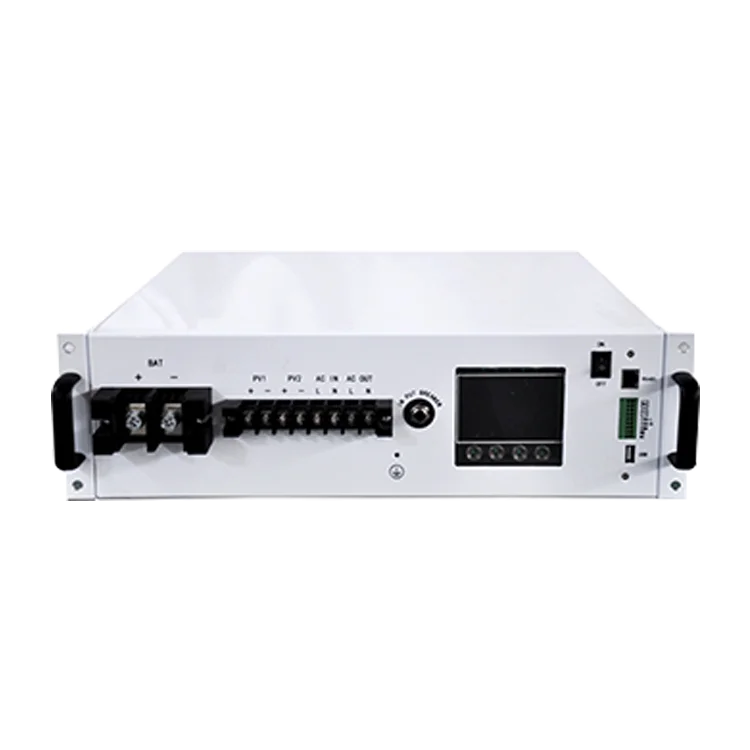

OFF GRID INTERGRATED MACHINE
（including inverter)
