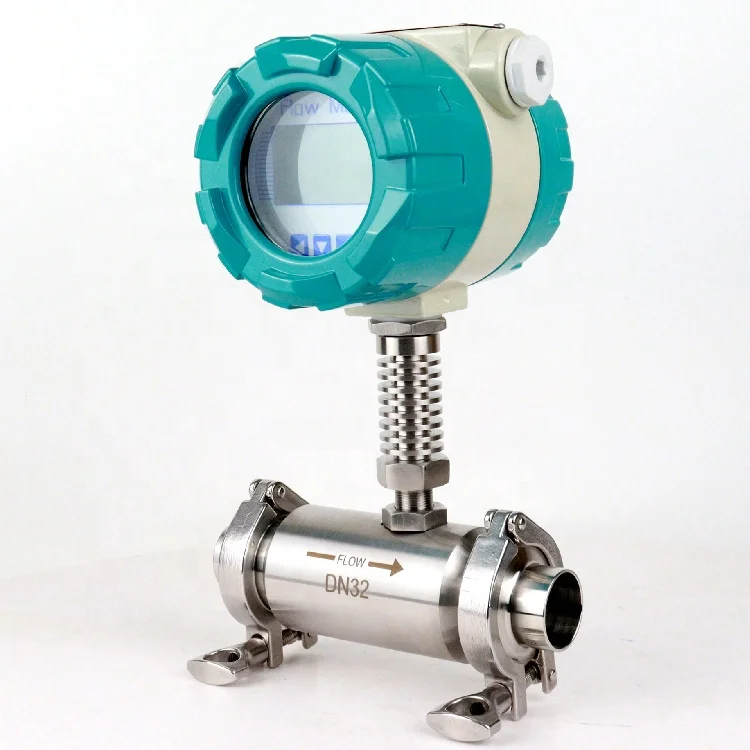

High Accuracy Certificate 6 inches Oil measuring Diesel Paddle Wheel Water Flowmeter Turbine Water Flow Meter
- Category: >>>
- Supplier: KAIFENG LIZOBOR INSTRUMENT CO. LTD
Share on (1600904520105):
Product Overview
Description
Product Description
High Accuracy Certificate 6 inches Oil measuring Diesel Paddle Wheel Water Flowmeter Turbine Water Flow Meter
LWGY series turbine flowmeter is a new generation of turbine flowmeter with the characteristics of simple structure, light weight, high precision, good repeatability, sensitive response, convenient installation, maintenance and use, which has absorbed the advanced technology of domestic and foreign flowmeters and has been optimized.
It is Widely used in iron and steel, electric power, petroleum, chemical industry, coal, metallurgy,Papermaking, water supply and drainage, food, medicine and other industries.
Product Details
High quality tap water oil gasoline integrated turbine flowmeter features: | ||
1. | Suitable Medium: Tap water, pure water, alcohol;gasoline, diesel, kerosene, hydraulic oil, LPG;and any pure liquid without any acid corrosion with flow viscosity under 5x10-6 m2/s. | |
2. | Widely measuring range, less pressure loss, strong impact resistance of impeller. | |
3. | Outstanding accuracy and longer life at an affordable price. | |
4. | Compact and light weight structure, convenient installation and maintenance, extensive application ability. | |
5. | Display instantaneous velocity and total flow. | |
6. | Pulse frequency signal output, available for overall calculation and computer connection. | |
Low price flange type hydraulic oil clamp liquid flow meters technical index： | ||||||||
Nominal Diameter: | DN4-- DN200 | |||||||
Accuracy Class: | ±1.0%R 0.5% Selectable | |||||||
Rated Pressure: | 1.6MPa~6.3MPa | |||||||
Medium Temperature: | -20 ℃ ~ +200℃ | |||||||
Relative Humidity: | 5% to 95% | |||||||
Range Ration: | 1:10,1:15,1:20 | |||||||
Power Supply: | 3.6V lithium battery; 12VDC; 24VDC; | |||||||
Signal Output: | 4-20mA /RS485/HART | |||||||
Ingress Protection : | IP65 or higher customerized | |||||||
Explosion Proof Grade: | ExdIIBT6/ExiaIICT4 | |||||||
Main Application: | Non Corrosive Liquid( Water,Ethanol,Diesel etc) | |||||||

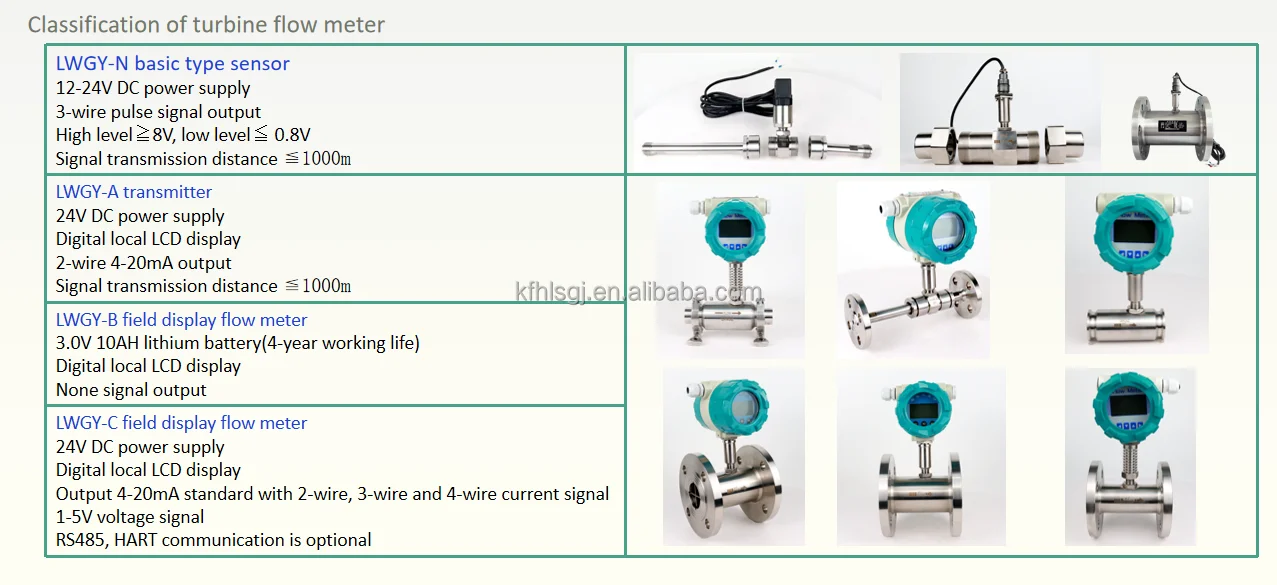

Turbine Flow Meter Price Product Specification Selection：

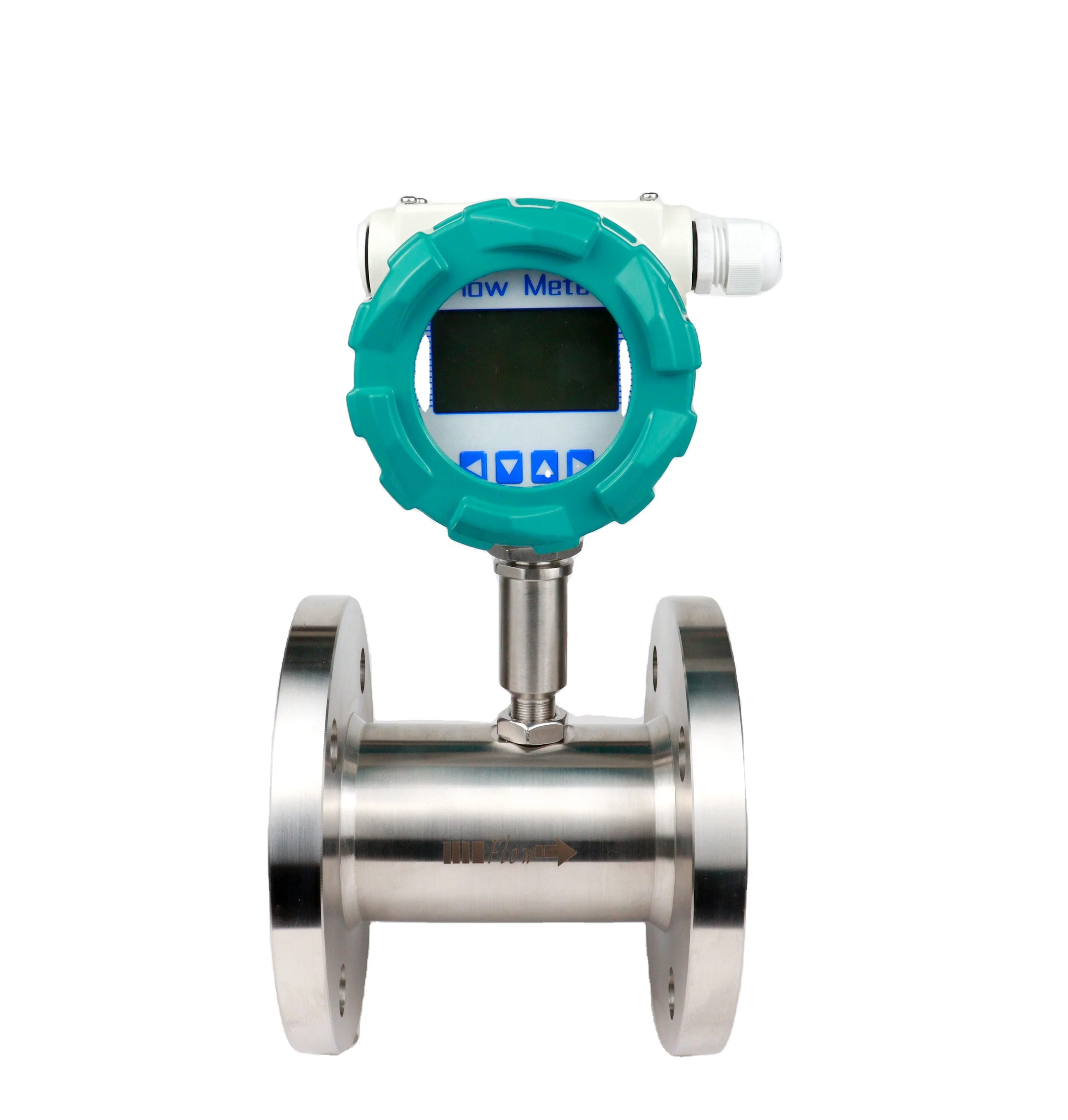

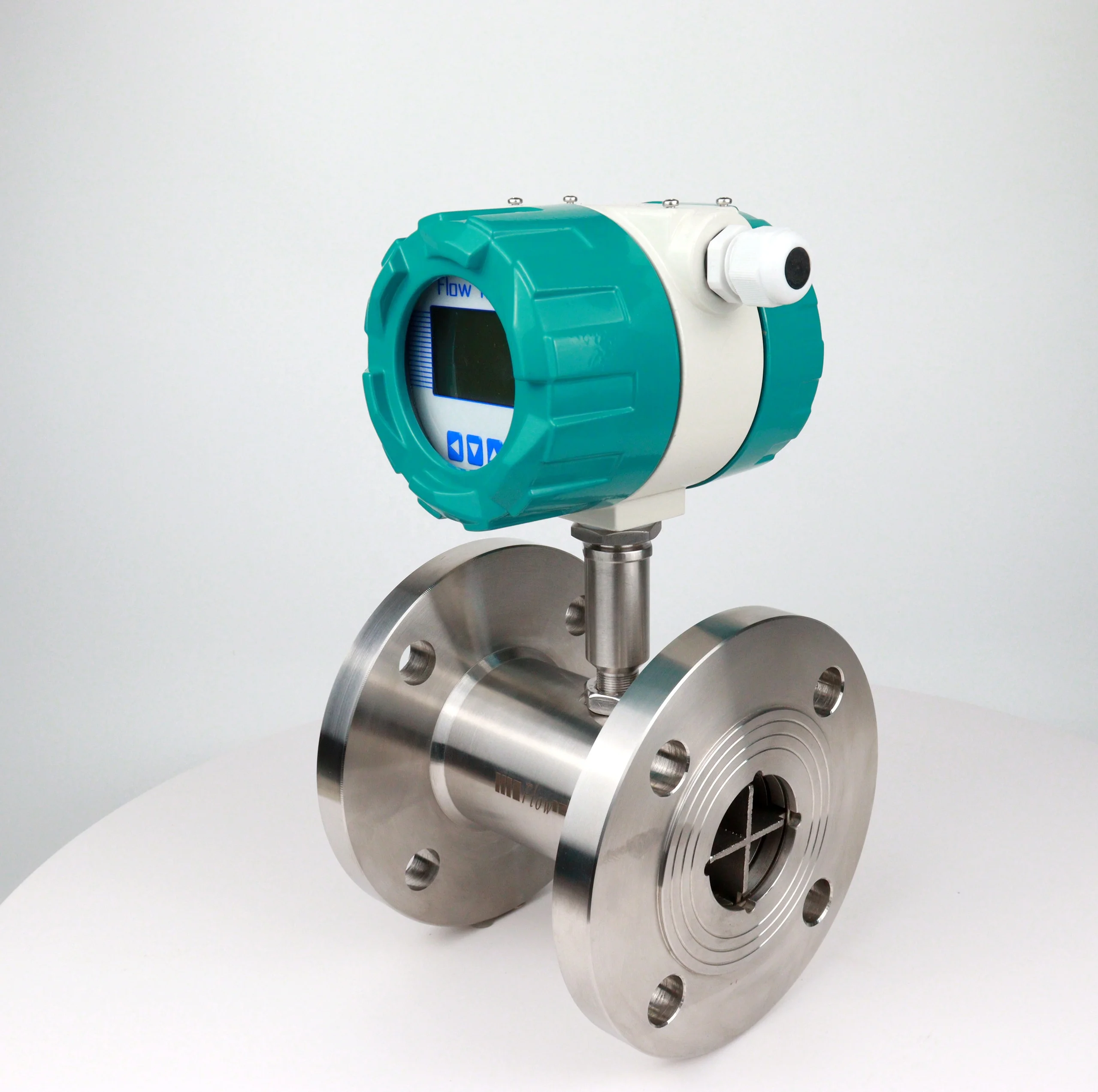

Multi-functional non corrosive liquid flow meter turbine for sale detail images:

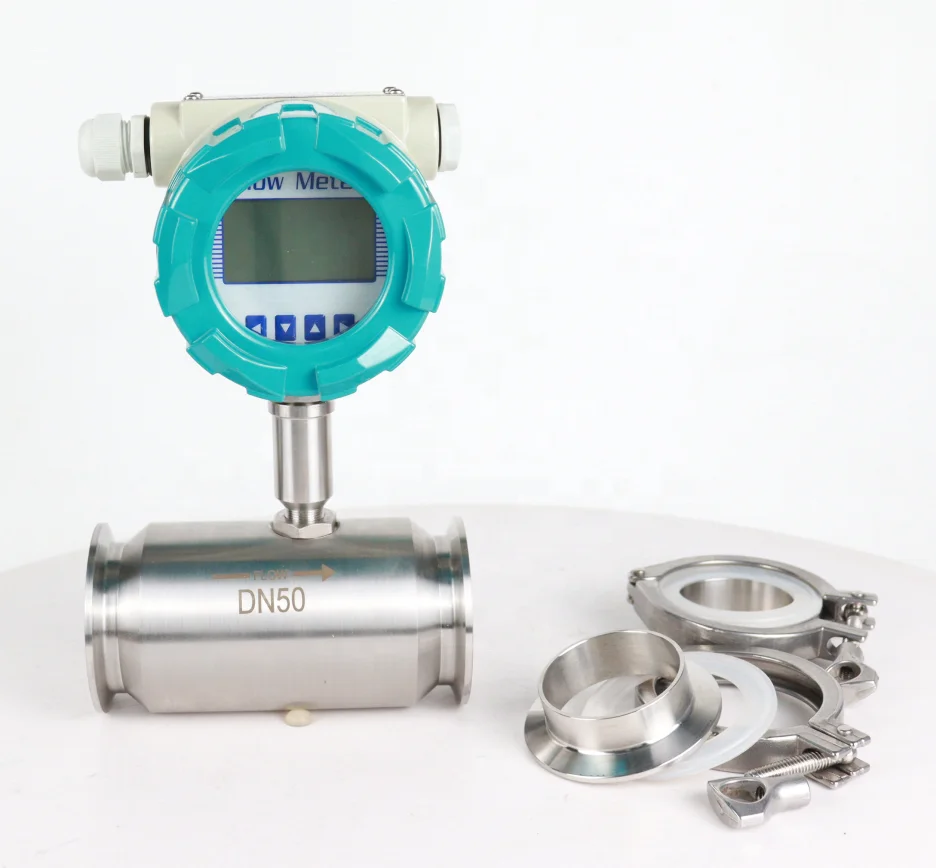

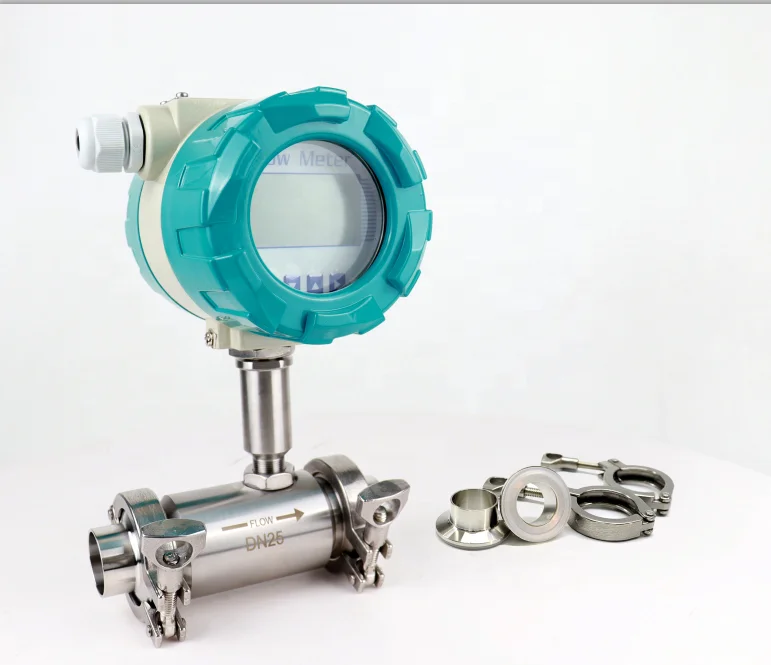

HD display cumulative flow, instantaneous flow and so on.
M2.0*1.5 electrical interface, convenient wiring

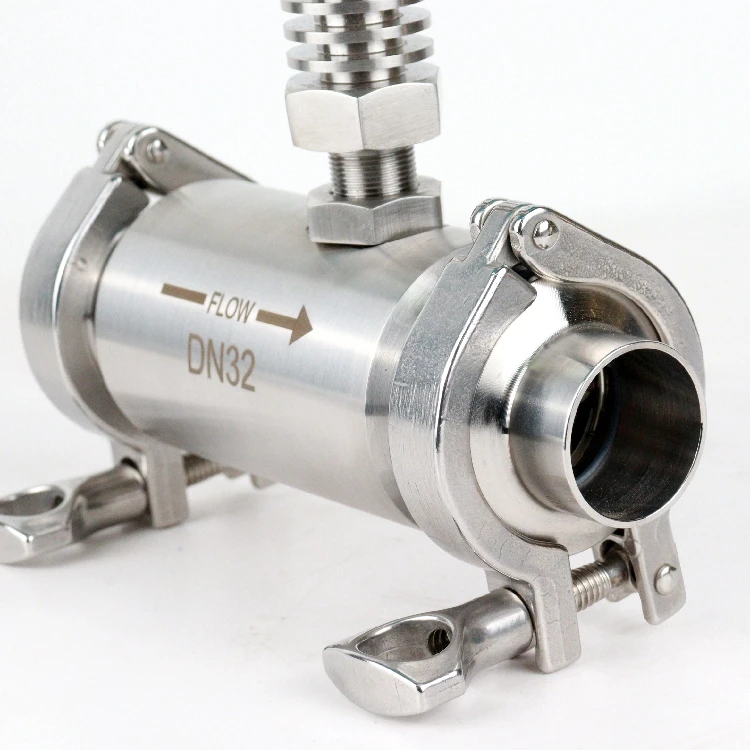

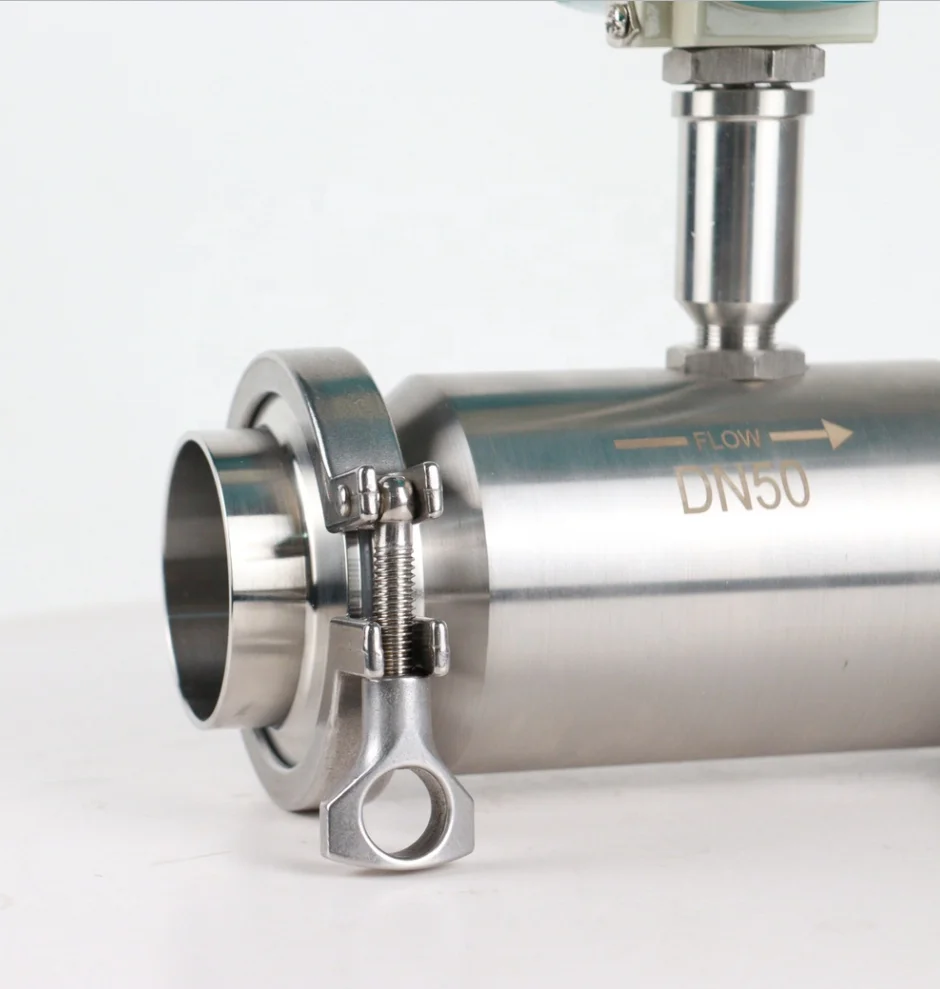

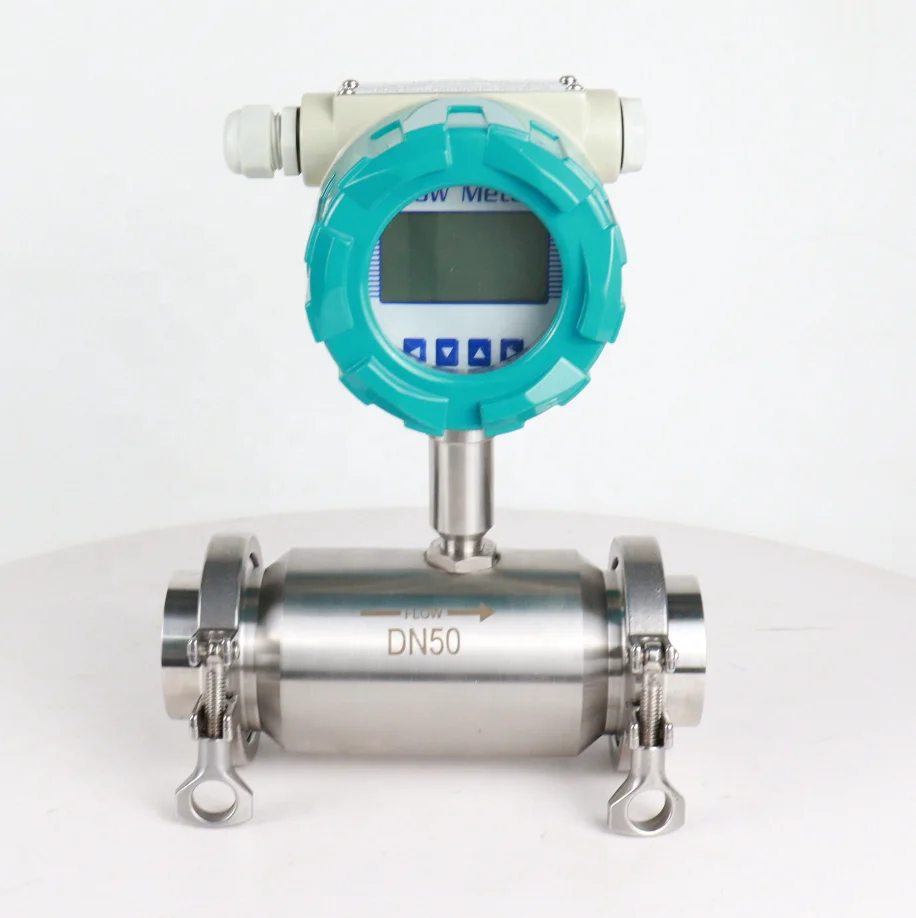

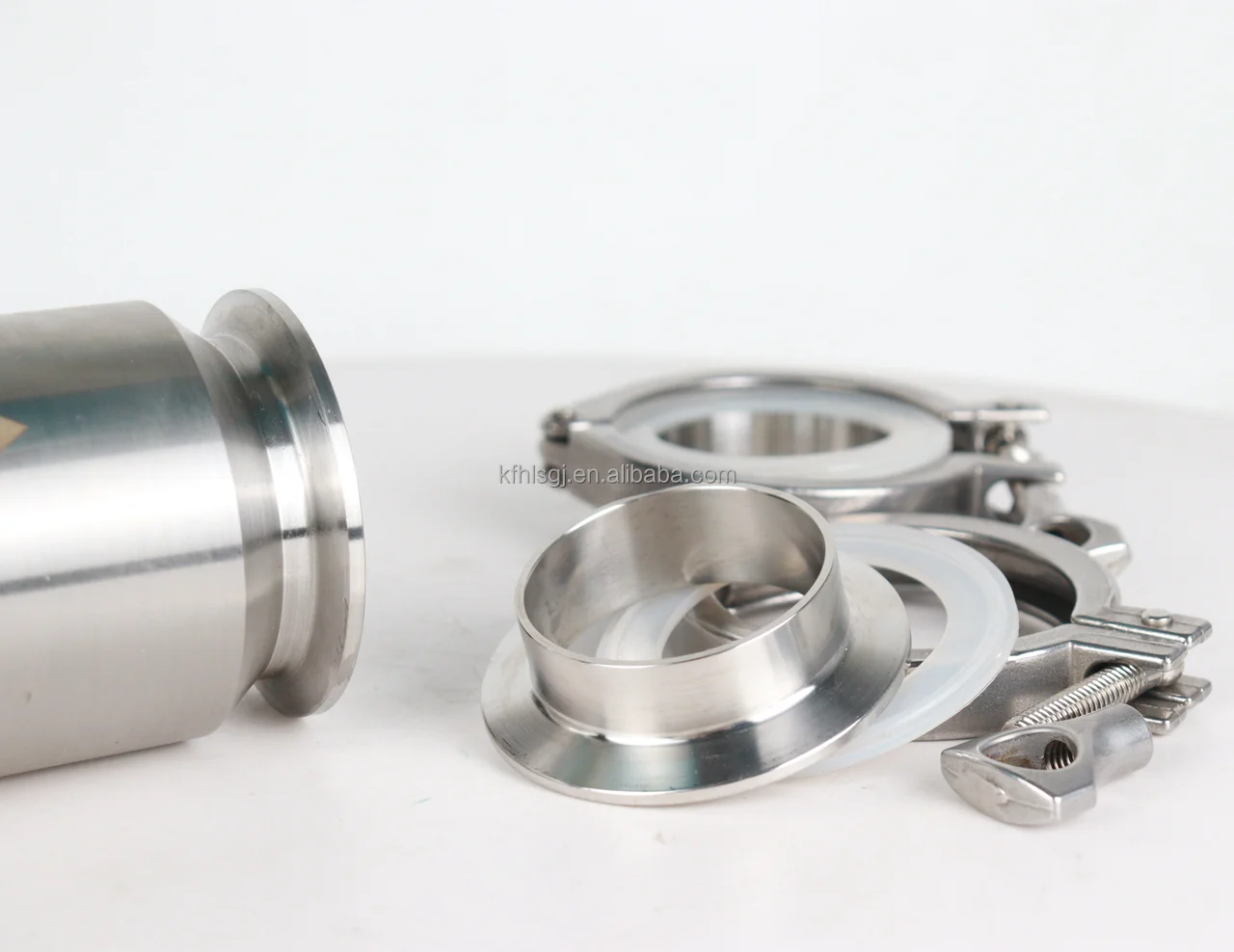

clamp installation, simple and convenient

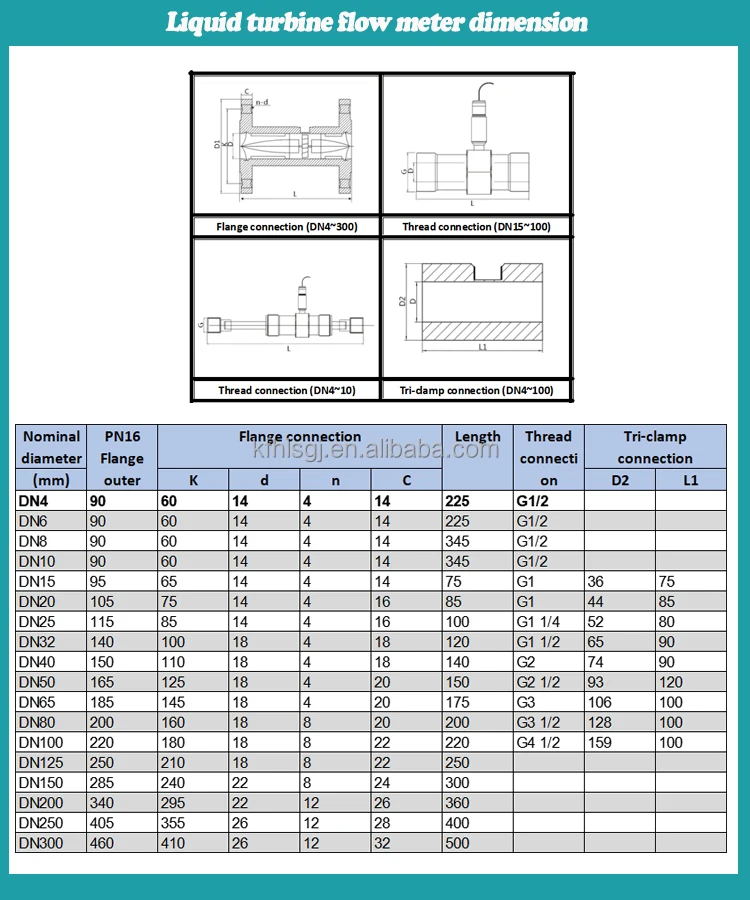

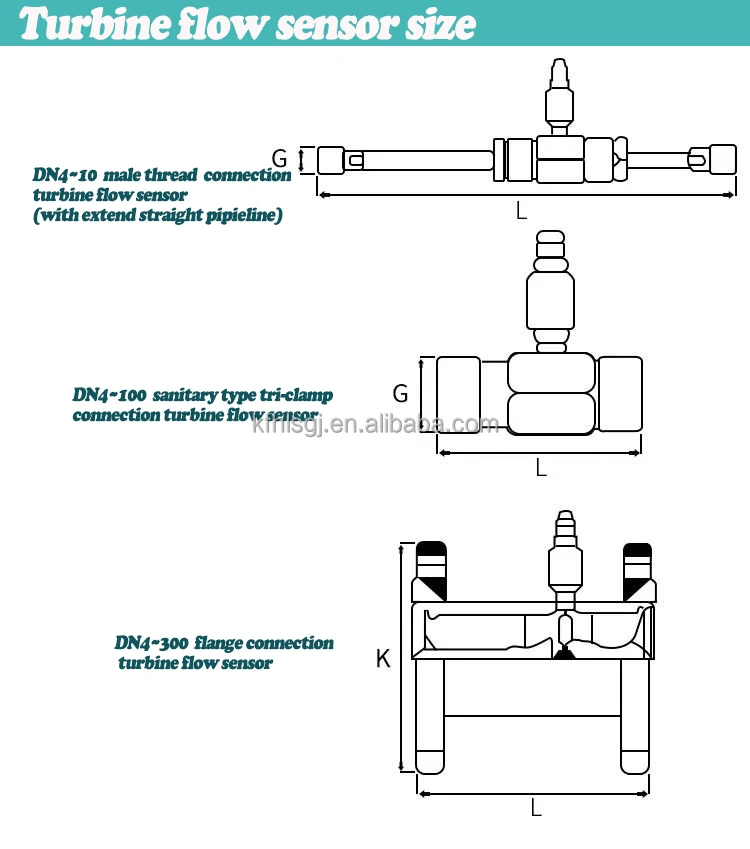

Diesel Oil Turbine Flow Meter Product Specification Selection Size Table：
