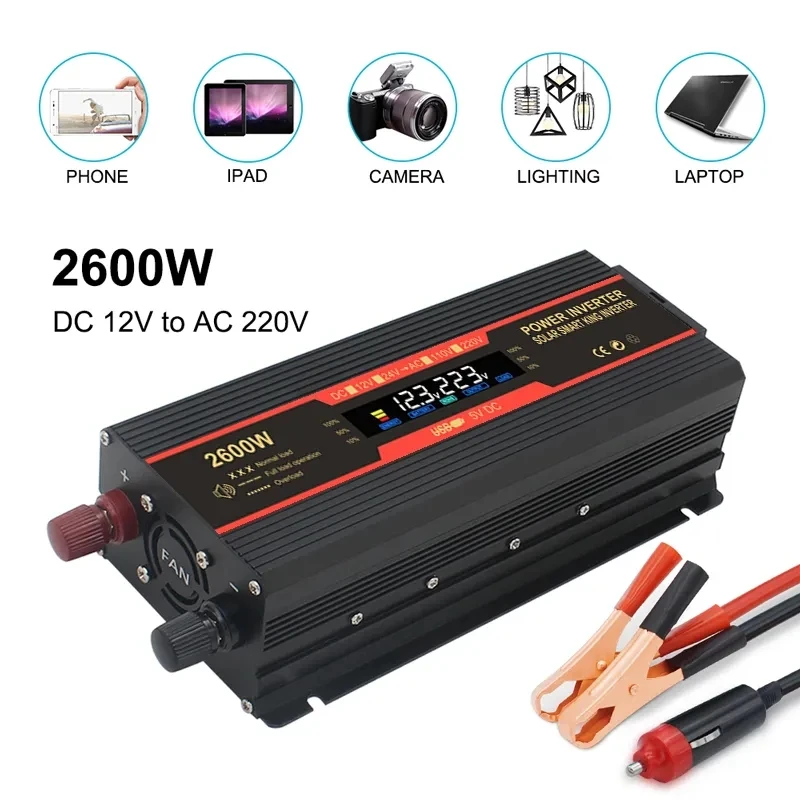

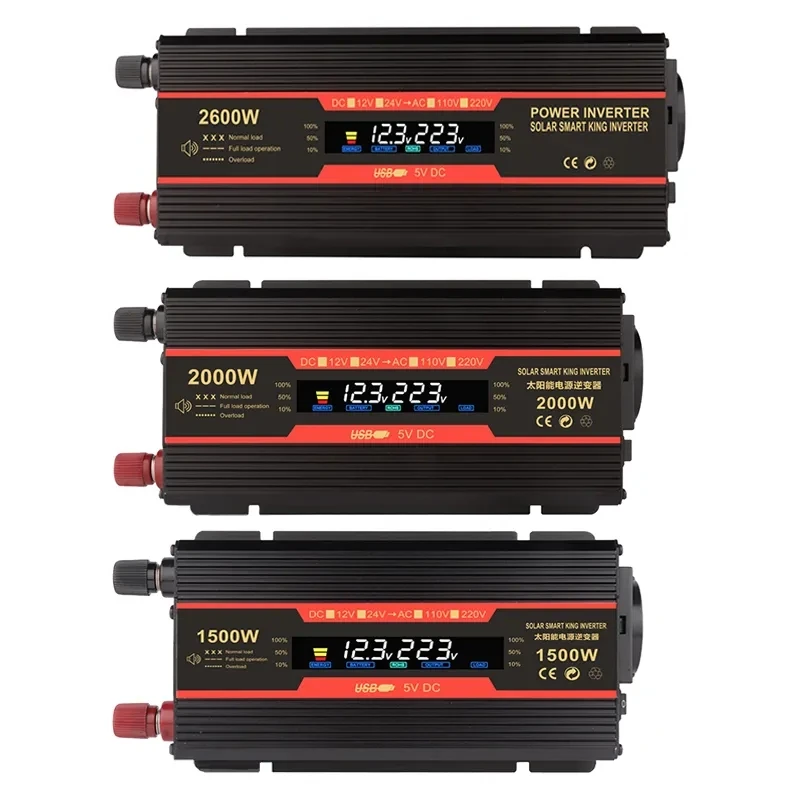

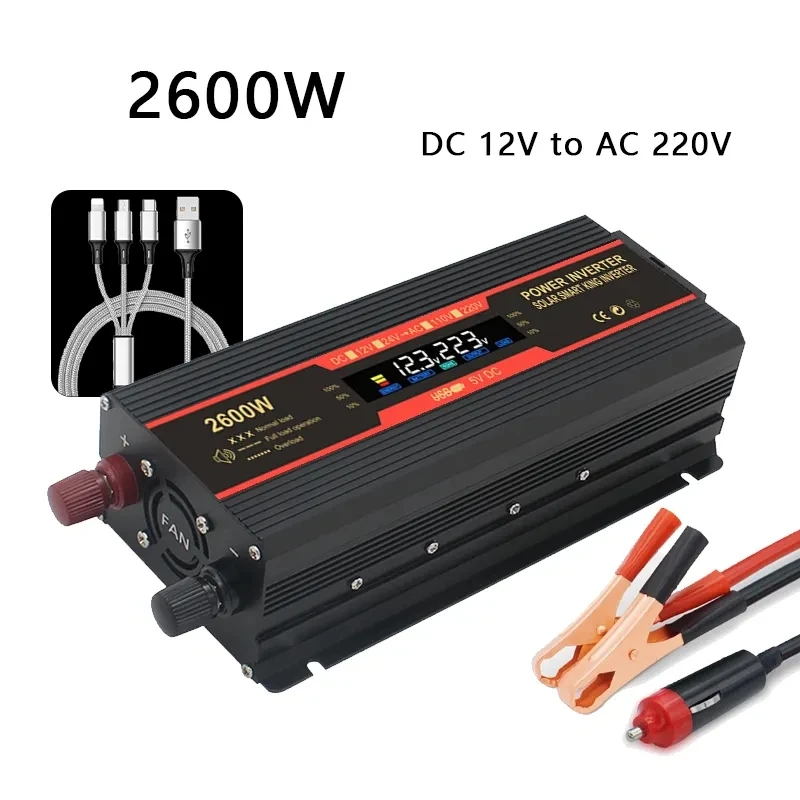

12v 220v Solar Inverter 1500W 2000W 2600W Portable Voltage Transformer Auto Charger Converter Car Power Inverter

Product Overview

Description

12v 220v Solar Inverter 1500W 2000W 2600W Portable Voltage Transformer Auto Charger Converter Car Power Inverter

Package of portable power inverter:

1 x Power Inverter

1 x Battery thick line

1 x Battery clip



Product Name	Pure Sine Wave Power Inverter
Rated power	2000W
Peak power	4000W
Input voltage	DC12V	DC24V	DC48V	DC12V	DC24V	DC48V
Output voltage	100VAC or 110VAC or 120VAC±5%			220VAC or 230VAC or 240VAC±5%
Unload current less than	1.1A	0.7A	0.5A	1.1A	0.7A	0.5A
Output frequency	50Hz±0.5Hz or 60Hz±0.5Hz
Output waveform	Pure Sine Wave
Waveform distortion	THD<3%(Linear load)
USB port	5V 1A
Max.efficiency	90%
Working temperature	-10°- +50°
Storage temperature	-30°- +70°
Configuration	Standard
Note: Our products update constantly.The technical parameter is for reference only.Please refer to our real product



Main Features of power inverter:

• Pure sine wave, intelligent filtering, no interference with electrical appliances, protect electrical appliances. High conversion efficiency (up to 95%).


• You can use electrical equipment, including Boiler, water pump,TV/LED lights/LCD monitors, electric drills, refrigerators, and induction cookers.


• Eight digit intelligent protection: overload protection, high voltage protection, low voltage protection, overheating protection, reverse connection protection, short circuit protection, over-current protection.

Warm reminder:

Inverter 1000W, continuous power  is 500W, peak power is 1000W.

Inverter 1600W, continuous power  is 800W, peak power is 1600W.

Inverter 2500W, continuous power  is 1100W, peak power is 2500W.

Inverter 3000W, continuous power  is 1500W, peak power is 3000W.

Inverter 4000W, continuous power  is 1600W, peak power is 4000W.

Inverter 5000W, continuous power  is 2000W, peak power is 5000W.



Applications of Inverter |  Industrial Applications

What are the applications and uses of Inverter?

1,An inverter is mostly used in uninterrupted power supplies (UPS). The function of the power inverter circuit in UPS is to convert DC power to AC power at the required voltage level.

2,In industrial and commercial applications (for example- AC adjustable speed drive i.e. ASD, induction heating, etc.), the inverter is used for controlling the AC motor drive’s input voltage.

3,In domestic appliances (like as refrigerators, air conditioning, etc), the inverter is very essential for controlling the speed of the compressor and regulating the required power.

4,The inverter is primarily used in solar energy systems and wind turbine systems.

5,In electric aircraft and electric vehicles (EV), the power inverter is the most important device for power conversion and regulation.

6,Also, it is used in high voltage DC (HVDC) transmission.

7,This power device is used in the electroshock weapons (like stun guns, tasers, etc).



Q:Can you supply OEM &ODM service?
A:Yes, but there is a MOQ required.



Q:Which certificates do you have?
A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc.



Q:How long is the delivery time of inverter?
A:It depends on order quantity of solar inverter.



Q:How long is the warranty?
A:1 year warranty.



Q:Can you supply solar panels? Can you recommend the solar panels for each product?
A:We can provide solar panels, if the customer needs, we can take the one-stop solution services.



Q:How do you ship the inverter since they are high capacity battery ?
A:We have long-term cooperated forwarders who are professional at battery shipment.



Q:How long is the delivery time of the inverter?
A:The delivery time of different solar inverter is different, and the delivery time of portable solar inverter is usually 1 month.



Q:Does your inverter products have UPS function?
A:The portable solar inverter has no UPS function, while the home systems has UPS function



Q:Can I get a solar portable solar inverter sample?
A:Yes, please leave your contact information and our sales manager will contact you soon.



Note:
(1)12V inverter can only connect to 12V batteries (working voltage range: 10.5V~15.5V), 24V inverter can only connect to 24V batteries (working voltage range: 19.5V~28V).
(2)When using the inverter, the power of the electrical appliance shall not exceed the continuous power of the inverter.
(3)Inductive load electrical appliances require inverters with more than three times the power to use: such as washing machines, refrigerators, microwave ovens, vacuum cleaners, and other electrical appliances containing motors are all inductive loads.
