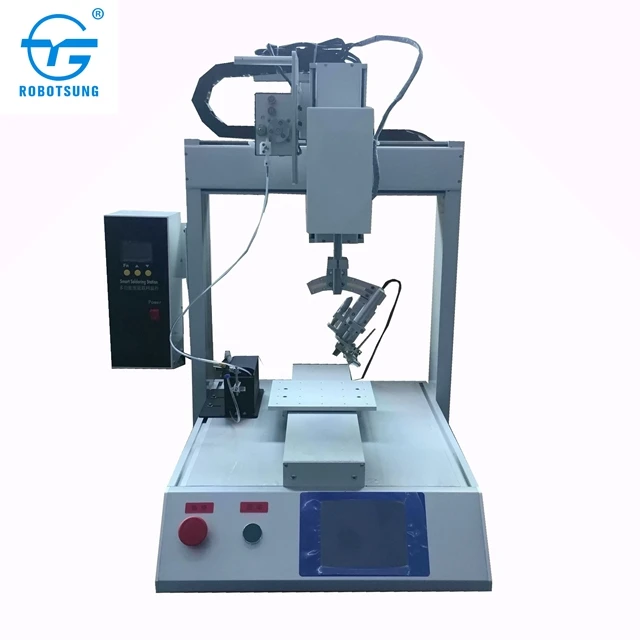

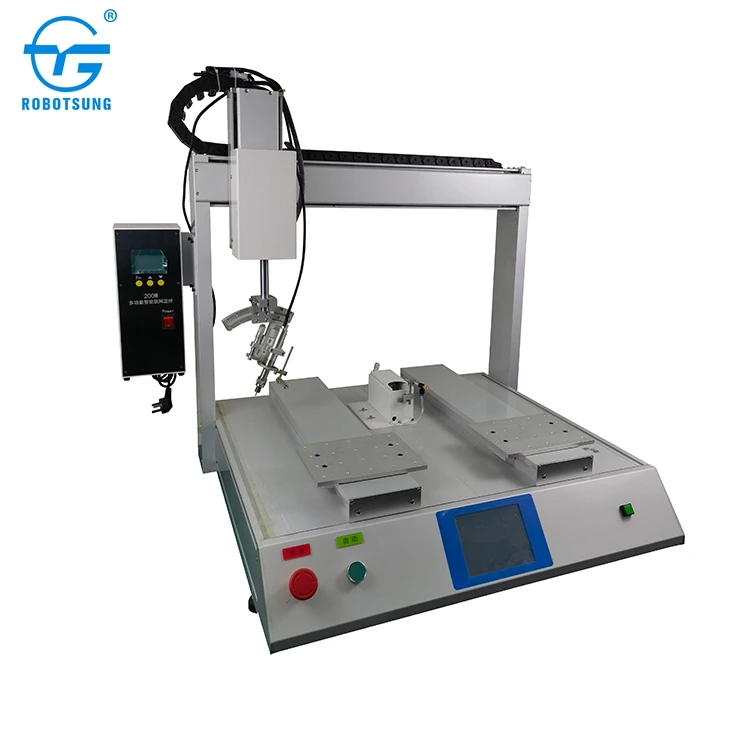

Factory high efficiency 4 axis robotic automated smd led module soldering machine
- Category: >>>
- Supplier: Shenzhen Robotsung Automation Technology Co. Ltd.
Share on (1600904572042):
Product Overview
Description
Product Overview
Automatic soldering machine

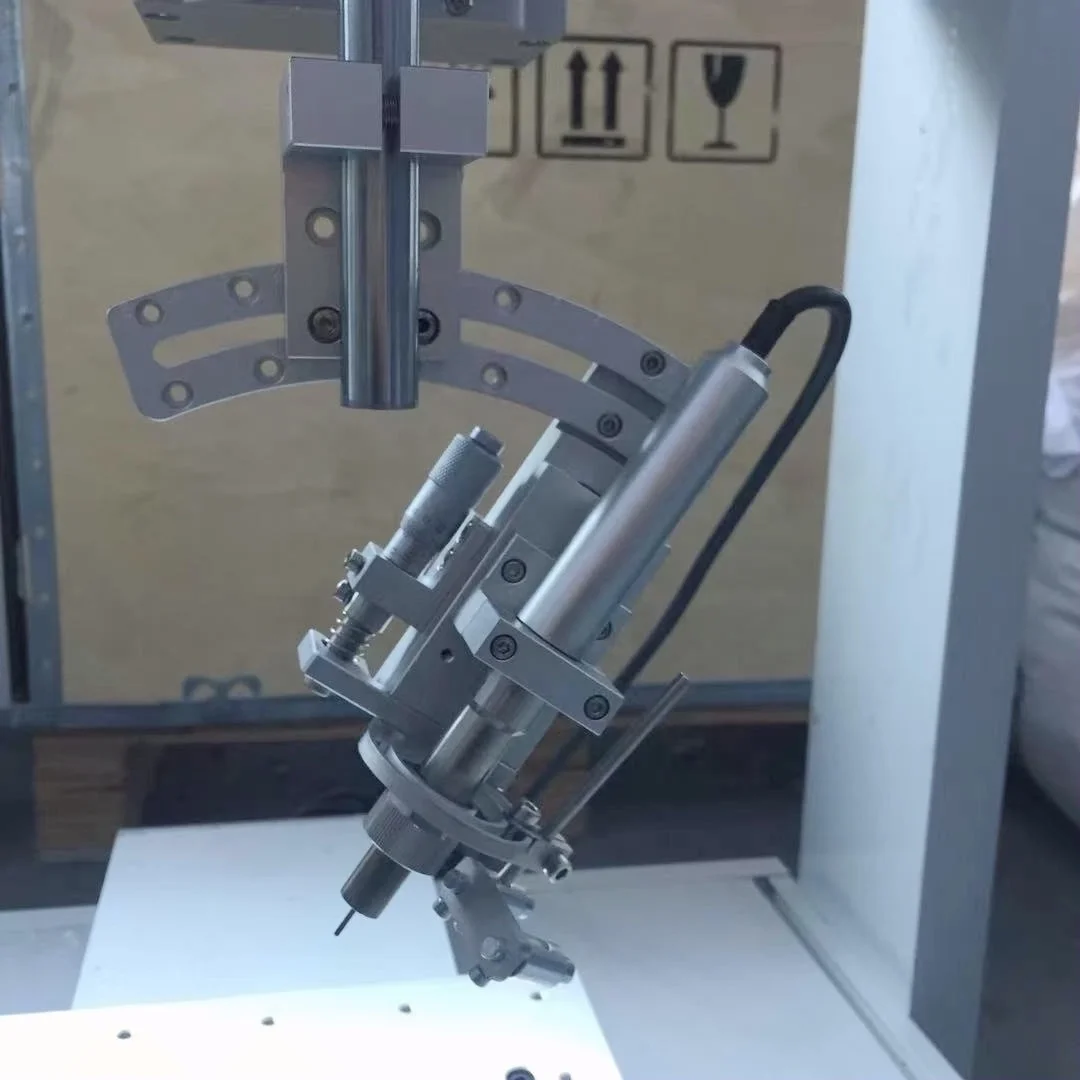

It is an automatic soldering machine by robot.The main parts of the soldering machine is the soldering system.It includes moving robot,auto solder feeding system,heating
part and Soldering iron tip.
part and Soldering iron tip.
FEATURES AT A GLANCE
Chinese/English input
With points, lines, arcs, circles, irregularly
curved continuous input program and any position welding
curved continuous input program and any position welding

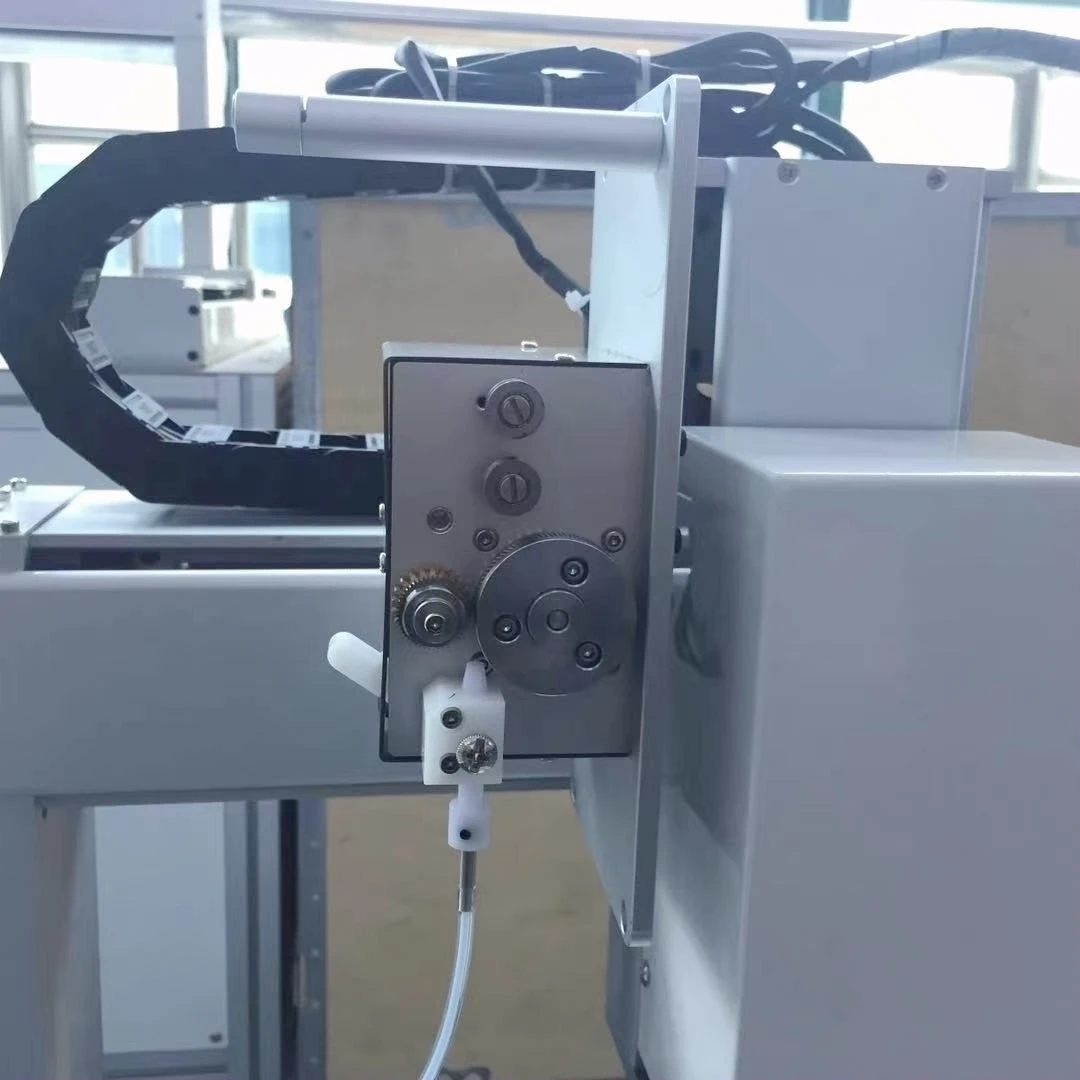

Solder feeding amount is adjustable
High-speed precision stepper motors
Adjust the temperature, time and the speed of
the tin can preview edit tracks
the tin can preview edit tracks
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS

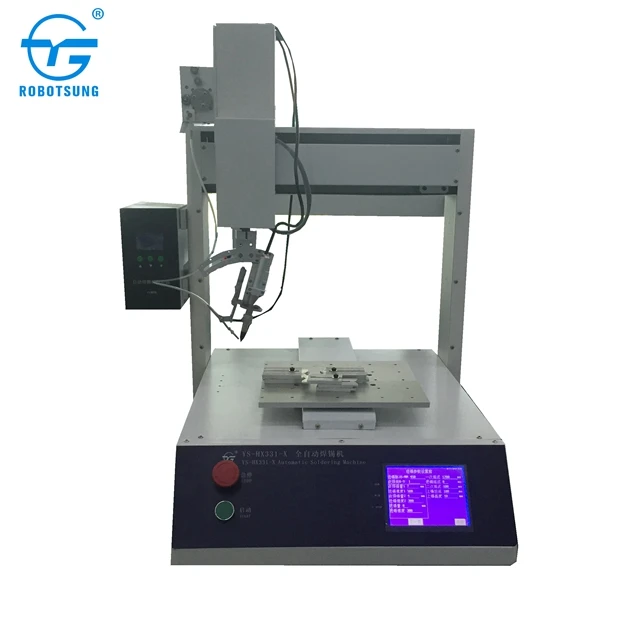

Parameter | model | YS-HX331E | |
Size | 671*551*612mm | ||
Voltage | 220V or 110V | ||
air source | Clean 0.4-0.6 kpa | ||

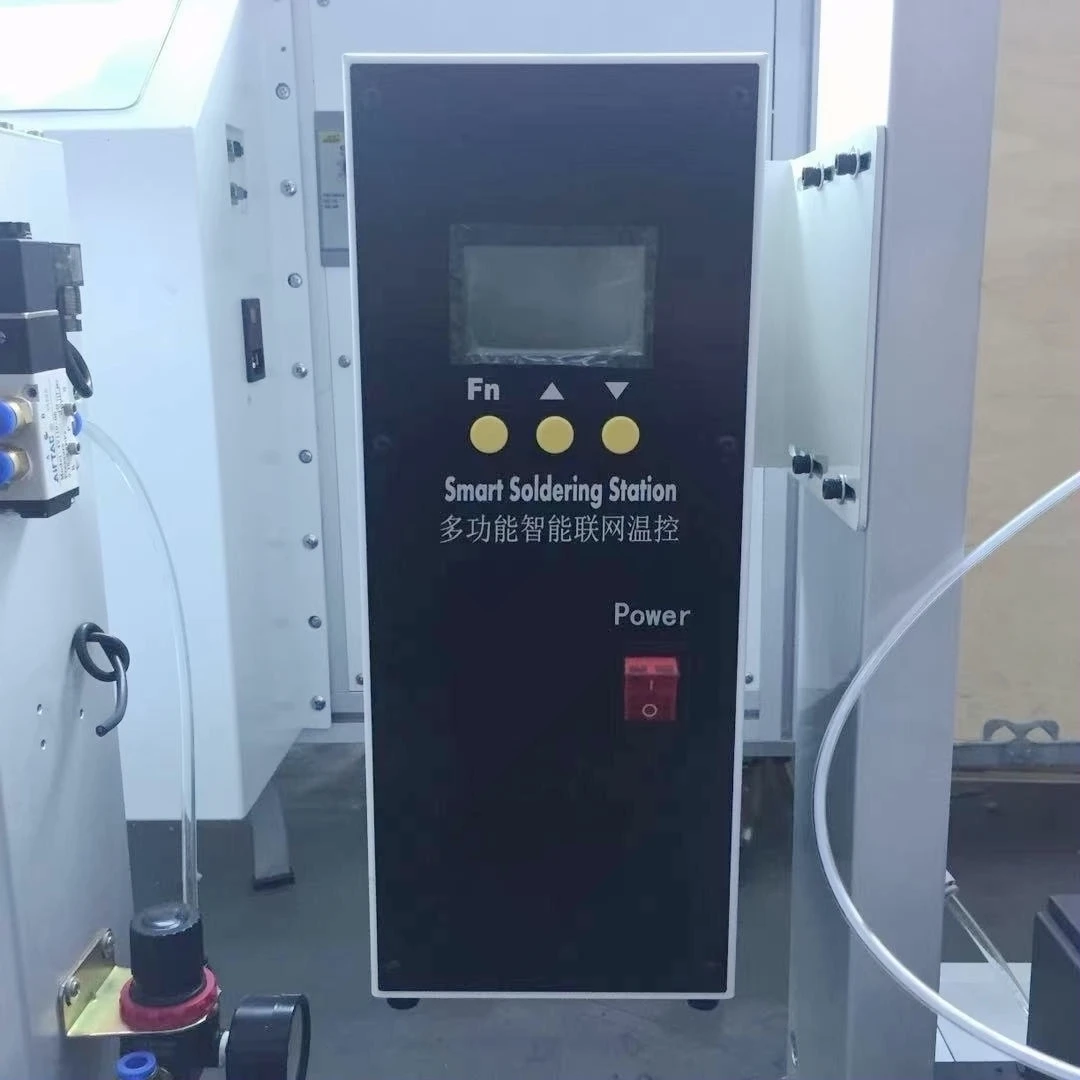

Temperature Control System | heating | vortex 200w-300w | |
temperature range | 180-450℃ | ||
Number of irons | 1 | ||
movement system | diver system | Step motor machine, Hiwin guide rail, timing belt | Servo motor for your option |
movement stroke | 300*300*300*100*360° |
SALES AND SERVICE NETWORK
Successful Project
soldering wire on PCB
soldering pcb
soldering wire on lens
SIMILAR PRODUCTS
FAQ
Q1：What is the warranty?
A1：One year
Q2: Package?
Q2: Wooden case with foam.
