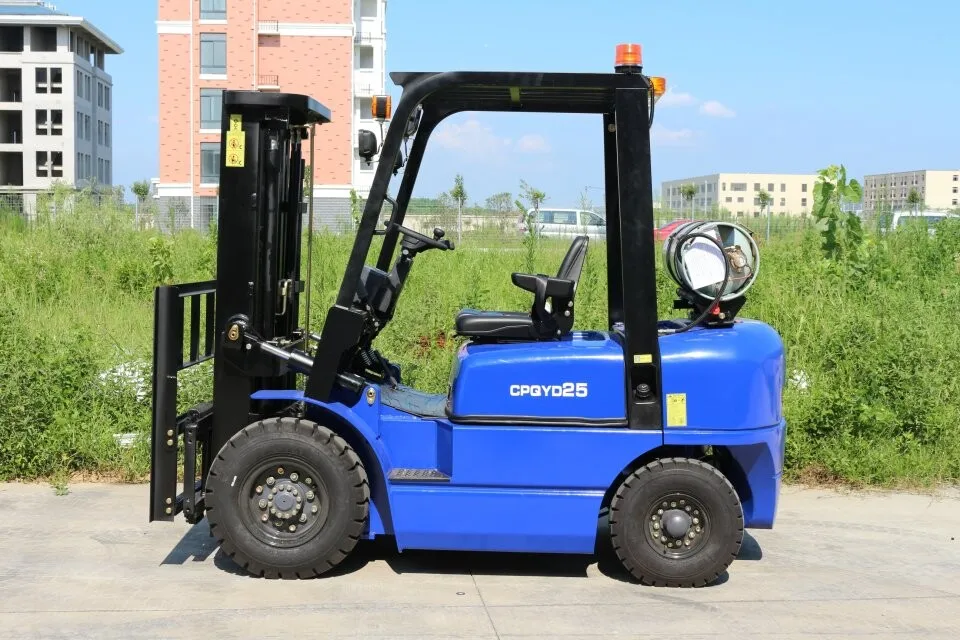

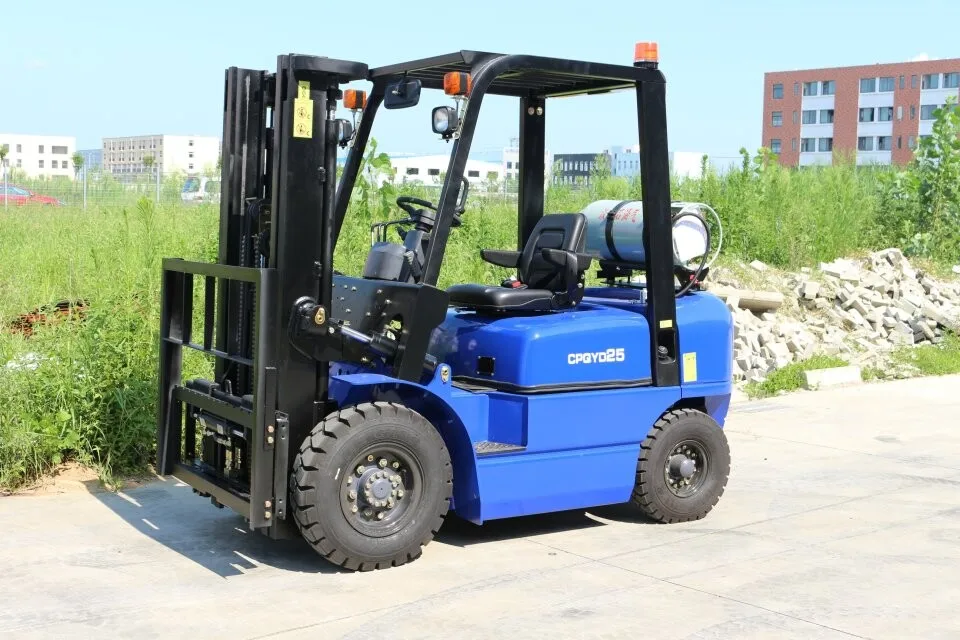

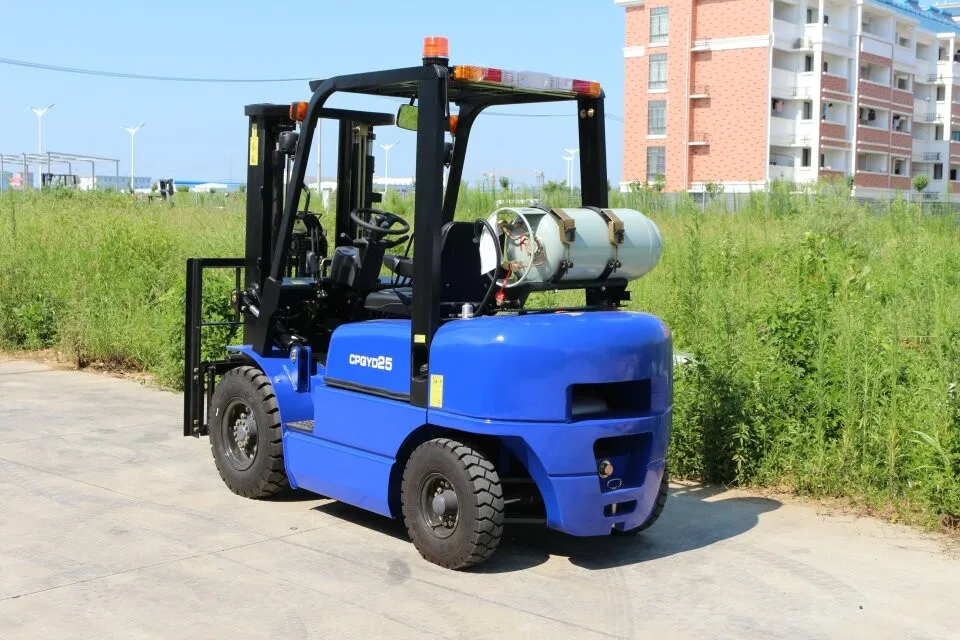

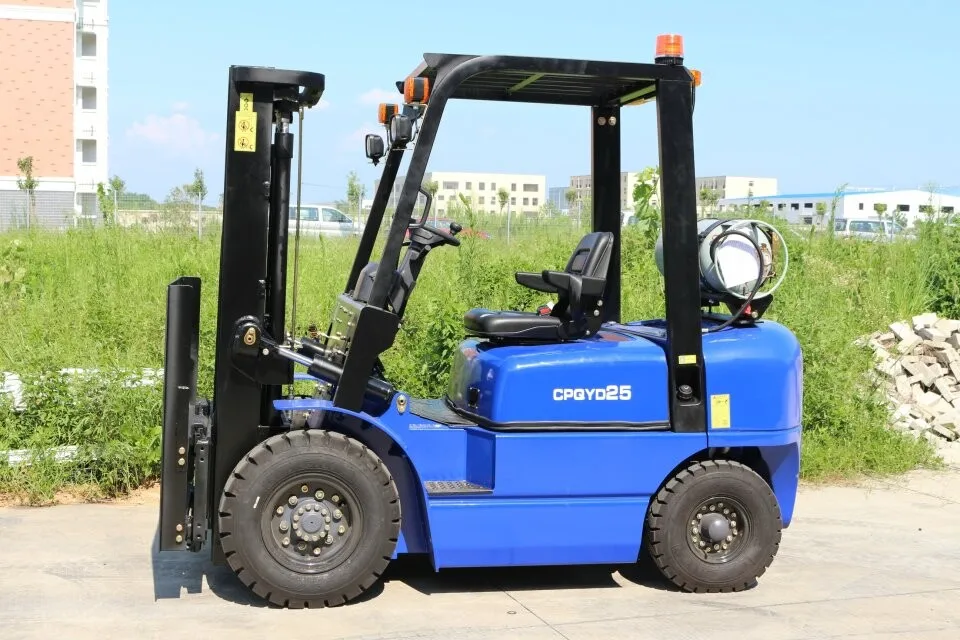

China made cheap 3000 kg LPG gas forklifts with CE ISO SGS certificate
- Category: >>>
- Supplier: Anhui Vmax Heavy Industry Co. Ltd.
Share on (1600904666891):
Product Overview
Description
INTRODUCTION

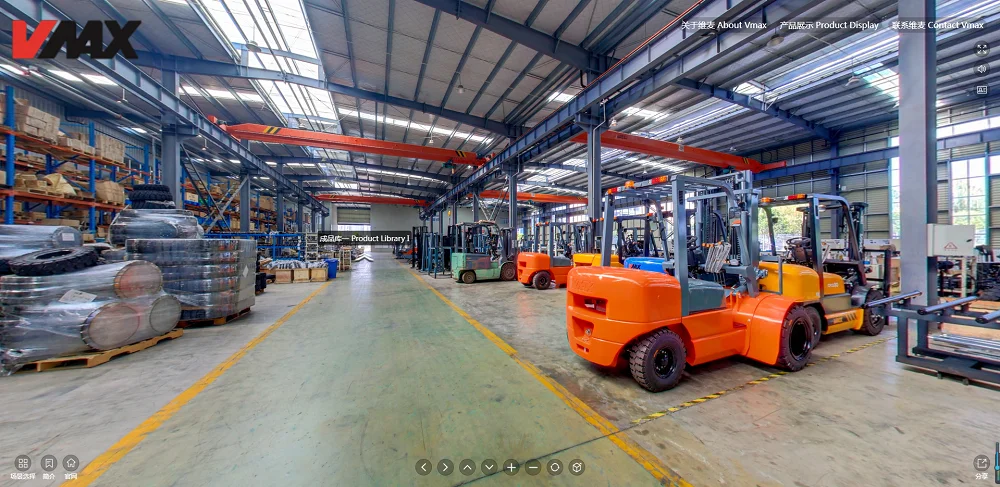

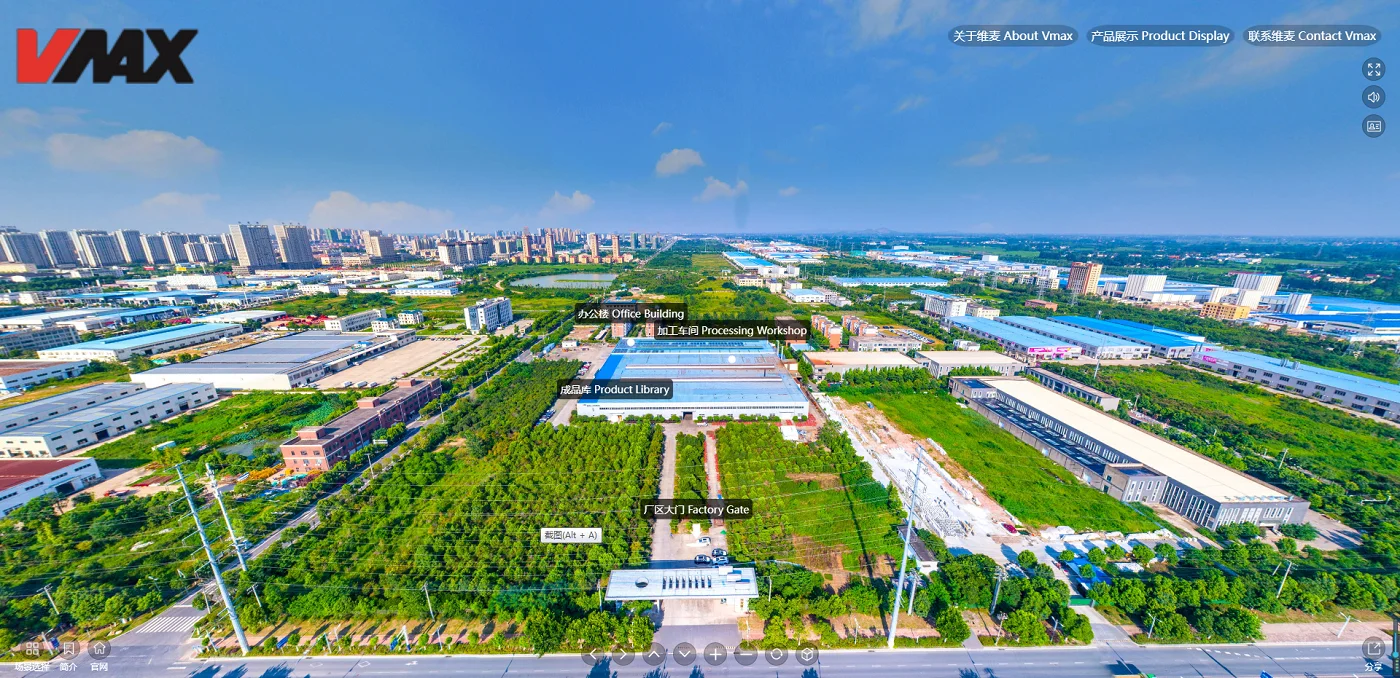

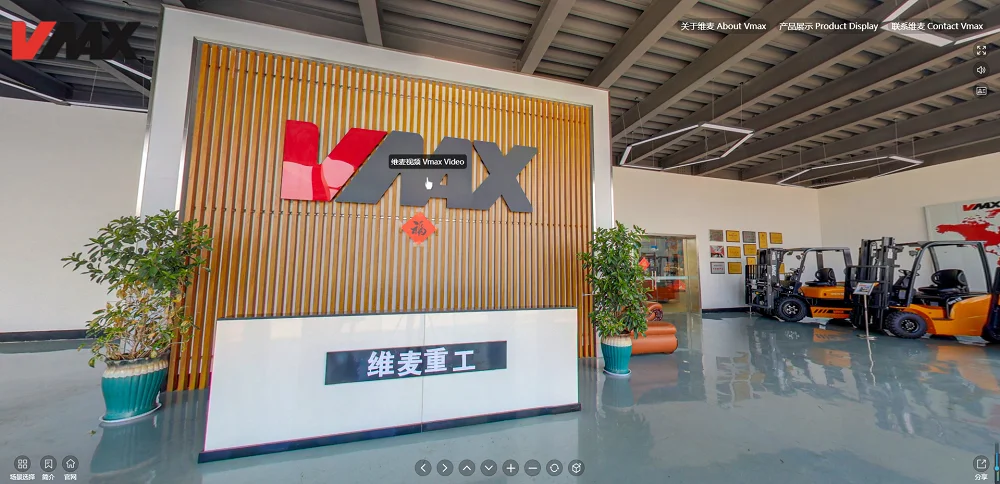

Anhui Vmax Heavy Industry Co., Ltd is located in Lu'an, Anhui,China. It is one of the biggest forklift manufacturers inChina,which has 67,000 square meter area workshop and outputs 5,000 sets of forklifts annually.We have different kinds of large blazing cutter, plasma cutter, large punch machine, CNC machining center, large painting machine and other highclass machines and testing equipment, which ensure perfect quality of each forklift from VMAX. Now our products include counterbalance diesel forklift,battery forklift, gas/lpg forklift, pallet truck, stacker, reach truck, mast mobile container crane, etc.Our products have been exported to Europe, America, the Middle East, Southeast Asia, Africa and many other countries and regions. More than 400 VMAX members offer you products with topclass service.
Product standard specification
Diesel forklift truck with Japanese engine | ||
1) Engine Japanese K21/K25 engine | ||
2) Duplex 3000 mm -6000 mm mast | ||
3) Transmission: Automatic | ||
4) Lifting height 3000mm | ||
5) Safety seat with belt | ||

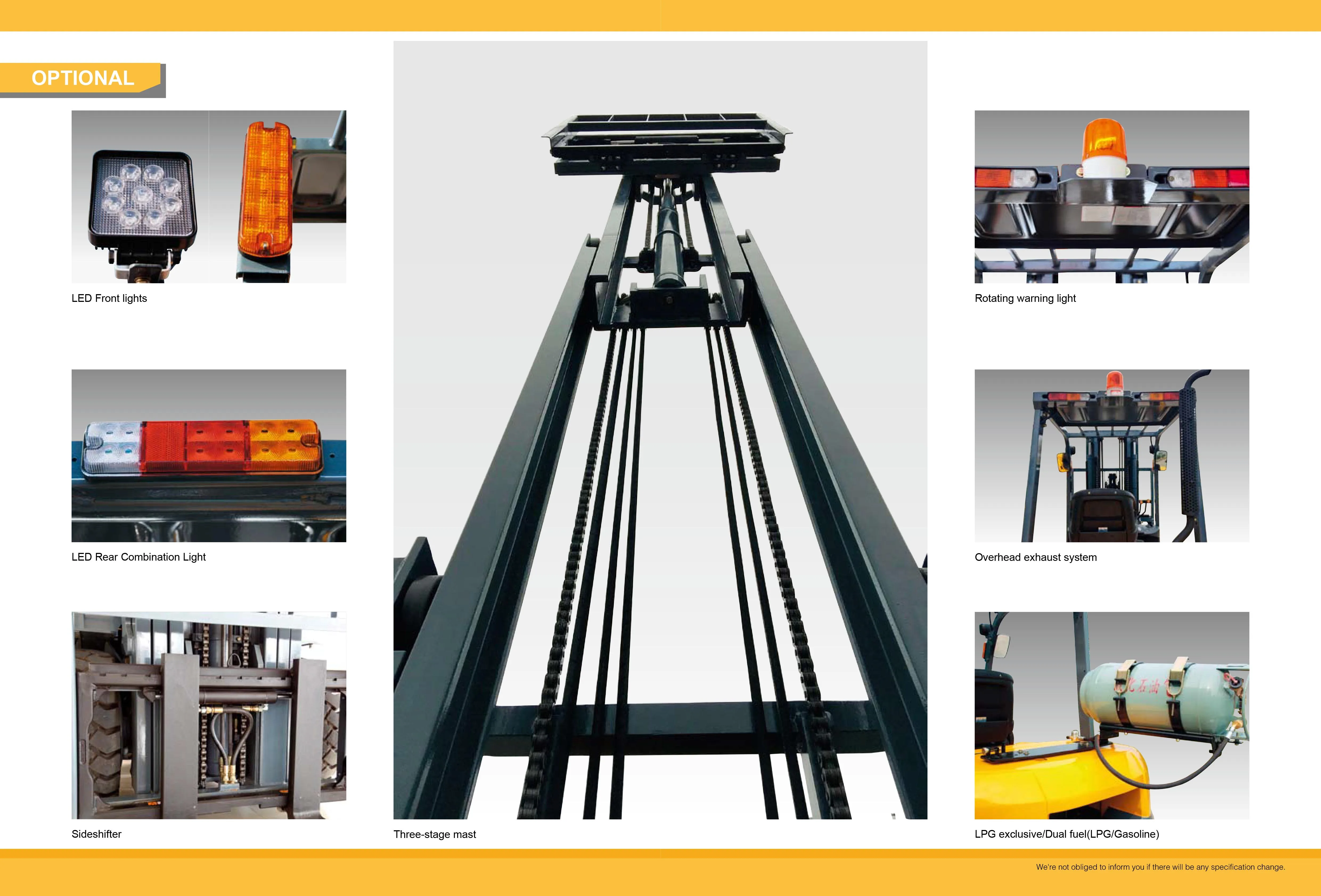

6) Attachments: Side shifter, fork positoner, fork sleeve, paper roller clamp, bale clamp, drum clamp, load extender, rotator,fork clamps, push/pull, etc for options | ||
7) Additional: cabin, heating, fan, air conditioner, high exhaust, paper fold, USB, camera & image, suspension seat, etc | ||
Wide vision
The mast opening is large, and the driving vision is optimized, which effectively
guarantees the comfort and safety of the operation.
guarantees the comfort and safety of the operation.
Control improvement
Optimization on Parking brake lever position
Increased bottom plate area
Increased the area of the forklift stairs
Increased the area of the forklift stairs
Check easy
The integrated bottom plate does not need to be disassembled and can be easily taken off. The gearbox and multi-way valve device are convenient and quick to check and maintain

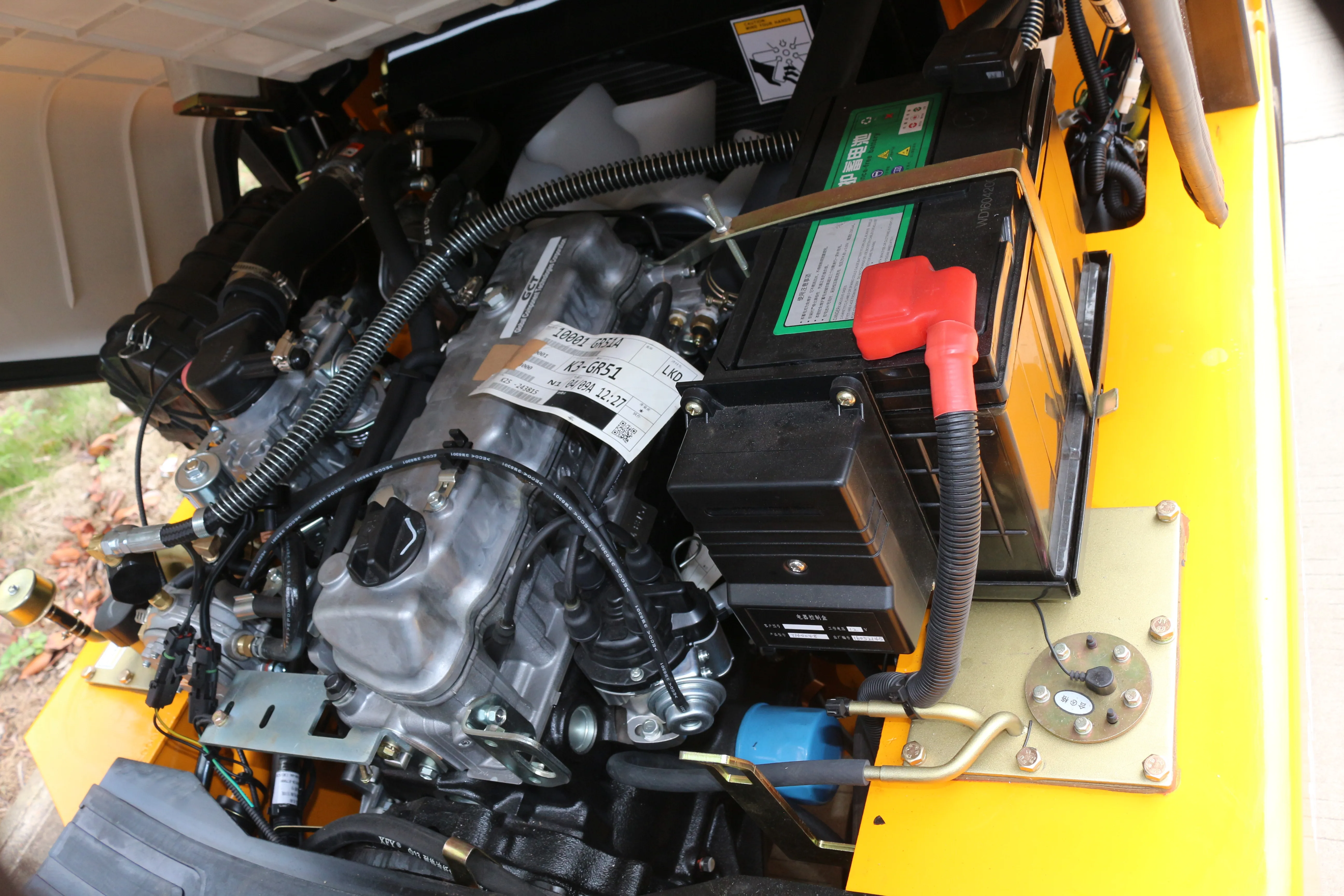

Power system
Equipped with Chinese powerful and reliable engines with excellent enviromental performance,original imported I-SUZU,M-itsubishi
and Y-anmar,C-ummins engine are optional
Equipped with Chinese powerful and reliable engines with excellent enviromental performance,original imported I-SUZU,M-itsubishi
and Y-anmar,C-ummins engine are optional

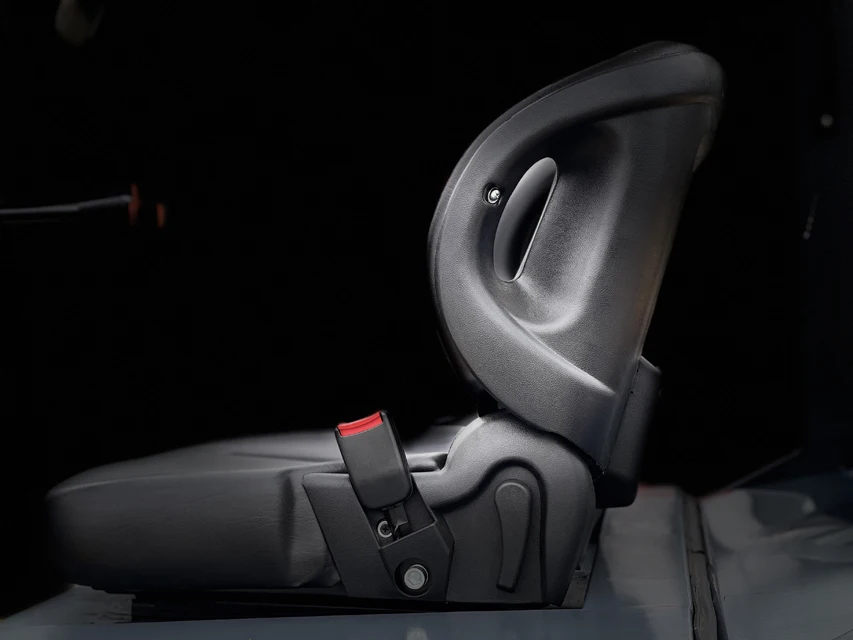

Security system
Equipped with OPS or ORS seat and brake switch to prevent incorrect operation and secure the driver and the forklift from all
sides.New T-oyota suspension system adiustable seat makes the long-time operating more comfortable reducing fatigue
Equipped with OPS or ORS seat and brake switch to prevent incorrect operation and secure the driver and the forklift from all
sides.New T-oyota suspension system adiustable seat makes the long-time operating more comfortable reducing fatigue
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Cheap high quality 3ton LPG gasoline forklifts with imported Japanese engine forklift
Specification
Model | FG20 | FG25 | FG30 | FG35 | ||||||||
Rated Capacity | kg | 2000 | 2500 | 3000 | 3500 | |||||||
Load Center | mm | 500 | ||||||||||
Power Type | gasoline | gasoline | gasoline | gasoline | ||||||||
Operating mode | Seated | |||||||||||
Lifting height | mm | 3000 | ||||||||||
Mast extended height(with backrest) | mm | 4030 | 4262 | |||||||||
Free lifting height | mm | 170 | 160 | 170 | ||||||||
Mast height | mm | 2000 | 2065 | 2180 | ||||||||
Height of shelving | mm | 1009 | 1242 | 1237 | ||||||||
Fork size | L x W x T | mm | 1070*100*40 | 1070*125*45 | 1070*125*50 | |||||||
Fork distance | mm | 1024/200 | 1060/250 | |||||||||
Mast tilt angle | F/R | deg | 6/12 | |||||||||
Forklift length(without fork) | mm | 2505 | 2575 | 2720 | 2750 | |||||||
Forklift length(with fork) | mm | 3575 | 3645 | 3790 | 3820 | |||||||
Overall width | mm | 1170（1590） | 1220（1750） | |||||||||
Overhead guard height | mm | 2070 | 2090 | |||||||||
Seat height | mm | 1010 | ||||||||||
Turning radius | outside | mm | 2170 | 2240 | 2500 | 2540 | ||||||
inside | mm | 160 | 200 | |||||||||
Front overhang | mm | 470 | 490 | |||||||||
Rear overhang | mm | 435 | 505 | 530 | 560 | |||||||
Minimum clearance of gantry | mm | 110 | 120 | |||||||||
Traction pin height | mm | 530 | 560 | |||||||||
Minimum width of right-angle turn channel | mm | 2210 | 2230 | 2430 | 2460 | |||||||
Basic right-angle stacking channel width RASA | mm | 3910 | 3980 | 4260 | 4300 | |||||||
Speed | Max.driving speed | full load | km/h | 18 | 20 | |||||||
no-load | km/h | 18.5 | 19.5 | |||||||||
Lifting | full load | mm/s | 490 | 470 | ||||||||
no-load | mm/s | 480 | 470 | |||||||||
Descending | full load | mm/s | 470 | 450 | ||||||||
no-load | mm/s | 450 | 420 | |||||||||
Max traction | full load | kN | 16.2 | 15.7 | 14.2 | 13.5 | ||||||
no-load | kN | 8.3 | 9.8 | 10.5 | ||||||||
Max grade ability | full load | % | 28 | 24 | 18 | 18 | ||||||
no-load | % | 20 | 18 | 20 | 17 | |||||||
Total weight | kg | 3165 | 3530 | 4255 | 4505 | |||||||
Tire | Quantity | F(*)/R | 2（4）/2 | |||||||||
Dimension | F | 7.00-12-12PR | 28X9-15-12PR | |||||||||
R | 6.00-9-10PR | 6.50-10-10PR | ||||||||||
Wheelbase | mm | 1600 | 1700 | |||||||||
Wheel track | F（*） | mm | 970（1190） | 1000（1260） | ||||||||
R | mm | 970 | 970 | |||||||||
model | Nissan K21 | Nissan K21 | Nissan K25 | Nissan K25 | ||||||||
Rated output/rpm | kW | 31.2/2250 | 31.2/2250 | 37.4/2300 | 37.4/2300 | |||||||
engine | Rated torque/rpm | N.m | 143.7/1600 | 143.7/1600 | 176.5/1600 | 176.5/1600 | ||||||
No.of Cylinder | 4 | |||||||||||
Displacement | cc | 2065 | 2065 | 2488 | 2488 | |||||||
Fuel tank capacity | L | 60 | ||||||||||
Transmission | Type | hydraulic | ||||||||||
Stage | FWD/RVS | 1-1 | ||||||||||
FAQ Chuan
1, Q: Why do you choose VMAX? A: We are stock listed company which can provide you quality and service.
2, Q: What about your quality? رافعة شوكية
A: Our parts is the top brand in China. And technology is from TCM.
3, Q: What is about your warranty?
A: One year or 2000 working hours which comes first. If during the warranty, we will send to you for free by courier.
1, Q: Why do you choose VMAX? A: We are stock listed company which can provide you quality and service.
2, Q: What about your quality? رافعة شوكية
A: Our parts is the top brand in China. And technology is from TCM.
3, Q: What is about your warranty?
A: One year or 2000 working hours which comes first. If during the warranty, we will send to you for free by courier.
4, Which is the port of yours?
A: Full container is to NANJING port. If LCL is to Shanghai port.
5, What about your delivery time?
A: Normally 25-30 days after receving the deposit.
6, What about your payment items?
A: 30% deposit by TT, 70% balance before shipment. We accept LC, OA, etc..
A: Full container is to NANJING port. If LCL is to Shanghai port.
5, What about your delivery time?
A: Normally 25-30 days after receving the deposit.
6, What about your payment items?
A: 30% deposit by TT, 70% balance before shipment. We accept LC, OA, etc..
