JCW CS10A 6mm2 Automatic bv copper wire cut strip bending machine CNC 3D wire bending
- Category: >>>
- Supplier: Qingdao Titan Lansheng Trading Co. Ltd.
Share on (1600905326101):
Product Overview
Description

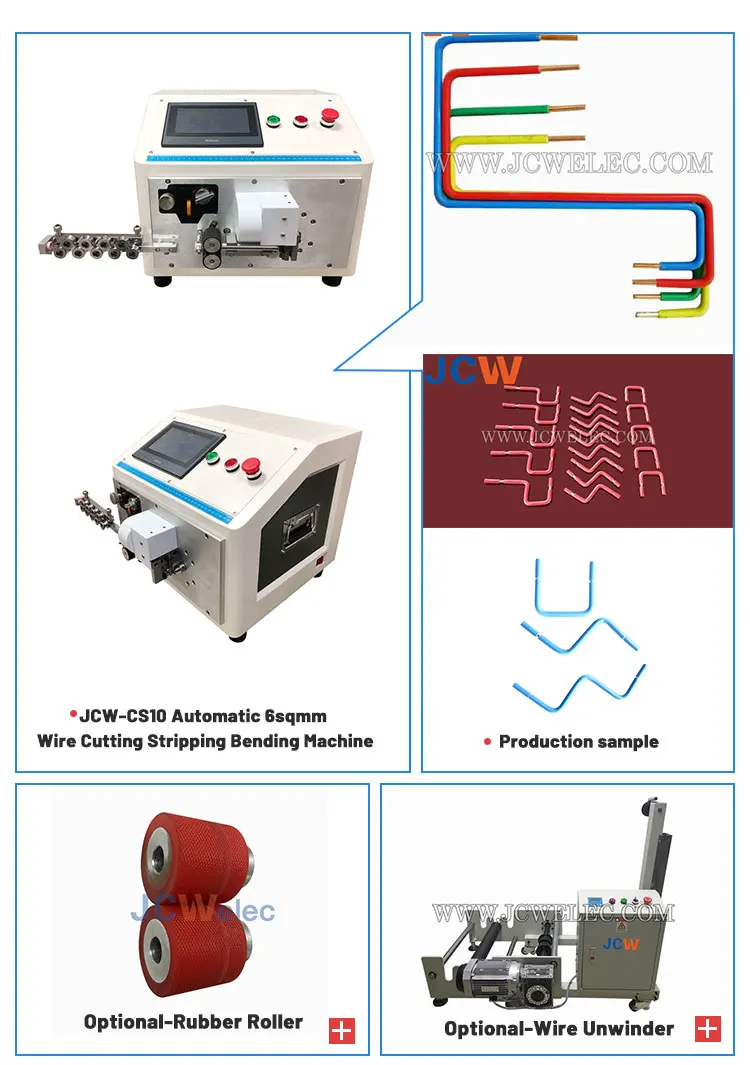

Model | JCW-CS10 Automatic 6SQ Cable Stripping Bending Machine |
Function | Single solid cable, cut into length, insulation stripping, bending |
Wire Range | 6sqmm |
Stripping Length | Right(front) side: 50mm |
Strip Length Increment | 0.1mm |
Cutting Length (L) | 0.1-9999mm |
Cutting Tolerance | 0.002 x L |

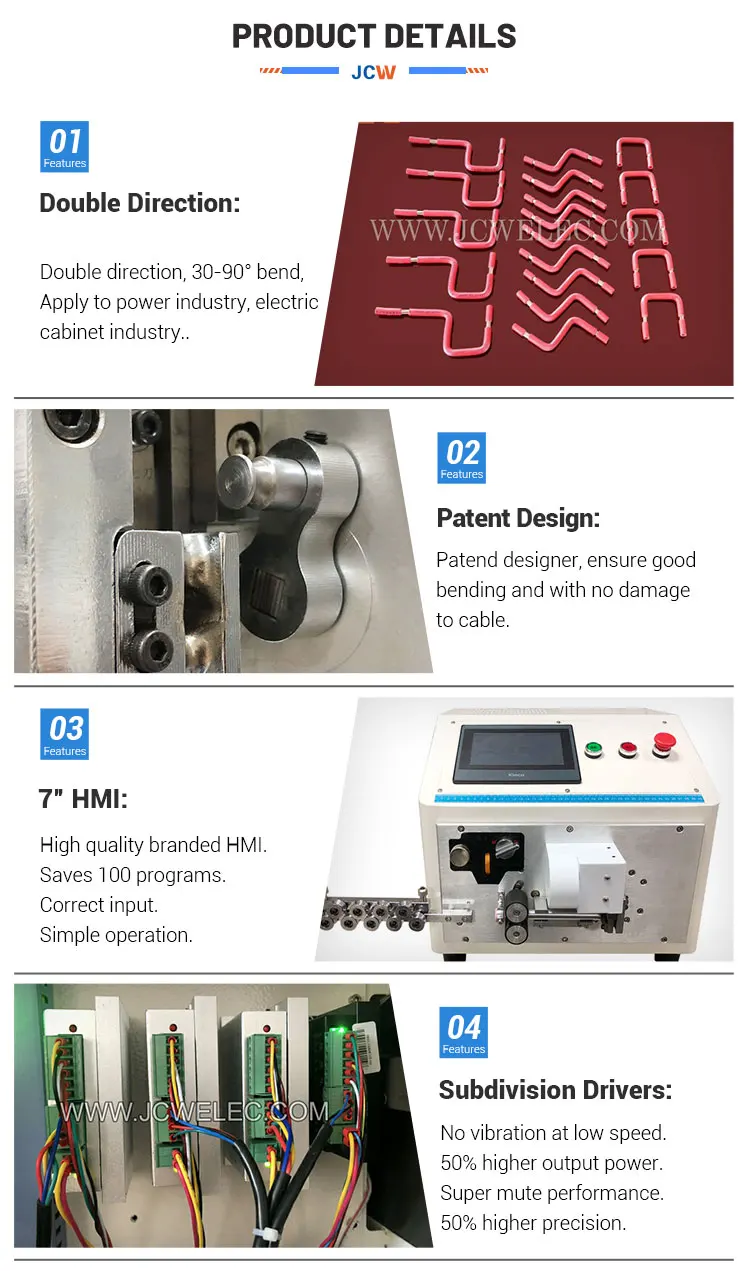

Bend Times | 16 |
Bend Angle | 30-90 |
Bend Direction | Clockwise & Anticlock |
Production Rate | 300-900 pcs/hr |
Display | LCD Touch Screen,English/Chinese |
Data Library | 100 programs |
Raw Material Type | PVC, PUR, Rubber, Teflon, Tefzel, Kapton, etc |
Drive | 4 Rollers |
Compressed Air Supply | 0.4-0.7MPa (clean and dry air) |
Power Supply | AC220V ,50/60Hz |
Weight | 50KG |
Dimensions (L x W x H) | 600 x 680 x 420mm |
CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
Q1: Are you a factory or a trading company?
A: We started trading 13 years ago and started production 10 years ago. Now we have complete production equipment and experienced team of engineers
. Q2: Do your products have CE certification?
A: We have formal CE certification, test report, and declaration of conformity. We have ISO9001:2015 certification as factory.
Q3: Can you customize the machine?
A: Yes, we can customize the machine according to your requirements, and we can also provide you with a complete set of wire harness production solution.
Q4: Can I get some samples?
A: We are honored to offer you samples to test and check quality. Customers should pay for the shipping freight. The samples’ leading time will be 7-10 days.
Q5: What's your delivery time?
A: It usually take 1-2 days for small orders and 10-15 days for big order.s
Q6: Do you have the products in stock?
A: Depends on your request, we have standard models in stock. Some special products and big orders will be newly produced by your requirements.
Q7: What's your warranty time?
A: We offers 12 months warranty time since.

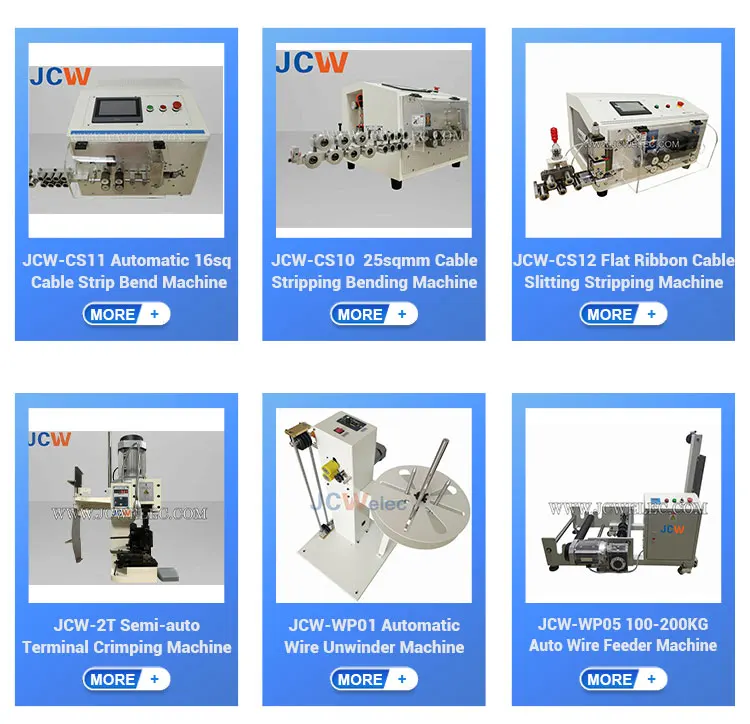

We Recommend
