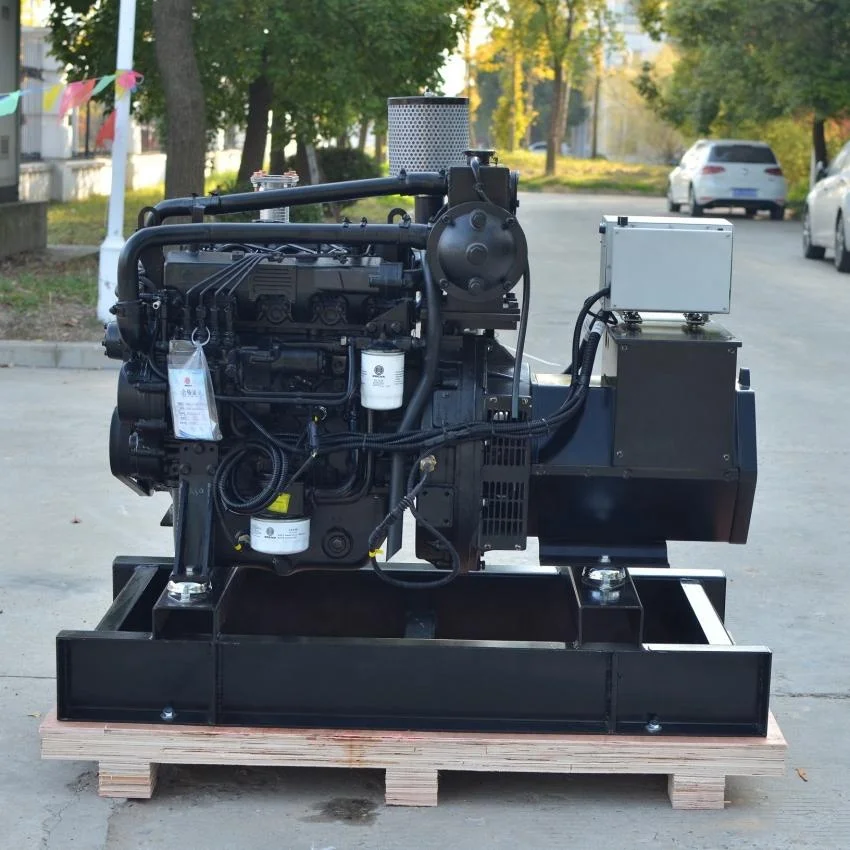

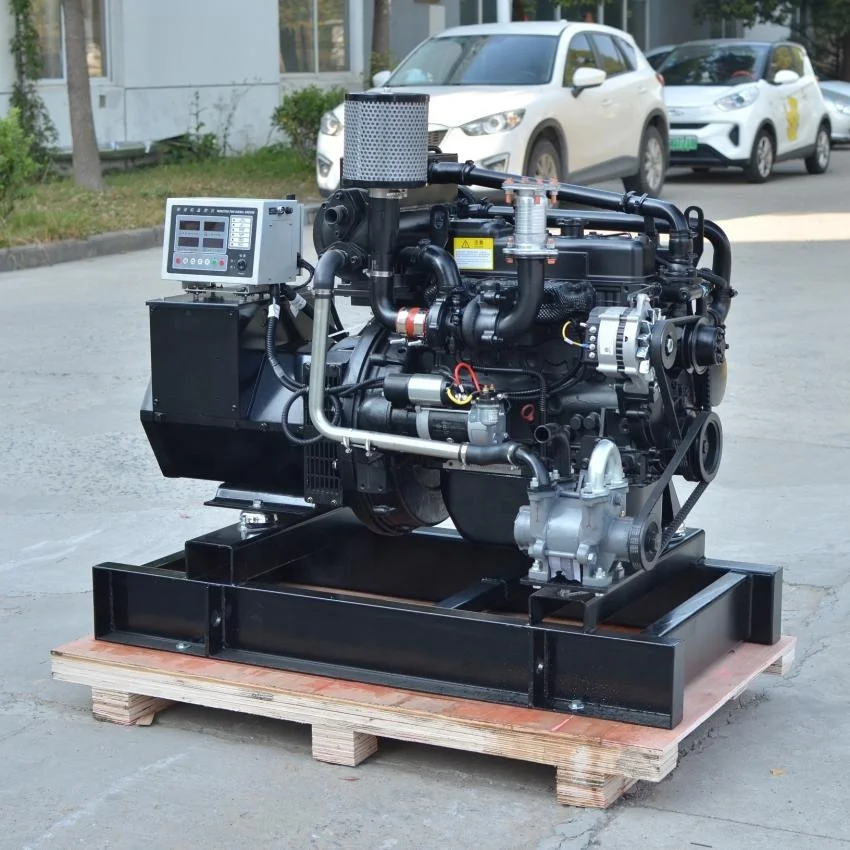

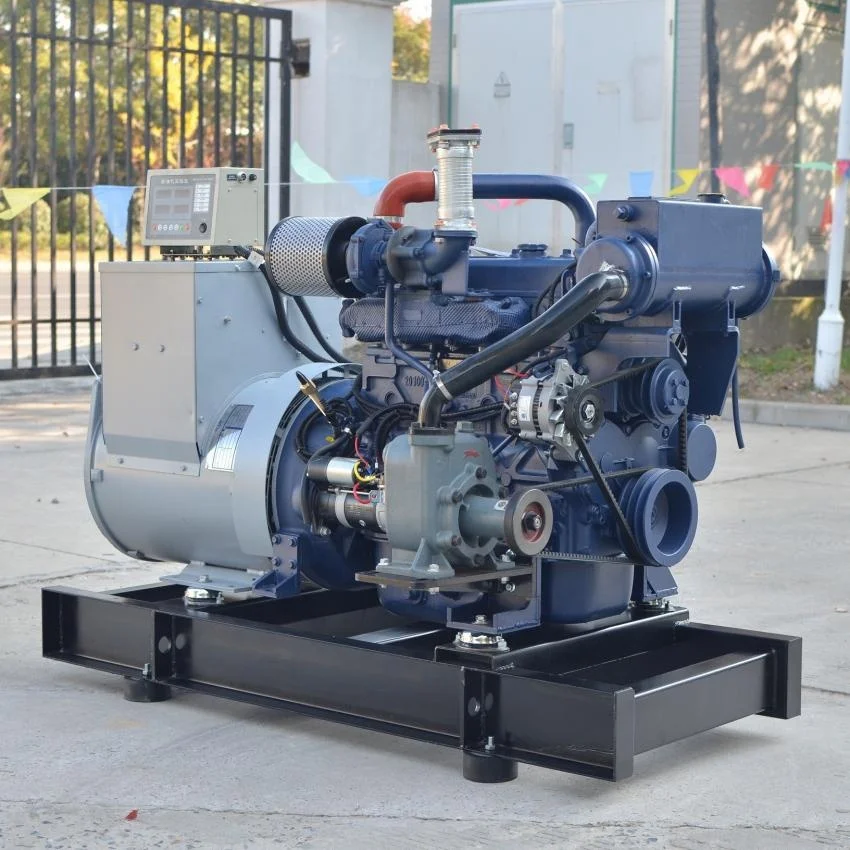

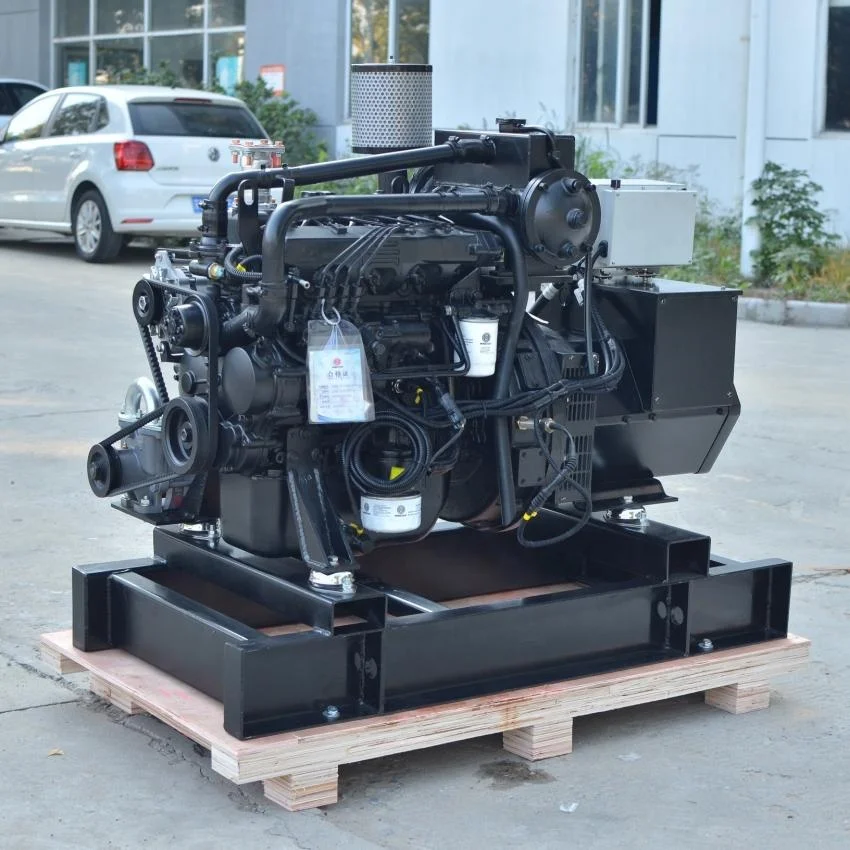

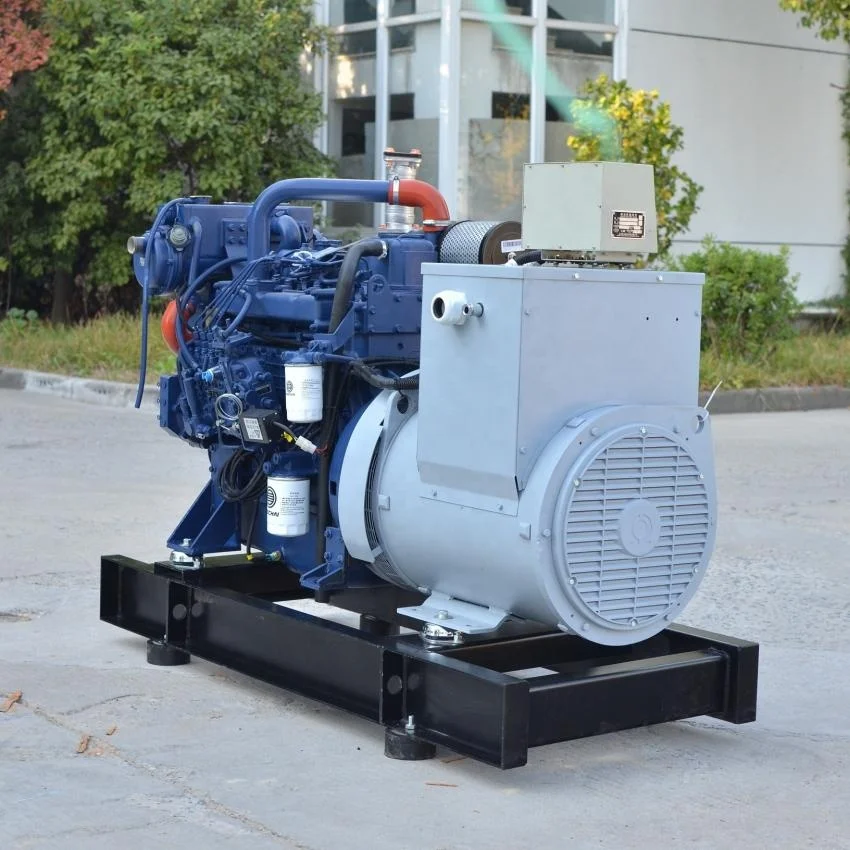

New CCS certificate 40KW marine diesel genset with Weichai engine WP4.1CD66E200

Product Overview

Description

Product Description

50HZ prime power 40KW marine diesel generator set with WeiChai engine WP4.1CD66E200.

Technical Specification

Model	Voltage	HZ	P.F (COS)	Standby power	Prime power	Net Weight
WP-CCFJ40JW	400V/230V	50	0.8	44 KW	40 KW	1000 kg

Prime power

This rating is for the supply of continuous electrical power (at variable load). There is no limit on the annual hours of operation and 10% overload power can be supplied for 1 hour in 12.

Standby power

This rating is for the supply of continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted.

General features:

n Every generator set is subjected to a comprehensive test program which includes 50% load, 75% load,100% load, 110% load and the checking and proving of all control and safety shut-down functions;

n 24V DC start motor;

n Equipped 24V high performance maintenance-free lead-acid starting batteries and connecting with cables;

n Equipped with industrial silencer and flexible exhaust hose;

n Designed to Comply with ISO8528/GB2820;

n Powered by Weichai engine, Stamford alternator and DeepSea/ComAp/SmartGen control panel

Parts Description

There are 4 cylinders in line
	Control panel: DeepSea/ComAp/SmartGen Relay brand: Siemens APT Connect: Engine+Alternator-Terminal-Control panel Key+Emergency stop+Light: Famous brand, perfect quality

Engine Spec

Engine model	WP4.1CD66E200
Engine manufacturer	Weichai
Number of Cylinders	4 Cylinders in line
Cycle	4 Stroke
Aspiration	Turbocharged
Bore×Stroke	105mm x 118mm
Displacement	4.09 L
Coolant Capacity for engine	5 L
Prime Power	60 KW
Standby Power	66 KW
Steady speed droop	≤1%
Voltage	400V
Lube Capacity	8 L
Fuel Consumption	212 g/kw.h
Starter Motor	DC24V,
Alternator	DC24V

Alternator Spec

Alternator model	Stamford/Marathon/Wellpower
Prime power	40 KW
Frequency/speed	50HZ/1500RPM
Exciter type	Single bearing, Brushless, Self-excited
Power factor	0.8
Voltage adjust range	≥5%
Voltage regulation NL-FL	≤±1%
Insulation Grade	H
Protection Grade	IP23
Phase	Three Phase

Control Panel

Model	ED211/HGM6110NC
The control module gives digital readouts of:	Generator voltage; Output frequency; Engine speed; Battery voltage; Engine hours run.
The control module has indicators for failure information:	Over speed / under speed, Emergency stop Low oil pressure; High water temperature Failure to start Battery charger failure
Automatic shutdown occurs under:	Low engine oil pressure; High engine water temperature; Over speed/ under speed; Failure to start after three attempts
