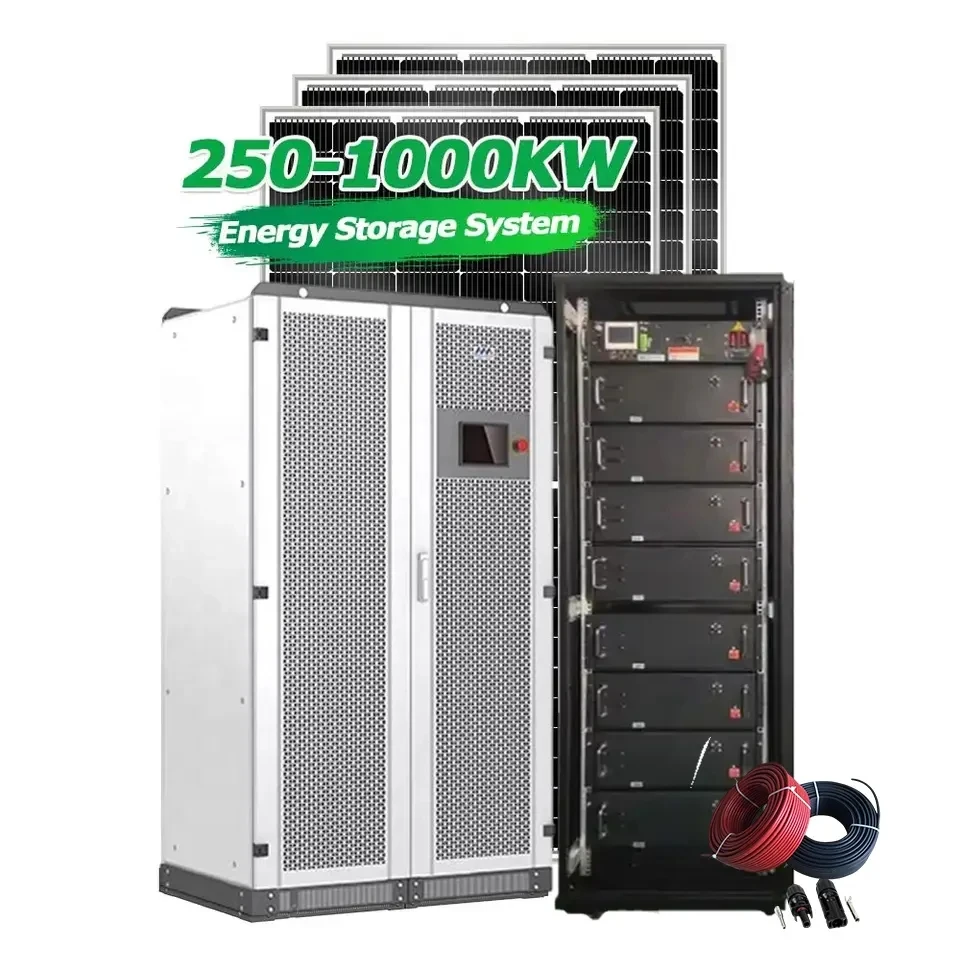

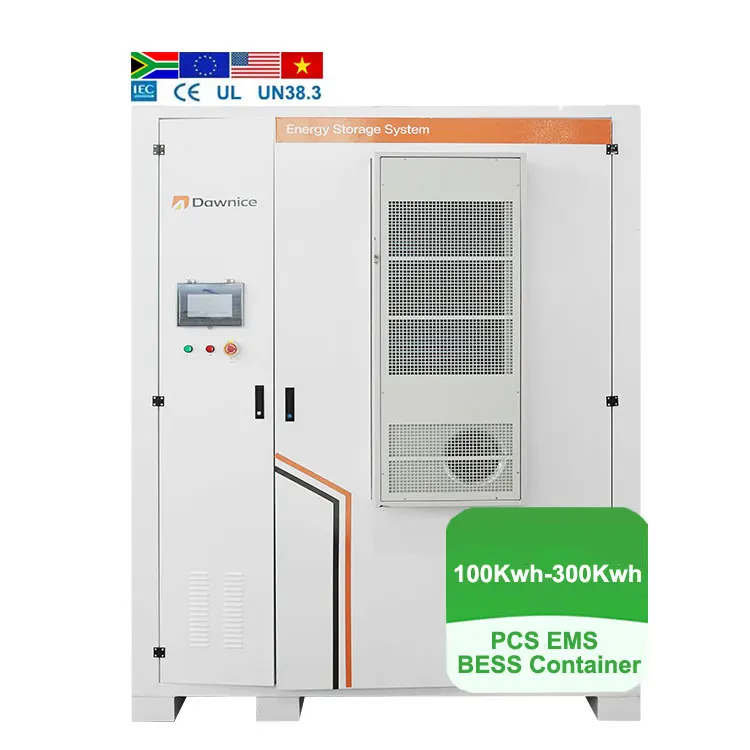

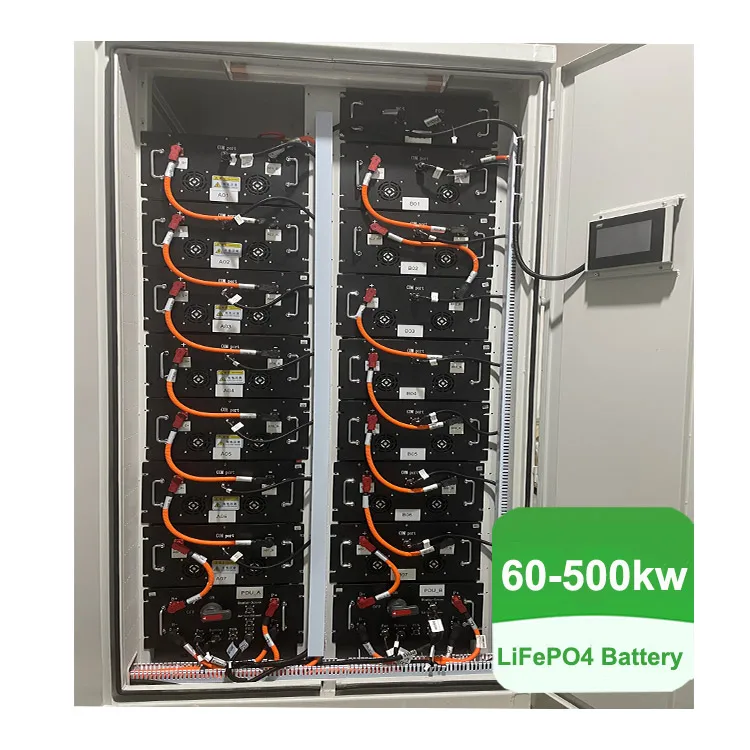

ESS solar battery 400kw 400 kwh 800kw 500kwh 500kw 600kwh back container lithium ion battery 1000kwh for energy storage
- Category: >>>
- Supplier: Yichun Enten Science And Technology Co. Ltd.
Share on (1600905827620):
Product Overview
Description
Products Description
Type of core | 100kwh-500kwh Lithium iron phosphate | ||||||||||||
Rated energy(KWH) | 22 | 44 | 40 | 80 | 120 | 200 | 400 | ||||||
Nominal capacity (AH) | 100 | 200 | 100 | 200 | 300 | 500 | 1000 | ||||||
Nominal voltage(VDC) | 220.8 | 384 | 384 | ||||||||||
Operating voltage range(VDC) | 179~259 | 312~450 | 312~450 | ||||||||||
Recommended Charge Voltage(VDC) | 242 | 420 | 420 | ||||||||||
Recommended discharge cutoff voltage(VDC) | 210 | 366 | 366 | ||||||||||
Standard charging current (A) | 50 | 100 | 50 | 100 | 150 | 250 | 500 | ||||||
Maximum continuous charge current(A) | 100 | 200 | 100 | 200 | 300 | 500 | 1000 | ||||||
Standard discharge current (A) | 50 | 100 | 50 | 100 | 150 | 250 | 500 | ||||||
Maximum continuous discharge current(A) | 100 | 200 | 100 | 200 | 300 | 500 | 1000 | ||||||
Working temperature | -20~65℃ | ||||||||||||
Communication interface | RS485/CAN two choose one | ||||||||||||
Reference Weight (Kg) | 300 | 600 | 470 | 940 | 1410 | 500 | 1000 | ||||||
Reference size(D*W*Hmm) | 530*650*1180 | 625*550*1810 | 530*550*1810 | (625*550*2040)*2 | 530*550*2020*3 | 530*550*2020*5 | (625*550*1600)*10 | ||||||
Products Description
➽ Rated Electric Quantity: 100-800kWh.
➽ Cycle Life: 8000 Times (20~95%SOC, 25±5℃).
➽Charging Temperature: 0℃~55℃.
➽ Discharge Temperature: -20℃~55℃.
➽ System Operating Voltage: 460V~570V.
➽ Continuous Charge And
Discharge Current; 0.5C/1C.
Discharge Current; 0.5C/1C.
Our advantages :
1. Cells : A grade full new quality prismatic cells. with original QR codes ,never use second hand cells. (Cells brand: REPT,GANFENG ,LISHEN ,GOTION). With 10-15 years typical lifespan.
1. Cells : A grade full new quality prismatic cells. with original QR codes ,never use second hand cells. (Cells brand: REPT,GANFENG ,LISHEN ,GOTION). With 10-15 years typical lifespan.
2. Protection : Each battery built-in BMS -- Battery Management System.
3. Communication port : RS485/RS232/CAN,
4. Compatible : All hybrid and off grid inverter (Except Huawei, all inverters on the market can be make compatible by our engineer. only need to provide the inverter communication protocol)
5. Warranty : 5years. For long term cooperation customer, we can up to 10 years.
6. Maintenance free & Low self discharge & Fast & efficient charging.
7. Free cables + paper version user manual.

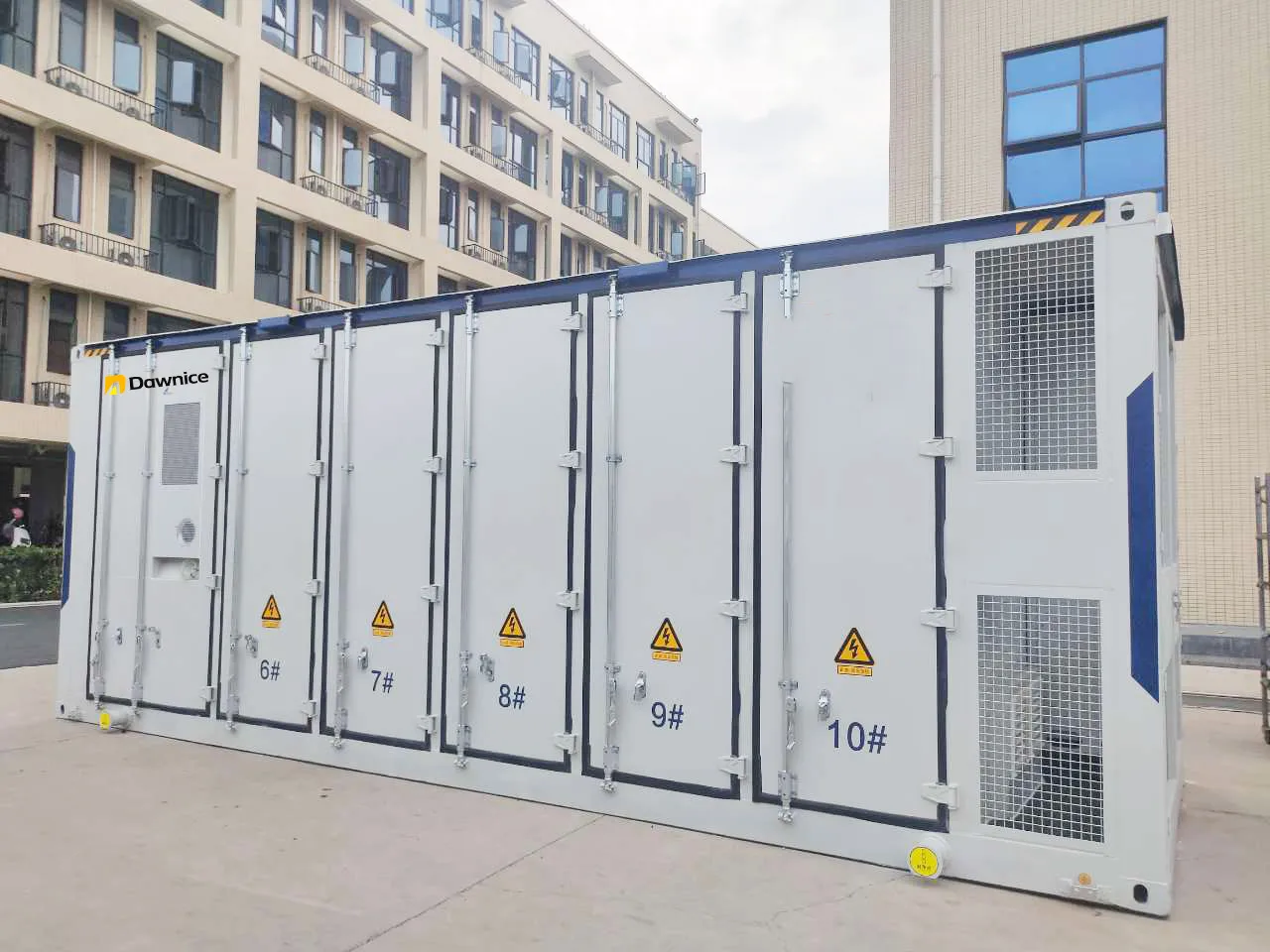

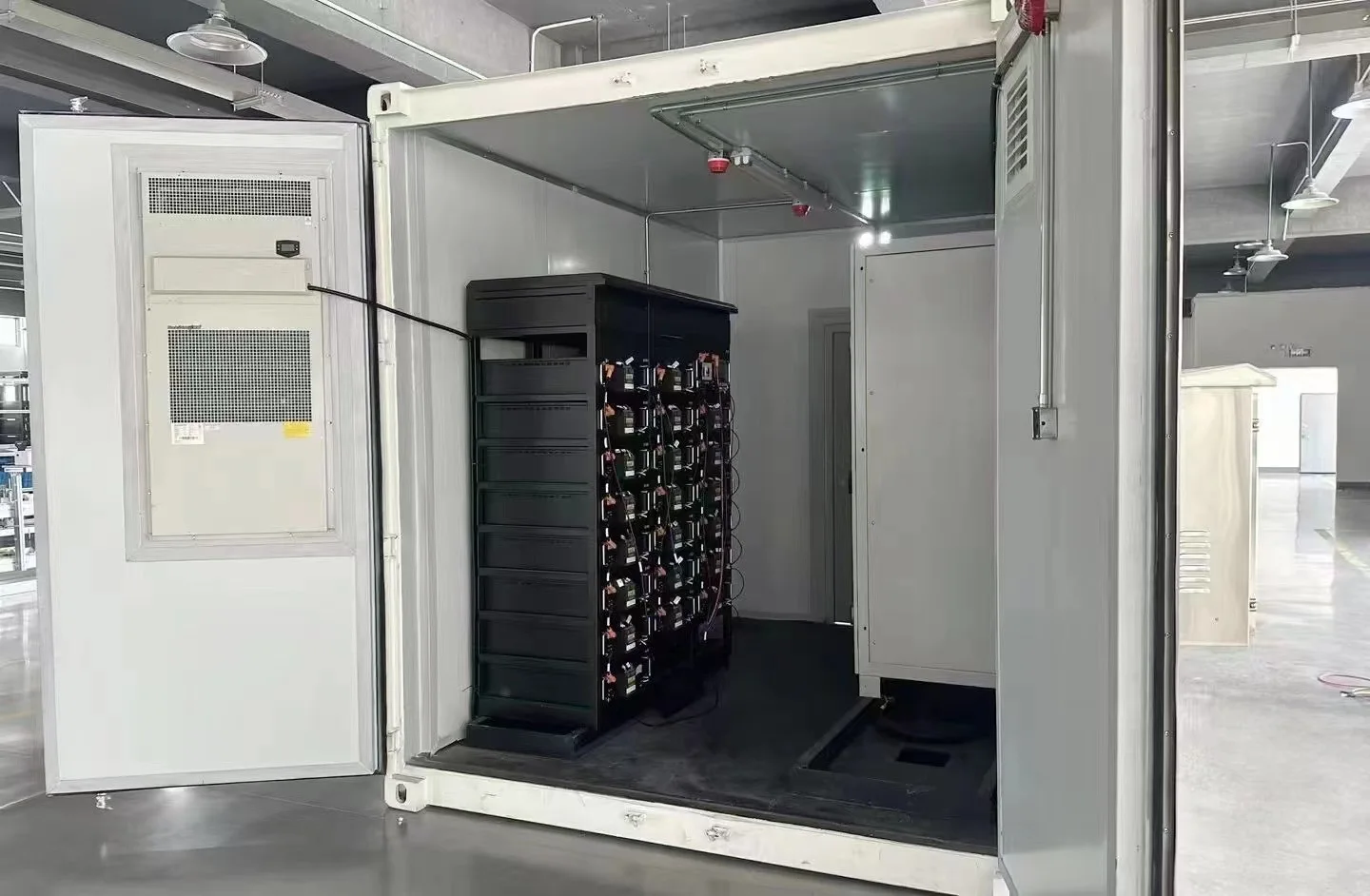

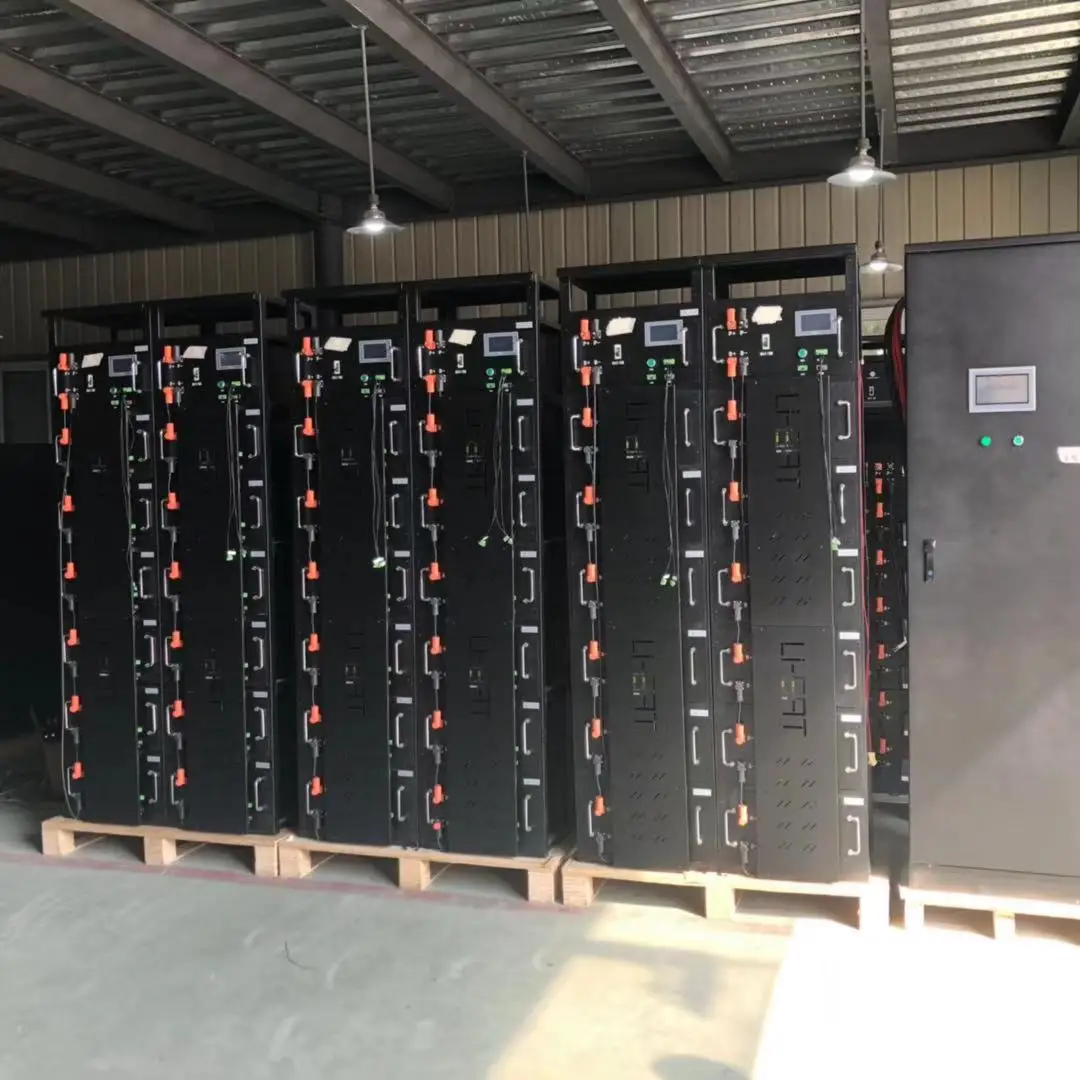

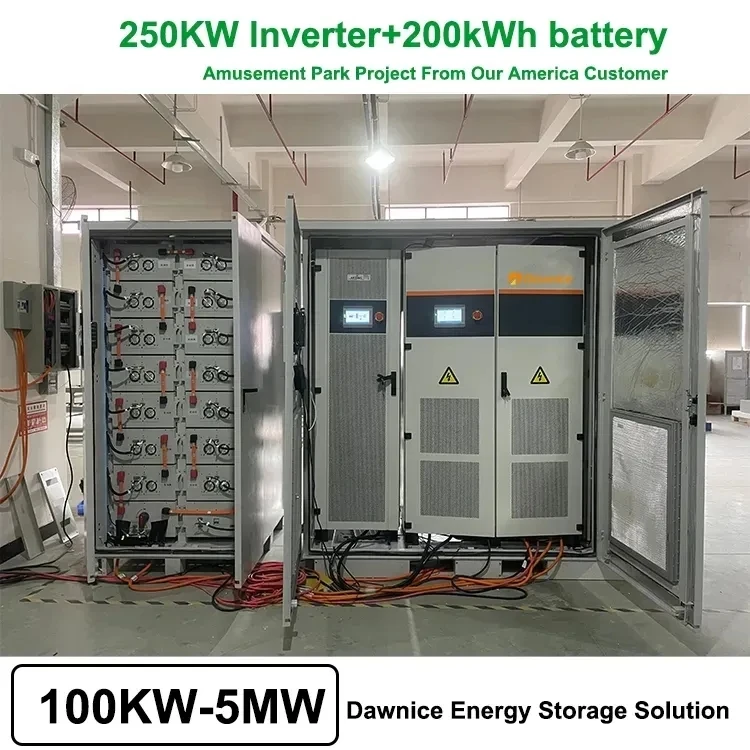

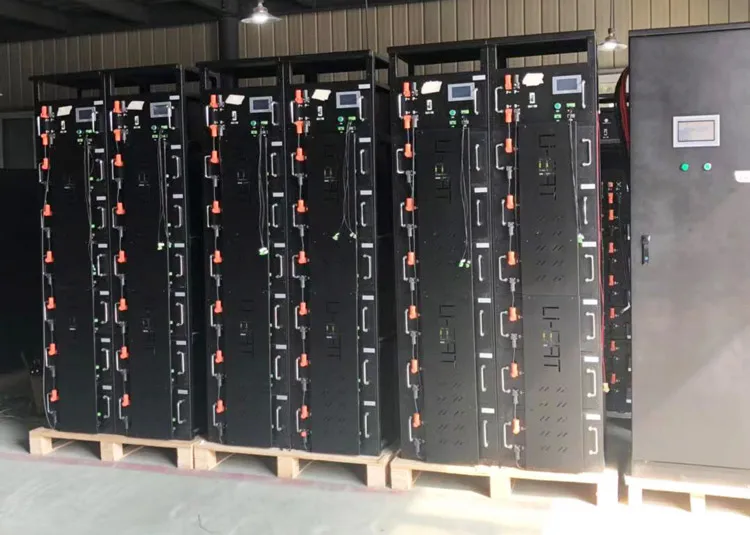

Application project
Company Profile
Dawnice factory was established in 2009, with 30 product patent certificates, specializing in BESS, ENERGY STORAGE BATTERY , solar energy systems. We are committed to providing one-stop energy solutions including energy supply, energy management and energy storage to global customers. Supply to more than 50 traders, and export to the United States, Canada,Germany, Australia, Lebanon, the Philippines and other countries. In 2021, we established the Dawnice team - dedicated to serving overseas countries.
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available.
Q3. How do you ship the goods since they are high capacity battery?
A: We have long-term cooperated forwarders who are professional at battery shipment.
Q4. How to proceed an order for lithium ion battery?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Q5. Do you offer guarantee for the products?
A: Yes, our products have a 12 months warranty period. If there is any quality problem in the process of using the product, please
feel free to contact us.
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available.
Q3. How do you ship the goods since they are high capacity battery?
A: We have long-term cooperated forwarders who are professional at battery shipment.
Q4. How to proceed an order for lithium ion battery?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Q5. Do you offer guarantee for the products?
A: Yes, our products have a 12 months warranty period. If there is any quality problem in the process of using the product, please
feel free to contact us.
