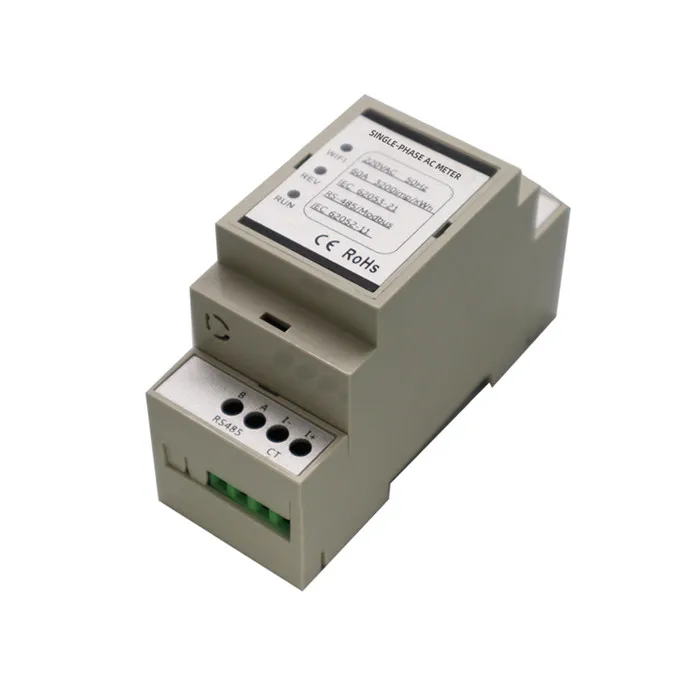

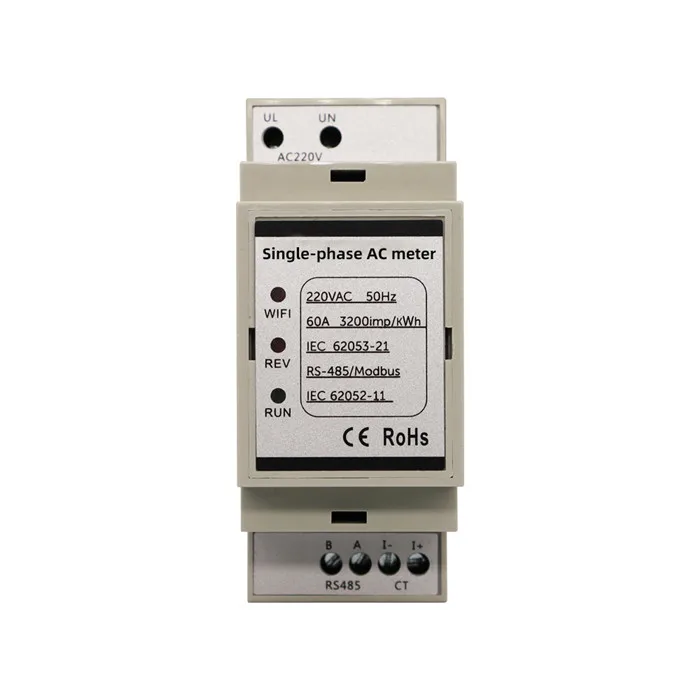

Overview:
JSY-149 Din rail single-phase AC smart electric energy meter highly integrates measurement and digital communication technology, capable of measuring, collecting and transmitting single-phase AC electrical parameters. It can accurately measure single-phase AC electrical parameters such as voltage, current, power, forward and reverse electrical quantities and total electrical quantities. With 1 RS-485 communication interface, MODBUS-RTU protocol, with excellent cost-effectiveness.
JSY-149 can be widely used in energy-saving renovation, power, communication, railway, transportation, environmental protection, petrochemical, steel and other industries, for remote monitoring of the current and power consumption of AC equipment.
Features:
1. Collect single-phase AC electrical parameters such as voltage, current, power and electric quantity etc.
2. Adopting dedicated measuring chips and effective value measurement methods, with high measurement accuracy.
3. With 1 RS-485 communication interface.
4. Standard Modbus-RTU communication protocol, which has good compatibility and is convenient for programming.
5. RS-485 communication interface with ESD protection circuit.
6. Wide working voltage AC80~265V, with anti reverse-wiring protection function, connecting the reverse power supply will not damage the module.
7. High isolation voltage, withstand voltage up to DC2000V.
Specifications:

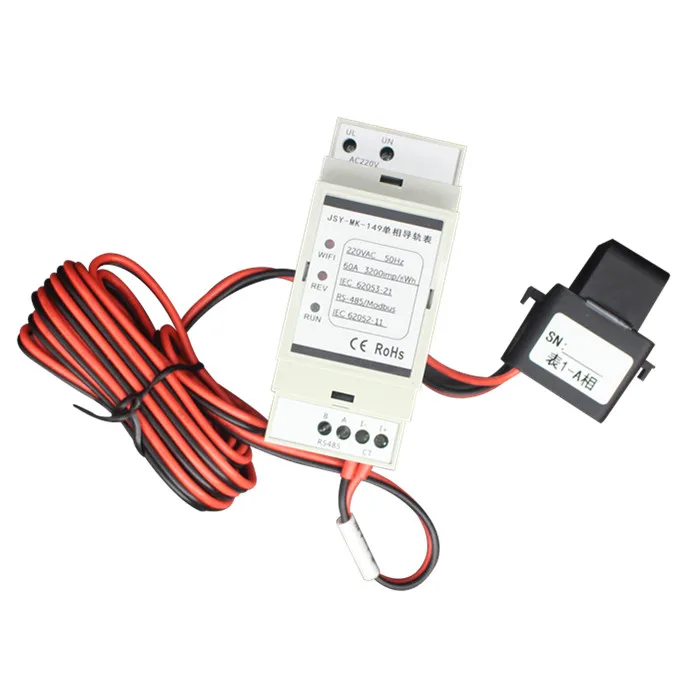

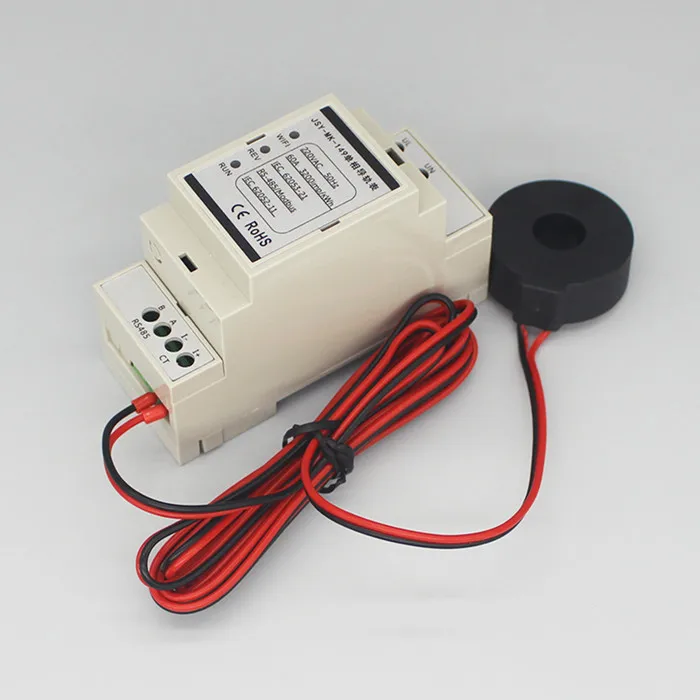

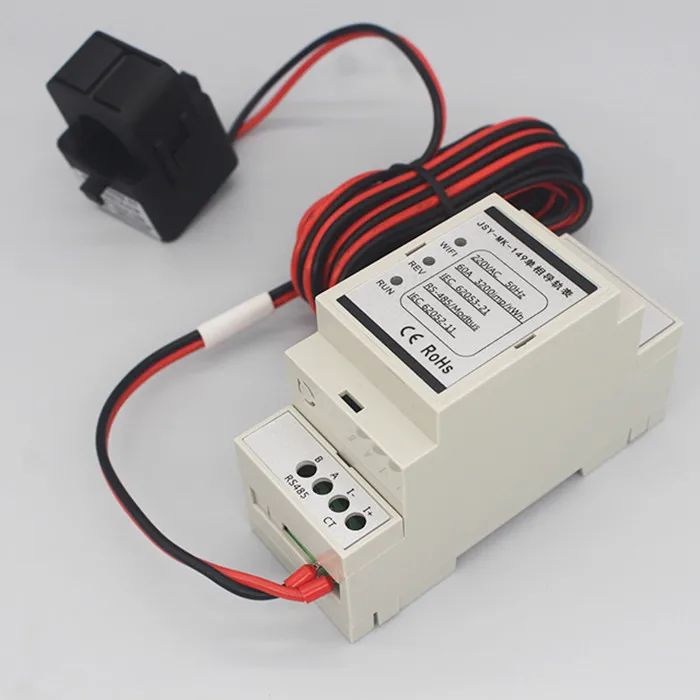

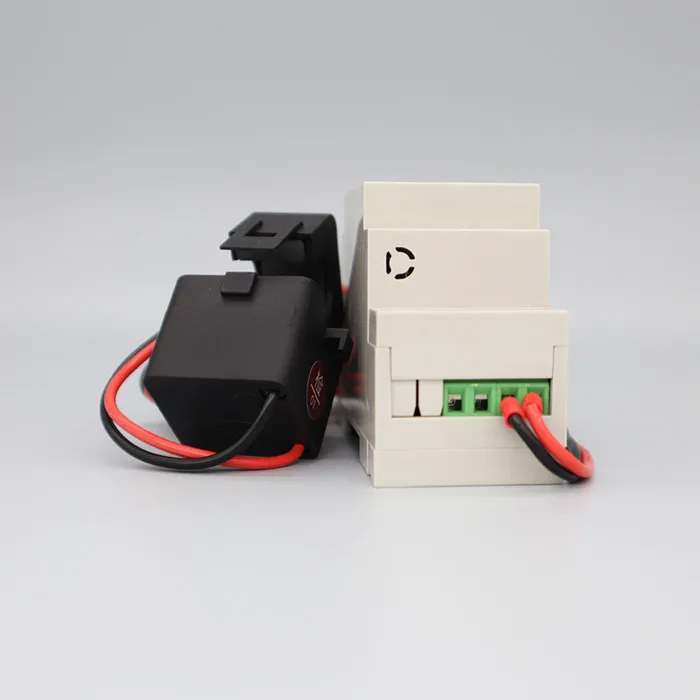

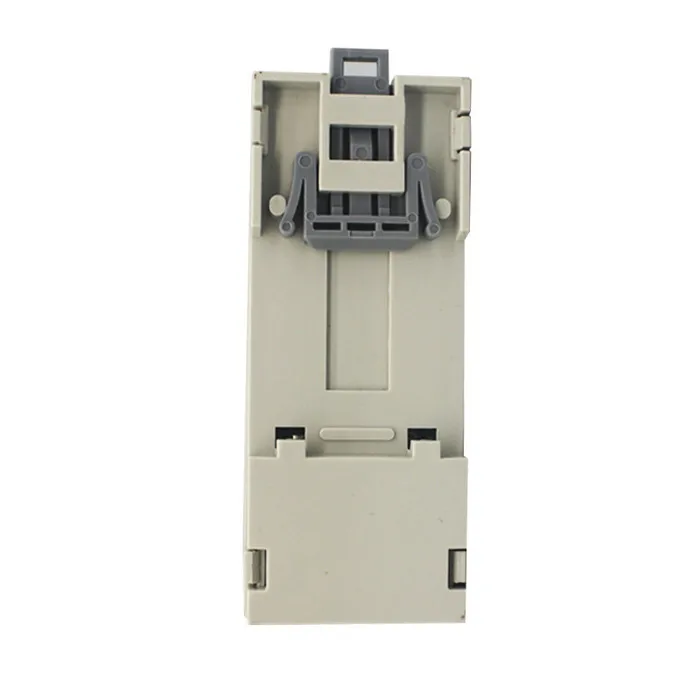

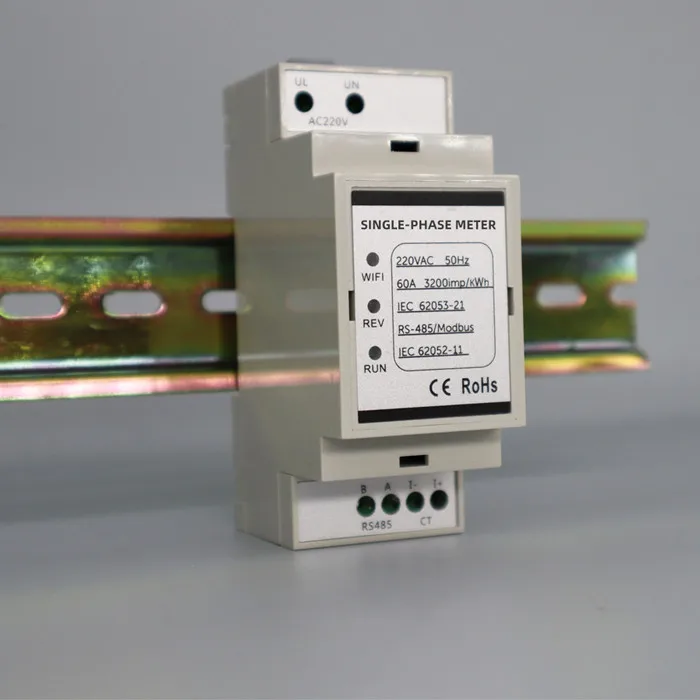

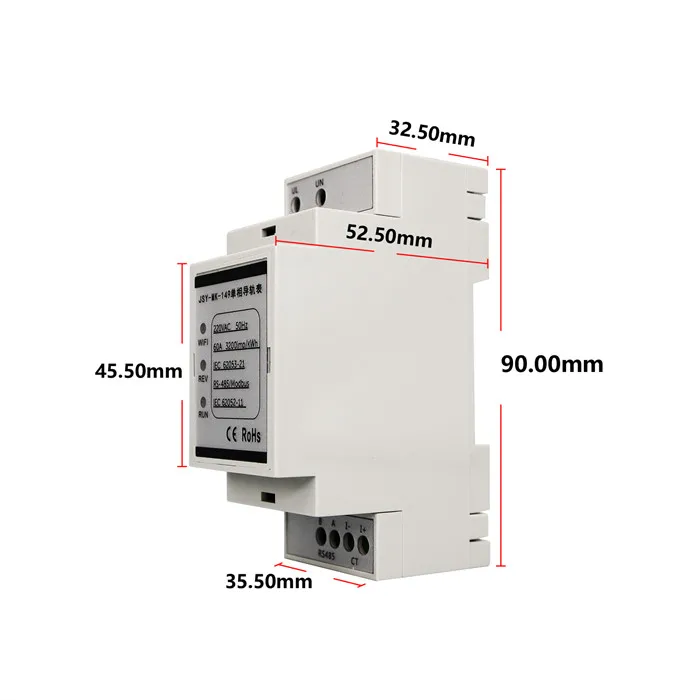

Product Model | JSY-MK-149 | |
Single-phase AC Input | Voltage Measuring Range | 100V, 220V, etc. optional |
Current Measuring Range | 50A, 100A, 150A and external split-core current transformer optional. | |
Signal Processing | Adopting dedicated measuring chip with 24 bit AD sampling. | |
Overload Capacity | Current 1.2 times measuring range is sustainable. Instantaneous(<20mS) current 5 times, voltage 1.2 times, measuring range will not be damaged. | |
Input Impedance | Voltage channel>1KΩ/V, Current channel ≤ 100mΩ | |
Communication Interface | Interface Type | 1 RS-485 interface |
WiFi Module | Optional | |
Communication Protocol | MODBUS-RTU protocol | |
Data Format | "n, 8,1" | |
Communication Rate | RS485 Baud can be set to 1200, 2400, 4800, 9600Bps, the default Baud 9600bps. | |
Communication Data | Electrical parameters such as voltage, current, power, energy and power factor etc., as shown in the Mdobus Data Register list. | |
Measurement Accuracy | Voltage, current: ± 1.0%; Active power level 1 | |
Power Supply | 100V, 220V optional, voltage line 100V-220V | |
When powered by AC220V, the peak voltage shall not exceed 265V, typical power consumption: ≤ 2W | ||
Isolation | RS-485 interface isolated from power supply, voltage input and current input. Isolation withstand voltage 2000VDC. | |
Working Environment | Working Temperature | -20~70 ℃ |
Storage Temperature | -40~85 ℃ | |
Relative Humidity | 5-95%, no condensation (at 40 ℃) | |
Altitude | 0-3000 meters | |
Environment | No explosions, corrosive gases or conductive dust, no significant shaking, vibration or impact. | |
Temperature Drift | ≤ 100ppm/℃ | |
Installation Method | 2P Din rail | |
Module Size | 100x36x58mm | |
