European Standard A R290 Heating Cooling Hot Water Heater Inverter Air Source Heat Pump
- Category: >>>
- Supplier: Foshan Airosd Thermal Technology Co. Ltd.
Share on (1600905852274):
Product Overview
Description
Full DC EVI Inverter Heating & Cooling & DHW 3 in 1 Heat Pump
1.Full DC inverter monoblock
2.ECO- friendly R290 refrigerant
3.Panasonic EVI compressor
4.Working ambient temperature down to -25℃
5.Automatic defrosting function
6.In-built plate heat exchange,flow switch
7.In-built auxiliary heat source signal
8.Controller with WIFI to realize APP remote setting
9.Convenient for installation and maintenance
10.Heating + cooling + water heater 3 in 1
OPTIONAL:
Galvanized metal cabinet or stainless steel cabinet.
Refrigerant: R32 and R290 and R410a is possible.
2.ECO- friendly R290 refrigerant
3.Panasonic EVI compressor
4.Working ambient temperature down to -25℃
5.Automatic defrosting function
6.In-built plate heat exchange,flow switch
7.In-built auxiliary heat source signal
8.Controller with WIFI to realize APP remote setting
9.Convenient for installation and maintenance
10.Heating + cooling + water heater 3 in 1
OPTIONAL:
Galvanized metal cabinet or stainless steel cabinet.
Refrigerant: R32 and R290 and R410a is possible.
Model | QBKFXFC-016SBI | ||||
Heating capacity range | kW | 6.5～18.0 | |||
DHW heating capacity | Heating capacity | kW | 18 | ||
Water yield | L/H | 387 | |||
Input power | kW | 4.14 | |||
COP | / | 4.35 | |||
Operating current | A | 18.5 | |||
Heating capacity | kW | 16 | |||
Input power | kW | 3.53 | |||
COP | / | 4.53 | |||
Operating current | A | 15.8 | |||
Heating capacity | kW | 16 | |||
Input power | kW | 4.38 | |||
COP | / | 3.65 | |||
Operating current | A | 19.6 | |||
Cooling capacity | kW | 14 | |||
Input power | kW | 4.46 | |||
EER | / | 3.14 | |||
Operating current | A | 20.0 | |||
A7W55 | / | 16.0/2.98 | |||
A-7W35 | / | 12.8/3.25 | |||
A-7W45 | / | 13.1/2.72 | |||
A-7W55 | / | 13.1/2.25 | |||
A-15W35 | / | 10.5/2.71 | |||
A-15W45 | / | 10.5/2.28 | |||
A-15W55 | / | 10.6/1.95 | |||
ERP(35℃) | / | A+++ | |||
ERP(55℃) | / | A++ | |||
Operating current | A | 32 | |||
Maximum input power | kW | 7.7 | |||
Power supply | V/Hz | 220V-240/50Hz | |||
Ambient temp. range | ℃ | -30～45 | |||
Refrigerant type | -- | R290 | |||
Compressor | Type | / | DC inverter twin rotary | ||
Brand | / | Panasonic/GMCC | |||
Throttling components | / | Electronic expansion valve | |||
Air side heat exchanger | / | Hydrophilic aluminum foil fin heat exchanger | |||
Air out type | / | Side | |||
Fan type | / | Low noise axial fan | |||
Fan motor | Type | / | Brushless DC motor | ||
Brand | / | NIDEC / SiGe | |||
Number | / | 2 | |||
Water side heat exchanger | / | Plate heat exchanger | |||
Brand of water side heat exchanger | / | Feng Huang | |||
Temperature range of heating water outlet | ℃ | 25~70 | |||
Temperature range of cooling water outlet | ℃ | 5~25 | |||
Temperature range of domestic hot water | ℃ | 40~65 | |||
Water port size | / | G1.0 Internal thead(DN25) | |||
Water yield | m³/h | 3.10 | |||
Water side pressure loss | kPa | 35 | |||
Expansion tank capacity | L | 5 | |||
Noise | dB(A) | ≤56 | |||
Unit dimension (W×D×H) | mm | 1040×445×1350 | |||
Packing dimension (W×D×H) | mm | 1130*495*1470 | |||
N.W. | kg | 120 | |||
G.W. | kg | 130 | |||

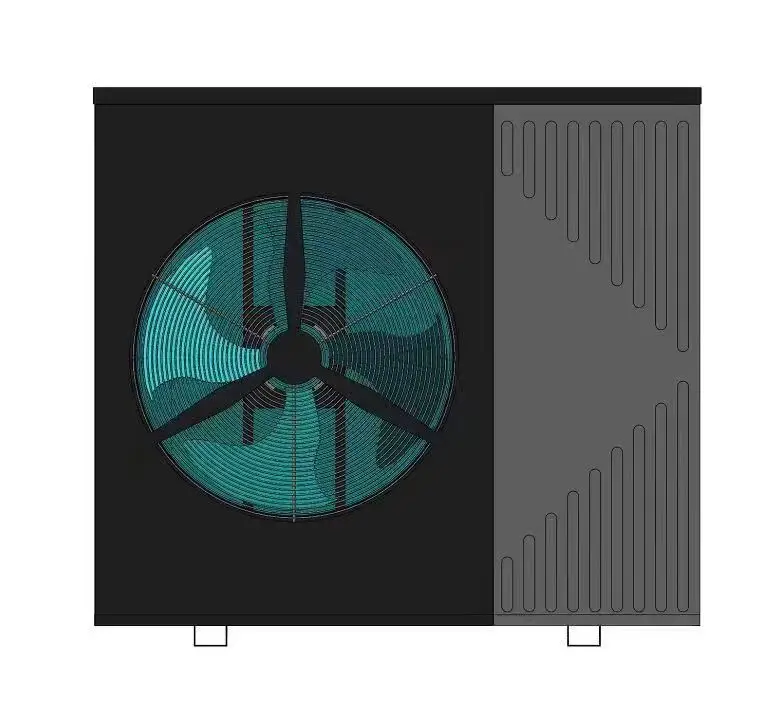

Dimension outline drawing
Installation spacing diagram
Hot products
FAQ
Q: Are you heat pump supplier of trading company or manufacturer ?
A: We are a manufacturer of R&D and production heat pumps which is located in Foshan city, Guangdong province of china. We can provide different kinds of heat pumps as you need, such as EVI inverter heat pump, DC inverter heat pump and swimming pool heat pump ect.. We also can provide OEM/ODM services.
Q: How long is the product lifespan?
A: In general, with proper maintenance, its lifespan can last up to more than 15 years.
Q: If the temperature drops below zero, will the air source heat pump still work?
A: Yes, AIROSD Air Source heat pumps with EVI technology can operate high efficiently when the temperature downs to -30°C.
Q: What is the benefits of air source heat pumps?
A: One Bill : Air source heat pump runs on electricity, so there's no need to pay for gas, oil or solid fuels to heat your house. You eliminate the standing charge for mains gas supply, delivery charge for oil and solid fuel, etc. .
Save space : Air source heat pump system is compact, and requires no storage space for fuel.
Energy Saving : Air source heat pump can make energy saving up to 75% than traditional electrical water heater.
Save space : Air source heat pump system is compact, and requires no storage space for fuel.
Energy Saving : Air source heat pump can make energy saving up to 75% than traditional electrical water heater.
