New Design TYD01 01 Lab Metering Pump High Precision Syringe Pump
- Category: >>>
- Supplier: Baoding Lead Fluid Technology Co. Ltd.
Share on (1600905863359):
Product Overview
Description

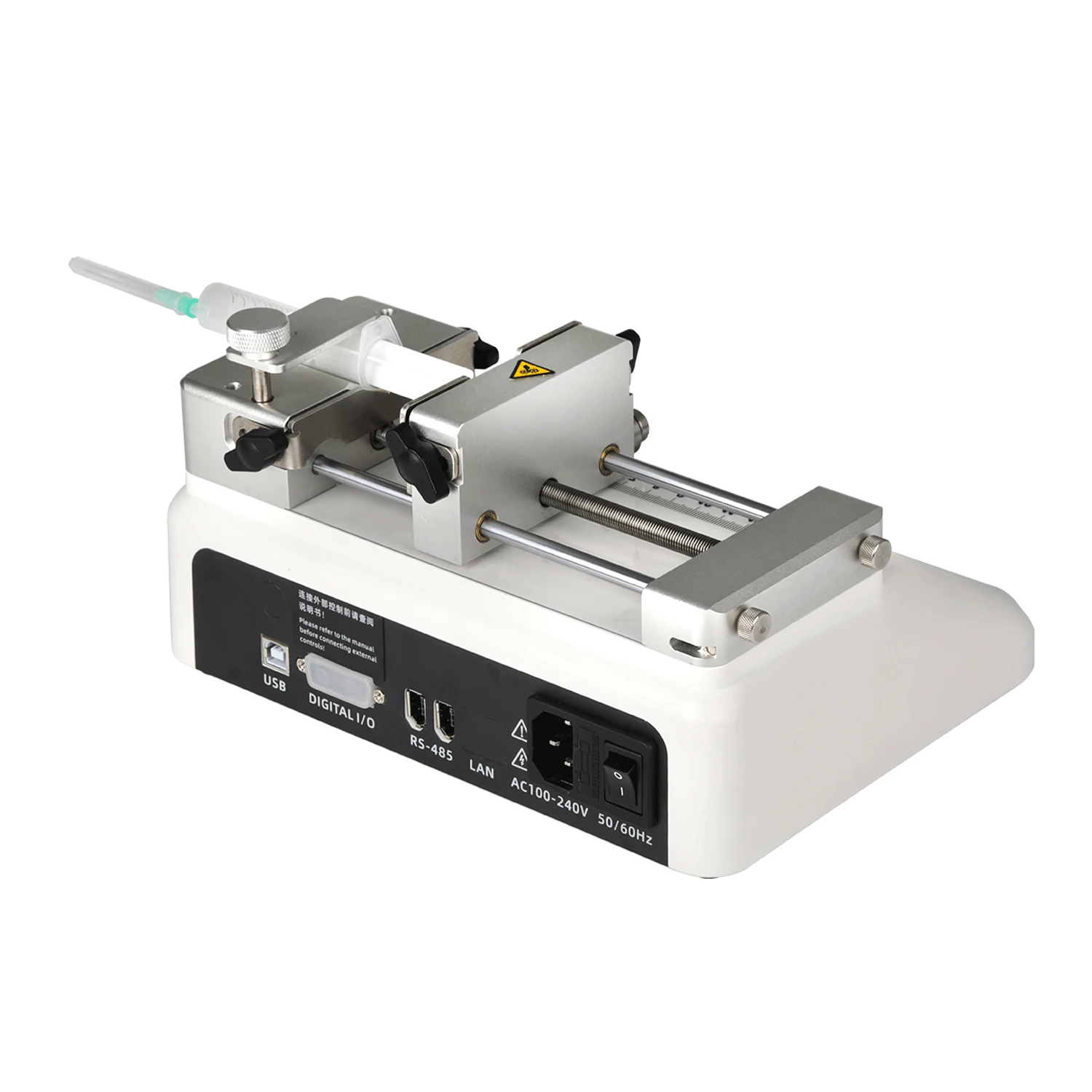

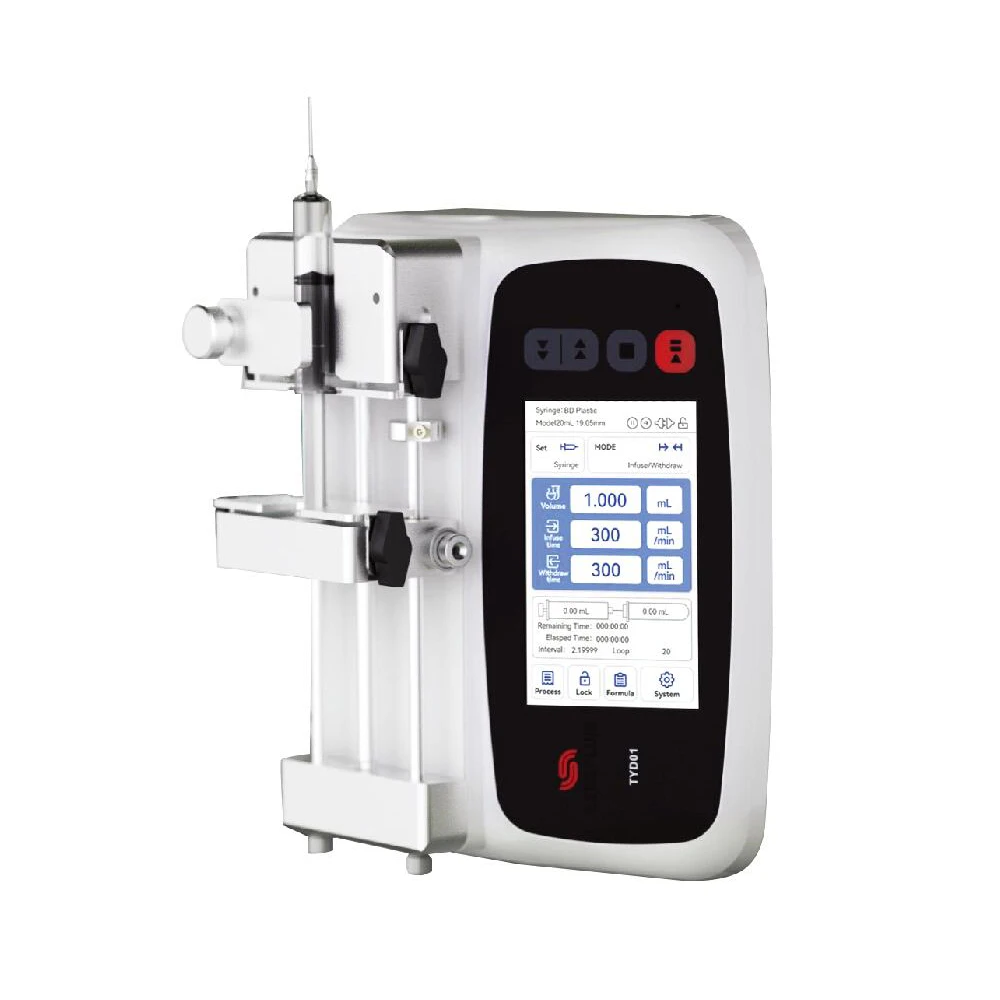

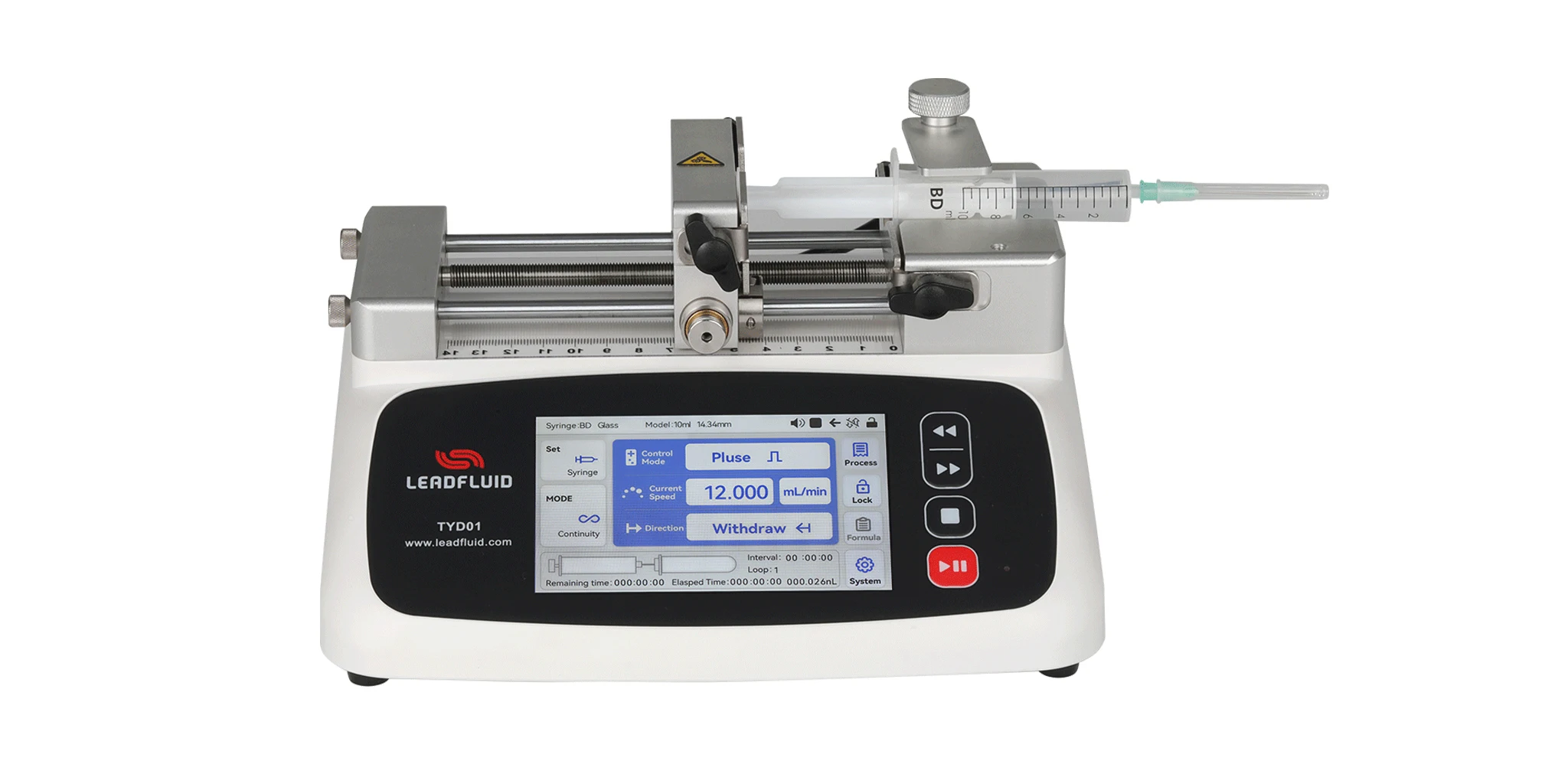

Lead Fluid TYD01-01 New Lab Syringe Pump
Product Description
Linear speed | 1μm/min ～150mm/min |
Flow rate | 0.184nL/min～83.318mL/min |
Work mode | Infuse,withdraw,infuse /withdraw,withdraw/infuse,continuous mode |
•Lead Fluid YD01-01V3 laboratory syringe pump is a high-precision and multifunctional desktop syringe pump designed specifically for laboratory applications. Its unique design and functional features make it an good choice for various experimental environments.
•Adopts integrated table model design, 5-inch HD LCD touch screen display and operation, can assembly 1 plastic syringe or gas tight syringe, size range of syringe 10μl～60ml，flow range 0.184nl/min～83.318ml/min.
•Use excellent control system and precision mechanical structure, linear travel accuracy<± 0.35%, multiple working modes are available,powerful function It is very suitable for high precision micro-transmission of various fluids in scientific research and experiment.
•Drive screw fixation using high strength aviation bearing, compared with traditional copper sleeve bearing, the service life of the screw has been significantly improved, and the accuracy is higher.
•TYD01-01V3 has strong Anti-EMI performance, continuous and stable operation under high voltage electrostatic field.RS485 communication, compatibility MODBUS protocol, automation control system can be composed of computer, PLC, single chip computer etc,multiple host computers.
•Adopts integrated table model design, 5-inch HD LCD touch screen display and operation, can assembly 1 plastic syringe or gas tight syringe, size range of syringe 10μl～60ml，flow range 0.184nl/min～83.318ml/min.
•Use excellent control system and precision mechanical structure, linear travel accuracy<± 0.35%, multiple working modes are available,powerful function It is very suitable for high precision micro-transmission of various fluids in scientific research and experiment.
•Drive screw fixation using high strength aviation bearing, compared with traditional copper sleeve bearing, the service life of the screw has been significantly improved, and the accuracy is higher.
•TYD01-01V3 has strong Anti-EMI performance, continuous and stable operation under high voltage electrostatic field.RS485 communication, compatibility MODBUS protocol, automation control system can be composed of computer, PLC, single chip computer etc,multiple host computers.

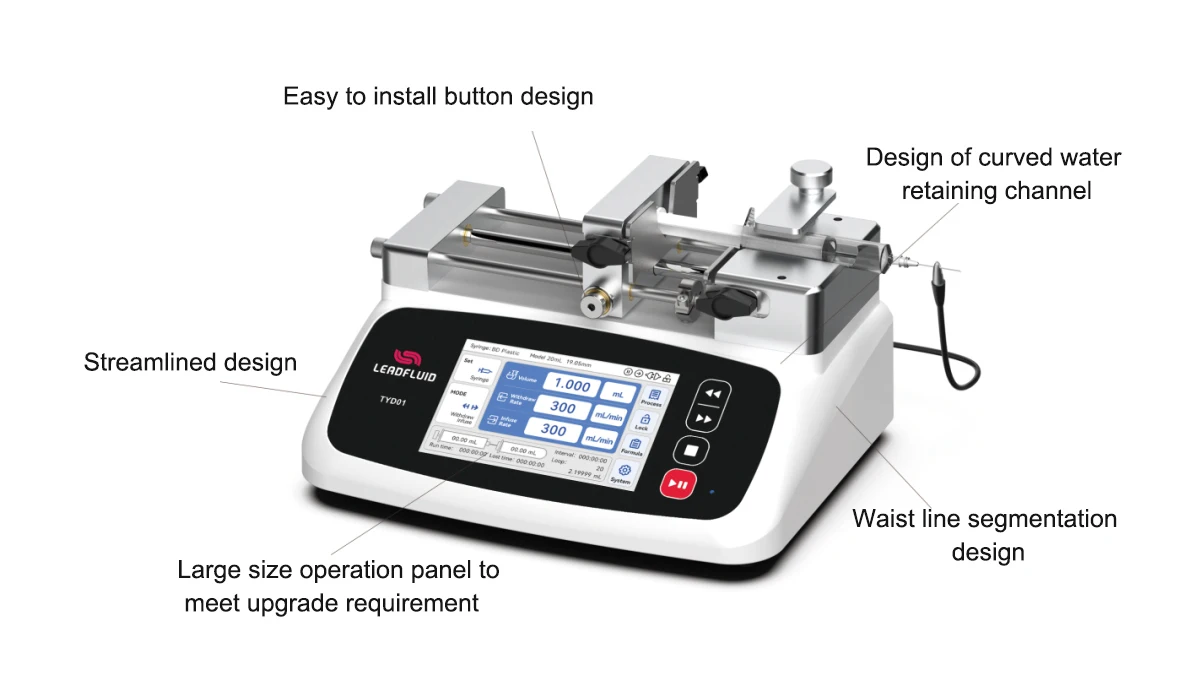

Functions and Features

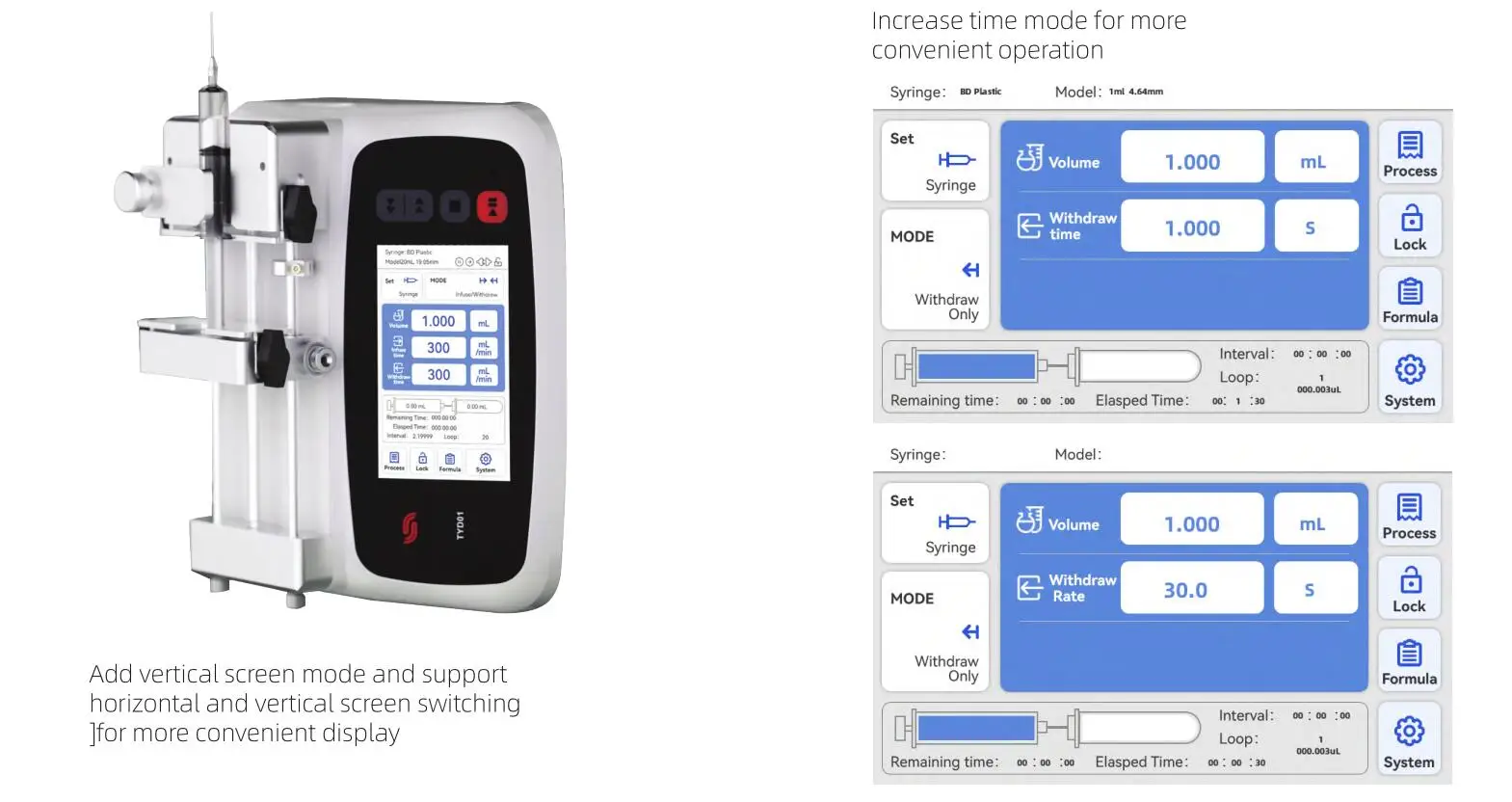

•Display and Operation
5-inch high resolution color LCD touch screen, convenient operation. Support screen lock, key mute operation.Button with indicator light,clearly working state.
•Multiple Working Modes and Syringes Support
Built-in multiple syringe manufacturers and specifications, while supporting customized syringes, making them more flexible and diverse.Including five working modes, including infuse and withdraw, to meet different experimental operation requirements.
•High Precision Control and Safety Protection
5-inch high resolution color LCD touch screen, convenient operation. Support screen lock, key mute operation.Button with indicator light,clearly working state.
•Multiple Working Modes and Syringes Support
Built-in multiple syringe manufacturers and specifications, while supporting customized syringes, making them more flexible and diverse.Including five working modes, including infuse and withdraw, to meet different experimental operation requirements.
•High Precision Control and Safety Protection
Pre store multiple sets of data, meet high-precision control requirements. Syringe protection and traffic jam alarm function to ensure the safety and reliability of the experimental process.
•Communication and External Control
RS485 communication, support the MODBUS protocol, makes communication and remote control more convenient.External control signal controls Start and Stop, Direction, Physical isolation of External Control Signals.
• Applicability and Convenience
Made of plastic housing, suitable for various experimental environments.Support wide range of power input, making it more flexible and easy to use.Multiple convenient designs, such as screen lock and button mute, make the experimental process smoother and more efficient.
•Communication and External Control
RS485 communication, support the MODBUS protocol, makes communication and remote control more convenient.External control signal controls Start and Stop, Direction, Physical isolation of External Control Signals.
• Applicability and Convenience
Made of plastic housing, suitable for various experimental environments.Support wide range of power input, making it more flexible and easy to use.Multiple convenient designs, such as screen lock and button mute, make the experimental process smoother and more efficient.

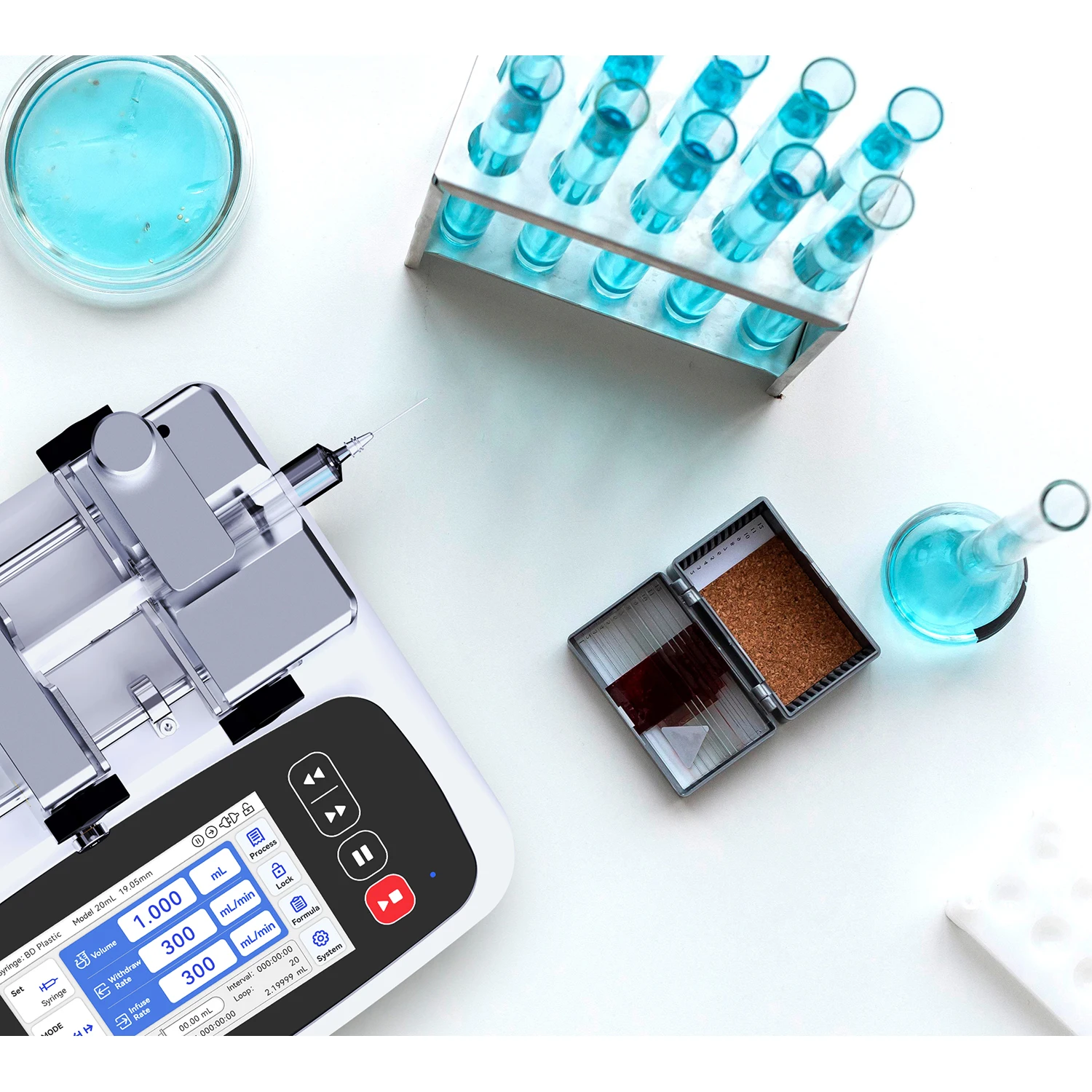

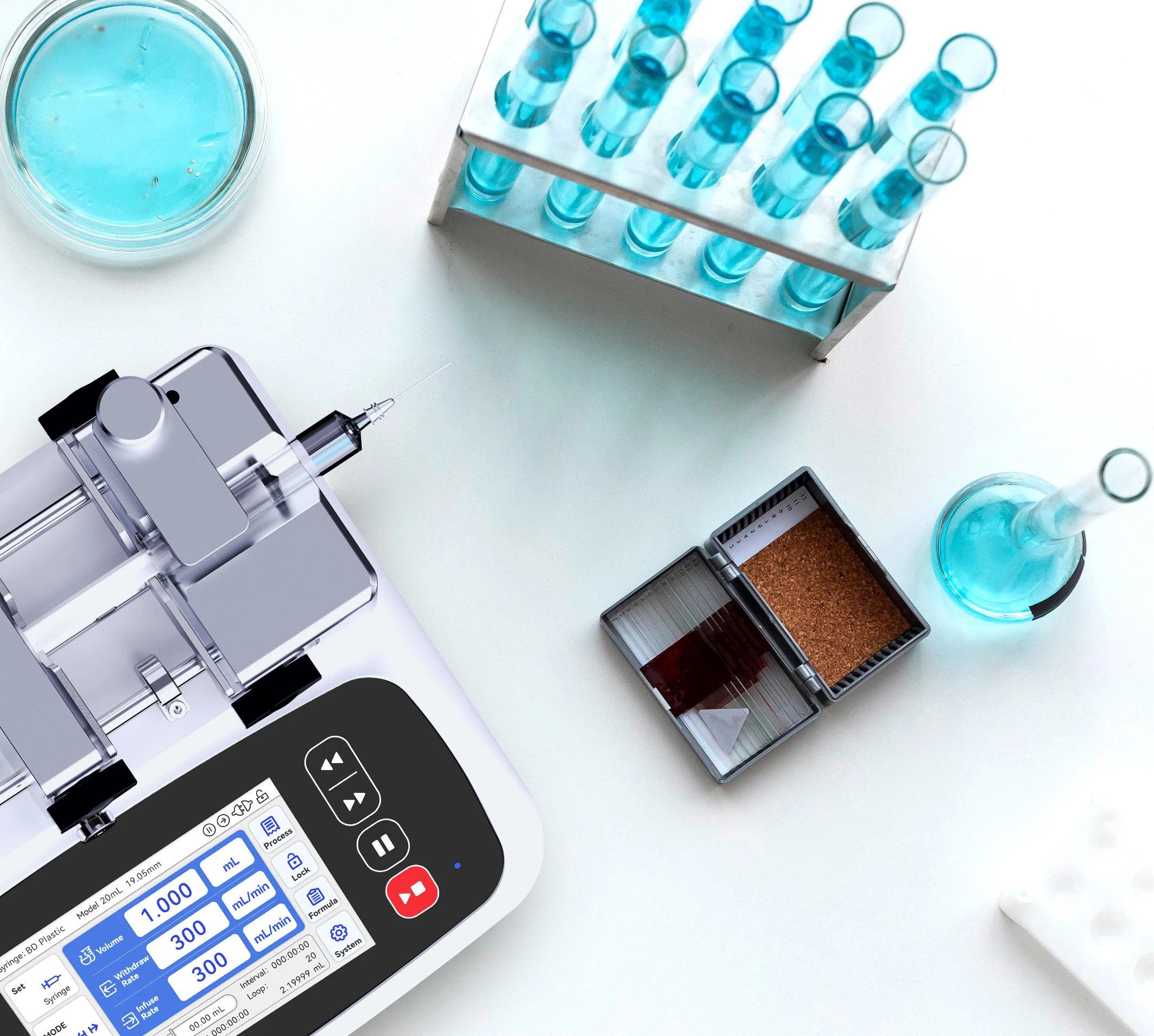

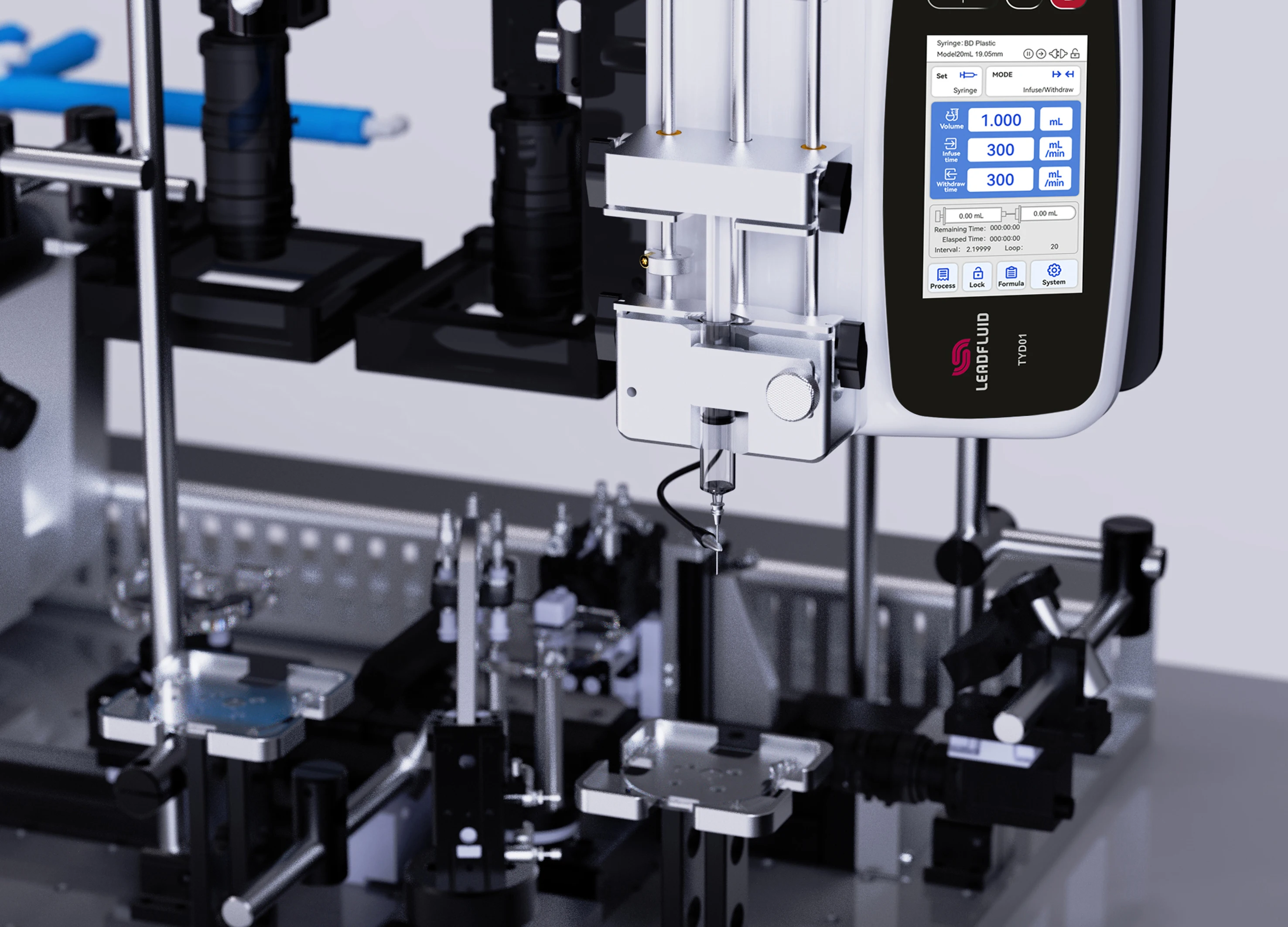

Application Show

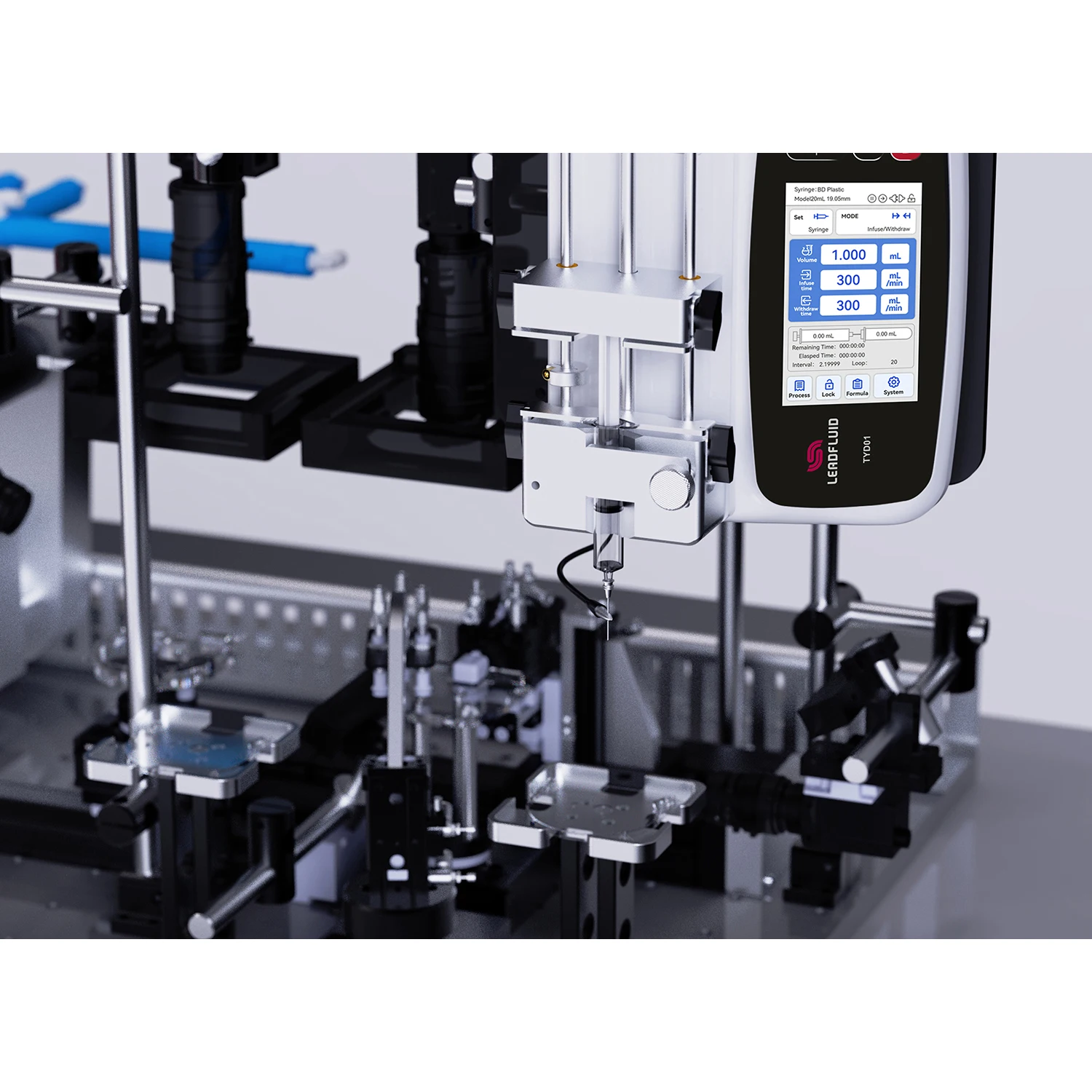

TYD01-1 syringe pump is widely used in the laboratory, and can be used in mass spectrometry, micro fluidics, 3D printing, stereotactic injection and other scenes.

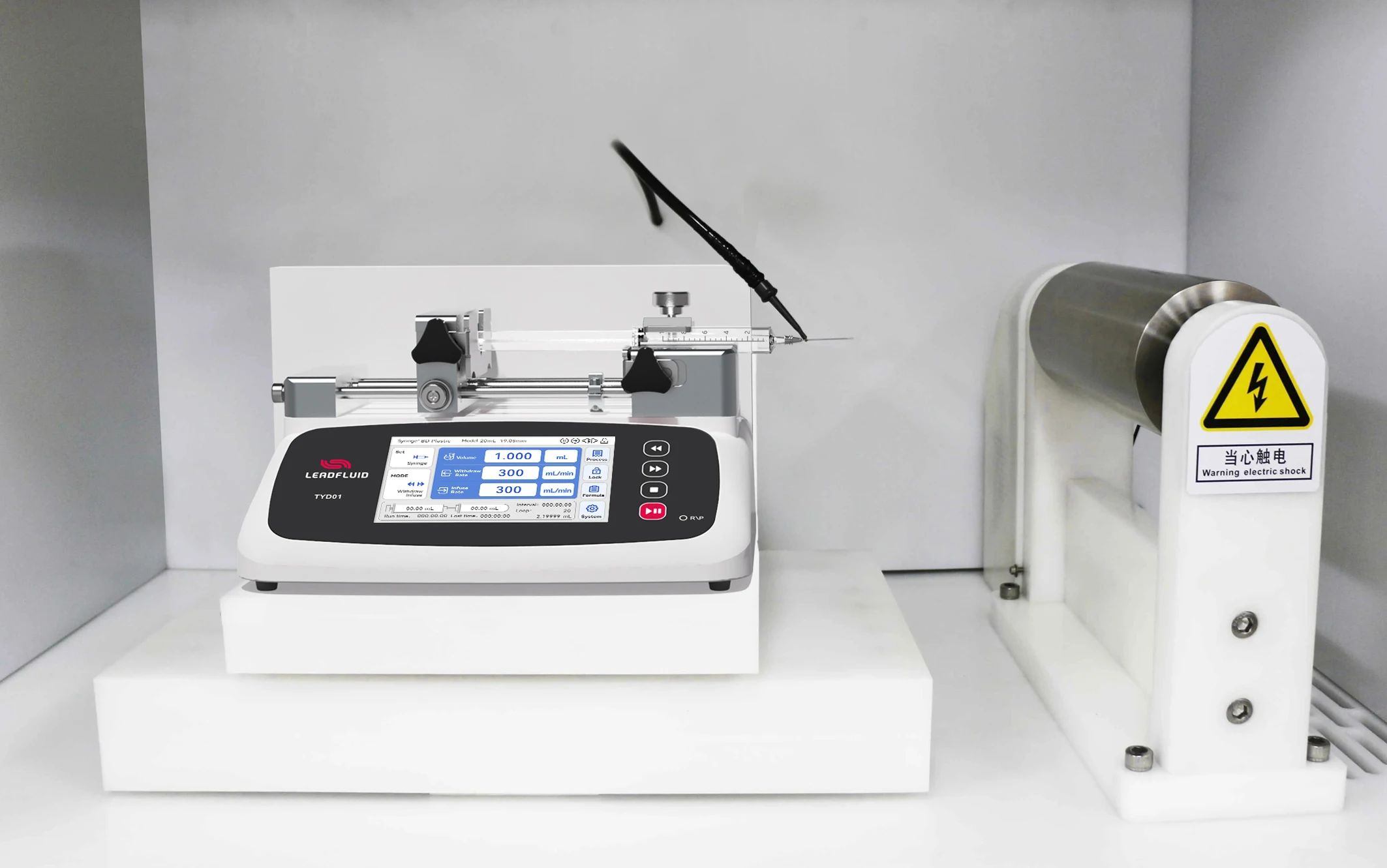

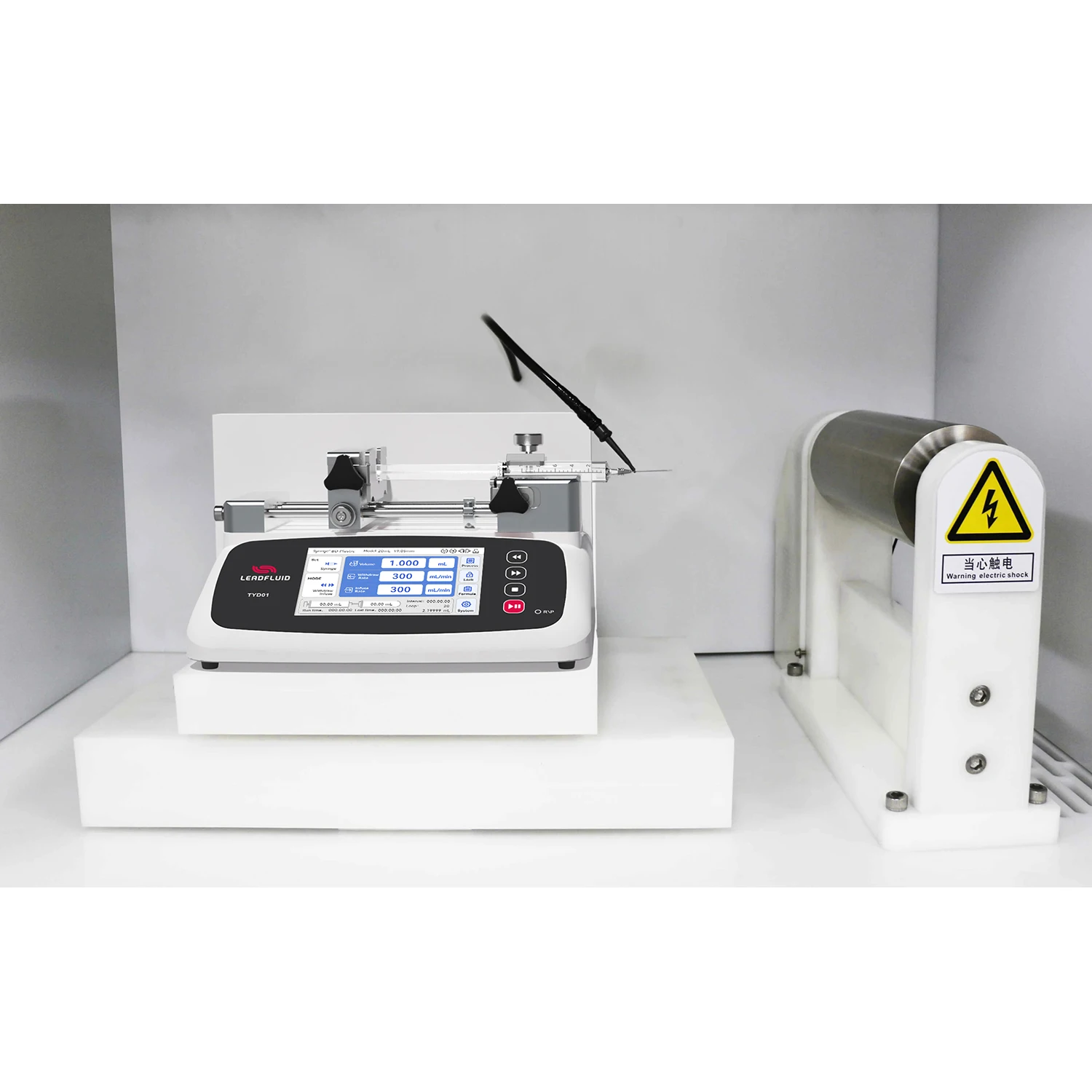

In industrial application scenarios, it can also be used in fields such as high-voltage electrospinning and industrial conveying.
In clinical medicine, it can be used for newborn nutrition supply, blood transfusion, anticoagulants, anesthetics, and other drug
input scenarios.
input scenarios.
Specification
Brand Name | Lead Fluid |
Model Number | TYD01-01 |
Channel | 1 |
Work mode | Infuse,withdraw,infuse /withdraw,withdraw/infuse,continuous mode |
Stroke of pump | 110mm |
Advance per microstep | 0.156μm/μstep |
Linear speed | 1μm/min ～150mm/min |
Accuracy | Error30% of pump stroke) |
Max rated linear force | >16kgf |
Thrust regulation | 1～100% arbitrary adjustable |
Syringe size | 10μL～60mL |
Syringe selection | Built-in main manufacturers, the main model syringe to choose. Can use custom syringe, direct input syringe size and diameter |
Flow rate | 0.184nL/min～83.318mL/min |
Flow calibration | Through the calibration procedure to obtain more accurate fluid volume |
Display | 5-inch color LCD screen display and transfusion volume, residual fluid volume, flow ,operation direction , syringe specification,etc. Animation display operation |
Operation mode | Touch screen + button |
Power-off memory | Storing the running parameters automatically |
Function | Pause and stop, the sound tip, the lock parameters, fast forward and retreat quickly ,display brightness adjust |
State signal output | 1 road start-stop status ,1 road direction status |
Control signal input | 1 road startup status ,1 road directional signal |
Communication interface | RS485 communication interface, MODBUS protocol |
Dimension mm(L×W×H) | 240×196×125mm |
Weight | 2.95kg |
Power supply | AC100～240V，50/60Hz |
Working environment | Temperature 5～40℃, relative humidity＜80% |
