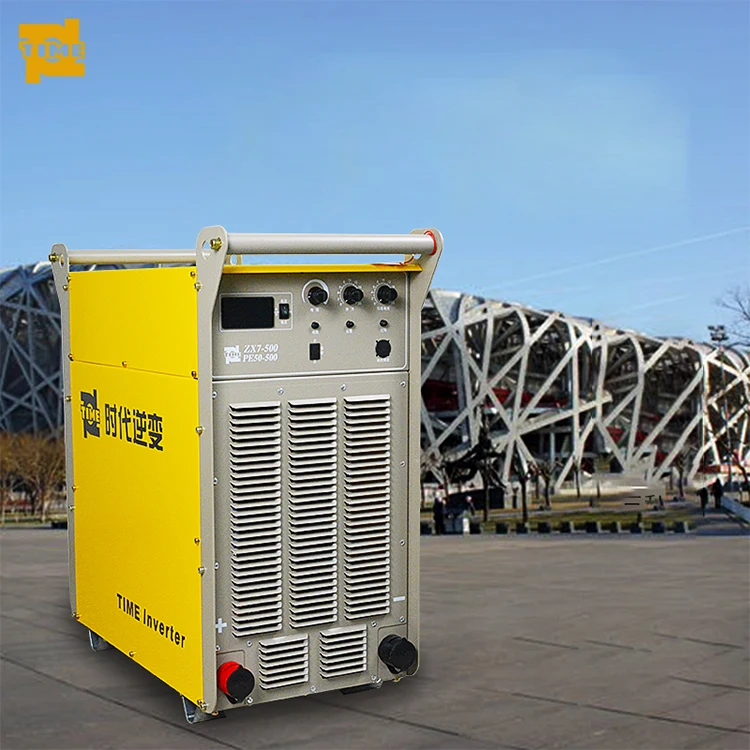

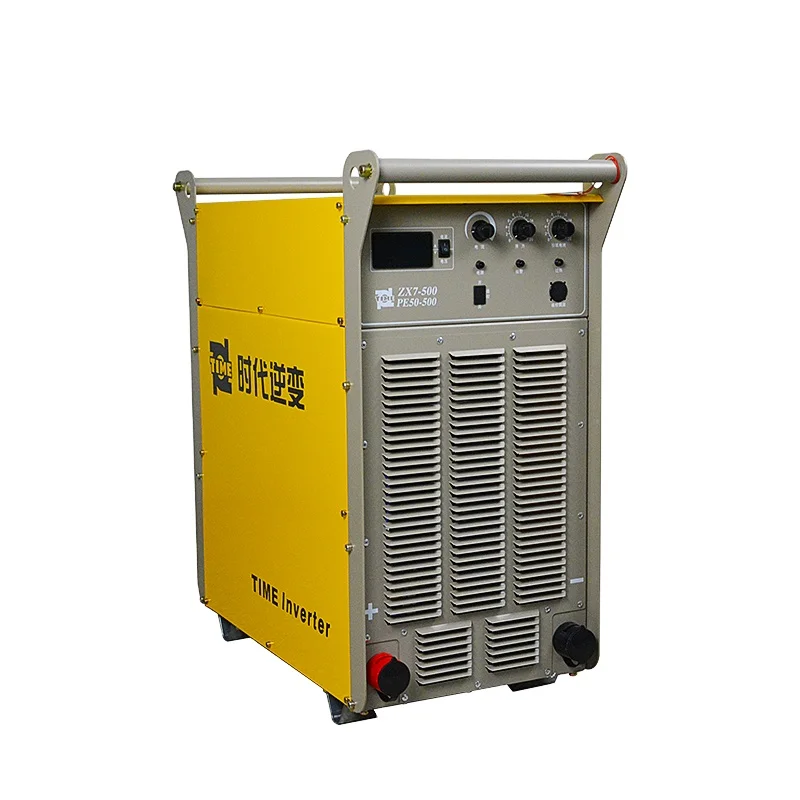

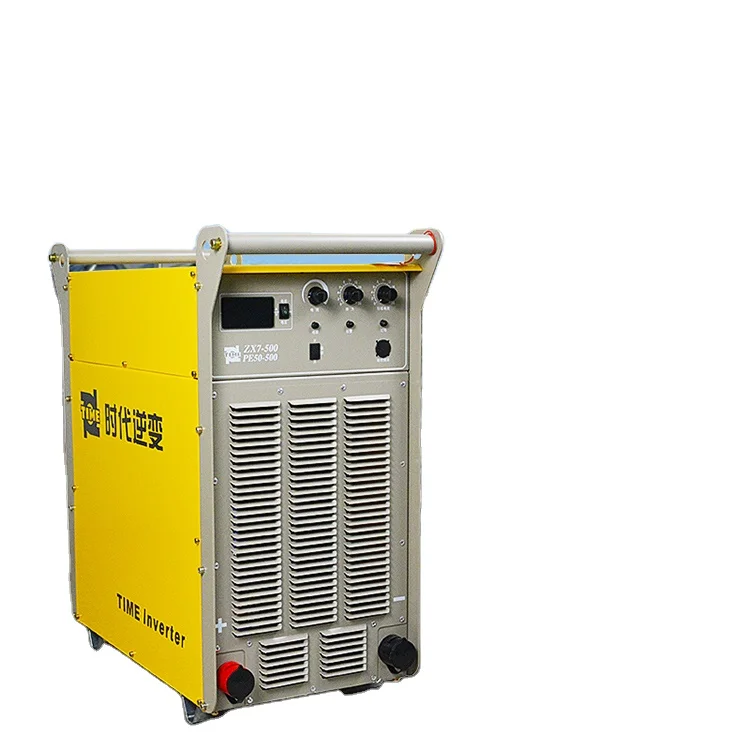

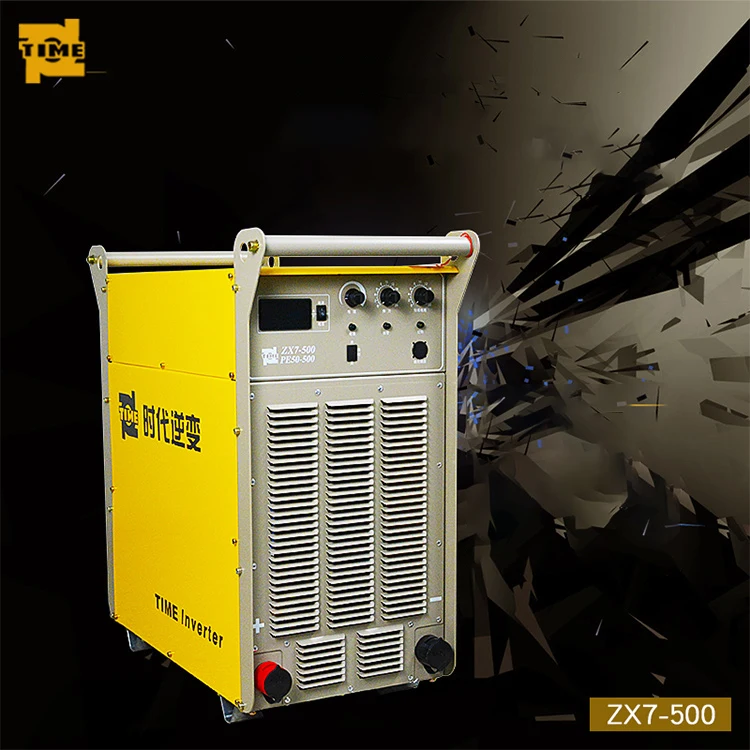

Inverter MMA Welders Industrial Equipment 500A Manual DC Arc Welding Machine ZX7 500 Manual DC arc welder
- Category: >>>
- Supplier: Wuhan Jinda Welding Technology Co. Ltd.Wuhan Ltd.
Share on (1600905896424):
Product Overview
Description
Product Description
Main features:
1. IGBT inverter technology
2. Arc high success rate
3. With functions of simple argon arc
4. The power supply voltage to adapt to a wide range
5. Stable arc, molten pool is easy to control
6. Has the characteristics of small splash, non-stick electrode
7. Arc current adjustable thrust, ensure the best
8. The adjustable arc current, ensure the best performance arc
9. Can use acid, alkali, heat resistant steel and so on the many kinds of electrode
10. Digital display ammeter, can accurate preset welding current before welding
11. Can match the cable remote control
12. Welding cable can be extended
13.Optional cellulose welding function
2. Arc high success rate
3. With functions of simple argon arc
4. The power supply voltage to adapt to a wide range
5. Stable arc, molten pool is easy to control
6. Has the characteristics of small splash, non-stick electrode
7. Arc current adjustable thrust, ensure the best
8. The adjustable arc current, ensure the best performance arc
9. Can use acid, alkali, heat resistant steel and so on the many kinds of electrode
10. Digital display ammeter, can accurate preset welding current before welding
11. Can match the cable remote control
12. Welding cable can be extended
13.Optional cellulose welding function
Specification
BEIJING TIME ZX7-400 | ||
Technical parameter | ||
International model | ZX7-500 | |
Product model | PE50-500 | |
Input voltage | three-phase 380V+15% 50~60Hz | |
Rated input current (A) | 41 | |
Rated input power (kw) | 23 | |
Rated no-load voltage (V) | 68±5% | |
Output current Regulation range (A) | 30~500 | |
Thrust current adjustment range (A) | 0~400 | |
Adjustment range of arc starting current | 0~200 | |
Applicable carbon rod specifications | 4.0-8.0 | |
Rated load duration (40℃) | 60% | |
efficiency | ≥85% | |
Power factor | 0.93 | |
Insulation class | F | |
Case protection class | IP21S | |
Cooling mode | Air cooling | |
Overall dimensions (mm) | 700x360x700 | |
Weight (Kg) | 53 | |
Standard configuration | Model number | |
Electrode holder | 300A | |
Earth clamp | 500A | |
terminal | KDZ95 Bbending (Two) | |
