Ould Pt 301 High Quality 0Bar 10Bar 40Bar Park Plug Connector Ceramic Pressure Sensor Chip Pressure Transmitter Transducer
- Category: >>>
- Supplier: Shenzhen Ould Instrument Co. Ltd.
Share on (1600905948833):
Product Overview
Description
Model | PT-301 |
Pressure range | 0MPa~0.1MPa~4MPa |
Accuracy | ± 0.5%FS ， ± 1%FS |
Output signal | 0.5 - 4.5VDC , 4 - 20mA |
Overload pressure | 200%FS |
Working temprature | -40℃~85℃ |
Temperature drfit | ±0.03%FS/℃ |
Power supply | 3-5VDC，24VDC（10-36VDC） |

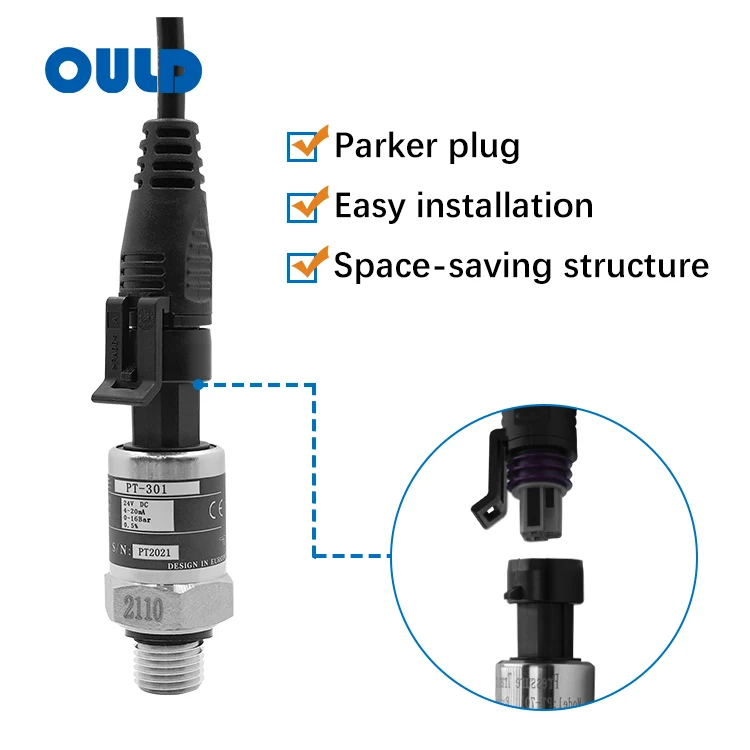

Electrical connection | PARK plug |

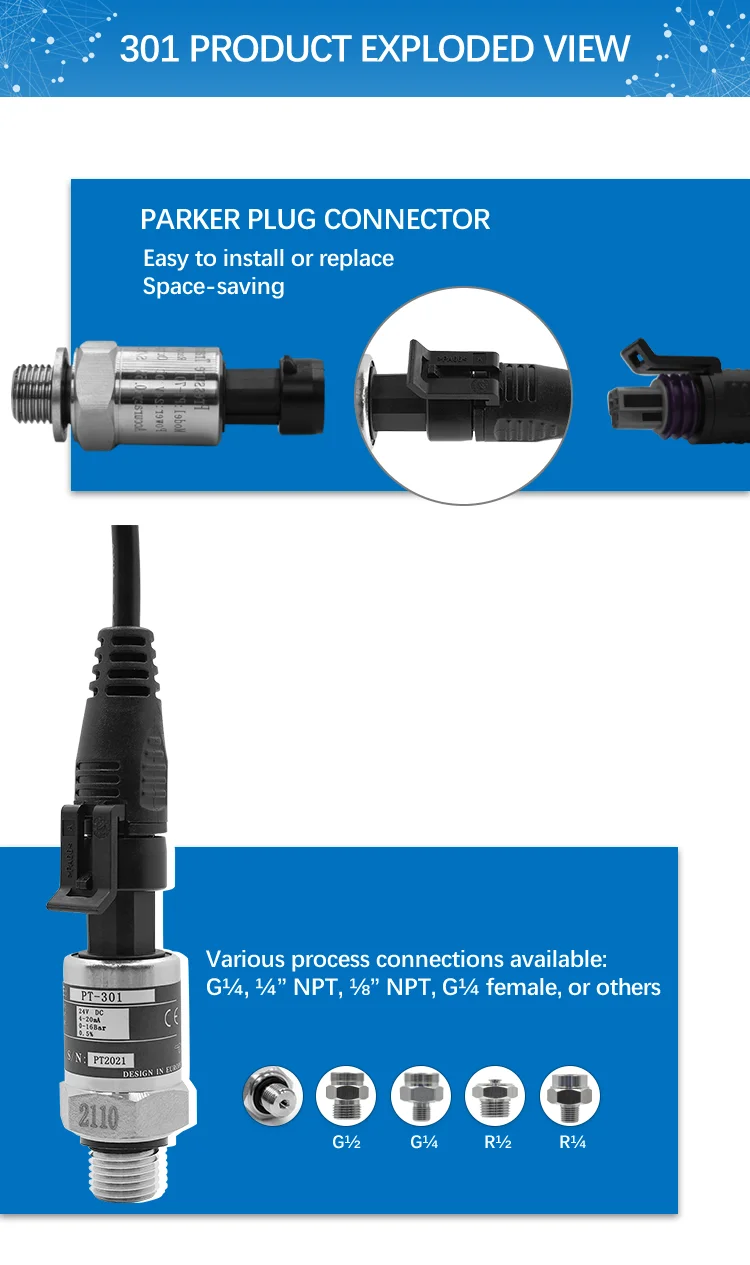

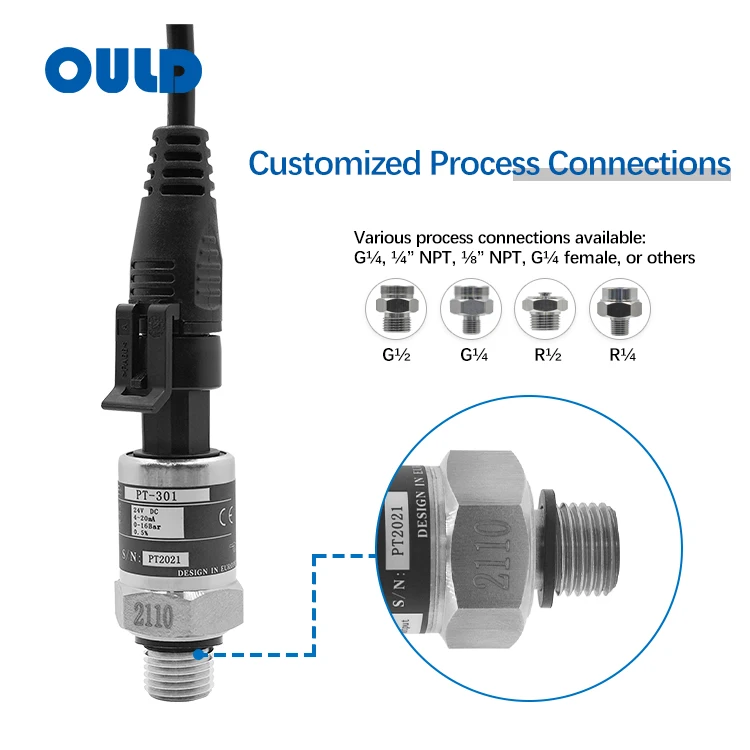

Process connection | G1/4, R1/4etc, can be customized |
Ingress protection | IP65 |

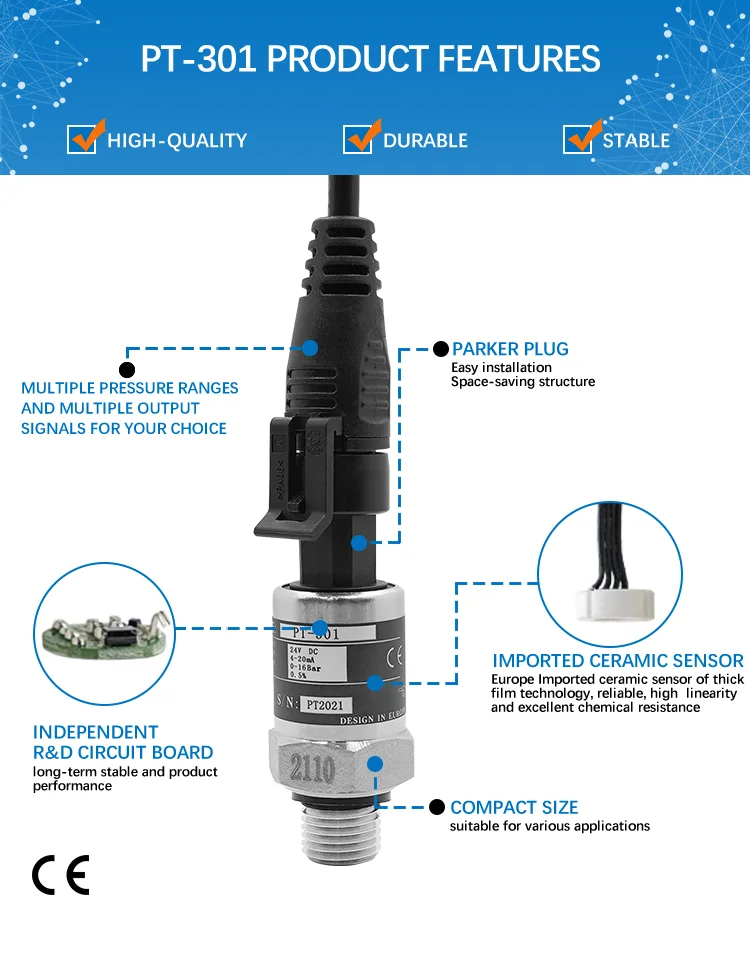

Product Features
Parameters:

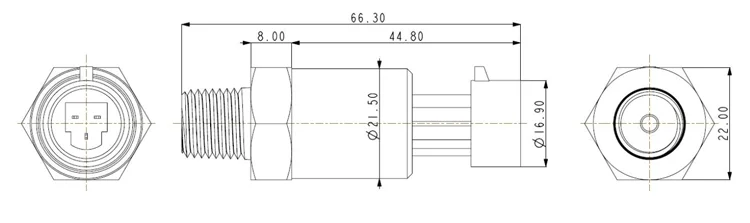

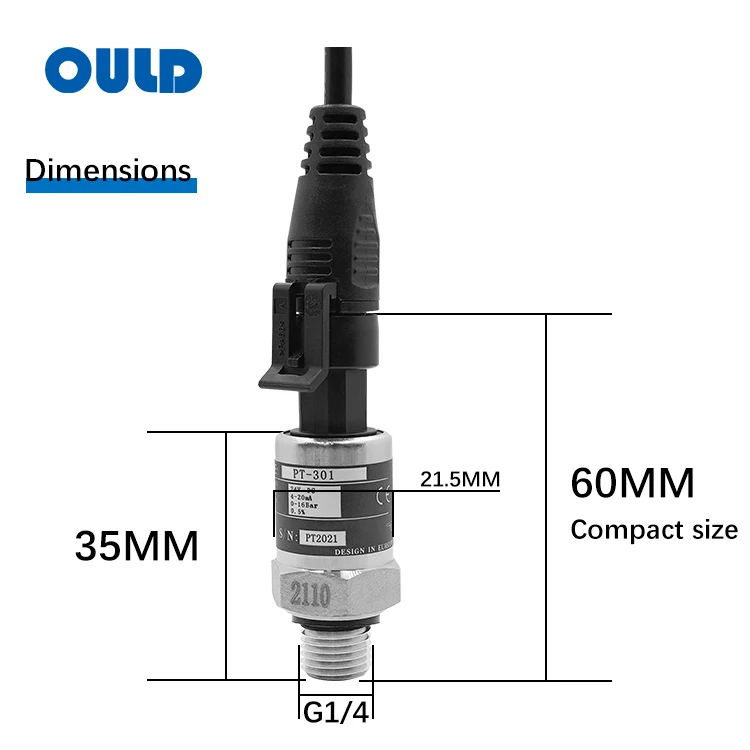

Dimensions: (mm)

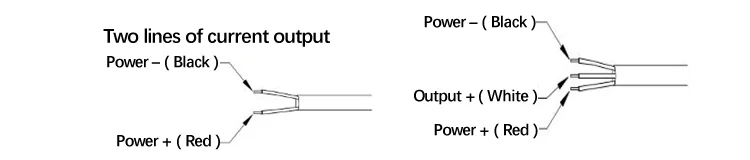

Electrical connection:
4 ~ 20mA | 0 ~ 5VDC , 0.5 ~ 4.5VDC | |
Red | Power supply+ | Power supply+ |
Black | Output | Power supply- |
Green or white | N/A | Output |
Why Choose Us?
INNOVATION:
High-end research and development capability
Excellent production capacity
PRODUCTION:
Large percentage of market share
Professional manufacturing
Advanced production lines
QUALITY:
ISO9001 quality management system
CE certified products
National High-Tech Enterprise
SERVICE:
Quick-response within 24 hours
12-18 months long warranty period
FAQ
Q: Are you manufacturer or trading company?
A: We are leading manufacturer for pressure sensors, pressure transmitters, temperature sensors, temperature transmitters, wireless pressure transmitters, and level transmitters for more than 20 years.
A: We are leading manufacturer for pressure sensors, pressure transmitters, temperature sensors, temperature transmitters, wireless pressure transmitters, and level transmitters for more than 20 years.
Q: How do you guarantee your product quality?
A: WE are an IS09001:2017 certified manufacturer. We have strict quality control system, to do testing, calibration, and temperature compensation for each product. Our products are CE certified as well.
A: WE are an IS09001:2017 certified manufacturer. We have strict quality control system, to do testing, calibration, and temperature compensation for each product. Our products are CE certified as well.
Q: Do you accept OEM production?
A: Yes, we also do customized products, customized pressure range, output signals, housing, logo, etc. Normally, we will have requirement on MOQ for customized products.
Q: What is the lead time for your products?
A: For the products we have in stock, our lead time is immediate shipment after payment. For the products of no stock, our lead time is 1-2 weeks after payment.
Q: Can I get samples?
A: Yes, we will be glad to provide you samples as per your specific technical requirements.
Q: How long is the warranty for your products?
A: We offer 12 months warranty period for our products.
A: We offer 12 months warranty period for our products.
