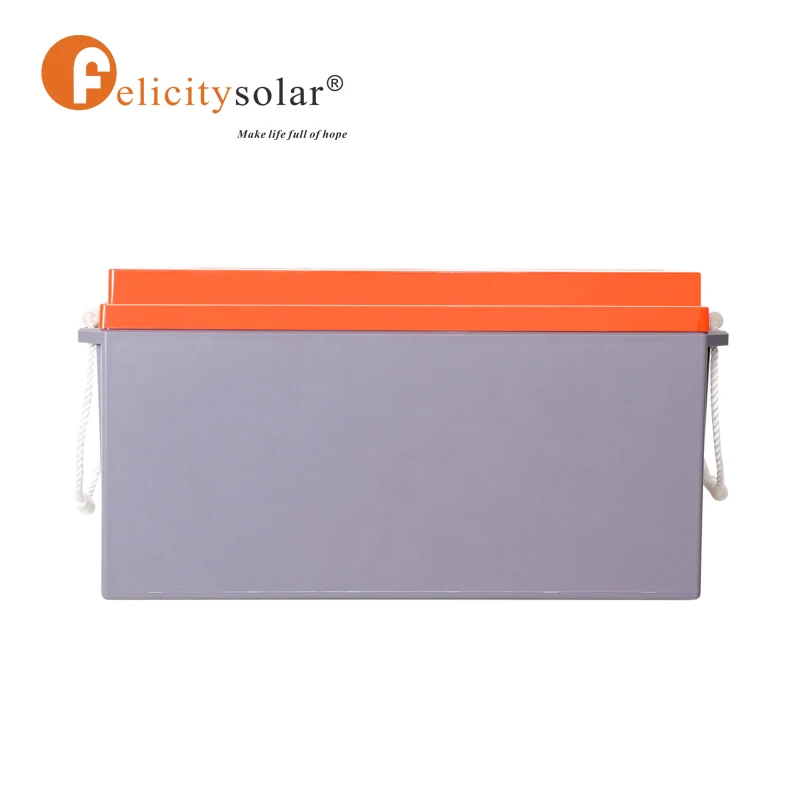

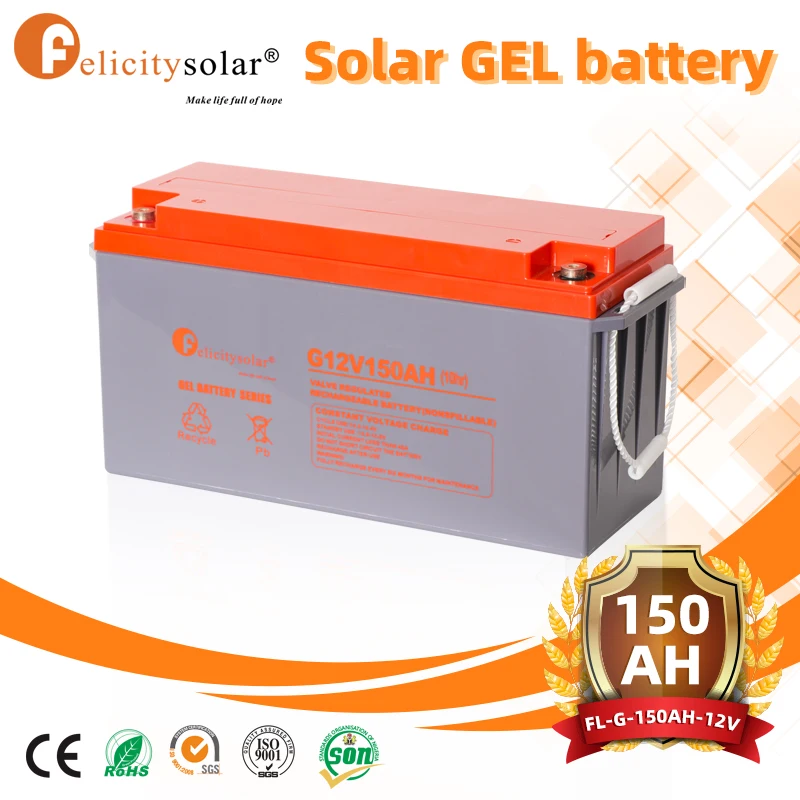

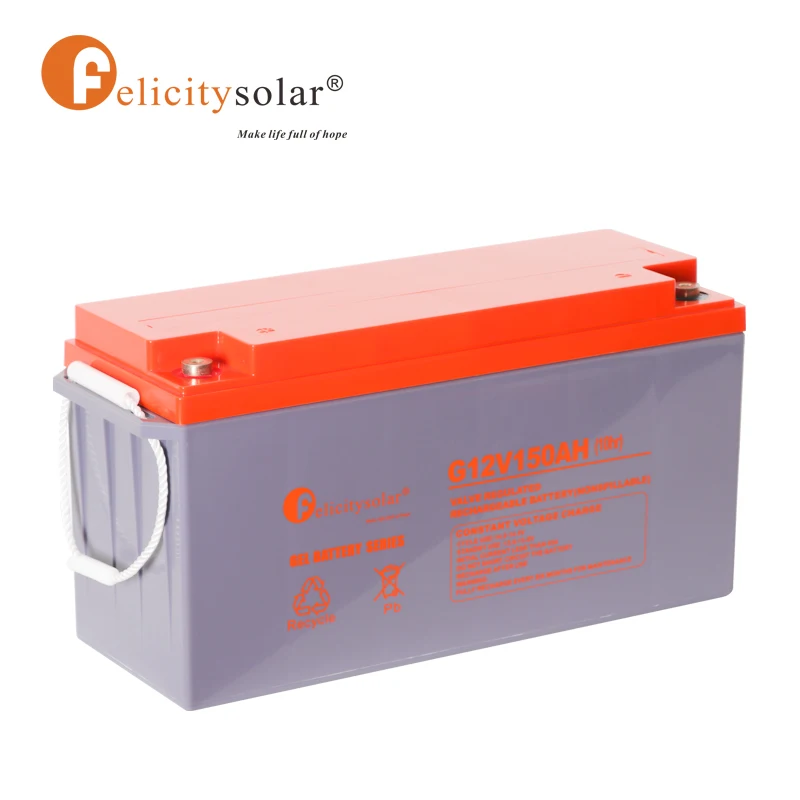

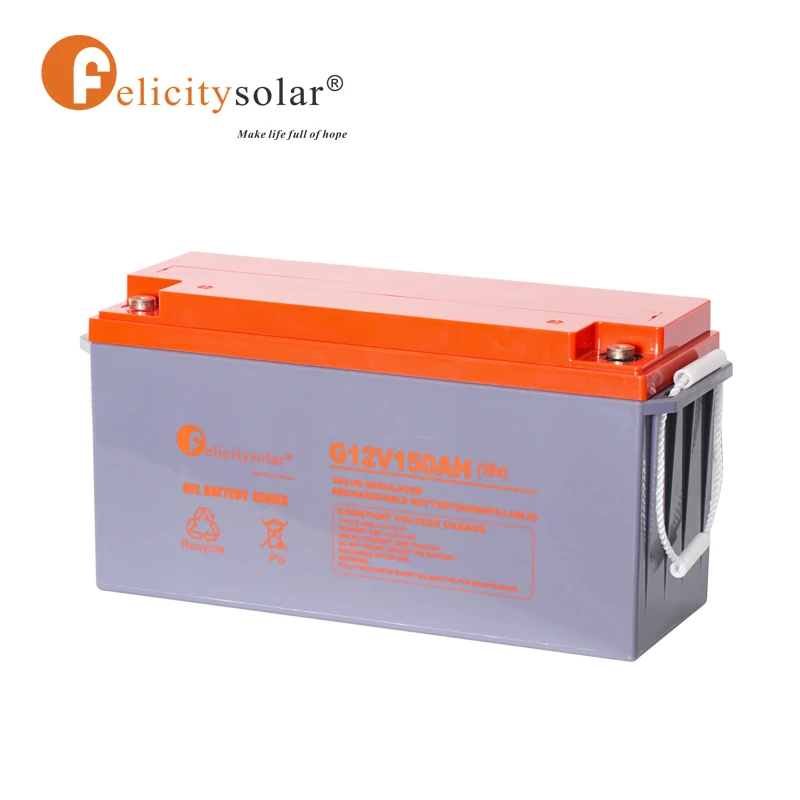

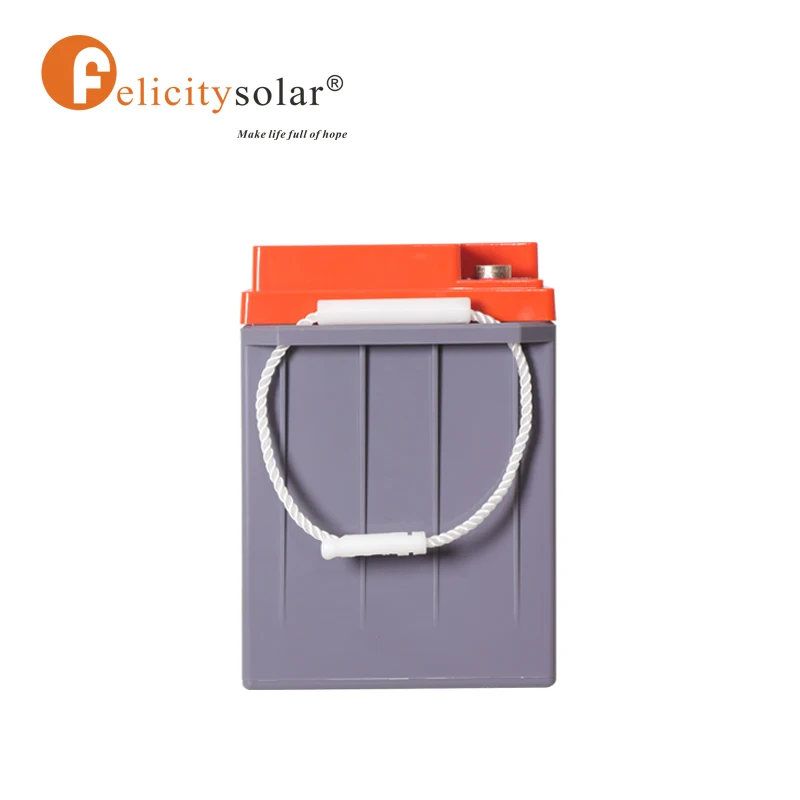

guangdong battery 12v 150ah hybrid three phase inverter battery energy storage

guangdong battery 12v 150ah hybrid three phase inverter battery energy storage

Category: >>>
Supplier: Guangzhou Felicity Solar Technology Co. Ltd.

Price:$124.00 - $136.00

Quantity:

Product Overview

Description

Products Description

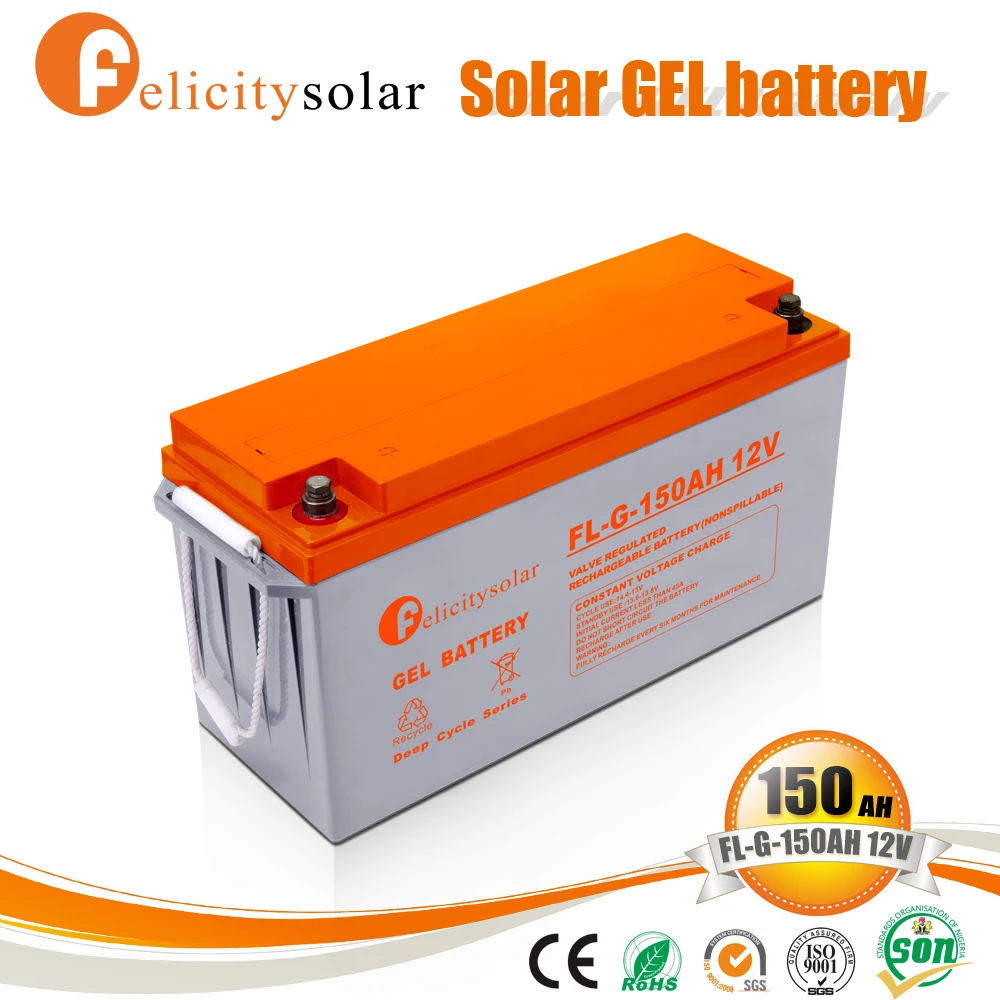

GEL batteries Benefits
1. Solve electrolyte stratification,sulfuric acid evenly distributed.
2. Deeper discharge of the silica gel electrolyte lead-acid batteries extends the cycle life of the battery greatly
3. Smaller charging current (about 1/3 of AGM battery) leads to lower energy consumption and less warming.
4. Lower self-discharge rate

Model	G-12V 70AH	G-12V 100AH	G-12V 150AH	G-12V 200AH	G-12V 250AH
Cels Per Unit	6
Voltage Per Unit	12
Capacity	70Ah@10hr-rate to 1.80V per cell@25℃	100Ah@10hr-rate to 1.80V per cell@25℃	150Ah@10hr-rate to 1.80V per cell@25℃	200Ah@10hr-rate to 1.80V per cell@25℃	250Ah@10hr-rate to 1.80V per cell@25℃
Weight	21.5KG	32.8KG	44KG	61.5KG	72.5KG
Max.Discharge Current	700A(5 sec)	1000A(5 sec)	1500A(5 sec)	2000A(5 sec)	2500A(5 sec)
Intemal Resistance	Approx.5.8m	Approx.5m	Approx.4.2m	Approx.4 m	Approx.3.8m
Recommended Maximum Charging	21A	30A	45A	60A	75A
Operating Temperature Range	Discharge:-20℃~60℃ Charge:0℃~50℃ Storage:-20℃~60℃
Normal Operating Temperature Range	25℃±5℃
Float charging Voltage	13.6 to 13.8V DC/unit Average at 25℃
Equalization and Cycle Service	14.4to 14.6V DC/unit Average at 25C
Self Discharge	GEL batteries can be stored for more than 6 months at 25℃. Self-discharge ratio less than 3%per month at 25'C.Please charge batteries before using.
Size	260x169x210MM	330x171x218MM	484x241x170MM	522x219x240MM	520x268x220MM

Company Profile

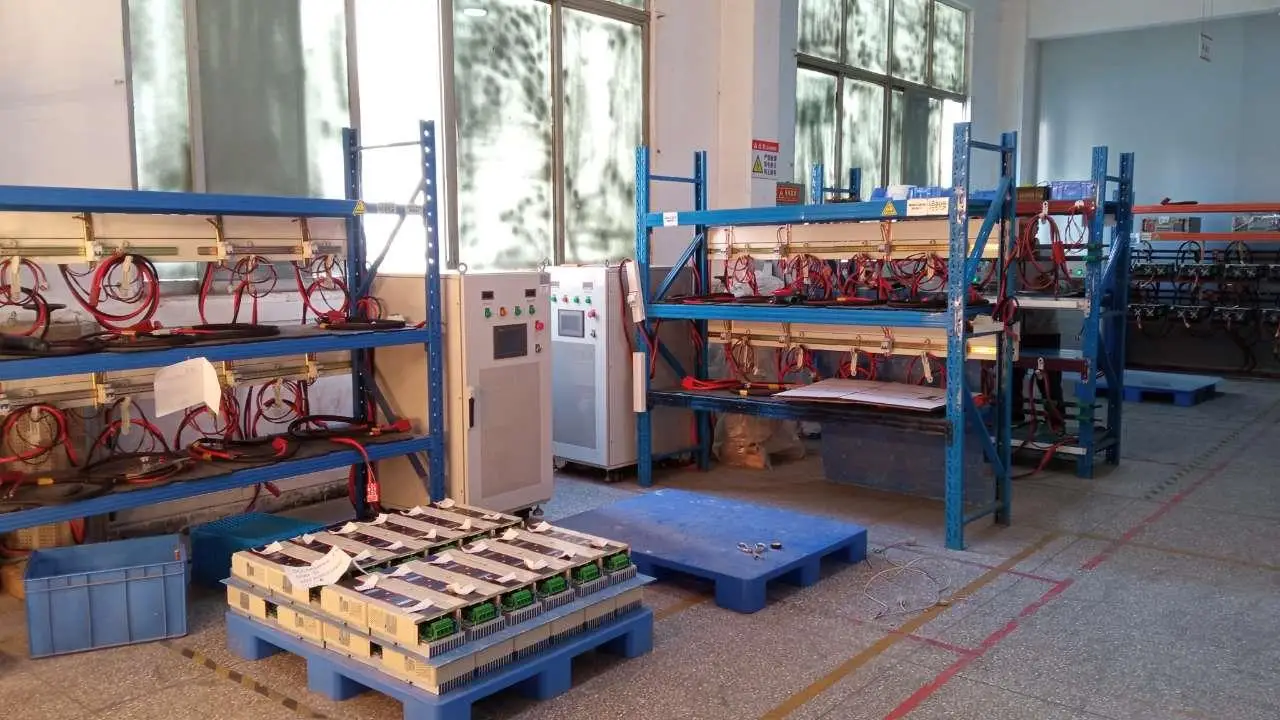

Guangzhou Felicity Solar Technology Co., Ltd. (hereinafter referred to as "Felicity") is a photovoltaic high-tech enterprise integrating R&D, production, sales, engineering design, installation guidance and after-sales service. Founded in 2010, the company covers an area of 35 acres, and has an annual output value of nearly 1 billion yuan. At present, the company has more than 600 employees, including more than 100 senior experts in new energy and professional technical personnel in various disciplines. There are 6 production plants, 3 research and development institutions, and 25 product technology patents, including 20 practical invention patents and 5 invention patents.

The company focusing on the design, development and production of solar inverters, solar charge controllers, battery packs, solar panels, solar street lights and other series of products to meet the needs of domestic and foreign markets for solar system products. The products have passed CE, ROHS, SONCAP and other international certifications, and have business cooperation with the United States, Australia, Turkey, Japan, the United Arab Emirates, Singapore, Nigeria and other countries, covering more than 40 countries and regional markets, and have established 25 overseas branches .

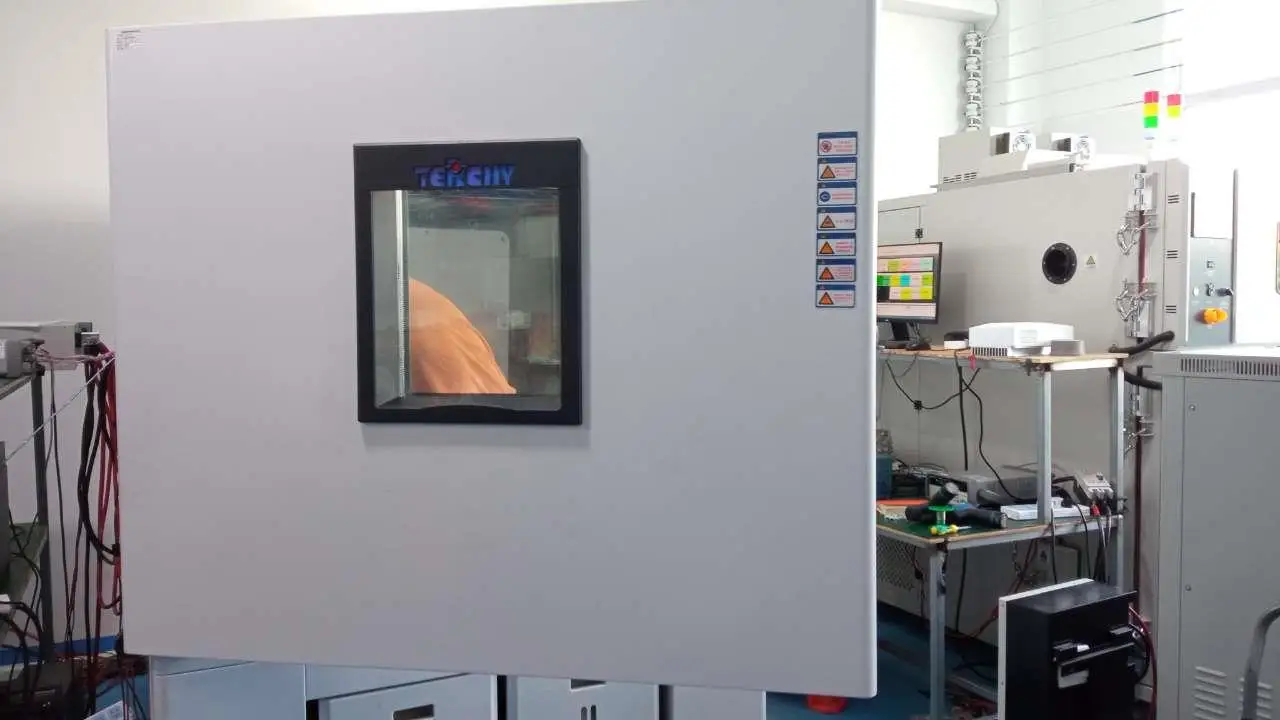

R & D technology
