GC Tech 3D Led Screen For Virtual Filming Production Event Studio
- Category: >>>
- Supplier: GC TECH SCIENCE & TECHNOLOGY CO. LTD
Share on (1600906073996):
Product Overview
Description
Product Description

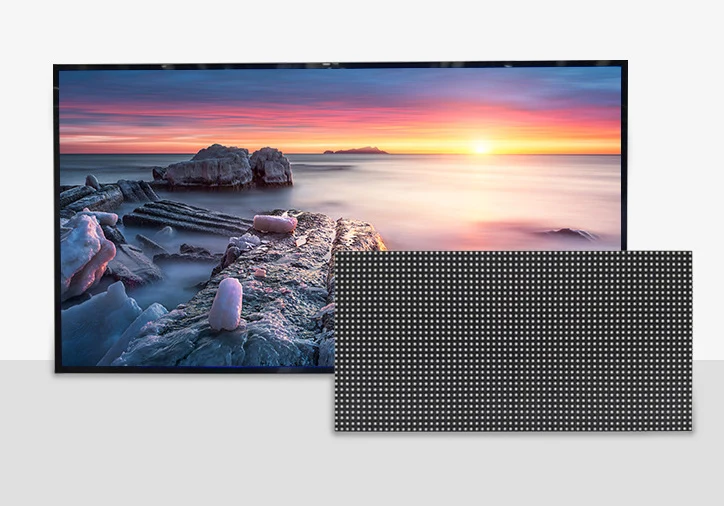

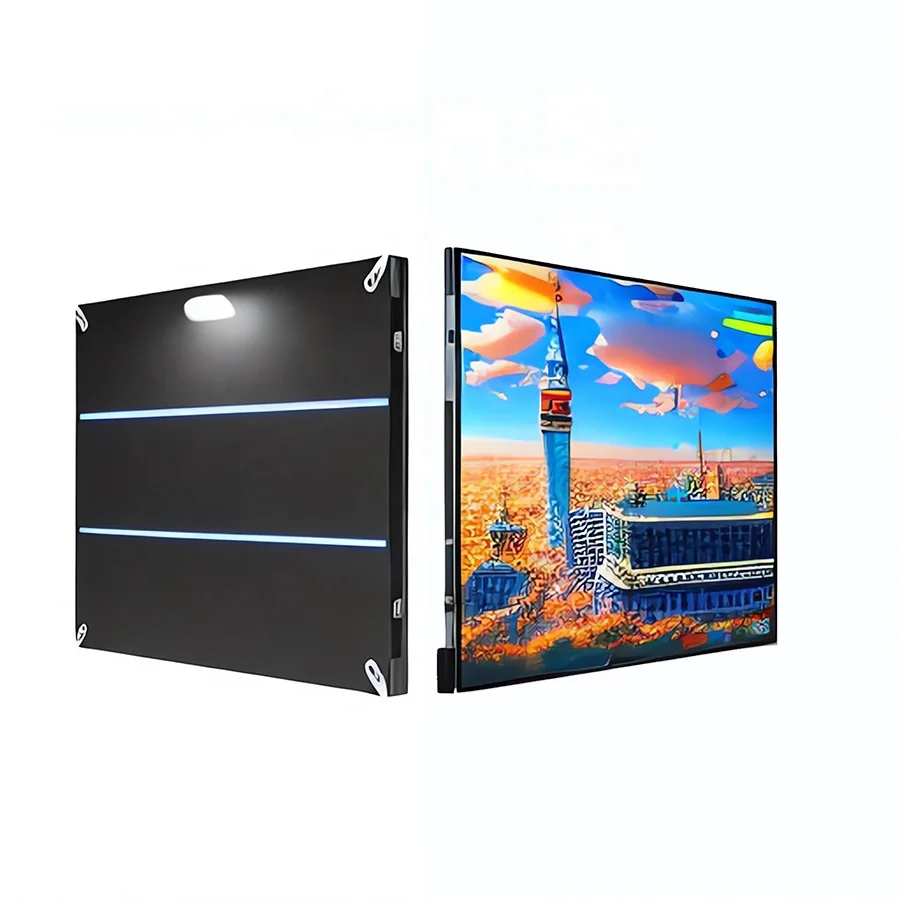

LED Indoor full-color display screen
is a display screen composed of red, green and blue LED beads, which can display changing numbers, texts,graphics, images and other information. It is mainly suitable for indoor environment .
According to the installation position, viewing distance, display content and budget of the indoor, you can choose the appropriate LED screen model, such as P2.5, P3, P4, etc. Generally speaking, the smaller the pixel pitch of the indoor screen, the clearer the display effect, but the higher the cost.
* Moderate brightness, large viewing angle, suitable for close viewing, not dazzling or distorted.
* High resolution, small pixel pitch, can display fine and clear picture.
* Light weight, easy to install, does not occupy too much space.
* Low protection level, no need for waterproof, dustproof, anti-ultraviolet and other functions.
* Low power consumption, energy saving and environmental protection, long life.
* High resolution, small pixel pitch, can display fine and clear picture.
* Light weight, easy to install, does not occupy too much space.
* Low protection level, no need for waterproof, dustproof, anti-ultraviolet and other functions.
* Low power consumption, energy saving and environmental protection, long life.
Standard Specification
Pixel Pitch(mm) | P1.25/P1.53/P1.86/P2/P2.5/P3/P4/P5 |
Led module size (mm) | 320*160mm/192*192mm |
Cabinet size (mm) | 640*480mm/640*640mm |
Brightness (cd/㎡) | 600-900 |
Specification of Indoor LED display Screen
Style | P1.25 | P1.53 | P1.86 | P2 | P2.5 | P3 | P4 | P5 | ||||||
Pixel pitch (mm) | 1.25 | 1.53 | 1.86 | 2 | 2.5 | 3 | 4 | 5 | ||||||
Pixel Matrix per Sq*m | 640000 | 422753 | 289050 | 250000 | 160000 | 111111 | 62500 | 40000 | ||||||
Pixel Configuration | SMD 1010 | SMD 1212 | SMD 1515 | SMD 1515 | SMD 2121 | SMD 2121 | SMD 2121 | SMD 2121 | ||||||
Brightness (nits) | 600 -900 | 600 -900 | 600 -900 | 600 -900 | 600 -900 | 600 -900 | 600 -900 | 700 -900 | ||||||
Scan | 1/64 | 1/52 | 1/43 | 1/40 | 1/32 | 1/24 | 1/20 | 1/16 | ||||||
Module size | 320*160MM | 320*160 MM | 320*160 MM | 320*160 MM | 320*160 MM | 320*160 MM | 320*160 MM | 320*160 MM | ||||||
Cabinet size | 640*480mm/640*640mm (Customized optinal ) | |||||||||||||
Cabinet Material | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | ||||||||
Max power Consumption | 650w/sqm | 650w/ sqm | 650w/ sqm | 650w/ sqm | 650w/ sqm | 650w/ sqm | 650w/ sqm | 650w/ sqm | ||||||
Average power Consumption | 350/ sqm | 350/ sqm | 350/ sqm | 350/ sqm | 350/ sqm | 350/ sqm | ||||||||
IP Rate | IP31 | IP31 | IP31 | IP31 | IP31 | IP31 | IP31 | IP31 | ||||||
Service Access | Front | Front | Front | Front | Front | Front | Front | Front | ||||||
Refresh Rare (HZ) | 3840hz | 3840hz | 3840hz | 3840hz | 1920/ 3840hz | 1920/ 3840hz | 1920/ 3840hz | 1920/ 3840hz | ||||||
Grey Scale (bit) | 16bit | 16bit | 16bit | 16bit | 16bit | 16bit | 16bit | 16bit | ||||||
Viewing Angle (H/V) | 160 /140 | 160 /140 | 160 /140 | 160 /140 | 160 /140 | 160 /140 | 160 /140 | 160 /140 | ||||||
Input Voltage (AC) | 110v/ 240v | 110v/ 240v | 110v/ 240v | 110v/ 240v | 110v/ 240v | 110v/ 240v | 110v/ 240v | 110v/ 240v | ||||||

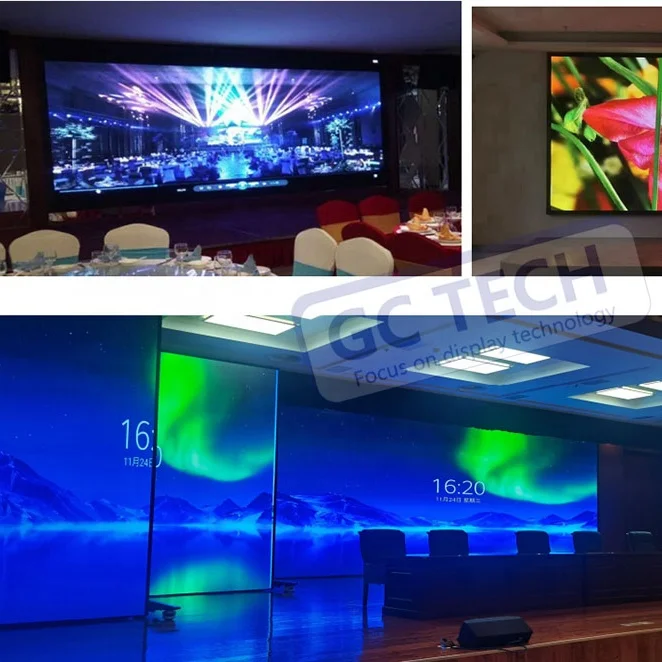

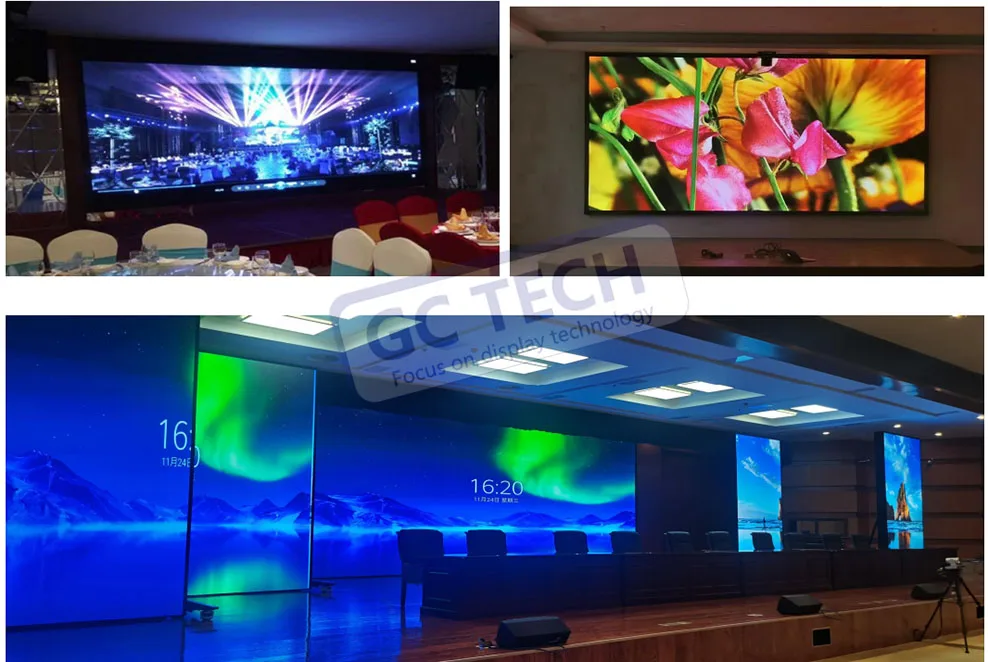

Application
1 .Monitoring and command center: LED indoor high-definition screen can display real-time video signals from multiple channels,improve monitoring efficiency and security, and apply to fields such as traffic, security, energy, etc.
2. Broadcasting and television station: LED indoor high-definition screen can serve as thebackground wall of the studio,
displaying the content of news, variety shows, sports and other programs, enhancing the visual effect and appeal of the
programs.
3. Advanced video conference: LED indoor high-definition screen can serve as the display device of the conference room,
supporting multi-party remote video calls, improving the efficiency and quality of the conference.
4. Cinema: LED indoor high-definition screen can replace the traditional projector, providing higher brightness, contrast and color reproduction, enhancing the viewing experience and enjoyment.
5. Shopping malls, hotels, specialty stores, etc.: LED indoor high-definition screen can serve as a carrier of commercial
advertisements, displaying brand image, product features, promotional information, etc., increasing customer flow and sales.
6. Exhibition hall, exhibition, etc.: LED indoor high-definition screen can serve as a display platform, displaying corporate
culture, product technology, industry trends, etc., enhancing the visibility and influence of the enterprise.
2. Broadcasting and television station: LED indoor high-definition screen can serve as thebackground wall of the studio,
displaying the content of news, variety shows, sports and other programs, enhancing the visual effect and appeal of the
programs.
3. Advanced video conference: LED indoor high-definition screen can serve as the display device of the conference room,
supporting multi-party remote video calls, improving the efficiency and quality of the conference.
4. Cinema: LED indoor high-definition screen can replace the traditional projector, providing higher brightness, contrast and color reproduction, enhancing the viewing experience and enjoyment.
5. Shopping malls, hotels, specialty stores, etc.: LED indoor high-definition screen can serve as a carrier of commercial
advertisements, displaying brand image, product features, promotional information, etc., increasing customer flow and sales.
6. Exhibition hall, exhibition, etc.: LED indoor high-definition screen can serve as a display platform, displaying corporate
culture, product technology, industry trends, etc., enhancing the visibility and influence of the enterprise.

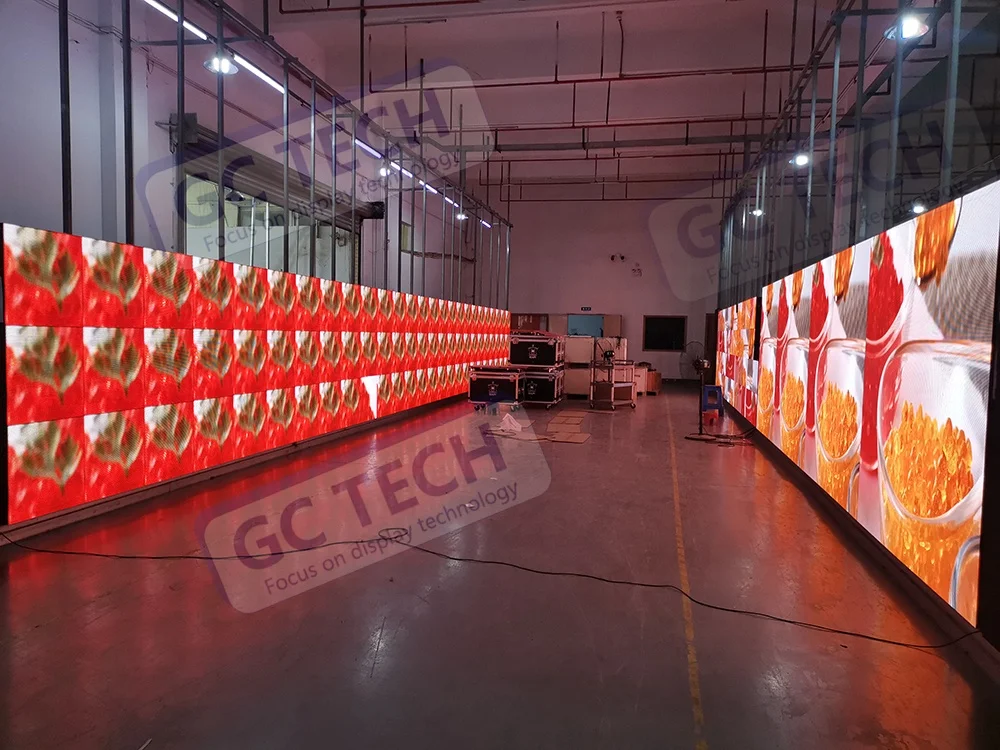

Company Introduction
At GC Tech, we believe in building long-term relationships with our clients based on trust, integrity, and mutual respect. Whether you're looking for a single led display or a complete custom solution, we are confident that we can meet your needs and exceed your expectations.
Contact us today to learn more about our products and services..
Contact us today to learn more about our products and services..
Packing&Shipping
Related Products
FAQ
Q1: About us:
We are a leading manufacturer of LED screen display solutions with 10+ years experience in Shenzhen, China.
Q2: Why does our Ali account only have 1 year?
For a long time, we focused on sales solutions for the Chinese local market；
Now we want to expand into more international markets and customers.
Q3: About sample order:
The sample is available, 1PCS module or 1sqm LED Screen, all is ok .
Q4: What’s the brand of the component? (all we provide best for you)
Regarding LED, we mainly work with Nationstar, Xindeco, and also work with Cree/Nichia/Multicolor.
Regarding driving IC, we mainly work with Microblock and Chiappone, eg, MBI5124/ICN2153, etc.
Regarding power supply, we mainly work with Meanwell, Hwa, Greatwall, and G-energy
Regarding controller and processor, we mainly work with Novastar, Brompton
Q5: About the logo:
OEM Logo service accepted. Print on the housing box OK. MOQ: 1PCS.
Q6: What’s the lead time?
7-15 working days for indoors and 12-20 working days for outdoor depends on a different project.
Q7:How does your factory do regarding quality control?
Quality is priority.we always attach great importance to quality controlling from the very beginning to the very end. We focus on every detail, our factory has gained ISO9001, ISO14001, CE, RoHS ,FCC authentication
We are a leading manufacturer of LED screen display solutions with 10+ years experience in Shenzhen, China.
Q2: Why does our Ali account only have 1 year?
For a long time, we focused on sales solutions for the Chinese local market；
Now we want to expand into more international markets and customers.
Q3: About sample order:
The sample is available, 1PCS module or 1sqm LED Screen, all is ok .
Q4: What’s the brand of the component? (all we provide best for you)
Regarding LED, we mainly work with Nationstar, Xindeco, and also work with Cree/Nichia/Multicolor.
Regarding driving IC, we mainly work with Microblock and Chiappone, eg, MBI5124/ICN2153, etc.
Regarding power supply, we mainly work with Meanwell, Hwa, Greatwall, and G-energy
Regarding controller and processor, we mainly work with Novastar, Brompton
Q5: About the logo:
OEM Logo service accepted. Print on the housing box OK. MOQ: 1PCS.
Q6: What’s the lead time?
7-15 working days for indoors and 12-20 working days for outdoor depends on a different project.
Q7:How does your factory do regarding quality control?
Quality is priority.we always attach great importance to quality controlling from the very beginning to the very end. We focus on every detail, our factory has gained ISO9001, ISO14001, CE, RoHS ,FCC authentication
