China Leading manufacturer cnc horizontal metal lathe milling heavy duty flat bed steel CK6180 cnc lathe machine
- Category: >>>
- Supplier: Henan rowdai Machinery Equipment Co. LTD
Share on (1600906124276):
Product Overview
Description
Product Description

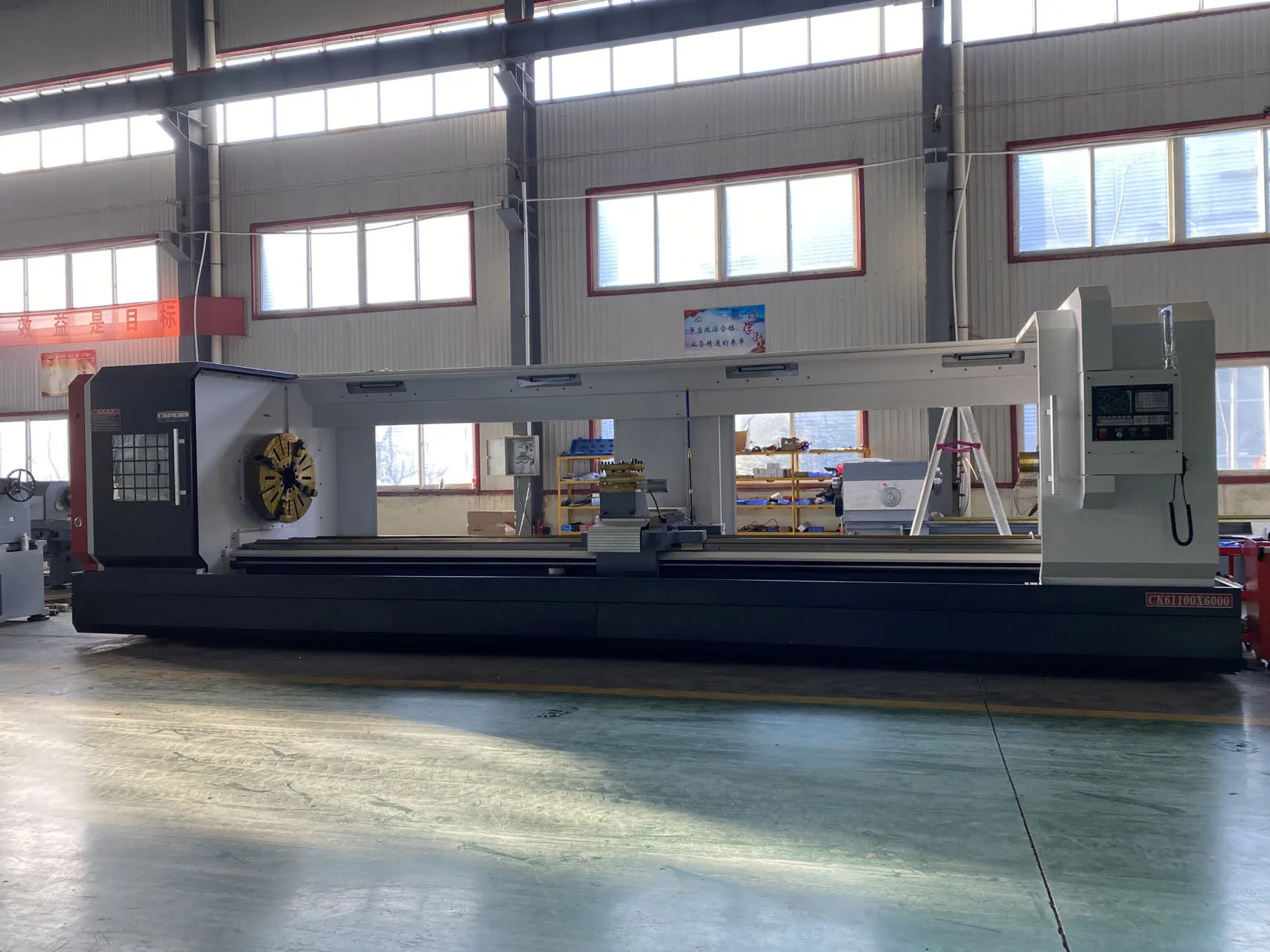

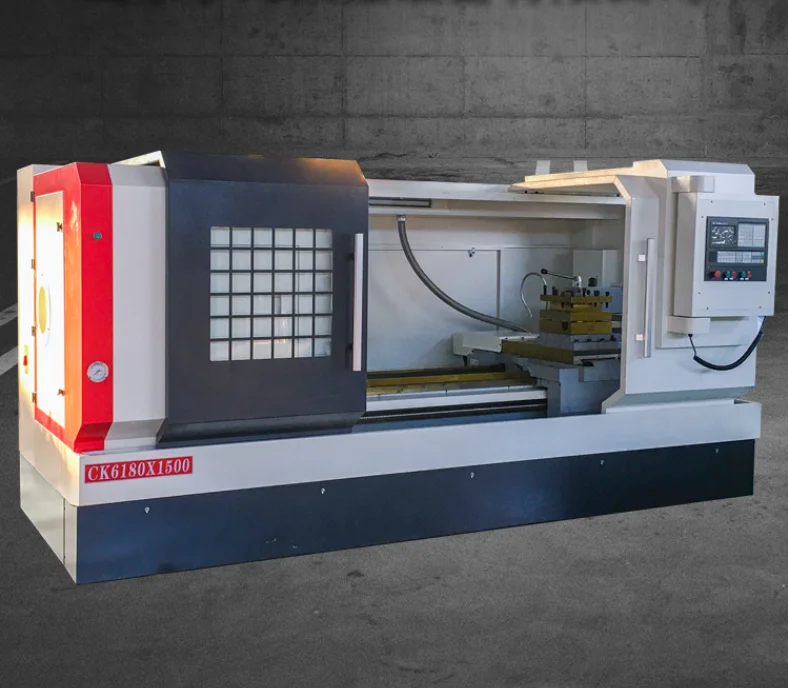

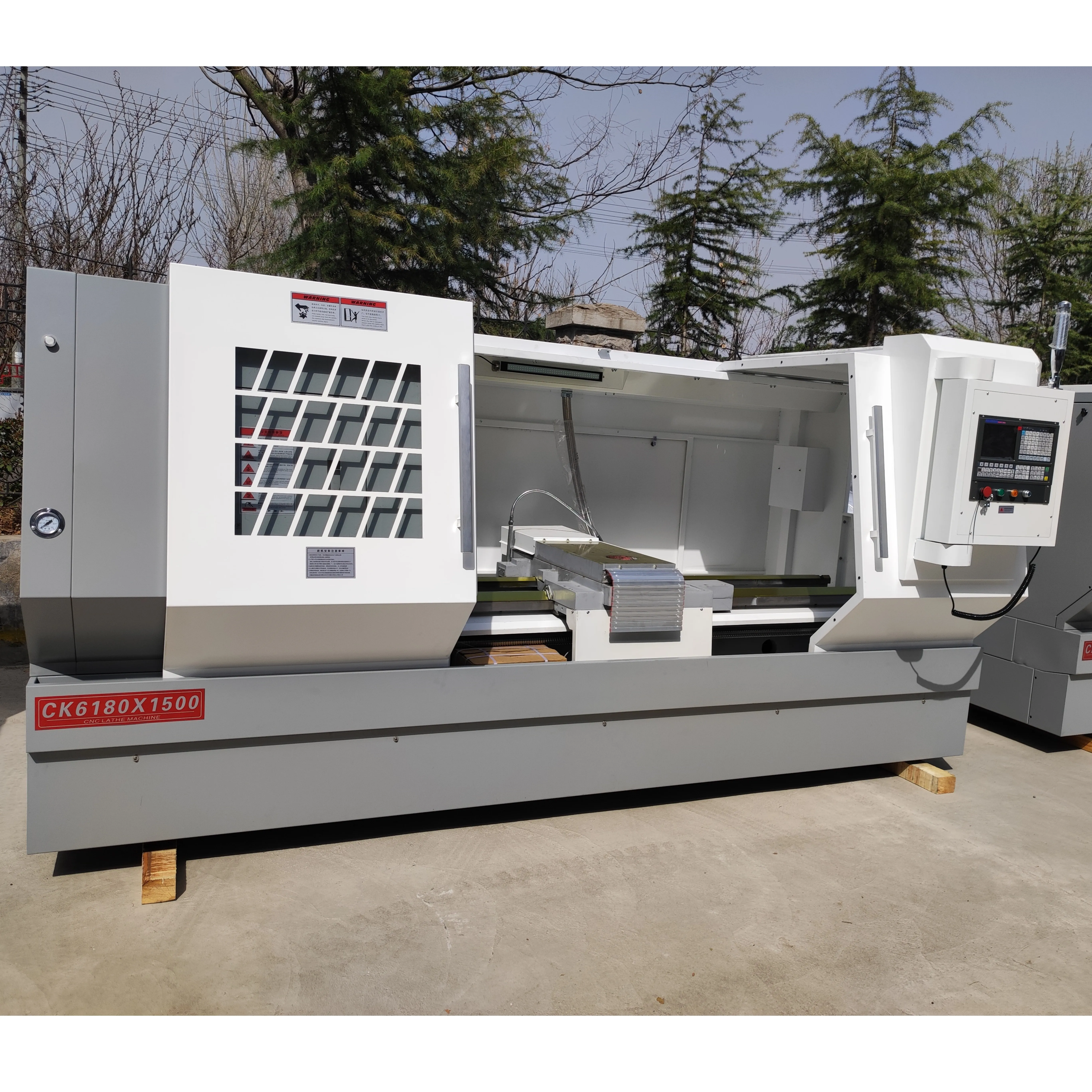

CK6180 CNC Lathe Machine
Numerical control lathe is a kind of automatic machine tool with high precision and high efficiency.
Equipped with multi-station knife tower or power knife tower, the machine tool has a wide range of processing technology, can process straight cylinder, oblique cylinder, arc and a variety of threads, grooves, worm and other complex workpiece, it has all kinds of compensation functions of linear interpolation and circular interpolation, and plays an important role in the batch production of complex parts.
Equipped with multi-station knife tower or power knife tower, the machine tool has a wide range of processing technology, can process straight cylinder, oblique cylinder, arc and a variety of threads, grooves, worm and other complex workpiece, it has all kinds of compensation functions of linear interpolation and circular interpolation, and plays an important role in the batch production of complex parts.
Product Advantages
Product advantages
1. It can realize the complex combination of turning, milling, drilling, tapping and grinding of metal materials;
2. The power milling head can be arbitrarily installed, and the dividing chuck can be installed to realize the product processing on four sides, which is more convenient and fast;
3. Three control systems are available: GSK, New Generation, Siemens and FANUC.
2. The power milling head can be arbitrarily installed, and the dividing chuck can be installed to realize the product processing on four sides, which is more convenient and fast;
3. Three control systems are available: GSK, New Generation, Siemens and FANUC.
Product Paramenters
SPECIFICATIONS | Units | CK6180 |
Swing Over Cross Slide | mm | 800 |
Maximum turning diameter on skateboard | mm | 450-480 |
Max truning length | mm | 1000/1500/2000/3000/4000/5000/8000 |
Maximum cutting diameter | mm | 800 |
Type and code of spindle end | - | D11 / A11 |
Taper of spindle front hole and taper hole | - | 1:20 18 |
Main shaft hole diameter | - | 105 |
number of speeds | rpm | Four-speed |
Range of spindle speed | r/min | 30-84/53-150/125-350/300-835 |
Main motor power | kw | 11 |
Chuck diameter | mm | 400 mm three-jaw / 400 mm four-jaw |
X axis speed | mm/min | 4 |
Z axis speed | mm/min | 6 |
X axis stroke | mm | 350 |
Z axis stroke | 400 mm | 1000/1500/2000/3000/4000/5000/8000 |
The tailstock diameter | mm | 100 |
The tailstock travel | mm | 250 |
Taper of spindle taper hole of tailstock | - | MT6 |

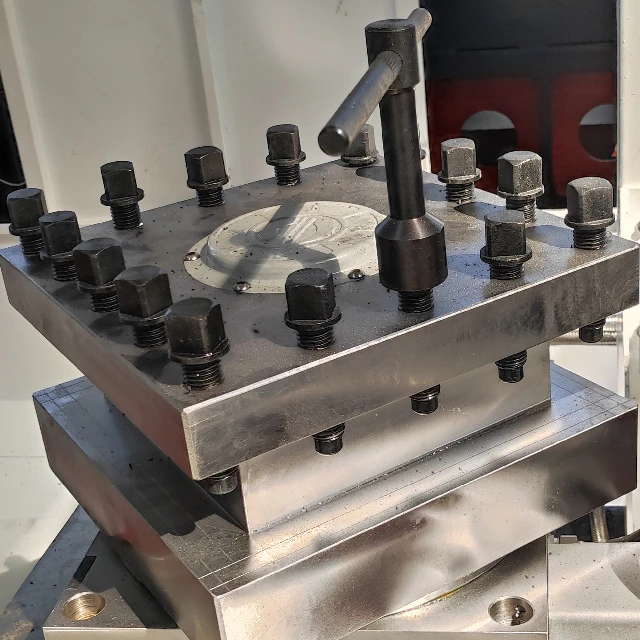

Standard tool rest form | - | Electric 4 stations |
Tool rest transposition time (per station) | s | 1.2 |
Tool rest transposition and repeated positioning accuracy | ″ | 0.005 |
Knife party size | mm | 32*32 |
Weight | kg | 3200-11800 |
Dimension | mm | 10220 * 1900 * 2000 |

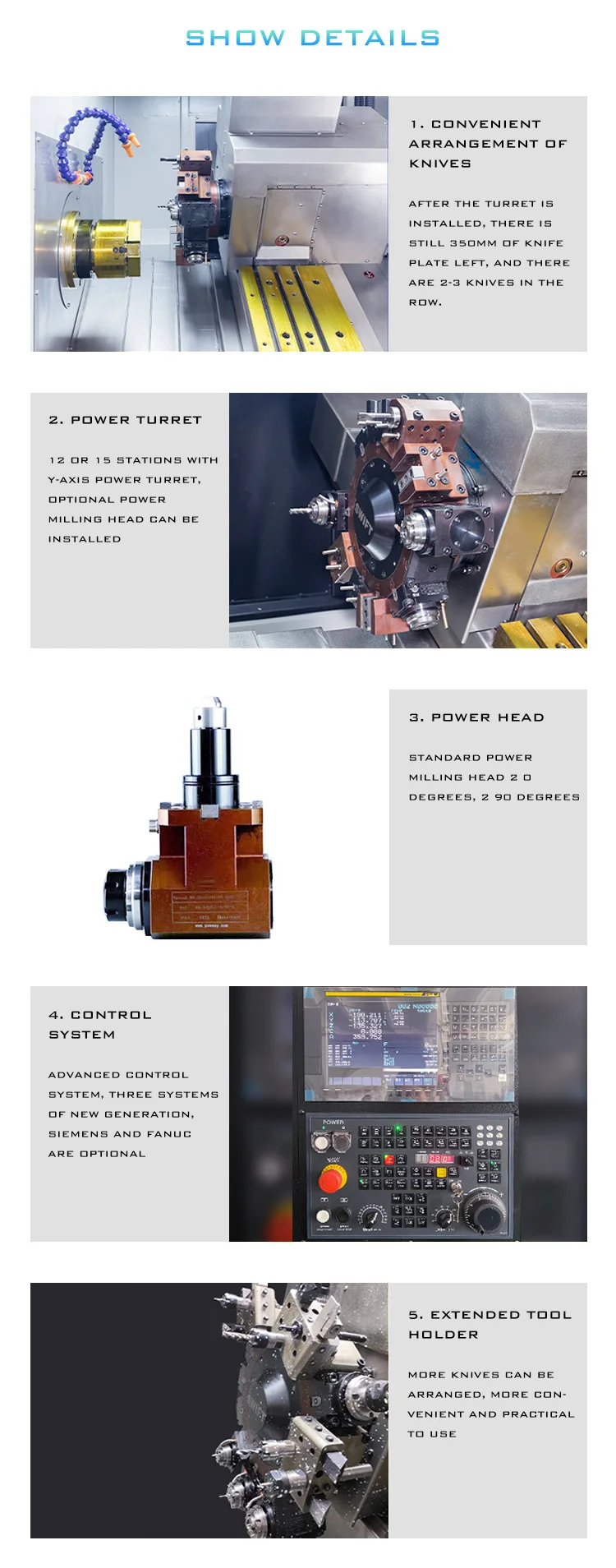

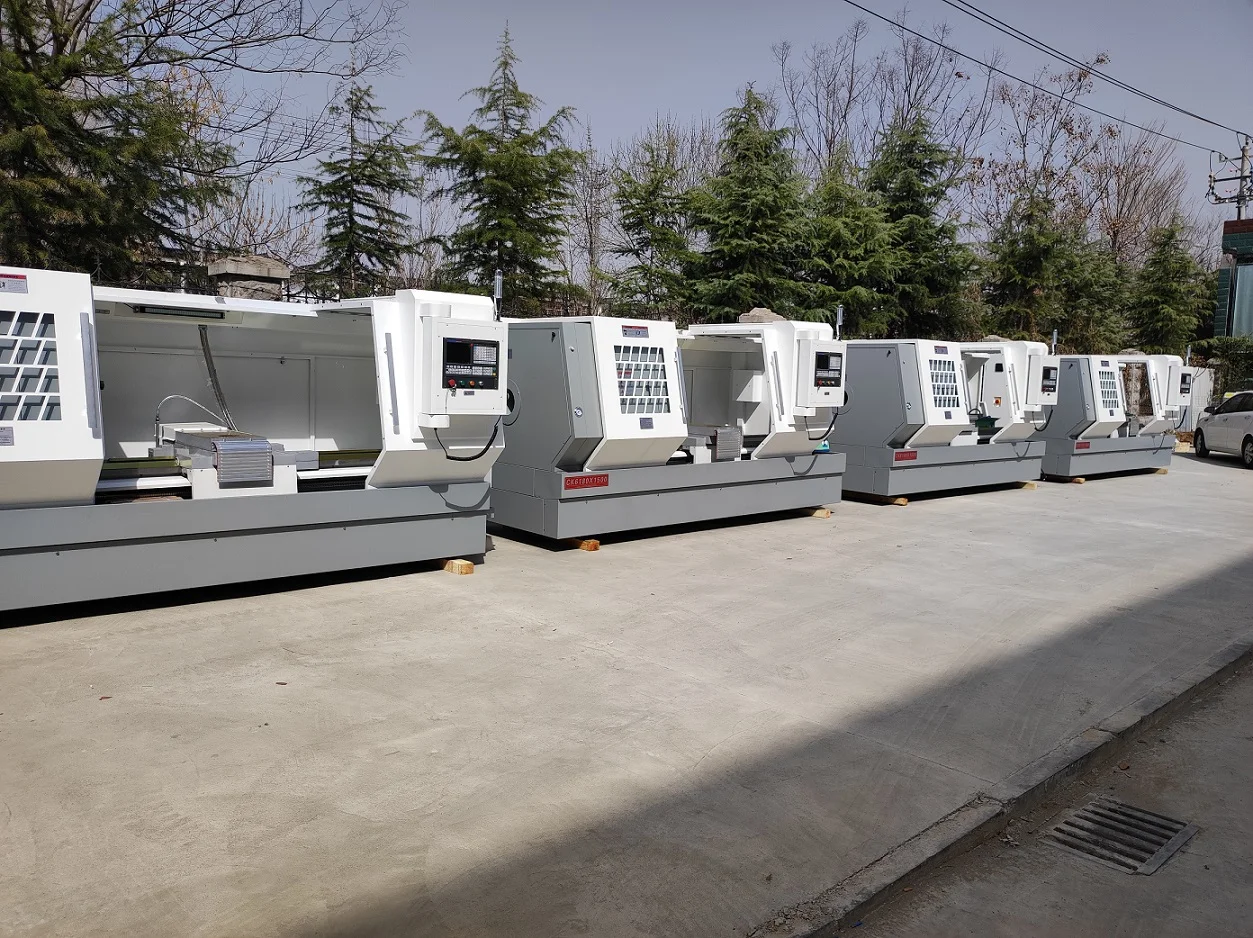

Product Details
Packing & Delivery

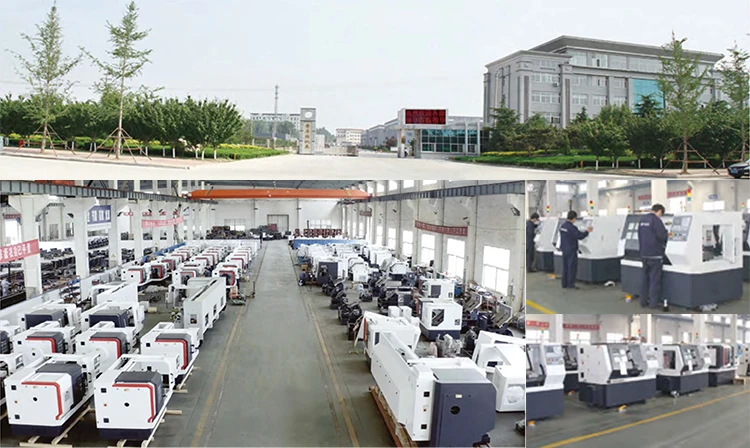

Company Profile
Henan Rowdai Machinery Equipment Co., LTD, is a supplier of machinery.We have exported more than 100 countries like USA, Mexico, Canada, Spain, Russia, Singapore, Thailand, India etc .
Our products provide customer more convenient in their business and expect to have more cooperate in future.
What we offer :
1) Good quality control
2) Highly competitive prices
3) state-of-art technology products
4) Best professional team of lifestyle consumer electronics.
5) Smooth communication
6) Effective OEM&ODM service
1) Good quality control
2) Highly competitive prices
3) state-of-art technology products
4) Best professional team of lifestyle consumer electronics.
5) Smooth communication
6) Effective OEM&ODM service
FAQ
1. What is your advance?
(1)We have ourselves factory. We accept the order if you want to customize products or design the product.
(2)Professional website platform and one-to-one online service.
(3)Various products in low MOQ and competitive prices.
(4)We have a strong R&D team and now we have more than 50 patents products.
(5)80% exporting products have been sold to Europe, America and Japan, high quality.
2. What's the minimum order quantity?
One set is acceptable.
3. How about the payment Term?
We accept T/T,Western Union,LC.
4. What's your port?
Shanghai, Ningbo, Qingdao, Shenzhen.
5. Can we use our own shipping agent?
Yes, you can. We had cooperated with many forwarders.If you need,we can recommend some forwarders to you and you can compare the price and the service.
6. Can we use our own LOGO or design for sticker?
(1)We have ourselves factory. We accept the order if you want to customize products or design the product.
(2)Professional website platform and one-to-one online service.
(3)Various products in low MOQ and competitive prices.
(4)We have a strong R&D team and now we have more than 50 patents products.
(5)80% exporting products have been sold to Europe, America and Japan, high quality.
2. What's the minimum order quantity?
One set is acceptable.
3. How about the payment Term?
We accept T/T,Western Union,LC.
4. What's your port?
Shanghai, Ningbo, Qingdao, Shenzhen.
5. Can we use our own shipping agent?
Yes, you can. We had cooperated with many forwarders.If you need,we can recommend some forwarders to you and you can compare the price and the service.
6. Can we use our own LOGO or design for sticker?
Yes, you just need to sent us more details about the LOGO or sticker.
7. How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. Or it is 15-30 days if the goods are not in stock,it is according to quantity.
7. How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. Or it is 15-30 days if the goods are not in stock,it is according to quantity.
8. Do you provide samples? Is it free or extra ?
A: Yes, we could offer the sample for cheaper price！
