grout pump high pressure cement injection grout pump



Product Description


GGH95/165PL-E High Pressure Grout Pump is an horizontal  hydraulic pump used for pumping fluid mixtures, such as cement slurry or bentonite slurry, ect. For injecting in the sub-soil for soil consolidation, piling or even for long transport of material.


The equipment adopts two pieces of high pressure plungers to stabilize the consistency of the grouting flow. Grouting pressure and displacement is step-less adjustable. Compact size and it is easy to operate. It also takes up a small space.













grout pump high pressure cement injection grout pumpgrout pump high pressure cement injection grout pump
grout pump high pressure cement injection grout pumpgrout pump high pressure cement injection grout pump

Product Specification:

































































Description



Date



Type



GGH95/165PL-E



Plunger diameter



85mm



Plunger stroke



300mm



Adjustable pressure



0-16.5MPa



Adjustable flow rate



0-95L/min



Discharge pipe size



G1 1/4"



Inlet pipe size



G2"



Oil tank



200L



Power   Unit



37Kw,3-400V,50Hz



Max. grain size



2mm



Working pressure



16.5MPa



Weight



1400kg



Overall dimensions



3760x1480x750mm



We also could according to your demands to customize






Feature





1. Grouting pressure, displacement is step-less adjustable;


2. Simple structure, light weight, easy maintenance;


3. Double grouting plungers, continuous output flow with less pulse;


4. Less spare parts ensure low maintenance costs;


5. With the function of record and display grouting pump reciprocating times by a counter;


6. The motor has an overload protection function. Hydraulic system with oil temperature overheating protection;


7. Electric motor and hydraulic driven. Anytime, overpressure occurred, the hydraulic safety protection will be worked.


grout pump high pressure cement injection grout pump


grout pump high pressure cement injection grout pumpgrout pump high pressure cement injection grout pumpgrout pump high pressure cement injection grout pump





Related Products

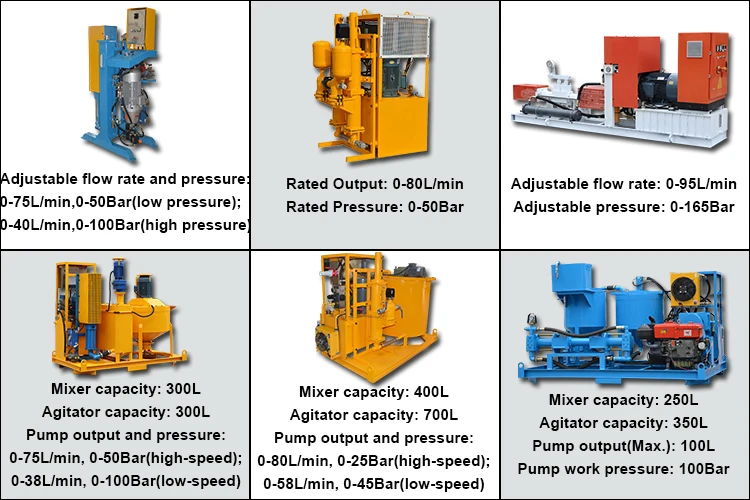

We also have the following grout equipment for option:


















Company Information






















If you are interested in our products, pls contact us freely, and welcome to our factory.





FAQ


We are a professional manufacturer of grouting equipment, our engeer has strong ability for designing and manufacturing the grouting equipment as per your requirement, please help us clear about your detailed requirments:


1. what project will you do with grouting equipment?


2. what is output and pressure of pump?


3. what is water cement ratio?


4. which engine do you prefer? if electric motor, please let us know your local voltage.
