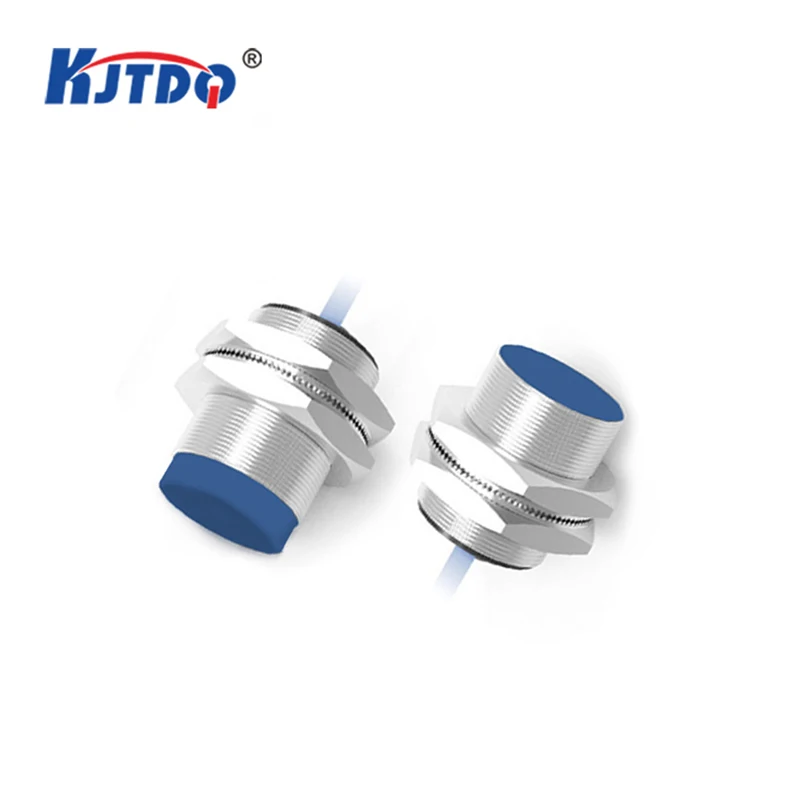

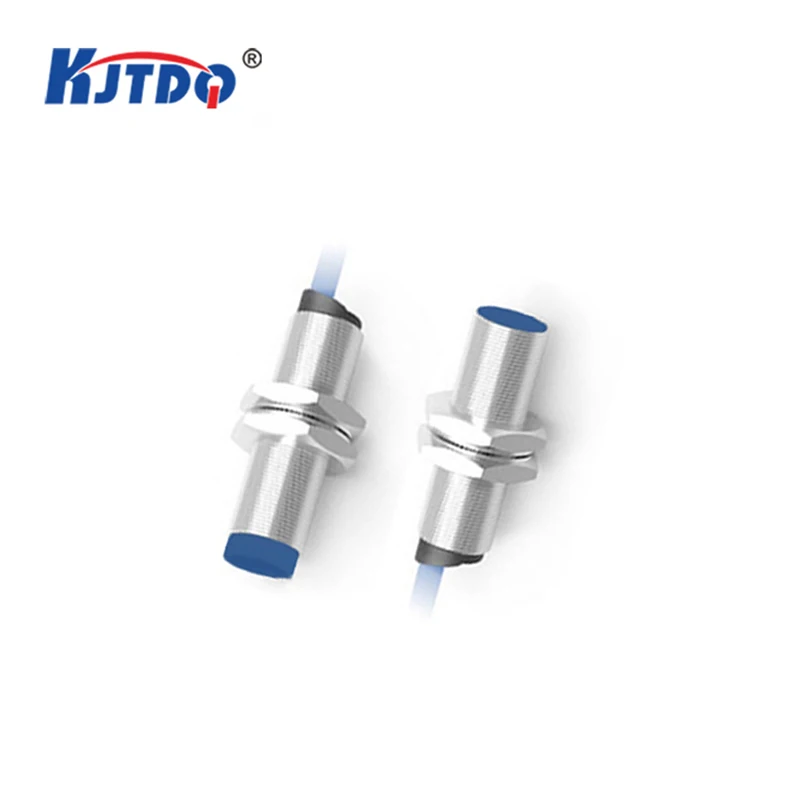

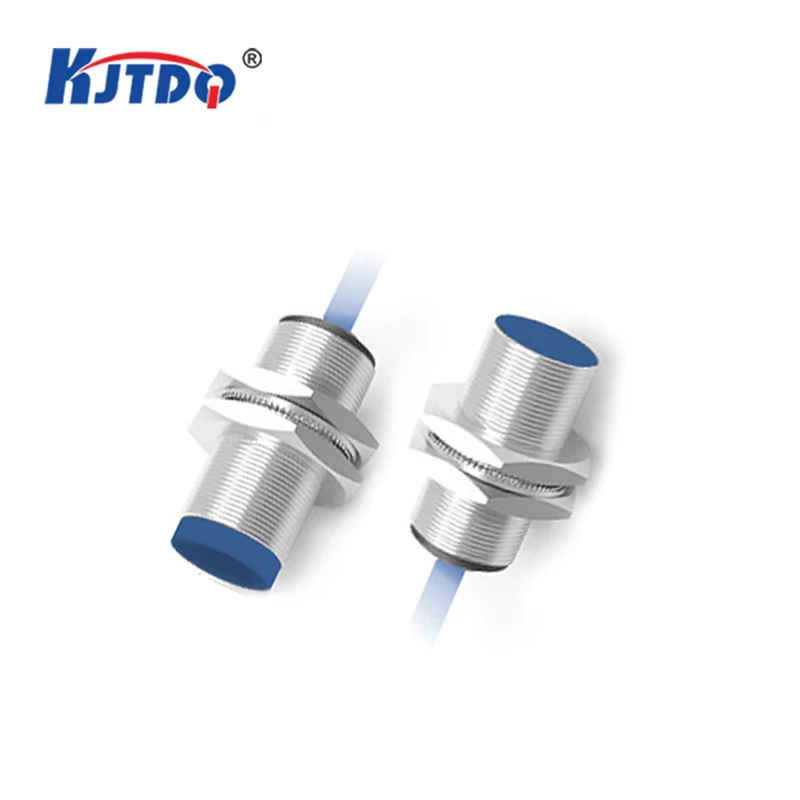

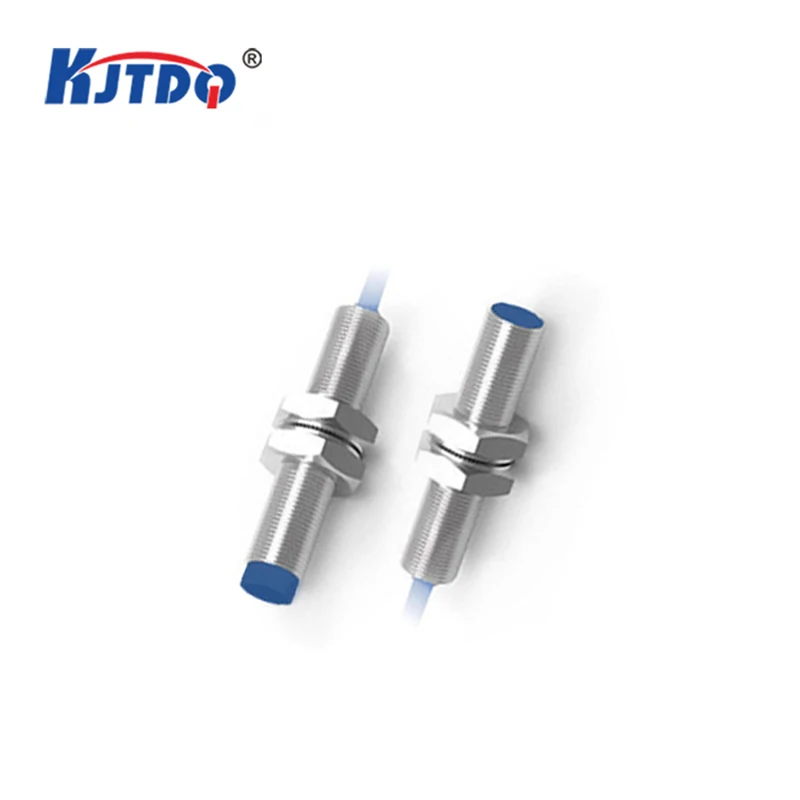

KJT Low Price M8 M12 M18 M30 Namur Explosion Proof Inductive Proximity Sensor
- Category: >>>
- Supplier: Nanjing KJT Electric Co. Ltd.
Share on (1600906150440):
Product Overview
Description
Products Description
Product Paramenters
Product No | M8 | M12 | M18 | M30 | |||
Installation method | Flush/Non-Flush | ||||||
Detection distance | 1MM/2MM | 2MM/4MM | 5MM/8MM | 10MM/15MM | |||
Specification size (mm) | M8*1-25 | M12*1-25 | M18*1-30 | M30*1.5-45 M30*1.5-40 | |||
Output Mode | NC/NO | ||||||
Response Frequency | 150HZ | 150hz | 500hz/300hz | 150hz | |||
Movement Differential | Less than 10% of detection distance | ||||||
Supply Voltage Service Voltage Range | DC12-24V ripple (P-P) 10% or less (DC10-30V) | ||||||
Consumed Current | less than 13mA | ||||||
Switching capacity | less than 200mA | ||||||
Residual voltage | Under 2V (load current 200mA, conductor 2m long) | ||||||
Indicator | Action display (red) | ||||||
Protection circuit | Reverse protection, surge absorption, load short circuit protection | ||||||
Ambient temperature range | Working: -25~ + 70°C, Storing: -40~+ 85°C(no freeze, no dew) | ||||||
Ambient humidity range | Working / Storing: 35~95%RH (no dew) | ||||||
Temperature Effect | Temperature range from-25 °C to 70 °C is 23 °C, detection distance is less than ±10% | ||||||
Insulation Resistance | Above 50MΩ ( DC500V megger) between the whole charging part and the shell | ||||||
Withstand voltage | AC1, 000V 50/60Hz lmin between the whole charging part and the shell | ||||||
Vibration (Durability) | 10~55Hz up and down amplitude is 1.5mm, 2 hours in X,Y,Z directions | ||||||
Impact (Durability) | 300m/s² 10 times in X, Y, Z directions | ||||||
IP Grade | IEC standard IP67 | ||||||
Connection mode | 2m PVC cable | M12 4-pin connector | |||||
weight | About 52-54kg | About 14-15kg | |||||
Material | Case: nickel-plated brass, Test surface: heat-resistant ABS, standard cable (black) PVC | ||||||

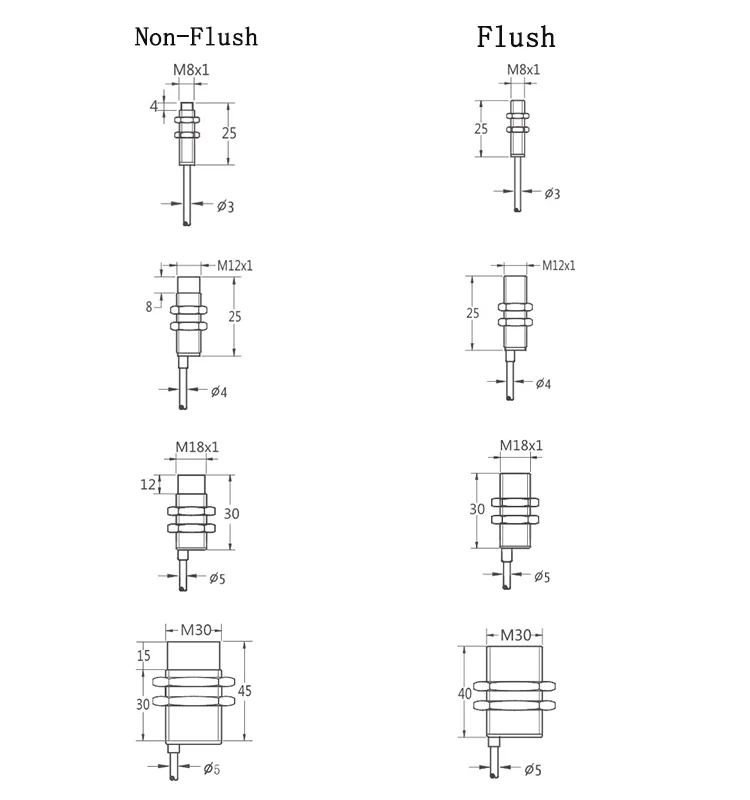

Product Dimensions

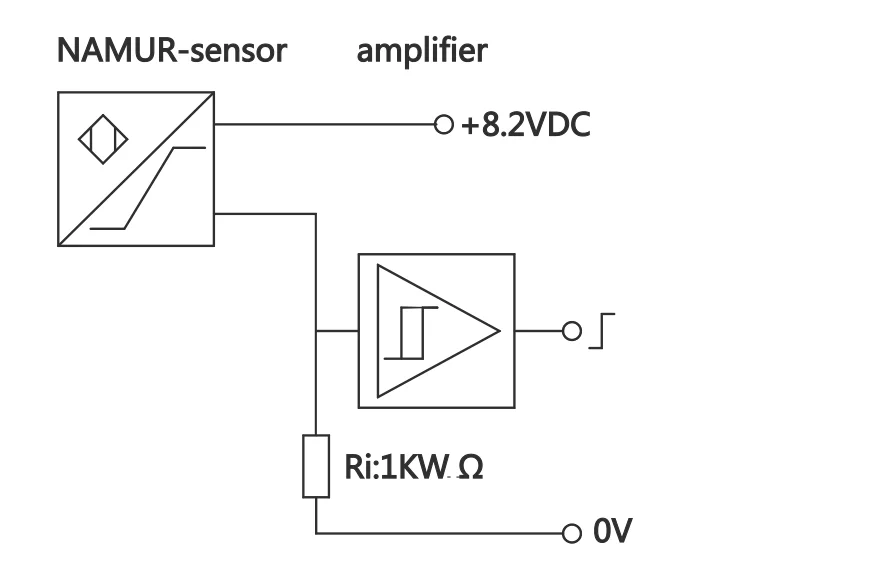

Product Wiring Diagram
PRODUCT APPLICATION
