HD DECODER CAM CI AC3 RF ASI IP IRD Input MPEG2 H.264 HEVC AC3 Decoding SDI CVBS Out HD IRD


Product Description





     Summary

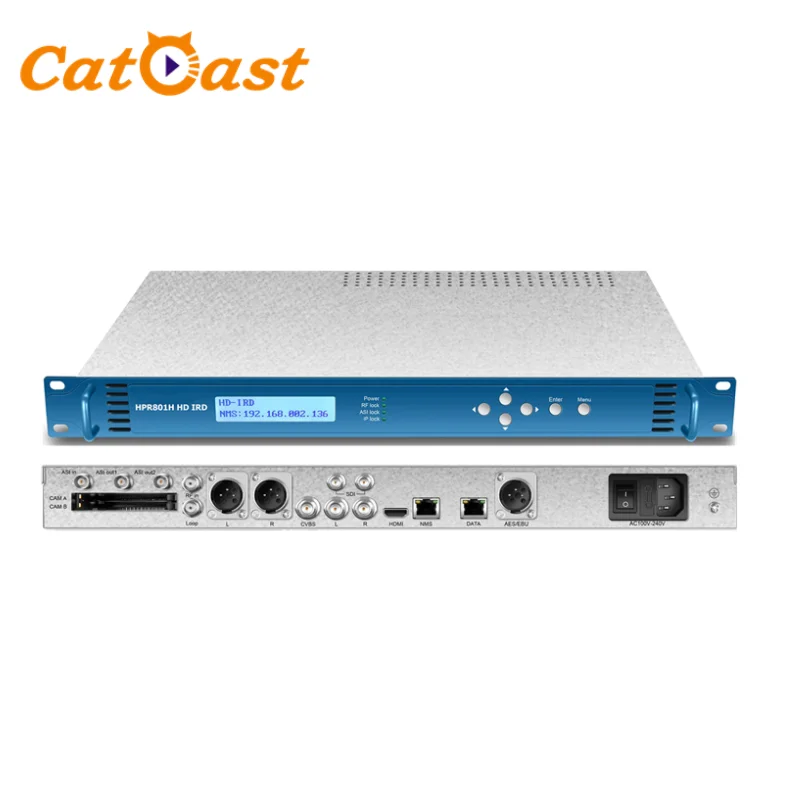

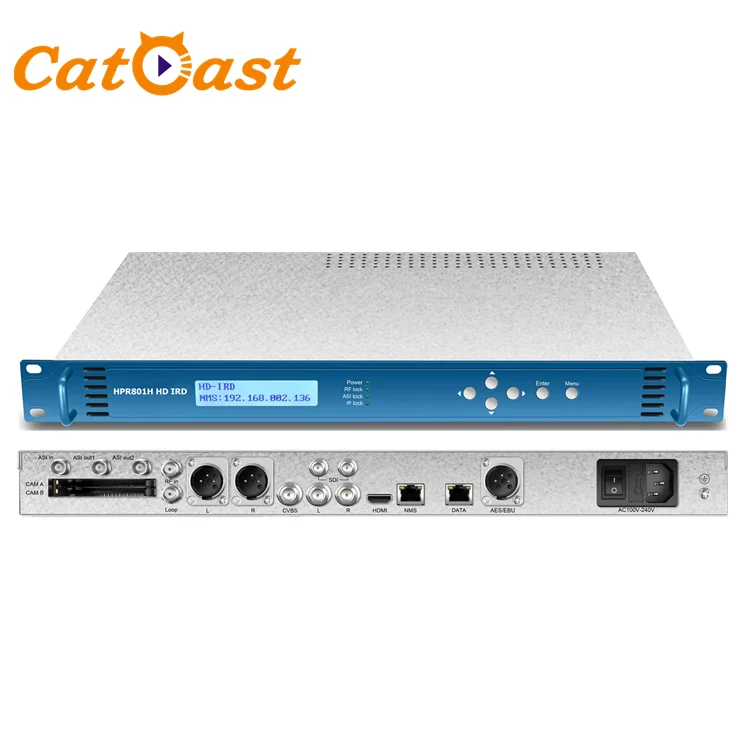

HPR801H HD IRD supportAVS+/H.265/H.264/MPEG2 video decoding and DRA/AC3/

EAC3/AAC/MPEG audio decoding. It support RF/ASI/IP input and 1080P/1080I/ 720P/

576I/480I output resolution. The two CAMs/CIs accompanied and BISS modules can

descramble the programs input from encrypted Tuner, ASI and IP.




 Key Features


* Support RF/IP/ASI input
* Support CVBS/HD MI/SD/HD-SDI/AES/EBU/analog stereo/ASI/IP output
* Support DRA/AC3/EAC3/AAC/MPEG audio decoding
* SupportAVS+/H.265/H.264/MPEG2 video decoding
* Each CAM can decrypt multiple programs from Tuner/ASI/IP
* Support Biss_1/Biss_E descrambling mode
* Support HD and SD signal input
* Resolution can be automatically identified or manually set
* Friendly user interface to facilitate the operation of the menu system and all operations can
be completed on the LCD
* B/S based web management
* Support dynamic monitoring of signal input strength and SNR and support signal lock-lose alarm



     Application category


1. DTV head-end equipment
2. Receiving DVB-S/S2, DVB-T/(T) and DVB-C DTV signals
3. Support VOD and IPTV
4. Broadcast monitoring



     Specification


RF input
DVB-S/S2 input
Input port
1*RF input, 1xRF loopout, 75Ω
Input frequency
950~2150MHz
Input level
-25~-65dBm
Symbol rate
1~45Msps
LNB power supply
13V, 18V, off , 22KHz
Constellation
QPSK, 8PSK
DVB-T/(T) input
Input port
1*RF input, 1*RF loopout, 75Ω
Input frequency
44~1002MHz
Input level
-20~-100dbm
Modulation mode
DVB-T: QPSK, 16/64 QAM
DVB-T2: QPSK, 16/64/256 QAM
Bandwidth
6/7/8 MHz
DVB-C input
Input port
1*RF input, 1*RF loopout, 75Ω
Input frequency
48~862MHz
Input level
45~75dbuV
Modulation mode
16/32/64/128/256QAM
ASI input/output
Input/output interface
1*BNC input, 75Ω; 2*BNC output, 75Ω
Input/output bitrate
≤200Mb/s
TS over IP
Interface
1*RJ-45, 10/100 Base-T
Effective rate
90Mb/s (100 Based-T)
IP protocol
UDP/RTP, Unicast, Multicast
HD MI output
Interface
1*HD MI
Resolution and frame rate
1080P60/1080P50/1080I60/1080I50/720P60/720P50/
576P/576I/480P/480I
Video decoding
Decoding format
MPEG-2/MPEG 4/H.264AVC/H.265(HEVC)/AVS+
Audio decoding
Decoding format
MPEG-1 LayerI/II, MPEG-2 layer II, MPEG-2 AAC, MPEG-4 AAC
LC, 2-CHANNEL/5.1 CHANNELAC3/DRA/EAC3
HD/SD-SDI output
Interface
2*BNC, 75Ω
SD-SDI output
SMPTE 259M, 270Mb/s(10bit)
HD-SDI resolution
SMPTE 292M, 1.485 Gbit/s(20bit)
Analog audio output
Interface
2*BNC, 2*XLR
Output audio format
Left, Right, Dual Mono, Stereo
Digital audio output
Interface
1*AES/EBU
Analog video output
Video interface
1*BNC, 75Ω
CVBS format
PALBDGHI, PALN, NTSCM, PALN-C, NTSCM, NTSCM443,
PALM, SECAM, NTSCMJ
Data output
Subtitle
DVB/EBU
Teletext
DVB/EBU
Closed Caption
EIA608, EIA708, EIA608-to-708
Local and remote
management
Interface
1*RJ-45, 10/100 Base-T
Remote management
HTTP Web
Local management
Front pannel button and LED
Miscellaneous
Dimension (W×L×H)
450mm×280mm×44mm
Net Weight
3Kg
Power
AC 90V~250V, 50/60Hz
Consumption
24W(Power supply without LBN)


Related Products




Packing&Shipping


Package type: each pcs wth soft ,safety polyfoam ,then packed in brown box
Shipping way: it usually take 5-7 days by DHL, TNT, Fedex, UPS to arrive your local place
