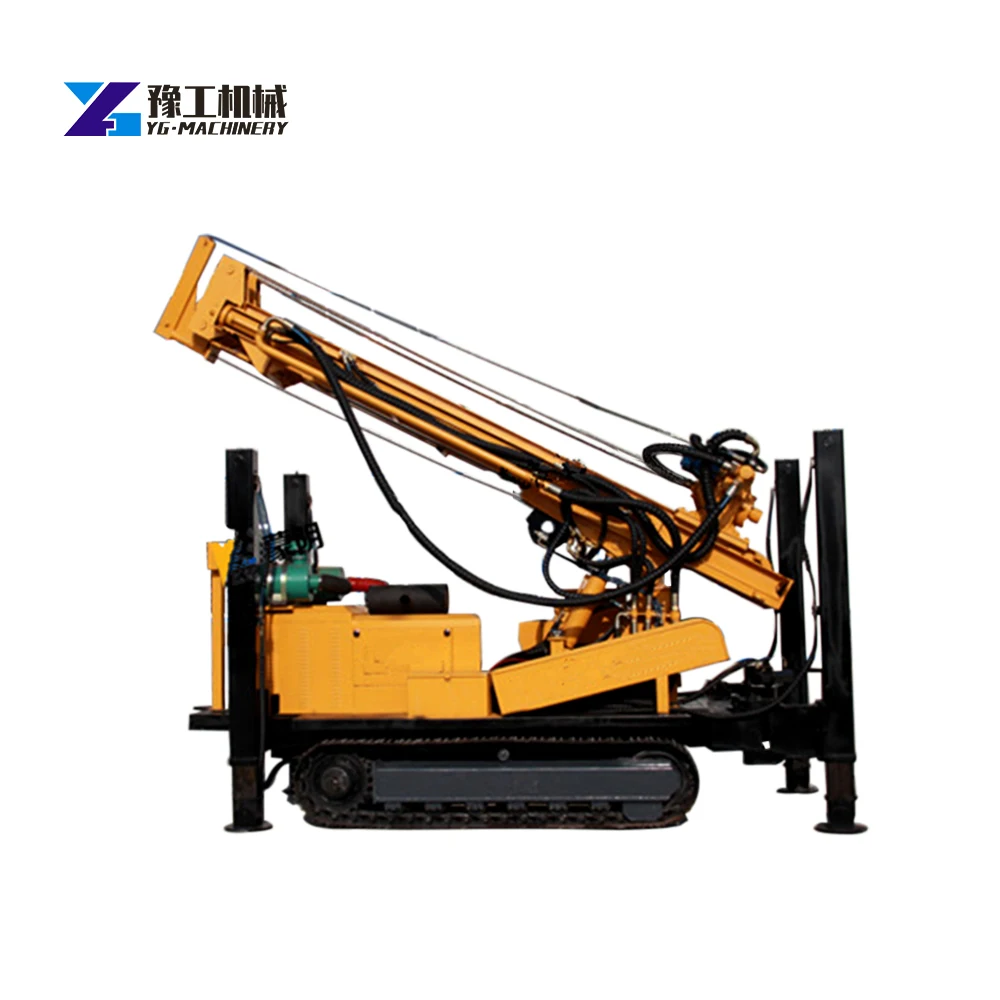

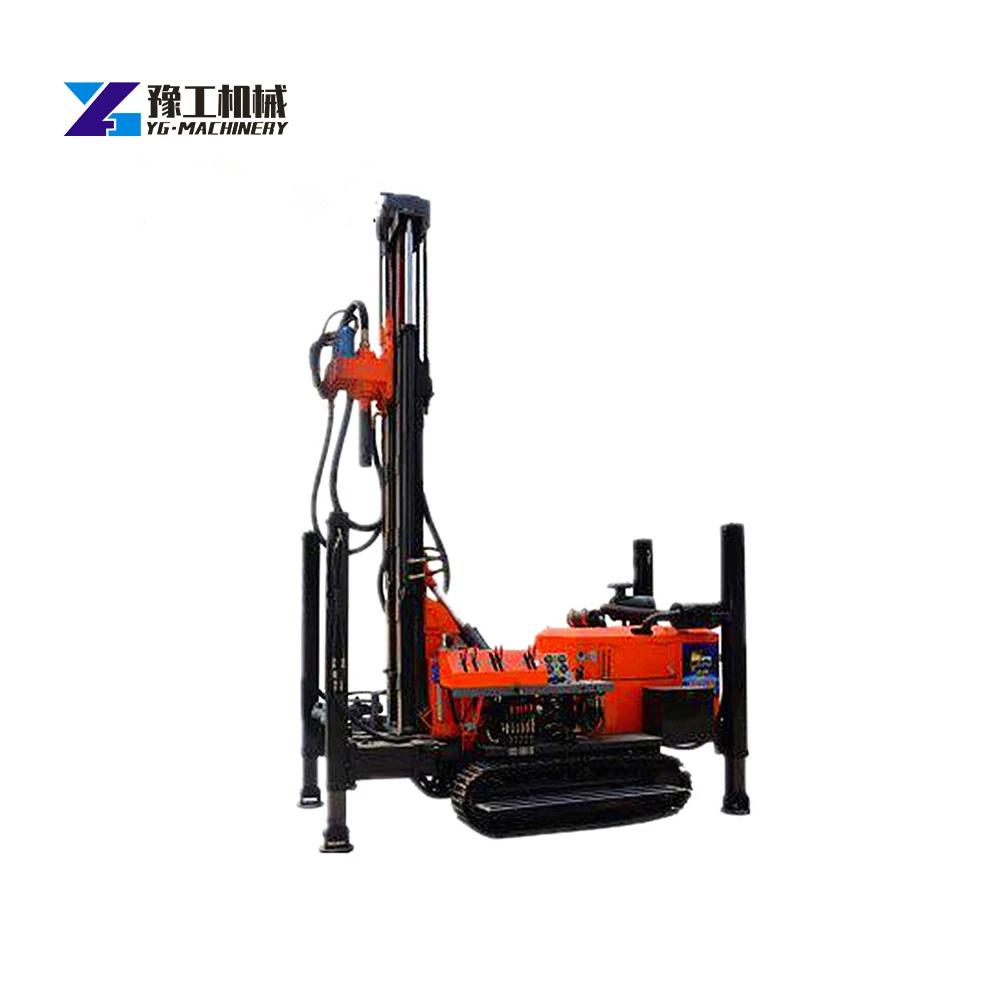

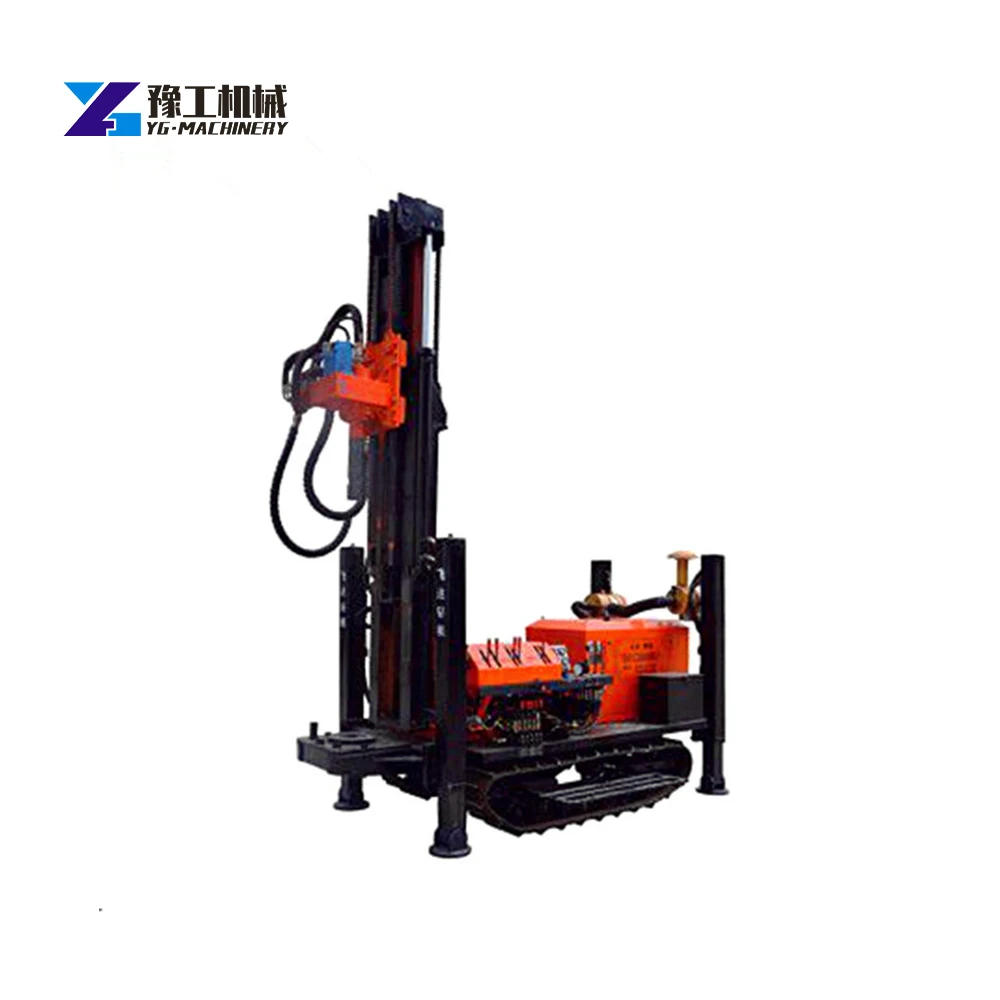

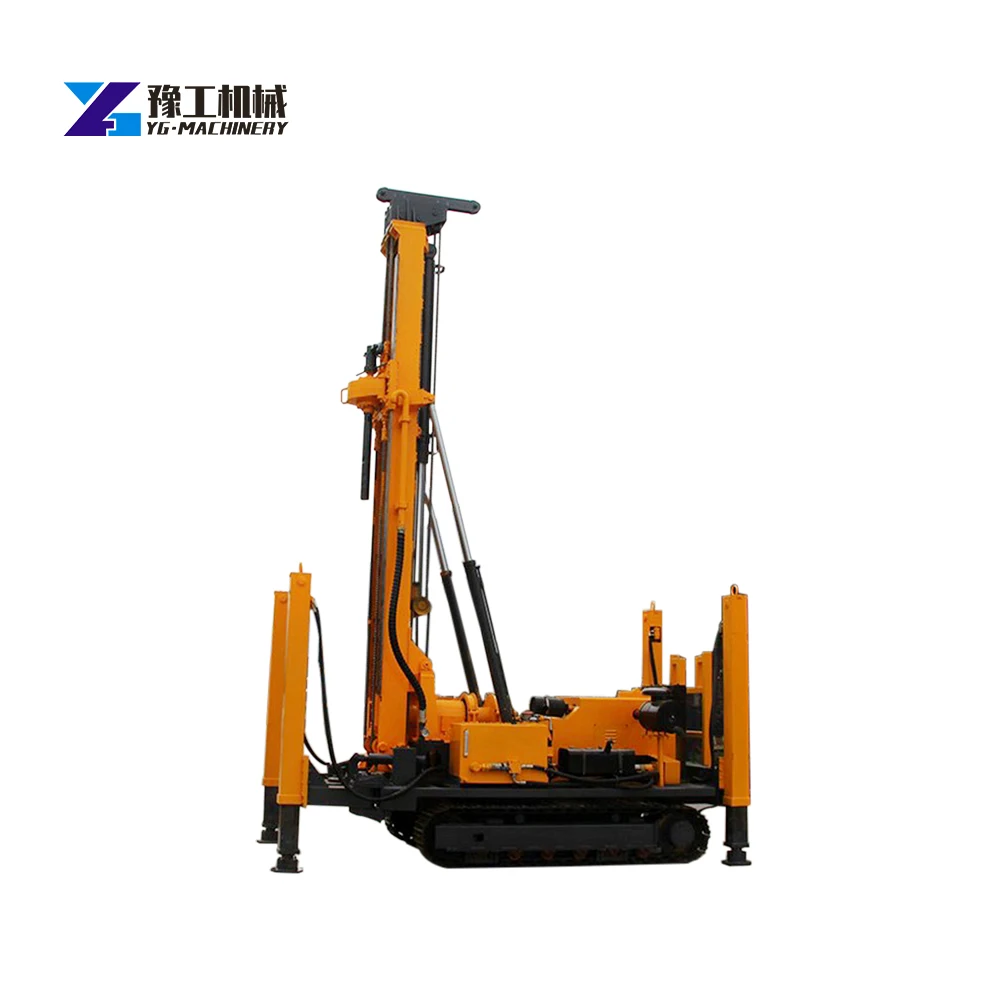

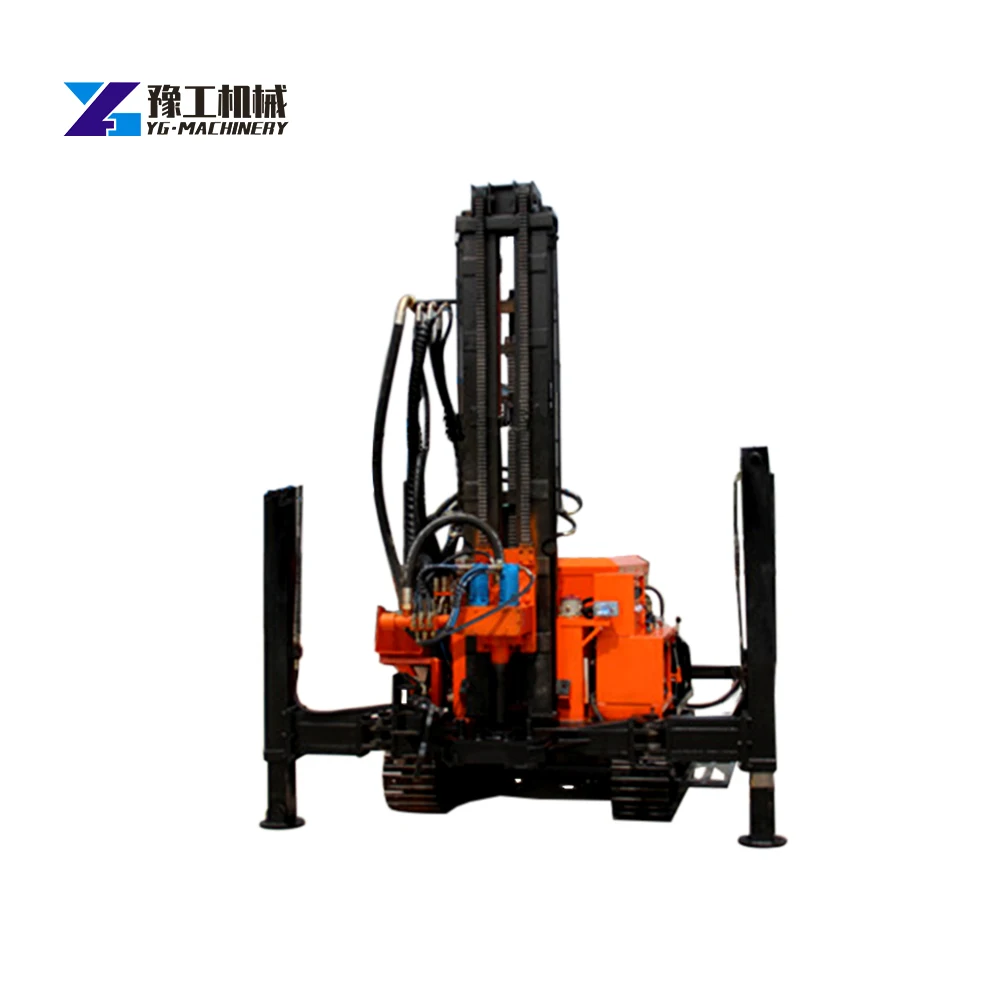

Elegant And Graceful Water Bore Hole Drilling Machine Water Drillings
- Category: >>>
- Supplier: Henan Yugong Machinery Co. Ltd.
Share on (1600906184728):
Product Overview
Description
Products Description
Model | FD600 | FD400 | FD300 | FD200 |
Drill hole depth | 600m | 400m | 300 | 200 |
Maximum opening diameter | 350mm | 350mm | 325mm | 305mm |
Final hole diameter | 140mm | 140mm | 140mm | 140mm |
Drill pipe diameter | 76/89/102mm | 76/89/102mm | 89/102mm | 76/89/102mm |
Walking speed | 2.5km/h | 2.5km/h | 2.5km/h | 2.5km/h |
Power | 115KW | 95KW | 84KW | 65KW |
Air pressure | 1.7-3.5MPa | 1.7-3.5MPa | 1.7-3.3MPa | 1.7-3.0MPa |
Air consumption | 17-35m3/min | 17-35m3/min | 17-35m3/min | 17-30m3/min |
Drill pipe length | 1.5m/2m/3m | 1.5m/2m/3m | 1.5m/2m/3m | 1.5m/2m/3m |
Rig lifting force | 30T | 24T | 28T | 18T |
Swing speed | 45-115rpm | 45-115rpm | 55-115rpm | 50-70rpm |
Size(mm) | 5400*2100*2850 | 5200*2000*2780 | 5500*1950*2780 | 3800*1700*2350 |
Weight | 12Ton | 10Ton | 9Ton | 5.5Ton |
FAQ
1. Q: Are you trading company or manufacturer?
We are original equipment manufacturer.
2. Q: How long is your delivery time?
It is according to the model and quantity.Generally it is 3-5 days if the machines are in stock. It will be 15-30 days if you want to customize the machines.
3. Q: Do you provide samples? Is it free or extra?
Yes, we could offer you the sample machine.But it's not free. You need to pay for the sample and the cost of freight.
4. Q: What is your terms of payment?
We accept T/T, Western Union, Money Gram, Paypal, Alibaba Escrow etc.
Payment<=USD 5000, 100% in advance.
Payment>=USD 5000, 30% T/T in advance, balance before shipment.
