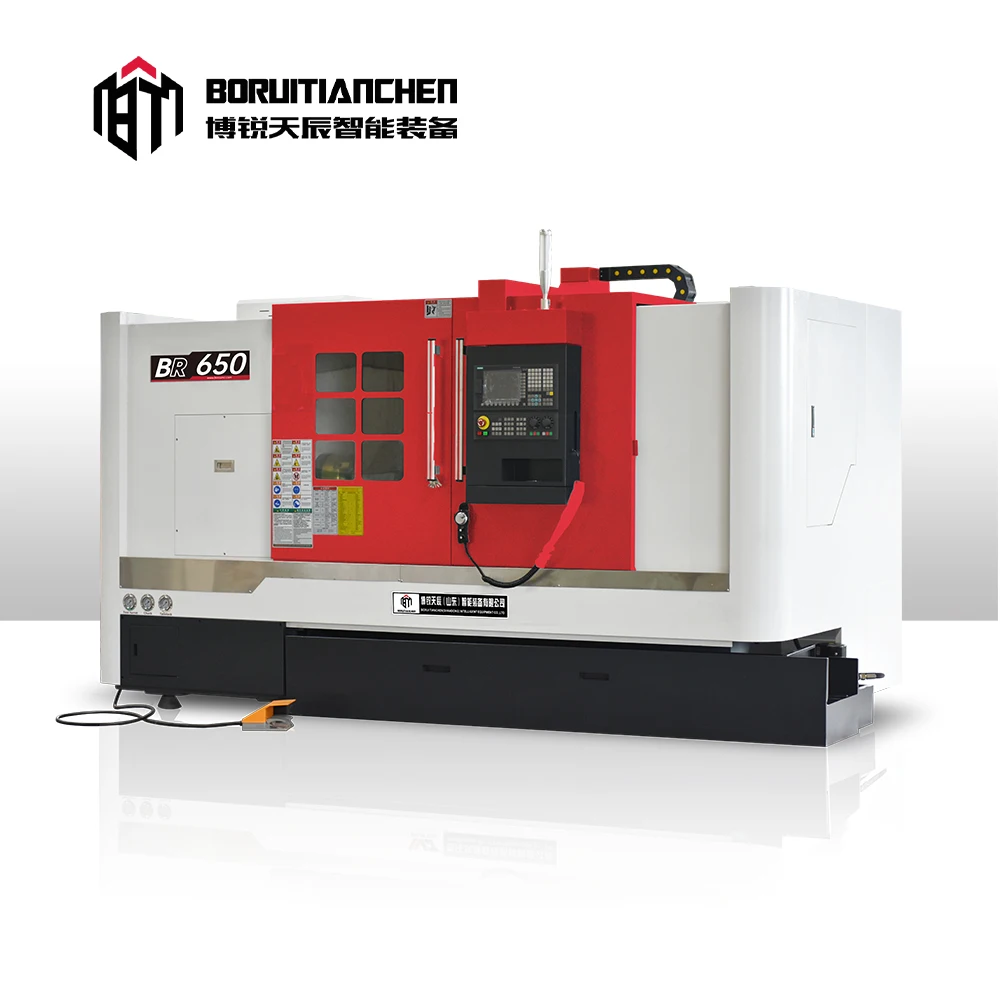

BR 650 1000 slant bed cnc lathe with bar feeder mini cnc lathe for sale cnc turning machines
- Category: >>>
- Supplier: Borui Tianchen (Shandong) Intelligent Equipment Co. Ltd.
Share on (1600906186953):
Product Overview
Description
slant bed cnc lathe with bar feeder mini cnc lathe for sale cnc turning machines
Recommend Products
Products Description
Product description:

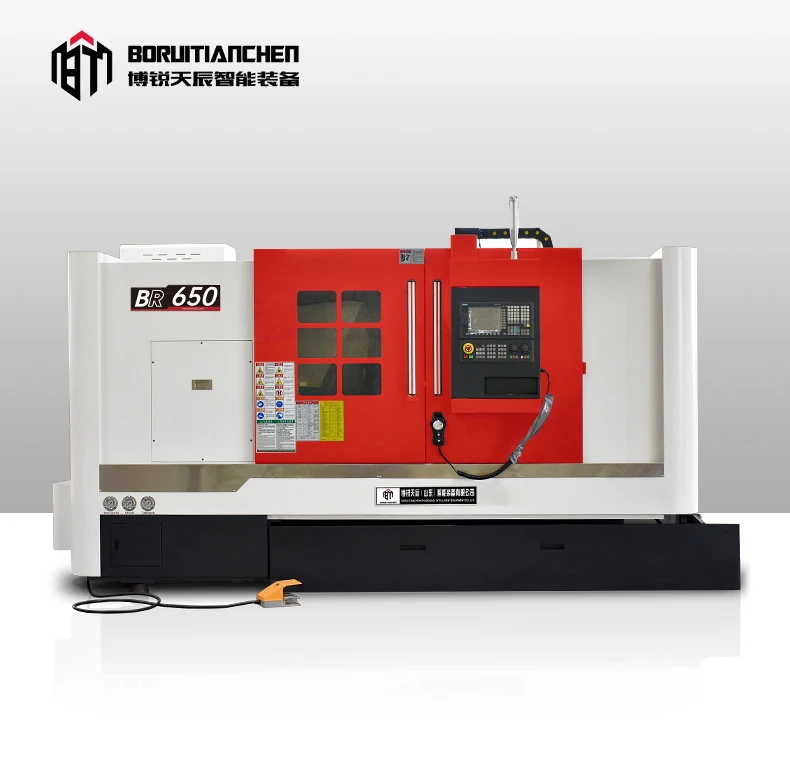

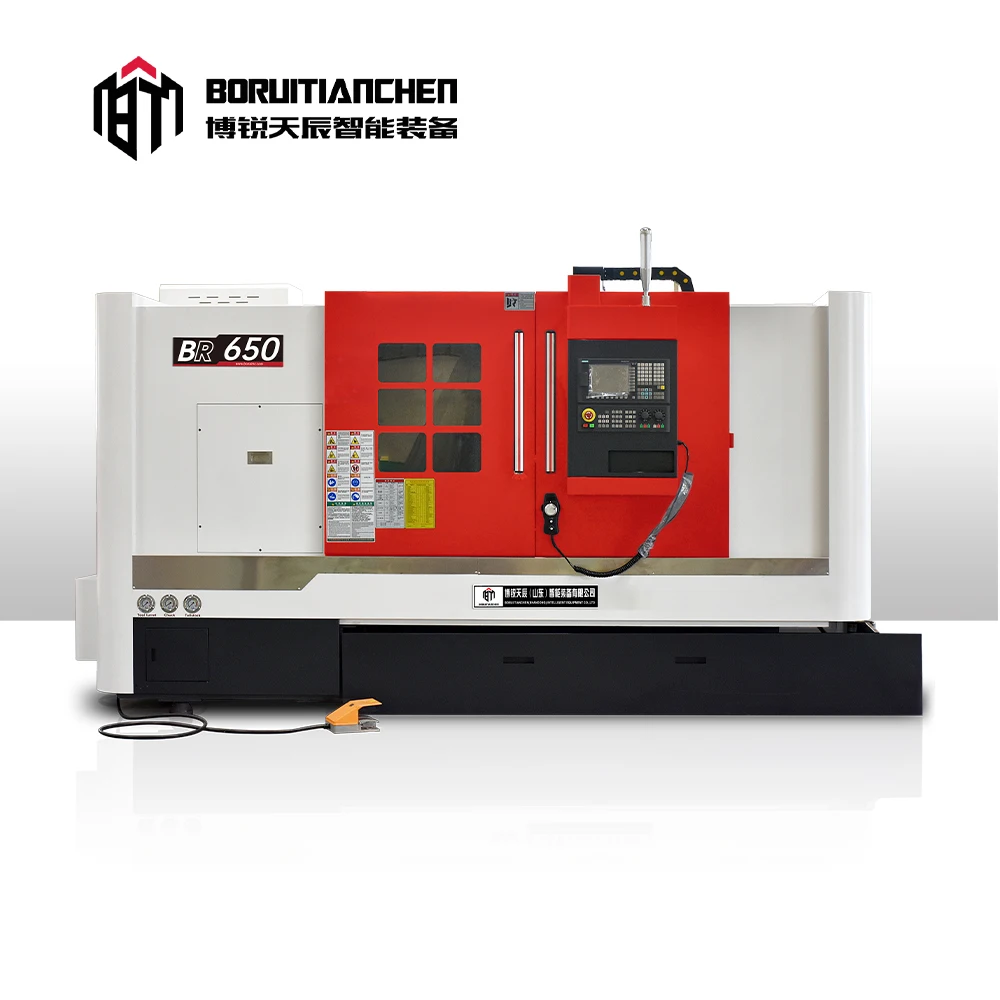

30° slant bed CNC lathe
30° slant bed CNC lathe
2600 rpm independent spindle

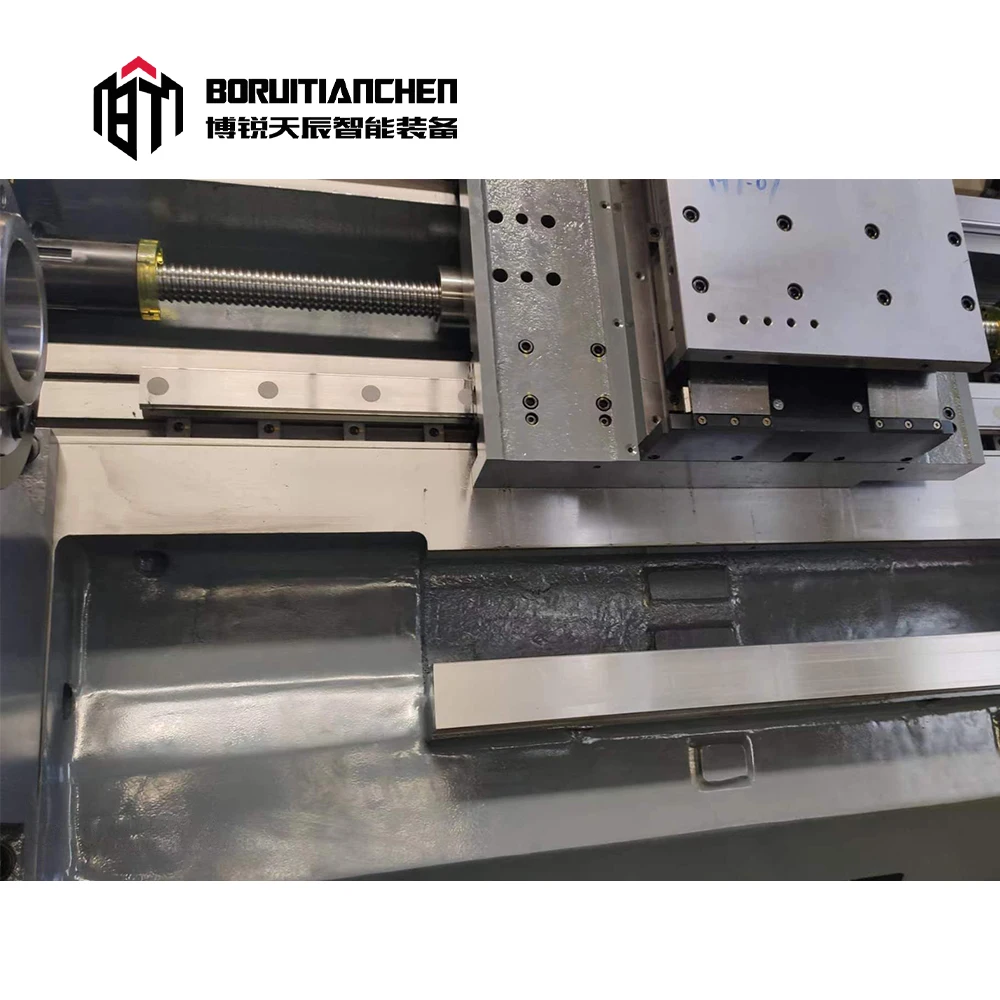

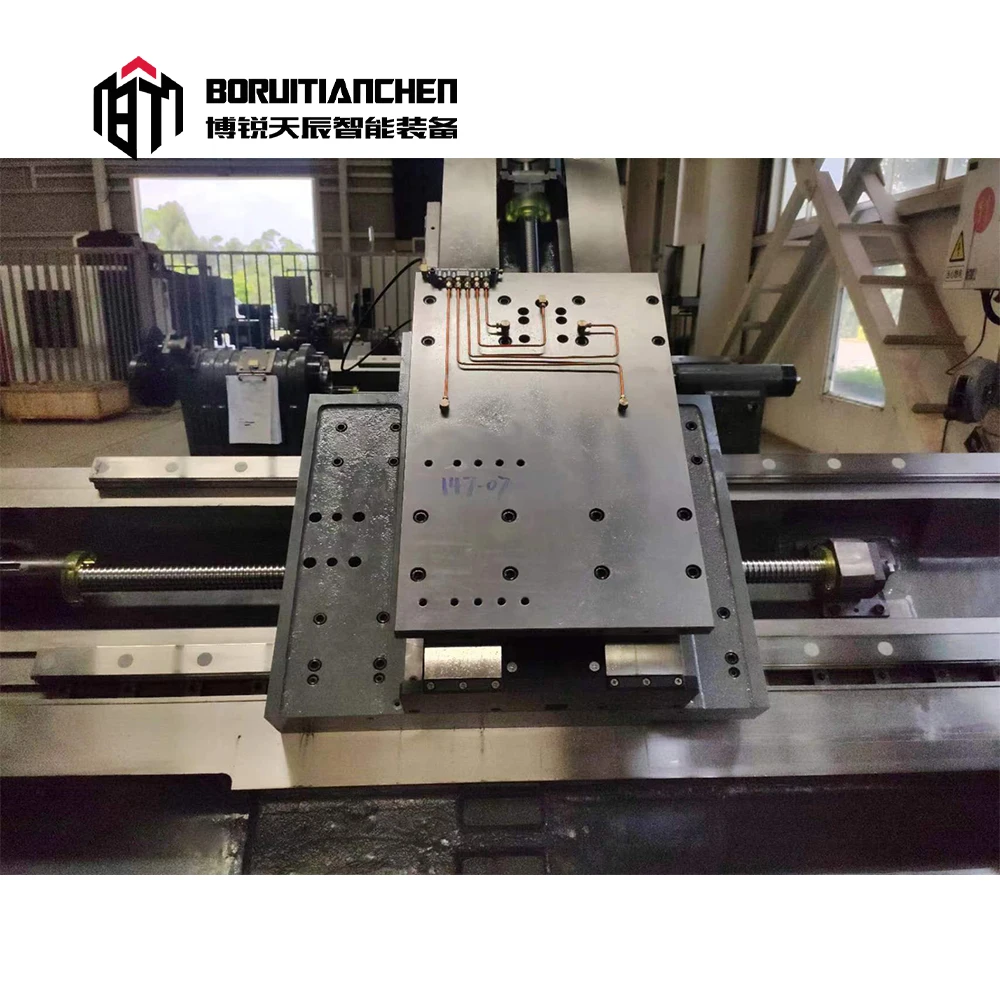

Taiwan HIWIN lead screw wire gauge
12-station servo turret-----optional power turret
Application：
Slant Bed cnc Lathe machine is mainly used for processing all kinds of shaft parts, disk parts, you can turn a variety of
threads, arcs, cones and rotary body inside and outside the surface, to meet the ferrous metal and nonferrous metal high-speed cutting speed demand. Suitable for automotive, motorcycle, electronics, aerospace and other industries on the rotary parts for efficient, high-volume, high-precision processing.
Slant Bed cnc Lathe machine is mainly used for processing all kinds of shaft parts, disk parts, you can turn a variety of
threads, arcs, cones and rotary body inside and outside the surface, to meet the ferrous metal and nonferrous metal high-speed cutting speed demand. Suitable for automotive, motorcycle, electronics, aerospace and other industries on the rotary parts for efficient, high-volume, high-precision processing.
Product Parameters
Machine Model | Model | BR-650-1000 | BR650-1000D | BR650-1000DY |
Major parameter | The maximum turning diameter on the bed | Φ650 | Φ650 | Φ660 |
maximum machining diameter | Φ630 | Φ550 | Φ600 | |
Maximum machining diameter on the tool holder | Φ400 | Φ400 | Φ440 | |
Maximum processing length | 1000 | 1000 | 1000 | |
distance between two peaks | 1320 | 1320 | 1320 | |
X/Z/Y axis limit travel | 350/1120 | 350/1120 | 350/1120/100(±50) | |
X/Z/Y axis connection mode | Direct | Direct | Direct | |
Spindle and chuck parameters | Spindle head form | A2-8 | A2-8 | A2-8 |
Optional hydraulic chuck, oil cylinder | Standard 10 inches | Standard 10 inches | Standard 10 inches | |
Recommended spindle motor power | 11-15KW | 11-15KW | 11-15KW | |
Spindle speed | 2600rpm | 2600rpm | 2600rpm | |
Spindle hole diameter | Φ87 | Φ87 | Φ87 | |
Bar diameter | Φ72 | Φ72 | Φ72 | |
Turret | Turret type | Hydraulic/Servo Turret | BMT55 Power Turret | Y axis power turret BMT55 |
Tailstock | Socket diameter | Φ100 | Φ100 | Φ100 |
Socket travel | 120 | 120 | 120 | |
Tailstock maximum stroke | 1250 | 1250 | 1250 | |
Tailstock sleeve tapered hole | MT5# | MT5# | MT5# | |
Shape and weight | Machine size（L * W * H) | 3170×1180×1700 | 3170×1180×1700 | 3236×1480×1870 |
Weight (approx. weight) | 5000kg | 5000kg | 5000kg |
Details Display
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine,gear hobbing machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine,gear hobbing machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
