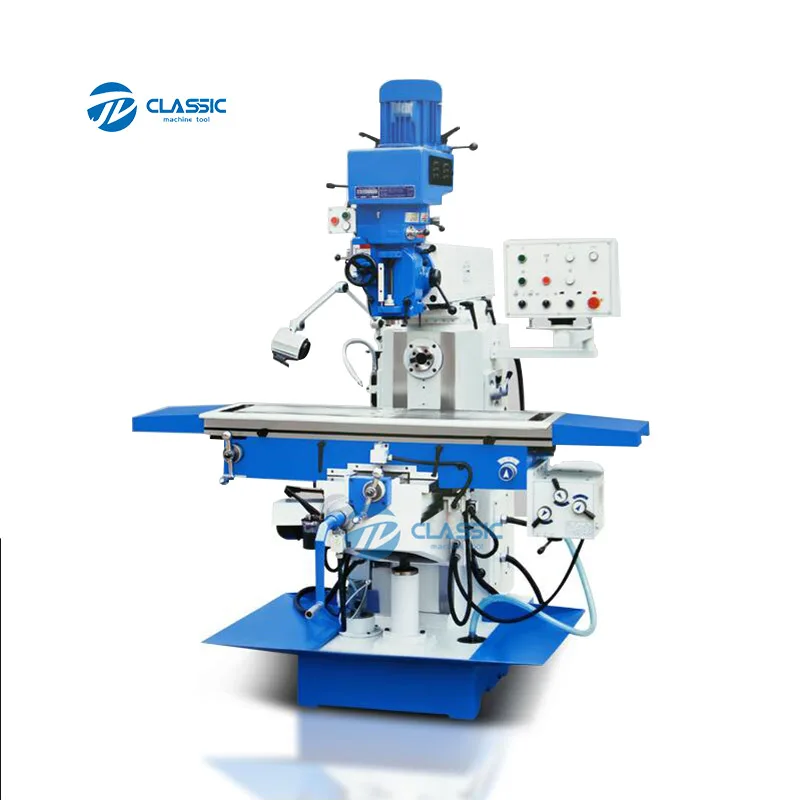

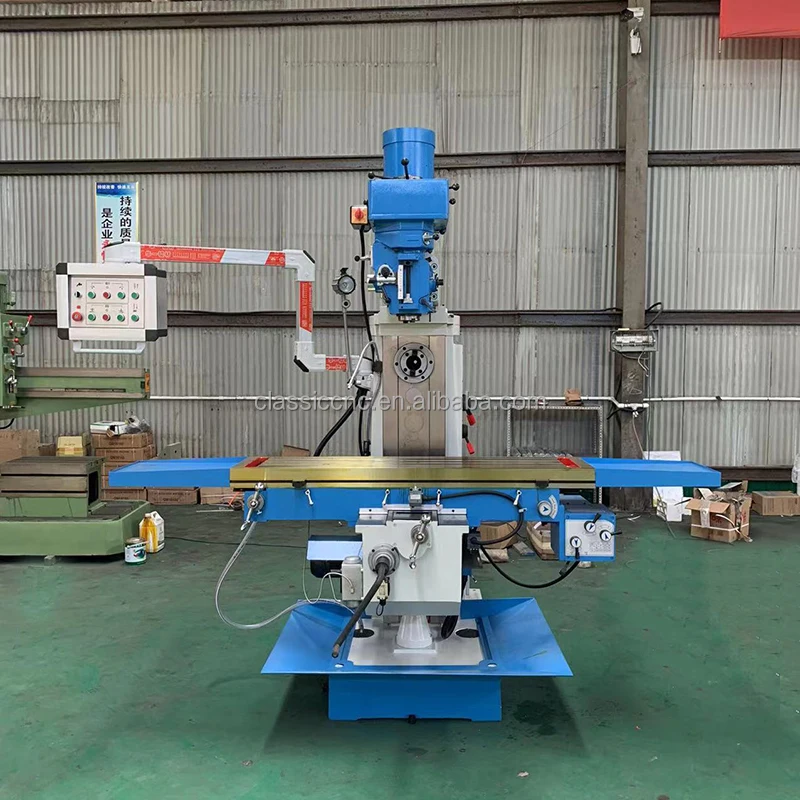

Factory Direct Sale X6330 Horizontal Milling Machine For Metal Industry
- Category: >>>
- Supplier: Shandong Classic Machine Tool Co. Ltd.
Share on (1600906198490):
Product Overview
Description
Product Description
Product Application
The milling machine is a kind of universal light duty metal cutting machine,Has two functions of vertical and horizontal milling,Milling medium, small parts of the plane, inclined plane, groove and spline etc.. Widely used in mechanical processing, mold,equipment, instrumentation and other industries.
The milling machine is a kind of universal light duty metal cutting machine,Has two functions of vertical and horizontal milling,Milling medium, small parts of the plane, inclined plane, groove and spline etc.. Widely used in mechanical processing, mold,equipment, instrumentation and other industries.
Product main technical parameters:
Specifications | Units | X6330 |

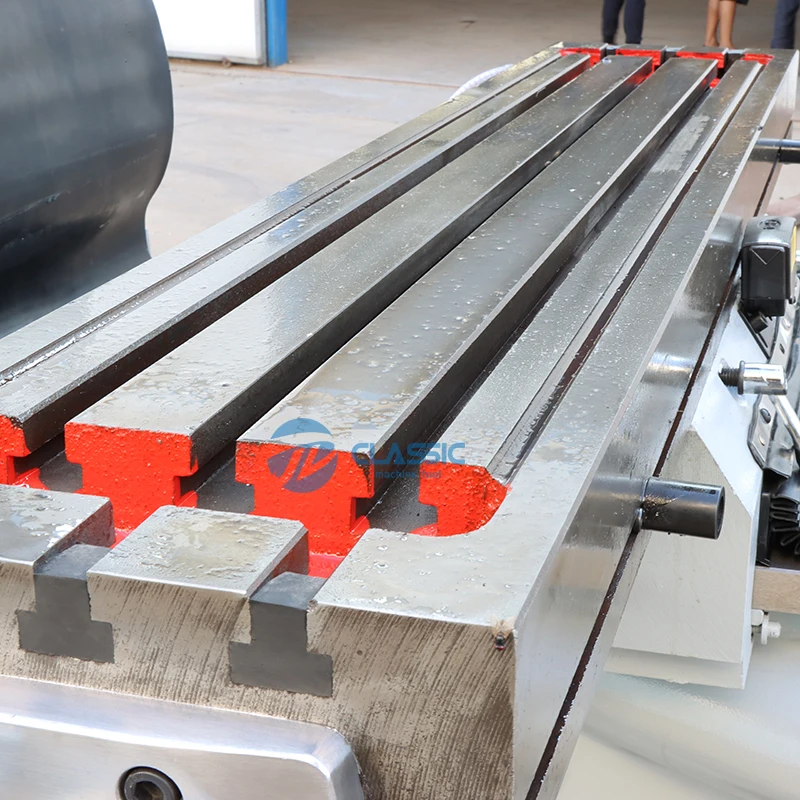

Table size | mm | 1370x305(12”x54”) |
Table travel | mm | 810/ 400 /400 |
T slot(number-width-pitch) | mm | 3-16-65 |
Spindle taper | (V) R8/ISO40 (H) ISO400 | |
Spindle speed range | rpm | (V) ）50HZ:65-4500 60HZ:80-5440 （16 steps） (H) 45-1350（12steps） |
（optional）（variable）65-4000 | ||
Spindle travel | mm | 127 |
Spindle feed range | mm | 0.04,0.08,0.15 (3 steps) |
Distance between spindle nose and table surface | mm | 90-510 |
Distance between spindle axis and table surface | mm | 120-520 |
Main motor power | kw | 2.2(V)3(H) |

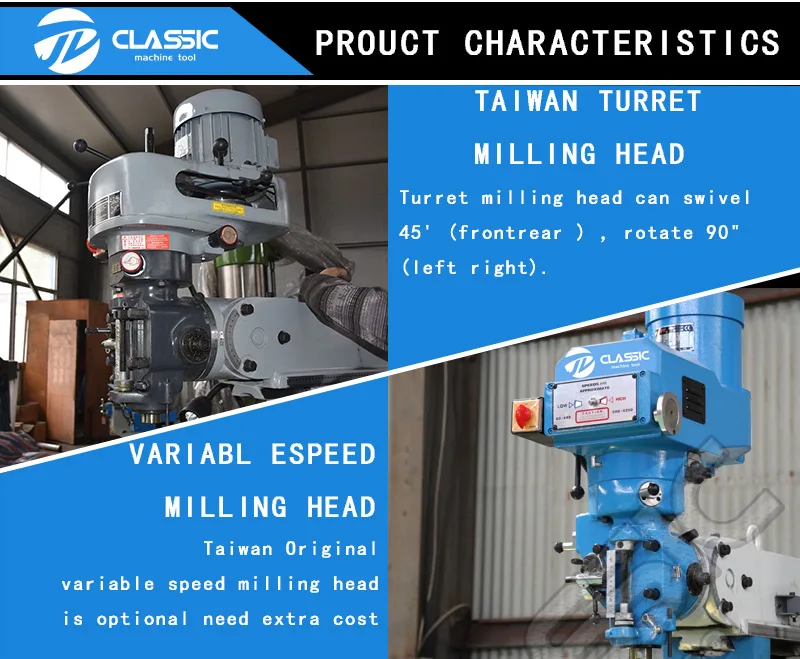

Head rotation (left - right ) | ° | ±90° |
Head rotation (front - rear) | ° | ±45° |
Weight | kg | 1600 |
Overall dimension | mm | 1550x1650x2250 |

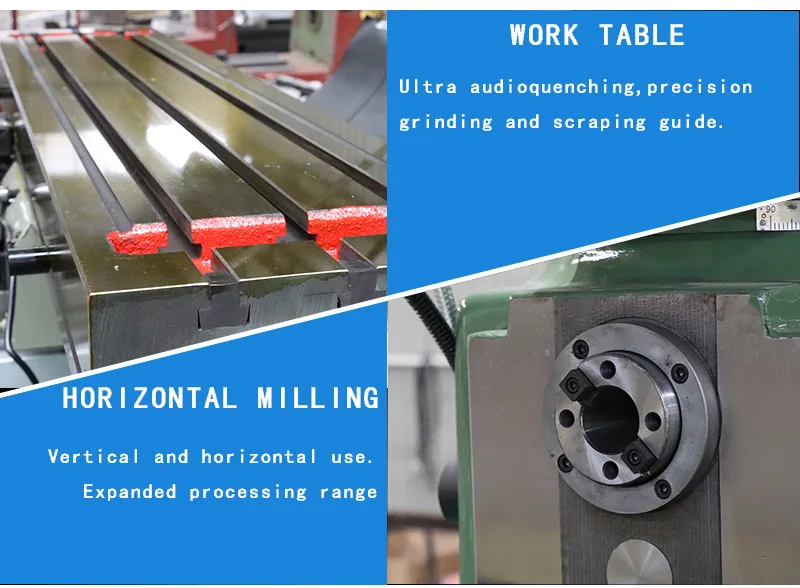

Detailed Images
Recommend Products
Company Introduction
Packing&Shipping
FAQ
1. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.
2. What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.
3.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.
2. What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.
3.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films
