Easy To Use Automatic Drinking Water Bottle Heat PVC Label Applicator Shrink Sleeve Wrap Labeling Machine
- Category: >>>
- Supplier: Zhangjiagang Jiede Machinery Co. Ltd.
Share on (1600906209609):
Product Overview
Description
Products Description
Product Characteristics
Facility character:
1.Whole machine a great quantity of stainless steel and good-quality ulminium alloy ,reasonable fracture、 compact，convenient to adjust；
2.Shrinkage film volume label rack, match with adjustable device, convenient to adjust according to differ volume label 5″~10″paper tube.
3.Simply installation, then can convenient for square and round bottle. No need of instrument, rotary mechanism is convenient to adjust, apply to differ bottle type.

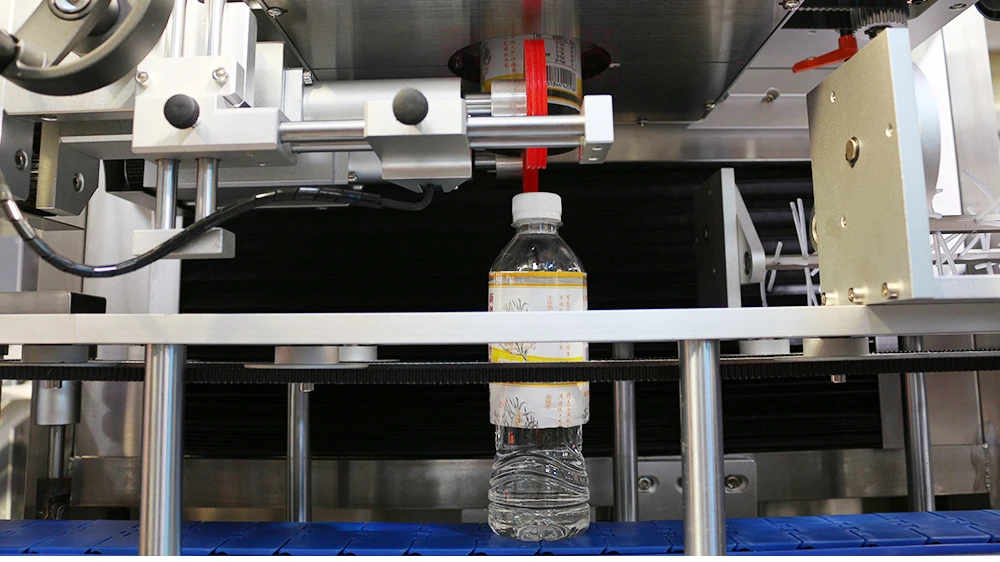

4.Unique sleeve labeling method, adopt to pressing sleeve labeling method, not only convenient but also reasonable.
5.Auto controlling feeding system, level-off shrinkage film materials and regulate/adjust strain simultaneity. Unique design knife plate, within specification scope, can avoid changing knife base, knife changing is quick and conveniently.
6.Mold changing is more quick, no need any instrument. Label location system, can promote and demote in-phase adjust location according to specific bottle type requirement.
7.Adopt to Japanese import servo system and high-sensitivity photoelectric, label cutting precision is highly.
1.Whole machine a great quantity of stainless steel and good-quality ulminium alloy ,reasonable fracture、 compact，convenient to adjust；
2.Shrinkage film volume label rack, match with adjustable device, convenient to adjust according to differ volume label 5″~10″paper tube.
3.Simply installation, then can convenient for square and round bottle. No need of instrument, rotary mechanism is convenient to adjust, apply to differ bottle type.
4.Unique sleeve labeling method, adopt to pressing sleeve labeling method, not only convenient but also reasonable.
5.Auto controlling feeding system, level-off shrinkage film materials and regulate/adjust strain simultaneity. Unique design knife plate, within specification scope, can avoid changing knife base, knife changing is quick and conveniently.
6.Mold changing is more quick, no need any instrument. Label location system, can promote and demote in-phase adjust location according to specific bottle type requirement.
7.Adopt to Japanese import servo system and high-sensitivity photoelectric, label cutting precision is highly.

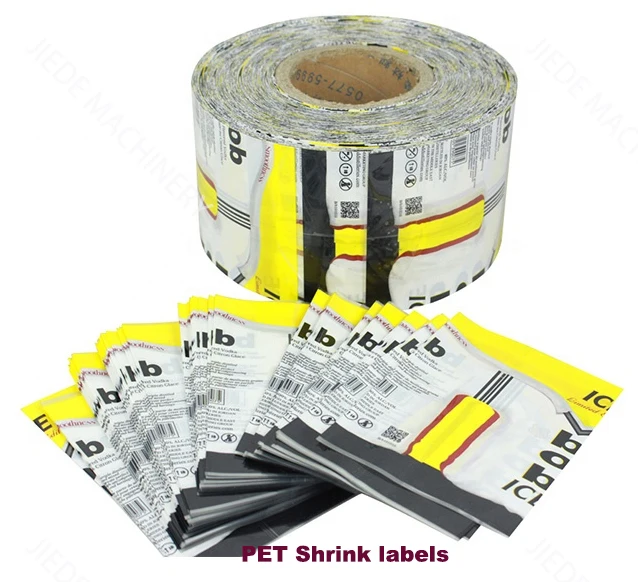

The picture above shows the package and finished product

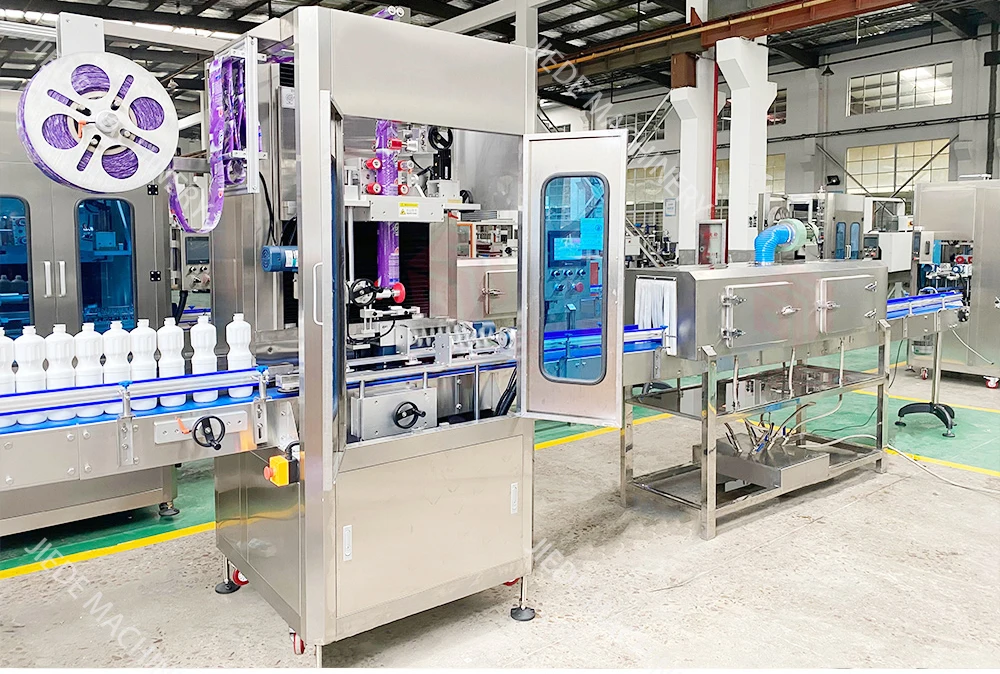

(1) JIEDE-series Sleeve Labeling Machine is custom built to meet the exacting demands of manufacturers and suppliers. It can be used stand alone or integrated in-line and matching filling equipment speeds.
(2) It is built upon a framework of seam welded, food grade stainless steel section. This solid foundation keeps movement and vibration to an absolute minimum to ensure consistent, accurate labeling.
(3) Unit cutter head plane design in China which apply to the container of ∮30 mm—∮130 mm. you never need to change or debug it.It also has unique light touch human-machine screen,that means,auto search original location as well as safety and convenience which is ahead of other congener products.
(4) Double shrinking label feed plane, reasonable height which is convenience to fix the label; micro-computer auto figure which avoid enactment and adjustment. you only need to press it lightly ,the label will detect and locate automatically.The change of label is quick and convenience, besides,the cut place is absolutely exact.
(2) It is built upon a framework of seam welded, food grade stainless steel section. This solid foundation keeps movement and vibration to an absolute minimum to ensure consistent, accurate labeling.
(3) Unit cutter head plane design in China which apply to the container of ∮30 mm—∮130 mm. you never need to change or debug it.It also has unique light touch human-machine screen,that means,auto search original location as well as safety and convenience which is ahead of other congener products.
(4) Double shrinking label feed plane, reasonable height which is convenience to fix the label; micro-computer auto figure which avoid enactment and adjustment. you only need to press it lightly ,the label will detect and locate automatically.The change of label is quick and convenience, besides,the cut place is absolutely exact.

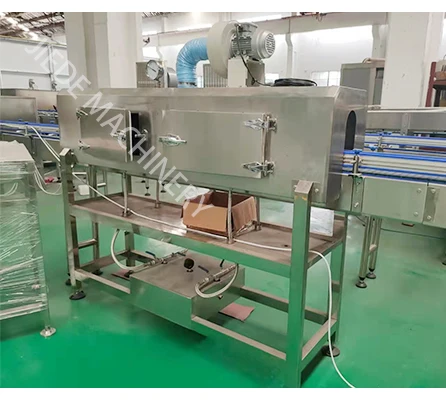

Tunnel provides the support for making hot sleeves which can be readily wrapped on products or containers. The tunnels are
available with different mechanisms which can be chosen based on the wrapping material and its compatibility with the type of heat
produced inside the tunnel. Consumers can choose hot steam tunnel or electric heat tunnels as per the labeling material texture
and compatibility.

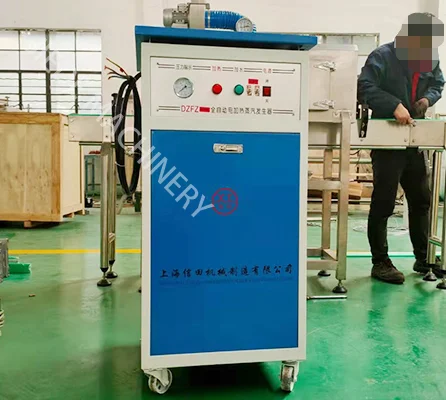

Steam Generator
1. Small electric thermo steam bolier fracure compact and small cube, machine inner set auto water replenishing bump, and set auto
water-level controlling, pressure controlling, can work continually.
2. Bolier water cubage low 30 litre, evoid complex annual YSR
3. Boiler water volume is small, working pressure is highly,
water-level controlling, pressure controlling, can work continually.
2. Bolier water cubage low 30 litre, evoid complex annual YSR
3. Boiler water volume is small, working pressure is highly,
PLC Control System
It is the control center of this machine. Each operation display page is divided into manual, automatic, setting, abnormal display, etc. In addition, there are several auxiliary knobs, which are used to operate the labeling operation.

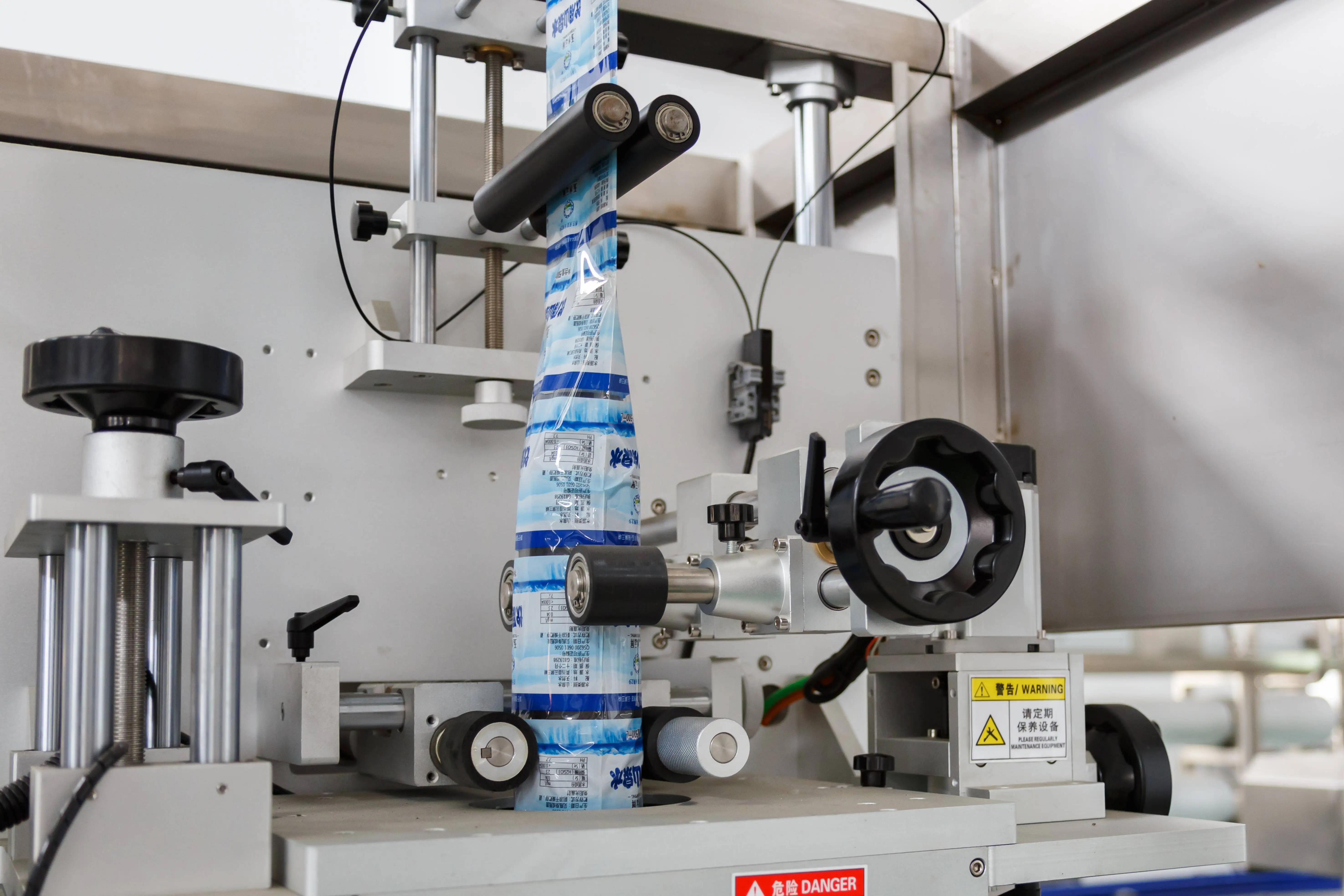

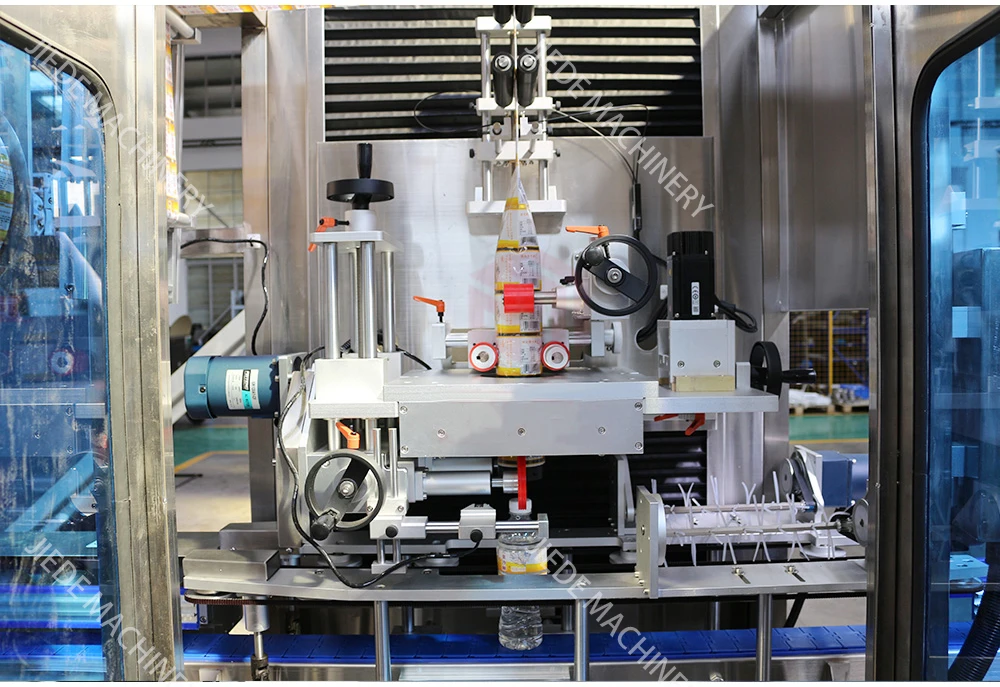

Center column
Put the label film material in and open, so that the film material can be conveyed and cut. The whole machine is made of aluminum alloy with anode treatment and 304 stainless steel material, used to support the host and fix the conveyor belt.

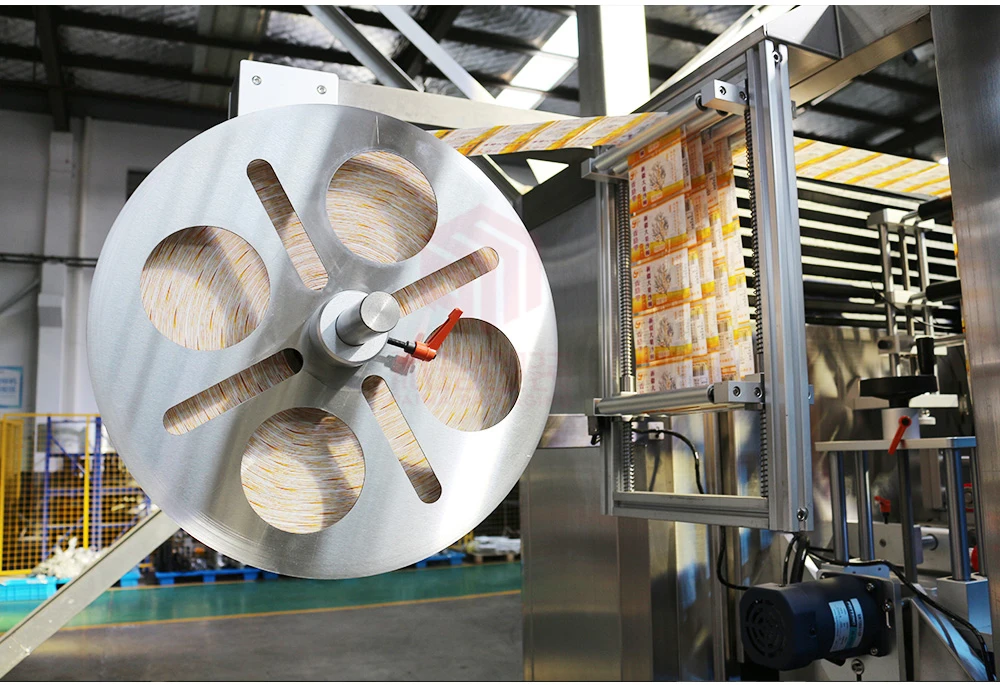

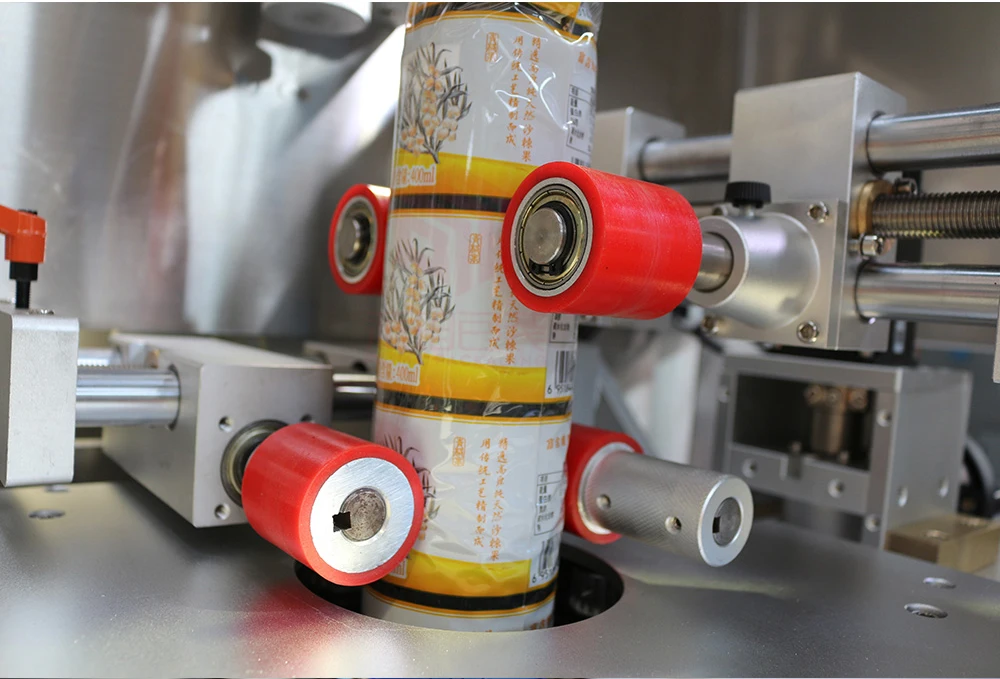

Feeder Group
It is composed of a feeder box that controls the tension of the label feeding and a feeder rack above the electric eye rack group where the label is turned and positioned to convey the label film material.
Cutter set
Built-in blade, planetary pairing method and deflection crankshaft-type steel structure to cut the shrink film.
Electric box
Use well-known brand electrical components, such as Siemens, Schneider, Mitsubishi, ABB etc.

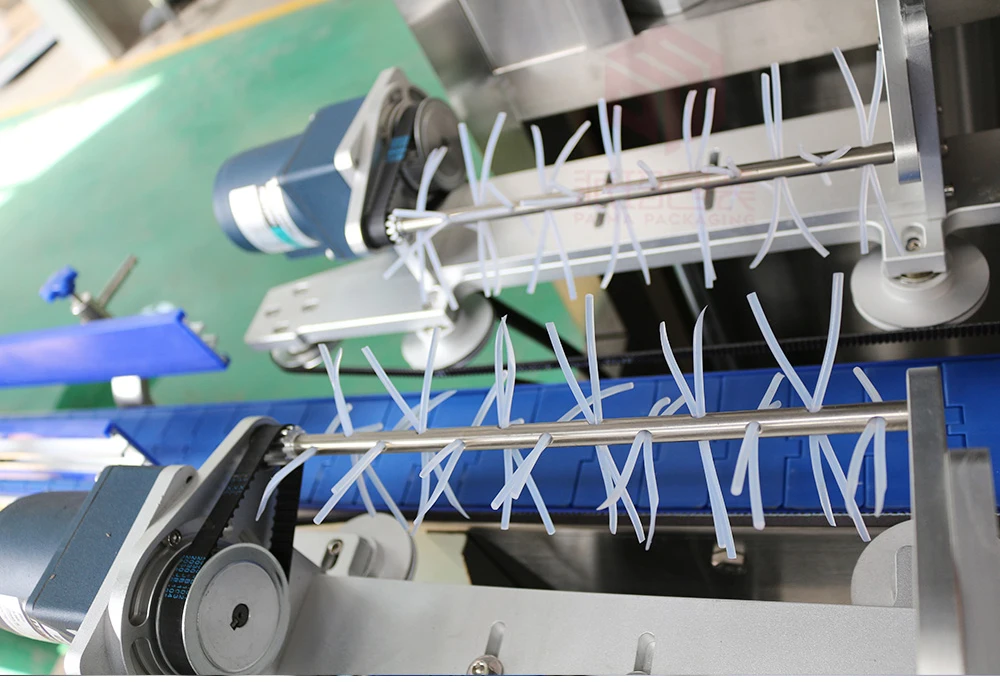

Conveyor Belt
Use the frequency converter to adjust the conveyor belt speed to match the speed suitable for the production capacity.
Technical Parameter | ||||||||
Model | PM-150 | PM-250 | PM-250D (Double Heads) | PM-300 | ||||
Capacity (On the base label length :500ml) | 150bottles /min | 250bottles /min | 250bottles/min | 300 bottles/min | ||||
Label heights | 30~250mm | 30~250mm | 28~250mm | 28~250mm | ||||
Bottle diameter | 28~125mm | |||||||
Thickness of label | 0.03~0.13 mm | 0.03~0.13 mm | 0.03~0.13 mm | 0.03~0.13 mm | ||||

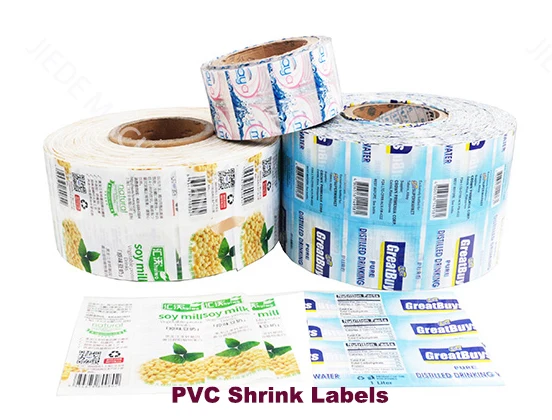

Label material | PVC/ PET | |||||||
Machine weight | 550KG | 600KG | 950kg | 950kg | ||||
Overall machine size (mm) | 2100x850x2100 | 2100x850x2100 | 2100x850x2100 | 2100x850x2100 | ||||
Why Choose Us
Cooperation Partners
We have many cooperation partners over the world,such as Mitsubishi,SIEMENS,Schneider OMRON, FESTO and so on.Product quality assurance is our biggest pursuit.
Company Customer
We have been producing our goods with mature technique and first-class quality. Our products are not only marketed inland, but also exported to all over the world, Such as: Africa, Mid East, South Asia, South America. We believe
truthfulness,conscientiousness, enterprising spirit, continuous improvement and creativeness in running business, which helps our finest products enter the market.
truthfulness,conscientiousness, enterprising spirit, continuous improvement and creativeness in running business, which helps our finest products enter the market.
Packing & Delivery
Our Advantage & Service
FAQ
Q1: What is your company’s main products?
A:Filling Machine, Canned Food Production Line, Palletizers, Sterilizers, Labeling Machine ,Capping Machine,Case Packer,Conveyor etc.If this is not the machine you want, please visit our other machines.
Q2:Are you manufacturer or trading company?
A:We are manufacturers and we have our excellent service team all over the world.We offer excellent after-sales service.
Q3:Where are you located? Is it convenient to visit you?
A:We are located in Shanghai. Traffic is very convenient.
Q4:How can you guarantee quality?
1.We are Alibaba Gold Enterprise.We have completed working system and procedures and we follow them very strictly.
2.Our different worker is responsible for different working process, their work is confirmed,and will always operate this process, so very experienced.
3.The electrical pneumatic components are from the world famous companies,such as Germany's Siemens, Japanese Panasonic etc.
4.We will do strict test running after the machine is finished.
5.Our machines are certified by CE etc.
Q5: Can you design the machine according to our requirements?
A:Yes. We not only can customize the machine according to your technical drawing, but also can
make new machine according to your requirements.
Q6: Can you offer overseas technical support?
A:Yes. We can send engineer to your company to set the machine and train your worker if needed.
Q7: Why our customers trust and choose us?
1.Manufacturer
2.We have stocks
3.Delivery fast
4.Senior engineer
5.Competitive price
6.High quality
7.Strict Quality Control
8.Over 10 years experience
9.Provide Test
10.Varity of goods
11.Excellent after-sales services
12.Advanced machinery and equipment
Q8:If you will send a inquiry, what we should know:
1. what's your product?
2. what's your product size? like diameter and height?
3. how many pcs do you want to process each hour?
4. what's the sterilization time and temperature?
5. what's the cooling temperature you need?
A:Filling Machine, Canned Food Production Line, Palletizers, Sterilizers, Labeling Machine ,Capping Machine,Case Packer,Conveyor etc.If this is not the machine you want, please visit our other machines.
Q2:Are you manufacturer or trading company?
A:We are manufacturers and we have our excellent service team all over the world.We offer excellent after-sales service.
Q3:Where are you located? Is it convenient to visit you?
A:We are located in Shanghai. Traffic is very convenient.
Q4:How can you guarantee quality?
1.We are Alibaba Gold Enterprise.We have completed working system and procedures and we follow them very strictly.
2.Our different worker is responsible for different working process, their work is confirmed,and will always operate this process, so very experienced.
3.The electrical pneumatic components are from the world famous companies,such as Germany's Siemens, Japanese Panasonic etc.
4.We will do strict test running after the machine is finished.
5.Our machines are certified by CE etc.
Q5: Can you design the machine according to our requirements?
A:Yes. We not only can customize the machine according to your technical drawing, but also can
make new machine according to your requirements.
Q6: Can you offer overseas technical support?
A:Yes. We can send engineer to your company to set the machine and train your worker if needed.
Q7: Why our customers trust and choose us?
1.Manufacturer
2.We have stocks
3.Delivery fast
4.Senior engineer
5.Competitive price
6.High quality
7.Strict Quality Control
8.Over 10 years experience
9.Provide Test
10.Varity of goods
11.Excellent after-sales services
12.Advanced machinery and equipment
Q8:If you will send a inquiry, what we should know:
1. what's your product?
2. what's your product size? like diameter and height?
3. how many pcs do you want to process each hour?
4. what's the sterilization time and temperature?
5. what's the cooling temperature you need?
