EW 08A fully automatic 6mm2 wire cutting stripping and bending machine copper wire bending machinery
- Category: >>>
- Supplier: Wenzhou East World Import&Export Co. Ltd.
Share on (1600906219673):
Product Overview
Description
Products Description

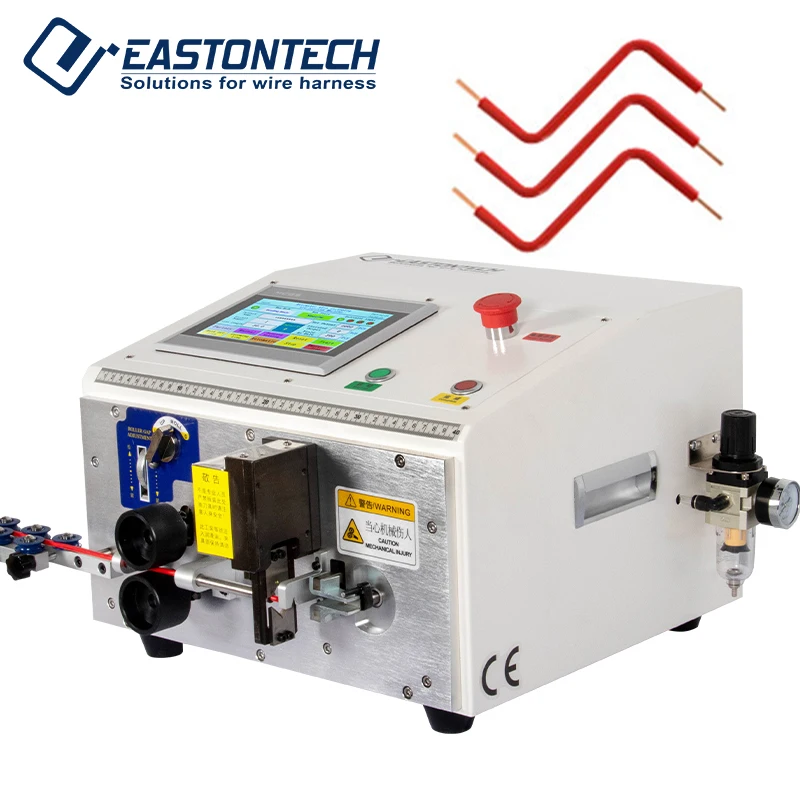

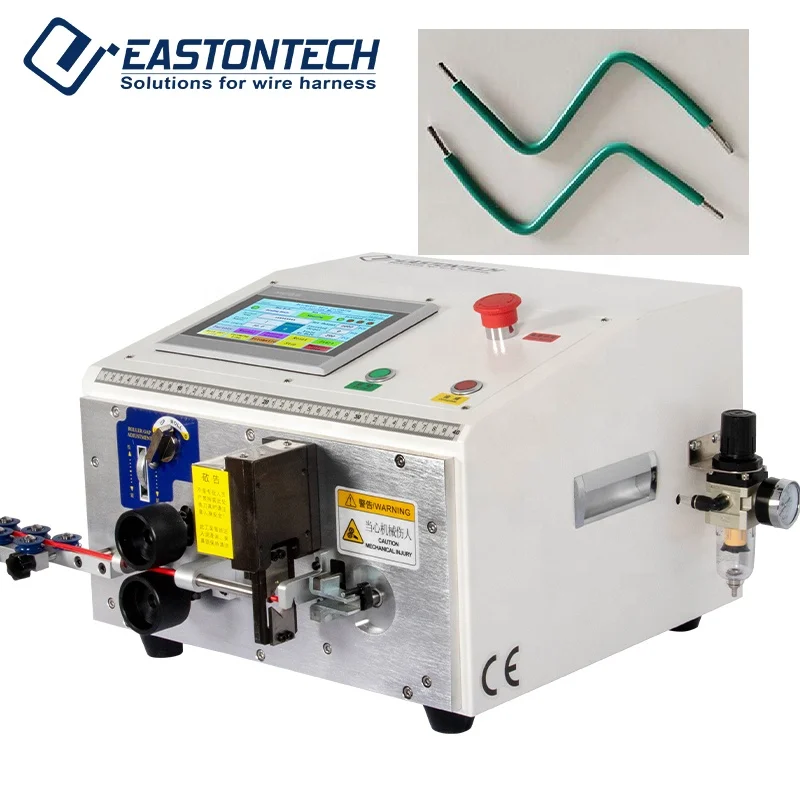

EW-08A Wire Stripping & Bending Machine (1-6mm2)
The high performance wire cutting stripping and bending machine can process a wide range of wires and cables. It can not only strip both ends of the wire, but also bend the wire into your requested angle.
Features:
√ The outlet wheel also has the function of automatic liting. The outlet wheel can atomaically lift up to avoid when the wire is stripped. Therefore, the stripping length range of the wire head is greatly increased.
√ The color touch screen operation interface, the parameters are intuitive and easy to understand, you can quickly operate the machine with simple training.
√ It can be equipped with branching jigs, cutting jigs, and inkjet printers.
Product Paramenters
Model | EW-08A |
Wire range | 1-6mm2 |
Stripping length | 0.1-50mm |
Length accuracy | ±(0.2*L)mm |
Productivity | 800-1500pcs/hour |
Noise level | <70dBA |
Electrical connection | AC 220/110V 50/60HZ 350W |
Program save | 200 |
Bending shape | 0-180 degrees |
Machine dimension | 430*380*300mm |
Weight | 35kg |
Number of bending sections | 10 |

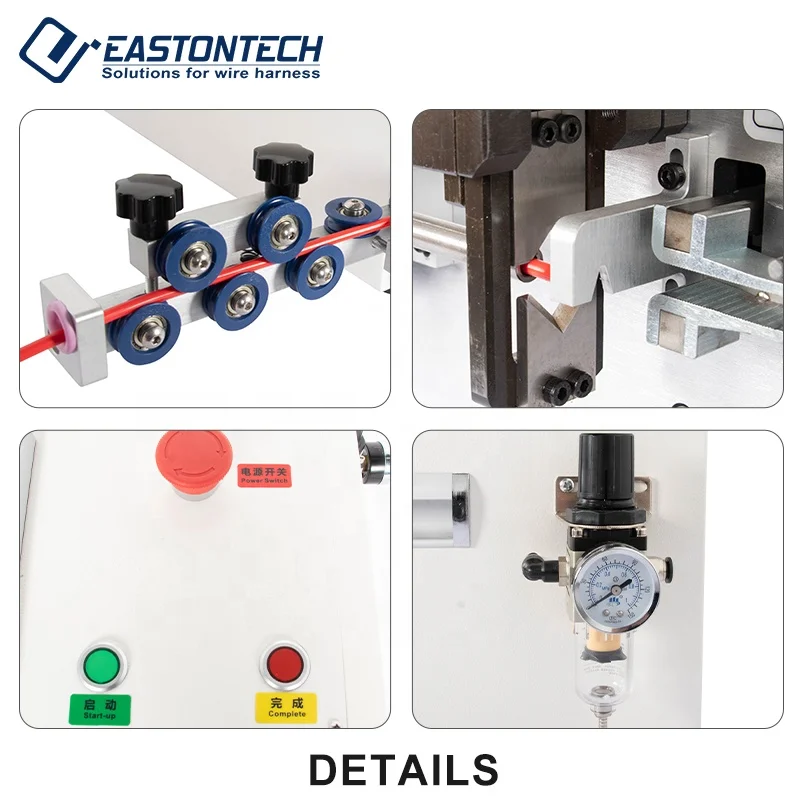

Details Images
LCD Screen
200 groups of program memory functions are provided, and the processing parameters of diferent wires can be stored in diferent program numbers.
2-Wheel Driving
Bilateral pressing wheels, strong power and high precision. The belt feeding system can ensure that the wire surface is not damaged.
Feed Rollers
The linkage motor controls the bending shaft to determine the bending angle and distance of the wire rod, and can be adjusted at any angle of 0-180 degrees.

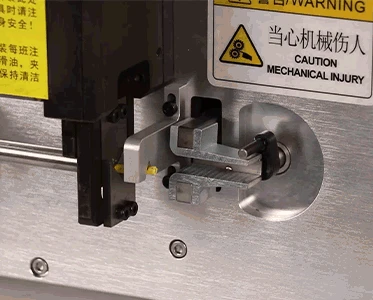

Steady Blades
Tungsten steel material is selected, it has good rigidity, which helps to improve the stability and durability of the blade. Capable of withstanding high temperature, high pressure and high-speed loads in high-speed rotating working environments.

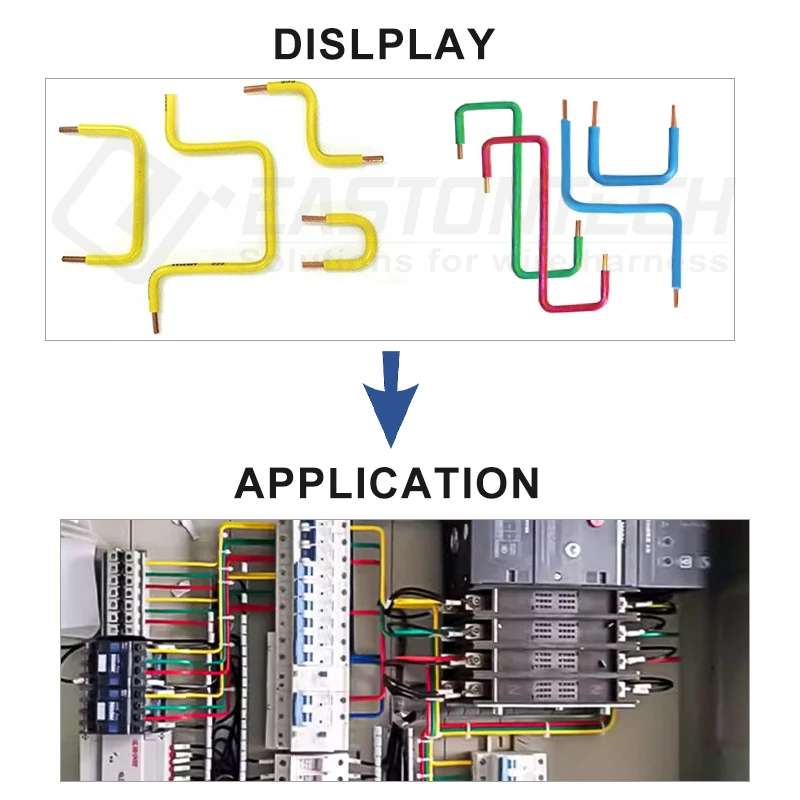

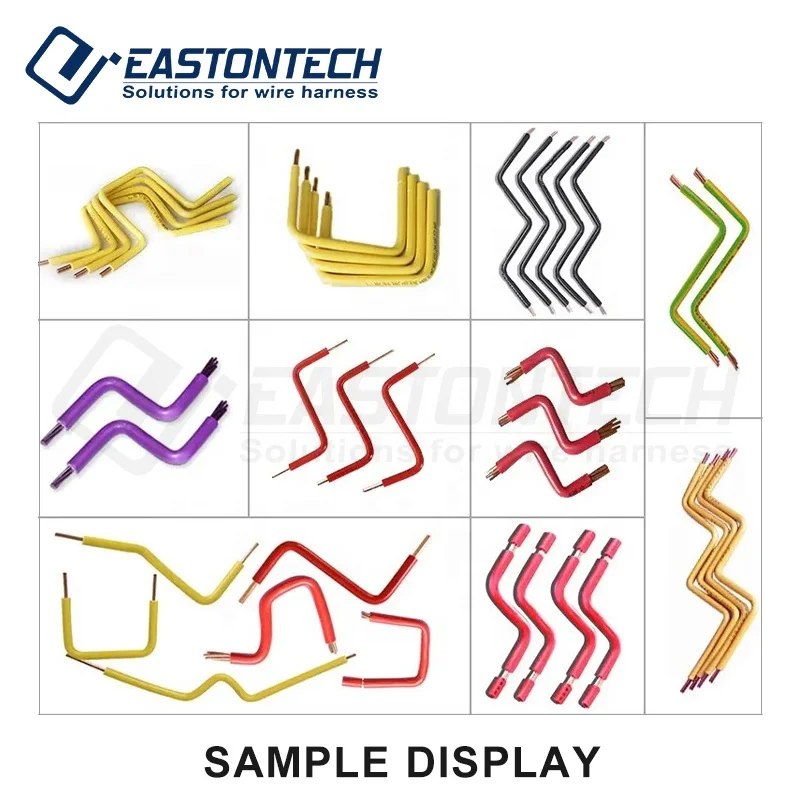

Application
Recommend Products

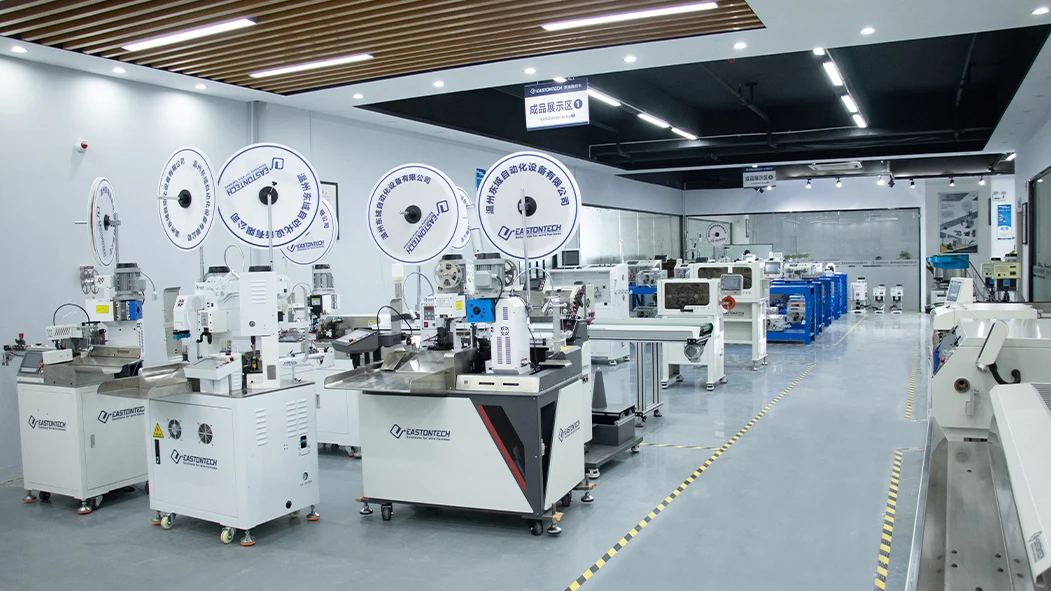

Company Profile
