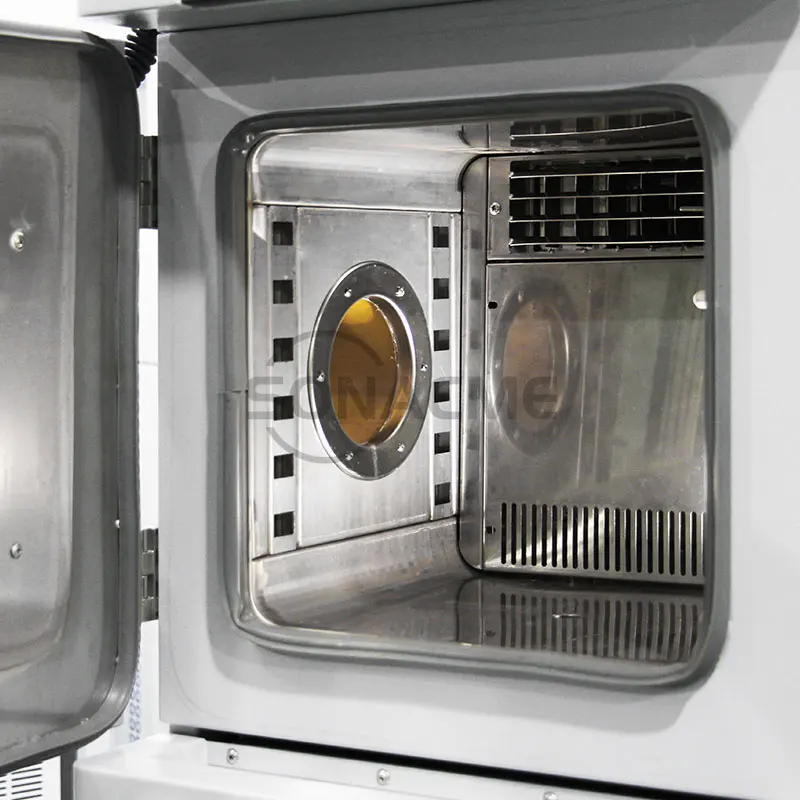

Benchtop Mini Small Constant High Low Environmental Climatic Chamber Temperature And Humidity Test Chamber
- Category: >>>
- Supplier: Sonacme Technology (Guangdong) Co. Ltd.
Share on (1600906235124):
Product Overview
Description

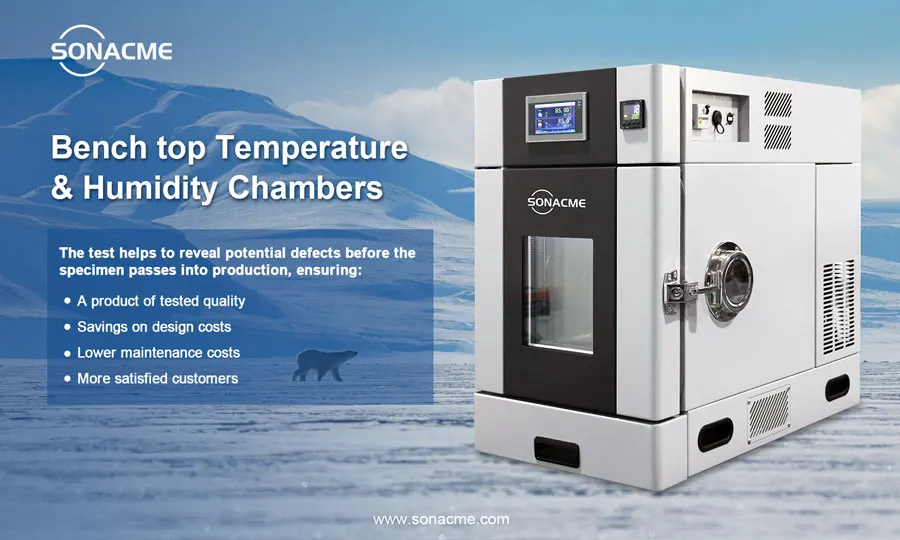

Benchtop Mini Small Constant High Low Environmental Climatic Chamber Temperature And Humidity Test Chamber
Sonacme Bench-Top Temperature And Humidity Chamber is very suitable for temperature and humidity testing of small samples and specimens used for research, development and quality control. Daily necessities, cosmetics, electronic components, and medical products must meet certain quality standards and testing specifications.
Perform temperature testing in the smallest space.
Product functionality and usability are guaranteed in the early stages of the R&D laboratory. Limited laboratory space and the need to test small samples directly in the workplace require compact, mobile and quiet instruments.
Perform temperature testing in the smallest space.
Product functionality and usability are guaranteed in the early stages of the R&D laboratory. Limited laboratory space and the need to test small samples directly in the workplace require compact, mobile and quiet instruments.
Products Description

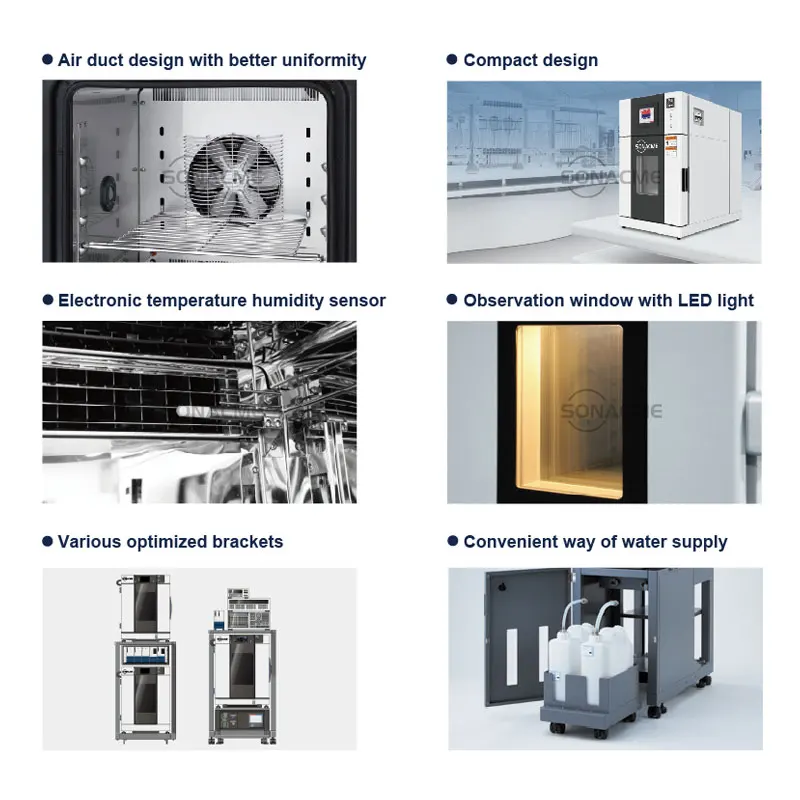

Air duct design with better uniformity
The temperature and humidity control air duct is designed with double air duct, which is connected with the chamber but isolated, the air path is in the form of upper air outlet and lower return air.
Compact design
The structure is small and lightweight, and can
even be placed on a table.
-40 ~ 150℃ temperature range,
Humidity range from 30% to 95%rh.
even be placed on a table.
-40 ~ 150℃ temperature range,
Humidity range from 30% to 95%rh.
Electronic temperature humidity sensor
Adopt VAISALA electronic humidity sensor imported from Finland; its humidity resolution can reach 0.01%rh. No need to change wet cloth, avoid adding tedious work.
Various optimized brackets
The chambers are equipped with casters, you can use the stand (option) to arrange your equipment and save space by stacking the chambers and
moving them when necessary.
moving them when necessary.
Water tank
Equipped with automatic water
replenishment system, double-layer filter device, new structure design, high
efficiency and low water consumption.
replenishment system, double-layer filter device, new structure design, high
efficiency and low water consumption.
Product Paramenters
Model | ST/22/40(H) | ||||||
System | Balance temperature and humidity control system(BTHC) | ||||||
Volume | 22L | ||||||
Load capacity | 20KG | ||||||
Inner dimension W×H×D mm | 300×300×250 | ||||||
External dimension W×H×D mm | 440×740×780 | ||||||
Temperature Performance | Temperature range | -40～＋150℃ | |||||
Temperature fluctuation | ±0.3°C | ||||||
Temperatrue unifomity | 2.5°C | ||||||
Temperature change rate | Heating rate：3.0°C/min Cooling rate：1.0°C/min | ||||||
Extreme temperature arrival time | Heating time：from -40 ＋150℃ 60 min Cooling rate：+20 to -40°C 50 min | ||||||
Allowable heat load | Temperature of test area+20°C ， 300 W | ||||||
Humidity performance | Humidity range | 30～95%rh | |||||
Humidity fluctuation | ±3.0%rh | ||||||
Allowable heat load | Test area conditions：+85℃ / 85%rh 300W | ||||||
Strcurure | External material | 1.5mm thick FC advanced electrolytic plate + spray anti-corrosion | |||||
Internal material | 1.2mm thick SUS304 stainless steel | ||||||
Water supply system (standard configuration) | Automatic water supply | ||||||
Water tank(Optional) | 8 L | ||||||
Refrigerantion system | Mechanical single-stage compression cooling | ||||||
Compressor | Full-Closed Compressor | ||||||
Refrigerant | R-404A [R-449A available on request] | ||||||
Power | 0.65 kW | ||||||
Extension mechanism | Electronic expansion valve | ||||||
Noise level | Noise level | 60dB | |||||

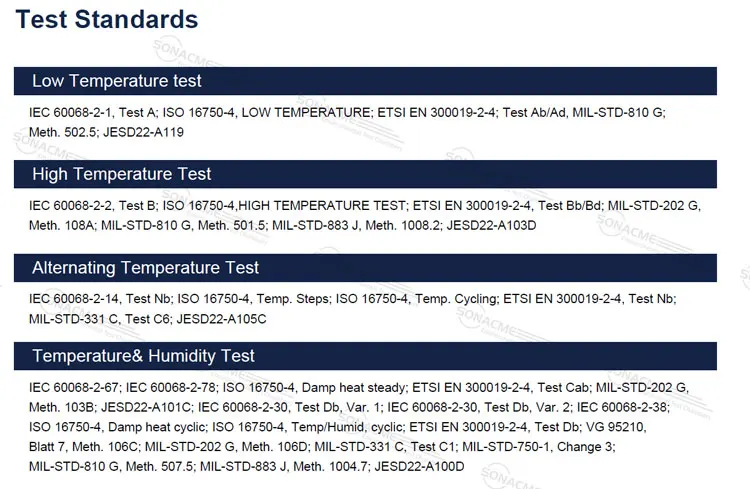

*1 Performance values based on IEC60068-3-5:2001 and IEC60068-3-6:2001；Performance data is given at an ambient temperature of +23°C, relative humidity of 65±20%rh, rated voltage and no samples in the test area.
*2 when the ambient temperature is + 23 ℃.
*3 200V AC is provided with or without NEC specification.
*4 Conform to CE mark or UKCA mark.
*5 the measurement shall be conducted in an anechoic chamber 1.2m from the floor and 1m from the front panel of the darkroom (ISO 1996-1:2003_a-weighted sound pressure level).
*2 when the ambient temperature is + 23 ℃.
*3 200V AC is provided with or without NEC specification.
*4 Conform to CE mark or UKCA mark.
*5 the measurement shall be conducted in an anechoic chamber 1.2m from the floor and 1m from the front panel of the darkroom (ISO 1996-1:2003_a-weighted sound pressure level).
